XB-70 Guy said:
Correction: White successfully encapsulated himself but made a very hard landing because only two of three 'chutes deployed and the ablative bladder wasn't as advertised. His resulting back injury was severe enough to end his flying career (couldn't pass a physical). He said, as far as he knew, co-pilot Cross didn't do anything to save himself - didn't begin the first step to encapsulate. -Steve Pace (two B-70 books, two B-70 articles)

You know, what I had always heard was that when the seat moved into the capsule his elbow was too far out and got trapped when the hood closed. The ejection sequence was not completely automatic and he had to pull the handles after being inside the capsule, which meant he had to free his elbow or he could lose his arm in the ejection. He did, and then successfully ejected. The airbag for landing, I thought, had to be triggered manually (seems like an oversight in design there?) and with all the drama, confusion and disorientation Al White didn't perform that step. That, plus the failure of one of the 'chutes meant he landed so hard his rear formed an impression in the seat, resulting in the injuries described above.

Later analysis showed that for whatever reason, Major Cross waited too long to initiate escape. The spin had built up g-forces to the extent that they exceeded the ability of the retraction mechanism to pull the seat into his capsule, tragically resulting in his being trapped in the aircraft and lost.

Come to think of it, these accounts aren't inconsistent.

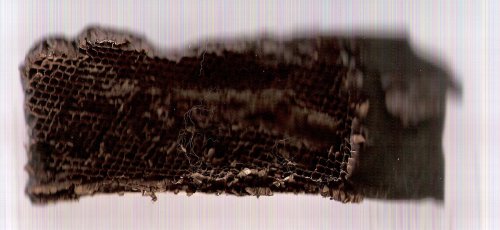

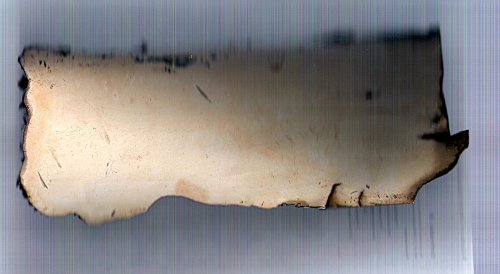

A piece of XB-70A number two that I found at the crash site in the summer of 1990.


Attachments

  • piece of XB-70A number two-top-small.jpg
    piece of XB-70A number two-top-small.jpg
    127.6 KB · Views: 494
  • piece of XB-70A number two-bottom-small.jpg
    piece of XB-70A number two-bottom-small.jpg
    119.7 KB · Views: 494
Great find. Was the honeycomb used all over the airplane, or only in specific areas?

JohnR said:
How did the escape capsule work - in particular how did it avoid dismembering the crew member? How similar was the ejection capsule on the F111?

I have always been haunted by the story in the early to mid eighties of the RAF Lighting pilot being when the guillotine on his ejection seat misfired and instead of cutting his seat straps took his head off.

Regards.

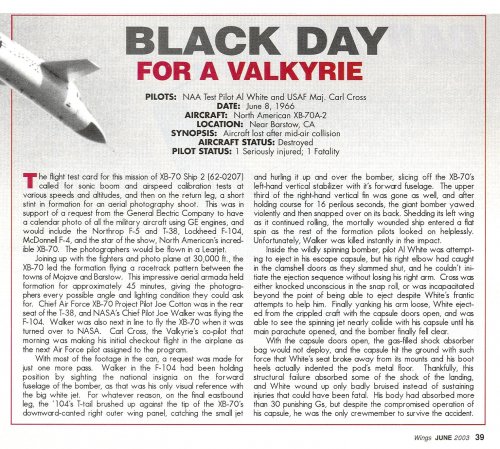

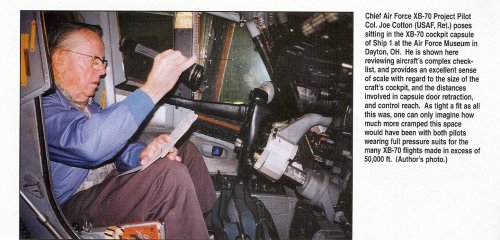

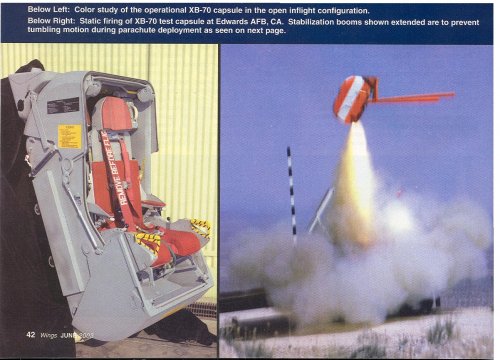

Additional info here


Attachments

  • Escanear0001.jpg
    580.1 KB · Views: 473
  • Escanear0002.jpg
    321.1 KB · Views: 486
  • Escanear0003.jpg
    458.8 KB · Views: 487
Check this out.
http://sobchak.wordpress.com/2009/12/16/cutaway-north-american-xb-70-valkyrie/


Attachments

  • xb70cutaway.jpg
    602.4 KB · Views: 535
Plz check page #6.
http://www.nasa.gov/centers/dryden/pdf/87763main_H-554.pdf

Edwards AFB was a great place to be in 1966 when I was assigned there as a junior flight test engineer for McAir: lifting body "flights", XV-15 landings, XC-142 hovers, YF-12 engine starts (more impressive than you'd think), a crash every other month. (The crash discussed above had occurred a few months before my arrival.) The XB-70 made an impression, too. The first time I saw it was from afar one evening, with it parked in a hangar. It didn't look very big, since it was proportioned like a fighter, nobody was around it, and the hangar turned out to be very, very big. A month or so later, I got to walk up close to it at an Edwards open house, and it turned out to be huge. I vaguely remember that I could reach up and just barely touch the belly.

The survivor was flying one day when I was driving in, with a new pilot being checked out. On this particular flight, he was doing touch and goes on the big Edwards runway. What made it more impressive was that there was a B-58 piloted by one of the B-70 pilots flying close chase on the inside of the closed circuits, not touching down.

RAJ47 said:
Plz check page #6.
http://www.nasa.gov/centers/dryden/pdf/87763main_H-554.pdf

Very interesting paper - thanks. But apart from explaining that the 4 outer segments (2 on each wing) were attached to the folding portion of the wing and explaining mathematical expressions for the various factors measured, I can't see where it explains the reason for multiply segmented nature of the elevons.

Cheers, Woody

Any info on this for the XB-70 program? I understand there was similar artwork for the Rapier...


Attachments

  • Valkyrie artwork-small.jpg
    Valkyrie artwork-small.jpg
    318.3 KB · Views: 522
Wasn't that some sort of official art having to do with revealing the aircraft's chosen nickname?

I think so. It's the depiction of a Valkyrie on her steed deciding the outcome of battle.

Al White (chief NAA XB-70 test pilot) and Walt Spivak (chief engineer NAA XB-70 program). Life images via Google.


Attachments

  • Alvin S. Al White.jpg
    Alvin S. Al White.jpg
    136.7 KB · Views: 445
  • Walt Spivak chief engineer B-70 program.jpg
    Walt Spivak chief engineer B-70 program.jpg
    105 KB · Views: 474
Art Post-1
from
-Mecanica Popular
-Wings
-Tiger of Terra by Ted Nomura
-Unknown source


Attachments

  • Escanear0001.jpg
    687.2 KB · Views: 587
Art Post-2
from
-Mecanica Popular
-Wings
-Tigers of Terra by Ted Nomura
-Unknown source


Attachments

  • Escanear0006.jpg
    712.9 KB · Views: 378
  • Escanear0005.jpg
    356.1 KB · Views: 510
  • Escanear0004.jpg
    113.2 KB · Views: 503
sirs........ the xb-70 looked like a good aircraft, but heres my question..aprox. how many 750 or 1000 lb. bombs could she carry?????????

Rudolph said:
sirs........ the xb-70 looked like a good aircraft, but heres my question..aprox. how many 750 or 1000 lb. bombs could she carry?????????

It might be an amateur's guess but I would say none. It just wasn't configured for conventional armament, and then there is the problem of conventional bombing at high supersonic cruising speeds. It just doesn't seem very practical to me.

Wouter

Rudolph said:
sirs........ the xb-70 looked like a good aircraft, but heres my question..aprox. how many 750 or 1000 lb. bombs could she carry?????????

B-70 was design to drop 14 Nuclear Bombs from high altitude of 70,000 ft (21,300 m)

Firefly 2 said:
Rudolph said:
sirs........ the xb-70 looked like a good aircraft, but heres my question..aprox. how many 750 or 1000 lb. bombs could she carry?????????

It might be an amateur's guess but I would say none. It just wasn't configured for conventional armament, and then there is the problem of conventional bombing at high supersonic cruising speeds. It just doesn't seem very practical to me.

Wouter

Other than accuracy (yeah, I know, not a minor thing) why would a conventional bomb be any harder to drop than a nuke? On the other hand, it would be a pretty expensive way to deliver unguided conventional bombs and you can't really loiter at Mach 3 so it wouldn't even be useful as a bomb truck. Now if you had a swath of targets you needed to take out in one pass (say, to break up an attack across the Taiwan Strait) it would be just the trick. 25,000lbs of SDBs dropped at Mach 3. . .

It is hard enough to get precise hit when dropped at 800km, and i imagine at that time, at mach 3 error would have been huge. Like, many many km huge.

The Russians developed a high-speed/altitude bombing capability for the MiG-25RB, and it was apparently relatively accurate. Factor in more advanced western computer systems at the time and I'd think it could've been doable. It wouldn't be anything close to precision accuracy, but if you wanted to drop a stick of Mk.84s it'd probably have been able to blow something up.

sferrin said:
Other than accuracy (yeah, I know, not a minor thing) why would a conventional bomb be any harder to drop than a nuke? On the other hand, it would be a pretty expensive way to deliver unguided conventional bombs and you can't really loiter at Mach 3 so it wouldn't even be useful as a bomb truck. Now if you had a swath of targets you needed to take out in one pass (say, to break up an attack across the Taiwan Strait) it would be just the trick. 25,000lbs of SDBs dropped at Mach 3. . .

in today time of GPS no problem
but in time of XB-70 GPS was not even a Idea
accuracy was gain true bigger nuclear warhead
even wenn it miss target for a mile it destroy that

Michel Van said:
sferrin said:
Other than accuracy (yeah, I know, not a minor thing) why would a conventional bomb be any harder to drop than a nuke? On the other hand, it would be a pretty expensive way to deliver unguided conventional bombs and you can't really loiter at Mach 3 so it wouldn't even be useful as a bomb truck. Now if you had a swath of targets you needed to take out in one pass (say, to break up an attack across the Taiwan Strait) it would be just the trick. 25,000lbs of SDBs dropped at Mach 3. . .

in today time of GPS no problem
but in time of XB-70 GPS was not even a Idea

No kidding, hence the, "Now if you had a swath of targets you needed to take out in one pass (say, to break up an attack across the Taiwan Strait) it would be just the trick. 25,000lbs of SDBs dropped at Mach 3. . ." as in TODAY. (They didn't have SDBs in the 60s last I checked.)

XB-70 Guy - I thought the Valkyrie's flew around the battlefield choosing those who performed courageously for selection into Valhalla?

bobbymike said:
XB-70 Guy - I thought the Valkyrie's flew around the battlefield choosing those who performed courageously for selection into Valhalla?
I've heard numerous definitions. They all seem appropriate. Cheers

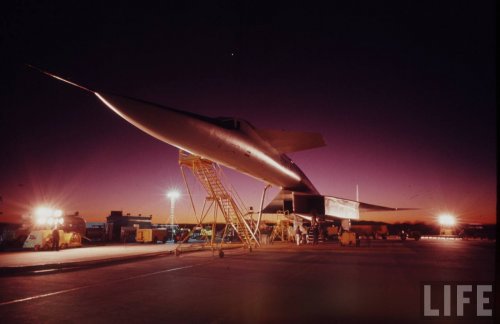

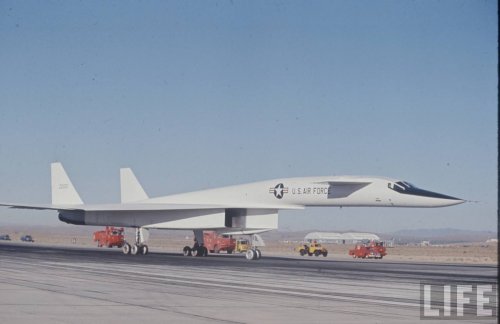

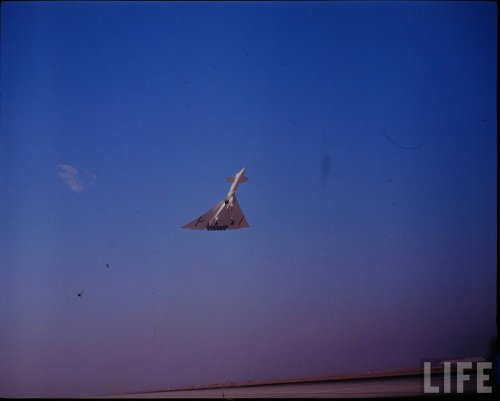

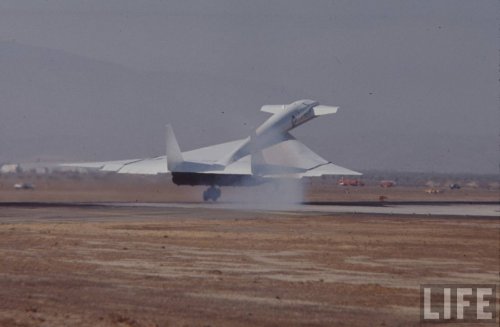

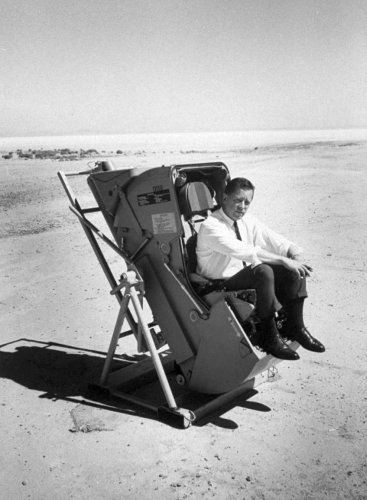

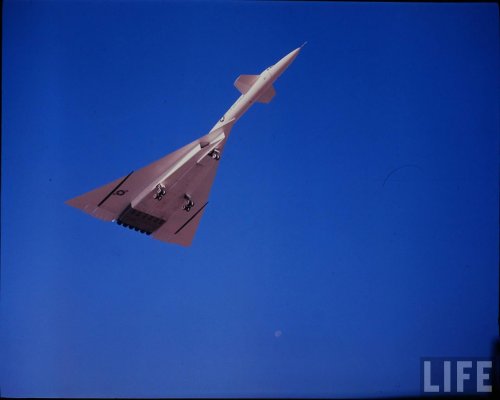

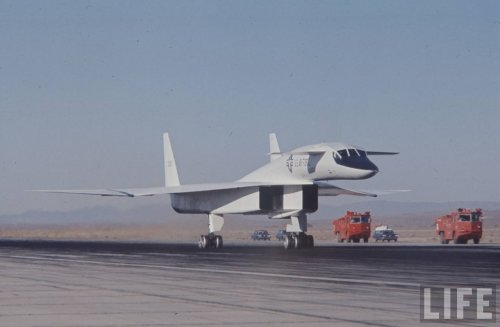

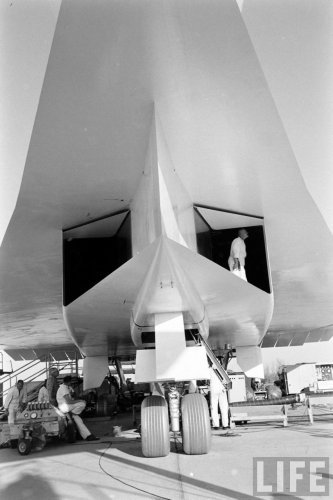

Here's some B-70 goodies from Google Life magazine.


Attachments

  • 54ca1dbd95a5f055_large.jpg
    105.3 KB · Views: 590
  • 10cbe184e11b8e08_large.jpg
    67.6 KB · Views: 564
  • 8fbd9b25a592512b_large.jpg
    61.3 KB · Views: 551
  • 8c2748c576fea1cb_large.jpg
    44.8 KB · Views: 506
  • 6dc381201cd7fce2_large.jpg
    51.8 KB · Views: 475
  • 1cb15ed28c3f2385_large.jpg
    51.9 KB · Views: 288
  • 0f09e5628b3456f3_large.jpg
    63.3 KB · Views: 281
  • f476725ab749ee64_large.jpg
    65.9 KB · Views: 301
"Meet the XB-70 Valkyrie, Almost the World’s First Nuclear Aircraft"
http://www.wired.com/dangerroom/2010/12/meet-the-xb-70-valkyrie-almost-the-world%E2%80%99s-1st-nuclear-aircraft/

XB-70 Guy said:
Any info on this for the XB-70 program? I understand there was similar artwork for the Rapier...

It's from the Boeing Archives; since they took over the former NAA archives. But when I tried contacting Boeing Imagery, they said it was only available in black and white and they wanted a completely outrageous amount of money for the license to use it (I was gonna use it for a book cover)

RyanCrierie said:
Boeing Imagery ... wanted a completely outrageous amount of money for the license to use it.

Really? Boeing? Say it ain't so...

If I'm not mistaken, Boeing owns the rights to all the archives of the following manufacturers (and probably a few more...):

- Boeing
- Boeing Helicopter
- Vertol
- P.V. Engineering (first Piasecki company)
- McDonnell Douglas
- McDonnell
- Douglas
- Rockwell
- North American
- Curtiss-Wright
- Bombardier
- De Havilland Canada

Anything I might have forgotten? :-(

Michel Van said:
B-70 was design to drop 14 Nuclear Bombs from high altitude of 70,000 ft (21,300 m)

Really? 14? Which weapons was it meant to carry? And where in that skinny airframe were they going to be stored?

My understanding was that the B-70 had just two tiny weapons bays?

...and the guy that heads up the archive is a stickler for licensing fees - I was charged $375 USD for a one time use of a 4x5 color transparency of a B-29. -SP

Stargazer2006 said:
If I'm not mistaken, Boeing owns the rights to all the archives of the following manufacturers (and probably a few more...):

- Boeing
- Boeing Helicopter
- Vertol
- P.V. Engineering (first Piasecki company)
- McDonnell Douglas
- McDonnell
- Douglas
- Rockwell
- North American
- Curtiss-Wright
- Bombardier
- De Havilland Canada

Anything I might have forgotten? :-(

Why Bombardier and De Havilland Canada? Isn't Bombardier an independent company?

sealordlawrence said:
Really? 14? Which weapons was it meant to carry? And where in that skinny airframe were they going to be stored?

My understanding was that the B-70 had just two tiny weapons bays?

You can consult the PDF of the B-70A SAC from 1960 at my site HERE

WARNING -- LINK GOES TO PDF WHICH IS MULTI MEG!

For those who are lazy, here goes what the USAF wanted in 1960 for the B-70A regarding weapon options

1 x Class A Nuclear Device weighing 25,000 lbs
or
2 x Class B Nuclear Devices weighing 10,000 lbs each
or
2 x Class C (FUFO) Nuclear Devices weighing 8,500 lbs each
or
4 x Class D Nuclear Devices Weighing 2,000 lbs each

Alternately; the B-70 could carry

2 x Air-Surface Missiles and 1 x Class B Device
or
2 x Air-Surface Missiles and 4 x Class D Devices

Maximum bombload was to be 25,000 lbs.

Stargazer2006 said:
Anything I might have forgotten? :-(

Let me think...
