North American Rockwell OV-10 Bronco

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
2,433
Reaction score
467
WOW what a great find.
thank you for posting RAP.


SorenThePilot

I know a bit too much
Joined
Jan 11, 2019
Messages
7
Reaction score
6

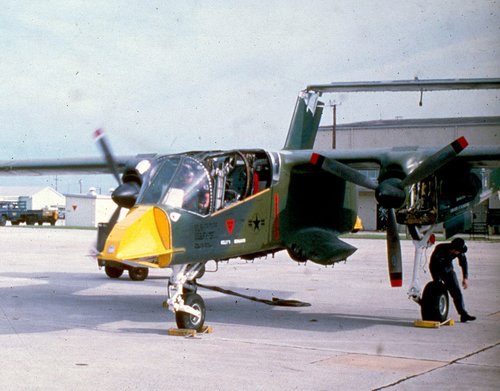

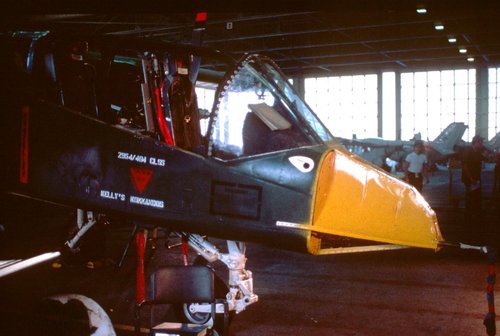

Can anyone tell me anything about this obscure nose modification? I have no info on it.


Attachments

  • A9BDDCC4-8594-4E39-A9F6-A6029A3ECBB9.jpeg
    448.7 KB · Views: 111
  • 3A1D2181-638C-4B46-90FE-8593021F8E8B.jpeg
    240 KB · Views: 107

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,622
Reaction score
1,776
I think that's just the structure of the nose gear well with the aerodynamic fairing removed. Given that the missing fairing seems to be fairly permanent, it might be a non-flying aircraft for handling or maintenance training, perhaps?

Edit: I see it's marked "404 CLSS," a USAF Combat Logistics Support Squadron. They do things like combat repair of battle-damaged aircraft. Possibly they were using this airframe as a mule to practice repair techniques. That would jibe with the missing canopy, absent engine covers, and other missing bits (the joint between the horizontal and vertical stabilizer seems to be missing something too).

Last edited:

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,547
Reaction score
824
Concur with TomS. If you look at the right vertical stabilizer in the first picture there is some new sheet metal work going on thereat the top, as well as some work on the right engine cowling.
