As we know: Fokker Atlantic----General Aviation------North American Aviation....

General Aviation(ex-Fokker) GA-15-----NA-15
General Aviation(ex-Fokker) GA-16-----NA-16

NA-15---------XO-47,observation aircraft
NA-16---------trainer aircraft
NA-17--------- ?
NA-18---------trainer aircraft
NA-19---------basic trainer BT-9,BT-9A
NA-20---------NA-16-2H
NA-21---------high altitude,twin engine bomber---XB-21
NA-22---------BT-9...
NA-23--------BT-9B
NA-24-------- ?
NA-25--------0-47A
NA-26--------BT-9D, BC-1(?)
NA-27--------NA-16-2H
NA-28--------NJ-1
NA-29--------BT-9C,Y1BT-10
NA-30--------Y1BT-10
NA-31--------NA-16-2H or NA-16-4M (?)
NA-32--------NA-16-1A, 1 to Australia
NA-33--------NA-16-2K, 1 to Australia
NA-34--------NA-16-4P, 30 to Argentina
NA-35--------Vega 35
NA-36--------BC-1A
NA-37--------NA-16-4R, 1 To Japan
NA-38--------NA-16-4M, 2 to Sweden
NA-39--------XB-21
NA-40--------pre-B-25 "Mitchell"


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206
Ok, Devi, I have the complete NA- series. Do you want I post it? It's long since NAA used project nummerber to denote batch of work, not only "projects" strictly speaking (i.e. a different NA number was assigned to diffeerent batch of series production of the same aircraft)


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
NA-41--------NA-16-4 or NA-16-4C, same as BT-9C, 35 to China
NA-42--------NA-16-2A, same as BT-9C, 2 to Honduras
NA-43--------NA-16-1G, for Brazil (project)
NA-44--------attack/fighter version of BC-1A
NA-45--------NA-16-1GV, same as BC-1, 3 to Venezuela
NA-46--------NA-16-4, same as BT-9C, 12 to Brazilian Navy
NA-47--------NA-16-4RW, same as BT-9, 1 to Japan, KX2A (or KXA2)
NA-48--------NA-16-3C, same as BC-1
NA-49--------NA-16-1E, same as BC-1, 400 to RAF as Harvard Mk.I
NA-50--------fighter, single seat
NA-51--------O-47A
NA-52--------SNJ-1, USN version of BC-1
NA-53--------NA-16-5
NA-54-------- version of BC-1 or BC-2
NA-55--------BC-1A, AT-6
NA-56--------NA-16-4, same as BC-1, but fixed gear, 50 to China
NA-57--------similar to BT-9B, 200 to French L' Armee De L'Air and 30 to de Aeronavale
NA-58--------BT-14
NA-59--------AT-6
NA-60--------O-47A(s/n 38-325, conversion with deeper observer's station)
NA-61--------NA-16-1E, same as BC-1, 30 to RCAF as Harvard Mk.I, ( 3 to Venezuela )(?)
NA-62--------B-25 Mitchell
NA-63--------XB-28
NA-64--------BT-14, 230 NA-64's were ordered by the French L'Armee De L'Air in 1939
NA-65--------SNJ-2
NA-66-------- Harvard Mk.II
NA-67--------XB-28A
NA-68--------P-64
NA-69--------A-27
NA-70--------single engine, two seat, trainer, production version of the NA-35(Vega 35)
(proposal).


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206
First batch of the NAA projects list, from NA-159 to the end of the NA-XXX numeration.

Two notes:

First for Devi, note that a couple of dozen of NA numbers were used to designate missiles and space projects

Second for everyone: what WAS the NA-237 ? ??? FBX - Development of USAF Fighter Bomber system.... Any idea of an FBX specification, timeframe 1957-58 ?

Tomorrow second batch

Source Kevin Thompson North American Aircraft 1934-1999 Vol 2 Narkiewichs/Thompson, Highly recommended etc etc etc


Attachments

  • NAA_list-11.gif
    15 KB · Views: 661
  • NAA_list-10.gif
    22.1 KB · Views: 637
  • NAA_list-09.gif
    23 KB · Views: 594
  • NAA_list-08.gif
    21.5 KB · Views: 612

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303
I'm not certain, but I suspect NA-382 may have been a much-modified Hercules to use the same lift system as the XFV-12A. I remember seeing it mentioned in the mid-1970s in Av Week.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206
So it must have been a joint NAA-Lockeed project. For the Marines, I suppose.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,642
Reaction score
500
Dear Evan and Skybolt, please look at this ;):

http://www.secretprojects.co.uk/forum/index.php?topic=103.0

Still too awesome projects are mentioned by Alexis Rocher in Le Fana:

North American NA-382: A VSTOL Hercules Replacement with 4 GE F101

North American NA-431: A VSTOL S-3 Viking replacement


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206
This board is becoming rapidly BIG (great has been from the start ;D ) . Probably we have to find a way to categorise in some way the posts. Don't know if the forum sw is able to do this 8)


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
5
Hi Skybolt.

Many thanks for the information of North American Aviation...

If it is possible please show us from NA-15 and up to NA-158,
I shall be will check up my information and I shall write shortly and clearly.

As I know, firm North American and firm Lockheed together participated in competition QSTOL and AMST (YC-14, YC-15).


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206
This night I'll complete the list. Be patient, ::)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206

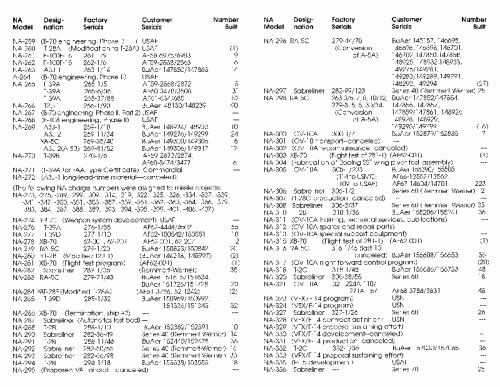

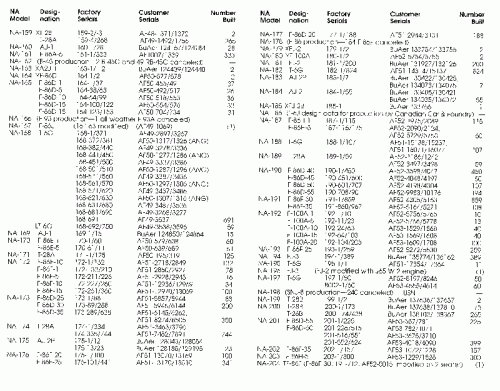

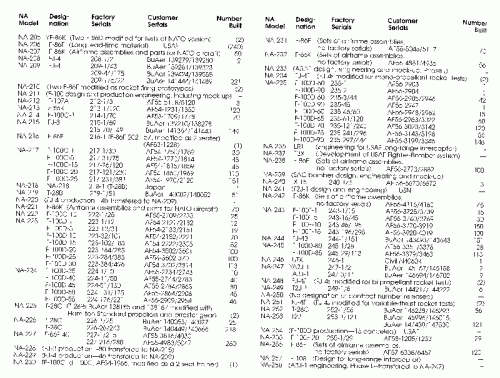

NAA series continued


Attachments

  • NAA_list-07.gif
    20.4 KB · Views: 565
  • NAA_list-06.gif
    20.1 KB · Views: 204
  • NAA_list-05.gif
    18.2 KB · Views: 194
  • NAA_list-04.gif
    21.1 KB · Views: 202

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
206

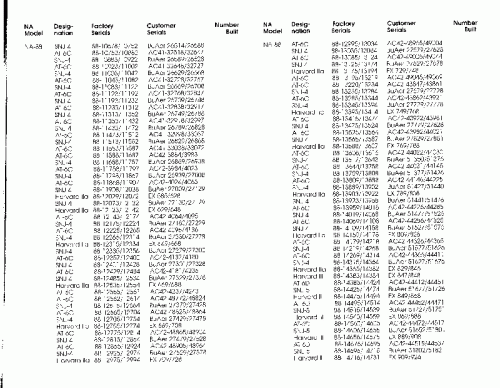

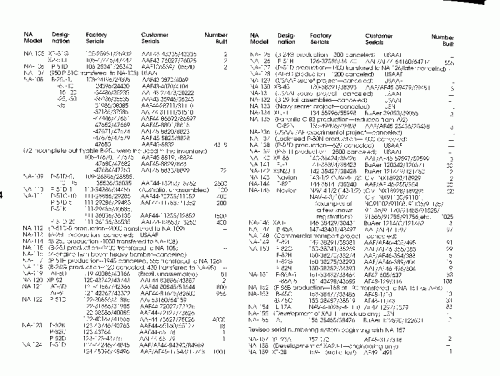

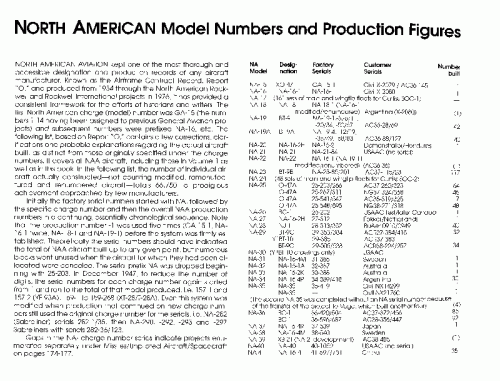

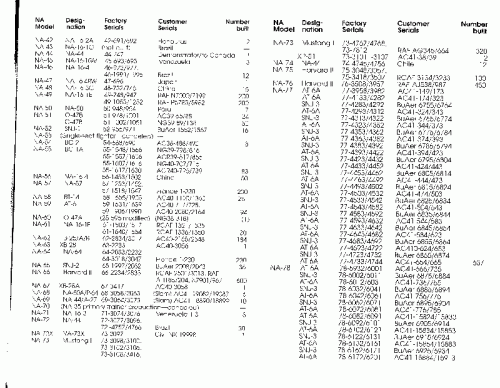

and finished :p


Attachments

  • NAA_list-01.gif
    21.9 KB · Views: 283
  • NAA_list-02.gif
    21.2 KB · Views: 222
  • NAA_list-03.gif
    19.6 KB · Views: 167

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
By the way,

the NA-380 was Sabreliner 75A,it was developed from 75 with
G.E. CF700-102 turbofans and strengthened tail and engine
mountings,also NA-465 was Sabreliner 65,it was developed
from 60 with new super-critical wing and Garrett TFE-731-3
turbofans.


Fishbed

ACCESS: Restricted
Joined
Mar 15, 2008
Messages
2
Reaction score
0
Hallo,
die Scans von der NA/NR-Serie sind nicht schlecht, leider kann man nichts lesen.
Könnte man diese in einer bessern Variante bekommen.

Ich würde mich sehr freuen.


Fishbed

ACCESS: Restricted
Joined
Mar 15, 2008
Messages
2
Reaction score
0
Hello,
the Scans from NA/ NR. series are not bad, unfortunately, one can read nothing.
If one could improve this in one get variation.

I would be glad very much.


Antheii

ACCESS: Restricted
Joined
Feb 19, 2007
Messages
7
Reaction score
0
Fishbed said:
Hello,
the Scans from NA/ NR. series are not bad, unfortunately, one can read nothing.
If one could improve this in one get variation.

I would be glad very much.
Dear Fishbed,

After you clicked on on the image, in the lower right corner you will find some crossed arrows (see below): when you click on it, the image will expand to real size, after which it is perfectly readable.


Attachments

  • expand.png
    6.5 KB · Views: 423

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
I have just acquired an official NAA document showing engineering hours associated with NAA aircraft. In it I discovered that NA-136 was to be an unknown number of TP-51 airplanes but they were cancelled. -SP


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Steve Pace said:
I have just acquired an official NAA document showing engineering hours associated with NAA aircraft. In it I discovered that NA-136 was to be an unknown number of TP-51 airplanes but they were cancelled. -SP

Fantastic! Too bad we no longer have a free slot for the early straight wing XP-86... Never got an NA- designator I guess.

Now if you could find us the NA-80 and NA-86... ::)


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
NA-80 simply says proposal starting Sept. 1940 that was cancelled.
NA-86 was for a number of AT-6C RAF airplanes that was cancelled; start date Dec. 1940.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Steve Pace said:
NA-80 simply says proposal starting Sept. 1940 that was cancelled.
NA-86 was for a number of AT-6C RAF airplanes that was cancelled; start date Dec. 1940.

Awesome. So now we have NA-16 to NA-354 figured out.

NA-355 and NA-368 still missing for me.
NA-408 to NA-419, NA-421 to NA-423, NA-425 to NA-429 also missing.
Existence of any designation beyond NA-431 (a "Type A" V/STOL proposal) is unknown to me except for "NA-465" (an apparently out-of-sequence charge number for the NA-265-65).


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
154
Website
www.tommythomason.com
Steve Pace said:
I have just acquired an official NAA document showing engineering hours associated with NAA aircraft. In it I discovered that NA-136 was to be an unknown number of TP-51 airplanes but they were cancelled. -SP

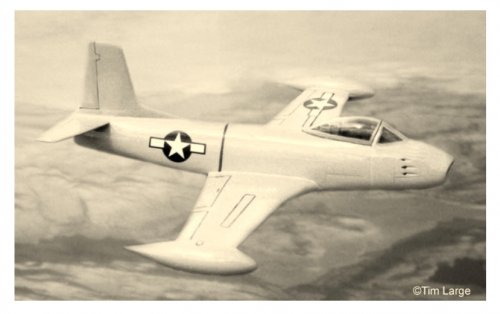

I don't know where I got this, much less whether it is correct.


Attachments

  • NA-136.jpg
    134.2 KB · Views: 248

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Tailspin Turtle said:
I don't know where I got this, much less whether it is correct.

At the time when the "NA-136" designation was unaccounted for, several people on this forum (me included) suggested that given the date and design progression, it was the perfect candidate for the straight-wing XP-86 proposal (being ideally placed between the NA-134 Fury prototypes and the NA-140 Sabre prototypes). To that purpose, I posted the above picture labeled "NA-136." Unfortunately this scheme has proved wrong, for which I deeply apologize. I will correct said topic accordingly.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60

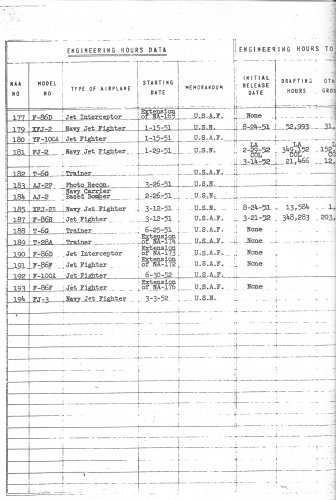

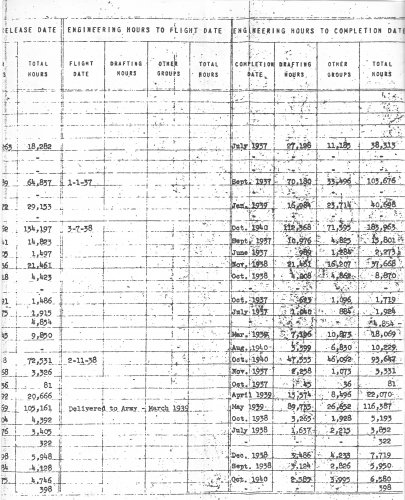

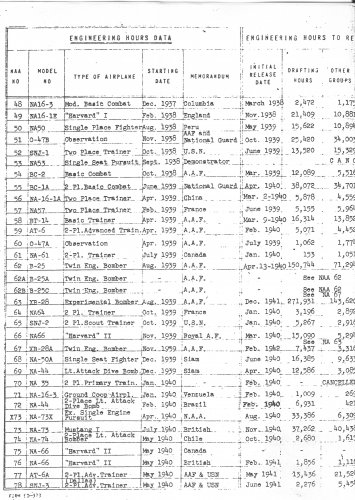

Here's a scan of document page showing NA-136 as TP-51. -SP


Attachments

  • NA-136.jpg
    833.4 KB · Views: 251

MarkN

ACCESS: Restricted
Joined
May 9, 2011
Messages
2
Reaction score
0
Hi

Are you able to post a full version of this page and the one for NA-95?

Can you provide any more details about the document (name/source) etc?

thanks

Mark


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60

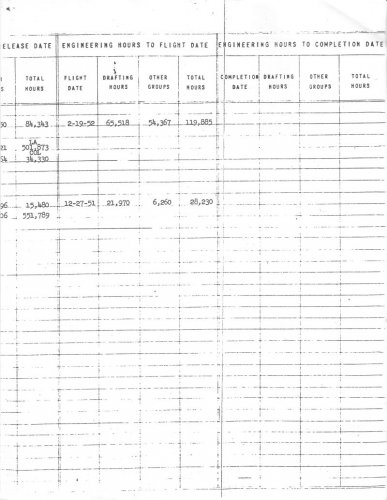

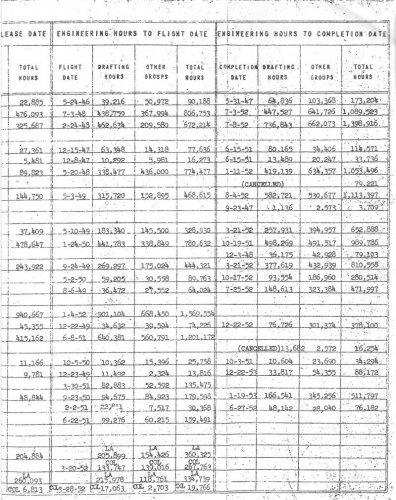

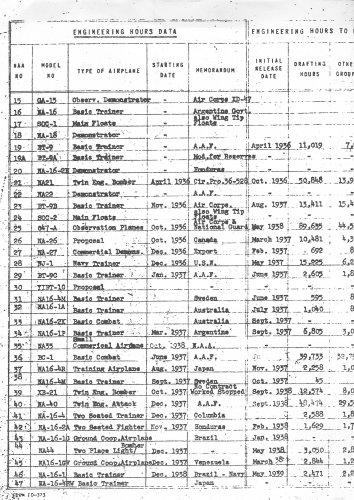

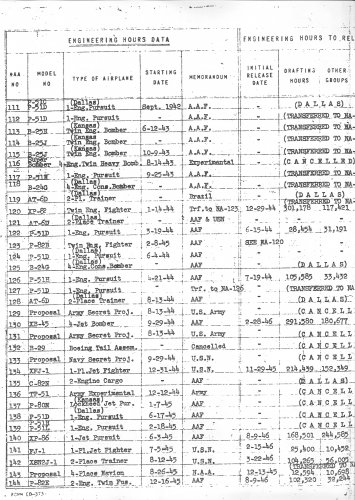

Here's page 1 and 2 of 6.


Attachments

  • 1-L.jpg
    1.3 MB · Views: 168
  • 2-L.jpg
    1.1 MB · Views: 150

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60

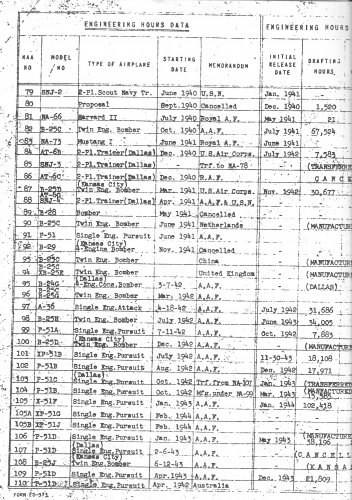

Here's 3 and 4 of six.


Attachments

  • 3-L.jpg
    1.3 MB · Views: 85
  • 4-L.jpg
    1.3 MB · Views: 75

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
5 and 6 of 6. -SP


Attachments

  • 6-L.jpg
    752 KB · Views: 168
  • 5-L.jpg
    1.2 MB · Views: 195

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
MarkN said:
Hi

Are you able to post a full version of this page and the one for NA-95?

Can you provide any more details about the document (name/source) etc?

thanks This document was sent to me years ago by Chris Wamsley of North American Rockwell public affairs - I recently found it. -SP

Mark


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60

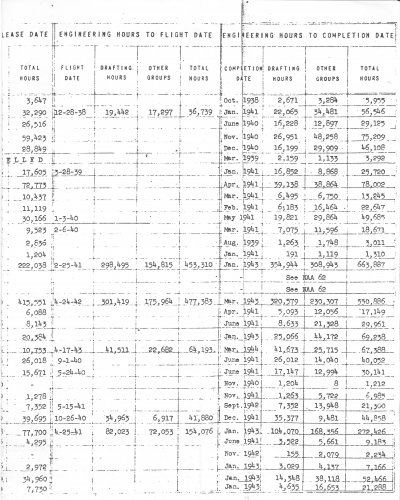

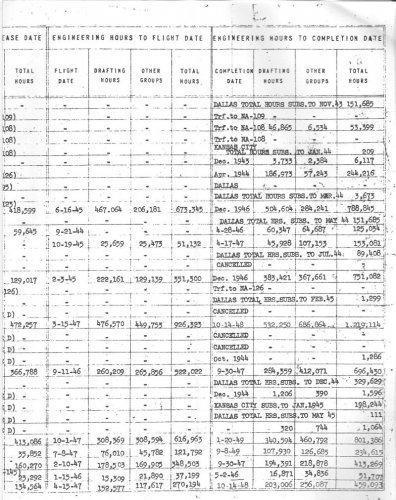

Here's the other halves - pages 1 and 2 of six.


Attachments

  • 2-R.jpg
    1 MB · Views: 125
  • 1-R.jpg
    1.4 MB · Views: 121

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60

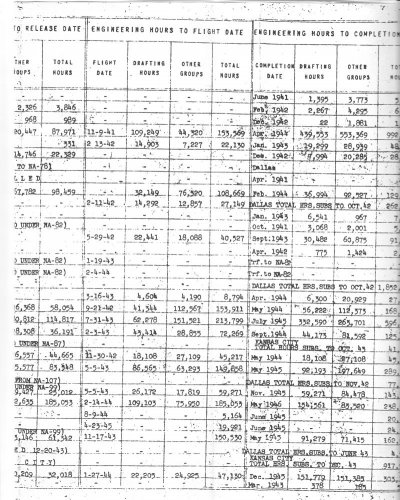

Here's the rest. -SP


Attachments

  • 3-R-small.jpg
    257.5 KB · Views: 114
  • 4-Rsmall.jpg
    209.4 KB · Views: 71
  • 5-R-small.jpg
    225.7 KB · Views: 77
  • 6-R-small.jpg
    128.2 KB · Views: 67

asiscan

ACCESS: Confidential
Joined
Apr 4, 2014
Messages
72
Reaction score
50

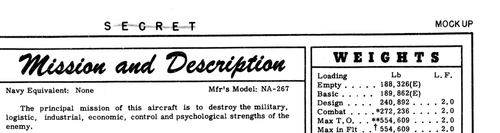

Not sure about the XB-70 and the charge number designation. I have found 3 different NA numbers for the Valkyrie so far. 1st dated Dec 1959 specifies "non-refuelled" as NA-239, one from Jun 1960 as NA-267, and Dec 1961 as the NA-278. I'm familiar with the last number but the others i don't know. Anyone know?


Attachments

  • dec 1959 unref.png
    dec 1959 unref.png
    63.6 KB · Views: 19
  • jun 1960.png
    jun 1960.png
    150 KB · Views: 17
  • dec 1961.png
    dec 1961.png
    218.1 KB · Views: 26

PLK

ACCESS: Restricted
Joined
Dec 26, 2007
Messages
3
Reaction score
5
Fishbed said:
Hello,
the Scans from NA/ NR. series are not bad, unfortunately, one can read nothing.
If one could improve this in one get variation.

I would be glad very much.
Dear Fishbed,

After you clicked on on the image, in the lower right corner you will find some crossed arrows (see below): when you click on it, the image will expand to real size, after which it is perfectly readable.
sorry that funtion do not work


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,115
Reaction score
659
Sorry all, I know and appreciate that many forum members have put in some amazing time and effort into sharing NAA designations, but I'm wondering if anyone can tell me if the rocket-boosted interceptor derivative of the A-5 Vigilante - the 'Retaliator' (c-1959) for the USAF Air Defence Command had a specific 'NA-??? designation please?
Also, does anyone know what the principle armament of the 'Retaliator' was to be??

Regards
Pioneer


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011

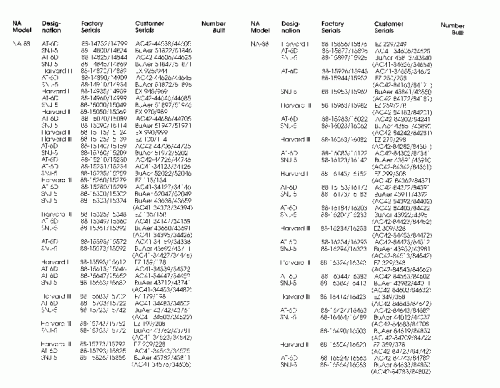

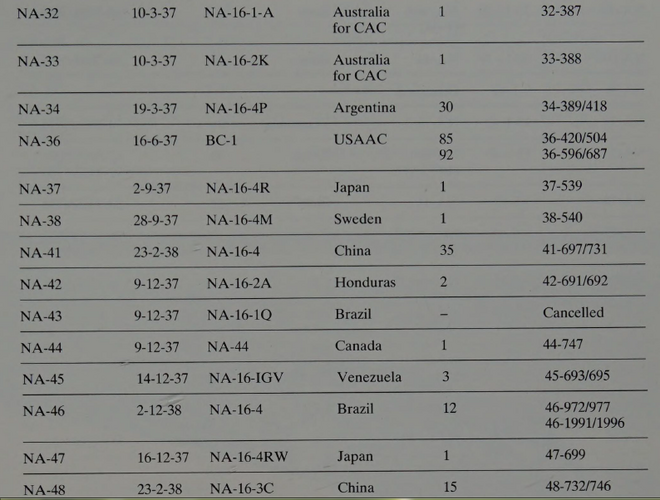

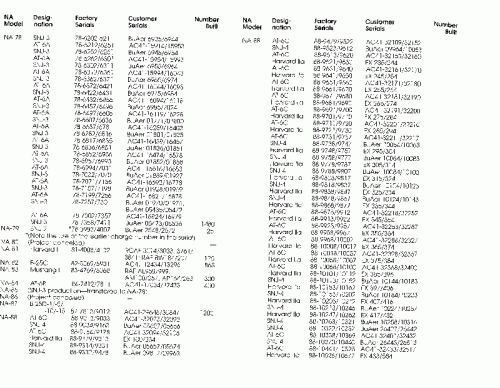

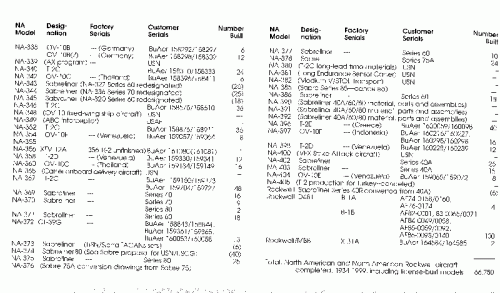

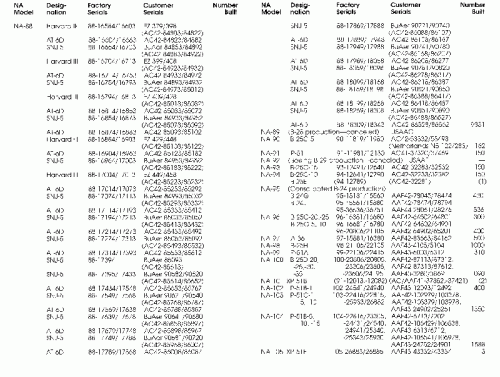

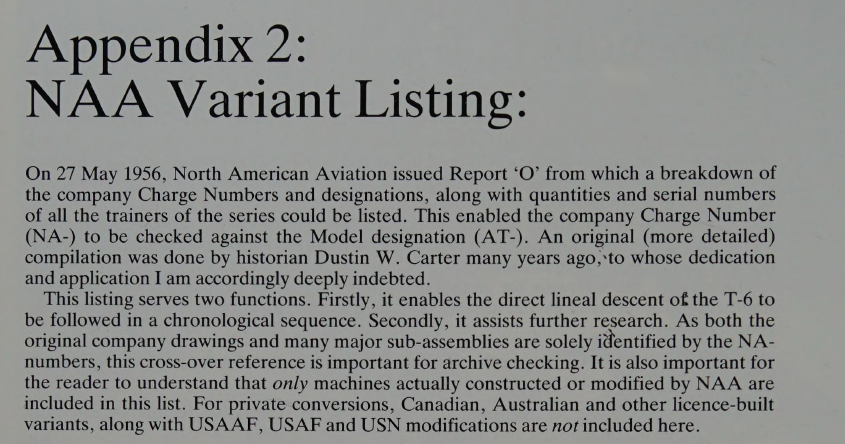

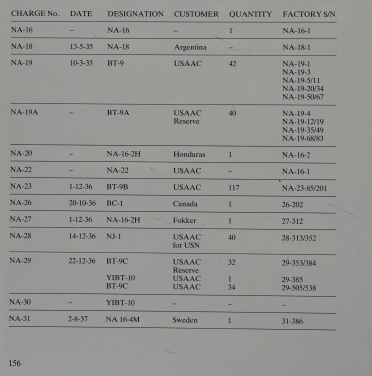

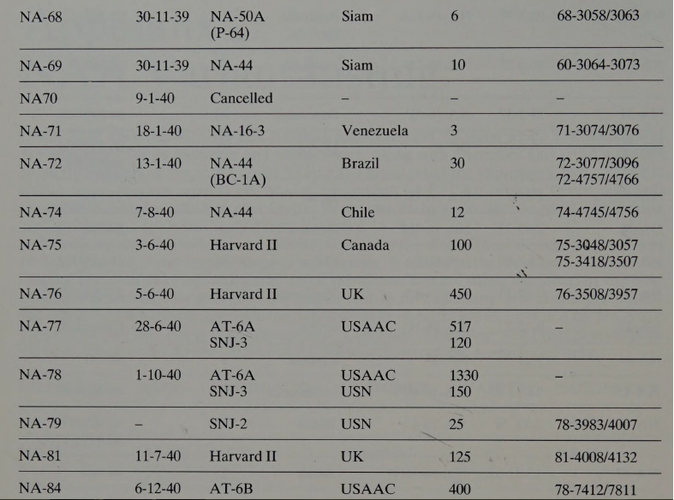

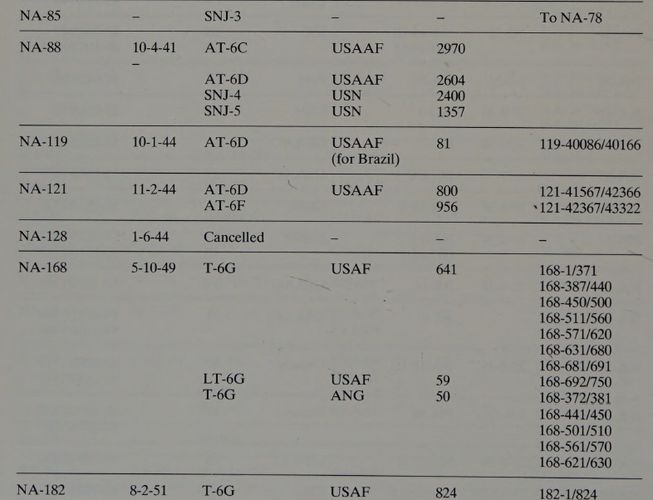

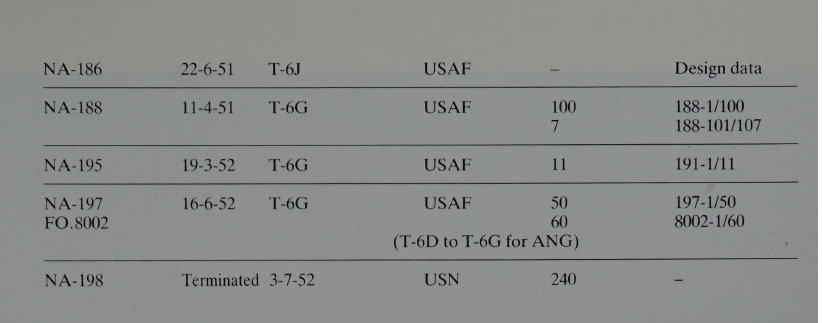

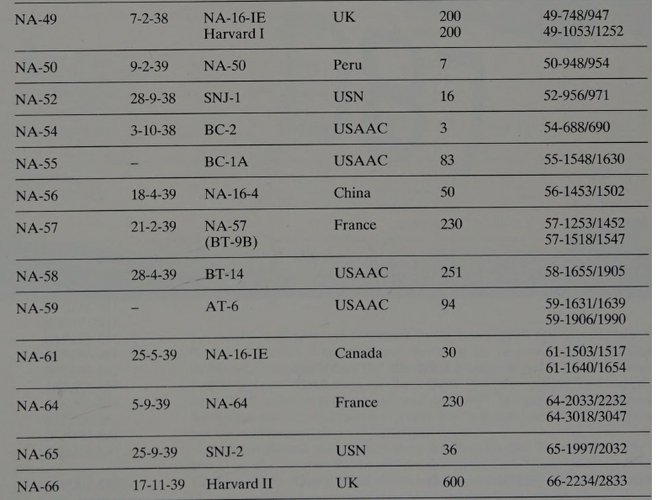

From, T-6 A Pictorial Record of the Harvard, Texan and Wirraway,

the T-6 variants.


Attachments

  • 1.png
    499.9 KB · Views: 12
  • 2.png
    165.1 KB · Views: 13
  • 3.png
    472.4 KB · Views: 13
  • 4.png
    467.8 KB · Views: 13
  • 5.png
    491.1 KB · Views: 12
  • 6.png
    437.9 KB · Views: 12
  • 7.png
    212.8 KB · Views: 14
Top
