I've been researching North American Aviation designs for quite a while. By now, everyone knows (or should know)
that NAA used a rather unique designation system. Most of the US manufacturers used a “model” numbering
system that was generally sequential. Each model number was tied to a basic design. NAA for reasons unknown,
chose a road less traveled. Each NA-number was not a model number tied to an aircraft, but a master charge
account number tied to a single specific customer contract. Thus, you have the F-100 Super Sabre produced under
Charge Numbers NA-180, 192, 217, 222, 223, 224, 230, 235, 243, 245, 254, 255, 261, and 262. In a way, this was
“inside-out” because it exposed a little of the inner workings of NAA to the outside world.

However, this numbering scheme left no room for designations of the actual designs pursued by NAA. My first clue
came in the Jenkins/Landis book, “Hypersonic, The Story of the North American X-15”. In it was an entire chapter
covering the proposals by Bell, Douglas, North American and Republic. North American’s design was titled “ESO 7487”
and was referred to as such in the text.

On the face of it, this designation seemed absurd to me for two reasons. First, I interpreted “ESO” to mean
"Engineering Sales Order" or "Engineering Shop Order". Secondly, “7487” seemed improbably high for a project or
design number. Even the government project number (MX-1226) was lower. Ultimately, the decision of the authors
to provide blue-line drawings on the book end papers provided a clue. The drawing from North American had a title
block. Above it was “ESO 7487”. But in the block proper was the actual Drawing Number – “D250-200”.

Having some experience with aerospace drawings and Configuration Management practices, this made a lot more sense
to me. “D250” would be the “top” drawing or project number. The “-200” or dash number would be the allocated
number for what was depicted in that drawing. And “250” seemed like a much more reasonable cumulative number for
a design.

To make a long story short, I surveyed all of my references, Secret Projects Forum postings and the interwebs and
came up with the following listing. Please note that I have included abbreviated notes for my sources; most
should be familiar.

So what does it mean? Simply put, NAA maintained an internal system for tracking preliminary or advanced designs
that was unrelated to the “NA” series of contract/charge numbers known publicly.

Why does the drawing number matter? Basically it tells you what you are looking at. The basic number was of the
format Dxxx, where “D” presumably meant “Design” and “xxx” was a sequentially assigned number. When used on a
drawing, the basic number had a suffix. The first 25 numbers were reserved for alternate basic configurations.
The next 25 were for inboard profiles of the corresponding configurations. So drawing D250-1 would have an inboard
profile on drawing D250-26; D250-2 would track to D250-27 and so on. Subsequent drawing blocks appear to be generally
assigned as follows:

-1 to -25 Three-view
-26 to -50 Inboard profile
-200 Fuel System
-300 Weapons Installation
-400 Landing Gear
-500 Surface Control System
-600 Hydraulic System or Cockpit Diagram.
-700 Structures

Sometime by the 1960s, the system was modified by inserting another set of digits in the D-number so that more design
variations could be tracked. An example would be the drawing D619-10-26 where the basic project is “D619”, “10” is the
tenth major study or design and “26” is the inboard profile drawing that corresponds to the “D19-10-1” three-view drawing.
Sometimes the study number has an alpha suffix (as in D490-4B); I suspect that this is an alternate engine installation.

Looking back, this seems to be an internally consistent system that holds together with multiple samples. But what about
those pesky four-digit numbers? My conclusion is that they are actually the project charge numbers. The fly in the
ointment? North American specifically used the phrase “designated ESO 7487” on the title page of its X-15 proposal.
It is my belief that using the internal Charge Number served two purposes; first, a bit of misdirection as to the
number of designs that North American had studied; and secondly, it was in concert with the unusual practice of using the
charge number in lieu of a model number in general.


I’d like to express my thanks to (in no particular order) Dennis Jenkins, Tony Landis, Scott Lowther and Jared Zichek
for not only performing the painstaking primary research on these designs but for also reproducing the original drawings
with their title blocks intact. Ryan Crierie also deserves special mention for sharing his index listings for
documentation held at the National Archives (NARA II). Special supplemental assistance was also provided by Bob Bradley
.

Any comments or questions are welcome.


Attachments

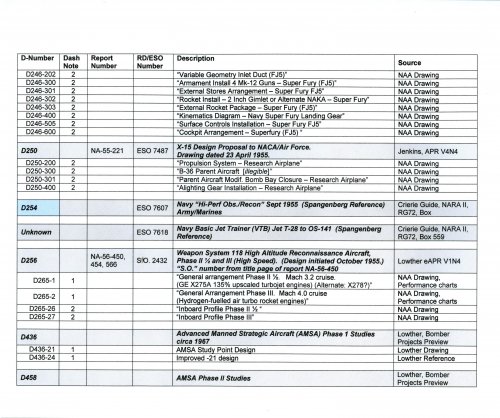

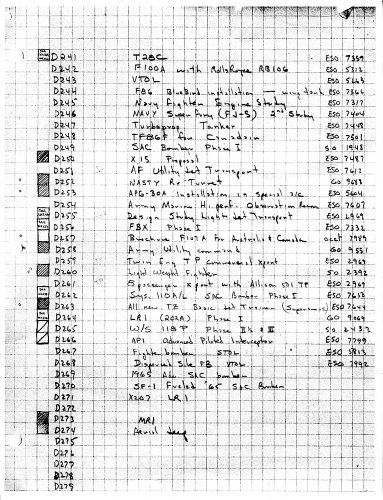

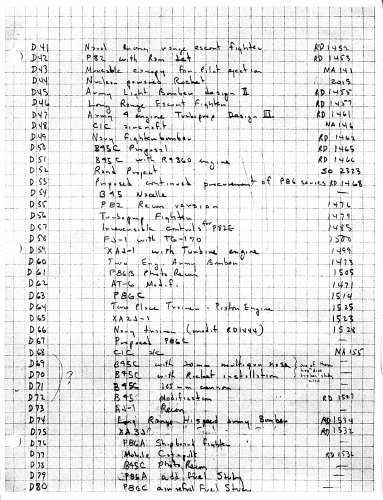

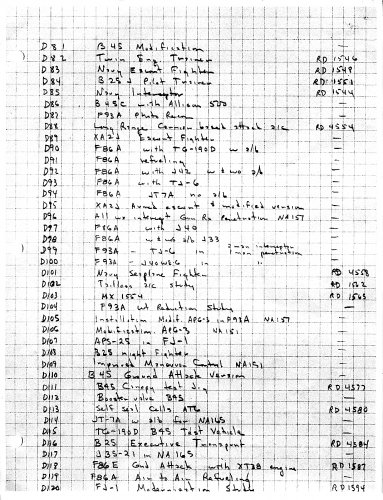

  • NAA D-Series Page 1.jpg
    NAA D-Series Page 1.jpg
    941.5 KB · Views: 648

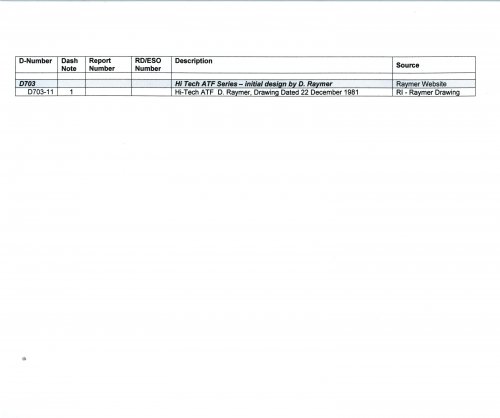

  • NAA D-Series Page 8.jpg
    NAA D-Series Page 8.jpg
    592.1 KB · Views: 78
  • NAA D-Series Page 7.jpg
    NAA D-Series Page 7.jpg
    223.1 KB · Views: 86
  • NAA D-Series Page 6.jpg
    NAA D-Series Page 6.jpg
    962.5 KB · Views: 95

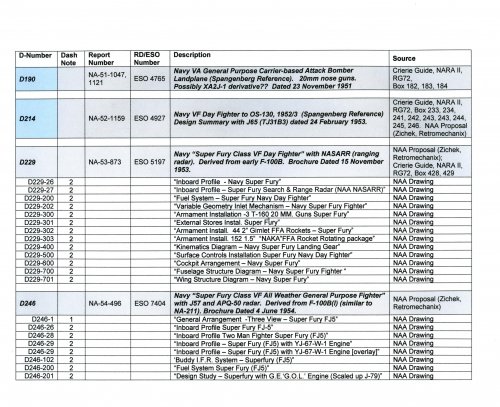

  • NAA D-Series Page 5.jpg
    NAA D-Series Page 5.jpg
    1,001.2 KB · Views: 417
  • NAA D-Series Page 4.jpg
    NAA D-Series Page 4.jpg
    1,020.4 KB · Views: 457

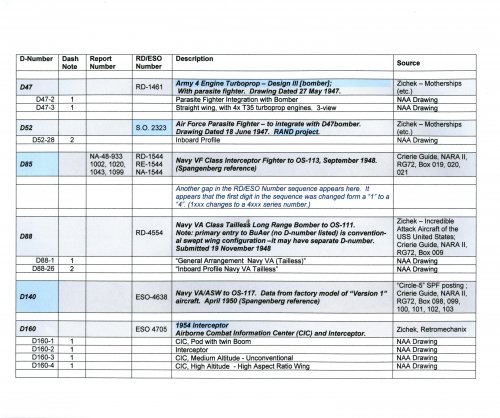

  • NAA D-Series Page 3.jpg
    NAA D-Series Page 3.jpg
    945.1 KB · Views: 496

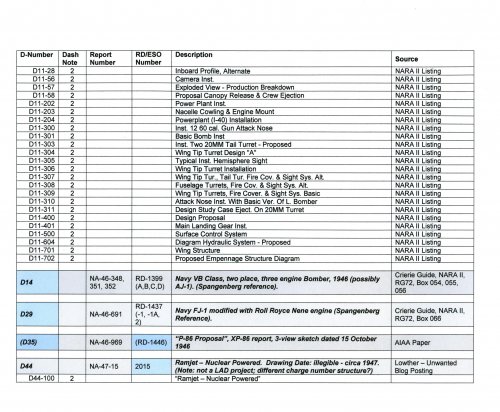

  • NAA D-Series Page 2.jpg
    NAA D-Series Page 2.jpg
    921.1 KB · Views: 578

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
A most laudable effort and a very nicely conducted project. Thank you very, very much for sharing this with us!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
You can add the following:

D516 (A)MST four-jet transport project

ESO 7189 LRI (WS-202A) competitor; led to the F-108 Rapier (1954)


Also, what numbering system do these fit in?

CL-4035 T2J-1 Buckeye
CL-4166 proposal for Eagle Missileer competition (1960)

RPRV 870 HiMAT (1977)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,646
Reaction score
4,605
Hi,


D491 VTOL jetliner


PL-3347,PL-3295,PL-3298 and PL-3299 Dyna-Soar developments;
http://www.secretprojects.co.uk/forum/index.php/topic,3052.180.html


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
175
Another aim9xray research study of the highest caliber. Just HOW does he do it?


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
593
Reaction score
280
Thank you all for the kind comments. I'll update the list with the additions that have been
mentioned. Would it be possible for the source material for these additions to be listed? It
really makes it easier to validate the research (and as you can see, I tried to leave a trail of
breadcrumbs so you could see where I found the data I listed...) Thank you for the references
listed. ;D

Also, what numbering system do these fit in?
CL-4035 T2J-1 Buckeye
CL-4166 proposal for Eagle Missileer competition (1960)
RPRV 870 HiMAT (1977)
My guess is that the two CL numbers are charge numbers for NAA Columbus Division projects
although the CL prefix is new to me (and can be confused with CALAC (Lockheed California)
numbers). They do fall pretty close to the ESO 4028 and ESO 4034 numbers on page 8 above.

The "870" number is a different case. The "870" is clearly out of range for the mid-1970s. I
would speculate that the HiMAT study number was somewhere between D490 (in 1968) and
D619 (in 1977). On checking photos, I find that the first vehicle was marked RPRV 870 and the
second as RPRV 871, which leads me to speculate that these are vehicle numbers, likely
assigned by NASA. (Interestingly and possibly coincidentally, NASA's current day MQ-9 Ikhana
is numbered 870 and their two flying Global Hawks are numbered 871 and 872...)

PL-3347,PL-3295,PL-3298 and PL-3299 Dyna-Soar developments;
These appear to be individual [preliminary - PL?] drawing numbers (akin to the Northrop
"PD" drawings) from the Downey, California site which was known as the "Missile
Systems Division" in the 1950s and during the Apollo era as the "Space and Information
Systems Division". They split off from LAD (Los Angeles Division) quite early in the post
WW II era and appear to have quite different drawing, report and charge numbering
systems and practices than the LAD and Columbus Divisions. (You'll note that the NATIV,
X-10, Navaho, Hound Dog, Apollo CSM and S-II, and Space Shuttle projects do not have
NA- or NR- numbers...)

I don't have a sufficient number of "Downey"examples from which to draw any firm
conclusions - sorry!

Thank you again, and please stay tuned for updates...


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
593
Reaction score
280
Update: work on the above list has been short circuited by an embarrassment of riches! To make a long story short, I ran into Bob Bradley (writer of the Convair Projects book) a while back, and during a discussion of our respective projects, I mentioned this one. He said that he had some pertinent data - and went back home to get it. When he returned with the pages, he related that that he had made the list off of engineering vellums one afternoon when he was working at North American in the mid-1950's!

Posted with permission. Thank you, Bob!


Attachments

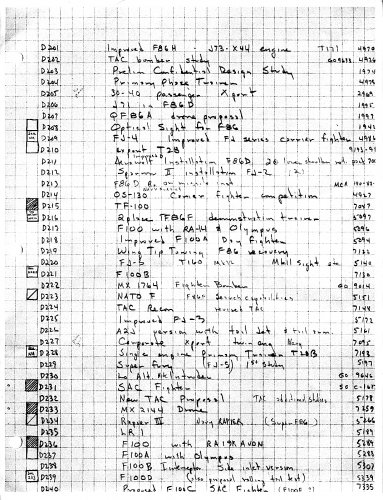

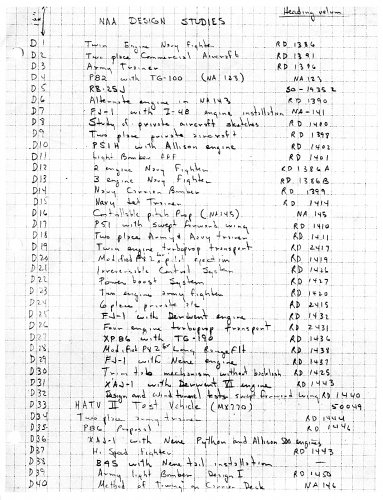

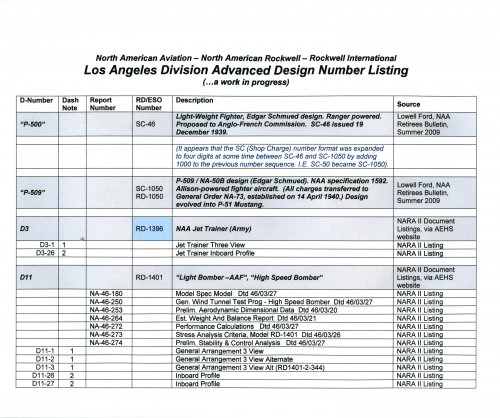

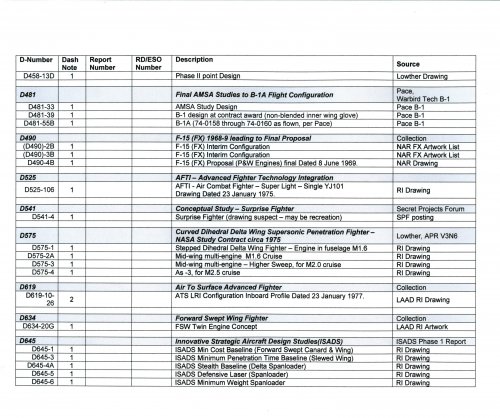

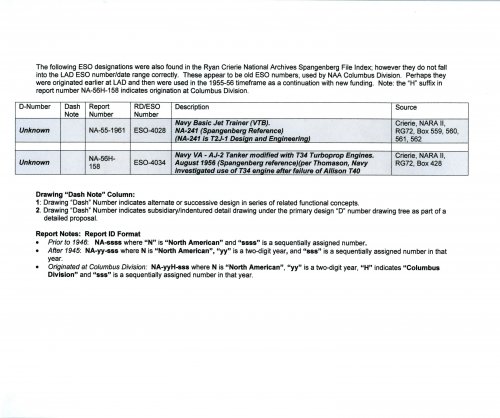

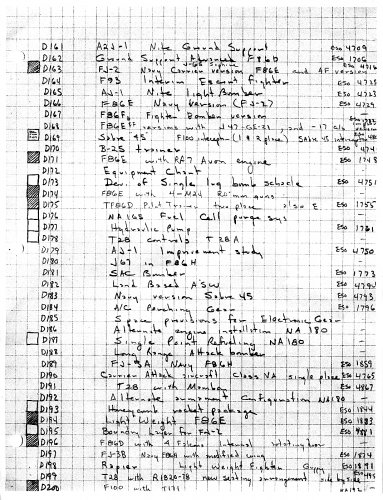

  • NAA Page 7.jpg
