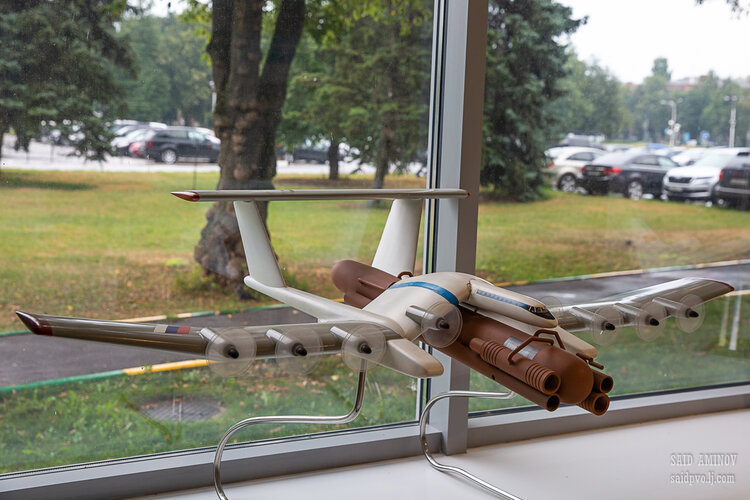

Myasishchev M-52 heavy lift transport

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,010
Reaction score
5,692
Nice pics and an article here:

http://www.from-ua.com/technology/44e58b7566a88/

Will post a translation later...


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
22
overscan said:
Nice pics and an article here:

http://www.from-ua.com/technology/44e58b7566a88/

Will post a translation later...

Hi overscan!

That M-52 is really an amazing aircraft! This is really a great find!

Chuck


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
45
Website
cmeunier.chez-alice.fr
Nice !
The most original is the main landing gear ;D, retractable in pods at mid span it seems... (apart of wheels below the removable load)


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,844
Reaction score
4,105
This look like cargoes conceived to carry Buran and Energia stages... ;)


Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2
Funny looking, but do-able with some tweaking of the design. Boeing should have built that for moving 787 parts instead of that...well, something that WAS a 747 once... :-\


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145
Nearly year after ( publication overscan) has found this subjects. Better late than never :). Here is than can is divided.


Attachments

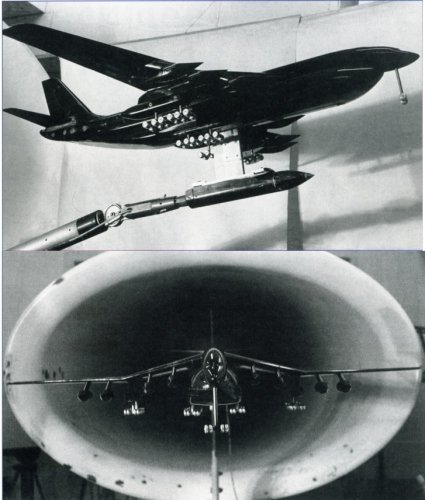

  • M-52 A-1(emz).jpg
    M-52 A-1(emz).jpg
    135.3 KB · Views: 641

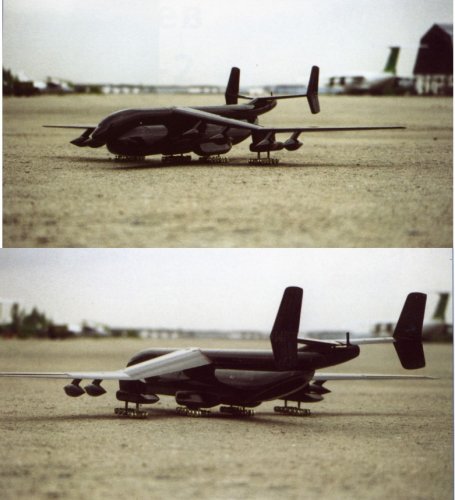

  • M-52 (m0del).jpg
    M-52 (m0del).jpg
    131.1 KB · Views: 692

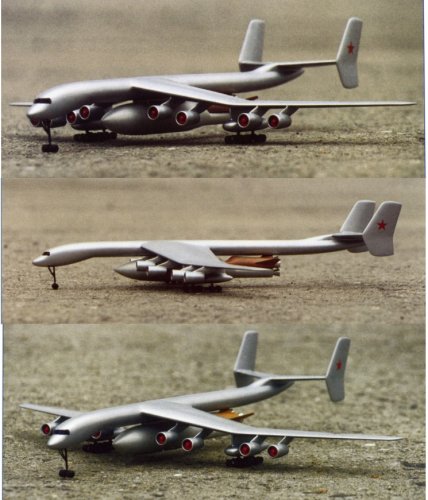

  • M-52 A-2 (model).jpg
    M-52 A-2 (model).jpg
    163.8 KB · Views: 713

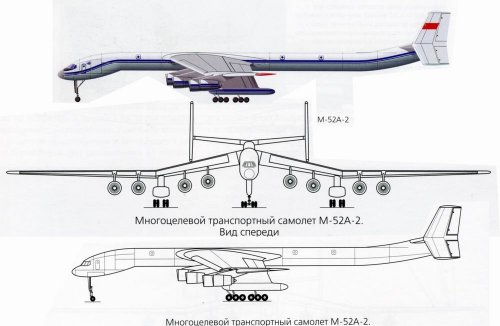

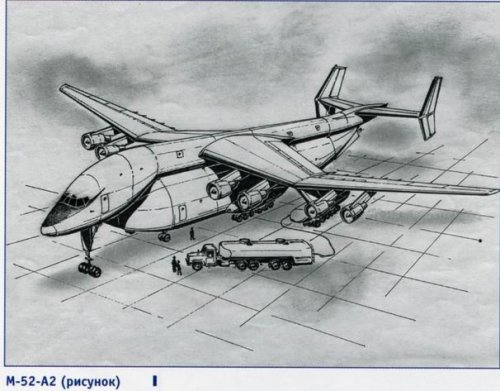

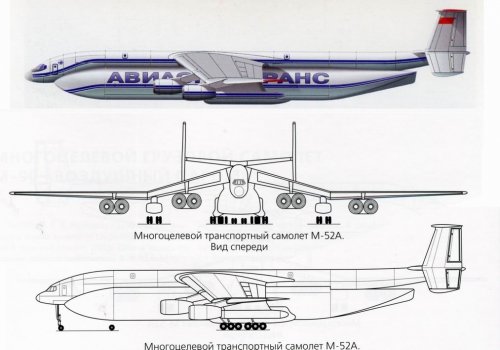

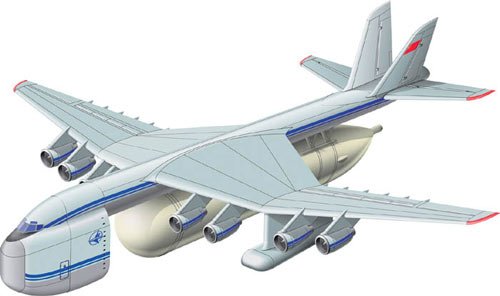

  • M-52-A-2 (drawing).jpg
    M-52-A-2 (drawing).jpg
    53.1 KB · Views: 659

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145

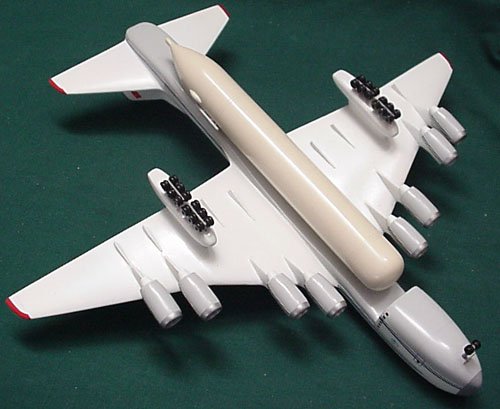

Myasishchev M-52 A (base model)
Myasishchev M-52 A-1


Attachments

  • M-52 A-1.jpg
    M-52 A-1.jpg
    99.4 KB · Views: 560

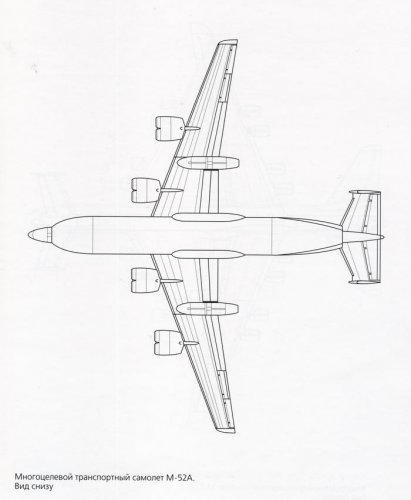

  • M-52 A   bottom.jpg
    M-52 A bottom.jpg
    39.4 KB · Views: 227

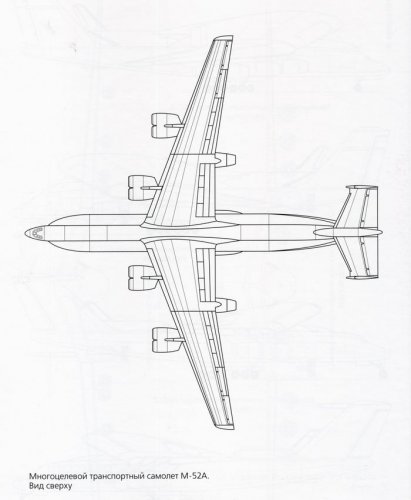

  • M-52A    up.jpg
    M-52A up.jpg
    47.2 KB · Views: 308
  • M-52A ..jpg
    M-52A ..jpg
    80.2 KB · Views: 812

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145

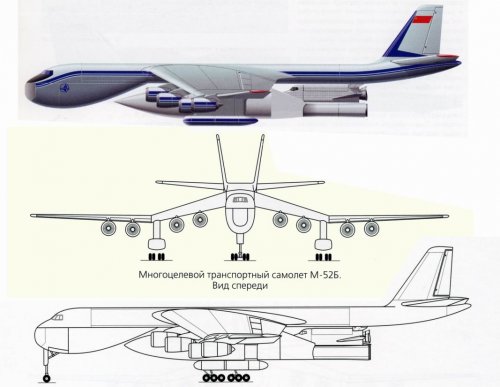

Myasishchev M-52 A-2
Myasishchev M-52 B
Military-transport variant A B
Take-off weight, t 650 650
Empty weight, t 350 300
Weight loads, t 125 160
Weight fuels, t 175 190
Range max., km 6500 6500
Cruise M=0,7 M=0,7

Transportation (greater size) heavy cargo on external suspend.
Take-off weight, t 800 760
Empty weight, t 300 250
Weight loads, t 400 400
Weight fuels, t 100 110
Range max., km 2000 2000
Cruise M=0,64 M=0,64
Source: A.Brook, K.Udalov, S.Smirnov "Illustrated encyclopedia planes of V.M.Myasishchev's" Vol.3 Chapt.1 AVICO 1999


Attachments

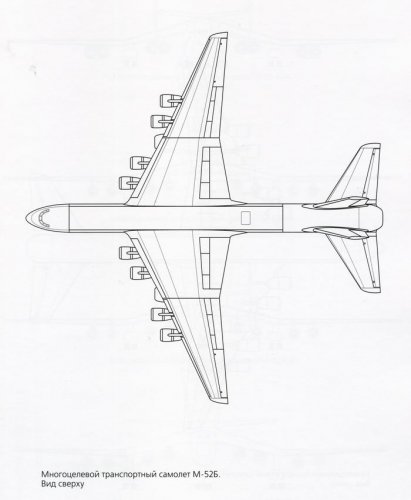

  • M-52 B..jpg
    M-52 B..jpg
    79.5 KB · Views: 418

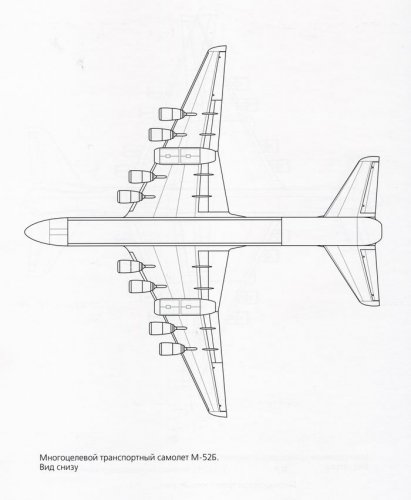

  • M-52 B  bottom.jpg
    M-52 B bottom.jpg
    39.4 KB · Views: 207
  • M-52 B  up.jpg
    M-52 B up.jpg
    42.3 KB · Views: 218
  • M-52 A-2  up.jpg
    M-52 A-2 up.jpg
    38.7 KB · Views: 233
  • M-52 A-2.jpg
    M-52 A-2.jpg
    64.6 KB · Views: 341

Remko

ACCESS: Restricted
Joined
Dec 21, 2008
Messages
34
Reaction score
4
I've been searching everywhere, but can't find the dimensions anywhere. Anybody here who knows the wingspan and length of the various designs?

It's too bad this aircraft was never build. Would have looked beatiful. Elegant, but still heavy lift capable. Just don't paint it green.... ::) ::)


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
555
Reaction score
171
Website
www.avicopress.ru
Dear Remko!

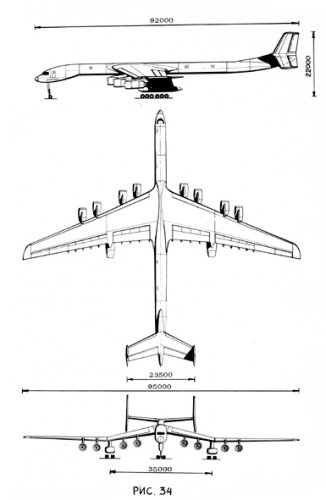

For you dimentions of M-52 from technical descriptoin.
If you need HR pic - contact directly.
You may also order this book in www.avicopress.ru. Some copies still exist.
Regards


Attachments

  • M-52 dimentions.jpg
    M-52 dimentions.jpg
    65.1 KB · Views: 240

Remko

ACCESS: Restricted
Joined
Dec 21, 2008
Messages
34
Reaction score
4
ucon said:
Dear Remko!
For you dimentions of M-52 from technical descriptoin.
If you need HR pic - contact directly.
You may also order this book in www.avicopress.ru. Some copies still exist.
Regards

Thank you UCON, that's most helpful! The aircraft is much larger than I actually thought as well!

I have considered getting the book for my collection, but I can't read Russian. So unfortunately much of the book would be lost to me. If there will ever be an english version I'll surely get it!


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
876
Website
deeptowild.blogspot.com

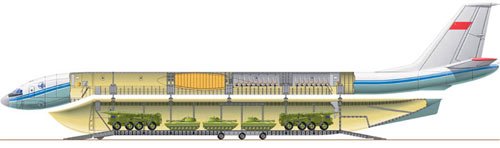

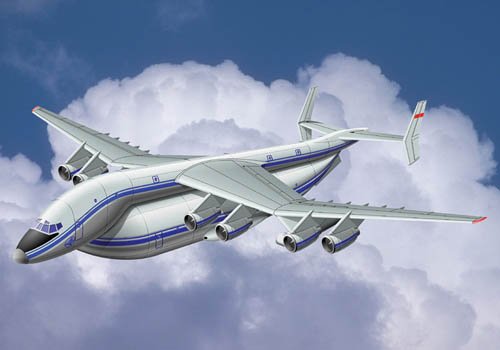

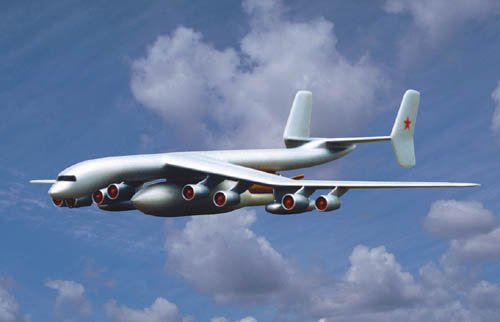

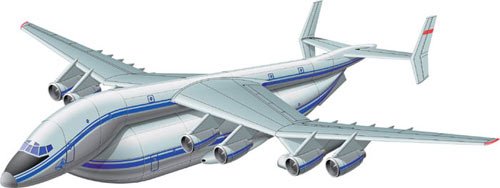

Attachments

  • img34052_6.jpg
    22.2 KB · Views: 114
  • img34052_5.jpg
    17.1 KB · Views: 111
  • img34052_4.jpg
    12.3 KB · Views: 96
  • img34052_3.jpg
    14.5 KB · Views: 96
  • img34052_2.jpg
    30.7 KB · Views: 102
  • img34052_1.jpg
    36.5 KB · Views: 86

airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
11
Website
RetroFlight.com
Wow how cool to bad it was not built would have awesome 1st stage air drop orbital space system. Wish there was more information on the dhuttle like spaceship in some the pics.


FutureSpaceTourist

ACCESS: Top Secret
Joined
Mar 11, 2010
Messages
589
Reaction score
14
airrocket said:
Wow how cool to bad it was not built would have awesome 1st stage air drop orbital space system. Wish there was more information on the dhuttle like spaceship in some the pics.

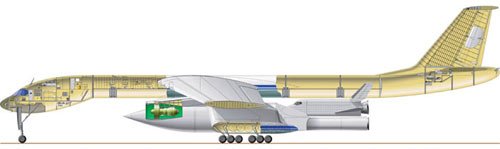

According to BabelFish the caption for the air-launch version says that it could carry a launch vehicle and external fuel tank, with an overall mass of 400 tons, to a height of 8-10 km. It was able to put a 9 ton payload into a 200 km circular orbit.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
876
Website
deeptowild.blogspot.com

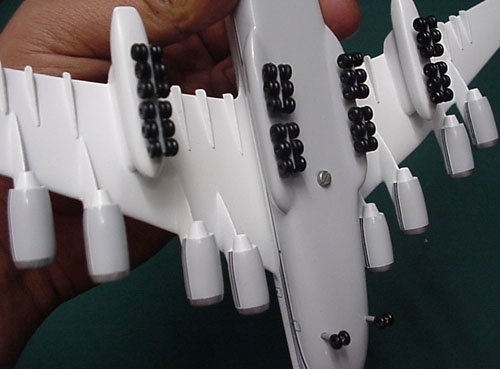

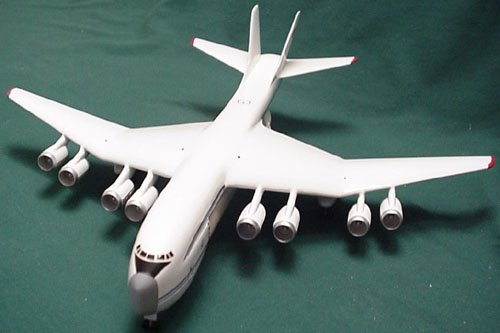

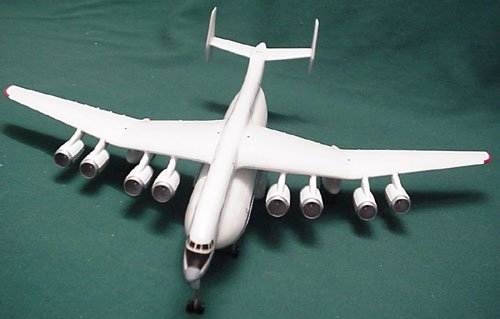

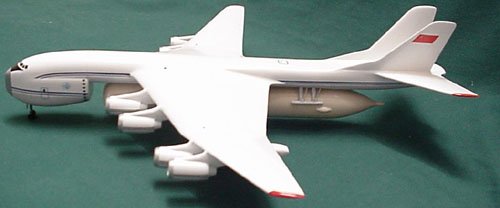

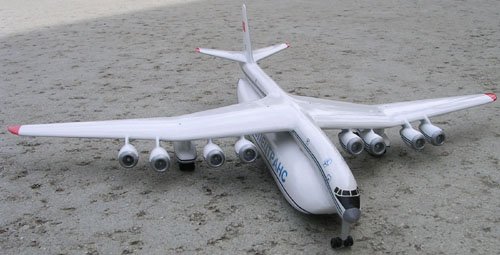

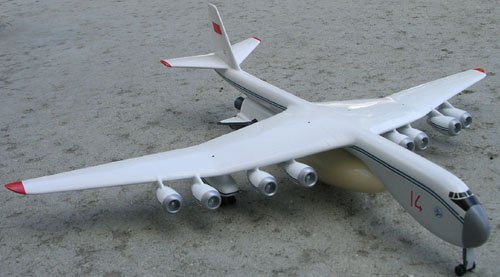

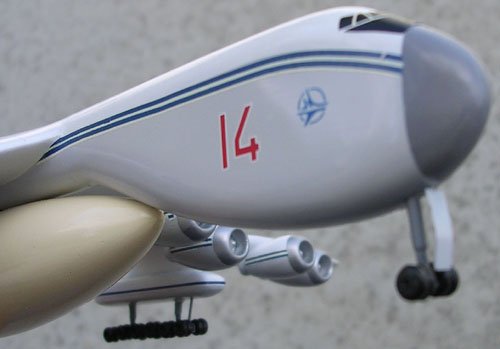

Model of Myasishchev M-52A from USSR-Russian Aviation and Space Collectibles.

Description:
Multipurpose transport aircraft M-52A developed by Myasishchev Design Bureau intended to carry in giant container under fuselage heavy equipment for atomic reactors, equipment for oil production and other heavy weight and volume cargoes from 100 and up to 500 tonnes and 70 meters length with 8 meters diameter. Original superior quality resin model has 102 custom made metal wheels. On front part of fuselage showed Myasishchev Design Bureau logo and on heavy container under fuselage written `Aviaspetstrans` (Special aviation transporter).

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_102&products_id=708


Attachments

  • 03171925.jpg
    43.2 KB · Views: 297
  • 03171922.jpg
    63.7 KB · Views: 302
  • 03171918.jpg
    38.3 KB · Views: 317
  • 03171914.jpg
    36.3 KB · Views: 333

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
876
Website
deeptowild.blogspot.com

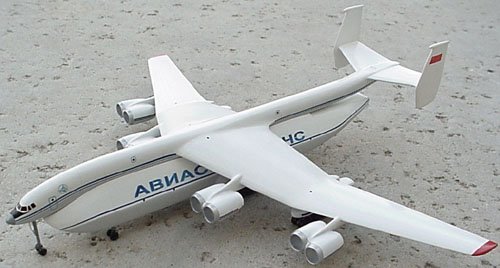

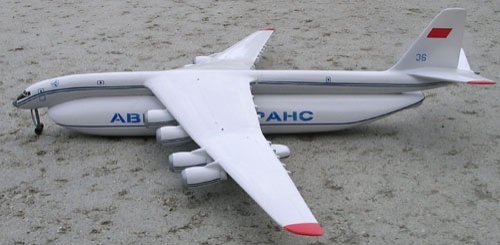

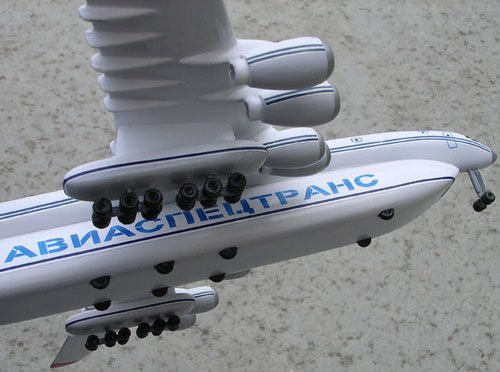

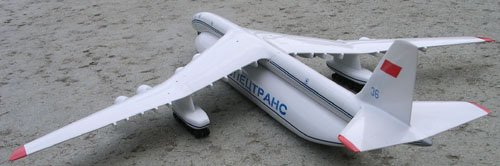

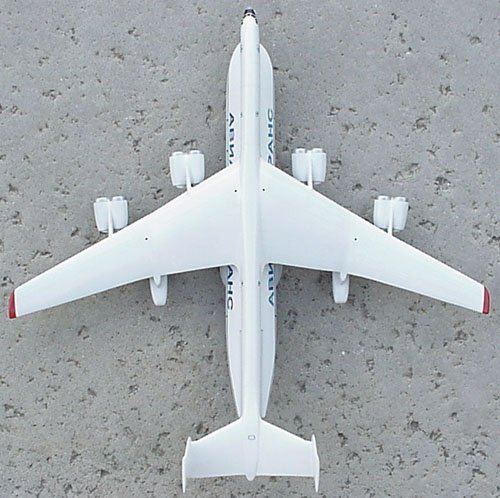

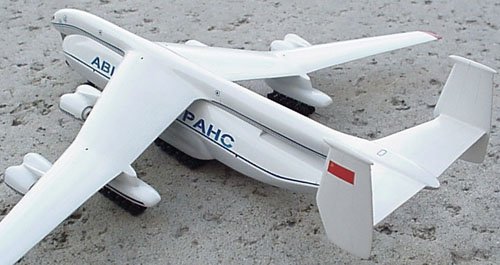

Model of Myasischev M-52A-1 Aviaspetstrans from USSR-Russian Aviation and Space Collectibles


Description:
One of famous Myasishchev`s designs of heavy lift transporter AVIASPETSTRANS (Special Aviation Transportation) carrying container for transporting large vehicles, tanks, tractors and equipment.Development of this `52` project was based on existing VM-T Myasishchev transport and various variants of new transport and space support airplane included M-50A-2 and M-52B. Original model is a complicate hand made construction featuring metal wheels, custom graphic on fuselage, including Myasishchev Design Bureau logo on front and detailed undercarriage container.Wing span-12.5 inches.Length-11 inches.

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_102&products_id=2246


Attachments

  • 18114519.jpg
    66.2 KB · Views: 527
  • 18114532.jpg
    67.3 KB · Views: 288
  • 18114542.jpg
    57.9 KB · Views: 254
  • 18114553.jpg
    77 KB · Views: 242
  • 18114601.jpg
    68 KB · Views: 238

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
876
Website
deeptowild.blogspot.com

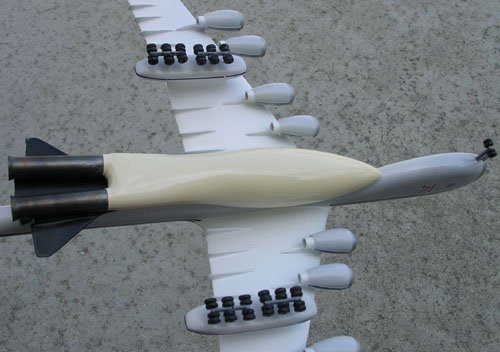

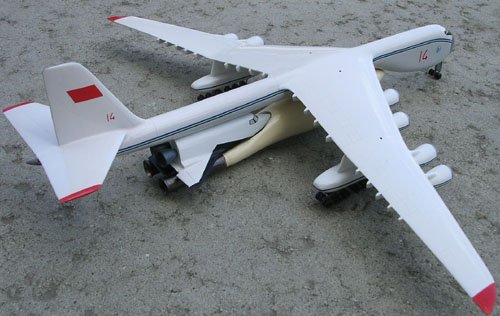

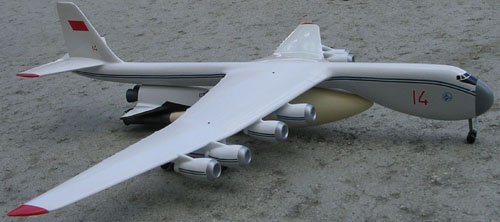

Model of Myasishchev M-52A-1 Air Launch variant from USSR-Russian Aviation and Space Collectibles.

Description:
One of famous Myasishchev`s designs of heavy lift transporter carrying orbital space shuttle MAKS with fuel tank was a M-52A-1 variant for Air Launch.Development of this `52` project was based on existing VM-T Myasishchev transport and various variants of new transport and space support airplane included M-50A-2 and M-52B. Original model is a complicate hand made construction featuring metal wheels, custom graphic on fuselage, including Myasishchev Design Bureau logo on front and detailed undercarriage part.Wing span-12.5 inches.Length-11 inches

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_102&products_id=2245


Attachments

  • 18104156.jpg
    60.7 KB · Views: 55
  • 18104148.jpg
    74.9 KB · Views: 60
  • 18104138.jpg
    77.2 KB · Views: 58
  • 18104130.jpg
    61.8 KB · Views: 49
  • 18104113.jpg
    67.1 KB · Views: 47

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
876
Website
deeptowild.blogspot.com

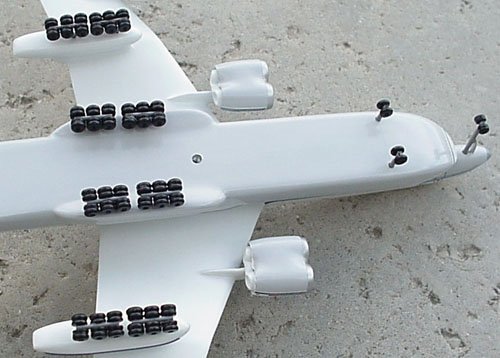

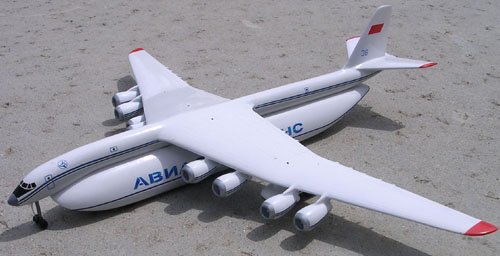

Model of M-52A-2 Myasishchev transport project from USSR-Russian Aviation and Space Collectibles.

Description:
One of famous Myasishchev`s designs of heavy lift transporter with additional cargo compartment under fuselage.Development of this `52` project was based on existing VM-T Myasishchev transport and various variants of new transport and space support airplane included M-50A-2 and M-52B.

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_102&products_id=519


Attachments

  • 13203922.jpg
    29.9 KB · Views: 48
  • 13203935.jpg
    35.6 KB · Views: 44
  • 13203951.jpg
    22 KB · Views: 40

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
876
Website
deeptowild.blogspot.com

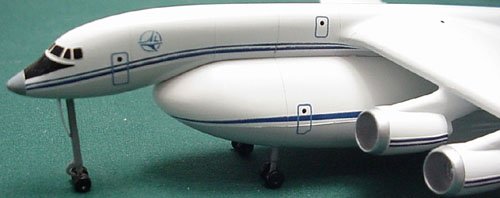

Model of M-52B OKB Myasishchev transporter project from USSR-Russian Aviation and Space Collectibles.

One of famous Myasishchev`s designs of heavy lift transporter with additional cargo compartment under fuselage.Development of this `52` project was based on existing VM-T Myasishchev transport and various variants of new transport and space support airplane included M-50A-2 and M-52B.

Source: http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_102&products_id=522


Attachments

  • 13204735.jpg
    30.7 KB · Views: 54
  • 13204740.jpg
    20.7 KB · Views: 61
  • 13204745.jpg
    42.9 KB · Views: 65

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,193
Reaction score
4,923
That cargo pod on the M-52B almost looks like it was meant to be airdrop capable.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,193
Reaction score
4,923
Probably just an idle question, but would our Russian members have any idea of what the potential domestic market, if any, might be for a revived M-52?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
Topics merged.

Please keep in mind that this is "M-52" from the SECOND series (not to be confused with the first M-52, a variant of the "Bounder" heavy bomber).


royabulgaf

ACCESS: Top Secret
Joined
Dec 29, 2008
Messages
526
Reaction score
113
How large are these, compared to say an An-225? Are there many runways wide enough to handle it? What about ground maneuvering at an airport?
