Hi folks,

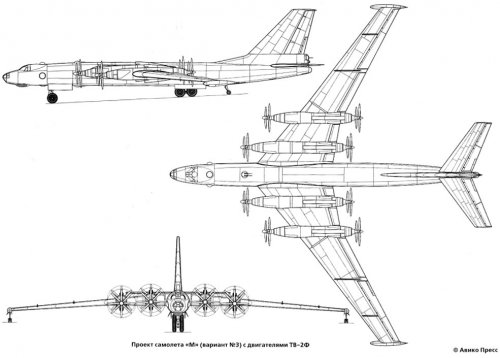

I came across this whilst searching for something else, thought you might be interested - don't have nuch information beyond it being a Myasishchev (OKB-23) Project-25/Aircraft-M , variant-3 with engines TV-2F:





Regards,

Greg

According to Buttler & Gordon, this is Variant 5 of "M" with 8 x 6,250ehp Kuznetsov TV-2F turboprops.

Length: 50.5m
Span: 51.54m
Wing Area: 304 sq m
MTOW: 175,000kg

Source
  • Tony Buttler & Yefim Gordon, Soviet Secret Projects: Bombers since 1945

Fabulous pics!!!!!

Thanks Greg ;)

-


Attachments

  • mv3tv2f.jpg
    93.6 KB · Views: 630
The early M-4 design study using TV-2Fs is also mentioned in the Red Star Series volume about the M-4 Bison on page 12. The TV-2F powered M-4 design study also had a height of 39 feet (12 meters). Since this proposal was conceived alongside other early design studies for the M-4, is it possible that Myasishchev must have decided on jet power as a more appropriate option for the Bison than the TV-2F, given that the crash of the first Tu-95 prototype (which used the TV-2F) highlighted design flaws with the TV-2F?

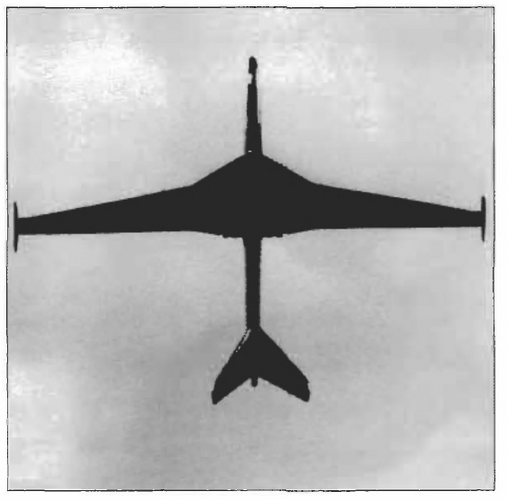

From, ЭВЗ ОКБ В.М. Мясищева. Том_2. Часть_2.


Attachments

  • 1.png
    167.3 KB · Views: 85
  • 2.png
    18 KB · Views: 79
