Japan NAL experimental VTOL aircraft.

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
388
Reaction score
717
Evening folks. I hope that someone on here may help me. I was trawling through a copy of Air Enthusiast from June 1973, as you do, and I came across a brief story about the Japanese NAL. Apparently they had formalised a basic specification for an experimental VTOL aircraft, of which two examples were planned to be built. As the basis for these airframes, either the Fuji T-1 or the Lockheed T-33 were mentioned. One airframe was to be for flying trials whilst the other would be used for static testing.. Power for this project was to come from four J-3-7 engines of 3,086 lb (1400 kg) thrust rating for horizontal flight, whilst the vertical lift engines would be four JR-100V turbojets, producing some 2,932 lb (1330 kg) of thrust. A timescale would see the flight test aircraft completed by 1976 with a test programme commencing in 1977. What I would like to know, is are there any illustrations of this project out there?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,290
Great Info Victor,

but needs time to search.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hmmm...Hard to find images of the projects. :-[

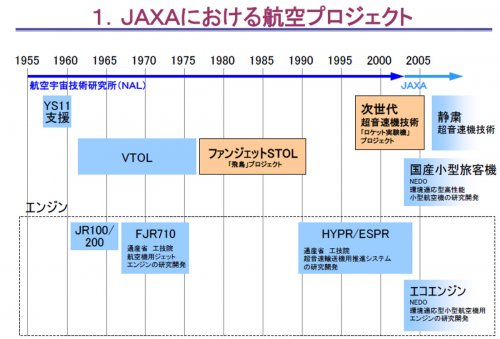

http://www.mext.go.jp/b_menu/shingi/gijyutu/gijyutu2/020/shiryo/__icsFiles/afieldfile/2014/11/12/1264661_003.pdf


Attachments

  • NAL JAXA PROJECT.jpg
    NAL JAXA PROJECT.jpg
    180.2 KB · Views: 572

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,290
My dear Blackkite,

can you translate the part of this Projects ?.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi my great hesham-san! :D
JAXAにおける航空プロジェクト : aircraft project in JAXA, 飛鳥 : Asuka, 支援 : support, ファンジェット : fan jet, プロジェクト : project, 次世代超音速機技術 : Next generation super sonic aircraft technology,
ロケット実験機 : rocket experimental aircraft, 静粛超音速機技術 : quiet supersonic aircraft technology, 国産小型旅客機 : domestic designed small passenger aircraft, 環境適応型高性能小型航空機の研究開発 : reaearch and development for small ecological high performance small aircraft, エンジン : engine, 通産省 工業技術院 : Ministry of International Trade and Industry Agency of Industrial Science and Technology, 航空機用ジェットエンジンの研究開発 : research and development for aircraft jet engine, 超音速輸送機用推進システムの研究開発 : research and development for supersonic transport propulsion system, エコエンジン : ecological engine, 環境適応型小型航空機用エンジンの研究開発 : research and development for ecological small aircraft engine.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599

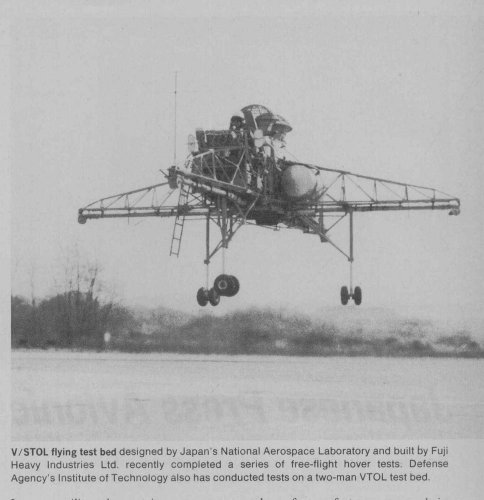

No pictures/drawings of that design itself, but this testbed quite probably was
related to it:
(from AviationWeek 1971, 94/1-13)


Attachments

  • JNAL-VTOL-testrig.JPG
    98.6 KB · Views: 421

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
862
Reaction score
222

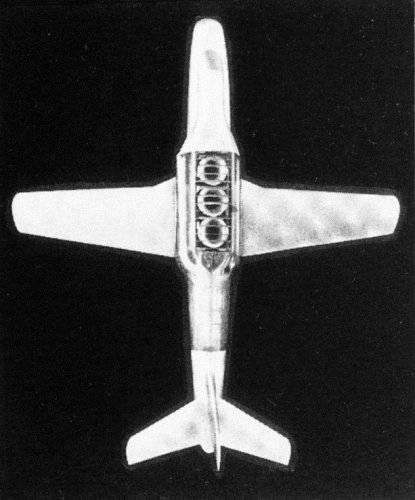

This comes from Handbook of Japanese Aircraft 1951 - 1989 (page 262 - section on NAL VTOL Flyng (sic!) Test-bed).


Attachments

  • VTOL (Japan).jpg
    VTOL (Japan).jpg
    196.7 KB · Views: 413

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Answer from Kakamigahara Aerospace Science Museum.http://www.city.kakamigahara.lg.jp/museum/124/000814.html

お問い合わせありがとうございます。
さて、「NAL VTOL実験機」ですが、かかみがはら航空宇宙科学博物館に実機が展示されています。
同機は、日本が開発した初めての垂直離着陸実験機(ジェットエンジンの排気で垂直離陸する)であり、1970年12月15日に宮城県角田で初飛行に成功しました。
残念ながら、日本の垂直離着陸機の研究開発は「経済性」や「騒音問題」などの事情からこの1機だけで終わり、短距離離着陸機の研究へと方向転換されました。
本機で得られた成果は、JAXAの月面軟着陸研究等に活かされているとのことです。
展示機体は、各種実験終了後エンジンが外され、国立科学博物館にて屋外展示されていましたが、1995年、かかみがはら航空宇宙科学博物館開館に向けて無償譲渡されました。
その後、NALや富士重工業の協力を受け、飛行実験当時の状態に復元され、現在に至っています。
Auto translation
Thank you for your inquiry.
So NAL VTOL experimental machine, what is hair displays a real Aerospace Science Museum.
The aircraft is developed by Japan for the first time experimental VTOL (vertical takeoff Jet engine exhaust), and 12/15/1970 succeeded in its first flight in Kakuda, Miyagi Prefecture.
Unfortunately, research and development of vertical takeoff and landing aircraft in Japan end in only this one reasons such as "economic efficiency" and "noise issue", was turning to the study of short takeoff and landing aircraft.
It is with the results obtained on this unit is utilized in the JAXA lunar landing research, etc..
Unplugged engine after the various experimental exhibition aircraft that had been outdoors at the National Museum of science, but in 1995, or bite was transferred free of charge toward rose Aviation Aerospace Science Museum opened.
Then received the cooperation of NAL and Fuji Heavy Industries Ltd., was restored to flight test at that time, continues.

Explanation of this test bed.
VTOL(垂直離着陸機)にはいくつかの方式がありますが、航空宇宙技術研究所で研究されていたのは、推進用エンジンとは別に、浮上用のリフト・エンジンを持った「リフト・エンジン方式」のVTOLでした。
 当初、航空宇宙技術研究所ではリフト・エンジンだけを搭載した実験機の成果を踏まえた上で、本格的なVTOL機の開発に移行することを計画していました。本機は、その実験機です。
Auto translation
It was VTOL lift engine architecture with the lift engine to engines for propulsion, levitation for VTOL (vertical takeoff and landing aircraft) there are several schemes that had been studied in Research Institute of space technology.
Was planning the transition to development of a VTOL aircraft, based on the results of the experimental aircraft initially with only the lift engine air space technology Research Institute on authentic. This is the experimental aircraft.

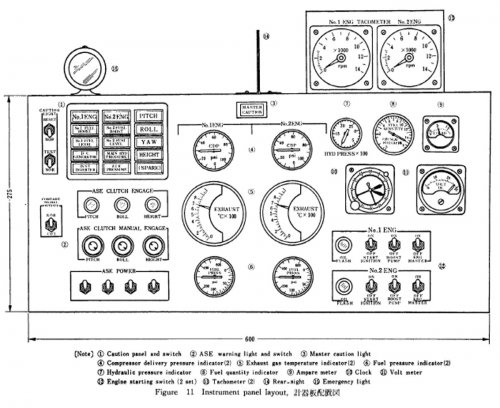

Test report
https://repository.exst.jaxa.jp/dspace/bitstream/a-is/24268/1/naltr00358.pdf


Attachments

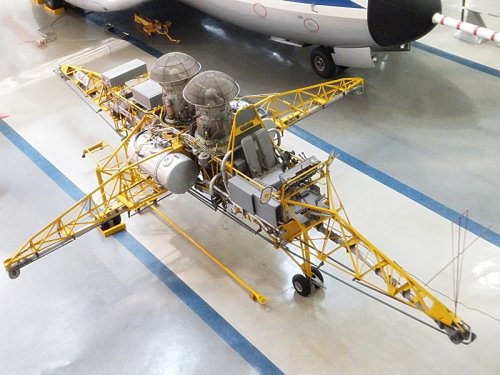

  • gifu-20120505-28.jpg
    406 KB · Views: 274
  • 2016-08-06_0531.jpg
    193 KB · Views: 272

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
boxkite said:
This comes from Handbook of Japanese Aircraft 1951 - 1989 (page 262 - section on NAL VTOL Flyng (sic!) Test-bed).

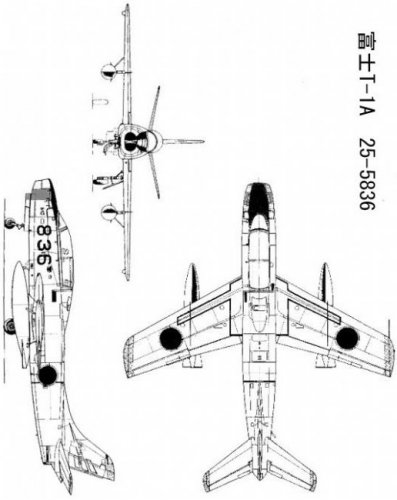

Super information, boxkite-san. :D Tail looks like Fuji T-1.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=27755.0;attach=562530;image


Attachments

  • T-1A.jpg
    72.3 KB · Views: 111

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
388
Reaction score
717
Many thanks for the replies so far. I am particularly intrigued by the top view, which is probably the nearest I will get to the solution so far!

Top
