The N-52 was the first private aircraft built in Japan after the war. It was a low-wing, side-by-side seating cantilever monoplane sport aircraft of mixed construction built by the Okamura Mfg. Co. It started as a design experiment under the supervision of Hidemasa Kimura, a professor at Nihon University's College of Science and Engineering. Kimura had previously worked on the famous Koken, and designed the SS-1 (Japan's first pressurized high altitude aircraft) and the high-performance Tachikawa A-26 twin-engine transport; after the war he also designed the twin-turboprop YS-11 transport.

Three test airframes were funded by Asahi Press for analysis. The aircraft featured a single open cockpit with side by side seating and a taildragger landing gear. The type was powered by a Continental A-65 four-cylinder horizontally-opposed air-cooled engine. However, controllability with a 65 hp (48 kW) engine was considered sluggish, and the aircraft was designed to accommodate up to 100 hp (75 kW) engines, including the Continental C85.The sole prototype built was first flown on April 7, 1953.


General characteristics

Crew: one
Capacity: one passenger
Length: 5.99 m (19 ft 8 in)
Wingspan: 8.61 m (28 ft 3 in)
Height: 2.59 m (8 ft 6 in)
Wing area: 12.0 m2 (129 sq ft)
Empty weight: 299 kg (660 lb)
Gross weight: 499 kg (1,100 lb)
Powerplant: 1 × Continental A-65 , 48 kW (65 hp)

Performance

Maximum speed (with Continental A65): 177 km/h; 96 kn (110 mph)
Maximum speed (with Continental C85): 192 km/h
Stall speed: 79 km/h; 43 kn (49 mph)
Rate of climb: 2.8 m/s (550 ft/min)
Range: 490 km


Adapted from Wikipedia and other sources.
Some photos from the site aero.or.jp.


Attachments

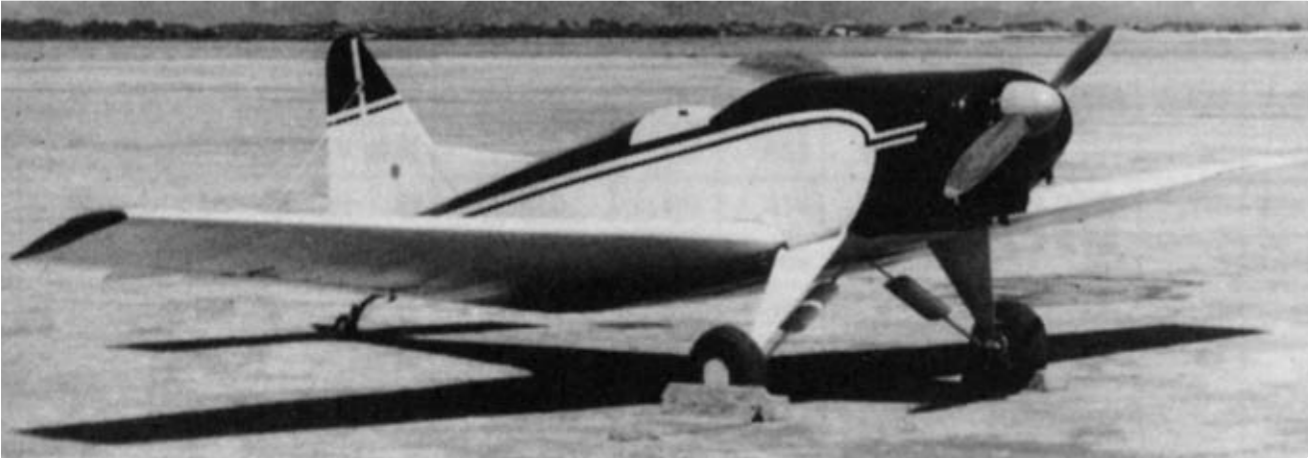

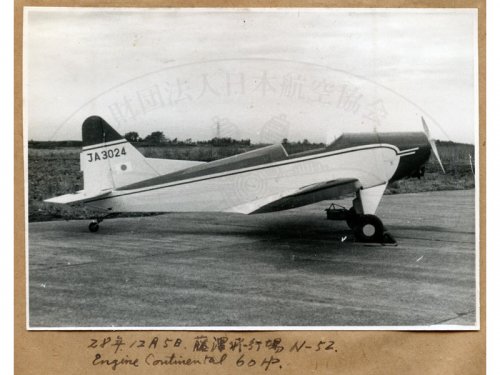

  • Okamura N-52, Continental 60 hp.jpg
    Okamura N-52, Continental 60 hp.jpg
    161.2 KB · Views: 306

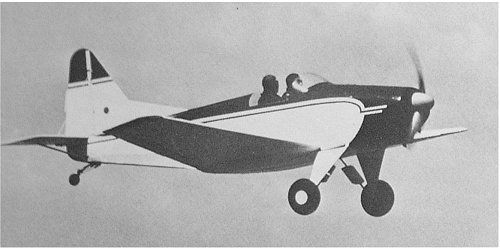

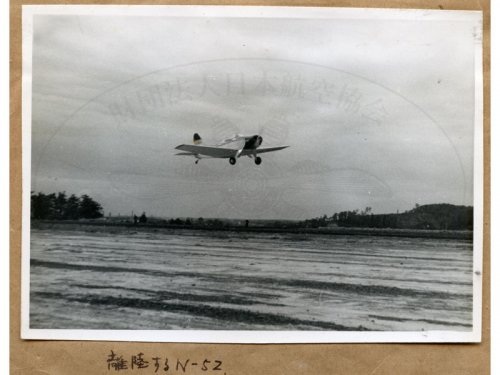

  • Okamura N-52 in flight.jpg
    Okamura N-52 in flight.jpg
    142.9 KB · Views: 263

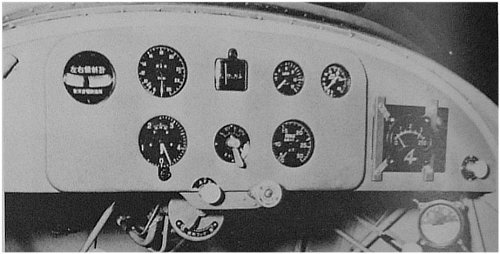

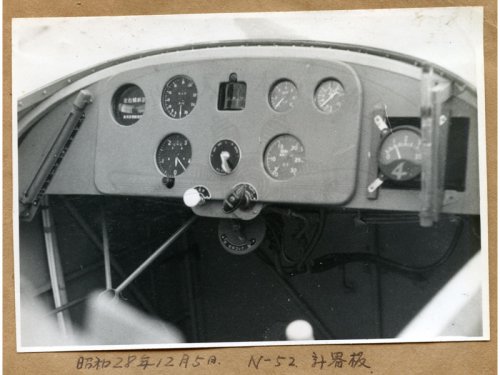

  • Okamura N-52 control panel.jpg
    Okamura N-52 control panel.jpg
    150.1 KB · Views: 232

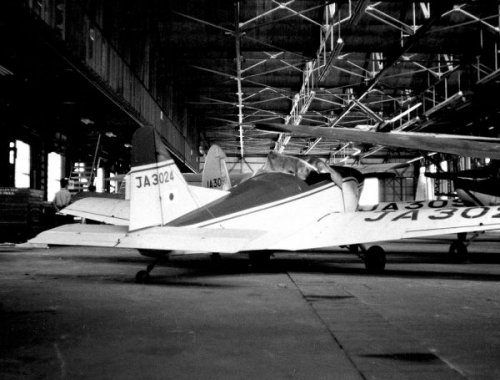

  • a37ToyoAC-JA3024-N52-Ohono-4.jpg
    53.9 KB · Views: 208
  • 07-023-001-039-02.jpg
    126.1 KB · Views: 201

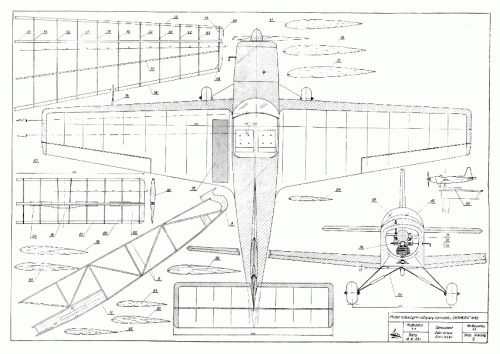

  • Okamura N-52 plan.gif
    Okamura N-52 plan.gif
    117.2 KB · Views: 45
  • N52-01.jpg
    23 KB · Views: 41
  • N52-02.jpg
    29.7 KB · Views: 22

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,007
Reaction score
480
Star, please be aware that the plan you posted above is for a flying model of the N-52, rather than the aircraft itself. Therefore the structure will not be correct to the full size, and the tailplane may be enlarged in area.

cheers,
Robin.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
robunos said:
Star, please be aware that the plan you posted above is for a flying model of the N-52, rather than the aircraft itself. Therefore the structure will not be correct to the full size, and the tailplane may be enlarged in area.

Yeah, I know, but that's the closest I could find to a plan for the N-52.

Thanks nonetheless for bringing it to the attention of other forum members.


ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
100
Reaction score
51
Hello, Stargazer
thanks for sharing these infos:
Could you add a side- view of the aircraft (table 1 of the model plan, I imagine)
best regards
er me
