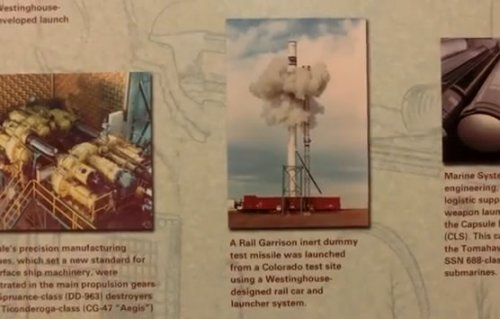

MX (Peacekeeper) deployment concepts.

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
875
Website
deeptowild.blogspot.com

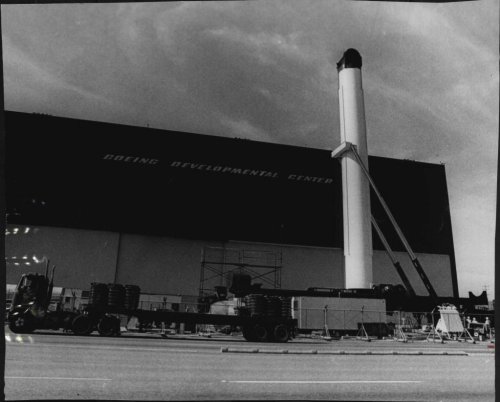

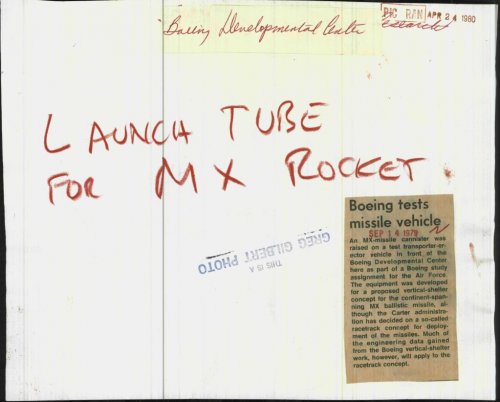

Boeing MX missile canister photo dated Sep. 14, 1979 found on ebay.

Source:
http://www.ebay.com/itm/1979-Boeing-Developmental-Center-MX-Missile-Canister-Press-Photo-/200794264633?pt=Art_Photo_Images&hash=item2ec0455439


Attachments

  • 6_13_308_img1616A.jpg
    94.7 KB · Views: 620
  • 6_13_308_img1616B.jpg
    76.2 KB · Views: 598

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,085
Reaction score
4,827
http://www.dtic.mil/dtic/tr/fulltext/u2/a956120.pdf


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,179
Reaction score
1,397

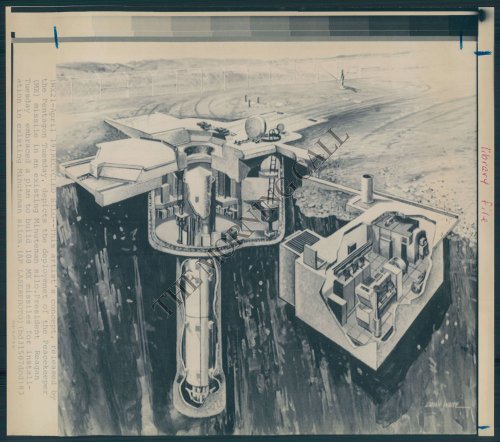

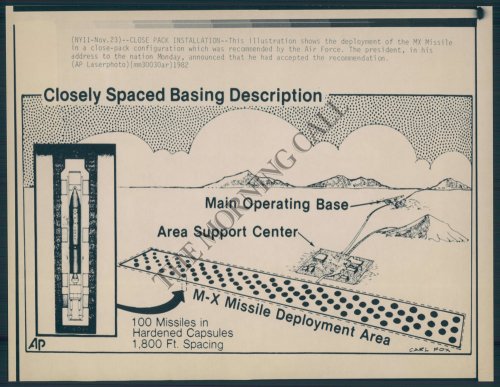

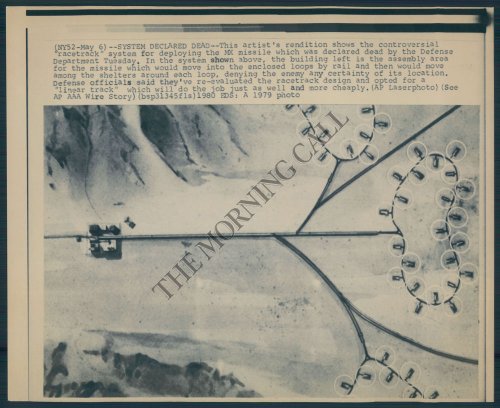

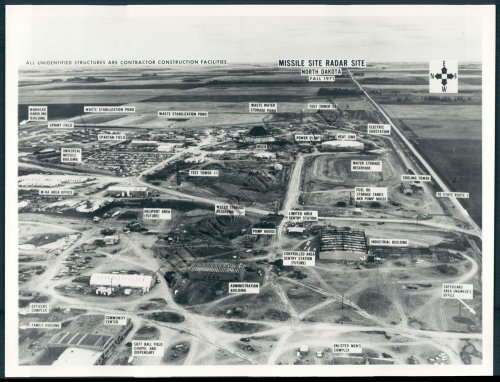

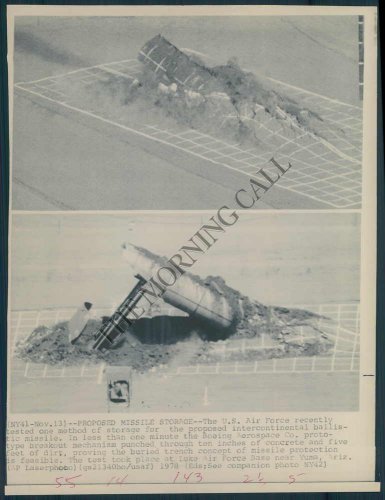

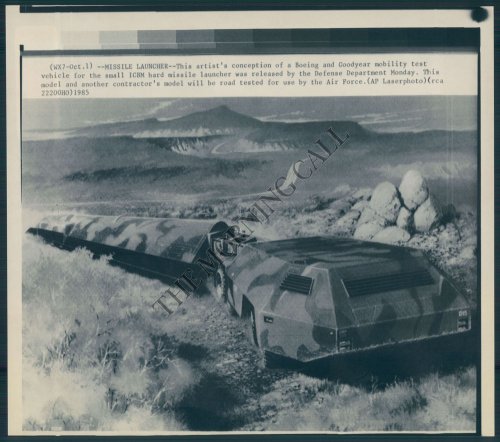

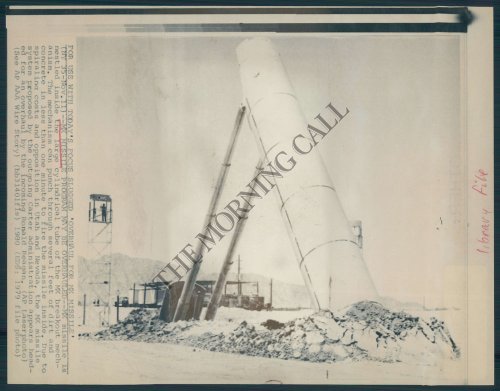

some seine-fishing at ePay


Attachments

  • AFP-239-MC_F.jpg
    165.4 KB · Views: 166
  • AFP-304-MC_F.jpg
    163.5 KB · Views: 145
  • AFP-228-MC_F.jpg
    143.9 KB · Views: 117
  • AFP-231-MC_F.jpg
    104.4 KB · Views: 133
  • AFP-230-MC_F.jpg
    160.4 KB · Views: 151
  • AFP-236-MC_F.jpg
    176.1 KB · Views: 153
  • AFP-234-MC_F.jpg
    51.3 KB · Views: 565
  • AFP-227-MC_F.jpg
    142.2 KB · Views: 612

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,072
Reaction score
1,575
i found another deployment concept on MX

According to the (very limited) documentation I've found, ORCA was going to be canisterized MX missiles tethered to the ocean floor on the continental shelf. No manpower on site, just a canister and a tether. Never implemented because it violated the Seabed Treaty and was vulnerable to attack without corresponding advantages. I've never found anything about deep sea basing, but it wouldn't surprise me - they considered everything else, after all.
Thanks to Asnys from Alternate History forum for the info.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
875
Website
deeptowild.blogspot.com

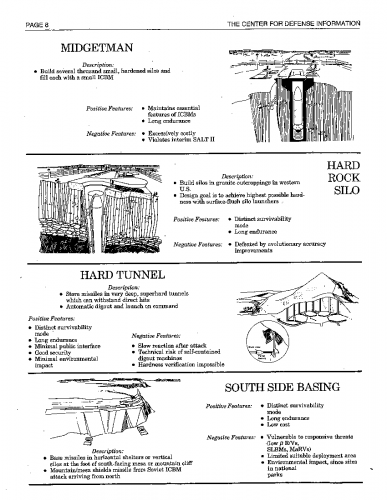

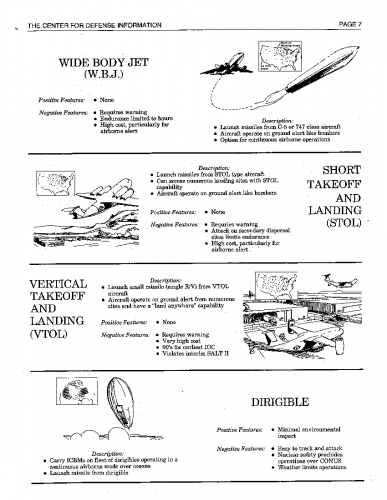

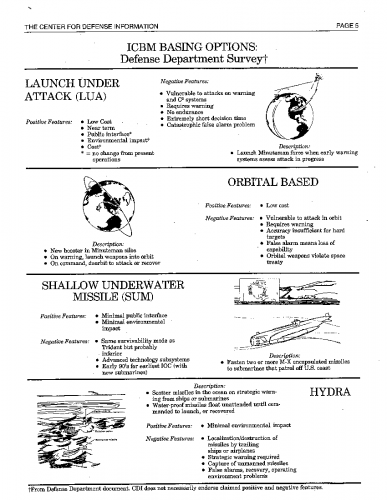

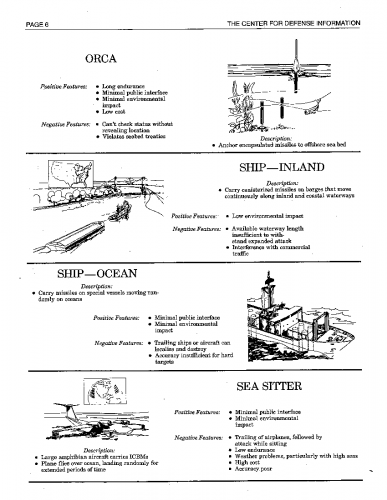

Comparisons of 30 Department of Defense ICBM basing modes from a Center for Defense Information publication circa 1981.

Source:
http://lewis.armscontrolwonk.com/archive/5397/icbm-basing-modes


Attachments

  • MX_8.png
    46.4 KB · Views: 220
  • MX_7.png
    41.4 KB · Views: 216
  • MX_6.png
    39.1 KB · Views: 224
  • MX_5.png
    42.8 KB · Views: 214

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
15,085
Reaction score
4,827

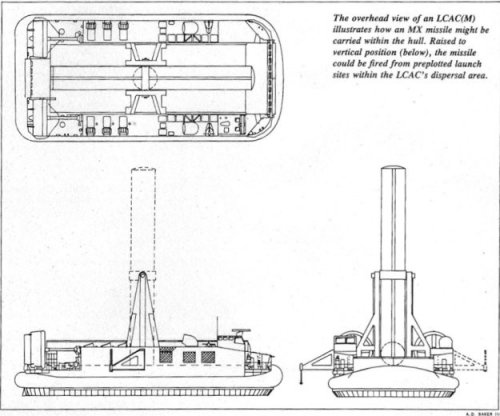

In regards to earlier discussions of hovercraft mounted or carried MX missiles on this thread, Orion came across this sometime ago:
http://up-ship.com/blog/?p=9544


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,256
Reaction score
1,925
Website
www.aerospaceprojectsreview.com
Tom Clancy's notion for an MX-launching hovercraft:

The Floating Shell Game: Tom Clancy’s 1982 Plan to Fire Nuclear Weapons from a Hovercraft - See more at: http://news.usni.org/2013/10/02/floating-shell-game-tom-clancys-1982-plan-fire-nuclear-weapons-hovercraft#sthash.Jv6gQF9t.dpuf
The Floating Shell Game: Tom Clancy’s 1982 Plan to Fire Nuclear Weapons from a Hovercraft - See more at: http://news.usni.org/2013/10/02/floating-shell-game-tom-clancys-1982-plan-fire-nuclear-weapons-hovercraft#sthash.Jv6gQF9t.dpufThe Floating Shell Game: Tom Clancy’s 1982 Plan to Fire Nuclear Weapons from a Hovercraft



The Floating Shell Game: Tom Clancy’s 1982 Plan to Fire Nuclear Weapons from a Hovercraft - See more at: http://news.usni.org/2013/10/02/floating-shell-game-tom-clancys-1982-plan-fire-nuclear-weapons-hovercraft#sthash.Jv6gQF9t.dpuf


Attachments

  • clancy_LCAC.jpg
    59.7 KB · Views: 1,014

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,767
Reaction score
2,092
Well, that's a delightfully wacky concept.


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,202
Reaction score
272
TomS said:
Well, that's a delightfully wacky concept.

Wasn't the only time that hovercraft were considered for this mission, and not the wackiest ICBM deployment or survivability concept by a long shot.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,767
Reaction score
2,092
True. But I think the drawing is pretty bizarre -- it looks to be a baseline LCAC, which couldn't even carry a bare MX, much less one with realistic environmental protection, erection gear, and launch support hardware. Even the stretched LCAC discussed would be very ahrd when you think about the mass of the supportin equipment needed.

That, and the idea that air cushion cheicles can traverse land obstacles as easily as they can cross waves.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,206
Reaction score
65
Am I the only one that thinks the LCAC transforms into a submarine when the MX is fired?


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,027
Reaction score
2,457
SOC said:
Am I the only one that thinks the LCAC transforms into a submarine when the MX is fired?

I was thinking more along the lines of one of those cars in the new Superman movie.


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,202
Reaction score
272
SOC said:
Am I the only one that thinks the LCAC transforms into a submarine when the MX is fired?

Actually, I think it transforms into a very easy to find target.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,027
Reaction score
2,457
quellish said:
SOC said:
Am I the only one that thinks the LCAC transforms into a submarine when the MX is fired?

Actually, I think it transforms into a very easy to find target.

Given that it would be somewhere in the Southwest desert I'm not sure it would matter. It would be long gone by the time any weapon cued from observing the launch would be overhead.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
875
Website
deeptowild.blogspot.com

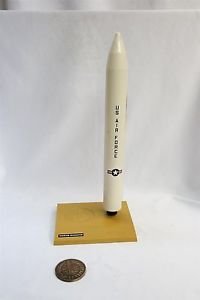

Martin Marietta Peacekeeper model with bronze coin found on eBay. Legitimate for collectors?


Source:
http://www.ebay.com/itm/RARE-Martin-Marietta-1-50-Scale-Peacekeeper-Desk-Rocket-Model-w-Bronze-Coin-/281588851651?pt=LH_DefaultDomain_0&hash=item419000e3c3

Seller's description:

RARE Martin Marietta Rocket Desk Model, 1/50th Scale
Peacekeeper with Bronze Coin
Condition: No damage aside from normal wear.

We sell many used items that have typical day to day wear. We make mention of any significant damage, cracks, break, repairs, chipping, fading, or flaws. If you have any questions regarding the specifics, please, contact us anytime. We are more then happy to assure you of the quality of the product.

* If you would like additional photos, please let us know 24 hours before auction close
* Payment is required within 10 days of auction close
* If the is any problem with any item we sell please let us know immediately! We will respond within 24 hours and will do everything we can to resolve the issue.

Piece is 18 Inches x 8 Inches x 8 Inches.


Attachments

  • $_35.JPG
    4.9 KB · Views: 237

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
28
Silo defense
Gau-8 CIWS and SWARMjet rockets against soviet warheads
https://www.youtube.com/watch?v=B3KZiW589nI


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,027
Reaction score
2,457
I knew I'd read somewhere back in the day about using a GAU-8 to protect silos. Was starting to wonder if I'd imagined it. ;D


phil gollin

ACCESS: Secret
Joined
Sep 19, 2007
Messages
222
Reaction score
22
.


This is possibly of interest ;


http://www.amazon.co.uk/Untaken-Road-Strategy-Technology-Transforming/dp/1612519733/ref=sr_1_259?s=books&ie=UTF8&qid=1431276894&sr=1-259


.


bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
10,971
Reaction score
2,231
Phil - very nice added to wish list. Here is Amazon US

http://www.amazon.com/Untaken-Road-Strategy-Technology-Transforming/dp/1612519733/ref=sr_1_1?ie=UTF8&qid=1431291414&sr=8-1&keywords=the+untaken+road


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,027
Reaction score
2,457
Hopefully it's more than just a printing of "Echos That Never Were - American Mobile ICBMs 1956 - 1983"


bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
10,971
Reaction score
2,231
Orionblamblam said:
sferrin said:
Hopefully it's more than just a printing of "Echos That Never Were - American Mobile ICBMs 1956 - 1983"

Same author, so it's not unlikely. However, I'd bet on improved image quality at the very least

Thought I recognized the name. Yes maybe if it's fully updated with some great drawings and pictures would be nice addition to my 'nuclear' library.


bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
10,971
Reaction score
2,231
sferrin and other SPF members.

Has anyone come across studies (or study) of super hard silo concepts? I thought I had something that talked about 50k psi possible? I've seen snippets but wondering about full studies.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,027
Reaction score
2,457
bobbymike said:
sferrin and other SPF members.

Has anyone come across studies (or study) of super hard silo concepts? I thought I had something that talked about 50k psi possible? I've seen snippets but wondering about full studies.

There was an article in Air Force magazine back in the 80s about them. 50ksi is right. They even had a picture where they'd done a simulation with high explosives. Showed the concrete tube sticking out of the bottom of a crater.

http://scienceandglobalsecurity.org/archive/sgs02michener.pdf

From the footnotes in this article it looks like the Air Force Magazine article was January of '84


marauder2048

"I should really just relax"
Joined
Nov 19, 2013
Messages
3,158
Reaction score
510
They conducted a sub-scale (intended to simulate a 55,000 psi overpressure i.e. a direct hit from a ~ 1 Mt warhead) test on a superhardened silo constructed with Slurry Infiltrated Fiber Concrete (SIFCON). Not the best photo reproduction in the report but plenty of details.

http://www.dtic.mil/dtic/tr/fulltext/u2/a195351.pdf

* One of the amusing remarks in the referring documents was that fiscal and political pressure were much harder to counter than overpressure.


bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
10,971
Reaction score
2,231
sferrin & marauder2048 THANKS much for the links. Why this is my favorite all time site amazing members.


bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
10,971
Reaction score
2,231
Why a basing mode wasn't selected.

http://www.lanl.gov/discover/publications/national-security-science/2015-july/_assets/doc/NSS-jul2015-mxfactor.pdf


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,494
Reaction score
1,046
Alternate MX Basing Concepts Weighed

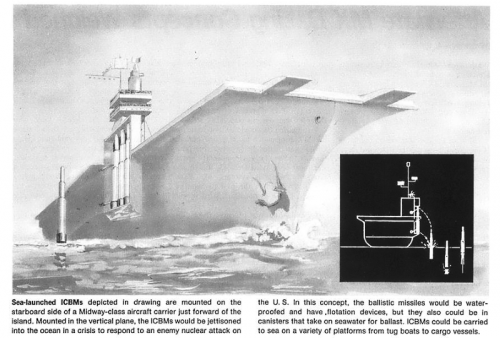

Washington—Alternate basing concepts are being considered for the USAF/Martin Marietta MX advanced intercontinental ballistic missile (ICBM) by high-level Pentagon officials as possible hedges to the linear grid system in the southwestern U. S. now favored by the Carter Administration.
By CLARENCE A. ROBINSON
Source: Aviation Week, October 27th, 1980, pages 19-21
Link (Login!): http://archive.aviationweek.com/issue/19801027/#!&pid=18


Attachments

  • Sea-lauched_ICBM__AWST__1980-10-27__page_20__800x540.png
    302.4 KB · Views: 667

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,494
Reaction score
1,046
ICBM Survivability Aid Studied
Two concepts that would allow orbital, aerodynamic cruise loiter of Minuteman weighed to counter preemptive strike
By CLARENCE A. ROBINSON
Source: Aviation Week, February 25th, 1980, pages 16-18
Link: http://archive.aviationweek.com/issue/19800225#!&pid=16


Attachments

  • Boeing_cruise_ballistic_missile_concept_AWST__1980-02-25__page_17__800x703.png
    373.6 KB · Views: 606

Kat Tsun

I really should change my personal text
Joined
Jun 16, 2013
Messages
177
Reaction score
116
The hardest basing options I've seen for the MX were the various super hard silos, I believe 3,500 atm hard silos were actually built, or otherwise considered "certainly achievable", and 7,000 atm were considered "possible"; the Deep Base, where MX missiles would be stationed about half a mile and change underground along with Air Force crewmen, base personnel, and a team of tunnel bore crews, after the bombs fell the crews would dig themselves out egress tubes over several months, eventually break the surface, and fire their missiles; and the Deep Silo/Hard Rock basing, of which LANL's "Pencil Pusher" could resist surface bursts up to 100 megatons, while Boeing's "Sand Silo" could resist 25 megatons, both presumably direct impacts.

https://books.google.com/books?id=Zz8rAAAAYAAJ
https://books.google.com/books?id=VD8rAAAAYAAJ
https://books.google.com/books?id=PJf2jZbIPjcC&pg=PA267&lpg=PA267&dq=super+hard+silo+50,000+psi&source=bl&ots=N2DI3yPUb3&sig=zQ5N2zx2C6zgCxWfWUT1XOE9XNQ&hl=en&sa=X&ved=0ahUKEwiXtdOdjbzRAhXJ7YMKHRpKDDwQ6AEIHjAB#v=onepage&q=super%20hard%20silo%2050%2C000%20psi&f=false

I'm not sure how good these Google book scans are, what's omitted I mean, but they contain enough info for what I talked about.
