Motocar's Cutaway drawings

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,989
Reaction score
364
Motocar said:
Cutaway Dassault Rafale Stealth, Based on speculative render of Buitreaux
Thanks for sharing. Twin vertical tail stabilizers!!
In order to reduce the radar cross section (RCS) of the aircraft, the stealth Rafale should have canopy which coated with a thin layer of Indium Tin Oxide (ITO), which gives it a golden tint.
Excellent work as usual. :D


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

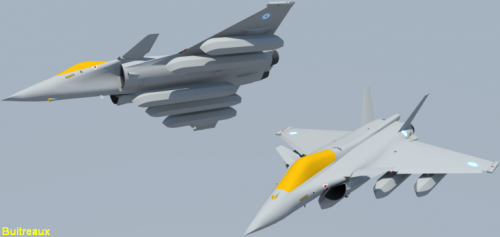

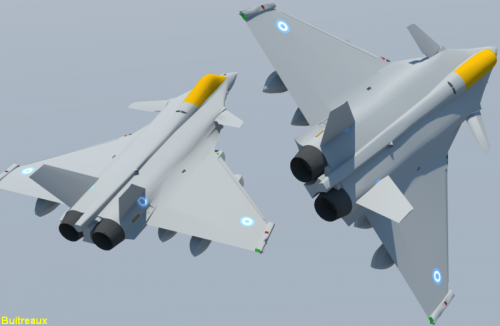

Renders by artist Buitreaux post from:
http://rafalenews.blogspot.com/2011/05/artist-view-of-stealthy-rafale.html?spref=tw


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37
Thanks to a friend who shared it with me finally I have the cutaway of the Nord Griffon II in great forgiveness "huge" resolution ...! Soon I will share it in the topic ...!


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

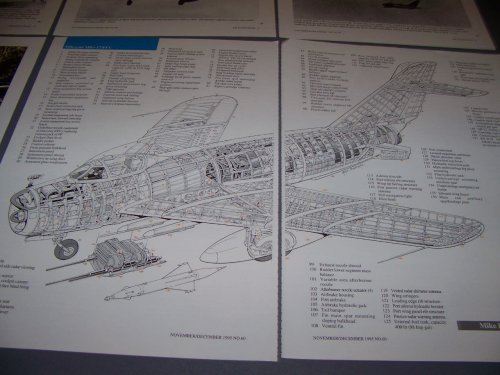

Cutaway Mikoyan Gurevich MiG-17PFU, the fighter that after his passage through the skies of Vietnam dictated chair of what should be a fighter, wrote the requirements of what in the future would be a remarkable fighter General Dynamics F-16, light and with a spectacular maneuverability thanks to its weight / thrust ratio 1/1, this considered early bird proved its worth in that Asian theater, in a humid and difficult environment where it was always ready to enter combat and that gave a great number of victories to a handful of Vietnamese pilots who acquired the status of "Aces", reason for the creation of the combat school of the US Navy and the Marine Corps, developing techniques of close combat that would allow them to face the agile (and cheap) guarantee of success ) Soviet fighter, this meant that if a MiG-17 was lost, it was not a great material loss while the US fighter cost 4 to 10 times more without leaving his crew and his crew Training, in this last point that the Vietnamese pilots were not disposable as some pretended to say, they were highly respected by the political and military leadership attaining the status of "Heroes" in that society. For now this is the only cutaway of the MiG-17 PFU Fresco in the classic Mike Badrocke technique that I have located, it was published in the magazine "Air Enthusiast" in its edition of # 60 of November / December 1995, but it is a lot to ask and some friend has access to a newspaper library or better yet has that much appreciated edition scan and share it here, for the enjoyment of all and especially this server that has some plans for retouching little known versions of it ... ! But that will come later. in advance thanks, Motocar
Shared image from Ebay


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

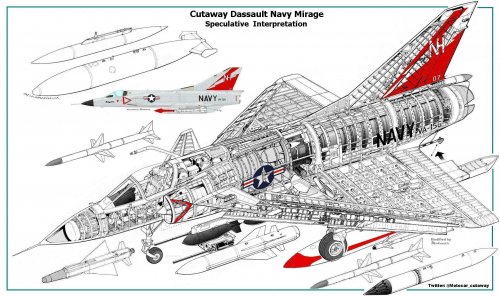

Cutaway Dassault Mirage IIIC Navy, an exercise of speculation on a vision of a Mirage IIIC shipped for the US Navy, something that definitely did not happen, the necessary changes are made to reduce the speed in the approaches to the aircraft carrier and incorporates the AIM-7 missile Sparrow next to the Matra 530 and other weapons, author Aviagraphica and modified by Motocar, etocando the tail nozzle to recreate the engine Snecma Atar 9B with its nozzle "Bipetalo" and with color scheme of the US Navy.


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

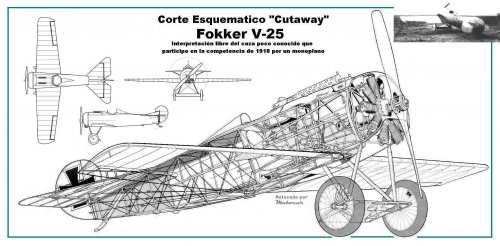

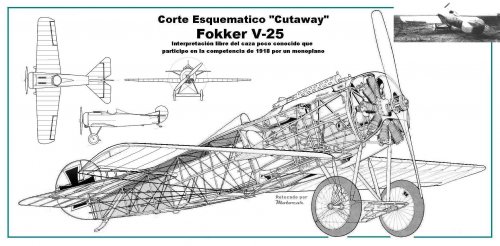

Cutaway Fokker V.25 the monoplane that participated with the Fokker VIII in the competition for a monoplane fighter during the year 1918 from where the monoplane with parasol wing was chosen to the Fokker VIII, I confess that it was until very recently that I met this model motivating me to recreate a highly speculative schematic cut to recreate it, I still have some technical gaps that I hope to solve soon, it is noteworthy that the fixed vertical extension of the drift is in the image although partially covered by the right wing, author not identified in the image and retouched by Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

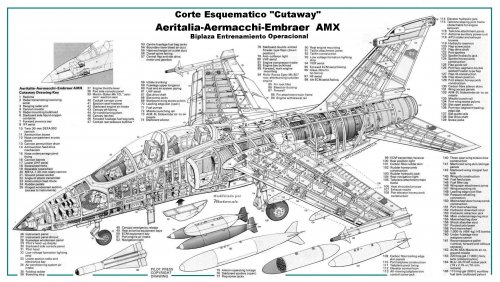

Cutaway Aeritalia-Aermacchi_ Embraer AMX Two place, operational training version of the attack aircraft developed between Brazil and Italy, author Aviagraphica and modified by Motocar to recreate this model.


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

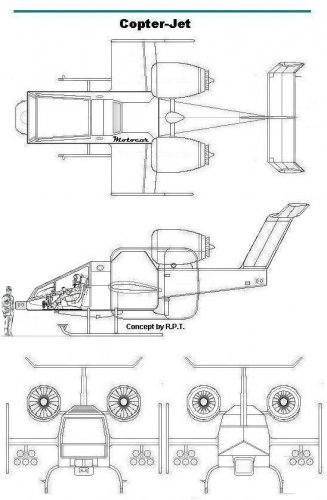

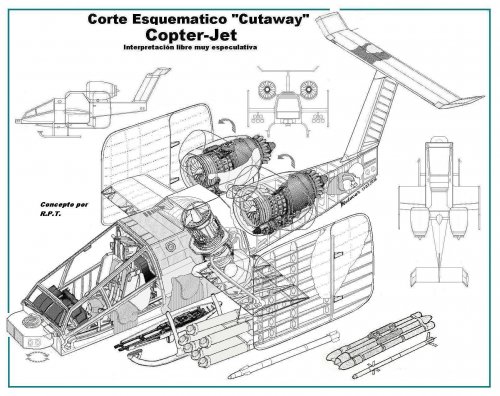

Cutaway Copter-Jet, purely speculative work on concept based on the idea of a helicopter gunship propelled to pure turbine, very compact and short range whose mission would be to shoot down armor and helicopters based on maneuverability and speed on the field. Concept of R.P.T. and made by Motocar


Attachments

SpudmanWP

CLEARANCE: Top Secret
Senior Member
Joined
Nov 10, 2008
Messages
1,078
Reaction score
22
GI Joe beat you to it ;)


http://www.oafe.net/yo/gij25ghawk.php


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37
SpudmanWP said:
GI Joe beat you to it ;)


http://www.oafe.net/yo/gij25ghawk.php
That's right, it's based on a GI Joe, but recreated in a more viable or feasible version proposed by R.T.P. to which I gave form, the Joe is unviable and too small to be real, there are many inconsistencies. The important thing is that at least he likes me and his comment is always welcome. regards ;) :D


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

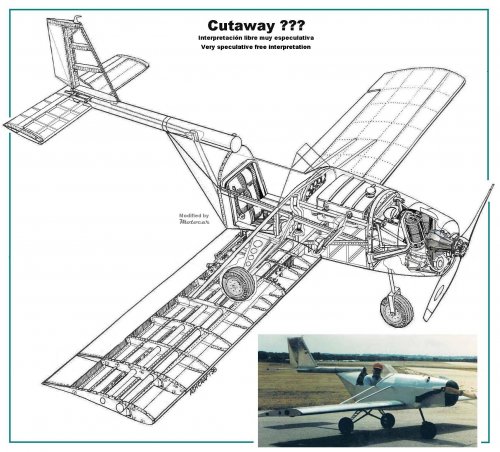

Cutaway ???, I do not correctly identify this interesting homemade construction plane that allowed me to make a modification to recreate the very speculative schematic cut of it, author Ashcraft 98 and modified by Motocar

P.S. I would very much appreciate any information on the name and additional data of this plane.


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

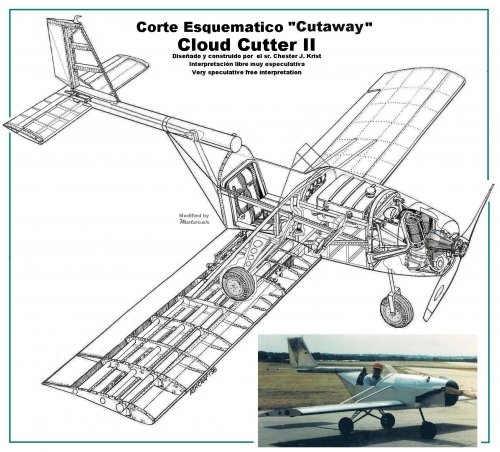

Ready the name is Cloud Cutter II design and build by Chester J. Krist

Chester Krist built the Cloud Cutter II, which was again an original design homebuilt. Like the earlier N157CK, the aircraft had an all metal construction and it featured a somewhat unusual fuselage with pod and tail boom configuration. However, it is uncertain the Cloud Cutter II was flown."


Link: http://1000aircraftphotos.com/Contributions/VanTilborg/12213.htm


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

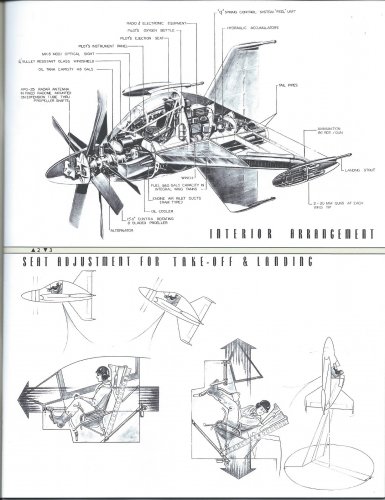

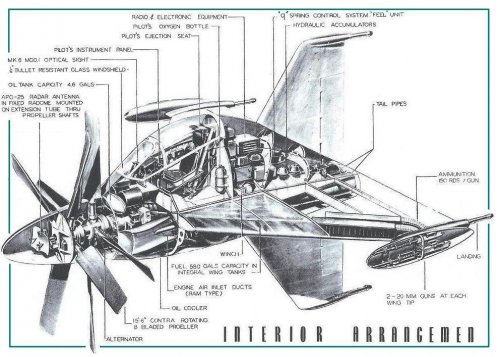

Cutaway Convair XFY-1 Pogo turboprop, actually a general layout of the project for the US Navy for a takeoff and landing vertical landing on its tail, an extension that allows to appreciate the detail that it was equipped with a voluminous radar antenna and had a twin-engine power plant, tilting ejection seat to facilitate vision during VTOL operations, located on the web:
http://web.ipmsusa3.org/content/convair-class-vf-convoy-fighter-original-proposal-xfy-1-pogo


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37
Thanks Jemiba, I think I recycled without realizing it, although I'm still looking for more information about the Aurora 400, I remember that more than 30/35 years ago I had publicity in the classified ads of Popular Mechanics magazine as a project to invest in VTOL


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

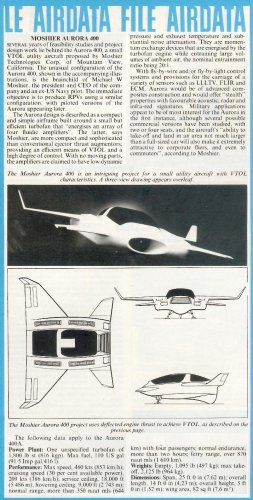

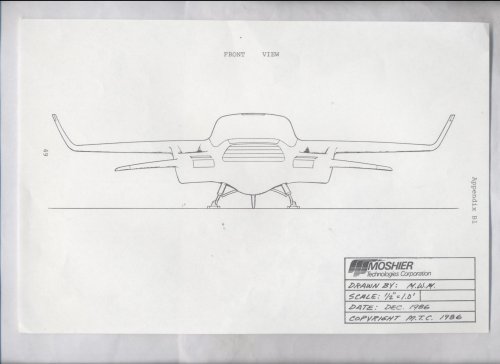

With the reference of the name locate this publicity on the Moshier Aurora 400 published in the Popular Mechanics magazine of March of 1987 page 149, page 149, good for a speculative cutaway
https://archive.org/stream/PopularMechanics1987/Popular_Mechanics_03_1987#page/n137/mode/thumb


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37
The link the Moshier Aurora 400 in "secretprojects.co.uk":

https://www.secretprojects.co.uk/forum/index.php?topic=3331.0

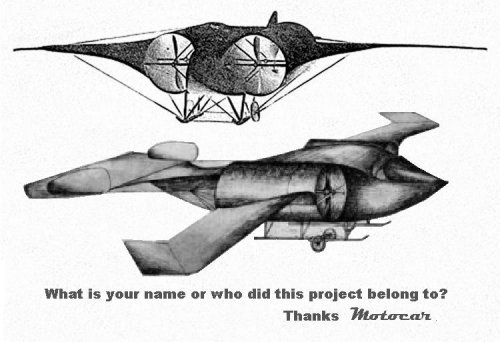

Image Aurora 400 repost


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

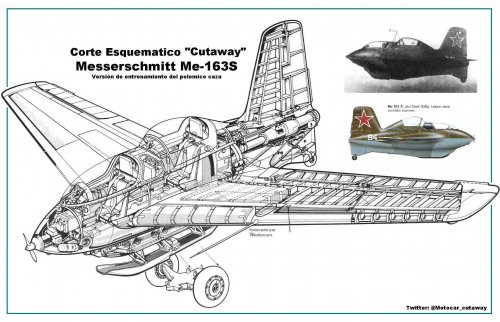

Cutaway Messerschmitt Me-163S Komet in the training version, very little known here in a speculative interpretation of it, later edited the image to incorporate some details now not very clear, accompanied by a palette and a very blurred photograph of the few that they know each other. Unidentified author and retouched by Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

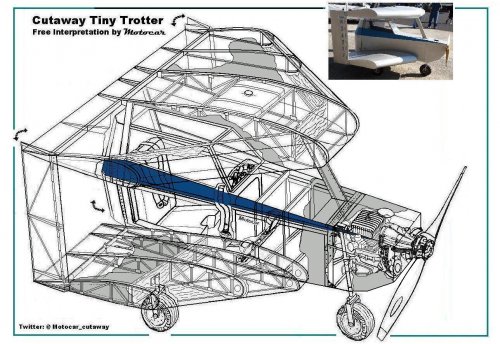

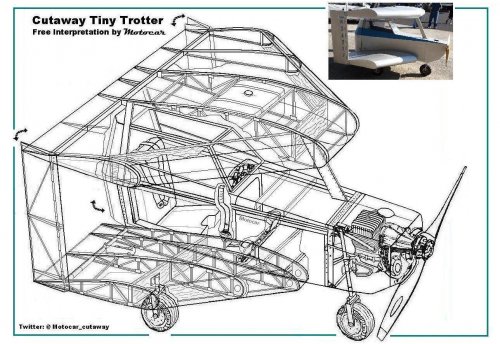

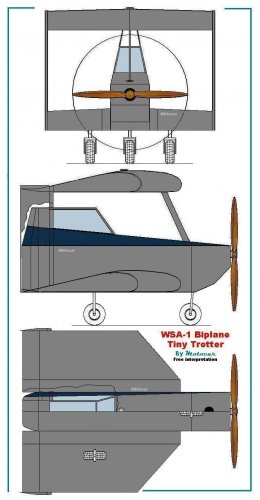

Cutaway WSA-1 Tiny Trotter, another attempt to beat the record of the smaller plane that has flown (In the hands of the Starr Bumble Bee II), unfortunately I do not pass beyond the taxi tests when I present strong vibrations in the propeller, it was changed but it was not used to obtain the Guinness record, cutaway made by Motocar as a purely speculative work on this model. More information at: www.airport-data.com/aircraft N34517.html, edited 7 visit.

84407 visits


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

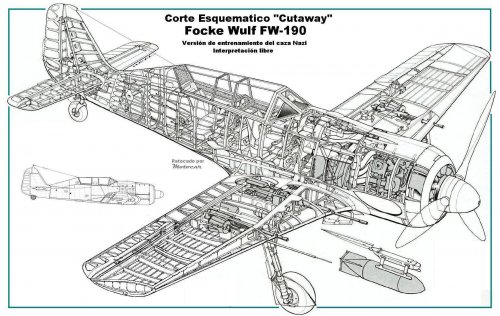

Cutaway Focke Wulf FW-190 training version of the famous Nazi fighter, some specimens were built for operational training, original author WEAL and retouched by Motocar to recreate this little-known model.


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

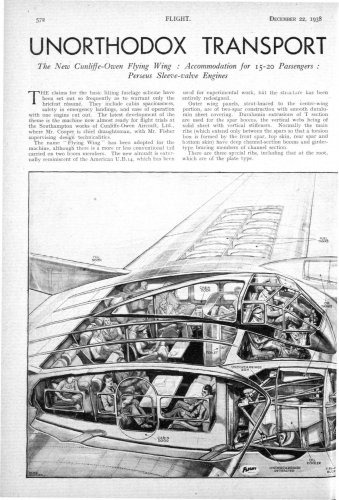

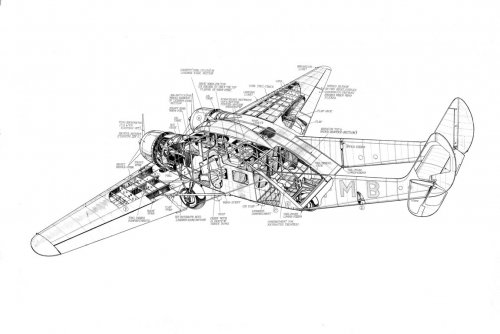

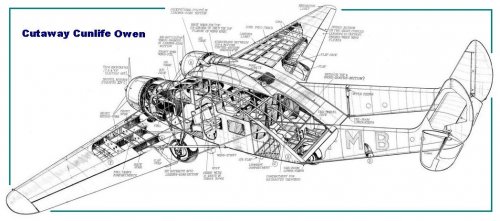

Some friend of the subject can help me locating the date of the publication of the cutaway appeared in the Flight magazine with the cutaway of the Burnelli, this appeared in the late thirties, I need the date to track the magazine on the web and its schematic cut Cunlife-Owen

Thanks in advance for any collaboration, Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

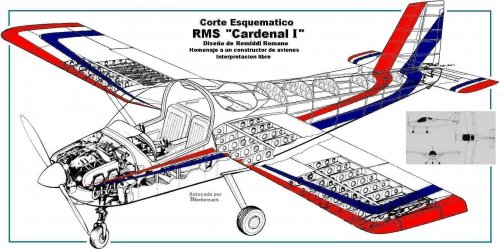

Cutaway RMS "Cardinal I", small tribute to a Remiddi Romano airplane builder, come from Italy in difficult moments, looking for a land where to make his dreams of life and his great passion aviation come true, I had the fortune to hear from his own voice the story of that moment when he decided to leave his land and reach this land of grace, build a family but never leave that passion for aviation to build several models including his beginnings with the planners, one of his greatest achievements among many it was to build the "Tacarigua" based on the original plans, today it rests in the MUSAFAV of Maracay. here I leave the schematic cut in a free interpretation of his latest work (unfinished) his great project the "Cardinal I" two-seat tourism plane that could also be used as a basic trainer, had an entirely metal construction, with tricycle landing gear, bubble cabin with seats side by side, an engine of 4 opposite cylinders Lycoming O-235 with a vacuum weight of only 350 Kgs and maximum 550 Kgs, being able to achieve a maximum design speed of 230 km / h, should have been built by the Montañez Industrial Group but the initial model remained unfinished. illegible author and retouched by Motocar to recreate it


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

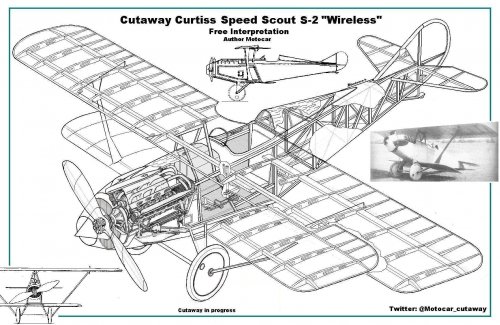

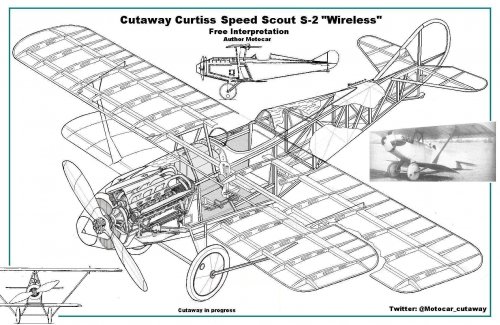

Cutaway Curtiss Speed Scout S-2 "Wireless", small biplane of the firm created in an attempt to build a small plane that was ahead of its time, its structure left aside the use of the cables from there the name "Wireless", propelled by a V-8 engine of the same company, there are very few data available only some blurred photographs and drawings of the patent application introduced by the company Curtiss, work in progress, author Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37
Next cutaway McDonnell Douglas AFTI Model 256


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
604
Reaction score
37

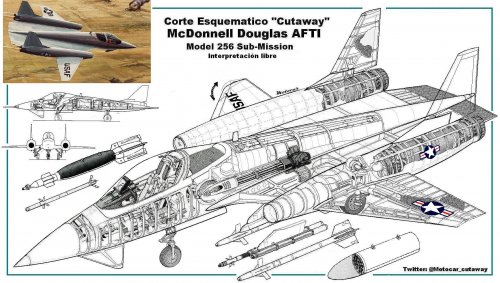

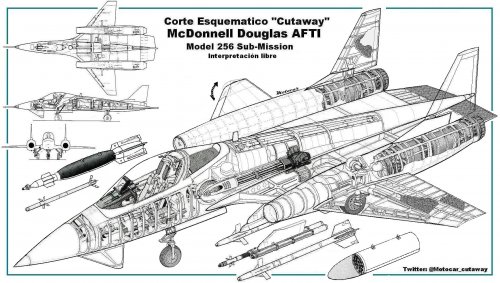

Cutaway McDonnell Douglas AFTI concept Model 256, ulfilling what is offered here I leave the schematic speculative cut of the Model 256 "AFTI" in the proposal of McDonnell Douglas for a compact and light version (Which incidentally adorns the presentation of the Forum) driven by two small General Electric J85 Reactors, there is another version of larger dimensions with the same configuration of the same firm powered by General Electric F404 engines. Provisional and free interpretation, author Motocar


Attachments
