Motocar's Cutaway drawings

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
Vladimir said:
Just amazing work, Motocar!!! What program(s) did You use to make those great cut-outs?

I use modest paint and a lot of creativity ...! Motocar


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

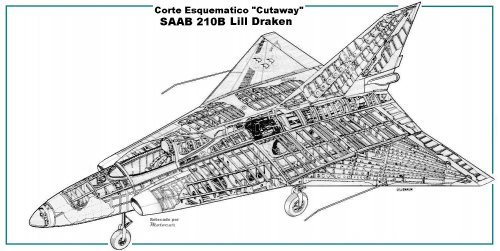

Cutaway SAAB 210B "Lill Draken" Prototype designed to evaluate the performance of the Double Delta wing, in its first prototype the air intakes were almost from the nose of the plane, in the model "B" that occupies the same acquired the almost definitive form and were more backward almost to the level of the windshield frame, author Lil Jemalm and retouched by Motocar to recreate this little known
version


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

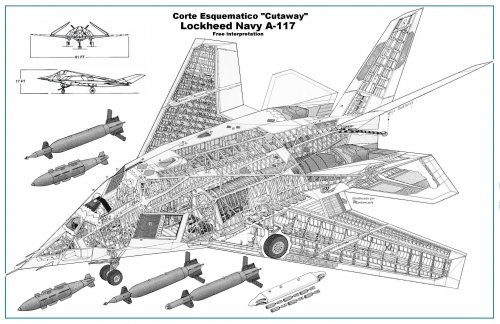

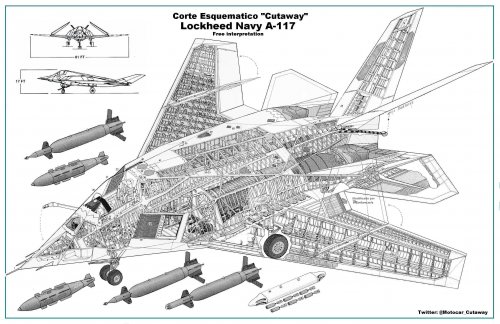

Cutaway Lockheed A-117 Navy, speculation that could have been the naval version of the stealth aircraft of the US Navy, in fact the initiative existed but not thrived by the existence of the most ambitious plan to take a stealth bomber more advanced the Grumman A-12 Avenger II that was canceled after a spectacular increase in development costs, here I leave my free interpretation of how it would have been built, I take many liberties when it comes to make it due to lack of more data, original author Mike Badrocke and modified by Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

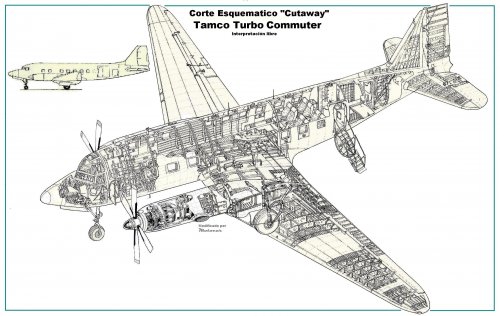

Cutaway Tamco Turbo Commuter, as I announce here I leave the modified schematic cut to recreate the old project of the company Tamco to modify the Douglas DC-3 and create a pressurized version and with turboprop engines Rollls Royce Dart, modified by Motocar

P.D. van tres


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
Next time...! Shared from:
http://www.fsdeveloper.com/forum/threads/kaman-hh-43-huskie.432469/



Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
Cutaway KAI T / A-50 Monoplace, in a speculative free interpretation of how it would be this single-pilot version of the fighter, using the rear seat space for the new radar with a larger antenna and capacities, original author Mike Badrocke and modified by Motocar to recreate this so far unplanned version.


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

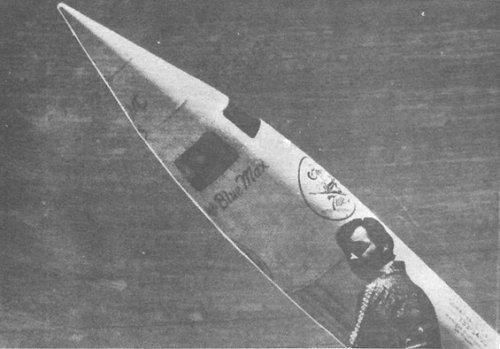

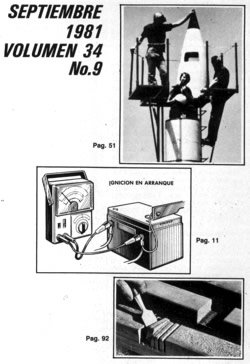

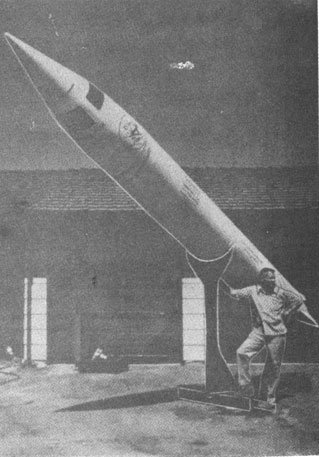

I am interested in knowing if any of the friends of the forum will have the Popular Mechanis magazine of June 1981 in its English edition (the edition corresponds to the edition in Spanish and was published in September 1981, page 51) in which it was published This article of what looks like the cone of a V2 rocket with a seat


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

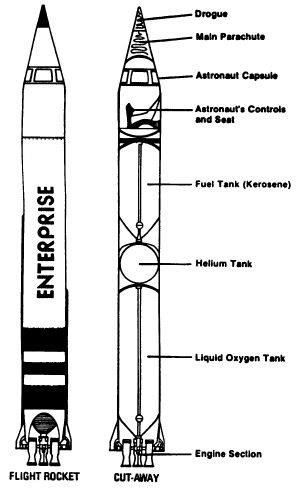

Link: https://en.wikipedia.org/wiki/Robert_Truax

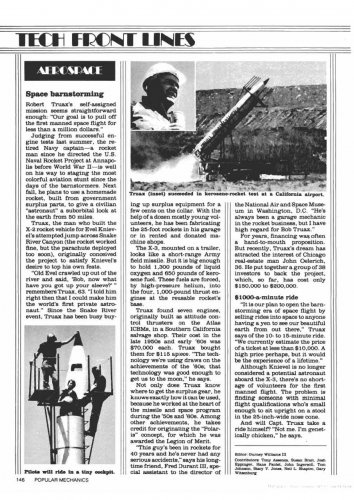

In the magazine popular Mechanics page 146 and videos:

https://youtu.be/jXp1fqahg1Q

https://youtu.be/dS3ht4EZRmM

https://books.google.co.ve/books?id=tdgDAAAAMBAJ&printsec=frontcover&hl=es&source=gbs_ge_summary_r&cad=0#v=onepage&q&f=false

Link:
https://thehighfrontier.files.wordpress.com/2016/02/enterprise.png?w=636

Link: https://testpilot.ru/espace/bibl/spaceflight/21/trux.html


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

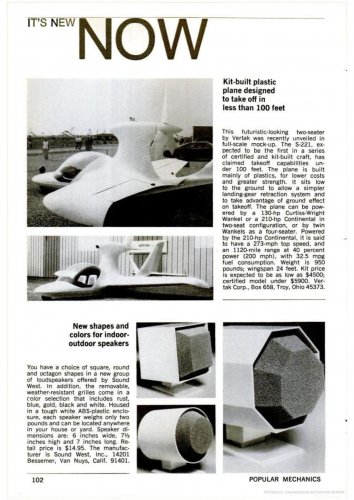

Vertak named S-221 concept of plane "Kit plane" futuristic short takeoff designed by, I'm looking for more information about it, note appeared in Popular Mechanics of January 1973 page # 102


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

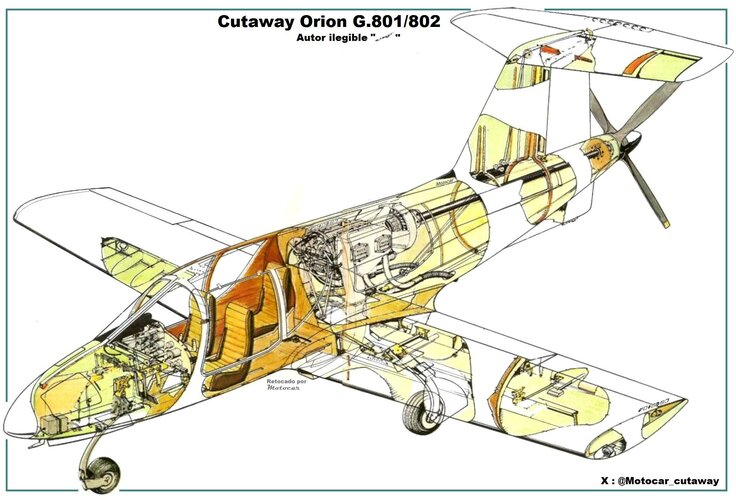

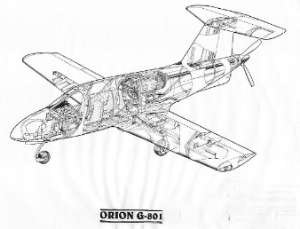

I search the cutaway drawing this project Orion G-801 big image, thanks


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,398
Reaction score
17
Motocar said:

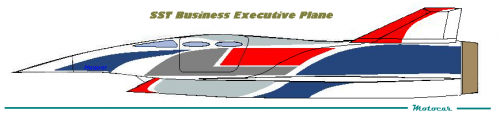

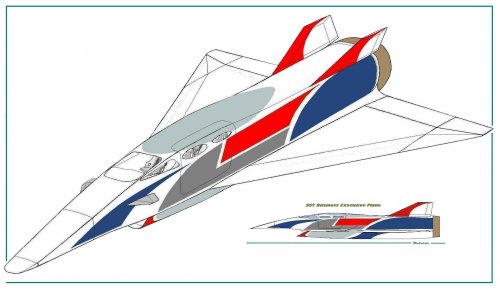

Project SST Business Jet, cutaway in progress, concept and artist impression by Motocar
Does that hold enough gas to get the gear up? ;)


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
sferrin said:
Motocar said:
Project SST Business Jet, cutaway in progress, concept and artist impression by Motocar
Does that hold enough gas to get the gear up? ;)

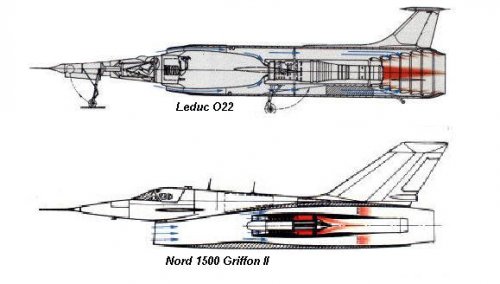

It's just a concept and if it has landing gear and fuel, just look at these two old French projects ...!


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,398
Reaction score
17
Yeah, it reminded me of the Griffon.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

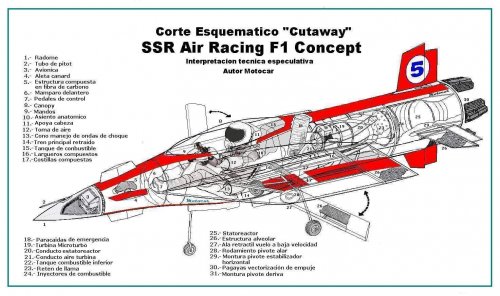

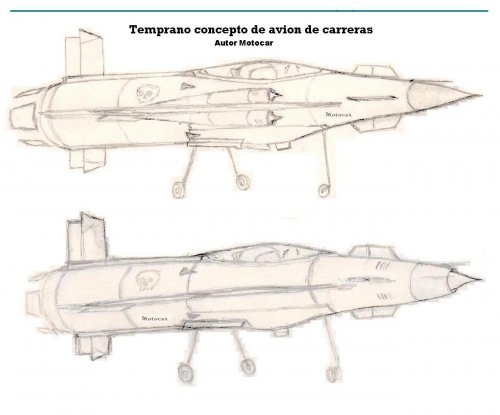

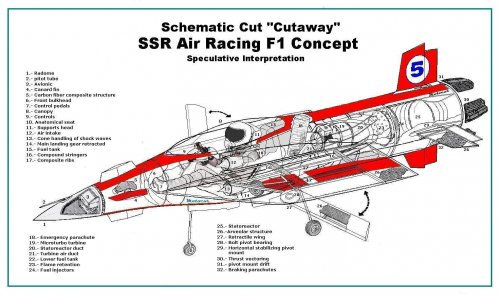

Cutaway SSR F1 Racing, Speculative concept on an SSR racing aircraft or Super Sonic Racing F1 "Air", a very light aircraft built in composite materials, propelled by a small reactor for takeoff and a "Statoreactor" for aerial competition, very thin wings and complemented by retractable wings for takeoffs and landings, with canard controls and tail surfaces supported by Cutaway SSR F1 Racing, Speculative concept on an SSR racing aircraft or Super Sonic Racing F1 "Air", a very light aircraft built in composite materials, propelled by a small reactor for takeoff and a "Statoreactor" for aerial competition, very thin wings and complemented by retractable wings for takeoffs and landings, with canard controls and tail surfaces supported by thrust-vectoring for quick maneuvers, ballistic parachute for emergencies. Author Motocar


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

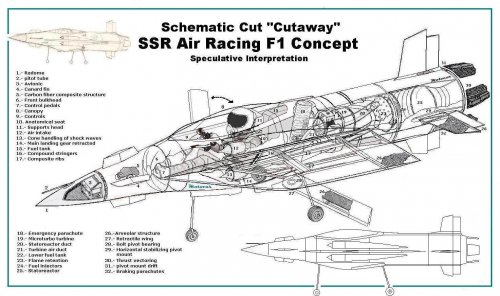

Now with the infographics in English, Motocar

Edited 05-12-2017

How many of you believe that is possible or impossible? Do you have the technique and the materials to do it? It is an optimistic vision to visulate only one of the several proposals that are now in the minds of some ...! An answer to many questions ...! Two ways of thinking who see impossible and who see possibilities ...!

P.D. viewed 19 times


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
There are minimal projects that have not passed the concept stage, this is the case of "STAR, the Space Technology and Research Vehicle. Based on a Poseidon missile MIRV (though upscaled), by the 1980s it was a candidate to be a research spaceplane in the mold of the X-15 as well as a cheap, re-usable operational craft for the USAF. Public domain image from the DARPA document Spaceplane Technology and Research (STAR)" Shared from:
https://falsesteps.wordpress.com/2012/10/31/star-the-usafs-everything-spacecraft/


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
Ranjet General Electric J58, video

https://m.youtube.com/watch?v=F3ao5SCedIk&feature=share


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

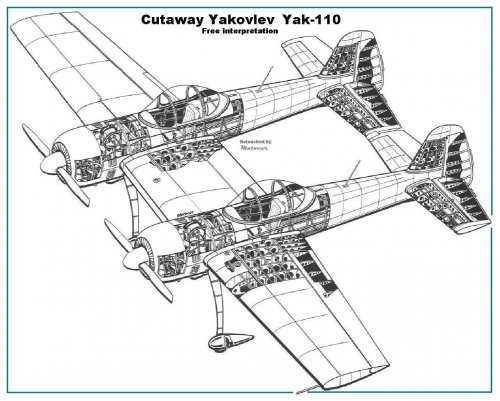

Quick retouch to recreate the so-called Yakovlev Yak-110, (without any relation with the Russian firm) a creation by modification and union of two Yak-55 to make a twin fuselage, author drawing unknow and modified by Motocar


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,263
Reaction score
72
Amazing work my dear Motocar.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
Hamzalippischh said:
The SSR concept is really cool! I might model it in 3D if i get some time...
Ahead...! That if you share the credits and let your creativity fly

Motocar


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1
Between multiple problems a 2017 full of vicissitudes culminates but with the hope and faith placed in God and his blessings in 2018 and we will be more creative and we will share more Cutaways with all the friends that follow this theme ...! Every day we do the story of tomorrow and leave a small legacy of ideas and visions ...! I only wish you the greatest successes in this coming 2018. Motocar.


Attachments

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
573
Reaction score
1

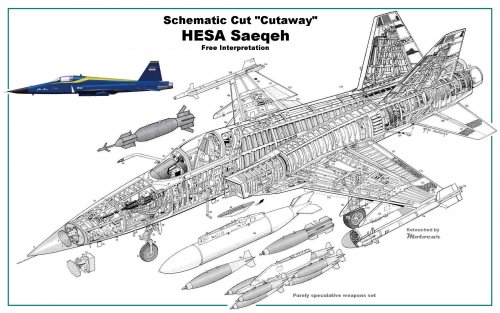

Cutaway HESA Saeqeh, the Iranian fighter made starting from the copy of the Norhtrop F-5E by reverse engineering, with changes in the drifts. These are now two but of smaller area, Iran in its propaganda manifests that it is an advanced fighter developed by its technicians and engineers, in the same is exposed with a set of weapons speculatively specs cirscunscripts to which Iran can access after the long blockade, M. Badrocke car and retouched by Motocar.


Attachments
