Mitsubishi Shusui and Shusui-kai

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

Attachments

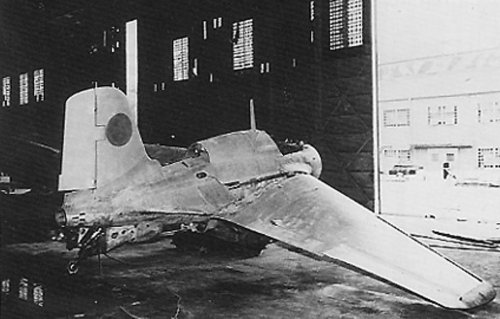

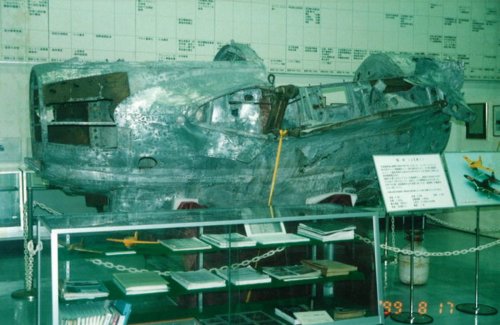

  • remaining Shusui fuselage.jpg
    remaining Shusui fuselage.jpg
    165.7 KB · Views: 745
  • Shusui fuselage.jpg
    Shusui fuselage.jpg
    198.8 KB · Views: 690

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
370
Reaction score
127
Blackkite-san,

Thank you for the videos and links to the restoration of the J8M. I have seen many pictures of the J8M you linked to. I have always wondered why the green color of that aircraft is so much lighter compared to other IJN aircraft which are a much darker green. Did those who restored this aircraft paint it the wrong color? If they wanted to show the J8M in the color it would be in combat service it should have been darker. If they wanted to restore it as a test aircraft it should have been yellow-orange like other prototypes. Do you know why that color green was chosen?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
windswords said:
Blackkite-san,

Thank you for the videos and links to the restoration of the J8M. I have seen many pictures of the J8M you linked to. I have always wondered why the green color of that aircraft is so much lighter compared to other IJN aircraft which are a much darker green. Did those who restored this aircraft paint it the wrong color? If they wanted to show the J8M in the color it would be in combat service it should have been darker. If they wanted to restore it as a test aircraft it should have been yellow-orange like other prototypes. Do you know why that color green was chosen?
Hi! windswords-san. Your question is too hard for me, but I will check Japanese sources. ;)

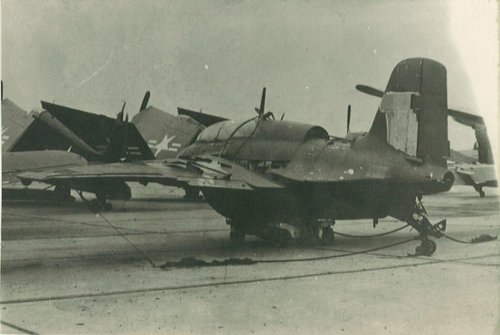

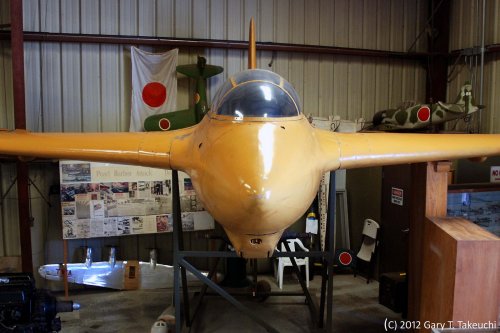

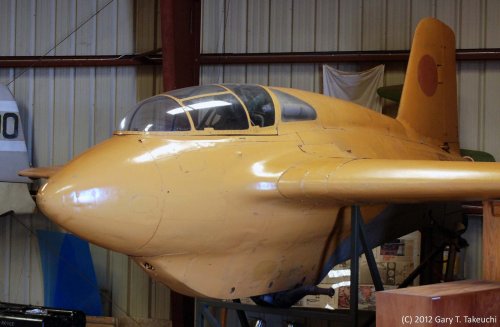

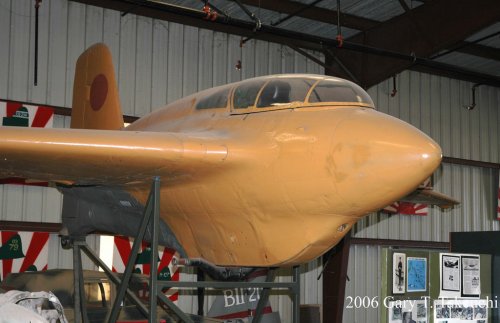

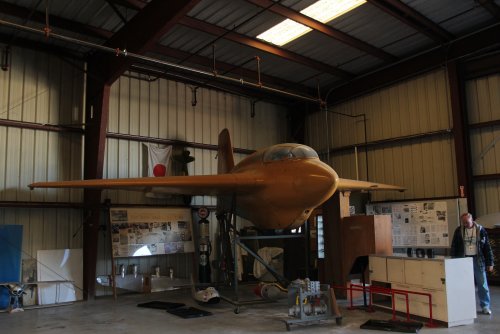

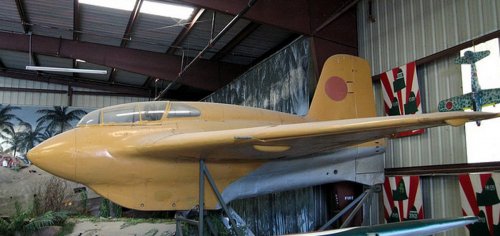

Anyone please answer this question. Perhaps America knew the color of Shusui at the day. Yellow?
http://planesoffame.org/index.php?page=static-flying
Me163 was a point interceptor, B-17 dodged the point. (two points).
It was very hard to move the base.
Heat resistant run way, dangerous fuel treatment and fuel depo. etc....


Attachments

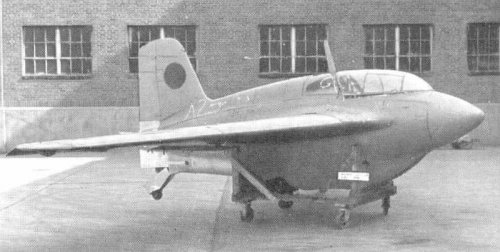

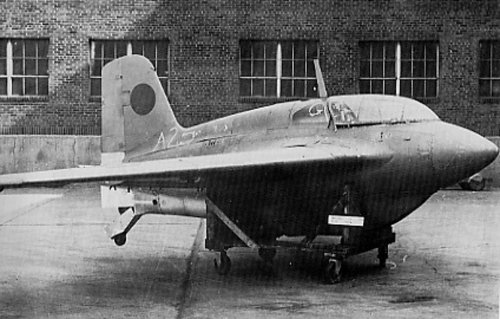

  • Shusui in america 7.jpg
    Shusui in america 7.jpg
    170.8 KB · Views: 77
  • Shusui in america 6.jpg
    Shusui in america 6.jpg
    779.3 KB · Views: 59
  • Shusui in america 3.jpg
    Shusui in america 3.jpg
    309.9 KB · Views: 56
  • Shusui_in_america_4.jpg
    181.8 KB · Views: 59
  • shusui_in_america2.jpg
    711.1 KB · Views: 83
  • shusui_in_america1.jpg
    352 KB · Views: 109

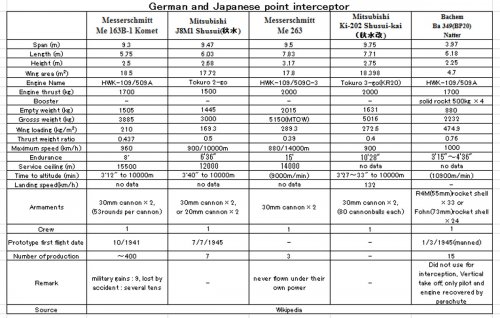

  • German_and_Japanese_point_interceptor_specification.jpg
    202.1 KB · Views: 588

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Hi!

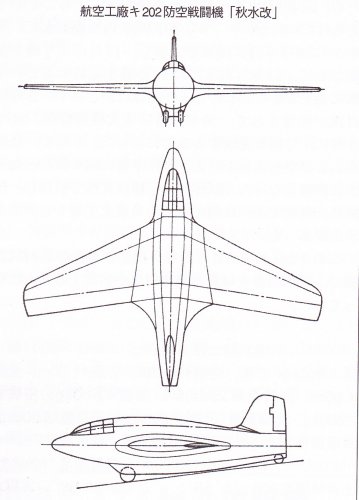

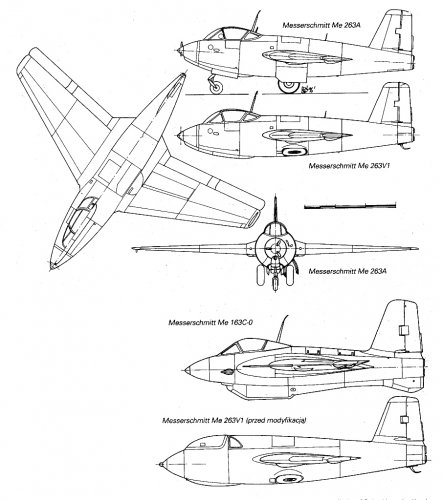

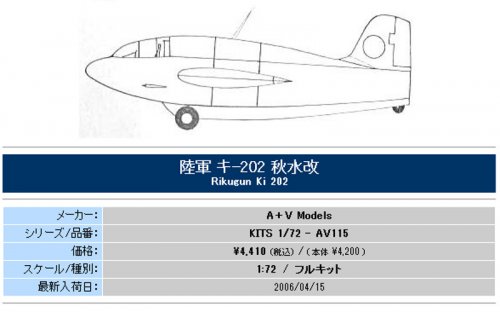

Shusui-kai and Me263.
Source : All the Experimental Aircraft in Japanese Army/ Internet.


Attachments

  • Shusui-kai.jpg
    1.1 MB · Views: 104
  • Me263.jpg
    276.2 KB · Views: 120

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
370
Reaction score
127

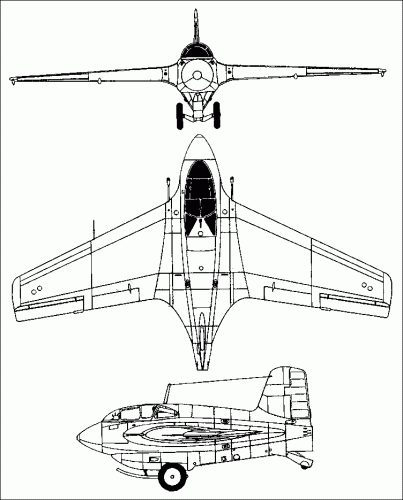

Some images. Enjoy!


Attachments

  • J8M1-01.jpg
    37 KB · Views: 88
  • J8M 3 view.gif
    J8M 3 view.gif
    16.5 KB · Views: 72
  • J8M Shusui - Japan.jpg
    J8M Shusui - Japan.jpg
    16.8 KB · Views: 70

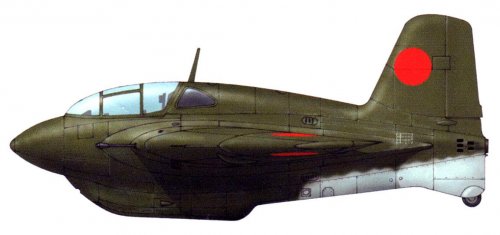

  • J8M1 in operational colors.jpg
    J8M1 in operational colors.jpg
    61.8 KB · Views: 64

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Thanks windswords-san.
Probably, the crew member of B-29 bomber were very surprised, if they received the attack of Shusui.
Some Japanese historian said that the IJN and IJA planned special attack toward B-29 by Shusui.
Manned missile. :eek:


Attachments

  • Shusui vs B-29.jpg
    Shusui vs B-29.jpg
    198.3 KB · Views: 65
  • Shusui vs B-29 pic1.jpg
    Shusui vs B-29 pic1.jpg
    254.5 KB · Views: 91

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

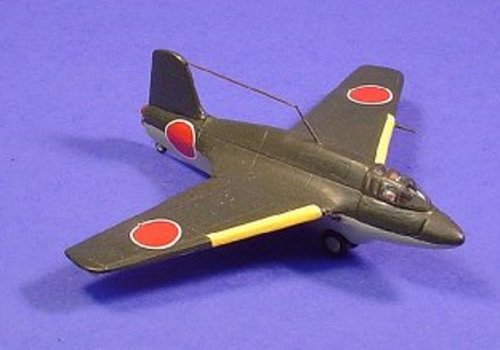

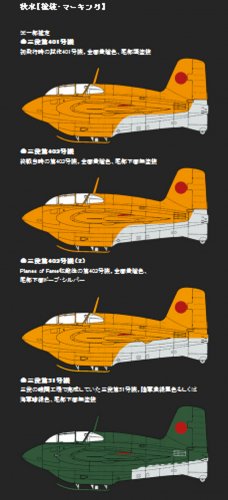

Hi! Other pictures.

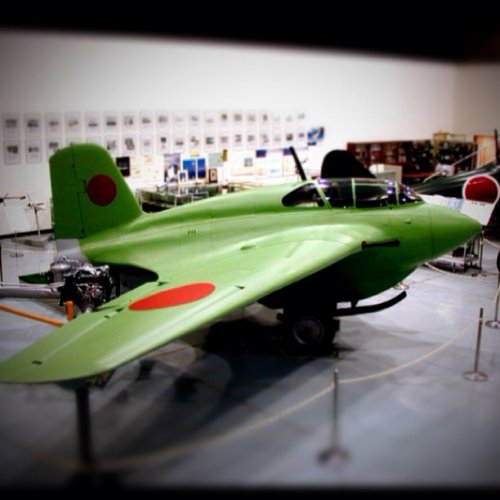

I think the color of Shusui restored in Japanese is strange. Not the historical color.


Attachments

  • Shusui paintings.jpg
    Shusui paintings.jpg
    203 KB · Views: 127
  • Shusui pic4.jpg
    Shusui pic4.jpg
    324.3 KB · Views: 87
  • Shusui pic3.jpg
    Shusui pic3.jpg
    331.4 KB · Views: 70
  • Shusui pic2.jpg
    Shusui pic2.jpg
    363.7 KB · Views: 72
  • Shusui pic1.jpg
    Shusui pic1.jpg
    268.9 KB · Views: 76

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

Attachments

  • 800px-J8M_Shusui_Sword_Stroke_Komet_J8M-10.jpg
    79.1 KB · Views: 90
  • Mitsubishi_J8M_ShusuiAtKashiwa.jpg
    40.7 KB · Views: 83
  • 800px-Mitsubishi_J8M_Shusui_Sword_Stroke_Komet_J8M-17.jpg
    53.2 KB · Views: 87

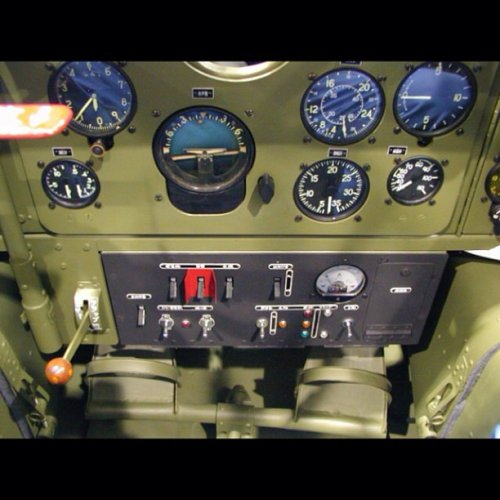

  • Shusui front panel.jpg
    Shusui front panel.jpg
    80.7 KB · Views: 93
  • Shusui cockpit.jpg
    Shusui cockpit.jpg
    95.6 KB · Views: 96
  • Shusui 1.jpg
    Shusui 1.jpg
    60.2 KB · Views: 82

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Thanks Star! :D
Your focus is excellent.


Attachments

  • Shusui cockpit.jpg
    Shusui cockpit.jpg
    827.2 KB · Views: 440
  • Shusui front panel.jpg
    Shusui front panel.jpg
    687 KB · Views: 382

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211

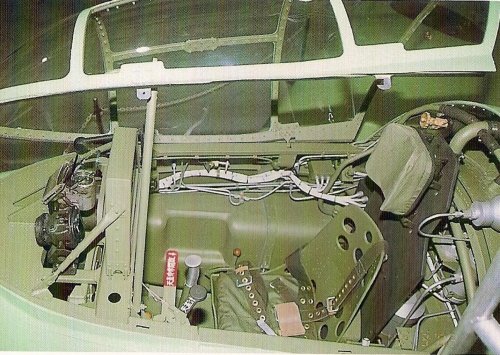

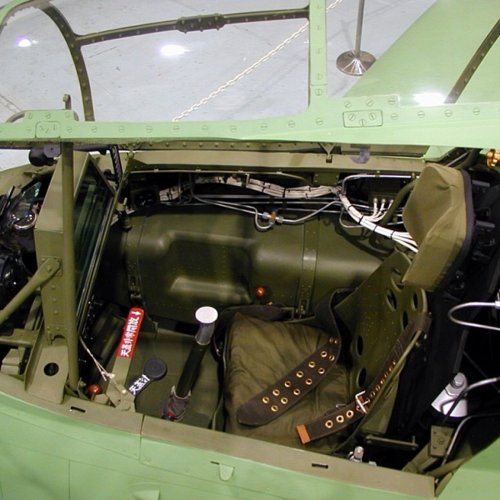

The thing in the cockpit to the right of the pilots seat looks like a tank.
Then this arrangement was copied, too, from the Me 163 to the Shusui.
Due to the dangerousness of the fuel, that was the reason, that some pilots
couldn't be found again after a hard landing with the tanks still not emptied.
The tanks were prone to ruptures and the pilots then simply dissolved. ::)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

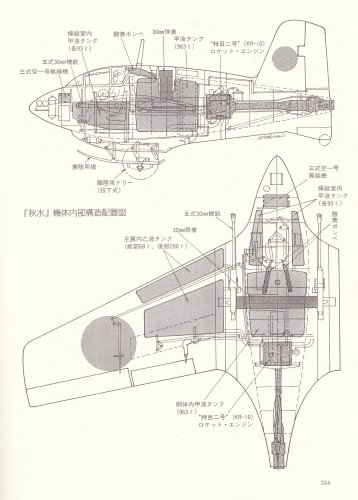

I confirmed by Japanese source that this pilot seat side tank and fuselage tank which located behind the seat were for hydrogen peroxide solution. :eek:
Perhaps Shusui used this pilot seat side tank first.
Source : Shusui, Miki press, ISBN4-89522-392-2

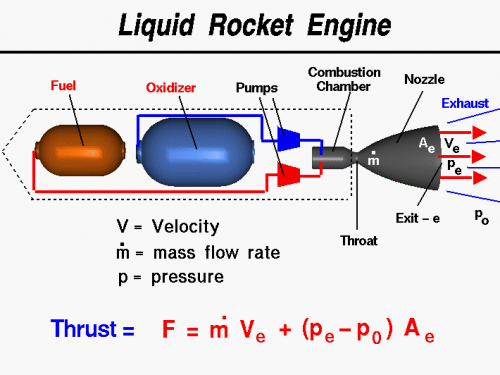

http://en.wikipedia.org/wiki/Liquid-propellant_rocket


Attachments

  • NASA_bipropellant_Lrockth.png
    33 KB · Views: 69
  • Me163.jpg
    796.7 KB · Views: 80

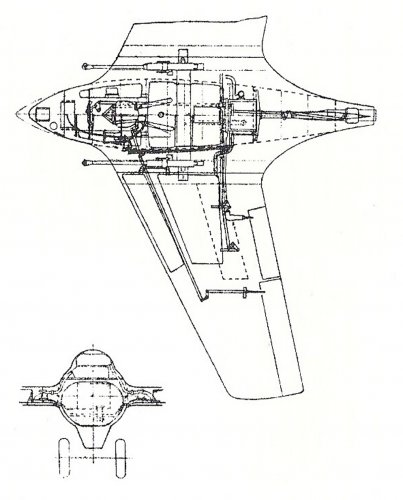

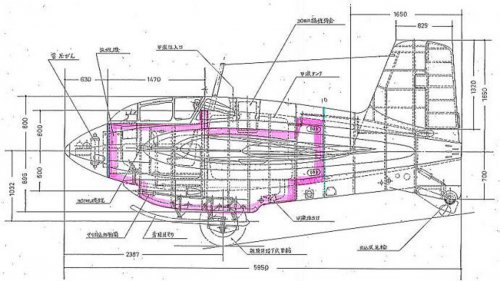

  • Plan and front view.jpg
    Plan and front view.jpg
    440.2 KB · Views: 303
  • Shusui side view.jpg
    Shusui side view.jpg
    269.9 KB · Views: 319
  • Shusui cockpit.jpg
    Shusui cockpit.jpg
    263.4 KB · Views: 324

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Hi! Shusui first flight pilot Captain Inuzuka.
He lost his life by engine accident at the first and the final flight in 7/7/1945.
Outlet nozzzle location of T-Storff tank was bad to climb 45 degree angle.


Attachments

  • Captain Inuzuka.jpg
    Captain Inuzuka.jpg
    133.9 KB · Views: 43

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Hi!
http://www.walterwerke.co.uk/walter/me163a.htm

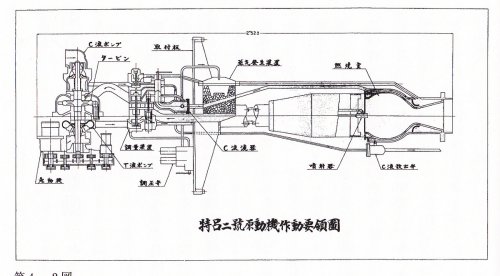

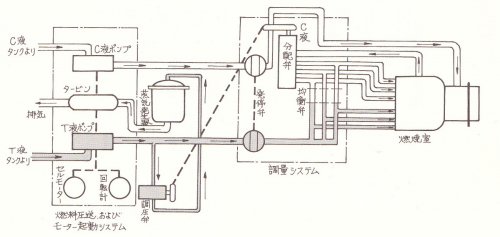

T液タンク : T-Stoff (Hydrogen peroxide(Oxidizer) ; H2O2) tank,
C液タンク : C-Storff (Methanol ; CH3OH ; ~57% by Weight, Hydrazine hydrate ; N2H4 · H2O ; ~30% by Weight, Water ; H2O ; ~13% by Weight)tank,

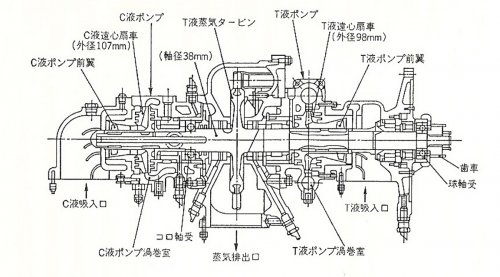

タービン : Turbine, C液ポンプ : C-Storff pump, T液ポンプ : T-Storff pump,

動力装置 : Power plant, 起動電動機 : Starting electric motor, 蒸気発生器 : Steam generator, 燃焼装置 : Combustion equipment, 切替え弁 : Change valve, 起動弁 : Starting valve,
安全弁 : Safety valve, 調圧装置 : Pressure control equipment, 分配弁 : Distribution valve,
均衡弁 : Equilibrium valve, 発停弁 : Priming valve, 調量装置 : Flow control equipment


Attachments

  • rii203dg.jpg
    24.9 KB · Views: 37
  • Shusui rocket engine flow diagram.jpg
    Shusui rocket engine flow diagram.jpg
    406 KB · Views: 41
  • Shusui engine pump.jpg
    Shusui engine pump.jpg
    372 KB · Views: 51

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
366
Reaction score
23
nice pics Blackkite san,and I must say the aircraft is beatifully restorated ,like its newly build!
regarts
T-50


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
370
Reaction score
127
In regards to Captain Inuzuka's fata test flight, the fuel line did not deliver propellant to the rocket engine resulting in fuel starvation. This was due to the 45 degree climb. The engine cut out too soon and the pilot could not make it back to the airfield to land. By the time the problem was fixed the war was over.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
370
Reaction score
127

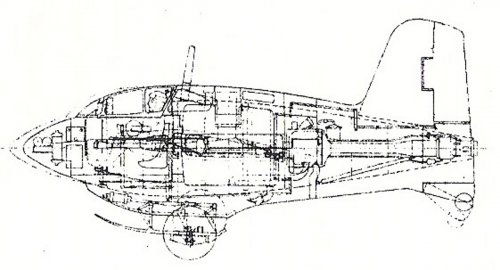

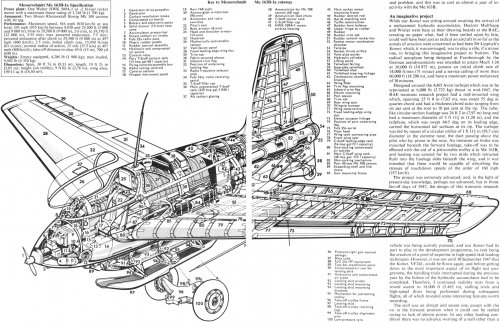

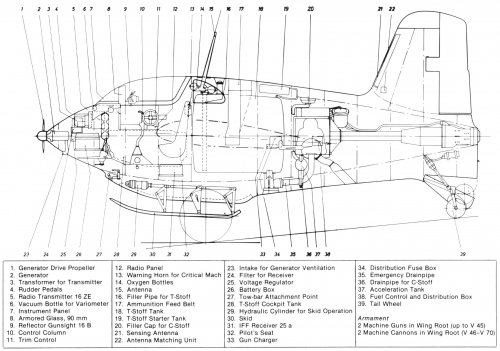

In regards tot he cutaway drawing of the ME-163 the nose contained a generator powered by the small propeller. The J8M1 used that space in the nose for something else but I'm not sure what it was.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
windswords said:
In regards to Captain Inuzuka's fata test flight, the fuel line did not deliver propellant to the rocket engine resulting in fuel starvation. This was due to the 45 degree climb. The engine cut out too soon and the pilot could not make it back to the airfield to land. By the time the problem was fixed the war was over.
Yes. And Shusui had only half fuel. The first flight was performed in narrow Oppama base Yokosho.


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
26
From what I understand, radio equipment was housed in the nose.

windswords said:
In regards tot he cutaway drawing of the ME-163 the nose contained a generator powered by the small propeller. The J8M1 used that space in the nose for something else but I'm not sure what it was.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211

Attachments

  • me163b_cutaway.jpg
    375.9 KB · Views: 72

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

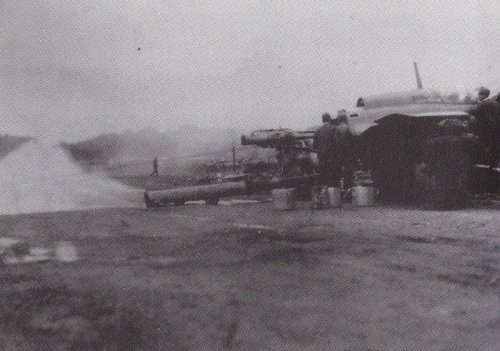

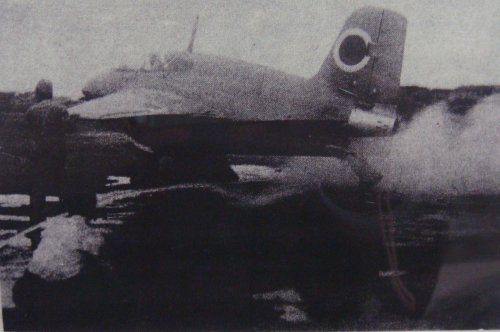

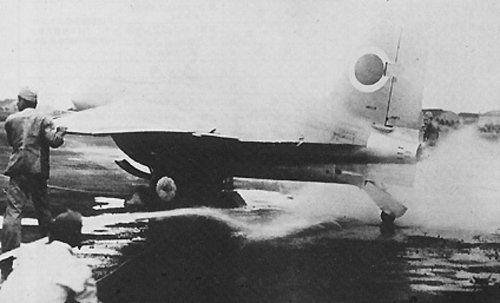

Hi! Shusui engine test pictures.


Attachments

  • Shusui engine test 2.jpg
    Shusui engine test 2.jpg
    443.5 KB · Views: 75
  • Shusui engine test.jpg
    Shusui engine test.jpg
    224 KB · Views: 68

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Hi!


Attachments

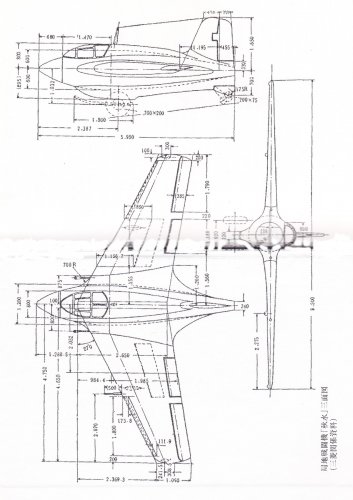

  • 3-side view.jpg
    3-side view.jpg
    601.7 KB · Views: 141

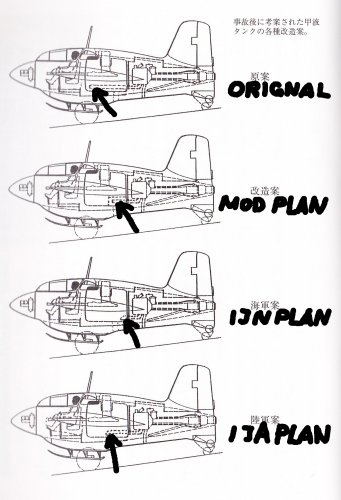

  • modification plan for fuel intake .jpg
    modification plan for fuel intake .jpg
    614.2 KB · Views: 137

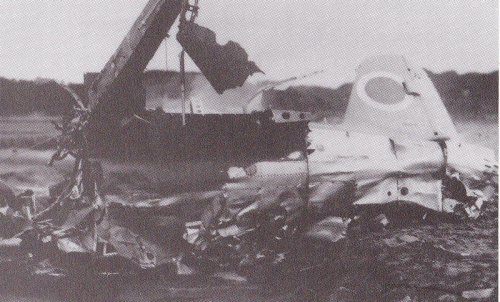

  • first flight crush.jpg
    first flight crush.jpg
    1.1 MB · Views: 101
  • first flight.jpg
    first flight.jpg
    1 MB · Views: 441
  • Toku Ro 2-go engine.jpg
    Toku Ro 2-go engine.jpg
    271.9 KB · Views: 444
  • Captain Inuzuka 2.jpg
    Captain Inuzuka 2.jpg
    862.9 KB · Views: 480
  • Shusui at the first flight.jpg
    Shusui at the first flight.jpg
    613.3 KB · Views: 515
  • shusui_take_off_02.JPG
    436.7 KB · Views: 547

windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
370
Reaction score
127
Thanks for the images Blackkite! The ones showing the fuel line modifications were very informative. I can see why the original prototype had the unintended fuel cutoff. The IJA plan looks very close to the modified prototype.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
BTW, in Mano Zieglers book "Raketenjäger ! " (rocketfighter), he mentioned that a disruption of the
fuel flow, inevitably followed by an unintended engine cutoff was a problem for the Me 163, too, if
it was subject to negative acceleration (e.g. at the height of a parable shaped flight path.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
At the time of the first flight, an engine could not be started but re-maintenance was performed.
Thereby, all the people involved felt the uneasy and bad premonition.
The persons concerned also considered the adjournment to the next day about the first flight.
However, Captain Inuzuka asserted first flight execution in forcing, and the first flight was started by 2 time lags.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218

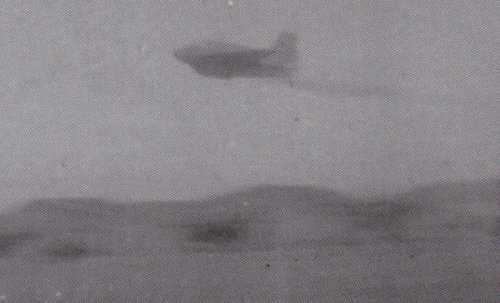

When Captain Inuzuka started the engine, white smoke came out of the nozzle of a rocket engine mistily.
And soon, Shusui raised the roaring sound and began the takeoff run.
Shusui used half length of the runway,took off, dropped the wheel, and started a 45-degree sudden rise.
The persons concerned who watch applauded all at once, seeing it.
However, when reached altitude of 4~500 meters, an unusual sound came out from the engine and the engine stopped.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
After the engine stop, Captain Inuzuka did not make Shusui go straight on to the sea, but he began the right turn.
Not having gone to the sea was from the idea to help Shusui as anything.
Furthermore, Captain Inuzuka tried to crash-land on the near reclaimed ground instead of the runway in which the persons concerned have gathered.
In spite of having been after extraordinary abandonment of an oxidizer, it is said that he avoided that the oxidizer of survival did damage to the persons concerned.
In order to jump over the building in front of a runway, Captain Inuzuka raised the nose of Shusui, therefore Shusui stalled

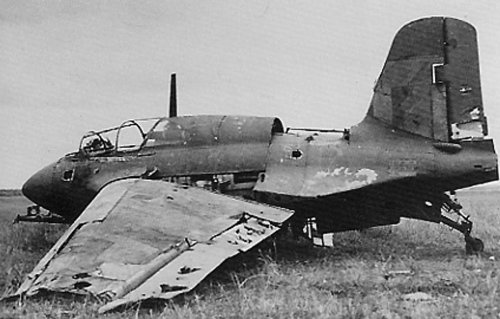

After the right-wing tip contacted the watchtower after that, emergency landing serious damage was occured.
It did not look back upon a risk of being based on the oxidizer which remains, but the member of the maintenance party dragged Captain Inuzuka out of SHusui.
Although army surgeons' desperate medical treatment was given to Captain Inuzuka, Captain Inuzuka suffered a basal skull fracture.

There was no how to adopt a measure.
Before emergency landing, Captain Inuzuka tried to re-start engine twice and failed(in horizontal flight?).


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
When the commander inquired to Captain Inuzuka who lies on a bed by dying condition, "Is there nothing needed in anything?", Captain Inuzuka answered "I would like to drink Calpis."
When the commander moistened the lip of the captain to whom the power already drunk by itself is not left behind with the Calpis dipped in absorbent cotton, Captain Inuzuka said, "Oh, it is nice", and he took over the breath calmly after a while.
http://en.wikipedia.org/wiki/Calpis


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
Hi!
Source : I.J.N.Interceptor Fiughters. Shigeru Nohara, Kojinsha, 9/29/2004, ISBN4-7698-1206-X

T液(甲液)タンク : T-Stoff (Hydrogen peroxide(Oxidizer) )tank,
C液(乙液)タンク : C-Storff (Methanol ; ~57% by Weight, Hydrazine hydrate ; ~30% by Weight, Water ; ~13% by Weight)tank
タービン : Turbine, C液ポンプ : C-Storff pump, T液ポンプ : T-Storff pump,
動力装置 : Power plant, 起動電動機 : Starting electric motor, 蒸気発生器 : Steam generator, 燃焼装置 : Combustion equipment, 切替え弁 : Change valve, 起動弁 : Starting valve,
安全弁 : Safety valve, 調圧装置 : Pressure control equipment, 分配弁 : Distribution valve,
均衡弁 : Equilibrium valve, 発停弁 : Priming valve, 調量装置 : Flow control equipment

C-Storff also used combustion equipment cooling.


Attachments

  • Shusui engine.jpg
    Shusui engine.jpg
    226.2 KB · Views: 85
  • Shusui general arrangement 1.jpg
    Shusui general arrangement 1.jpg
    828.5 KB · Views: 85

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,692
Reaction score
3,218
The rocket engine design team of "Shusui" was advancing the design of this surprising diesel engine before "Shusui" project was started (July 1944). This diesel engine was for 4 engine bomber which could reach Saipan B-29 base.(may be alternative engine for Renzan or Ki-91)This diesel engine's specification was as follows.(Named HA-80, Mitsubishi domestic name,D4A1)
  • 2 cycle inverse flat(boxer) H-16 type(16 cylinders, 32 piston)
  • liquid cooling
  • turbo charged
  • 4 crank shaft
  • bore/stroke : 130mm/170mm×2
  • compression ratio : 15.5
  • displacement : 39.9L
  • weight : 1800kg
  • Power : 2150hp or 3000hp/3000m, 2700hp/8000m/2800r.p.m(by internet)
  • Source : “The final weapon Shusui, memory of the designer”, by Ikuo Makino, Kojinsha,2/14/2006, ISBN4-7698-1283-3


Attachments

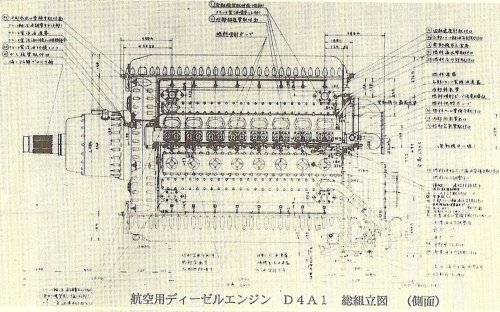

  • D4A1 side view.jpg
    D4A1 side view.jpg
    390.6 KB · Views: 71

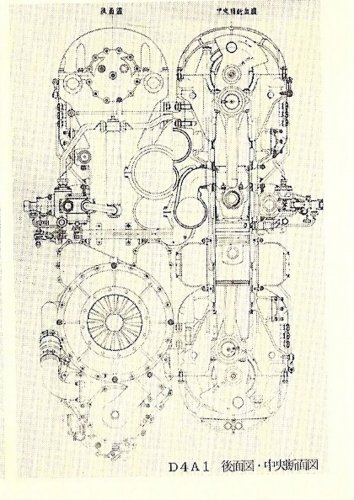

  • D4A1 middle and back face.jpg
    D4A1 middle and back face.jpg
    437.6 KB · Views: 72

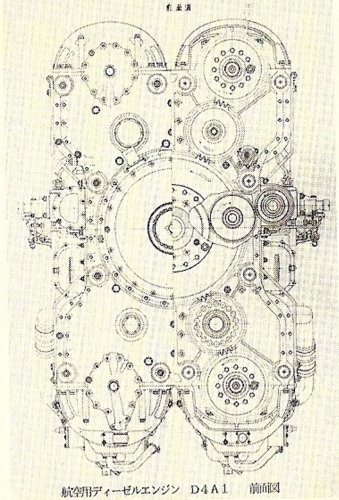

  • D4A1 front face.jpg
    D4A1 front face.jpg
    486.6 KB · Views: 59

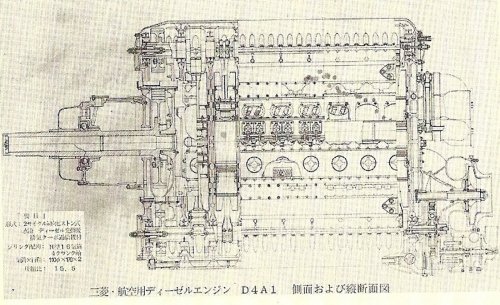

  • D4A1 cut away and side.jpg
    D4A1 cut away and side.jpg
    351.8 KB · Views: 56

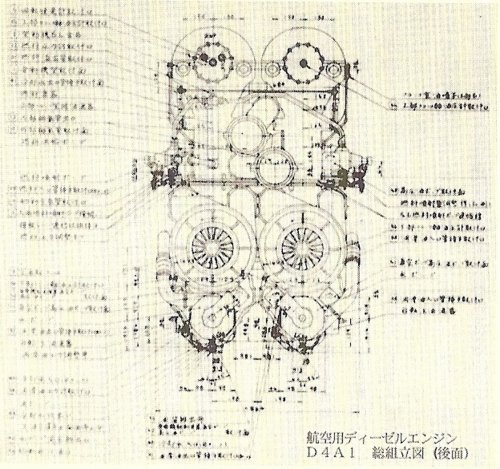

  • D4A1 back face.jpg
    D4A1 back face.jpg
    401.5 KB · Views: 59

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,970
Reaction score
375
Hmm... this looks very much like a 'double' Jumo diesel engine, but with a shorter stroke. Was there any transfer of Junkers diesel engine technology from Germany to Japan?

cheers,
Robin.

Top
