Mitsubishi Ki-83 and it's variant

Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
860
Reaction score
7
Hi blackie,

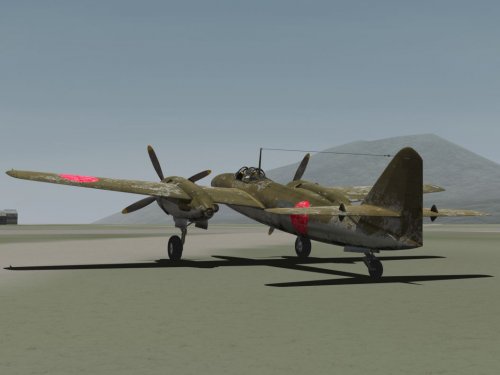

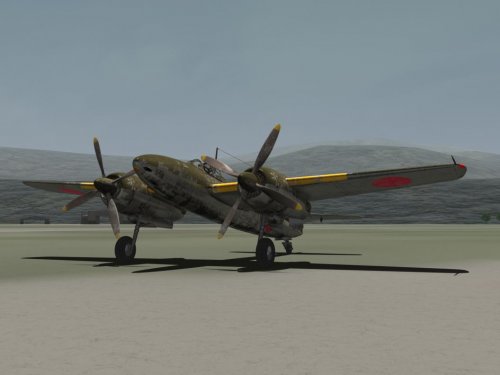

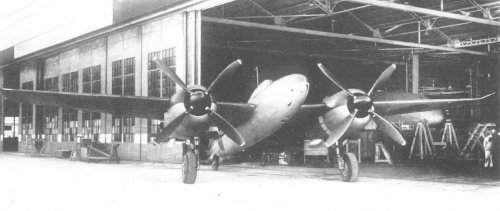

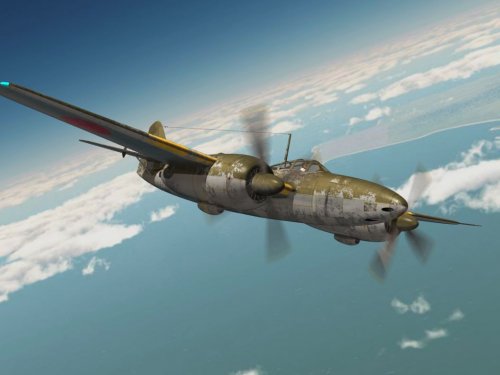

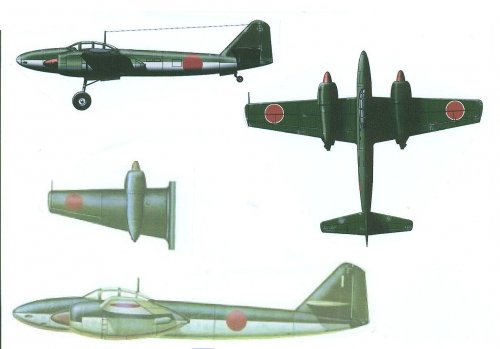

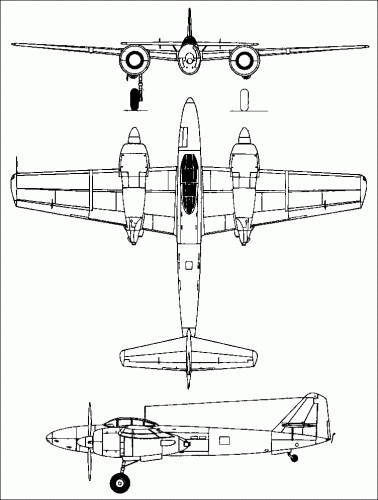

nice Ki-83 renderings, but this airplane was actually built. The one who deserves a place in your forum is the original design, with that massive Mitsubishi double engine, which was not pursued.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,747
Reaction score
12
Blackkite and Justo, you are great! THANKS.


Karsten


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
74
Although to me it is not really a project, I guess the Ki-83 remained experimental so it can stay in this section...

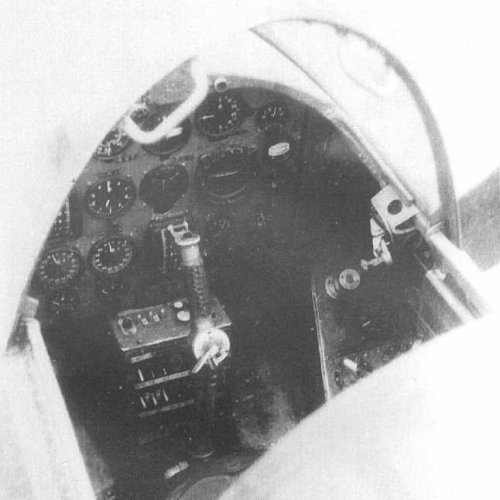

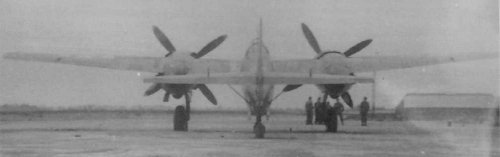

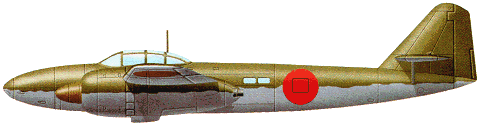

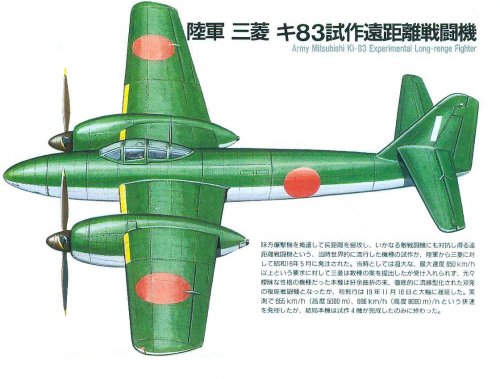

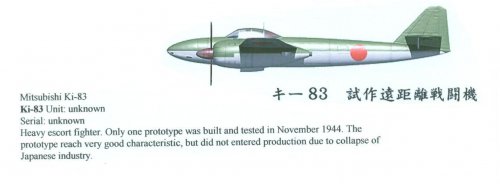

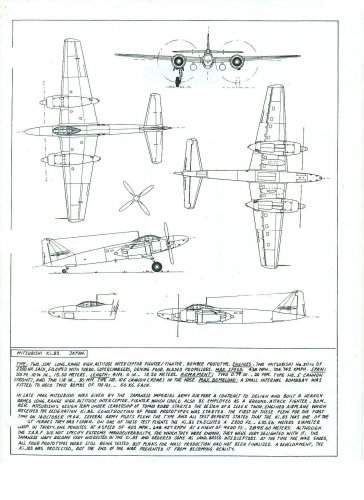

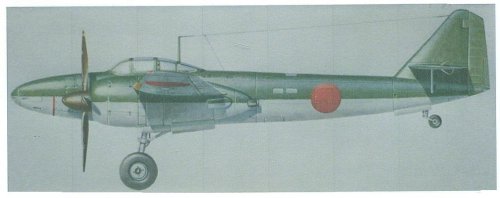

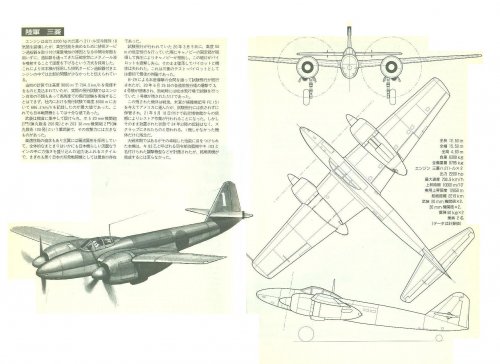

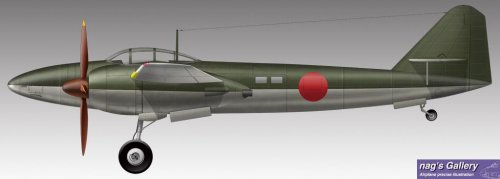

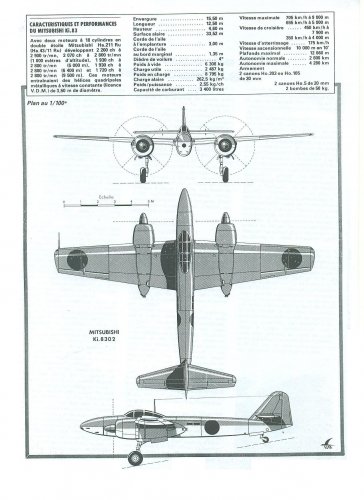

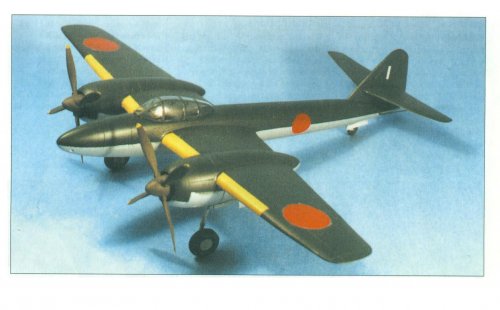

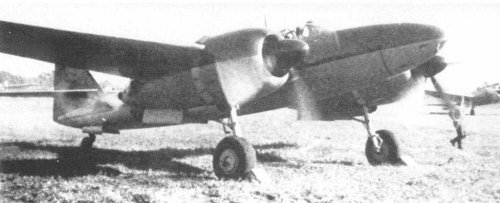

Now since it is one of my all-time favorite aircraft, allow me to add my own modest contribution to the above (last one is a PDF file).


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,686
Reaction score
217
Wow! Many many thanks to all for your attention and great contribution. :D
This fighter has many fans all over the world.


Attachments

gerhard

CLEARANCE: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
0
Very nice contributions guys.

So what were the major differences between the Ki-83 and Ki-103 and Ki-95?
The Ki-95 was a reconnaissance plane. Was it fitted with weapons?


Pelzig

CLEARANCE: Secret
Joined
Oct 24, 2008
Messages
441
Reaction score
0
The Ki-73?



Wurger said:
Hi blackie,
nice Ki-83 renderings, but this airplane was actually built. The one who deserves a place in your forum is the original design, with that massive Mitsubishi double engine, which was not pursued.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,686
Reaction score
217
gerhard said:
Very nice contributions guys.

So what were the major differences between the Ki-83 and Ki-103 and Ki-95?
The Ki-95 was a reconnaissance plane. Was it fitted with weapons?
At first Ki-95 reconnaissance plane was called Ki-83 Otsu, then called Ki-95 from June 1943.
Ki-95's specification were as follows.
Engine, Propeller and Dimension were same as Ki-83, Empty weight : 5750kg, Gross weight : 8500kg, Wing loading : 253.4kg/m2, Power loading : 2.47kg/hp, Maximum speed : 704.5km/h(9000m), Time to climb to 10000m : 10minutes, Service ceiling : 12660m, Range with drop tanks : 3500km(7.5hr), Armaments : 20mm cannon×2, Number of crews : 2


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,686
Reaction score
217
Ki-103 was planned as the attack plane which applied some modification to Ki-83, never completed.
The target for Ki-103 were airplanes which located on the base and tanks.
The armament of Ki-103 were 1 or 2×30~40mm cannons, 2×20mm cannons and 100kg bombs.
Combat radius : 1000km(with 1hr).


Source : All the Experimental Aircraft in Japanese Army, KANTOSHA, ISBN978-4-87357-233-8 C9476


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,686
Reaction score
217
MODELKi-83
CREW2
ENGINE2 x Mitsubishi Ha-211 Ru, 1650kW
WEIGHTS
Take-off weight8795-9430 kg19390 - 20790 lb
Empty weight5980 kg13184 lb
DIMENSIONS
Wingspan15.5 m51 ft 10 in
Length12.5 m41 ft 0 in
Height4.6 m15 ft 1 in
Wing area33.52 m2360.81 sq ft
PERFORMANCE
Max. speed705 km/h438 mph
Cruise speed450 km/h280 mph
Ceiling12660 m41550 ft
Range w/max.fuel2175 km1352 miles
Range w/max.payload1953 km1214 miles
ARMAMENT2 x 30mm cannons, 2 x 20mm cannons, 2 x 50-kg bombs


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,686
Reaction score
217

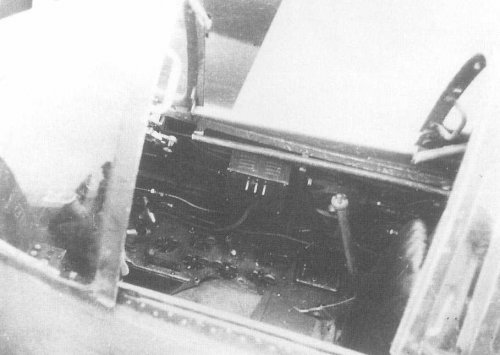

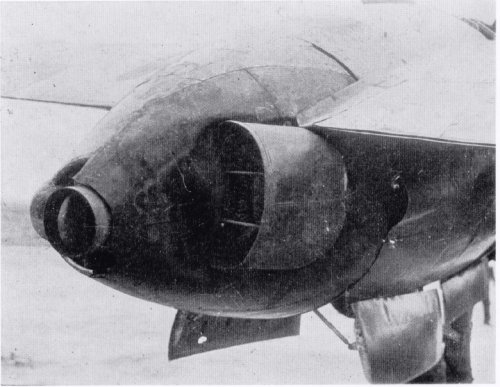

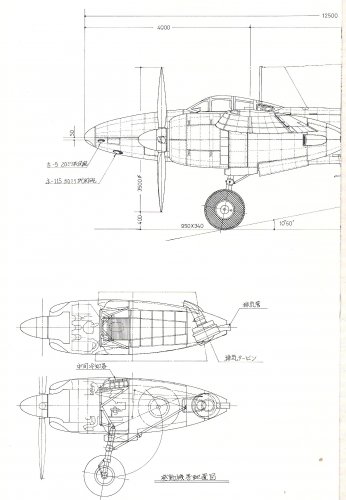

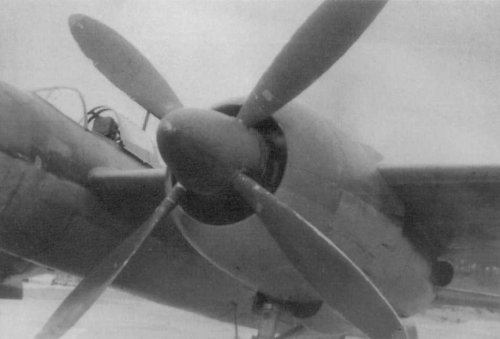

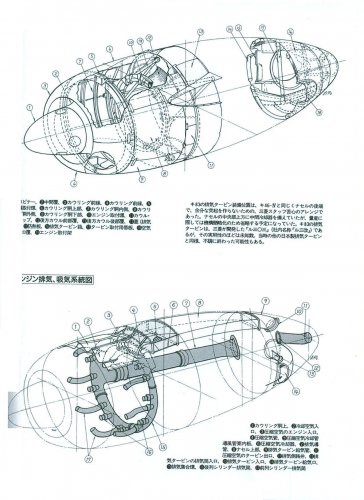

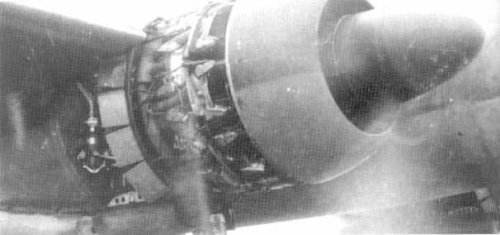

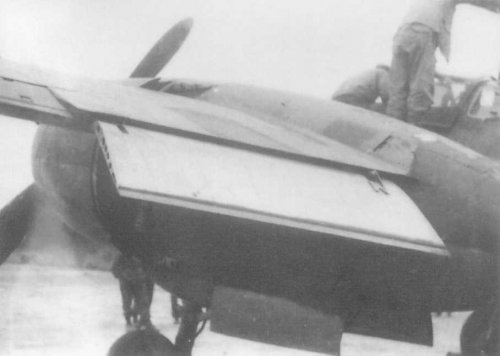

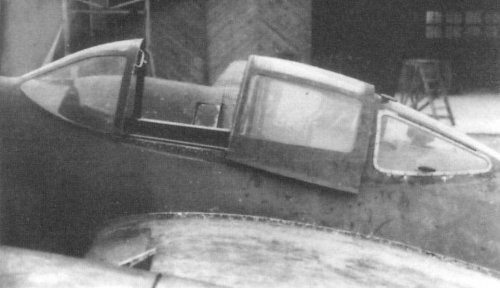

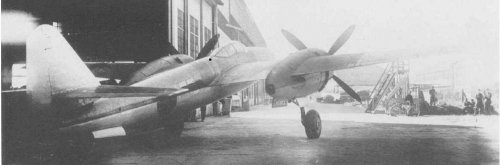

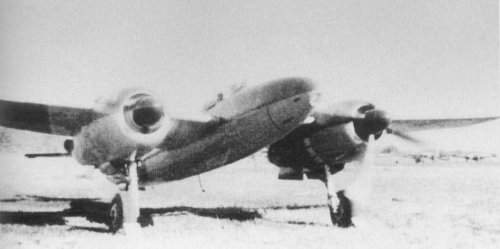

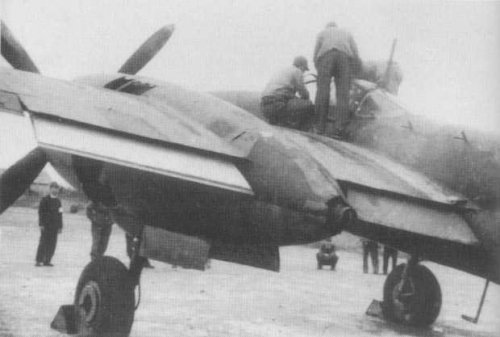

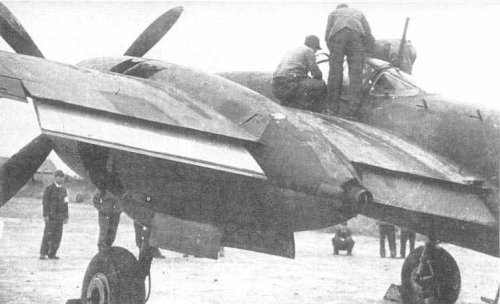

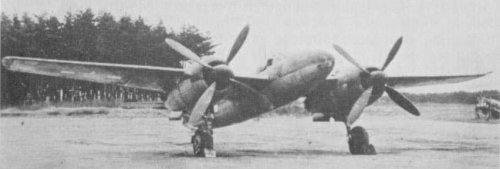

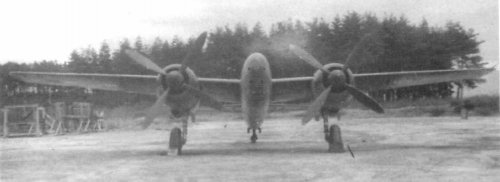

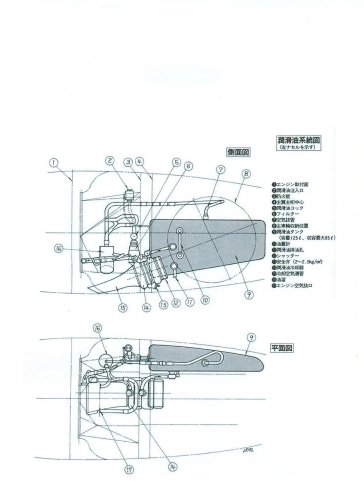

Ki-83's turbo chargers were located inboard side of the engine nacelle and covered by inter cooler outlet nozzle, we do not see them in pictures or drawings of Ki-83.
We only see air inlet nozzle to turbo charger.

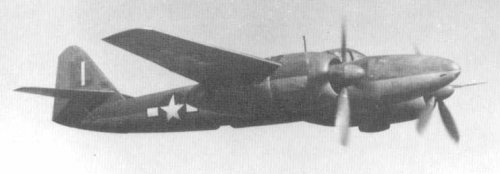

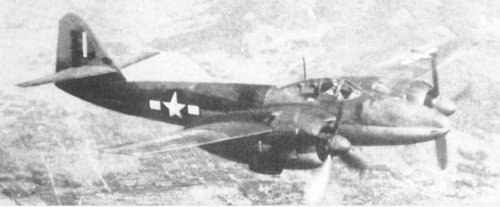

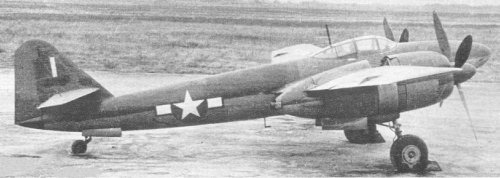

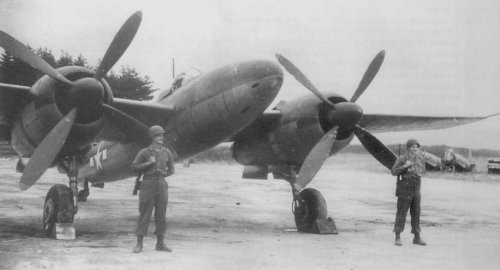

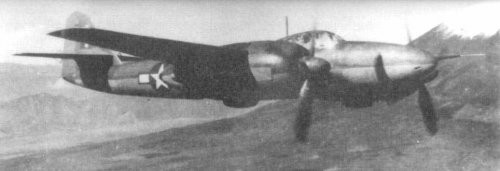

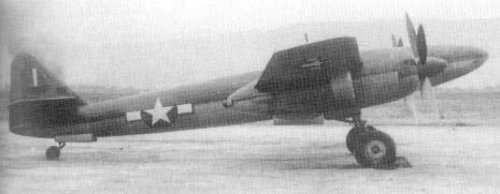

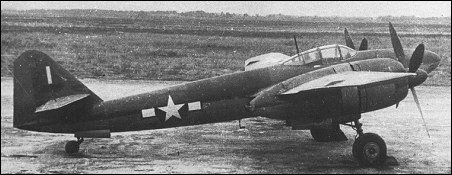

No.1 aircraft(marked 762km/h by American pilot) to No.2 aircraft(fell down by cockpit wind shield break accident) : with turbo charger and inter cooler
No.3 to N0,4 aircrafts(destroyed by B-29 bombing) : no turbo charger
N0.5(not completed) and later aircrafts were planed to have turbo charger and alcohol injection system instead of inter cooler.
The IJA ordered 39 aircrafts when the end of the war.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
74
Great stuff as usual, blackkite. Thanks for sharing!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,686
Reaction score
217
roadrunner2 said:
where do you fine this plan blackkite ?
Hi! Sorry for delay.

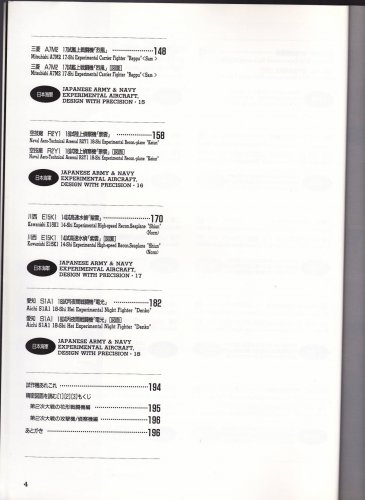

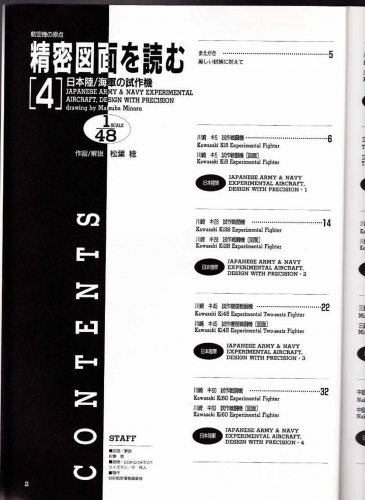

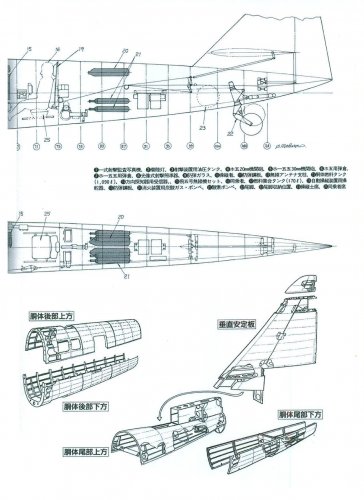

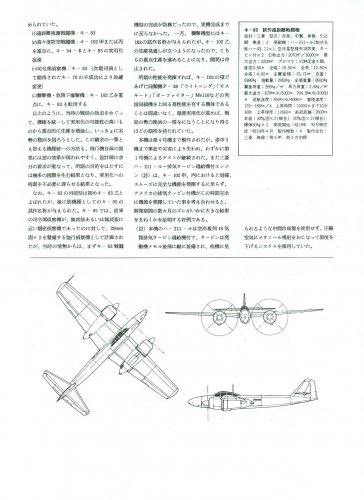

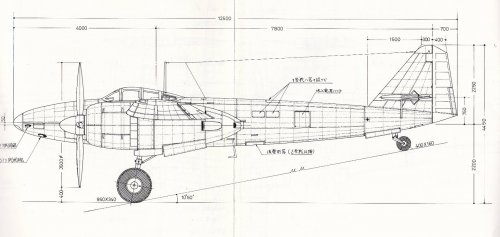

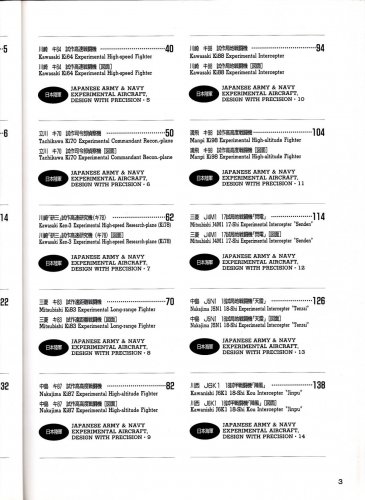

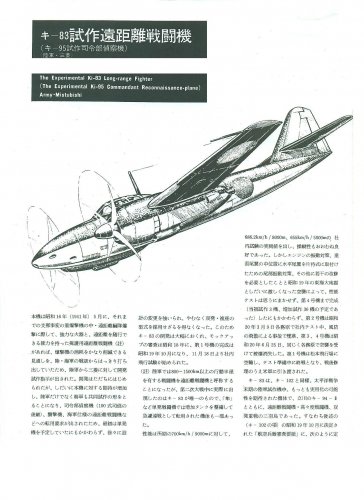

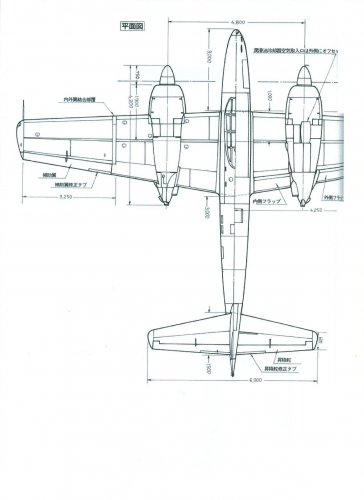

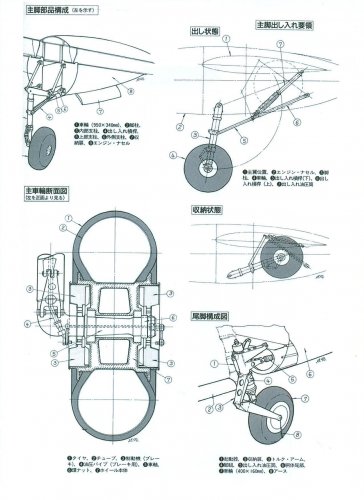

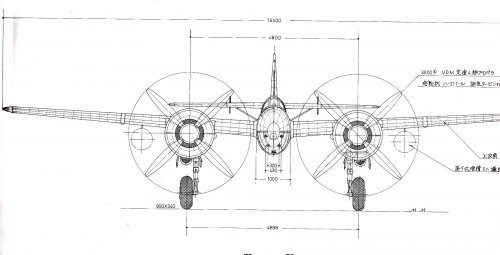

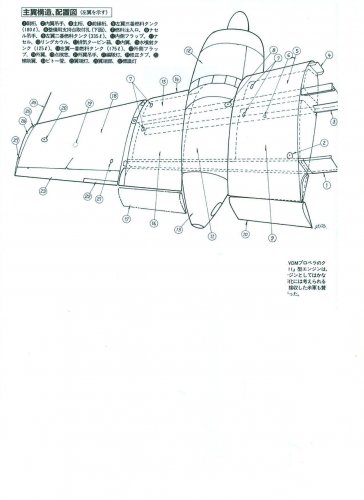

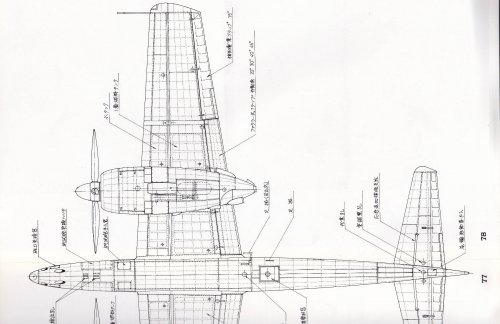

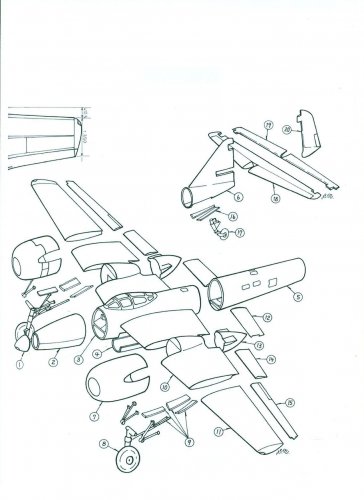

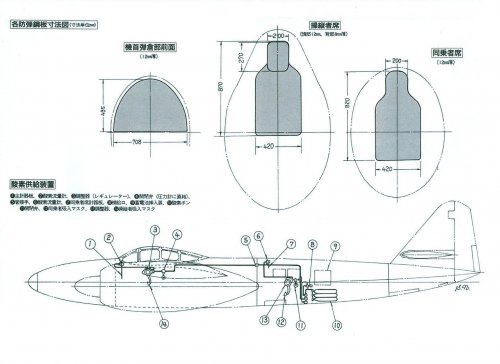

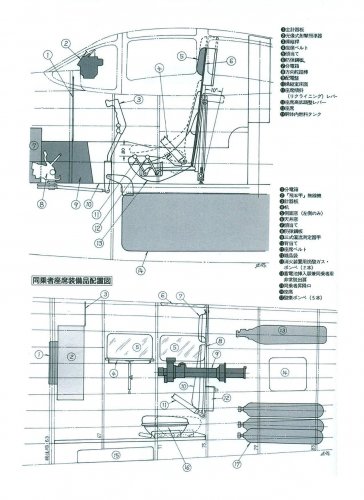

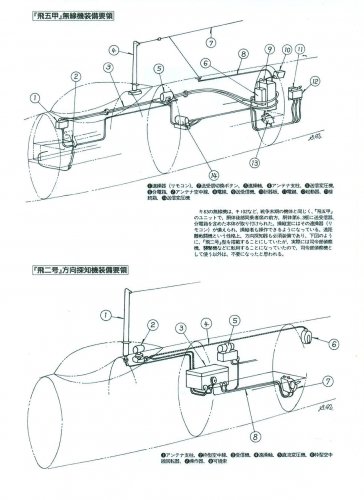

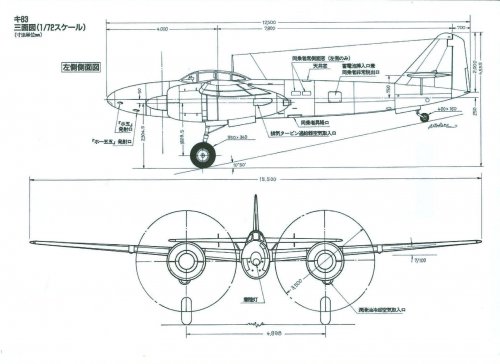

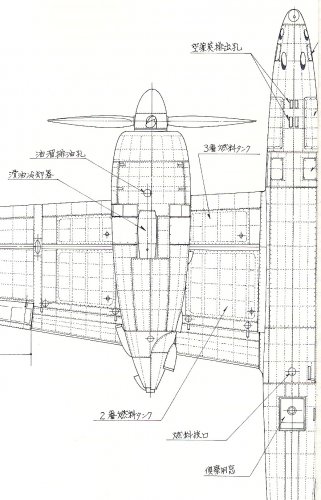

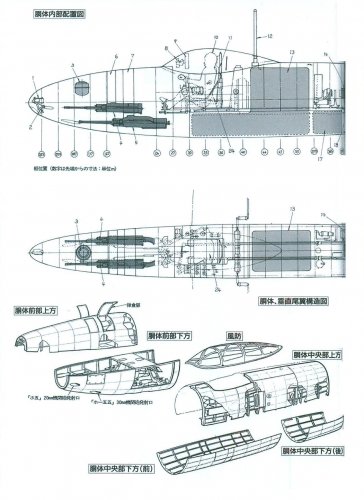

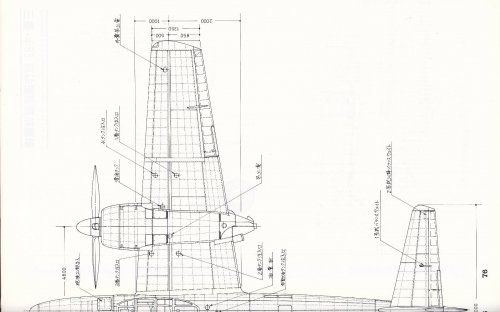

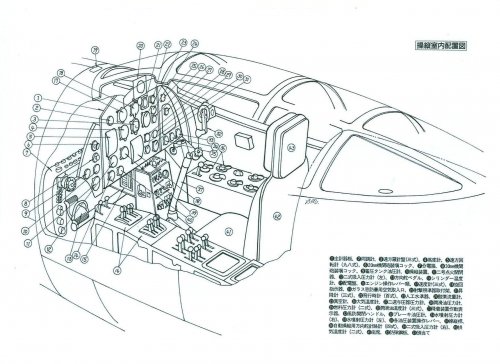

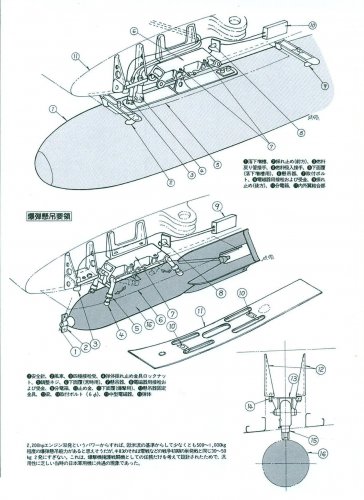

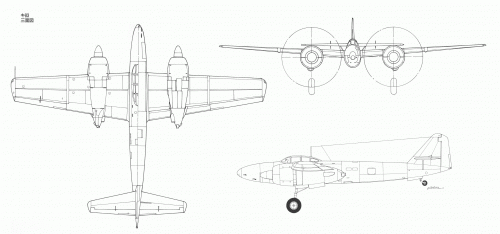

I found Ki-83 drawings in "JAPANESE ARMY & NAVY EXPERIMENTAL AIRCRAFT,DESIGN WITH PRECISION, drawing by Matsuba Minoru, Aireview magazine special edition". There is no ISBN number in this book. I think it's little hard to get this book for foreign people.
Anyone knows how to get this book?

Or please mail following address
info@kantosha.co.jp


Attachments

gerhard

CLEARANCE: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
0
This is an excellent book for detail drawings. I got mine from Hobby Link Japan some years ago. ;D


pacopepe

CLEARANCE: Restricted
Joined
Oct 11, 2008
Messages
25
Reaction score
0

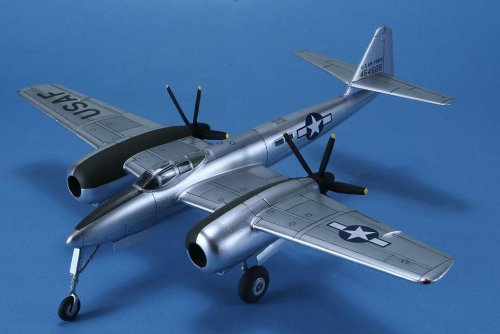

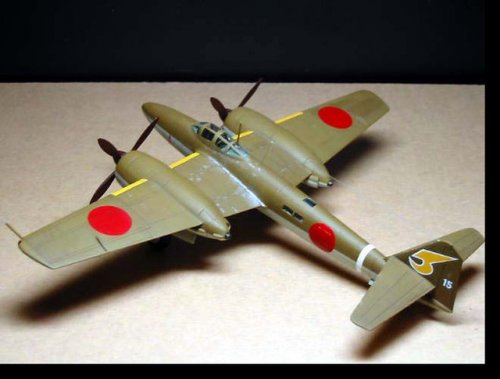

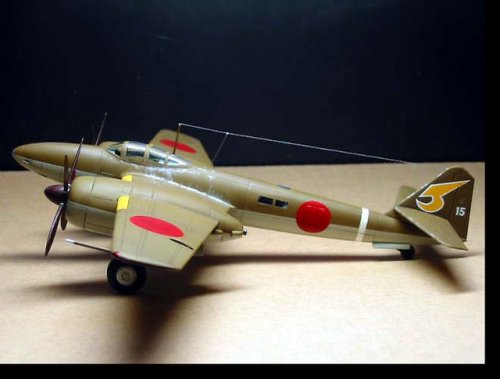

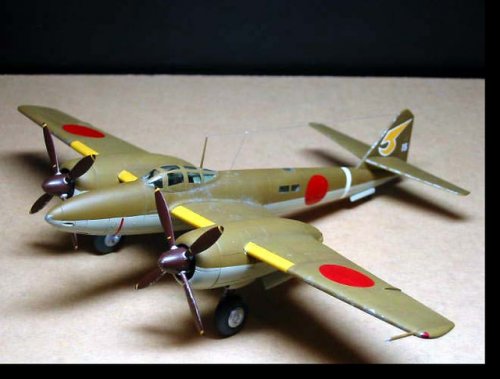

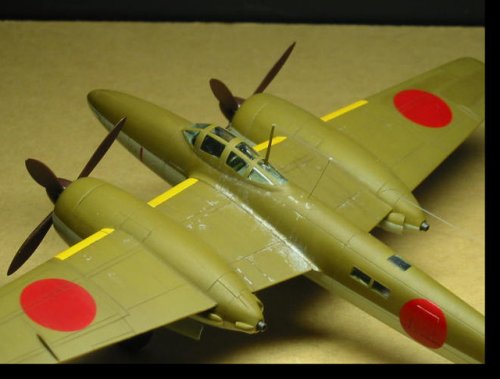

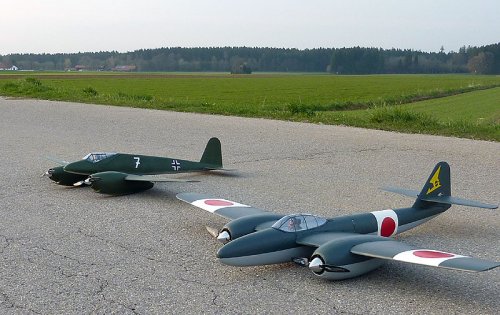

Really, it was a very interesting aircraft. I chose it to make an interesting -hypotetical- version; tested by the USAAF as the original......

Regards
Fran


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,686
Reaction score
217
Very beautiful and impressive model! This shape has the possibility to realize higher speed by low drag.
Please take care for propeller diameter to keep ground clearance in take off and landing (high angle of attack), and weight increase by extended propeller shaft, long engine nacelle and forced cooling fan.


roadrunner2

CLEARANCE: Restricted
Joined
Jul 26, 2007
Messages
38
Reaction score
0
Thanks ;)
I think it would be difficult to order.....
Out of stock on HLJ :-\


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
74
Stunning plans! The mind wanders... Visions of Ki-83 vs. Tigercat in Pacific skies...


roadrunner2

CLEARANCE: Restricted
Joined
Jul 26, 2007
Messages
38
Reaction score
0
Amazing plans.
Many thanks.
Now, I can scratchbuilt a 1/48 model....


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,686
Reaction score
217
Oh! We are waiting for your super model.


Filippriec

CLEARANCE: Restricted
Joined
Jan 18, 2013
Messages
10
Reaction score
0
It's this Ki-83? http://www.facebook.com/photo.php?fbid=143492365809444&set=a.110538772438137.20281.110534692438545&type=1&relevant_count=1


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
295
Reaction score
8
Blackkite,

Do you know what the purpose of the second crewman was? Navigator? Observer? If anybody else knows for sure, please say so.

Would all the Ki-83 aircraft have had a second crewman or just a few? Squadron leaders maybe?

Thanks
