I think a few Ki-83 planned to have a second crewman for Squadron leaders or observer for long range strategic reconnaissance.
Please give me some more time to verify this.


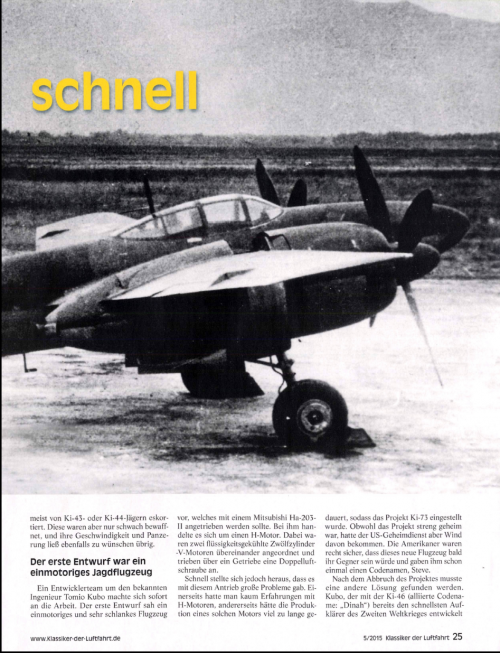

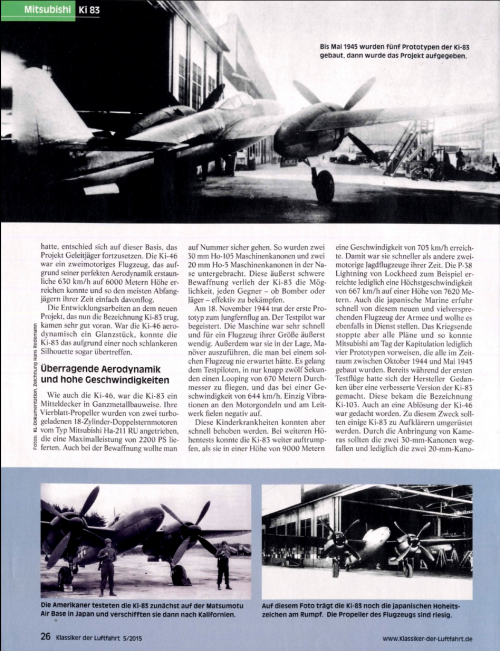

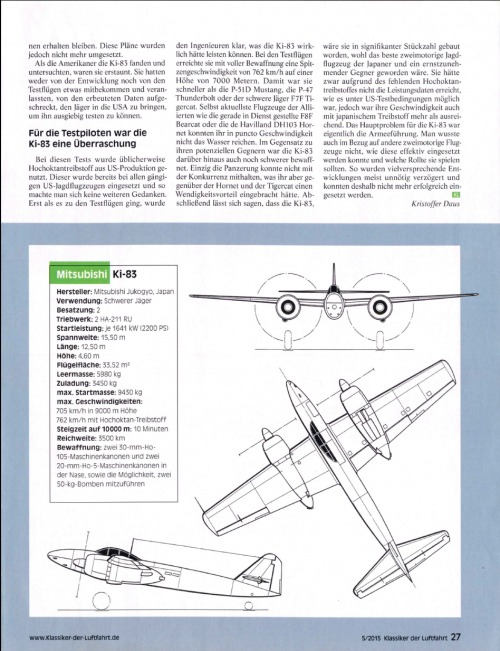

Attachments

windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
311
Reaction score
15
Domo Blackkite. I appreciate your efforts in this and other discussions to find information not easily available to us who do not read Japanese.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446
Doitashimashite, windswords san. :D


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446
Hi!

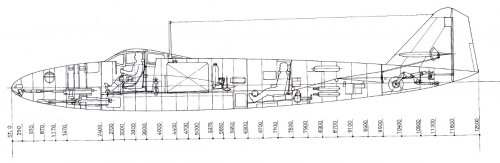

”The pilot had a 360-degree view, and the radio operator/navigator was positioned in the aircraft’s fuselage behind the wings. The second crew member had very cramped accommodations with small windows. However, the second crew member was not intended to be on every mission.”

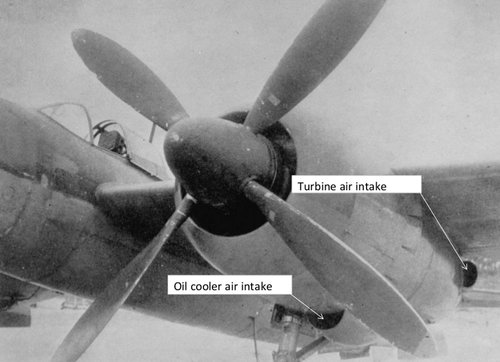

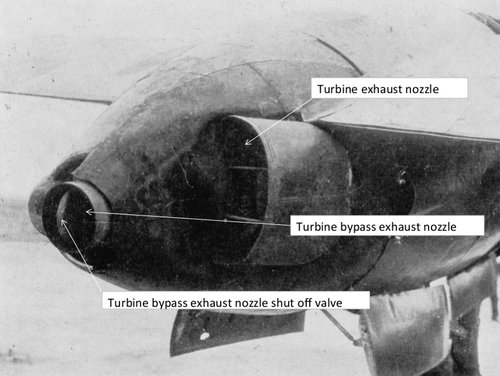

”Fresh air would enter the turbocharger near the rear of the nacelle on the outboard side, be compressed, and then flow to the engine through an air box in the upper nacelle. The engine’s exhaust was expelled from the turbocharger on the inboard side of the nacelle, and a waste gate was positioned at the end of the nacelle. The exhaust arrangement provided some additional thrust.”
turbinr air intake.jpgki-83 nacelle end.jpgintercooler.jpgki-83-15.jpg

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,091
Reaction score
446
Thanks a lot my dear hesham-san and Arjen-san!!:)

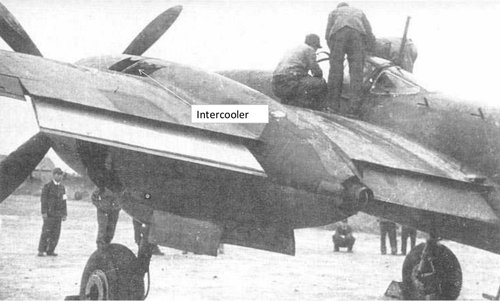

I'm interested in intercoler system of this aircraft. But very hard to understan for me, especiallly cooling air air intake and hot air exhaust system.

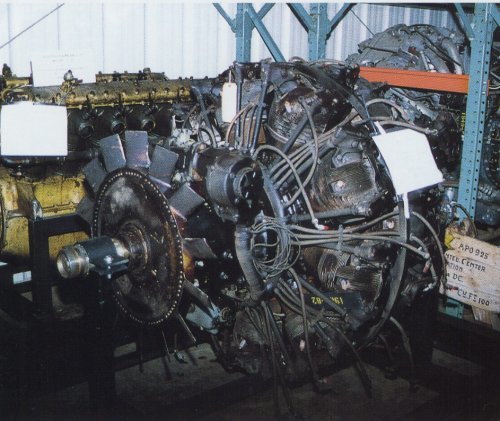

Ki-83's engine was a Mitsubishi Ha-43-11(MK9A) with forced cooling fan and turbocharger.
So I think there was a possibility that Ki-83's intercooler air intake was located behind the force cooling fan.

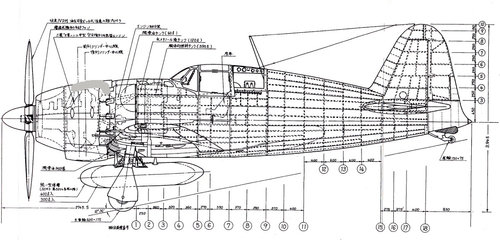

Raiden had engine ram ram air intake at same position, behind the forced cooling fan.
Ki-83's ram air intake was located engine nacelle.
And Ki-83's intercooler cooling air outlet was located engine nacelle inboard side combined with turbine exhaust outlet.
ha-43-11.jpgRaiden drawing2.jpg

Last edited:
