Is there anyone of the memebers who ever have seen
information or illustrations of the
Shukanov " Koltseplan".

This was a single engined V-STOL fighter ? project of 1943 with a
ring wing (not a disc).
Models should have been tested in the MAI windtunnel.


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
145

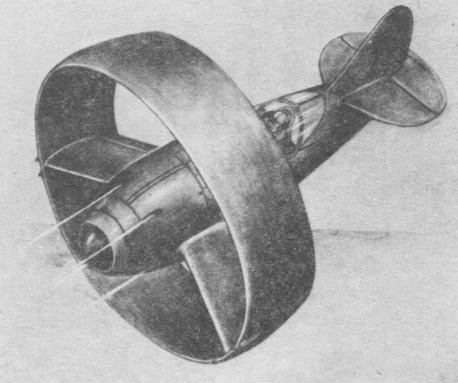

Paul, it was not a VTOL project, just a STOL design. Its roots date back to 1936, when M. Sukhanov was a student. The 'Koltseplan' was the topic of his dissertation. The ring wing has a diameter of 3 m, estimated maximum speed had to be 600 km/h, enabled by a 800 hp Hispano-Suiza engine. Beginning in 1940 the VVS supported the research work. B. N. Yuryev (at this time at the TsAGI), N. N. Polikarpov and other engineers helped him during different stages of development. At the end (1943?) the following characteristics were given:

Take-off weight : 2,500 kg
One engine M-82A with 1,600 hp
Diameter of the ring wing : 3 m
(lifting) wing area : 10,5 m²
Chord of the wing pylons : 1,1 m
Coaxial airscrews of 3 m diameter
Maximum speed (estimated) : 740 km/h
Speed at 3,000 m : 640 km/h

There is a little bit more described in Makarov's book "Letatyelnyye apparaty MAI" (Moscow, 1994, ISBN 5-7035-0161-X). Sorry Paul, but I have not enough spare time at the moment to translate the paragraphs. Check your mailbox (you too, Matej).


Attachments

  • kolzeplan.JPG
    23.9 KB · Views: 727

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
Thanks a lot Thomas..Saturdaynight fever is already coming up :)


luftsturm

CLEARANCE: Restricted
Joined
Sep 27, 2006
Messages
5
Reaction score
0
Hi friends,

Does anyone have a 3 view of this amazing project or more drawings?

Thanks.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

Attachments

  • disk1.jpg
    38.6 KB · Views: 574
  • disk2.jpg
    68.7 KB · Views: 568
  • disk3.jpg
    33.9 KB · Views: 525
  • 40.jpg
    27.8 KB · Views: 535
  • cosmoplan.jpg
    77.5 KB · Views: 268

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
Last one is NIIPM MTVKA-U Aerosplace Plane aka 'Rossiya'
http://www.secretprojects.co.uk/forum/index.php/topic,233.0.html


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
109
Website
www.hitechweb.genezis.eu
Sukhanov was a very good object for soviet propaganda. There were official stories, that they are looking for antigravity propulsion (!!!) for his wooden discs :D ;D :D


Attachments

  • magcover.jpg
    32.2 KB · Views: 104
  • sukhanov1.gif
    29 KB · Views: 138

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
For Matej collection...But actually, this drawing has nothing Sukhanov-related. Just a cover pic.


Attachments

  • 1964_02.jpg
    230 KB · Views: 126

Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
586
Reaction score
85
Hello, I am new in the group.

I have found very little data on two other Russian flying disk aircraft but I don't think they are related to Shukanov.

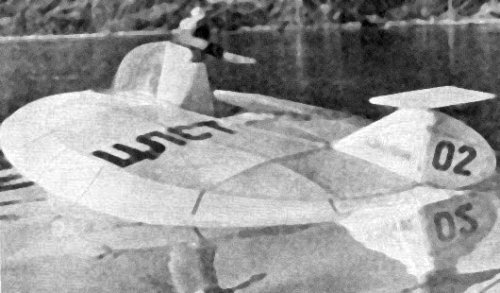

The first is a floatplane with a small pusher propeller (copy of photo herewith).
The second was an experimental glider designed by the MAI (and/or a certain A.V. Grevyatsky) in the 70's.
Any more detailed information available?

Thanks


Attachments

  • Disk-wing.jpg
    139.8 KB · Views: 125

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,336
Reaction score
1,367
That's not a blended wing body.


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,861
Reaction score
1,074
Website
www.aerospaceprojectsreview.com
sferrin said:
That's not a blended wing body.

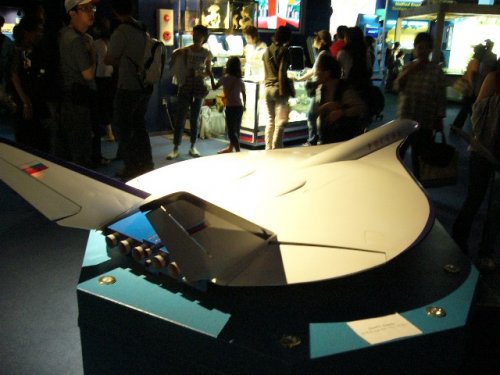

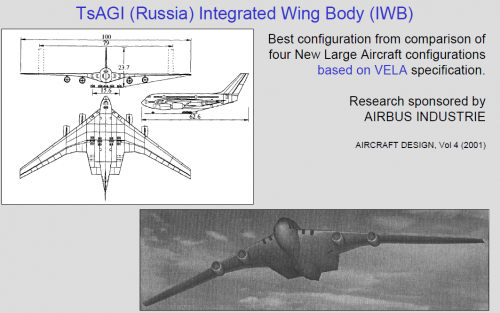

Shrug. A number of sources called it and similar designs exactly that. The "Integrated Wing Body" vehicle had an A-380-style fuselage, true, but it was married to a clunky BWB-style wing with passengers in it. Imagine if someone had sawed a Boeing BWB down the middle and stuck a regular fuselage in there.

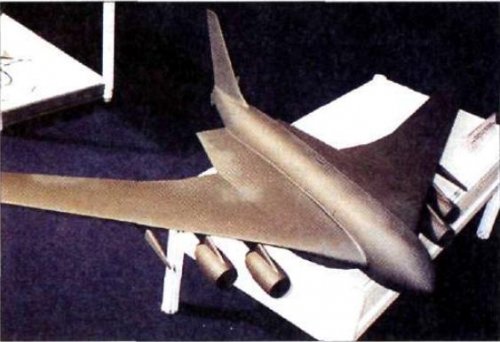

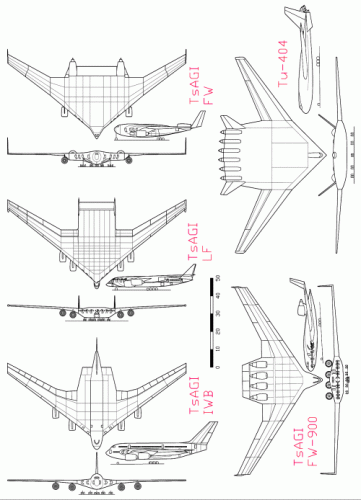

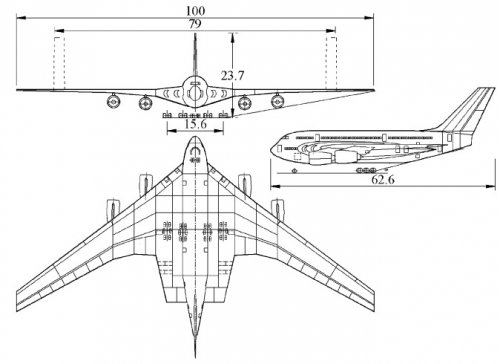

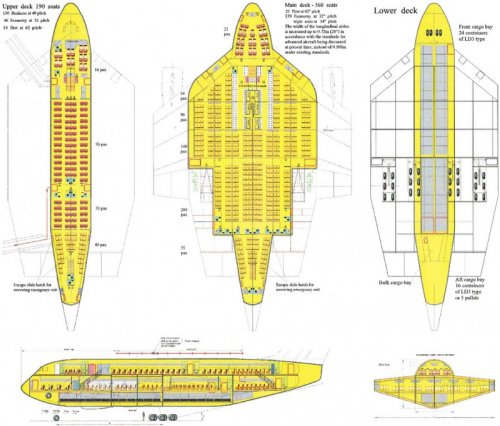

Some images, for those few of you who are actually interested in such (including a set of drawings created by yours truly, and included in issue V1N3 of the new Aerospace Projects Review. Issues still available...)


Attachments

  • iwb1.jpg
    151.2 KB · Views: 192
  • iwb2.jpg
    59.7 KB · Views: 223
  • Russian.gif
    45.4 KB · Views: 232

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,336
Reaction score
1,367
True but I'd think the term "blended wing body" means it's got a blended wing body. ;) Slapping a wing, regardless of it's shape, on a tubular body would seem to not qualify IMO.


ouroboros

CLEARANCE: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
6
I think that Sukhanov model is missing a pair of engines, or is expecting some military upgrades...


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817

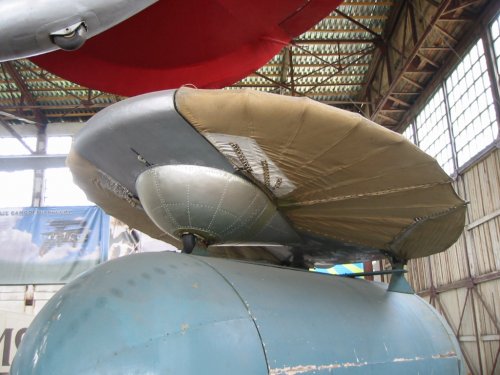

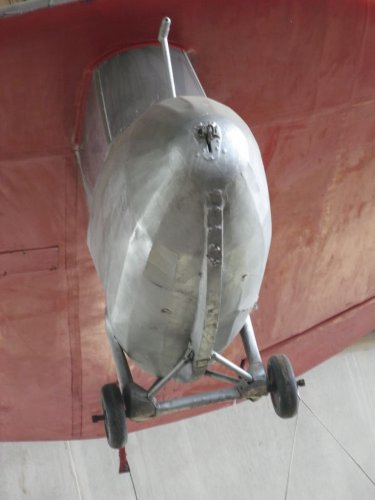

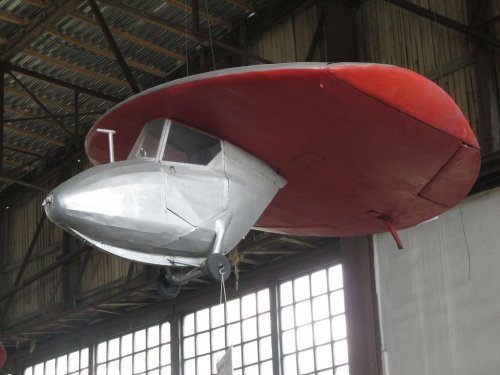

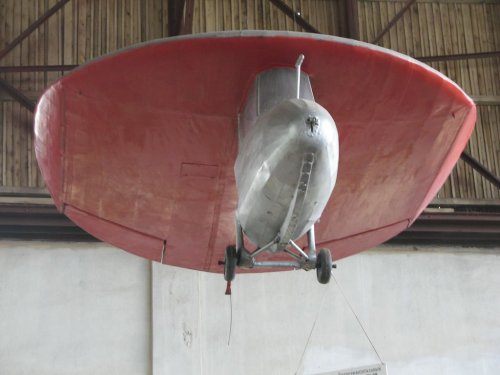

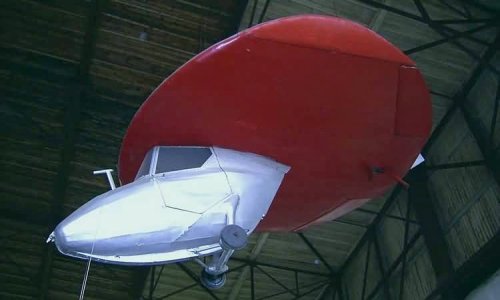

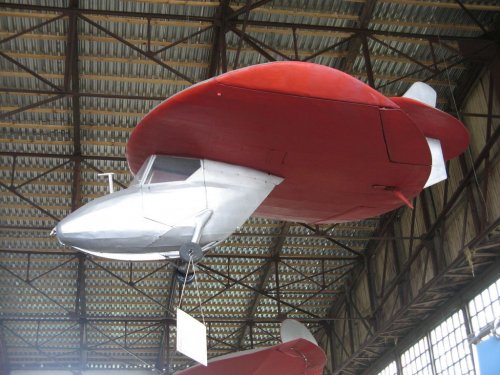

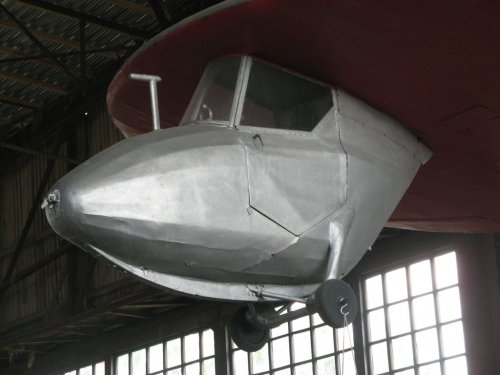

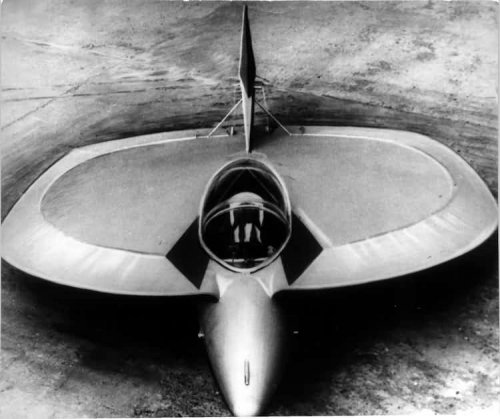

M.V.Sukhanov's 'Diskoplan' experimental glider (1950) in Monino Air Force museum exposition.


Attachments

  • IMG_1976 [1280x768].JPG
    IMG_1976 [1280x768].JPG
    74 KB · Views: 193
  • IMG_1988 [1280x768].JPG
    IMG_1988 [1280x768].JPG
    89.1 KB · Views: 201
  • IMG_1980 [1280x768].JPG
    IMG_1980 [1280x768].JPG
    158.3 KB · Views: 216
  • IMG_1978 [1280x768].JPG
    IMG_1978 [1280x768].JPG
    106.9 KB · Views: 219
  • IMG_1975 [1280x768].JPG
    IMG_1975 [1280x768].JPG
    86.5 KB · Views: 249

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817

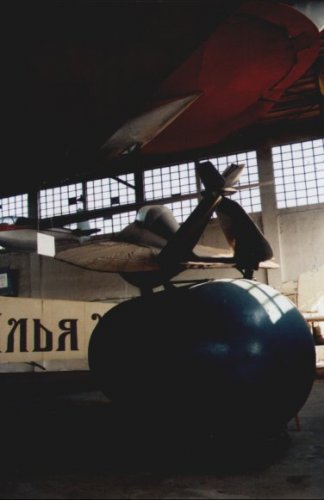

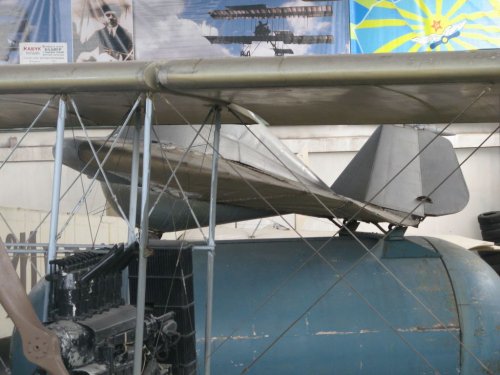

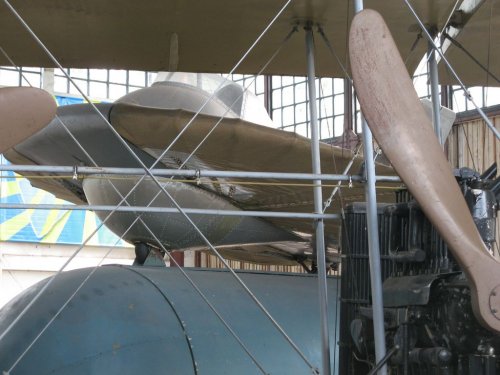

Another weird stuff hidden behind Ilya Murometz bomber. Didn't have a time or wish to bark with security babushkas', cross the fence and shoot it from the other angles...


Attachments

  • IMG_1987 [1280x768].JPG
    IMG_1987 [1280x768].JPG
    117.4 KB · Views: 68
  • IMG_1991 [1280x768].JPG
    IMG_1991 [1280x768].JPG
    123 KB · Views: 71

Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
586
Reaction score
85
Another weird stuff hidden behind Ilya Murometz bomber. Didn't have a time or wish to bark with security babushkas', cross the fence and shoot it from the other angles......

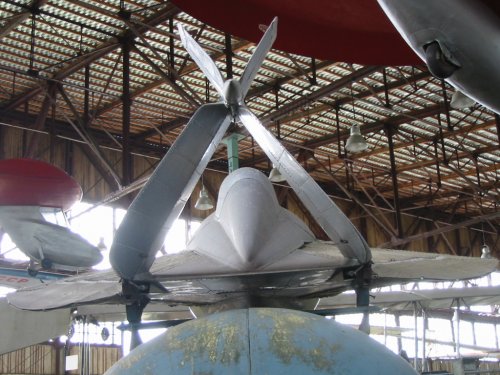

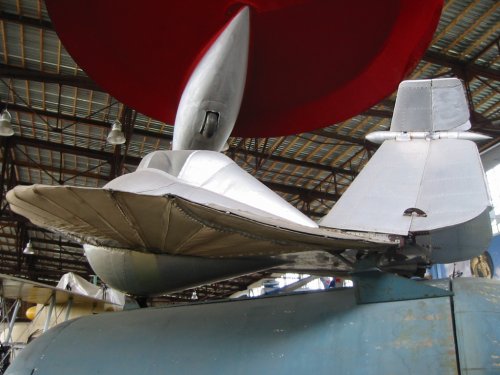

Was at Monino yesterday and obtain the authorisation from the security staff...

But what is this aircraft?
Was it also a creation of Sukhanov?
I will be very, very interested to know what was the purpose of that design and up to where and by whom the project has been conducted, and when and why it has been stopped.

Thanks in advance,


Attachments

  • IMG_3163.JPG
    364.5 KB · Views: 80
  • IMG_3165.JPG
    307.5 KB · Views: 83
  • IMG_3166.JPG
    452.3 KB · Views: 75
  • IMG_3167.JPG
    355.7 KB · Views: 79

Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
586
Reaction score
85
It seems to be linked to some space project, but I am not really sure.


dickie

CLEARANCE: Restricted
Joined
May 3, 2007
Messages
46
Reaction score
0
so odd... what time period it was from would even be helpful, no?


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
99
Justo Miranda said:
Radial folding wings ?
It seems to be linked to some space project, but I am not really sure.
Posted by: Retrofit
“Cosmic glider” by Sukhanov (1979)
This project must was be used for evacuation of the crews of the spaceships from orbit.
Particularity :eek:f the discoplan - laying all things out like fan (fan-out) wing and opening X- figurative tail
. Descent from orbit flying disk made in built type inwardly cylindrical capsule. (On photo’s model disco-plan is installed on her)
Sorry for its english and bad quality of the picture from old newspaper.
Same information in book V.& M. Kozyrev’s “Handmade UFO” p.209


Attachments

  • 'Cosmic glider' by Sukhanov.jpg
    'Cosmic glider' by Sukhanov.jpg
    41.5 KB · Views: 95

cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,367
Reaction score
94
Website
cluttonfred.info
Thread necrophilia, I know, but I have to ask, does anyone have any more info on or images of this design? Do any of our Russian-speaking friends have the book quoted as a source for info on aircraft designed at the Moscow Aviation Institute? I'd love to get a copy of that one and I don't even speak Russian.

'Letatelnie Apparati MAI'
Yu.V. Makarov
Isdatelstvo MAI, 1994 ISBN: 570350161X


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
4,098
Reaction score
1,692

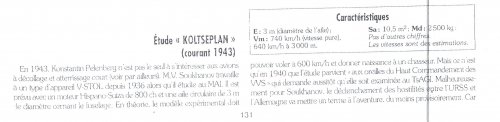

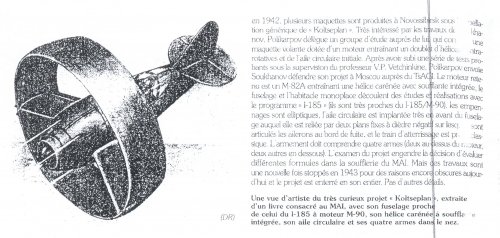

From "Encyclopedie des chasseurs sovietiques 1939-51"
by Herbert LEONARD
Histoire & Collections ed.


Attachments

  • Escanear0001.jpg
    147.3 KB · Views: 791
  • Escanear0002.jpg
    376.7 KB · Views: 746

cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,367
Reaction score
94
Website
cluttonfred.info
Thanks very much for this!

I am guessing fixed landing gear, but I can't tell from the pic. The text says the landing gear is "almost classic" (meaning conventional) but that's not telling much.

I find this intriguing, using an annular wing in this way. It opens up some interesting possibilities in terms of maneuverability--for example, the aircraft ought to be able to make a hard turn without rolling using the left and right sides of the ring as the wing and the rudder serving as an elevator. The pilot better be well strapped in. ;-)

Any idea on the airfoil? The simplest would be to have a symmetrical airfoil all the way around, but there could be an argument for normal cambered airfoil in the bottom and top arcs (10:30-1:30, 4:30-7:30) with a transition via a symmetrical airfoil in the left and right arcs.

I find it odd that the prop is the same diameter as the wing. I would think that the prop should be a little smaller than the wing (to get the wing out of the slipstream and reduce drag) or a little larger (to make sure the wing remains entirely within the slipstream and improve STOL performance).

Anyone else have any more information or sketches, maybe a three-view?


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,804
Reaction score
66
It seems to be that two designers with the name Sukhanov are mixed up here...


Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
562
Reaction score
158

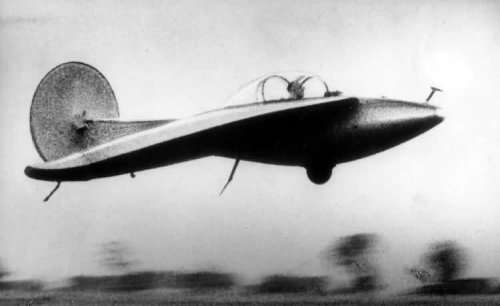

I came across this interesting piece in an old gliding magazine about flying a M.V. Sukhanov glider.

The photo is the same as the second image from Hesham in his reply #5.

The article is dated from 1964-5.

Source:

Sailplane & Gliding Magazine Vol 16 No 1

(thanks to colleague Kev N. for lending it to me!)


Attachments

  • Sukhanov_Discoplane_Glider_-_Sailplane_&_Gliding_Magazine_1965_Vol16_No1_Article.pdf
    1.6 MB · Views: 56
W

Wingknut

Guest

Attachments

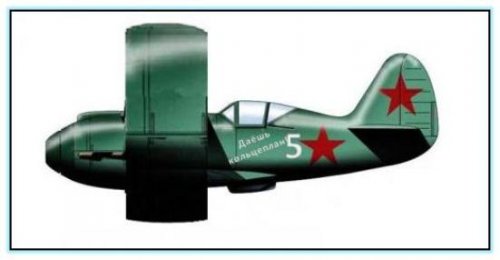

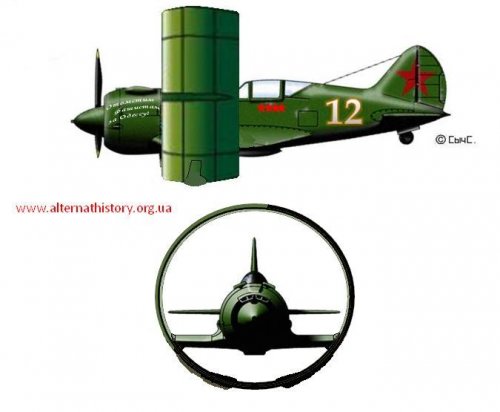

  • Koltseplan Sukhanov (2).jpg
    Koltseplan Sukhanov (2).jpg
    15.6 KB · Views: 323
  • Koltseplan Sukhanov (4).jpg
    Koltseplan Sukhanov (4).jpg
    30.3 KB · Views: 307

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

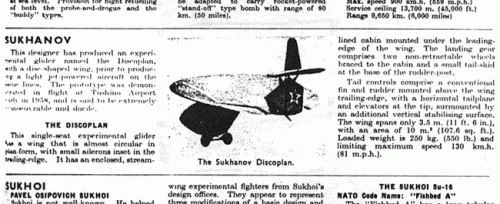

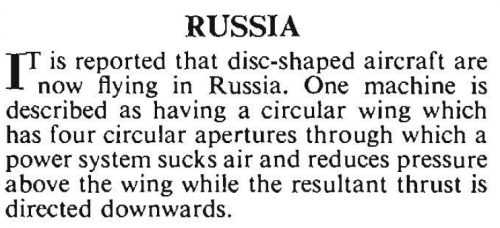

From Air Pictorial 12/1957,

was that a Sukhanov design ?.


Attachments

  • 1.png
    143.5 KB · Views: 37

ucon

CLEARANCE: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
81
Website
www.avicopress.ru
Bartini "kolzeplan" - one of T-217 variants.
From forthcoming book "Bartini and his projects 1946-1952" by Konstantin Udalov and Marek Rys


Attachments

  • Bartini Kolzeplan-01.jpg
    Bartini Kolzeplan-01.jpg
    131.6 KB · Views: 106
