hello :),

does anyone knows about other proposed Me309 versions? I post here the Me309Z/Me609( taken from "Geheimprojekte der Luftwaffe", volume 3, by Herwig/Rode ), a "zerstoerer" and high-speed bomber.


Attachments

  • Me 609.gif
    Me 609.gif
    28.8 KB · Views: 1,816

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139
Re: Messerschmitt Me 309 versions

hello wurger
something at "www.luft 46.com
but certainly you know
bye


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,199
Website
www.amazon.com
Re: Messerschmitt Me 309 versions

Please see

http://www.secretprojects.co.uk/forum/index.php/topic,3497.0/highlight,blind.html


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Re: Messerschmitt Me 309 versions

Hi Toura :),

yes, I already knew it from Luft`46 site. Some months ago in "Le Fana de L`aviation" there were a full article on this interesting little fighter, who came close to series production, but no allusion to advanced versions.

Wow :eek:, I just saw what Justo have posted. A flush fuselage Me 309? What was its intended role? The text tells about another version. Can you please shed more on this, Justo? Thanks for sharing


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139
Re: Messerschmitt Me 309 versions

hello Wurger.
I know the me 309 from V1 to V4
I know the flush fuselage only by the same source than you
and i've see about an other study, a Me 309 without tricycle undercarriage
and with winglet ????
Bye


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
988
Reaction score
137
Re: Messerschmitt Me 309 versions

Hi toura and Justo :),

any chance of posting images relating those projected "birds"? Cheers.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139
Re: Messerschmitt Me 309 versions

hello Wurger
I've no scanner but i've a photo !
If no answer, with your adress, Icould send you a copy
Bye


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,079
Reaction score
4,199
Website
www.amazon.com
Re: Messerschmitt Me 309 versions

Found source as "Luftahrt-Lexicon 8140-100-2" pp 3983


Attachments

  • Escanear.jpg
    272.4 KB · Views: 1,780

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
20
Re: Messerschmitt Me 309 versions


I suppose the Me 509 could be considered a mid-engined variant of the 309, couldn't it?



ote author=Wurger link=topic=5609.msg45013#msg45013 date=1226079132]
hello :),

does anyone knows about other proposed Me309 versions? I post here the Me309Z/Me609( taken from "Geheimprojekte der Luftwaffe", volume 3, by Herwig/Rode ), a "zerstoerer" and high-speed bomber.
[/quote]


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,075
Reaction score
4,164
Re: Messerschmitt Me 309 versions

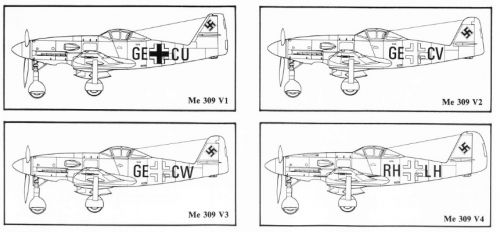

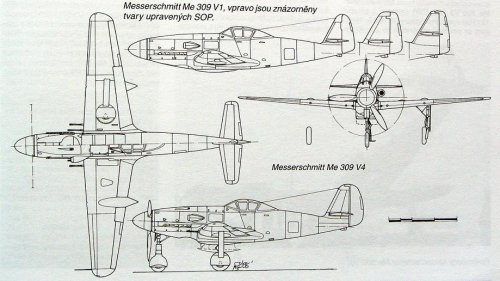

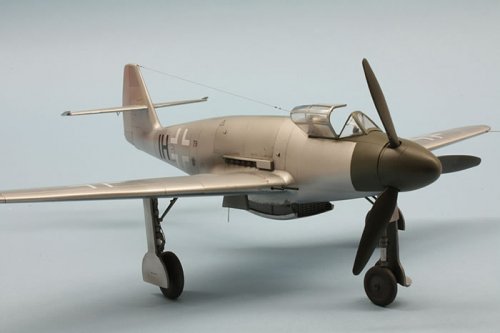

Hi! Me309V1 and V4.
Me309 had a retractable radiator and a pressurized cabin.

Me309 troubles were...
①Shimmy
②Over heat
③Landing was very hard.(rapid nose down at reverse propeller pitch when decrease landing speed)
④Require heavy force to move rudder
⑤Poor directional stability at take off run and high speed straight flight
⑥Poor maneuverability compared with Bf109G

This fighter seems to have been the airplane which doesn't become true at all.
What is the pod on the wing?
I can't find this pod in any picture.

https://en.wikipedia.org/wiki/Messerschmitt_Me_309

(cutaway was replaced with higher res version posted by johnbr)


Attachments

  • Me309 v4.jpg
    Me309 v4.jpg
    265.9 KB · Views: 1,250
  • me309v4per.jpg
    89.1 KB · Views: 1,183
  • me309-8.jpg
    63.1 KB · Views: 1,122
  • me309-2.gif
    358 KB · Views: 214

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,075
Reaction score
4,164

Attachments

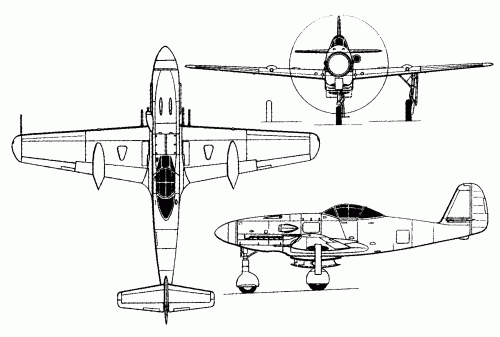

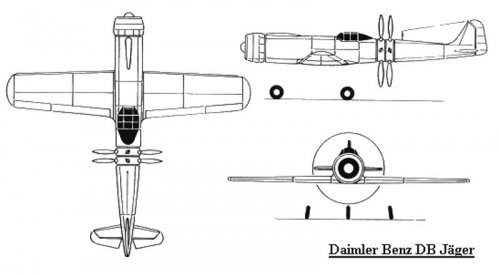

  • DB Jager.jpg
    DB Jager.jpg
    38.9 KB · Views: 810
  • Messerschmitt Me 509.jpg
    Messerschmitt Me 509.jpg
    19.3 KB · Views: 857
  • 3bm509.jpg
    16.6 KB · Views: 851
  • Me509.jpg
    109.5 KB · Views: 839

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Didn't a good number of the lippisch designs occur without the knowledge of Willy himself?

And when some of these designs ended up in competition with his own he was furious?


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
381
Reaction score
154
blackkite said:

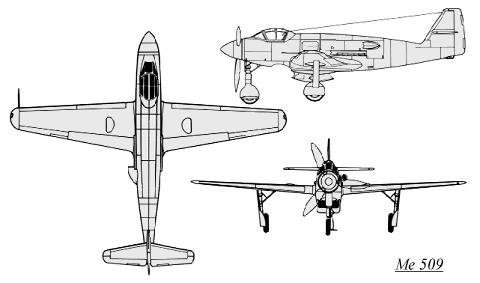

Hi Me509. Midship engine same as recent racing car!! Me509 looks like Keiun.

As soon as I saw the images and before I read your saying it looks like the R2Y1 Keiun, I had the same thought exactly! A true example of the saying "form follows function".


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,075
Reaction score
4,164
windswords said:
blackkite said:
Hi Me509. Midship engine same as recent racing car!! Me509 looks like Keiun.

As soon as I saw the images and before I read your saying it looks like the R2Y1 Keiun, I had the same thought exactly! A true example of the saying "form follows function".
Yes I think so. I also think that.....
Messerschmitt tried to develop Me509 fighter may be because Messerschmitt was estimating an achievement in the actual fighting of bell P-39 and P-63.

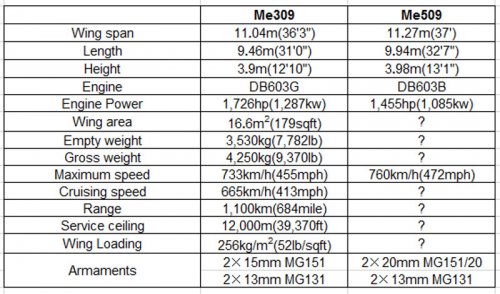

Specifications (as designed)
General characteristics
Crew: 1
Length: 9.94 m (32 ft 7 in)
Wingspan: 11.27 m (37 ft)
Height: 3.98 m (13 ft 1 in)
Powerplant: 1 × Daimler-Benz DB 605B, 1,085 kW (1,455 hp)
Performance
Maximum speed: 760 km/h (472 mph)
Armament
Guns: 2 × 13 mm (.51 in) MG 131 machine guns
2 × 20 mm MG 151/20 cannons

High speed fighter with pressurized cockpit!!
Perhaps Messerschmitt thought that this nose wheel landing system might be works well because of light nose weight.
Rerturn match of Me309 failure. ;D Some document says that Me509 was a delivative of Me309.
I feel that Me509's engine, propeller,radiator, spinner, wing, horizontal tail stabilizer and landing gear were almost same as Me309's one.
Any original drawing or document survived still now?

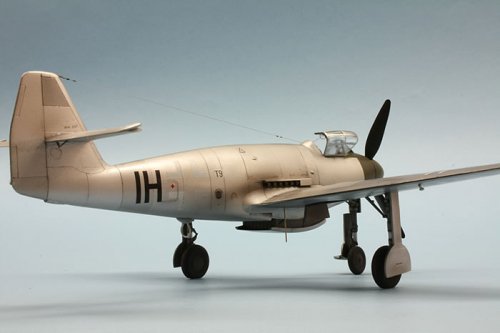

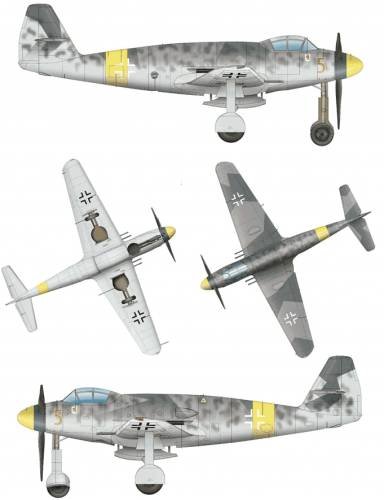

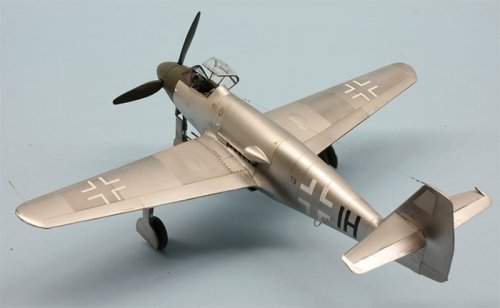

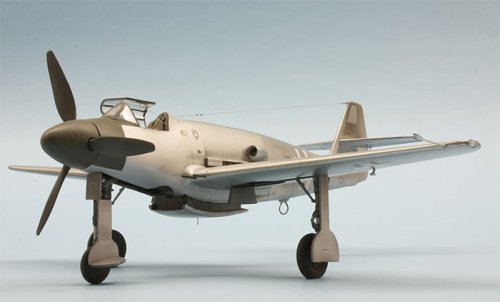

http://www.hyperscale.com/2013/galleries/me50948rs_1.htm


Attachments

  • Me309 and Me509.jpg
    Me309 and Me509.jpg
    142.5 KB · Views: 198
  • 3bm509.jpg
    16.6 KB · Views: 194
  • me-309.gif
    32.2 KB · Views: 216
  • Me_509_Vorserie_13_fs.jpg
    28.6 KB · Views: 197
  • Me_509_Vorserie_12_fs.jpg
    30.2 KB · Views: 198
  • 0_fs.jpg
    28.8 KB · Views: 211
  • Me_509_Vorserie_10_fs.jpg
    28.2 KB · Views: 366

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,075
Reaction score
4,164
Re: Messerschmitt Me 309 versions

Hi! No problem. ;)
https://www.youtube.com/watch?v=4800EMjf_m4


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
807
Re: Messerschmitt Me 309 versions

blackkite said:
There were two types of Me209 fighter.

Isn't this a topic about the Me 309? Don't we have a topic elsewhere on the Me 209 already? Just asking.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Re: Messerschmitt Me 309 versions

Hi,

was that Messerschmitt Me.309 XIII/245 a real version or not ?.

https://www.scalemates.com/kits/148154-classic-plane-cpm-67-messerschmitt-me-309-xiii-245-and-messerschmitt-me-509


Attachments

  • 148154-11669.jpg
    51.2 KB · Views: 1,143

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,297
Reaction score
145
Website
zeef.com
Re: Messerschmitt Me 309 versions

I suppose that Messerchmitt 309 was inspired by North American P-51 Mustang !


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Re: Messerschmitt Me 309 versions

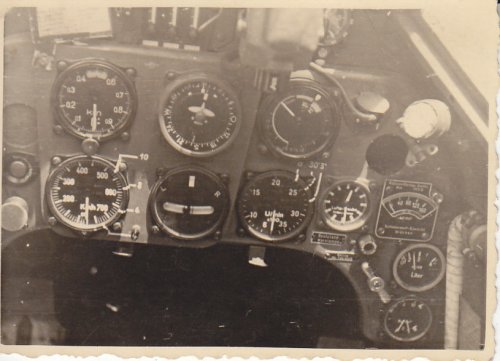

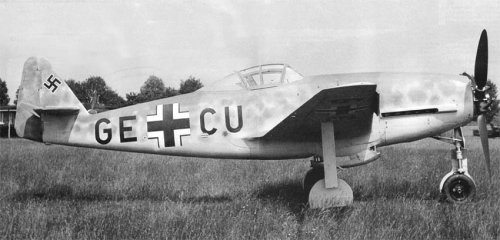

by way of LEMB, a photo of the cockpit of the 309

http://www.ebay.de/itm/Foto-Luftwaffe-Flugzeug-Me-309-GE-CU-am-16-7-1942-/381919595908


Attachments

  • 309 cockpit.jpg
    309 cockpit.jpg
    82.6 KB · Views: 989

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,542
Reaction score
1,213
Re: Messerschmitt Me 309 versions

A very interesting article about the Messerschmitt Me 309 is published in the August 2017 issue of the German magazine Klassiker der Luftfahrt. IMHO some unseen new pictures of the the flight tests are featured in this article.
You can also buy and download the article at their website.
Link: http://www.klassiker-der-luftfahrt.de/geschichte/flugzeuge/messerschmitt-me-309-die-letzte-09/734200/paidattachment


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Re: Messerschmitt Me 309 versions

fightingirish said:
A very interesting article about the Messerschmitt Me 309 is published in the August 2017 issue of the German magazine Klassiker der Luftfahrt. IMHO some unseen new pictures of the the flight tests are featured in this article.
You can also buy and download the article at their website.
Link: http://www.klassiker-der-luftfahrt.de/geschichte/flugzeuge/messerschmitt-me-309-die-letzte-09/734200/paidattachment

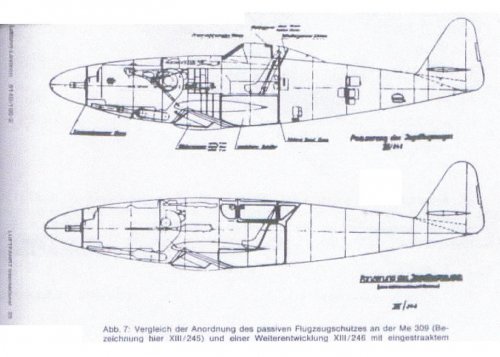

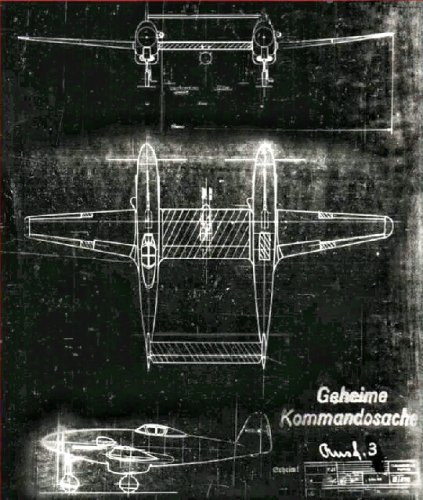

Thanks for the recommendation. This issue includes and original drawing that appears to show the new sheet metal work required for the twin design.


Attachments

  • Screenshot_2017-10-09-17-55-51-01.jpeg
    184.9 KB · Views: 719

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
Re: Messerschmitt Me 309 versions

sienar said:
fightingirish said:
A very interesting article about the Messerschmitt Me 309 is published in the August 2017 issue of the German magazine Klassiker der Luftfahrt. IMHO some unseen new pictures of the the flight tests are featured in this article.
You can also buy and download the article at their website.
Link: http://www.klassiker-der-luftfahrt.de/geschichte/flugzeuge/messerschmitt-me-309-die-letzte-09/734200/paidattachment

Thanks for the recommendation. This issue includes and original drawing that appears to show the new sheet metal work required for the twin design.

As I expected and displayed before in anther topic,it was a real Project.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Re: Messerschmitt Me 309 versions

There was a swept wing derivative of the 309 that was expected to have a 30% increase in top speed. Work on this design was farmed out to Caudron, who also took over wind tunnel testing, in late 42.


GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,451
Reaction score
1,533
Website
beyondthesprues.com
Re: Messerschmitt Me 309 versions

sienar said:
There was a swept wing derivative of the 309 that was expected to have a 30% increase in top speed. Work on this design was farmed out to Caudron, who also took over wind tunnel testing, in late 42.

Anymore details?


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Re: Messerschmitt Me 309 versions

Sorry, that's all Die Deutsche Luftfahrt; Willy Messerschmitt has to say about it


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
Re: Messerschmitt Me 309 versions

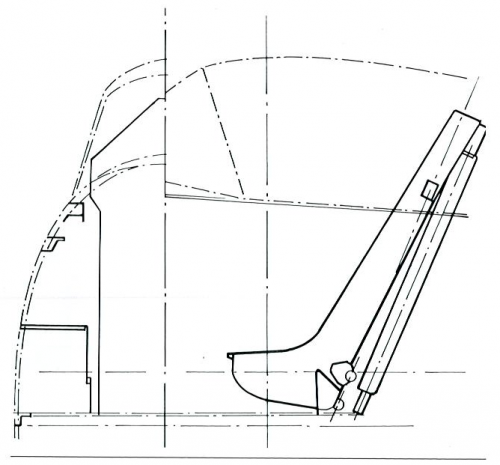

Ejection seat for the 309v1

Source: Die Deutsche Luftfahrt; Willy Messerschmitt


Attachments

  • 309 ejection seat.png
    309 ejection seat.png
    142.2 KB · Views: 391

sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
710
Reaction score
394
.


Attachments

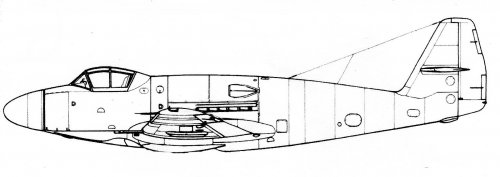

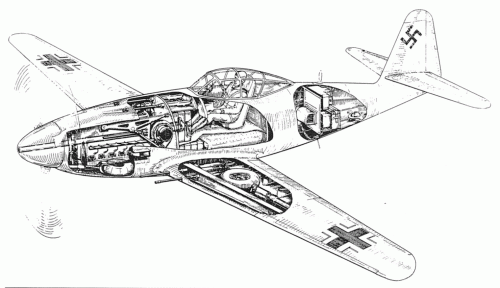

  • 309 cutaway.png
    309 cutaway.png
    522.6 KB · Views: 552

lippischh

ACCESS: Secret
Joined
Apr 21, 2012
Messages
283
Reaction score
45
Website
www.shapeways.com

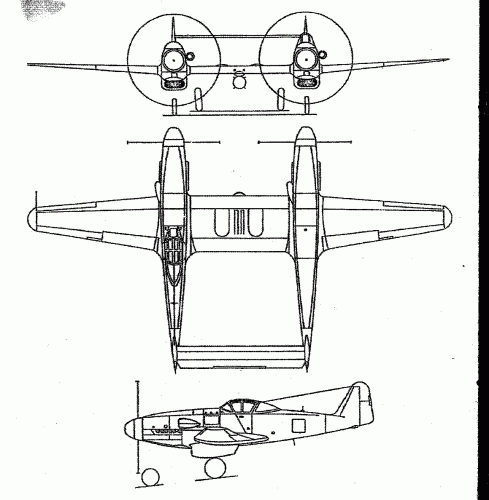

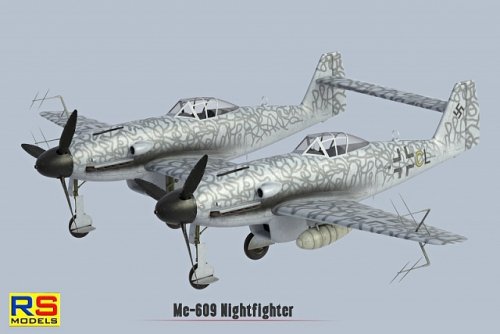

Is this "night fighter" version of the Me 609 real ?


Attachments

  • md2wyzxudt_large.jpg
    229 KB · Views: 371
  • vlcowcluoq_large.jpg
    158.1 KB · Views: 347

newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,141
Reaction score
895
Hamzalippischh said:
Is this "night fighter" version of the Me 609 real ?

As I've mentioned elsewhere, Me 609 was a designation given to production-ready Me 262s towards the end of the war - not the twin-fuselage Me 309. This is referred to in period documents as the Me 309 Zw. The Me 309 Zw itself was a short-lived fast bomber design and it seems unlikely that it ever reached the stage of someone deciding to see how it would look as a night fighter. It's not impossible, but it is improbable.


lippischh

ACCESS: Secret
Joined
Apr 21, 2012
Messages
283
Reaction score
45
Website
www.shapeways.com
newsdeskdan said:
Hamzalippischh said:
Is this "night fighter" version of the Me 609 real ?

As I've mentioned elsewhere, Me 609 was a designation given to production-ready Me 262s towards the end of the war - not the twin-fuselage Me 309. This is referred to in period documents as the Me 309 Zw. The Me 309 Zw itself was a short-lived fast bomber design and it seems unlikely that it ever reached the stage of someone deciding to see how it would look as a night fighter. It's not impossible, but it is improbable.

Thank you for your valuable input !


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,141
Reaction score
895
Hamzalippischh said:
newsdeskdan said:
Hamzalippischh said:
Is this "night fighter" version of the Me 609 real ?

As I've mentioned elsewhere, Me 609 was a designation given to production-ready Me 262s towards the end of the war - not the twin-fuselage Me 309. This is referred to in period documents as the Me 309 Zw. The Me 309 Zw itself was a short-lived fast bomber design and it seems unlikely that it ever reached the stage of someone deciding to see how it would look as a night fighter. It's not impossible, but it is improbable.

Thank you for your valuable input !

It would be great if, when I point out the improbability of some of these designs, someone could just pop up with the original drawing or documentation to contradict me and prove that they really did exist, and that the models are based on sound historical fact. I also wish that when I was seeking out Me 609 documentation, it had indeed turned out to show the twin-fuselage Me 309. But... I've found half a dozen Me 609 documents now and they've all been about the Me 262. It's such a shame that such cool models are just (seemingly) based on 'speculation'.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022
newsdeskdan said:
It would be great if, when I point out the improbability of some of these designs, someone could just pop up with the original drawing or documentation to contradict me and prove that they really did exist, and that the models are based on sound historical fact. I also wish that when I was seeking out Me 609 documentation, it had indeed turned out to show the twin-fuselage Me 309. But... I've found half a dozen Me 609 documents now and they've all been about the Me 262. It's such a shame that such cool models are just (seemingly) based on 'speculation'.

Can you send a drawings from them Dan,please.


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,141
Reaction score
895
hesham said:
newsdeskdan said:
It would be great if, when I point out the improbability of some of these designs, someone could just pop up with the original drawing or documentation to contradict me and prove that they really did exist, and that the models are based on sound historical fact. I also wish that when I was seeking out Me 609 documentation, it had indeed turned out to show the twin-fuselage Me 309. But... I've found half a dozen Me 609 documents now and they've all been about the Me 262. It's such a shame that such cool models are just (seemingly) based on 'speculation'.

Can you send a drawings from them Dan,please.

For what?


newsdeskdan

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 11, 2014
Messages
1,141
Reaction score
895

Attachments

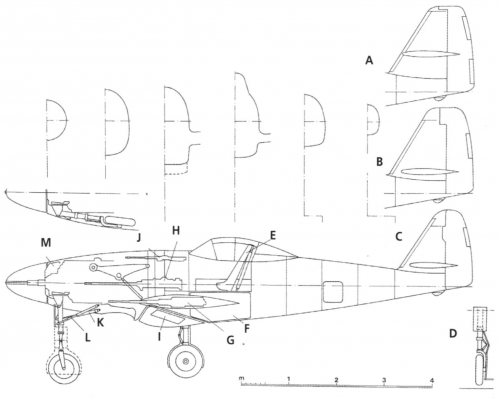

  • 309 cutaway.png
    309 cutaway.png
    522.6 KB · Views: 344

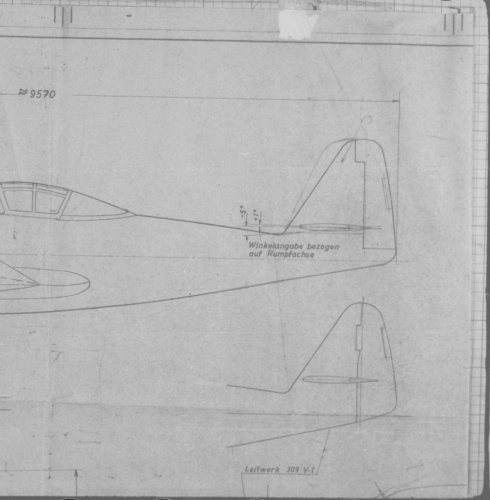

  • Me 309 tail.jpg
    Me 309 tail.jpg
    493.6 KB · Views: 335

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,366
Reaction score
6,022

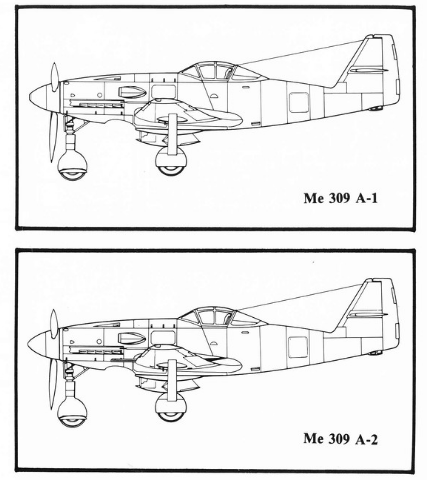

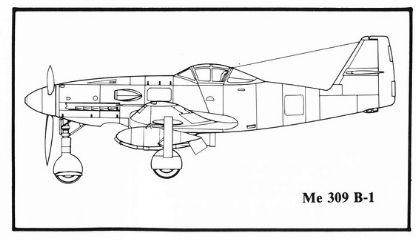

From; Messerschmitt "0-Nine" Gallery"


Attachments

  • d.png
    196.6 KB · Views: 164
  • e.png
    107.4 KB · Views: 152
  • f.png
    50.3 KB · Views: 132

Similar threads

Top
