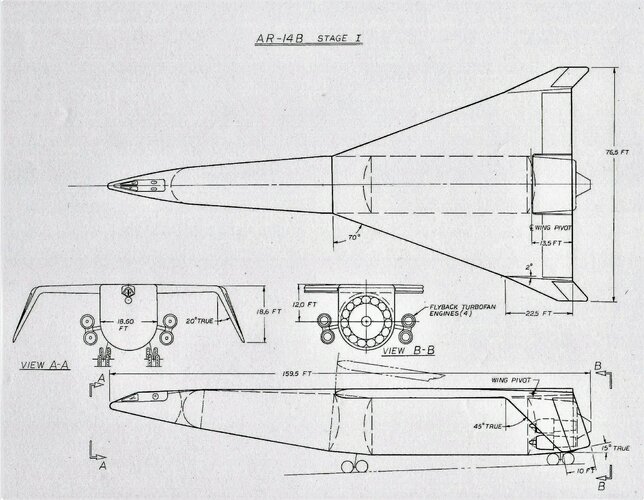

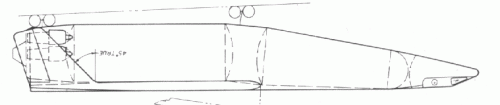

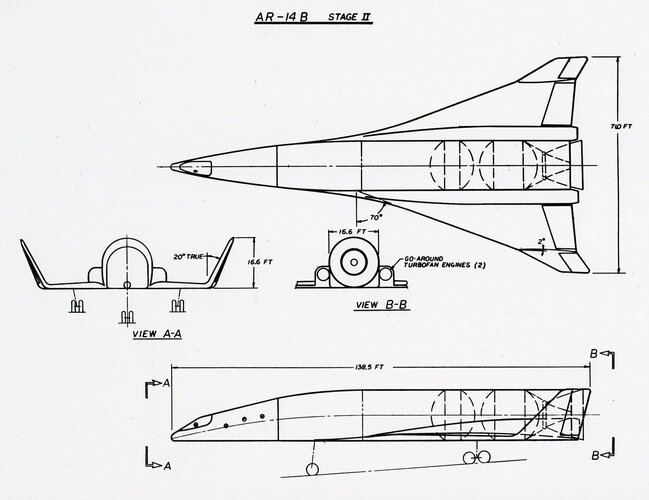

In the mid-1960s Martin proposed a spaceplane for vertical take-off and horizontal landing designated AR-14B.

four turbofans
flight altitude 60 km
length 48,6 m
span 23,3 m

SOURCE: Der Flieger 7/1965 (page 166)


Attachments

  • Martin AR-14B.gif
    Martin AR-14B.gif
    91.3 KB · Views: 520

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,070
Reaction score
1,574
were ist the Heatshield on this space plane ?


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
855
Reaction score
190
Barrington Bond said:
Isn't this the lower component of the Martin Astrorocket?!

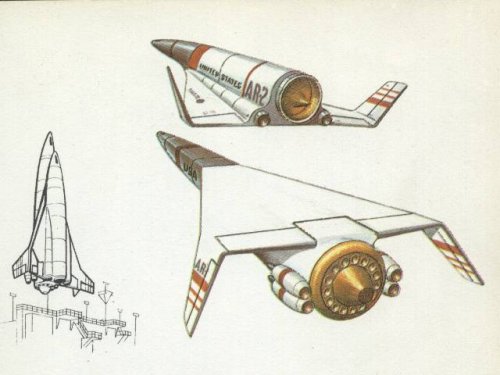

In all probability, yes. The artist's impression of the Astrorocket (= AR ?) is from Scott's APR website.


Attachments

  • Martin Astrorocket.jpg
    Martin Astrorocket.jpg
    23 KB · Views: 460

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,253
Reaction score
1,922
Website
www.aerospaceprojectsreview.com
boxkite said:
Barrington Bond said:
Isn't this the lower component of the Martin Astrorocket?!

In all probability, yes.

Definitely yes.

Note: sometime around 2002, I was contacted by someone at Lockheed-Denver about the Astrorocket. Seems that someone in the USAF had expressed interest in a modernized Astrorocket, so the LM folk decided to dig up all their references on the AR to make a proper response. As it turns out, even though their facility had done the studies... they had nothing left on it. Someone googled AR, found my website, and negotiated a copy of the original Martin report.

Shoulda charged more... :p


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
4
What was Martin's justification for using storable propellants on the Astrorocket? It would seem like the stage propellant mass fractions wouldn't permit TSTO using such low-energy propellants.

Also, did Martin deliberately choose the aerospike-looking nozzle for its altitude-compensating properties?


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,163
Reaction score
299
Michel Van said:
were ist the Heatshield on this space plane ?

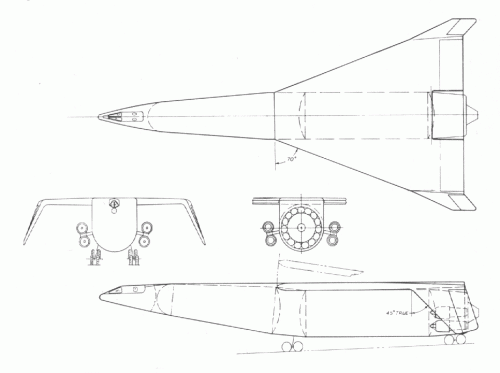

The heatshield is the upper surface. As the vehicle has a lot of tankage that will be empty on re-entry, lightening thermal loads it doesn't require a special ablative or ceramic heatshield. Note the wing will shadow the jet pods on a typical re-entry angle. Also, the cockpit area seems to be reinforced, resembling an X-15's. I've attached a pic of the AR-14B inverted for clarity. They'll need good seatbelts for re-entry.

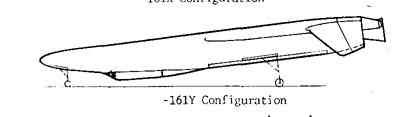

Now if you think that's wierd, check out Post #3 in this thread, in picture Phase-B.jpg the -161Y configuration Shuttle lands upside down. Hope they designed rugged undercarriage in that one. http://www.secretprojects.co.uk/forum/index.php/topic,1928.0.html

Starviking


Attachments

  • AR14B-flipped.gif
    24.7 KB · Views: 371
  • Configuration-161Y.jpg
    4.2 KB · Views: 372

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,253
Reaction score
1,922
Website
www.aerospaceprojectsreview.com
CFE said:
What was Martin's justification for using storable propellants on the Astrorocket?

Same logic as for the storable propellants on the Titan III ICBM: it can sit fully fueled, ready to go, for months at a time, and launch ona moments notice.


Also, did Martin deliberately choose the aerospike-looking nozzle for its altitude-compensating properties?

Yes. Martin studied a wide variety of different propulsion schemes, with aerospikes being just about the least unusual.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Hi,

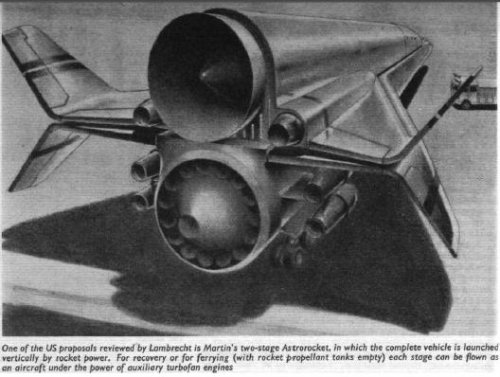

http://www.flightglobal.com/PDFArchive/View/1964/1964%20-%202051.html


Attachments

  • Martin 1.JPG
    Martin 1.JPG
    38 KB · Views: 338

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
153

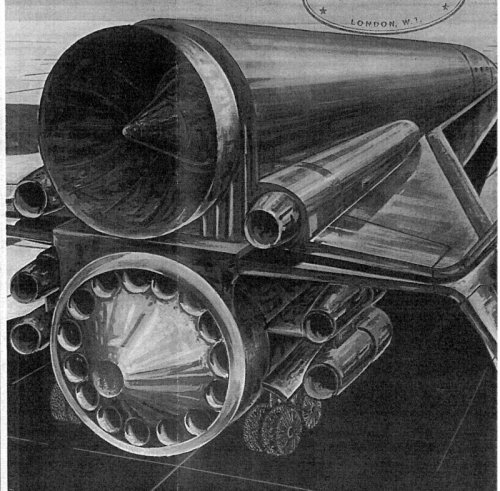

Came across a larger pic on a mag cover - looks like the wheels are made of wire :-\


Attachments

  • scan0008a.jpg
    397.2 KB · Views: 106

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,253
Reaction score
1,922
Website
www.aerospaceprojectsreview.com

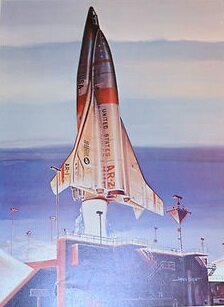

A vintage Martin poster of the Astrorocket, recently on ebay. I didn't see the listing until about one second before I hit the "buy it now" button...



KHambsch

ACCESS: Restricted
Joined
May 11, 2020
Messages
49
Reaction score
59
A vintage Martin poster of the Astrorocket, recently on ebay. I didn't see the listing until about one second before I hit the "buy it now" button...

Did you buy then re-sell it? I think more than one have been sold and purchased. K
