Starchaser Industries is a British company developing sounding and space tourism rockets. Before describing more recent work, thought I'd post details of their original Ansari X-prize entry Thunderbird.

The following vehicle and mission specs come from the attached PDF which is from the original X-prize site:

[quote author=http://space.xprize.org/files/downloads/ansari/starchaser.pdf]
VEHICLE SPECIFICATIONS

  • Name: Starchaser 4 (launch vehicle), Thunderbird (spacecraft/cabin)
  • Length: 27.5 m (90 feet)
  • Diameter: 1.6 m (5.3 feet)
  • GTOW: 20,000 kg (44,000 lbm)
  • Dry Weight: 10,000 kg (22,000 lb m)
  • Crew Environment: Pressurized cabin with commercial IVA suits
  • Payload Capacity: 400 kg
  • No. of Engines: 4 strap-on boosters and 1 engine on 1st stage, 1 engine on 2nd stage
  • Propulsion System: Pressure fed
  • Fuel: Undefined hydrocarbon
  • Oxidizer: Liquid Oxygen
  • Total Thrust: 75 tons
  • Reaction Control System: Cold gas

MISSION SPECIFICATIONS

  • Alt. at Ignition: Earth surface
  • Orientation at Ignition: Vertical
  • Max. Accel. Force on Ascent: 5 G
  • Time and Alt. at 1st Stage Engine Cut-off: 60 sec at 24 km
  • Time and Alt. at 2nd Stage Engine Cut-off: 90 sec at 54 km
  • Max. Speed: 1,500 m/s (3,360 mph)
  • Max. Altitude: > 100 km (62 miles)
  • Time in Weightless Conditions: 4.5 minutes
  • Reentry Method: Ballistic reentry
  • Accel. Forces on Descent: 5 G
  • Landing Method: Steerable parachute
  • Total Duration: 23 minutes
  • Landing Distance from Take-off
  • Location: 0-5 km
  • Time Between Missions: 7 days
[/quote]

Update: some further images at http://www.starchaser.co.uk/index.php?view=gallery_thunderbird (several attached)


Attachments

  • starchaser.pdf
    531.4 KB · Views: 0
  • thunderbird capsule return.jpg
    thunderbird capsule return.jpg
    14.2 KB · Views: 123
  • thunderbird booster return.jpg
    thunderbird booster return.jpg
    43 KB · Views: 122

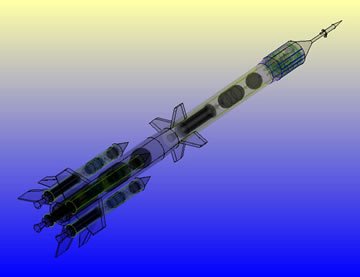

  • thundderbird internal config.jpg
    thundderbird internal config.jpg
    11 KB · Views: 29
  • thunderbird in space.jpg
    thunderbird in space.jpg
    11.3 KB · Views: 259
  • starchaser2.jpg
    41.5 KB · Views: 30

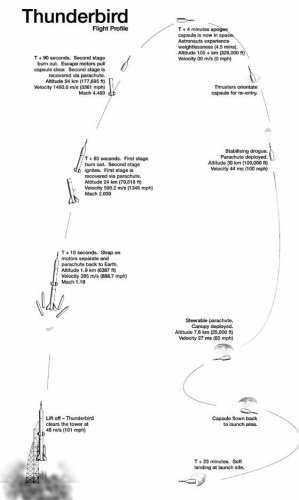

  • thunderbird profile.JPG
    thunderbird profile.JPG
    43.8 KB · Views: 28

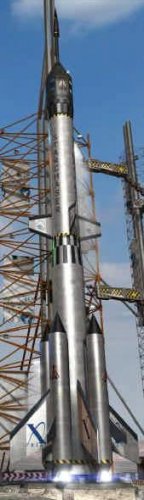

  • thunderbird launch.JPG
    thunderbird launch.JPG
    20.9 KB · Views: 40

FutureSpaceTourist

ACCESS: Top Secret
Joined
Mar 11, 2010
Messages
589
Reaction score
16
Realising that their Thunderbird plans were perhaps over ambitious (and rather more capable than needed for the X-prize), Starchaser moved to a different VTVL vehicle called Thunderstar. This is still their proposed space tourism vehicle.

[quote author=http://www.starchaser.co.uk/index.php?view=thunderstar_more]
Thunderstar - Three Man Capsule

The THUNDERSTAR capsule is being developed to carry a 3-person crew on a sub-orbital flight and return them safely back to Earth. The design of the THUNDERSTAR capsule leverages the experienced gained from the STARCHASER NOVA and NOVA II one-man capsules.

The capsule is designed to interface with the STARCHASER 5 Reusable Launch Vehicle and reach an altitude of between 100 and 120km.

The capsule will also feature a Launch Escape System that will pull the capsule and it's crew to safety in the event of an emergency, either on the pad prior to launch or at any stage during the powered ascent phase.

Starchaser 5 - Re-usable Launch Vehicle

The STARCHASER 5 booster is being developed to propel a 1.5 tonne payload to an altitude in excess of 100km. The booster will incorporate the two propellant tanks, (Liquid Oxygen and Kerosene) with a third high pressure tank which will hold the inert gas used to push (feed) the propellant to the engines.

The STARCHASER 5 booster is designed to be 100% reusable and will be recovered by parachute with the addition on an impact attenuation system.
[/quote]

Here's an animation of a Thunderstar mission:

http://www.youtube.com/watch?v=Bch73jGLm7g

As an example of the development work Starchaser have done, here's a video of a Nova 2 (one-man) capsule drop test from July 2003:

http://www.youtube.com/watch?v=TbHSV59xP1g


Attachments

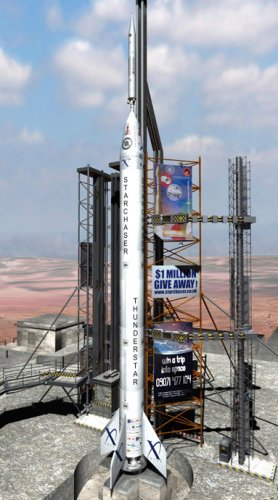

  • thunderstar pad.jpg
    thunderstar pad.jpg
    101.4 KB · Views: 29

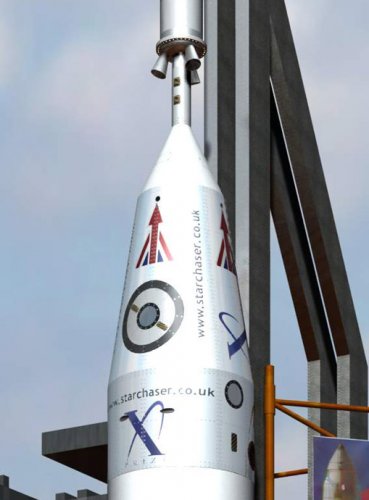

  • thunderstar capsule pad.jpg
    thunderstar capsule pad.jpg
    59.2 KB · Views: 4

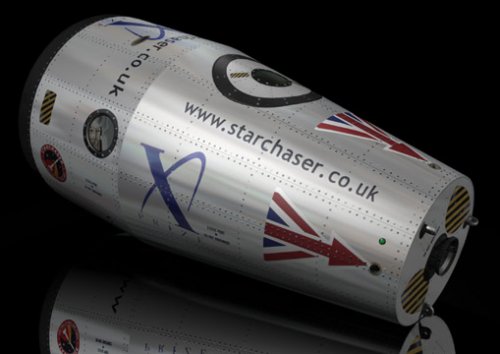

  • thunderstar capsule.jpg
    thunderstar capsule.jpg
    35 KB · Views: 5

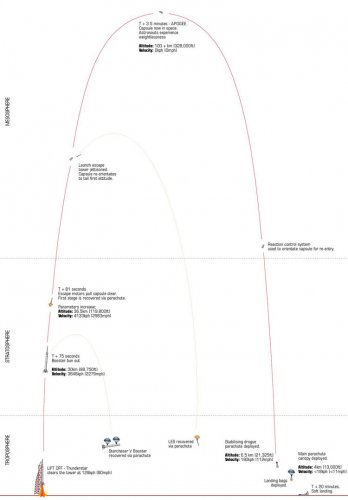

  • thunderstar flight profile.jpg
    thunderstar flight profile.jpg
    57 KB · Views: 6

FutureSpaceTourist

ACCESS: Top Secret
Joined
Mar 11, 2010
Messages
589
Reaction score
16
Longer-term Starchaser envisage a space tourism spaceplane. I've been unable to find any details of this, other than the attached flight profile from their website.


Attachments

  • spaceplane flight profile.jpg
    spaceplane flight profile.jpg
    61.7 KB · Views: 11
