Lockheed CL-945 stowed-rotor aircraft (CARR)

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,203
Reaction score
887

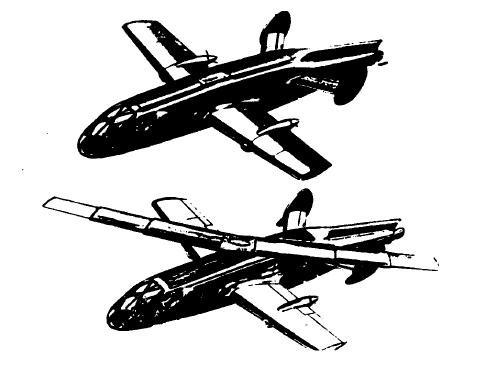

Here are two more pictures of the Lockheed design, shown by pometablava.
It's a stowable rotor design, the pictures are from Flugwelt-1966-I and from
Aviation Week 1966 10-18.

[edited, pictures were causing issues, edited and re-uploaded]


Attachments

  • Lockheed-stowable-rotor.jpg
    66.5 KB · Views: 811
  • Lockheed-stowed-rotor-VTOL.jpg
    43.5 KB · Views: 754

Barrington Bond

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80
From Lockheed Horizons magazine.


Attachments

  • scan0079 (3).jpg
    scan0079 (3).jpg
    103.8 KB · Views: 458
  • scan0078 (2).jpg
    scan0078 (2).jpg
    109.5 KB · Views: 467

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,489
Reaction score
3,354
Hi,

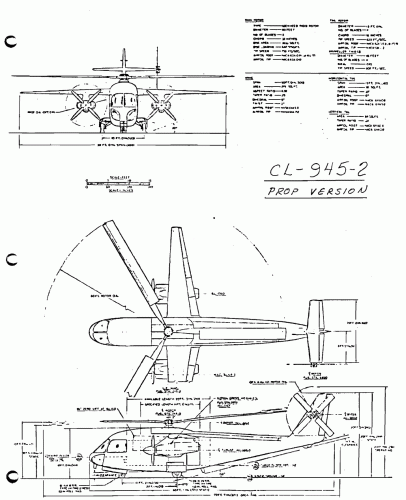

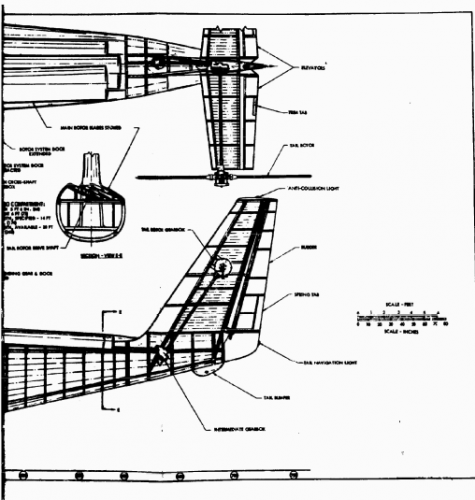

my dear Jemiba sent before those two drawings to unknown Lockheed aircraft,
it was Lockheed CL-945-400,a stowed-rotor aircraft,it had a gross weight of
31,000 1b,wing span 40ft and three blads main rotor.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930008694_1993008694.pdf


Attachments

  • CL-945-400  (1).JPG
    CL-945-400 (1).JPG
    36.4 KB · Views: 446
  • CL-945-400  (2).JPG
    CL-945-400 (2).JPG
    22.5 KB · Views: 133

circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
126

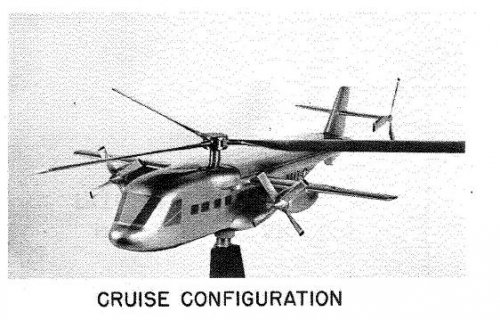

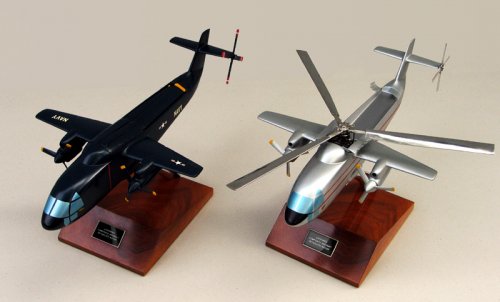

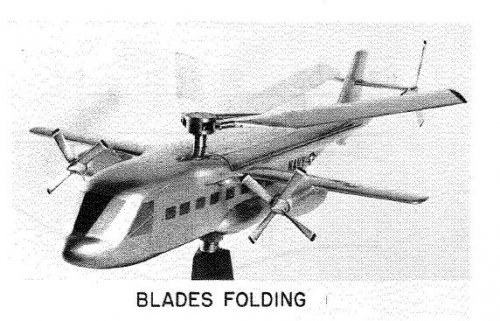

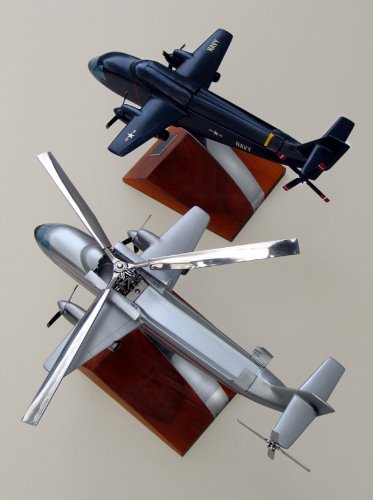

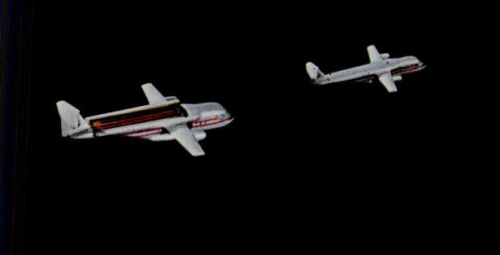

Factory models of the CL-945, in house colors and U.S. Navy.


Attachments

  • Lockheed CARR x2 02 sml.jpg
    Lockheed CARR x2 02 sml.jpg
    215.8 KB · Views: 154
  • Lockheed CARR USN 02 sml.jpg
    Lockheed CARR USN 02 sml.jpg
    176.4 KB · Views: 151
  • Lockheed CARR x2  01 sml.jpg
    Lockheed CARR x2 01 sml.jpg
    122.5 KB · Views: 158

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,247
Reaction score
3,127
I've said this before but - those are some really great pics of some cool models. Thanks for sharing.


cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,364
Reaction score
94
Website
cluttonfred.info
Great posts, thanks. Does anyone know if any stowed rotor aircraft has ever actually flown? It seems like it would offer performance comparable to or better than tilt-rotors like the V-22 and with less complexity, but actually stopping and stowing a full-size rotor while maintaining control, and reversing the process, seems like a pretty daunting engineering task.


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,369
Reaction score
512
Closest thing today might be some of the stowed tilt rotor work mentioned as having been seen in the Boeing pavilion at Paris Airshow.


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,369
Reaction score
512
Agreed, but this does not look a lot less complicated with in-flight folding rotors, rotor transmissions that appear to change positions (up and down) with associated gearing. Then there are the interesting aerodynamics for stowing and un-stowing of the rotors. Then there is the fact that it will not autorotate, which appears to be a prerequsite for any rotorcraft to be viable. ::)


cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,364
Reaction score
94
Website
cluttonfred.info
Hmm, all of which makes me wonder if the autogyro doesn't deserve a second look. With the exception of VTOL concepts that look to supplant attack or combat rescue helicopters and therefore require extended hover capability, most VTOL applications that are trying to get more speed really only need the VTOL, not hover capability. An autogyro, perhaps using a cold jet tapped from a turbofan for jump take-off, starts to look pretty attractive for naval use and super-STOL transport. If absolutely need the speed boost of a stowable rotor, then an unpowered rotor ought to be a lot easier to handle, maybe a single-blade rotor like the Sikorsky XV-2 concept (though the latter was powered).


Tophe

CLEARANCE: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
37
Website
cmeunier.chez-alice.fr
In the same link/file, I found this funny other project: when the rotor is fixed, this looks like a classical airplane but with an asymmetric anti-torque useless device... This is actually the missing link between helicopters and airplanes ;D


Attachments

  • nasaVtol.JPG
    93.6 KB · Views: 82

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,852
Reaction score
1,058
Website
www.aerospaceprojectsreview.com
Tophe said:
In the same link/file, I found this funny other project: when the rotor is fixed, this looks like a classical airplane but with an asymmetric anti-torque useless device... This is actually the missing link between helicopters and airplanes ;D

That's the Lockheed CL-945: http://www.secretprojects.co.uk/forum/index.php/topic,7069.0.html


Tophe

CLEARANCE: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
37
Website
cmeunier.chez-alice.fr
Orionblamblam said:

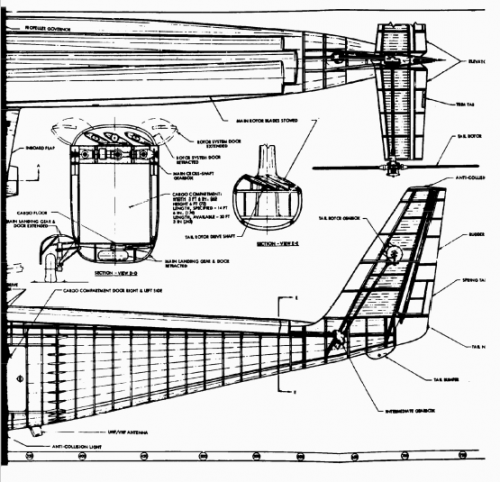

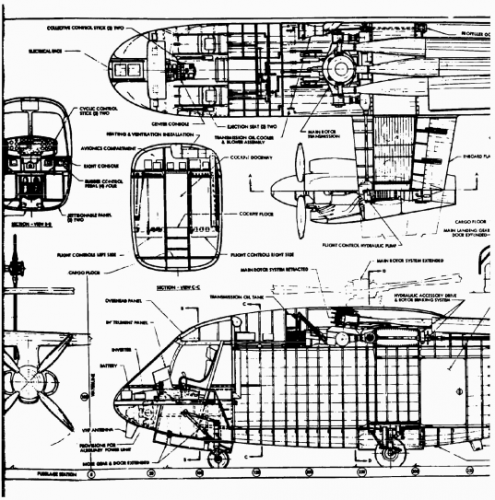

I just posted a series of drawings of the CL-945 over on my blog: http://up-ship.com/blog/
I do not find it both at http://up-ship.com/blog/
and at http://up-ship.com/blog/?cat=22
Sorry…
Most of all, could you confirm this is a 1992 project like the NASA report, or very older?


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,852
Reaction score
1,058
Website
www.aerospaceprojectsreview.com
Tophe said:
Orionblamblam said:
I just posted a series of drawings of the CL-945 over on my blog: http://up-ship.com/blog/
I do not find it both at http://up-ship.com/blog/
and at http://up-ship.com/blog/?cat=22

Right here:
http://up-ship.com/blog/?p=3022
Most of all, could you confirm this is a 1992 project like the NASA report, or very older?

1965.


Tophe

CLEARANCE: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
37
Website
cmeunier.chez-alice.fr
Thanks a lot!
Uh... may I include a link towards it (from a thumbnail version of the NASA drawing) on my Asymmetric-aircraft page? or is this too far from your APR pages? Please tell me how to help and thank, dear.


Caravellarella

CLEARANCE: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
196
Dear Boys and Girls, here is a piece with a caption in French showing Lockheed's convertible helicopter "project" with a stoppable rotor which folds up and is stowed in a compartment behind the rotorhead......

The piece comes from the 1st December 1965 issue of Aviation Magazine International......

Terry (Caravellarella)


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
This is one of the CL-945 CARR retractoplane designs for a helicopter with folding rotor blades. I seem to recall there is a topic elsewhere on the forum about this one.


Caravellarella

CLEARANCE: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
196
Stargazer2006 said:
This is one of the CL-945 CARR retractoplane designs for a helicopter with folding rotor blades. I seem to recall there is a topic elsewhere on the forum about this one.

I looked for it Stéphane but I couldn't find it because the search engine hates me :'(

Here is an article that shows Lockheed must have actually tried to test this concept in a wind-tunnel......

The article comes from the 15th November 1966 issue of Aviation Magazine International......

Best, Terry (Caravellarella)


circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
126
Stargazer2006 said:
This is one of the CL-945 CARR retractoplane designs for a helicopter with folding rotor blades. I seem to recall there is a topic elsewhere on the forum about this one.

http://www.secretprojects.co.uk/forum/index.php/topic,7069.0


Caravellarella

CLEARANCE: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
196
Caravellarella said:
Stargazer2006 said:
This is one of the CL-945 CARR retractoplane designs for a helicopter with folding rotor blades. I seem to recall there is a topic elsewhere on the forum about this one.

I looked for it Stéphane but I couldn't find it because the search engine hates me :'(

Here is an article that shows Lockheed must have actually tried to test this concept in a wind-tunnel......

The article comes from the 15th November 1966 issue of Aviation Magazine International......

Best, Terry (Caravellarella)

Gosh, I must be really naughty then. You see? I looked for "Lockheed Helicopter", "stoppable rotor" & "stowable rotor" in the search engine. This is the only topic I could find that had images of the same type of "project"......

I've never heard of "CL-945", "CARR" or "Retractoplane" before; maybe I should only be limiting myself to types and projects that I recognise or know anything about......


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
Caravellarella said:
maybe I should only be limiting myself to types and projects that I recognise or know anything about......

Please don't!! Better post something twice than leave a project unseen! Moderators are here to straighten things out, make the right connections and clean up the mess, if any... ;)

Oh... and by the way, the search engine seems to hate me too... ;D


circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
126
Caravellarella said:
I've never heard of "CL-945", "CARR" or "Retractoplane" before...

CARR stands for Composite Aircraft Retracted Rotor, which was Lockheed's official program title for the CL-945 and some of its developments. "Retractoplane" is likely to be nothing more than a magazine caption.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
circle-5 said:
"Retractoplane" is likely to be nothing more than a magazine caption.

I don't think this term was made up by the journalist. It was used all over at the time for similar projects, like those from Piasecki or Sikorsky. I could be wrong, but it seems that Piasecki may have first coined the word.


Attachments

  • PH-51 (probably).JPG
    PH-51 (probably).JPG
    24.9 KB · Views: 377
  • PH-55.JPG
    41.3 KB · Views: 373

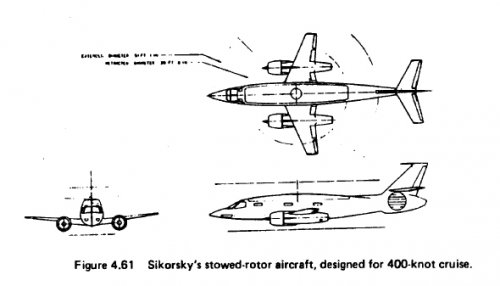

  • Sikorsky stowed-rotor aircraft.jpg
    Sikorsky stowed-rotor aircraft.jpg
    44.6 KB · Views: 133

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
Interesting, thanks. However it seems the captions for the helicopter and cruise configurations were inverted...


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
A beautiful painting of a jet-propelled CARR proposal:


Attachments

  • CARR type small.jpg
    CARR type small.jpg
    465.9 KB · Views: 133

yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,369
Reaction score
512
I was thinking the other day how viable these concepts could be today. With digital fly by wire/light and computing power the controlability of the aircraft should not be overly difficult. With composite materials weight (and thus cost) can be reduced as well. Mechanical reliability would likely be the biggest challenge, but thanks to better understanding of aero and using wing mounted thrust as counter-tourque, the dynamic components of a design like this could be ... simplified (sorta).


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com
Original Lockheed stowed-rotor helicopter concept painting (gouache) found on eBay.

Seller's description:

We are offering a real cool 1950's [sic] Lockheed concept airplane painting by C.G. Hodgson. Chuck Hodgson worked as a concept aviation painter in the Lockheed Art Department for 30 years. The painting is of 3 concept jet aircraft with retractable rotor blades. Painting is in very good condition in Gouache with some small corner dings and a small water spot on edge of matte. Measures approx. 23 1/2" x 18 1/2", actual art 21" x 16 1/4". Signed on lower right.

Source:
http://www.ebay.com/itm/1950s-Lockheed-Concept-Jet-Rotor-Airplane-Painting-C-G-Hodgson-USAF-Original-/121486801363?pt=Art_Paintings&hash=item1c492d79d3


Attachments

  • 798203670_o.jpg
    109 KB · Views: 115
  • 798203668_o.jpg
    138.8 KB · Views: 130
  • 798203667_o.jpg
    124.8 KB · Views: 125
  • 798203666_o.jpg
    141 KB · Views: 127
  • 798203665_o.jpg
    141.1 KB · Views: 294

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
Do I get this right? Did this beauty go for a mere $165? Seems like a very good deal to me!


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,852
Reaction score
1,058
Website
www.aerospaceprojectsreview.com
Less than that, in fact. It had a "make an offer" option that, much to my shock, was accepted.

I'll try to make a series of good photos of it when it comes in. Can't feed it through a large format scanner, and I'd hate to try to sandwich it into a standard flatbed. I just hope it survives transit...


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,852
Reaction score
1,058
Website
www.aerospaceprojectsreview.com
It finally arrived to day. Much to my shock, it's in really quite good shape... the USPS forgot to fold it in half and run over it with a bulldozer. It's one of the few *actual* aerospace concept art paintings I've seen up close with my own eyes as opposed to reproductions... and it's astonishing just how bright and clear it is. I'll take this sort of art over the CG stuff any day!

Getting a digital reproduction of it that really captures it will probably be something of a challenge.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,237
Reaction score
430
Orionblamblam said:
I'll take this sort of art over the CG stuff any day!

Congratulations on this great acquisition! I can only agree that such artwork conveys a dramatic and dynamic feeling that CG too rarely captures.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,489
Reaction score
3,354

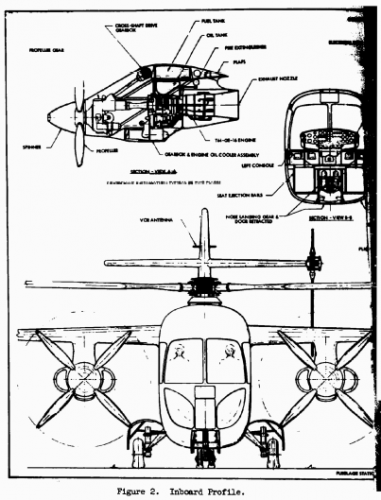

Who can collect the pieces;

https://apps.dtic.mil/dtic/tr/fulltext/u2/684334.pdf


Attachments

  • 1-1.png
    89.5 KB · Views: 68
  • 1-2.png
    168.2 KB · Views: 63
  • 1-3.png
    129.3 KB · Views: 56
  • 1-4.png
    85.9 KB · Views: 50
