Lockheed California RAPT two stage to orbit system of 1966

vulture

ACCESS: Confidential
Joined
Sep 25, 2009
Messages
96
Reaction score
7
In 1966, Lockheed proposed a winged two stage to orbit system (manned) to the USAF. It was called RAPT = Reusable Aerospace Passenger Transport. The first stage was to use both air breathing and rocket propulsion. The second - orbital - stage, was a dart-like vehicle with folding wings. This vehicle was featured in an issue of Aviation Week & Space Technology in 1966. It was represented by a wooden mockup of the vehicle as a "lifting re-entry vehicle" And it is shown here being held off the ground by cables. This wooden mockup was 30-ft long and its folding wings could be articulated.


Attachments

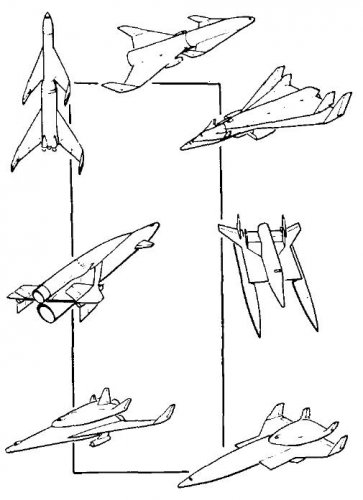

  • lockheed 1966 CL PC026-083.gif
    lockheed 1966 CL PC026-083.gif
    67.5 KB · Views: 216
  • lockheed 1966 lifting reentry vehicle.jpg
    lockheed 1966 lifting reentry vehicle.jpg
    31.5 KB · Views: 595

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
28
Website
www.io.com
...Excellent find, sir! I used to have this issue back in my younger days, and had actually forgotten about RAPT.


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
20
Are the jets in the nose?


shockonlip

ACCESS: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
14
The second pic in vulture's post was pictured in a Koku-Fan
special publication on the USAF ATF program. I have a copy
of it somewhere at home.

Are we sure that is RAPT?


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,173
Reaction score
122
Catch 22, that is an excellent book. Still have the copy my high school threw out back in the day. Such a backwards attitude about space.

Glad I saved the book.


Desert Dawn

ACCESS: Confidential
Joined
Mar 5, 2009
Messages
194
Reaction score
2
Website
www.picturetrail.com

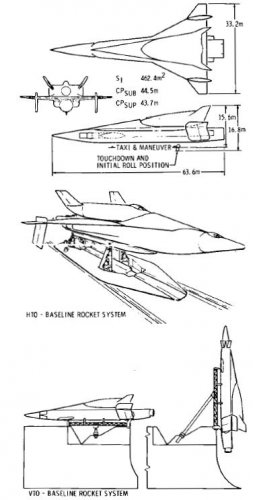

Had the first drawing plus a complete article in an old issue of Lockheed Horizons since 1998 or 99. The 2nd pic i got also about 10 years ago through the guy who used to leak like there is no tomorrow stuff to send people in all kinds of wrong dirrections on the DLR website.. He sent it to me via email when i was asking him what he had on FDL-5. I had a good laugh.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,274
Reaction score
1,788
shockonlip said:
The second pic in vulture's post was pictured in a Koku-Fan
special publication on the USAF ATF program.
you wasn't only person who was struggling with this mistery that solved now:)
