Lockheed CL-739 and related projects

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
934
Reaction score
134
I don't think these are "true" project designs just comparative studies.

Regards,
Barry


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,534
Reaction score
313

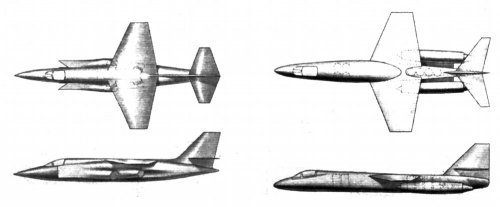

I think the wing from that in Picture number 1 is based on the CL-1200 Lancer


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
168
Website
www.hitechweb.genezis.eu
Yes, I wanted to write the same. Also the horizontal tail surface resembles F-104, but since this is only a comparative study, it is logical that they used for better estimations parts from existing/proposed planes.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
176
Maveric said:
circle-5 said:
3-View drawing of the Lockheed CL-757, which followed the Lockheed CL-739-1 Phase I VTO Test Bed.

Hi circle-5,

do you have also a drawing of the CL-739?

Thanks Maveric

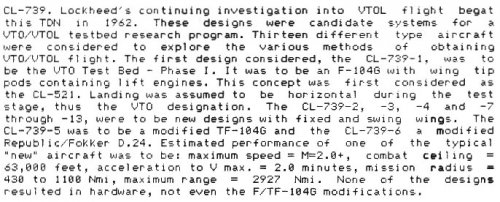

2-View drawing (cleaned as much as possible) showing one (of several) Lockheed CL-739 designs, along with CL-739 project summary:


Attachments

  • Lockheed CL-739 Dwg.jpg
    Lockheed CL-739 Dwg.jpg
    187.7 KB · Views: 203
  • Lockheed CL-739 Txt.jpg
    Lockheed CL-739 Txt.jpg
    92.5 KB · Views: 173

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
600
What a treat today! CL-757 and now CL-739! I strongly suspect circle-5 to own a complete index of all CL- designs. He always seems to be right on... What do you say, c-5? ;D


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
176
"I know nothing, NOTHING!"


Attachments

  • Sgt. Schultz.jpg
    Sgt. Schultz.jpg
    6.8 KB · Views: 576

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
600
circle-5 said:
"I know nothing, NOTHING!"

index.php

.


Attachments

  • vays.jpg
    21.7 KB · Views: 111

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,799
Reaction score
4,522

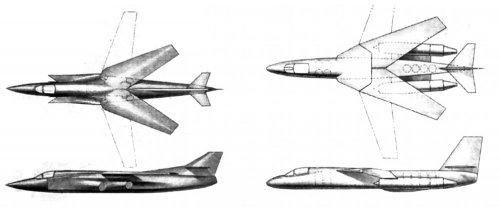

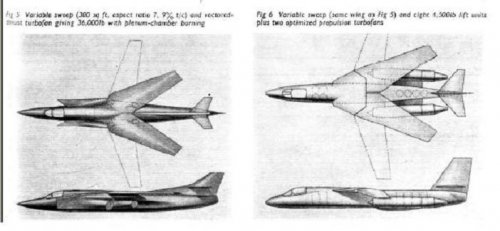

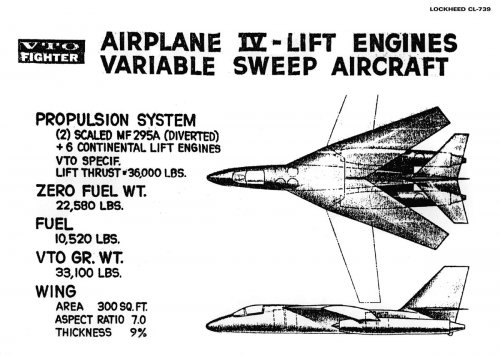

I think its now reasonably certain that the projects Hesham posted are CL-739 variations. The 4th image is close to the design posted by circle-5, though the engine exhausts are further forward. The style of artwork is very similar to the Lockheed artwork, suggesting to me these are Lockheed original artwork.

{better copies attached}


Attachments

  • CL-739-Maybe-1.jpg
    39.8 KB · Views: 75
  • CL-739-Maybe-2.jpg
    40.5 KB · Views: 74

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,799
Reaction score
4,522
Original source of the above was:

Drell, H. and Danforth, E. C. B., “A Comparative Study of Propulsion Systems for Two VTO Fighters” IAS 31st Annual Meeting, New York, Jan 1963, Paper 63-28


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
362
circle-5 said:
Maveric said:
circle-5 said:
3-View drawing of the Lockheed CL-757, which followed the Lockheed CL-739-1 Phase I VTO Test Bed.

Hi circle-5,

do you have also a drawing of the CL-739?

Thanks Maveric

2-View drawing (cleaned as much as possible) showing one (of several) Lockheed CL-739 designs, along with CL-739 project summary:


Thanks, circle-5!
