Hi,

is there any unbuilt projects for Canadair CL-41 ?.

http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200862.html


Attachments

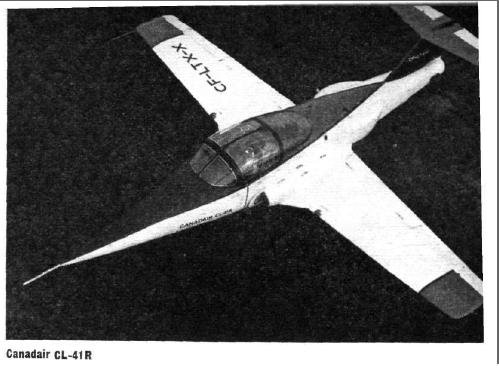

  • CL-41R.JPG
    30.9 KB · Views: 599
Re: Canadair CL-41R project

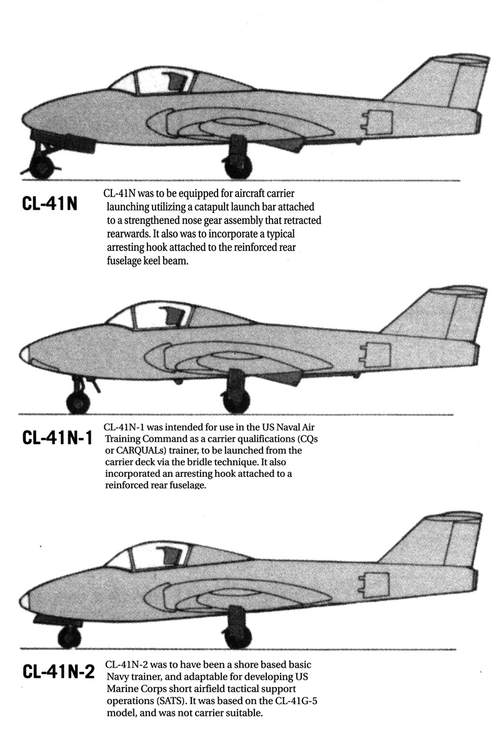

According to Pickler/Milberry, there were 28 unbuilt CL-41 variants. Unfortunately no details are listed. However, there are a few hints in designations and powerplants.

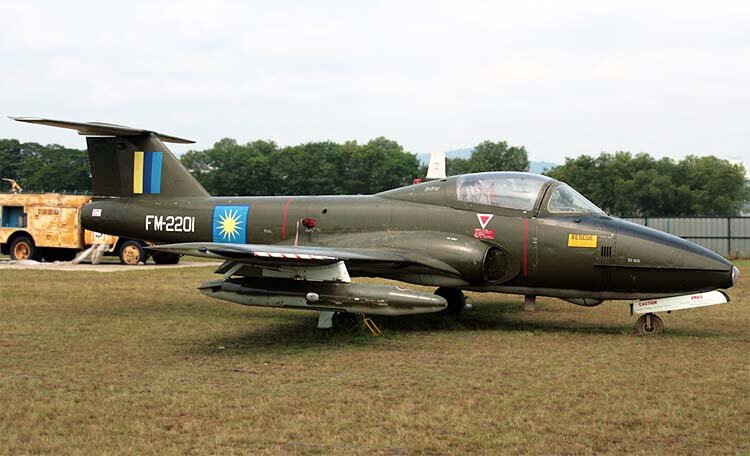

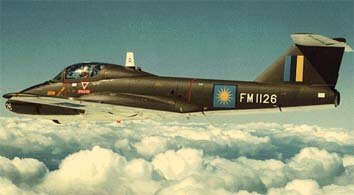

Since the Tebuan was a CL-41G-5, obviously at least four other CL-41Gs were planned. Flight reports that a CL-41G model was Canadair's specific proposal for Joint RAAF-RNZAAF trainer. Engine options give futher hints to planned variants.

Initial CL-41 planning was for the AS Viper engine (presumably the ASV.10 since a Viper 5 wouldn't have enough thrust). Among engine options, Flight says that "Production versions, the company state, can be supplied with either the Fairchild J83, General Electric J85, Pratt and Whitney JT-12 or Armstrong Siddeley Viper, and a version of the Rolls-Royce RB.108 has also been proposed."

http://www.flightglobal.com/pdfarchive/view/1958/1958-1-%20-%200262.html

Flight even stated erroneously that the two CL-41 prototypes would fly with Fairchild J83s (speculating that Orenda would build the J83s if that engine was chosen by the RCAF).

Flight mentions other engine options: "Production versions, the company state, can be supplied with either the Fairchild J83, General Electric J85, Pratt and Whitney JT-12 or Armstrong Siddeley Viper, and a version of the Rolls-Royce RB.108 has also been proposed."

http://www.flightglobal.com/pdfarchive/view/1958/1958-1-%20-%200262.html

Hi,

http://documents.techno-science.ca/documents/CASM-Aircrafthistories-CanadairCL-84VSTOLhistory.pdf


Attachments

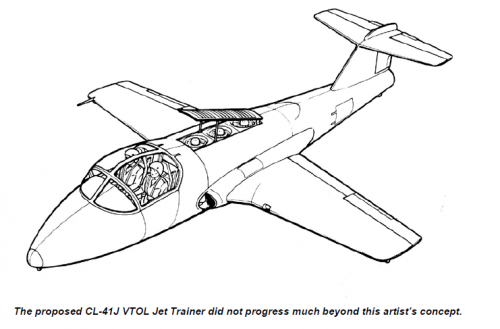

  • CL-41J VTOL.png
    CL-41J VTOL.png
    76 KB · Views: 417
CL-41 Business Executive Transport.

index.php


More about it here:
https://www.secretprojects.co.uk/forum/index.php/topic,30484.msg331780.html#msg331780
