Hi,

the FMA or DINFIA I.A.52 was twin turboprop engined utility
transport aircraft project,it had a high wing and powered by
two 564 hp Turbomeca Astazou 2s.
http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%202114.html


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,105
Reaction score
548

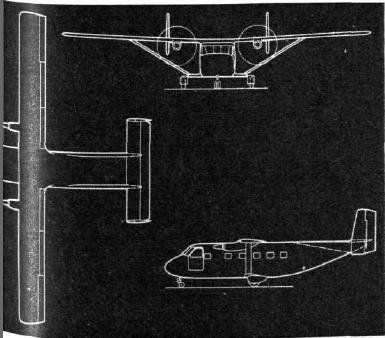

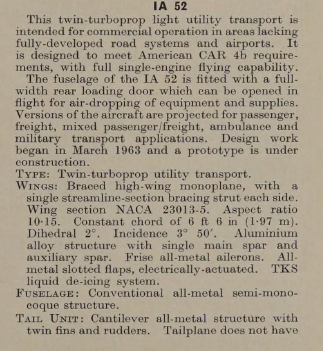

Just a better 3-view from Janes 1964-65


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,312
Reaction score
2,194
Hi,

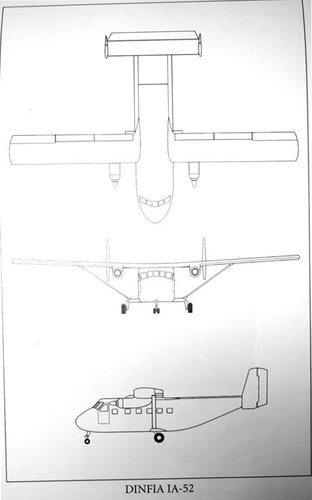

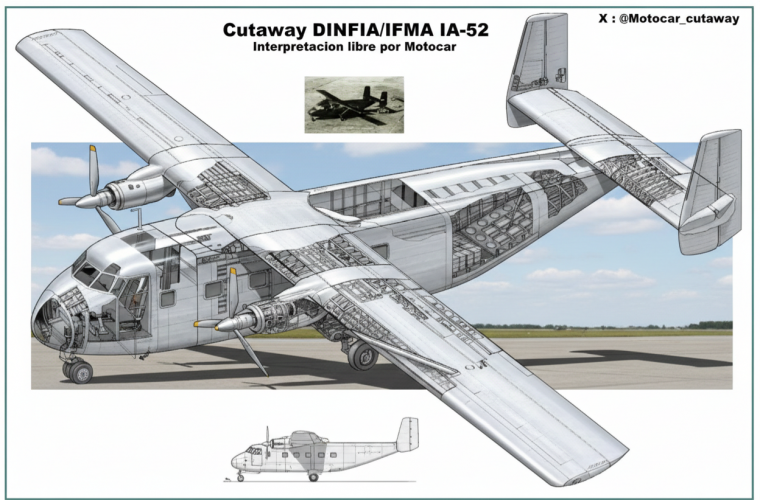

here is anther drawing to I.A.52 with more details.


Attachments

Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
531
Reaction score
46
A few more details on this type:

Built in Cordoba, the prototype IA-52 was due to be completed in 1965. This transport could carry 18 passengers or 1,900 kg of freight.

Engines: 2x Turbomeca Astazou II Turboprop (564 hp)
Wingspan: 20.00 m
Length: 13.64 m
Total Weight: 5200 kg
Payload Freight: 1900 kg
Maximum Speed: 320 km/h
Cruise Speed: 305 km/h
Take-off Distance: 540 m to clear height of 15 m
Landing Distance: 510 m
Maximum Range: 1360 km
Passengers: 18
Cabin Dimensions: Length: 6.00 m x Width: 1.92 m x Height: 1.80 m

From the French Aviation Magazine dated 1 December 1963.

[EDIT]
Apologies for the duplication.
Sorry, I did not realize that there were two pages on this subject https://www.secretprojects.co.uk/threads/dinfia-i-a-52.1470 perhaps they should be merged?
