DINFIA I.A.52

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,994
Reaction score
374
Hi all,

on this topic www.secretprojects.co.uk/forum/index.php/topic,1406.15.html member Thorvic upload a pic with an article about a new project, the DINFIA I.A.52. How can help with drawings and technical data?

Maveric


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
77
Maveric said:
Hi all,

on this topic www.secretprojects.co.uk/forum/index.php/topic,1406.15.html member Thorvic upload a pic with an article about a new project, the DINFIA I.A.52. How can help with drawings and technical data?

Maveric

Oh, DINFIA is the same thing as FMA, now owned by Lockheed-Martin, located in Cordoba, Argentina? Most enthusiasts are more familiar with the name FMA than DINFIA.

As I recollect, the I.A. 52 dates from 1964 or so, and was a twin engined transport. Basically it was a small, unpressurized twin Astazou powered design that had a rear loading ramp and looked like a Shorts Skyvan.

Incidentally, why is the topic locked?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,254

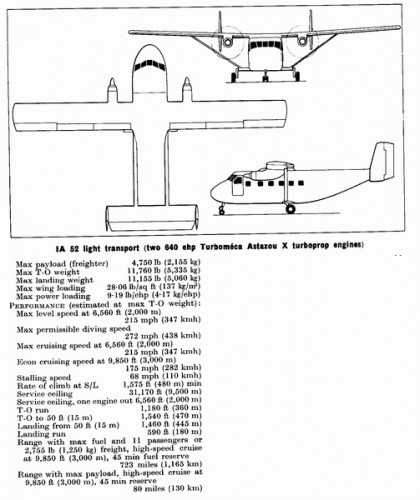

Here's something about the I.A.52 from Janes 1964-65 :


Attachments

  • IA-52.GIF
    78.3 KB · Views: 229

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,033
Reaction score
220
Re: FMA IA.52 transport project......

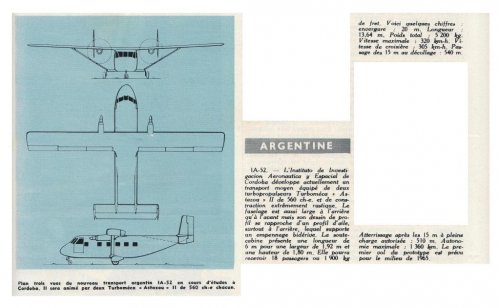

Dear Boys and Girls, here is a short article in French about the Argentinian FMA. IA.52 utility transport aircraft which remained a "project"......

The article comes from the 1st December 1963 issue of Aviation Magazine......

Terry (Caravellarella)


Attachments

  • FMA IA.52 project - Aviation Magazine - Numéro 384 - 1 Décembre 1963.......jpg
    FMA IA.52 project - Aviation Magazine - Numéro 384 - 1 Décembre 1963.......jpg
    87.3 KB · Views: 75

theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
16

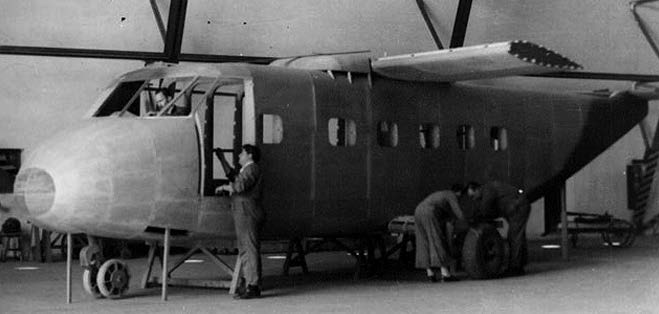

The IA.52 was a project for civil and military transport. The idea was similar to the contemporary Short Skyvan. The project advanced until the end of wind tunnel test and model in 1:1 scale was build. The project was canceled when the first prototype was began to be build.
The source of information is "Historia de la Industria Aeronautica Argentina" by Francisco Halbriter, November of 2004 the translation is: History of Argentinian Aeronautic Industry".

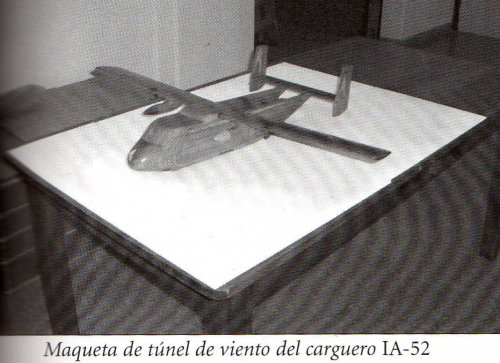

The book is very thick so is very difficult to scan and the picture is not a good one but here is the wind tunnel model of IA-52:


Attachments

  • ia52.jpg
    290.9 KB · Views: 69
