Report on Oxcart program; 1954 - 1974.


http://www.foia.cia.gov/sites/default/files/DOC_0000190094.pdf


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,489
Reaction score
3,354
Hi,

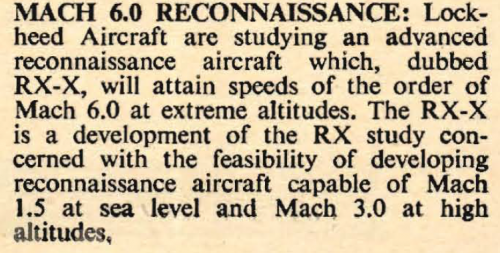

does anyone hear about a advanced recce aircraft of early 1960s,called RX-X,for
6 Mach design,and did it relate to Lockheed SR-71 ?.


FR 3/1964


Attachments

  • RX-X.png
    642.8 KB · Views: 95

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,489
Reaction score
3,354

Attachments

  • 1.jpg
    29.4 KB · Views: 130
  • 2.JPG
    20 KB · Views: 120
  • 3.jpg
    26.8 KB · Views: 99
  • 4.JPG
    19.5 KB · Views: 129

bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,145
Reaction score
152
https://www.youtube.com/watch?v=ptPRi7R3Bfw

https://www.youtube.com/watch?v=NA-IlxODOPk


FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,514
Reaction score
303
So what was faster in terms of overall speed? A-12 or SR-71A? I have heard many stories over the years that the SR-71A was faster than the A-12, could someone clear this up for me. :-\


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,327
Reaction score
1,358
FighterJock said:
So what was faster in terms of overall speed? A-12 or SR-71A? I have heard many stories over the years that the SR-71A was faster than the A-12, could someone clear this up for me. :-\

I'd heard it was the other way because the A-12 was significantly lighter. Could fly higher too.


FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,514
Reaction score
303
sferrin said:
FighterJock said:
So what was faster in terms of overall speed? A-12 or SR-71A? I have heard many stories over the years that the SR-71A was faster than the A-12, could someone clear this up for me. :-\

I'd heard it was the other way because the A-12 was significantly lighter. Could fly higher too.

Thanks sferrin.


Johnbr

CLEARANCE: Top Secret
Joined
May 6, 2007
Messages
749
Reaction score
151
B)


Attachments

  • Sr-71+d21.jpg
    418.4 KB · Views: 1,134

circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
126
Interesting how the background mountains and landscape features of NW Groom Lake were carefully airbrushed away, to make the location unrecognizable. Our airbrush artists were much better than theirs.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,327
Reaction score
1,358

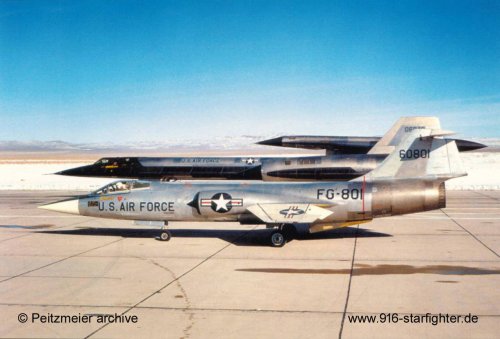

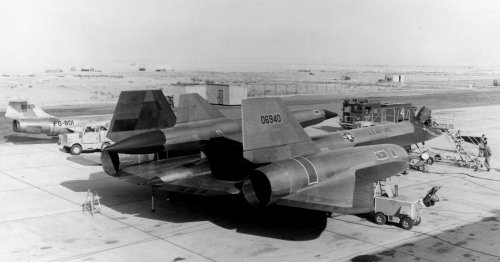

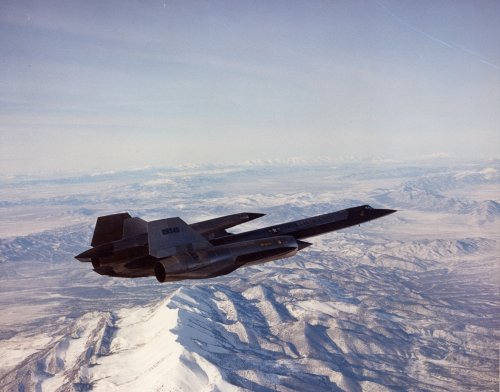

More.


Attachments

  • 1488b358feefeb9fd2108448f235f2f6.jpg
    48 KB · Views: 887
  • TMOF_Lockheed-M-21-Blackbird-1_P2.jpg
    639.1 KB · Views: 952
  • 2010_11_03_Spotlight_D21_1267828237_1191.jpg
    118.6 KB · Views: 1,004

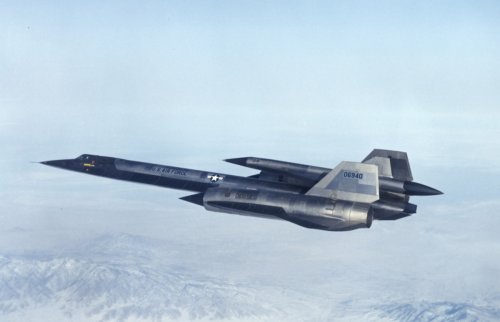

  • USM-21.jpg
    151.7 KB · Views: 1,044

JimK

CLEARANCE: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8
FighterJock said:
So what was faster in terms of overall speed? A-12 or SR-71A? I have heard many stories over the years that the SR-71A was faster than the A-12, could someone clear this up for me. :-\

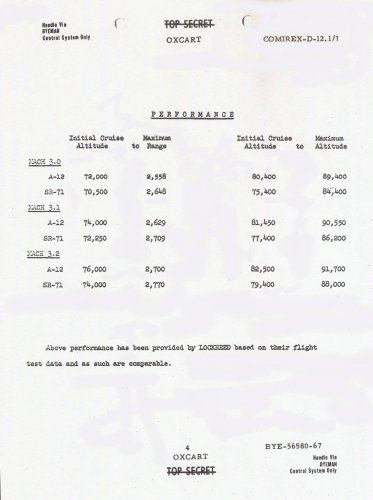

From COMIREX-D-12.1/1 (Approved for release Date: Aug 2007)

I would interpret the equality of Mach numbers listed as a propulsion system limitation.


Attachments

  • A-12 - SR-71 Perf Comparison.jpg
    A-12 - SR-71 Perf Comparison.jpg
    1.6 MB · Views: 254

FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,514
Reaction score
303
JimK said:
FighterJock said:
So what was faster in terms of overall speed? A-12 or SR-71A? I have heard many stories over the years that the SR-71A was faster than the A-12, could someone clear this up for me. :-\

From COMIREX-D-12.1/1 (Approved for release Date: Aug 2007)

I would interpret the equality of Mach numbers listed as a propulsion system limitation.

Thanks for that JimK, good information that has gone on to help me with my initial problem. B)


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,025
Reaction score
1,583
Despite my best efforts I couldn't find whether this has been posted before on this forum.

In 1973 the Shah of Iran got interested in all those A-12 Oxcart stored at Palmdale since 1968 (and the program was not declassified until 1982 !)
http://www.roadrunnersinternationale.com/archives/a-11_iran.html


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,162
Reaction score
1,124
Archibald said:
Despite my best efforts I couldn't find whether this has been posted before on this forum.

In 1973 the Shah of Iran got interested in all those A-12 Oxcart stored at Palmdale since 1968 (and the program was not declassified until 1982 !)
http://www.roadrunnersinternationale.com/archives/a-11_iran.html

It's not clear from the letter whether Iran had been made aware of the idea. They ask permission to submit a "specific proposal" to Iran; it's possible that Lockheed as doing the groundwork to see if the offer was even possible before approaching Iran.

As far as declassification, President Johnson had "outed" the YF-12 in early 1964 but called it the "A-11." He also announced the SR-71 later that year. The "fact of" the A-11/A-12 program was probably known by this point, though not who had owned them or where they had flown.

From a technical perspective, what's interesting to me is the suggestion of a strike capability against either land or sea targets with "currently available" armament. Clearly this meant conventional weapons, but I don't think anyone has seen a description of non-nuclear strike capabilities for this family using conventional weapons (there is a passing reference in this thread to anti-ship with tungsten kinetic energy penetrators, but that seems unlikely to qualify as "currently available.") Any ideas? I really doubt you could get useful effects with one or two iron bombs from a Mach 3, and laser guidance seems unlikely, since it would have required the "F-12" to slow down and loiter. Possibly a conventional version of the AGM-76 Falcon?


_Del_

I really should change my personal text
Joined
Jan 4, 2012
Messages
526
Reaction score
183
It cites Bob Singel and Dr. John L. McLucas, so the proposal had some juice. This wasn't a back of the napkin, what if. Also mentions a loose timeline, which suggests that some sort of unofficial discusion between principals in Iran and the US had taken place.

The armament bit is very, very interesting.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,327
Reaction score
1,358
TomS said:
Archibald said:
Despite my best efforts I couldn't find whether this has been posted before on this forum.

In 1973 the Shah of Iran got interested in all those A-12 Oxcart stored at Palmdale since 1968 (and the program was not declassified until 1982 !)
http://www.roadrunnersinternationale.com/archives/a-11_iran.html

It's not clear from the letter whether Iran had been made aware of the idea. They ask permission to submit a "specific proposal" to Iran; it's possible that Lockheed as doing the groundwork to see if the offer was even possible before approaching Iran.

As far as declassification, President Johnson had "outed" the YF-12 in early 1964 but called it the "A-11." He also announced the SR-71 later that year. The "fact of" the A-11/A-12 program was probably known by this point, though not who had owned them or where they had flown.

From a technical perspective, what's interesting to me is the suggestion of a strike capability against either land or sea targets with "currently available" armament. Clearly this meant conventional weapons, but I don't think anyone has seen a description of non-nuclear strike capabilities for this family using conventional weapons (there is a passing reference in this thread to anti-ship with tungsten kinetic energy penetrators, but that seems unlikely to qualify as "currently available.") Any ideas? I really doubt you could get useful effects with one or two iron bombs from a Mach 3, and laser guidance seems unlikely, since it would have required the "F-12" to slow down and loiter. Possibly a conventional version of the AGM-76 Falcon?

SRAM was around, and there are drawings around of a Blackbird carrying four of them, along with possible performance parameters.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,162
Reaction score
1,124
sferrin said:
SRAM was around, and there are drawings around of a Blackbird carrying four of them, along with possible performance parameters.

But there was no conventional version of SRAM and its inertial guidance wasn't really suitable for conventional strike, especially against maritime targets.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
Hi!
AF-12, FB-12(?) and B-12 drawings.

http://www.f-16.net/forum/viewtopic.php?f=48&t=9571&start=60

AF-12 : long-range interceptor fighter type. later renamed to YF-12A.
B-12 : A-12 bomber type. Rejected.
RB-12 : A-12 reconnaissance bomber type. Rejected.
R-12 : A-12 reconnaissance type. later renamed to SR-71A.
RS-12 : A-12 reconnaissance strike type. Rejected.

B-12(B-71)
http://www.cavok.com.br/blog/a-de-ataque-lockheed-a-12-oxcart-o-pai-do-sr-71-blackbird-parte-6/
RB-12
http://www.hitechweb.genezis.eu/blackbird3.htm


Attachments

  • RB-12 WEAPON.jpg
    RB-12 WEAPON.jpg
    13.5 KB · Views: 188
  • RB-12.jpg
    5.9 KB · Views: 183
  • B-12-2.jpg
    93.7 KB · Views: 212
  • FB-12-4.jpg
    107.1 KB · Views: 204

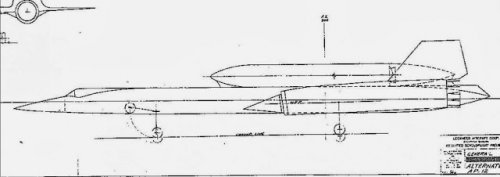

  • AF-12.jpg
    105.8 KB · Views: 192

FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,514
Reaction score
303
To this day I am surprised that they never fitted the YF-12 with four air-air missiles, anyone know why this was? :-\


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,695
Reaction score
463
http://www.designation-systems.net/dusrm/m-47.html
In 1960 Lockheed began developing what would become the YF-12A interceptor derivative of the CIA's A-12 reconnaissance aircraft. As the F-108 had been cancelled, Hughes joined with Lockheed and the weapon system which had once belonged to the LRI-X found a new home in a Lockheed Blackbird. The YF-12A featured four weapon bays, but the forward bay on the starboard side was used for excess electronics equipment associated with the fire control system.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
I can't understand the difference between B-12, RB-12 and RS-12.
The plan which called FB-12 existed?

http://www.secretprojects.co.uk/forum/index.php/topic,3780.45.html


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454

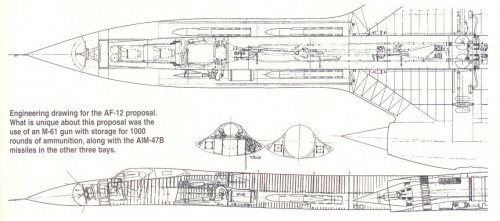

F-12B armament : M61 cannon×1, AIM-47B AAM×3
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=3780.0;attach=578729;image

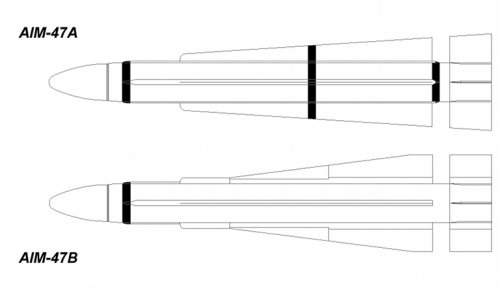

AIM-47B
http://www.ausairpower.net/Falcon-Evolution.html#mozTocId63933

B-12 armament : AAM×2, SRAM×2 or SRAM×4, What is nose large radar? Anti AWACS AAM FCS radar?
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=3780.0;attach=578731;image
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=3780.0;attach=578733;image


Attachments

  • AIM-47AB-1S.jpg
    88 KB · Views: 869

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
Hi!

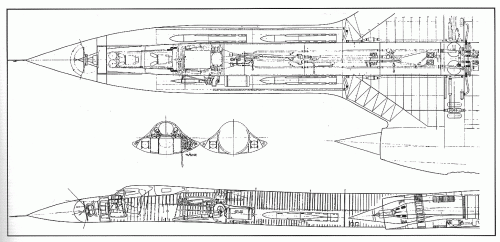

The evidence of R-12 plan. You can see same drawing in "LOCKHEED SR-71" by Paul F Crickmore with drafter's sign.
And AF-12 large size drawing with AIM-47B AAM.

http://lurch2.blogspot.jp/2014/02/lockheed-yf-12.html
https://forums.spacebattles.com/threads/oxcart-vs-blackbird-do-you-know-the-difference.364700/

I found interesting description about RB-12 and RS-12 in this book.(Page 5)
[/b][/b]https://books.google.co.jp/books?id=u6-dCwAAQBAJ&pg=PA6&lpg=PA6&dq=Lockheed+RB-12&source=bl&ots=5rDA7J6aTr&sig=bpJ12UiYfuXideZ7pIpba781Sc4&hl=ja&sa=X&ved=0ahUKEwj0kLTm7NDTAhWCWbwKHTIdD3YQ6AEIZDAK#v=onepage&q=Lockheed%20RB-12&f=false


Attachments

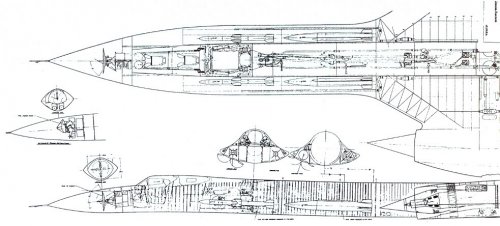

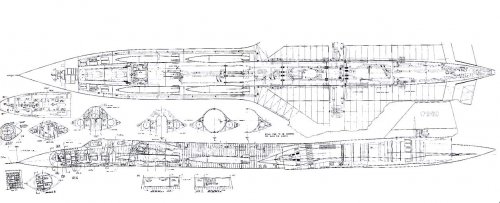

  • INBOARD PROFILE R-12(Lockheed official drawing).jpg
    INBOARD PROFILE R-12(Lockheed official drawing).jpg
    352.9 KB · Views: 867
  • F-12 LARGER DRAWING.gif
    F-12 LARGER DRAWING.gif
    207.5 KB · Views: 845

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
I imagine that.......
RB-12 was a multi role reconnaissance bomber with free fall nuclear bomb and camera/sensor.
RS-12 was a multi role reconnaissance strike bomber with SRAM and camera/sensor.
B-12 was a bomber with only SRAM or only free fall nuclear bomb.
FB-12 was a fighter bomber with anti AWACS missile and SRAM.
Perhaps my opinion is terrible mistake. ;D

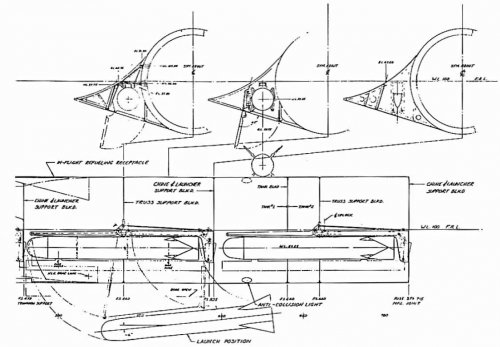

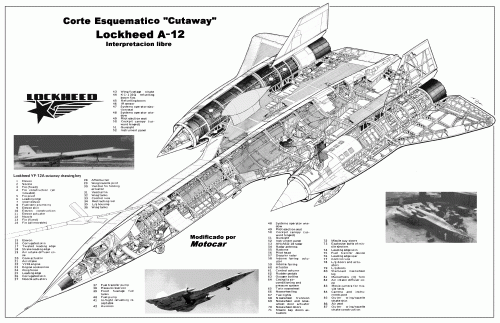

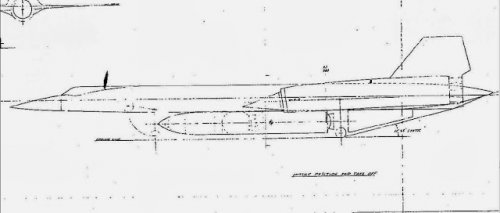

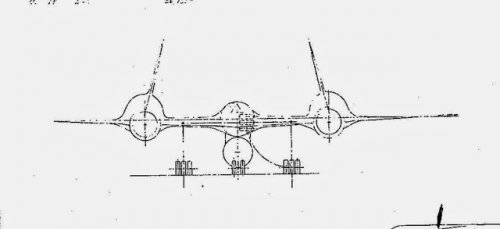

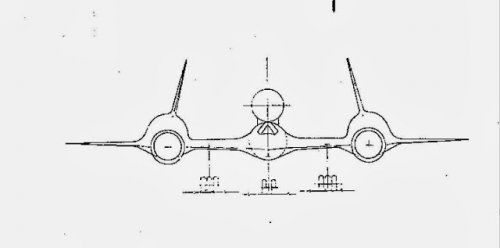

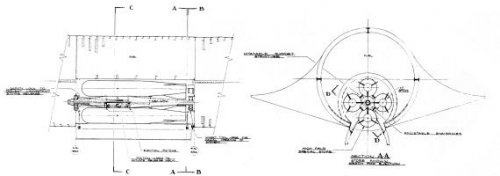

What is this drawing? B-12 bomb bay with free fall bomb?
http://www.cavok.com.br/blog/a-de-ataque-lockheed-a-12-oxcart-o-pai-do-sr-71-blackbird-parte-6/

Any information here?
http://www.google.co.jp/url?sa=t&rct=j&q=&esrc=s&source=web&cd=13&ved=0ahUKEwjq-_CgktHTAhVDQLwKHRpOADU4ChAWCDAwAg&url=http%3A%2F%2Fwww.roadrunnersinternationale.com%2Fcrew_listing%2FLOCKHEED%2520SRA12%2520Numbers.doc&usg=AFQjCNFTlFg0vp3qNKSM6aiY3iGATHRyMg

"SR-71A
As A-12, high-altitude 2-seater reconn./surveillance aircraft.
Larger fuselage, more fuel, ventral fins deleted. Original
designations were RS-12, B-12, B-71, then RS-71.
S/n sometimes incorrectly presented as 64-17950 / 64-17955
and 64-17958 / 64-17980.
Produced 1964 - 1967
Lockheed Burbank, California (LO) "


Attachments

  • Desenho-esquemático-do-Bombardeiro-FB-12-4-Blackbird-–-Lockheed-Martin-1.jpg
    119.8 KB · Views: 773

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
Hi! F-12B.

http://lurch2.blogspot.jp/2014/02/lockheed-yf-12.html
http://s36.photobucket.com/user/MihoshiK/media/F12B.jpg.html

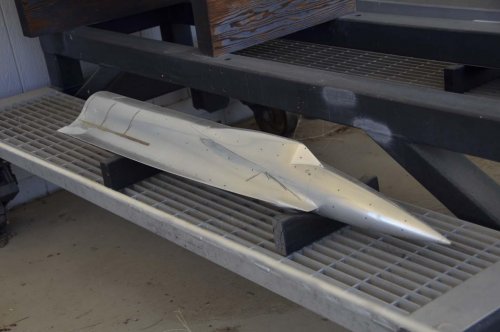

And YF-12A 1/12 scale wind tunnel test model.
http://marvellouswings.com/Aircraft/Fighter/F-12/F-12.html


Attachments

  • YF-12 WIND TUNNEL TEST MODEL.jpg
    YF-12 WIND TUNNEL TEST MODEL.jpg
    87.5 KB · Views: 208
  • F-12B_and_AF-12.jpg
    108.6 KB · Views: 269
  • SR-71 or R-12, F-12B and YF-12A.jpg
    SR-71 or R-12, F-12B and YF-12A.jpg
    397.3 KB · Views: 285

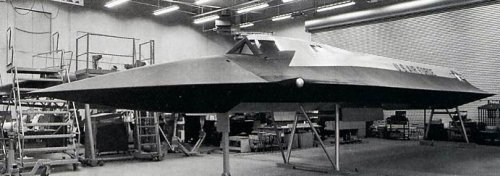

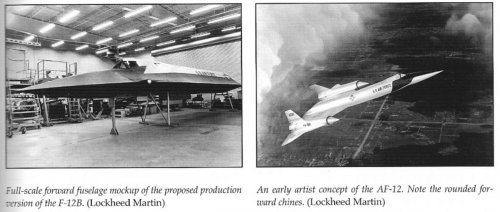

  • F-12B mockup.jpg
    F-12B mockup.jpg
    43.6 KB · Views: 707

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454

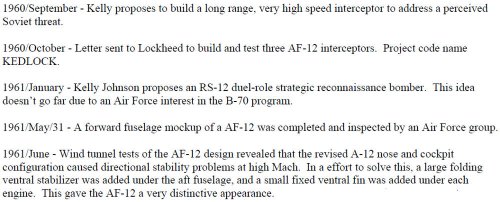

Hi! Time line of SR-71.
http://roadrunnersinternationale.com/sr-71timeline.pdf

Home page of upper document.
http://roadrunnersinternationale.com/index.html


Attachments

  • AF-12, RS-12 1960 September.jpg
    AF-12, RS-12 1960 September.jpg
    110.7 KB · Views: 100
  • A-12 BOMBER VERSION 1961 July.jpg
    A-12 BOMBER VERSION 1961 July.jpg
    26.6 KB · Views: 91
  • BLACKBIRD FIGHTER BOMBER VERSION 1962 April.jpg
    BLACKBIRD FIGHTER BOMBER VERSION 1962 April.jpg
    20.6 KB · Views: 76
  • SR-71 1962 April.jpg
    SR-71 1962 April.jpg
    16 KB · Views: 70
  • RS-71 1964 March.jpg
    RS-71 1964 March.jpg
    24.4 KB · Views: 105

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
I found three blackbird drawings which carry SRAM missile and carry different type nose radars.
Please check attached pdf file.

I want to see RB-12 and RS-12 general arrangement cutaway drawing.


Attachments

  • Blackbird with SRAM missile.pdf
    266.5 KB · Views: 72

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
Hi!
https://www.youtube.com/watch?v=7diDWBrTjr0


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
And excellent book. "Lockheed Martin's Skunk Works" by Great Jay Miller.
http://www.militarymuseum.org/Lockheed-Skunk-Works.pdf

Please check page 123.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,321
Reaction score
2,454
Hi!
http://www.aerospaceweb.org/aircraft/recon/sr71/

"KNOWN VARIANTS:
Oxcart Classified designation given to the A-12 project by the CIA
Senior Crown Classified designation given to the SR-71 project
A-11 Archangel Lockheed's internal designation for its proposal to meet the CIA's high-speed reconnaissance aircraft requirement
A-12 Original design concept for a high speed bomber/interceptor, but built as a single-seat recon/strike platform, based on the
A-11 design but with improvements to lower the radar cross section; 13 built (5 lost)
M-21 Originally intended as A-12 airframes but modified during construction with a second seat for an officer to operate the D-21
drone, the new designation refers to the aircraft's role as a mothership (M-21) to launch the daughter (D-21) and increase reconnaissance
range; 2 built (1 lost)
YF-12A Initially designed as an interceptor prototype equipped with a Hughes AN/ASG-18 pulse-Doppler radar in the nose and tandem
weapons bays for AIM-47 air-to-air missiles, later used by NASA as Mach 3 research aircraft; 3 built (2 lost)
F-12B Proposed production model of the YF-12A to serve as a USAF high-speed interceptor; cancelled
YF-12C A-12 airframe modified with increased fuel capacity and other refinements to test many of the improvements incorporated into
the SR-71; 1 converted
RB-12 A proposed reconnaissance bomber variant that reached the mockup stage before being cancelled
RS-12 Proposed strike model
B-12 or B-71 Proposed dedicated bomber variants
RS-71A Original designation for the dedicated reconnaissance model
SR-71A Definitive reconnaissance model with aerodynamic refinements, improved airframe, greater range, and fitted with advanced
surveillance equipment; 29 built (11 lost)
SR-71B Two-seat trainer with a separate raised cockpit for an instructor pilot; 2 built (1 lost)
SR-71C Two-seat trainer rebuilt from a YF-12A structural test model and incorporating parts from other crashed airframes, built to
replace one of the SR-71B trainers that was lost, later used by NASA; 1 converted"

"UNKNOWN VARIANTS:
FB-12

Cutaway drawing.
https://thelexicans.files.wordpress.com/2013/09/yf12cutaway.gif


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,025
Reaction score
1,583
All SOC images on page 1 are gone, courtesy of Phuckerbucket randsom of 400$. Can SOC restore the links ?


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,188
Reaction score
24
Not sure I have an account anywhere else to host the files, but if you want the images I can email them your way.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,162
Reaction score
1,124
SOC said:
Not sure I have an account anywhere else to host the files, but if you want the images I can email them your way.

You could just upload them to this site.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,188
Reaction score
24
;D whoops, yeah I guess that would probably work too LOL I'll dig the files out this weekend and see if they can be reloaded. Might have to resize a few things.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,247
Reaction score
3,127
You are allowed 5mb per image and 20mb per post. If this isn't enough I can sideload onto the server.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
614
Reaction score
64

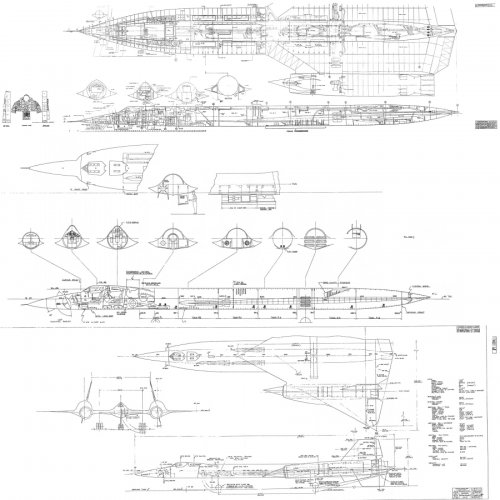

Cutaway Lockheed A-12, author Rigatto and modified by Motocar


Attachments

  • Cutaway_Lockheed_A-11.gif
    1.1 MB · Views: 581

Similar threads

Top
