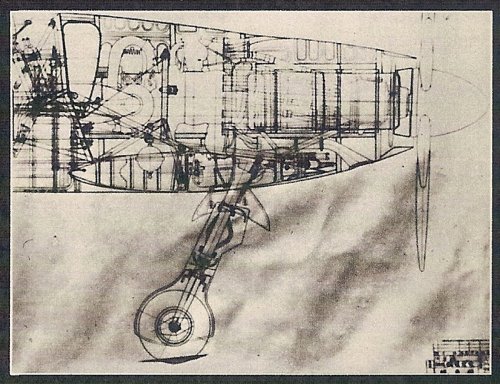

And tail section.


Attachments

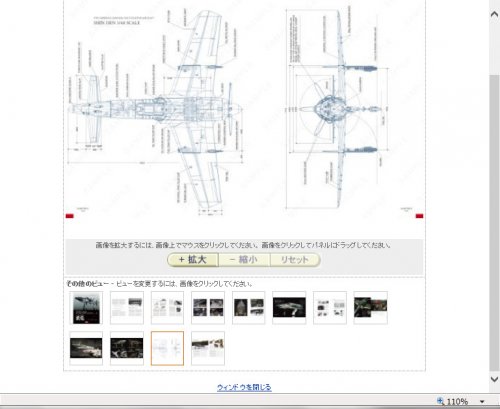

  • original drawing tail.jpg
    original drawing tail.jpg
    1 MB · Views: 121

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

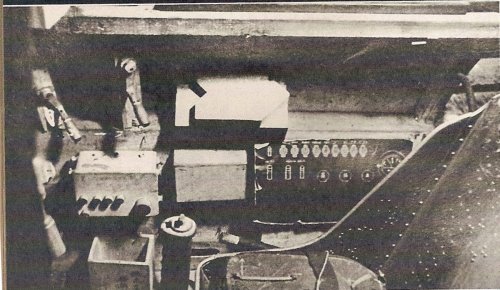

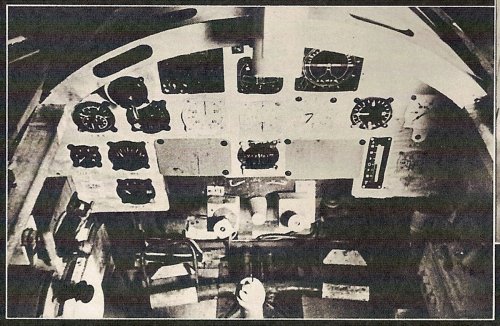

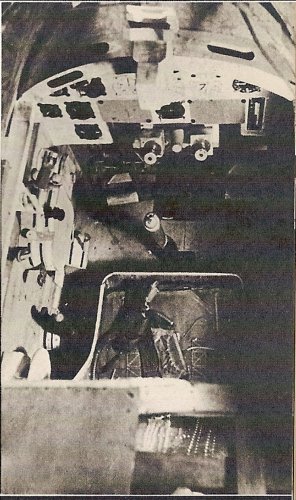

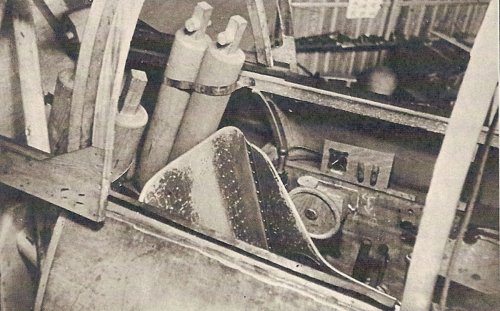

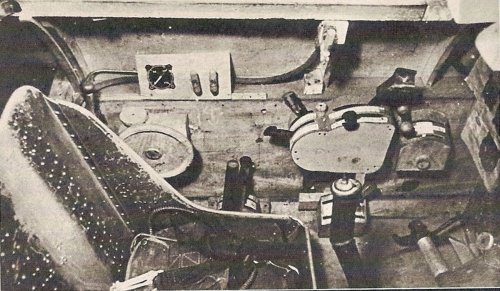

And some mockup pictures. Enjoy. :)
Source : Aviation Journal, AJ Cyclone, Challenge to the sky(New edition).1976.


Attachments

  • cockpit mockup 4.jpg
    cockpit mockup 4.jpg
    206.9 KB · Views: 82
  • cockpit mockup 3.jpg
    cockpit mockup 3.jpg
    203.7 KB · Views: 71
  • cockpit mockup 2.jpg
    cockpit mockup 2.jpg
    215.2 KB · Views: 69
  • cockpit mockup 1.jpg
    cockpit mockup 1.jpg
    491.5 KB · Views: 69
  • panel mock up.jpg
    panel mock up.jpg
    262.4 KB · Views: 72

T-50

ACCESS: Secret
Joined
Nov 20, 2008
Messages
362
Reaction score
22
Hi Blackkite san this is marvelous stuff!!! original and rare pics! ive never seen the photos of the mockup cockpit of the shinden!
thaks for sharing these photos with us!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi Johnbr san and T-50 san!
I am very happy to know that you really enjoy my post. :)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Stargazer2006 said:
blackkite, do you confirm that these drawings are for the Shinden-kai?
Hi! These drawings are for Shinden.
Please watch the picture of the IJN(Kugisho)'s technical Lieutenant Masayoshi Tsuruno(鶴野正敬). Shinden was born from his idea.
He graduated the department of aeronautical engineering of Tokyo imperial university(東京帝国大学 航空工学科).


Attachments

  • MasayoshiTsuruno_age26.jpg
    23.1 KB · Views: 42
  • MasayoshiTsuruno_TV.jpg
    13.3 KB · Views: 45

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Basil said:
Blackkite, these are really great documents. Thanks.
You are welcome Basil! :D


Attachments

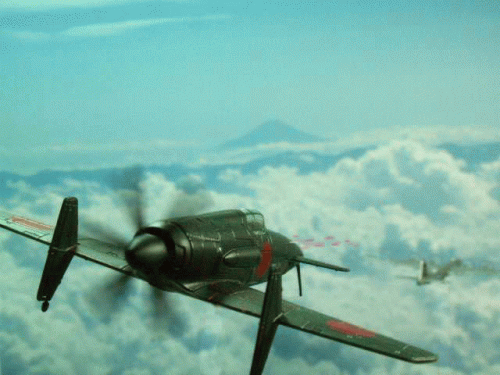

  • img9de7c87czik3zj.jpeg
    34.7 KB · Views: 601
  • img2a822c43zikfzj.jpeg
    32.4 KB · Views: 624
  • Shinden attack B-29.gif
    Shinden attack B-29.gif
    882.9 KB · Views: 779

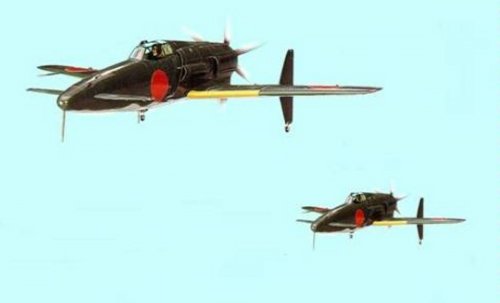

  • Shinden 2.jpg
    Shinden 2.jpg
    122.9 KB · Views: 836
  • Shinden.jpg
    193.8 KB · Views: 917

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi! Enjoy.
B-29's bombing to the Mitsubishi(三菱) Nagoya(名古屋) engine factory was timely and effective for delay of Shinden prototype completion.
Also Shinden No.1 prototype had engine trouble at the end of the war. Kyushu contacted Mitsubishi to solve this trouble for full power flight test.
Senden development failure was fatal for B-29 interception.


Attachments

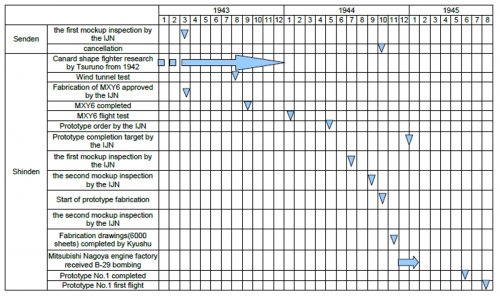

  • Shinden events.jpg
    Shinden events.jpg
    324.6 KB · Views: 134

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
9

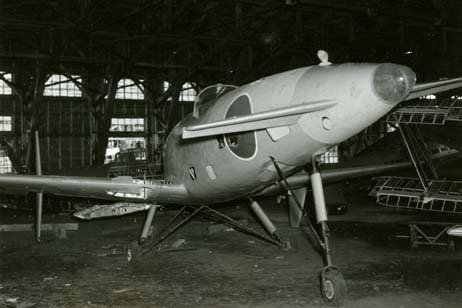

Kyushu MYX6 glider


Attachments

  • myx6photo1.jpg
    69.9 KB · Views: 130
  • myx6photo2.jpg
    27.9 KB · Views: 135

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

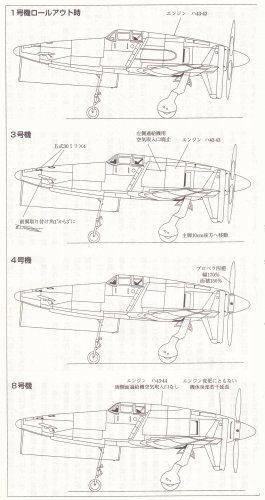

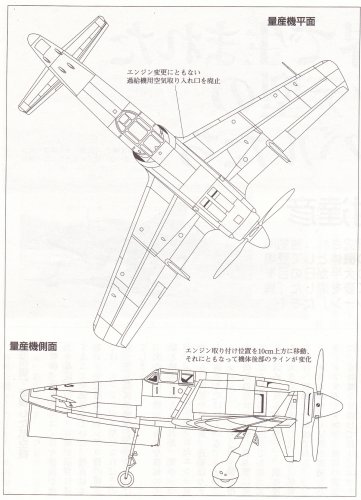

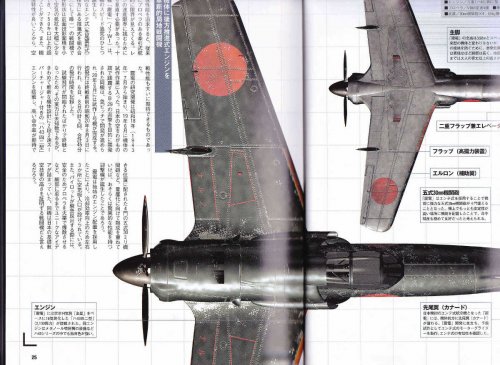

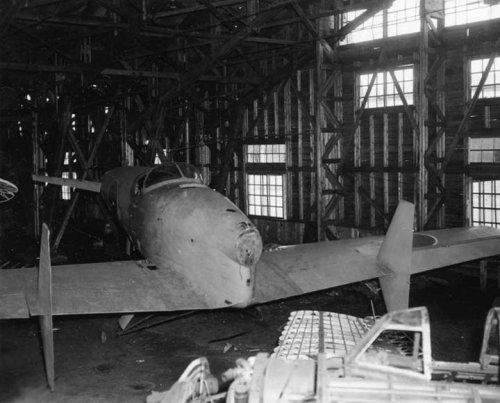

In September 1945, Kugisho reported to the U.S. that Otsu fighter(interceptor) which under development was Shinden.
Experimetal Shinden No.1 and 2's engine was Mitsubishi HA-43-42 vulkan coupling drive engine.
No.3's engine was HA-43-43 which had 130hp larger power than HA-43-42 in take off.
No.4 and 5's propeller had a 4 blade.(Diamter 3.5m or 3.6m)
No.8's engine was HA-43-44 which had single stage 3 speed mechanical supercharger instead of vulkan coupling drive supercharger.
Shinden production model's engine was HA-43-44 engine, too.
Source : Maru magazine, 1/8/2012


Attachments

  • Shinden pic1.jpg
    Shinden pic1.jpg
    523.5 KB · Views: 151
  • Shinden production model.jpg
    Shinden production model.jpg
    663.5 KB · Views: 277

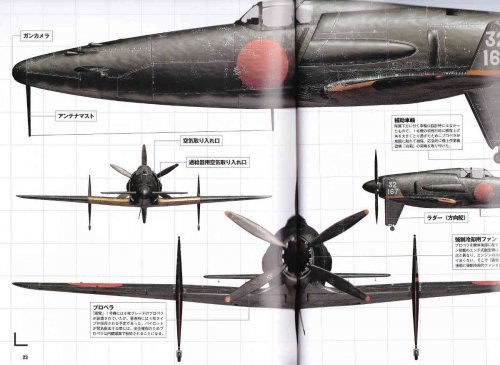

  • Shinden side view.jpg
    Shinden side view.jpg
    876.1 KB · Views: 282

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hmmm....
I have "WWⅡ FIGHTERS,DESIGN WITH PRECISION drawing by Matsuba Minoru" which include Shinden.
But not so detailed. I give up.


roadrunner2

ACCESS: Restricted
Joined
Jul 26, 2007
Messages
39
Reaction score
4
Not realistic.
I find the famous WWⅡ FIGHTERS,DESIGN WITH PRECISION by Matsuba Minoru on Ebay, I think I buy it.....


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
roadrunner2 said:
Not realistic.
I find the famous WWⅡ FIGHTERS,DESIGN WITH PRECISION by Matsuba Minoru on Ebay, I think I buy it.....
Why you think it's not realistic?

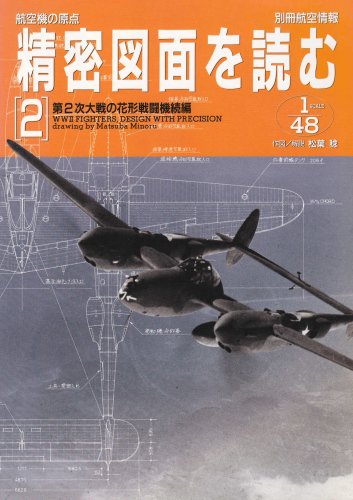

This image is a book cover of WW2 FIGHTERS,DESIGN WITH PRECISION drawing by Matsuba Minoru which include Shinden 3 side view.


Attachments

  • Matsuba Minoru book.jpg
    Matsuba Minoru book.jpg
    295.3 KB · Views: 74

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,773
Reaction score
1,910
Going slightly off-topic for a moment:

http://www.youtube.com/watch?v=MTQvgzgfXPA


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Oh contra rotating propeller Shinden! It must be a Star's favorite.
The end stage of the war, Japanese fighters forced to fight with P-51 which escorted B-29 from Io island prior to B-29 attack.
It was a very hard mission for Japanese fighters.


piginapoke

I really should change my personal text
Joined
Mar 11, 2013
Messages
14
Reaction score
0
Very interesting design. Wonder how it would have perfomed against a P-51?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi!
http://www.geocities.jp/jp_j7w1_shinden/index.html#new
Shinden was planned to attack B-29 as follows.
(1) Shinden developed in altitude of 12,000 m ahead of B-29, and attacked using 30mm cannons.
(2) Repeat this once again.

In case of Shinden, it might be possible to dodge P-51 by it's high performance.(service ceiling : 12000m, maximum speed : 740km/h)
At the beginning of Shinden project, to have air combat flap was considered. Later this plan was abolished.


alfakilo

ACCESS: Confidential
Joined
Oct 18, 2009
Messages
72
Reaction score
5
blackkite said:
In case of Shinden, it might be possible to dodge P-51 by it's high performance.(service ceiling : 12000m, maximum speed : 740km/h)

I suppose it needs to be said again that airplanes don't win dogfights, pilots do.

In any case, the P-51H model may have been the opposite of the Shinden, had that possibility ever come to pass. The H model possessed superior altitude and speed to the numbers you have quoted. The same is true of the follow-on versions of the P-47.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
355
Reaction score
103
Top speed of the long range P-47N was 467 mph (752 km/hr) and this was a plane that performed better at high altitudes where it would do bomber escort.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

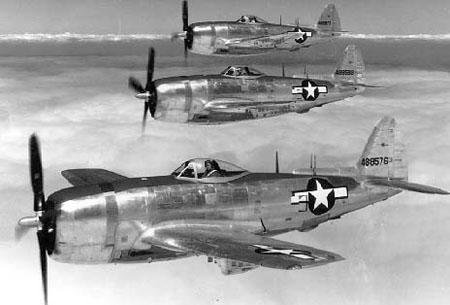

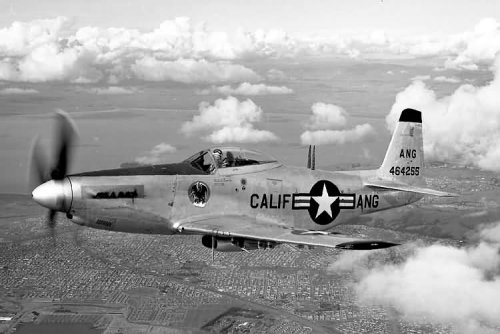

I only give a sigh. ;D


Attachments

  • Republic_P-47N-5_three_ship_formation_061020-F-1234P-037.jpg
    22.1 KB · Views: 635
  • P-51H.jpg
    37.7 KB · Views: 619

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Thanks Grey! ;)
Of course the other vides are also interesting, too. Please enjoy.


windswords

ACCESS: Secret
Joined
May 20, 2009
Messages
355
Reaction score
103
blackkite said:
I only give a sigh. ;D

Although I appreciate their performance, I prefer the appearence of the P-47D and P-51D. I like the eliptical wing tips and smaller tail fillet (in front of the rudder) on the P-47D instead of the clipped wing tips on the N model (the clipped wing tips did give the P-47 a better roll rate than previous models). On the P-51 the longer nose, taller rudder and double antennae masts of the H model just looks - wrong. The P-51D is one of the most beautiful prop fighters ever (after the Ki-84 of course! ;D ). The H model looks like they hit it with an ugly stick.

Blackkite-san, I can't wait to look at these videos. Thank you for posting them.


ArgyrisGiannetakis

http://www.youtube.com/user/ARGYPILATUS
Joined
Dec 19, 2013
Messages
79
Reaction score
0
Very nice photos!!!Thanks!!for upload!!
I have thousand photos with shinden and i will send you!!!


ArgyrisGiannetakis

http://www.youtube.com/user/ARGYPILATUS
Joined
Dec 19, 2013
Messages
79
Reaction score
0

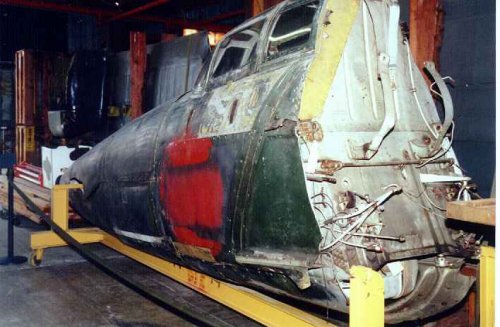

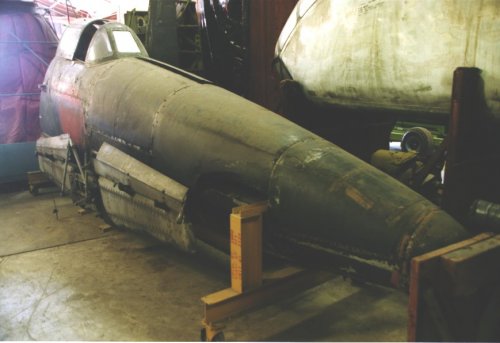

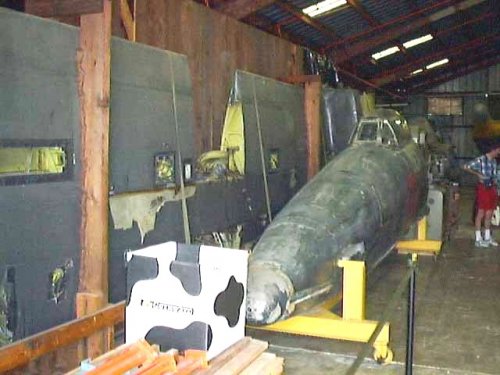

:)The most rare i thing are these!!


Attachments

  • http---airandspace.si.edu-webimages-collections-full-2009-12408.jpg
    991.8 KB · Views: 396
  • http---airandspace.si.edu-webimages-collections-full-2009-12406.jpg
    162.1 KB · Views: 412

ArgyrisGiannetakis

http://www.youtube.com/user/ARGYPILATUS
Joined
Dec 19, 2013
Messages
79
Reaction score
0
:)No but i wish to be there one day! ;DI just have search everthing in internet, from static models,japan sites with photos,some friends in japan,rare books a letters from NASM, everywhere ;D All these just to find more information's about my Shinden build!I wish one day to be there and take the most precise photos!I thing the most precise photos must taken from zoukei mura team when they arrive at NASM.But they don't publish.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
ArgyrisGiannetakis said:
:)No but i wish to be there one day! ;DI just have search everthing in internet, from static models,japan sites with photos,some friends in japan,rare books a letters from NASM, everywhere ;D All these just to find more information's about my Shinden build!I wish one day to be there and take the most precise photos!I thing the most precise photos must taken from zoukei mura team when they arrive at NASM.But they don't publish.
Wow precious information! Thanks a lot. I want to know the limiter of front wing slat. ;)


ArgyrisGiannetakis

http://www.youtube.com/user/ARGYPILATUS
Joined
Dec 19, 2013
Messages
79
Reaction score
0
:)


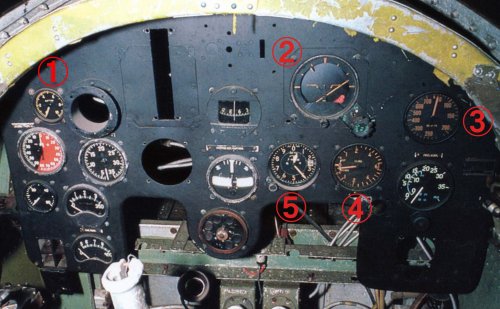

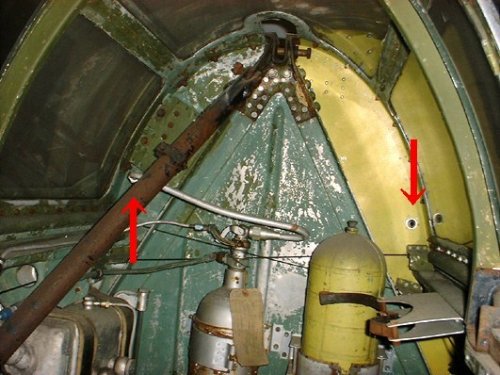

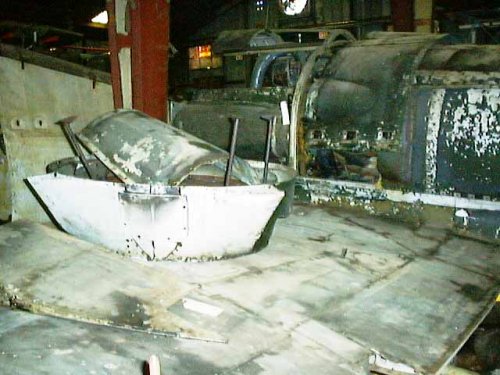

Attachments

  • back_foot.jpg
    127.9 KB · Views: 134

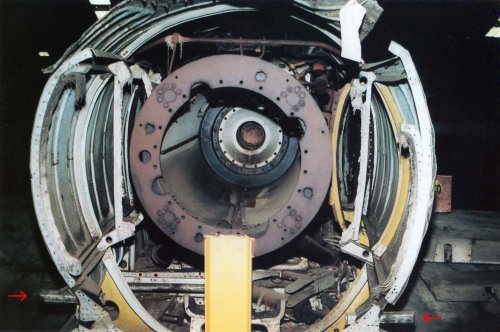

  • backFHJERTBYJ.jpg
    93 KB · Views: 51

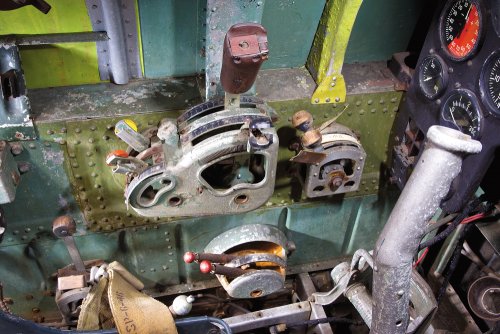

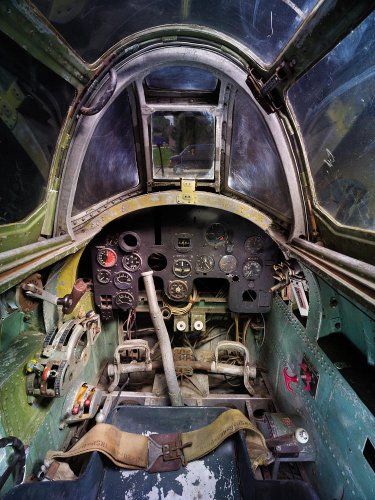

  • cocpt_photo_21.jpg
    333.6 KB · Views: 54

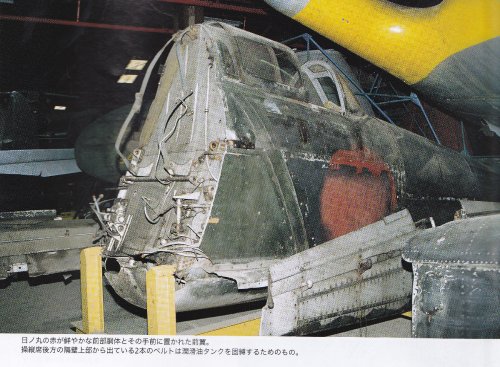

  • Shinden-3HHHHHB.jpg
    46.7 KB · Views: 52
  • Shinden-4ZZZXZXZSA.jpg
    40.9 KB · Views: 58

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Wow thanks a lot. I want to know the limiter position of front wing slat and flap. :)


ArgyrisGiannetakis

http://www.youtube.com/user/ARGYPILATUS
Joined
Dec 19, 2013
Messages
79
Reaction score
0

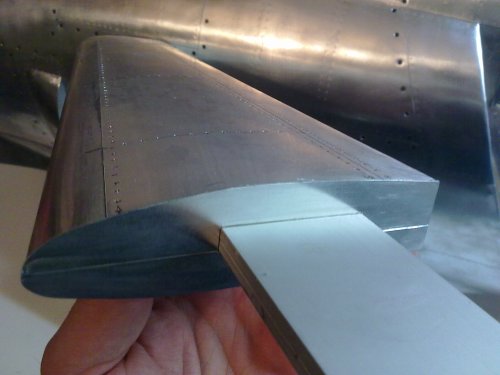

This i would like also to find because i need to build it on my canard :eek:


Attachments

  • 251120131684.jpg
    377.5 KB · Views: 310
