...how about some Kaman prototypes and projects?

Here are a few, probably nothing new, mostly from the Kaman pages at www.aviastar.org. All have photos or sketches there as well.

--Kaman K-125 (1947) - Experimental prototype that proved the intermeshing twin-rotor design (one built)
--Kaman K-16B (1962) - Grumman JRF "Goose"-based VTOL amphibious convertiplane project (one built, not flown)
--Kaman K-17 (1958) - Experimental single-rotor design with cold-jet propulsion (one built)
--Kaman K-1125 "Huskie III" (1962) - Prototype enlarged, twin-turbine development of popular H-43 Huskie proposed for both civilian and military uses (one built)
--Kaman YUH-2 (1962) - Experimental compound helicopter conversion of Seasprite with added turbojet, reached 223 mph (one built)
--Kaman H-2 "Tomahawk" (1963) - Straightforward gunship conversion of successful U.S. Navy SH-2 "Seasprite" twin-turbine, single-rotor anti-submarine helicopter with four machine guns in unique dual chin turrets. Over 200 ordered, but canceled in favor of Bell UH-1s. (one built)
--Kaman K-700 (1969) - Proposed USAF rescue version of K-1125, project only.
--Kaman KSA-100 (1971)- Stowable Aircrew Vehicle Escape Rotorseat (SAVER), a jet-powered gyroplane ejection seat to allow a pilot to fly himself back to safety (one built)

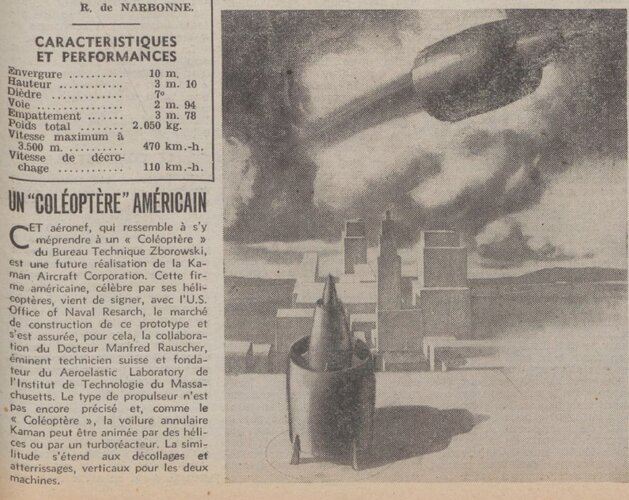

For something completely different, attached is an intriguing tidbit from FLIGHT (20 January 1956) mentioning of a Kaman annular wing project funded by the USN ONR.

I would be very surprised if Kaman has never proposed an armed variant of the K-1200 "K-MAX" aerial crane. I can't believe that I am the only one to think that its narrow, single-seat fuselage and whopping 5,000 lb external payload capacity would make a fantastic "missile truck," perhaps working with other, lighter helicopters as target designators?

I am sure there are lots more Kaman protoypes and projects to share...let's see 'em!


Attachments

  • Kaman annular wing.jpg
    Kaman annular wing.jpg
    60.7 KB · Views: 1,865

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
192
Website
www.hitechweb.genezis.eu
Topic for aviation-related posts about the Kaman (unbuilt) projects. Posts about the Charles Kaman and non-aviation content should go here: http://www.secretprojects.co.uk/forum/index.php/topic,11897.0.html


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,348
Reaction score
2,411
A couple more Kaman projects;

K-600-4: A proposed H-43 with a Blackburn-Turbomeca Twin Turmo 600 turboshaft
K-800 Seacat: A Naval armed helicopter with Seasprite-type fuselage, stub wings, cruciform tail with psuher prop and twin turbine engines

Source: Airlife's Helicopters and Rotorcraft, Rod Simpson, 1998


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
761
A few Kaman projects:

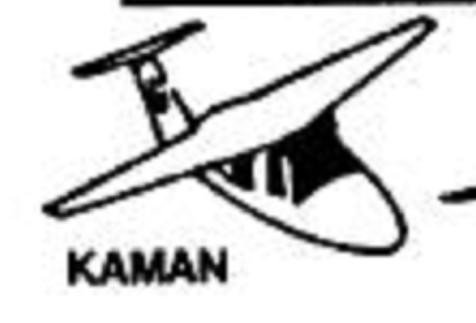

1. What seems to be an early VLAR project.

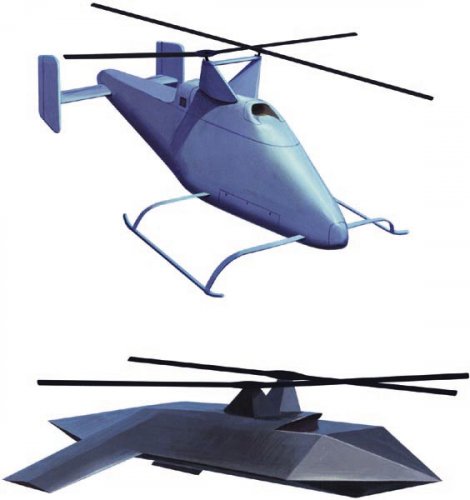

2. VLAR and Spyglass projects.
3. Probably another VLAR proposal.

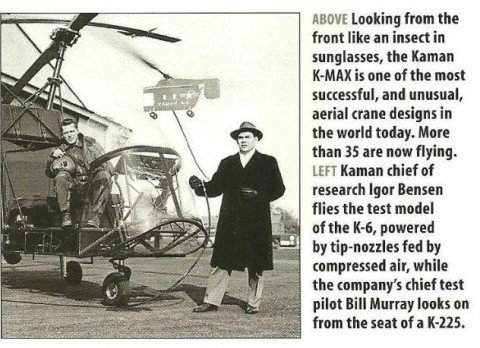

4. The K-6 project in model form, a projected variant the K-3/K-600 Huskie.
5. A naval drone torpedo bomber proposal, circa 1960.
6. The K-16 COIN proposal (not to be mistaken for the tilt-wing K-16B prototype).

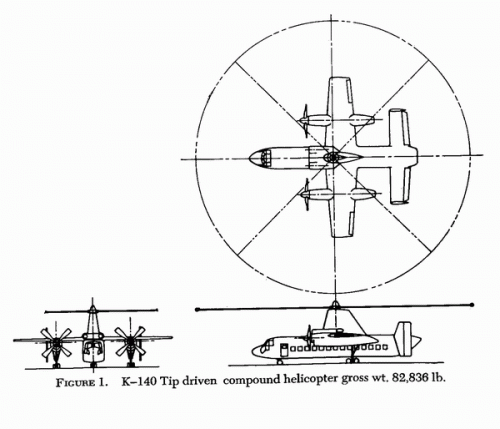

7. The K-140 variant of the Fairey Rotodyne.

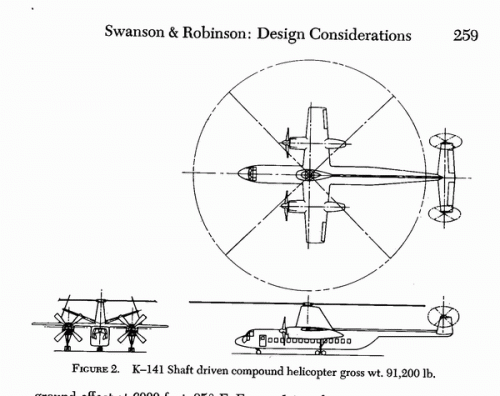

8. The K-141 variant of the Fairey Rotodyne.


Attachments

  • KamanK-141FaireyRotodyneanalogue.gif
    46.5 KB · Views: 179
  • KamanK-140FaireyRotodyneanalogue.gif
    42.6 KB · Views: 188
  • COIN proposal.jpg
    COIN proposal.jpg
    210.9 KB · Views: 187
  • Naval drone.jpg
    Naval drone.jpg
    61.1 KB · Views: 182
  • K-6.JPG
    66.8 KB · Views: 1,393
  • 452301.jpg
    58.2 KB · Views: 1,418
  • VLAR & Spyglass.jpg
    VLAR & Spyglass.jpg
    44.1 KB · Views: 1,432
  • 9027371.jpg
    18.3 KB · Views: 1,441

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
761
More Kaman projects:

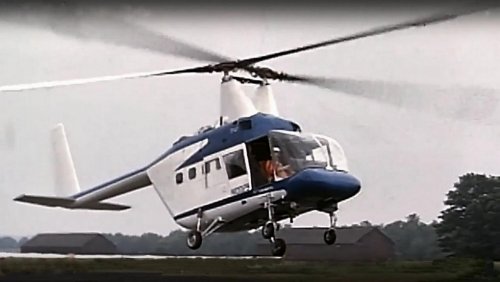

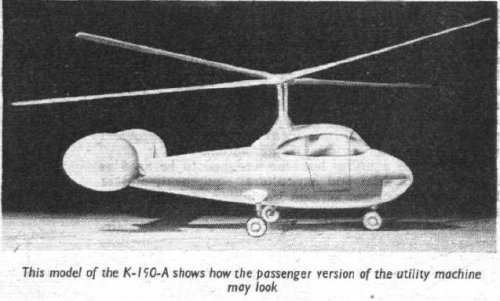

9. The projected K-190A passenger derivative of the K-190 prototype.
10. The K-700 rescue helicopter proposal for USAF.
11. The Rotochute concept for space capsule re-entry.

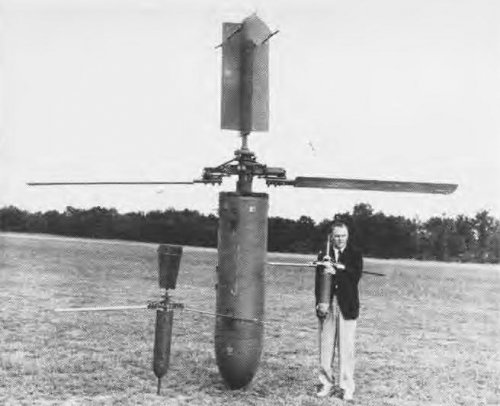

12. The Rotochute prototype.
13. An early Sealite LAMPS proposal.
14. Another early Sealite LAMPS proposal.

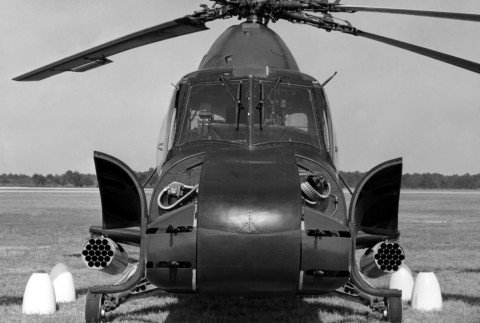

15 and 16. The armed AH-2 proposal (a Navy UH-2 modified).


Attachments

  • 1327.jpg
    42.1 KB · Views: 172
  • 1328.jpg
    36.9 KB · Views: 205
  • Kaman-Sealite.jpg
    54.5 KB · Views: 185
  • Kaman-Sealite1.jpg
    156.6 KB · Views: 165
  • Kaman Rotochute.jpg
    Kaman Rotochute.jpg
    51.1 KB · Views: 148
  • Kaman Rotochute Concept.jpg
    Kaman Rotochute Concept.jpg
    937.4 KB · Views: 154
  • kaman_k-700.jpg
    26.9 KB · Views: 148
  • Kaman K-190.JPG
    Kaman K-190.JPG
    42.9 KB · Views: 125

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
761

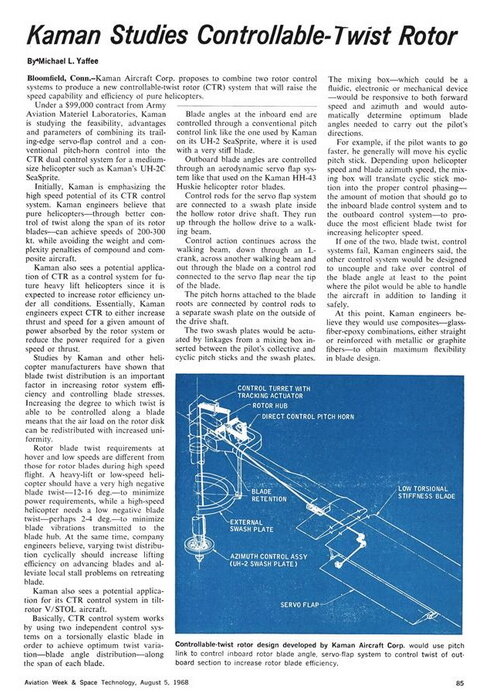

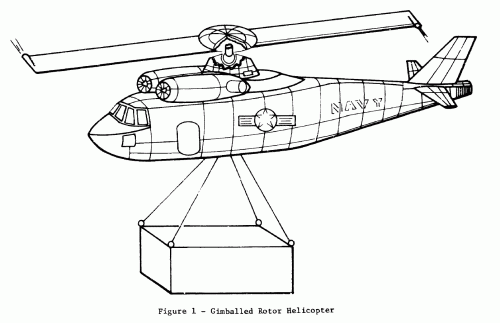

  • The Kaman XH-2-CCR gimballed rotor helicopter project
  • The Kaman K-137 (QH-43G) of 1963, a radio-controlled drone based on the HH-43B (two built, registered as N10031/2) (c/n 167,190)


Attachments

  • XH-2 CCR.gif
    XH-2 CCR.gif
    29.4 KB · Views: 162
  • QH-43G (K-137).jpg
    QH-43G (K-137).jpg
    55.3 KB · Views: 175

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
761
The Kaman Rotodyne from an old post by hesham:


Attachments

  • vtol Hel 3.JPG
    vtol Hel 3.JPG
    23.2 KB · Views: 173

HeavyG

ACCESS: Confidential
Joined
Aug 21, 2009
Messages
76
Reaction score
4
Looks an awful lot like the Fairey Rotodyne; did Kaman plan to license-build it here in the US of A?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
761
HeavyG said:
Looks an awful lot like the Fairey Rotodyne; did Kaman plan to license-build it here in the US of A?

Absolutely. US-built Rotodyne versions were developed under the K-140 and K-141 projects, but nothing came of it.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
15,937
Reaction score
5,502

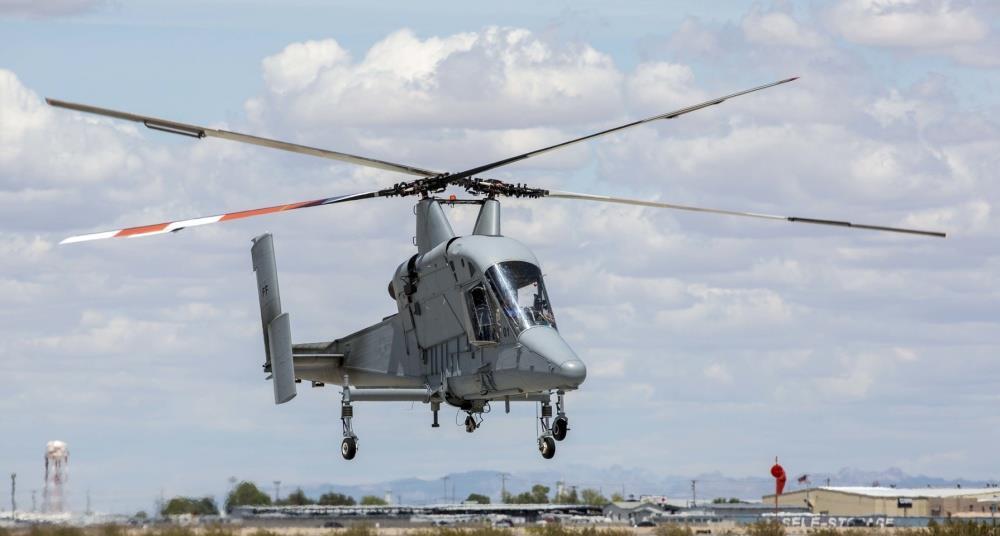

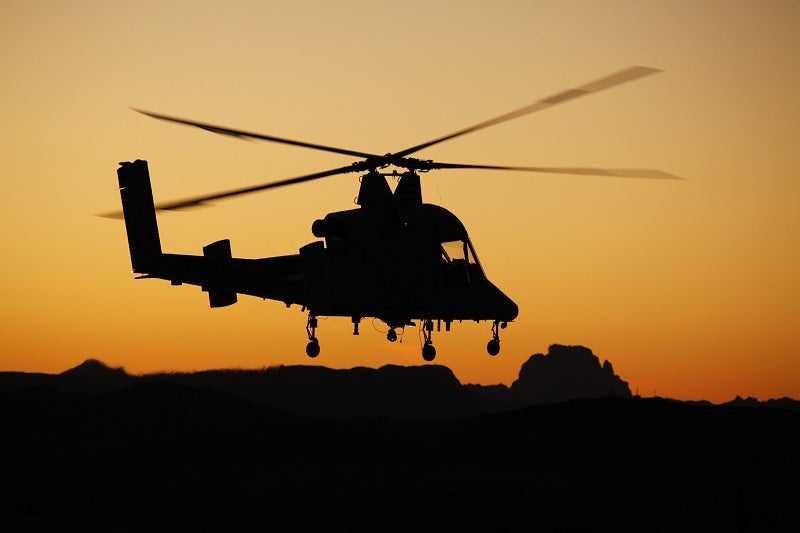

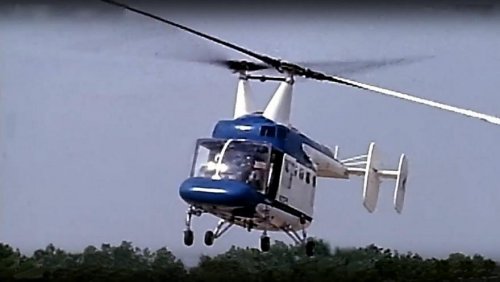

The K-MAX is going back into production: http://www.flightglobal.com/news/articles/kaman-restarts-k-max-production-on-new-commercial-orders-413164/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629

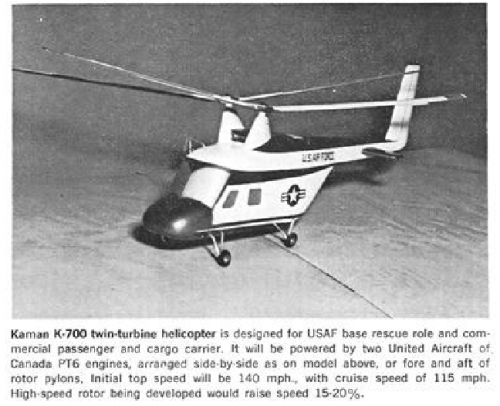

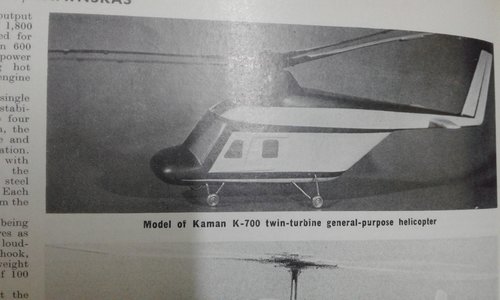

The Kaman K-700 Model.

http://archive.aviationweek.com/search?QueryTerm=kaman+K-140++&DocType=All&sort=


Attachments

  • 1.png
    165.3 KB · Views: 164

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,406
Reaction score
151
Website
cluttonfred.info
Has anyone ever seen or heard of an armed variant of the K-Max? It seems tailor-made for a relatively low-cost attack helicopter conversion perhaps with external seats for inserting special ops types like an oversize Little Bird. With a useful load of over 3,000 kg it could be outfitted with armor, sensors and countermeasures and still have quite a bit of capacity left over.


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
140
Reaction score
60
Artist's concept shows Kaman K-800 Seacat armed helicopter, proposed to Navy as a high-speed aircraft for rescue and fire-support mrssions from seaboard. Helicopter uses many components of UH-2C. Air Force version would be called Firecat.


Attachments

  • ?-800.png
    91.7 KB · Views: 170

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
697
Reaction score
485

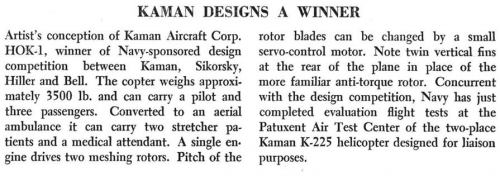

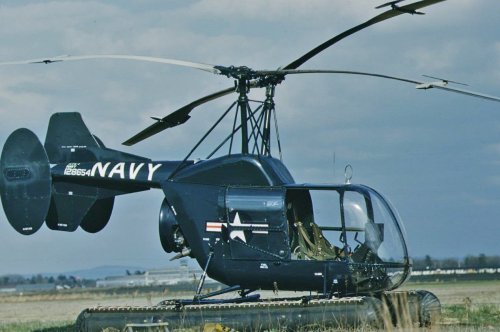

HTK-1


Attachments

  • Kaman HTK1.jpg
    Kaman HTK1.jpg
    298.1 KB · Views: 169

hugo007

ACCESS: Restricted
Joined
May 5, 2007
Messages
9
Reaction score
0
Hi all,
Some real great Kaman history on the Steven Kaman channel on youtube
https://www.youtube.com/user/swk91356/videos


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
140
Reaction score
60

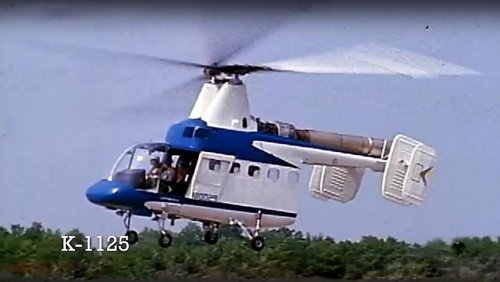

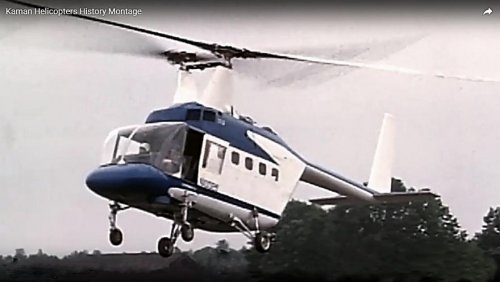

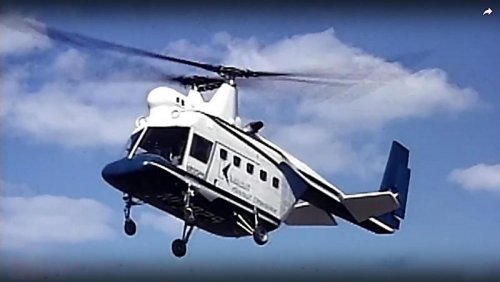

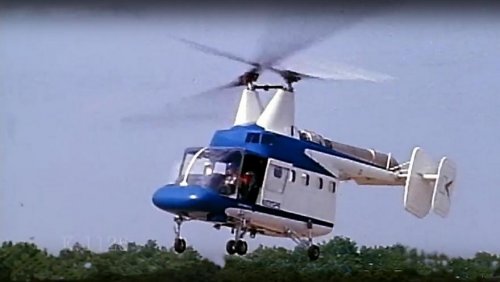

first versions of Kaman-1125


Attachments

  • 111.jpg
    39.9 KB · Views: 560
  • 222.jpg
    33.6 KB · Views: 544
  • 221.jpg
    33.6 KB · Views: 531

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
140
Reaction score
60
Kaman-1125


Attachments

  • 228.jpg
    32.8 KB · Views: 124
  • 225.jpg
    39.1 KB · Views: 118
  • 224.jpg
    33.4 KB · Views: 510
  • 223.jpg
    45.2 KB · Views: 540

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
Good morning my dears and my friends,

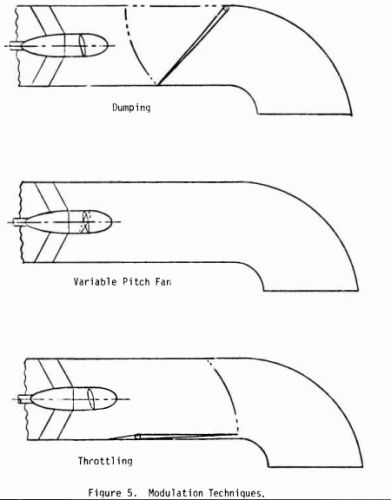

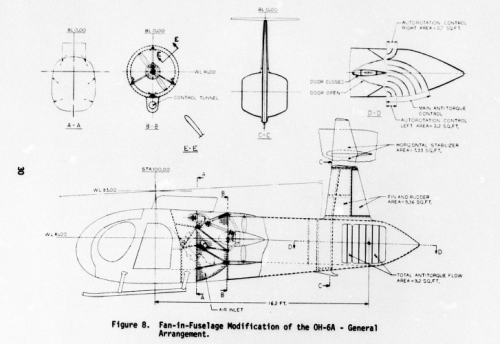

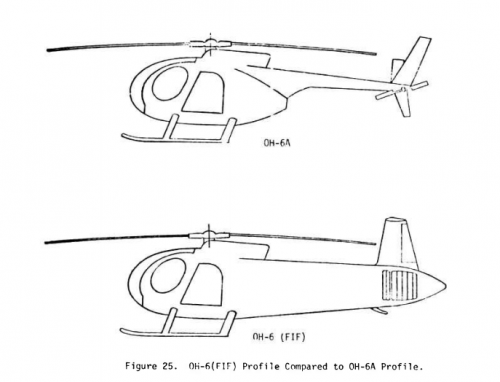

here is a Kaman modification to OH-6A to be fan-in-fuselage;

https://apps.dtic.mil/dtic/tr/fulltext/u2/a005049.pdf


Attachments

  • a.png
    69.4 KB · Views: 137
  • 2.png
    90.7 KB · Views: 147
  • 1.png
    311.7 KB · Views: 149

500 Fan

ACCESS: Confidential
Joined
Jul 16, 2010
Messages
91
Reaction score
18
A nice find, hesham. I saw those drawings in a NASA book at the American Helicopter Museum this year but there was no supporting text. That fills another hole in my research. :)

Can you say if that PDF is a recent addition to the DTIC website or has it been there all along? I have trawled that for OH-6A-related test reports but I managed to miss this one!

500 Fan.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
4,080
Reaction score
3,307
Strange that Kaman didn't know anything about rotational inertia

Krot = ½ Iw²

By enlarging the fuselage (even at equal mass) there were raising the rotational inertia what will in turn augment the necessary power divested in the counter-torque system. I am stunned by this Kaman design. Given the exquisite refinement of their complex meshed rotor, it's re-assuring to see that at least someone there was not a genius...

Especially when structural design of the tail boom were of equal efficiency
page38 said:
n, and assuming that the skin is stable, the maximum stress is
617 psi. It is thus clear that an aluminum semimonocoque structure would
be highly inefficient. A skin is required which is self stabilized and
is light; and a low stress allowable is no detriment. A plastic or
fiberglass-skinned sandwich with a foam core is ideal for the application

And then this incredible moment of mud pedling:
page50 said:
Thrust is reduced as the tail boom is lengthened; weight is
reduced it constant boom length with a smaller exit area, and it is not
immediately apparent what combination of dimensions is optimum.

Which invariably lead us to (nearly!) this momentary lapse of reason (think Pinkfloyd)

page53 said:
Both weight and balance are of major concern in the fan-in-fuselage design.
The tailboom must enclose a large duct area for aerodynamic efficiency,
and is therefore heavier than a tail rotor tailboom. In this particular
design, the offset from the centerline of the tail rotor drive takeoff
in the main transmission to the centerline of the fan makes another gearbox
necessary. In addition, airflow control and turning vanes are
required at the aft end of the boom, and a larger fin area is required
because the yaw moment of inertia is higher. The gross weight is therefore
increased by 7 percent, approximately.

To be latter back in this complete denial of basic engineering principle:
page60 said:
Use of the ducted fan has actually reduced antitorque power. Rotor
power, increased because of higher weight and vertical drag, more than
accounts for the difference in total power.

But then going further down would look like maniacal sadism so I will end there.

This absurdity should be taught in Engineering schools ;)


[/Malice]

Moment of Inertia formula (see how at equal mass it increases as the square of R):



quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,205
Reaction score
284
500 Fan said:
A nice find, hesham. I saw those drawings in a NASA book at the American Helicopter Museum this year but there was no supporting text. That fills another hole in my research. :)

Can you say if that PDF is a recent addition to the DTIC website or has it been there all along? I have trawled that for OH-6A-related test reports but I managed to miss this one!

500 Fan.

DTIC’s own search is not great but google indexes most of their documents - and can pull text out of PDFs that DTIC can not. Using google to search DTIC often works better


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
500 Fan said:
A nice find, hesham. I saw those drawings in a NASA book at the American Helicopter Museum this year but there was no supporting text. That fills another hole in my research. :)

Can you say if that PDF is a recent addition to the DTIC website or has it been there all along? I have trawled that for OH-6A-related test reports but I managed to miss this one!

500 Fan.

Thank you 500 Fan.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
15,937
Reaction score
5,502
TomcatViP said:
But then going further down would look like maniacal sadism so I will end there.

This absurdity should be taught in Engineering schools ;)

Old Cold War disinfo or spy bait document that was accidently put into DTIC, perhaps? Could be even a genuine report altered for such a purpose, and the altered version was unwittingly sent in rather than the real deal.


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,205
Reaction score
284
Example:

"oh-6a site:dtic.mil"

https://www.google.com/search?q=oh-6a+site%3Adtic.mil

"site:" restricts the search results to a single site or domain.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,688
Reaction score
780
Unknown Helicopter Slide

Good Day All -

Any ideas what helicopter this is?

https://www.ebay.com/itm/35mm-Kodachrome-Helicopter-Slide-Unknown-EXPERIMENTAL-HELO-N268B-in-June-1958/273632737598?hash=item3fb5c8393e:g:vscAAOSw-sVcKVN3

Enjoy the Day! Mark


Attachments

  • Unk Helicopter N268B.jpg
    Unk Helicopter N268B.jpg
    170.2 KB · Views: 163

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,209
Reaction score
1,508
Re: Unknown Helicopter Slide

Kaman K-17
http://all-aero.com/index.php/35-helicopters/copters/13043-kaman-k-17
https://registry.faa.gov/AircraftInquiry/NNum_results.aspx?NNumbertxt=268B
http://archive.aviationweek.com/issue/19580414/#!&pid=72
http://archive.aviationweek.com/issue/19580512/#!&pid=122


Attachments

  • kaman-k17 (1).jpg
    kaman-k17 (1).jpg
    19.1 KB · Views: 151
  • 19580512142_1.jpg
    134.4 KB · Views: 129
  • Kaman-K17.jpg
    84.2 KB · Views: 148

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,688
Reaction score
780
Re: Unknown Helicopter Slide

Thanks Flateric!! Mark


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
From JAWA 1969.


Attachments

  • ٢٠١٩١١٢٠_١٥٤١٢٤.jpg
    1.7 MB · Views: 130

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,465
Reaction score
911
Good morning my dears and my friends,

here is a Kaman modification to OH-6A to be fan-in-fuselage;


That looks like an early iteration of the "Quiet One" Stealth helicopter (1972) and MD 500 NOTAR. Early in the "Quiet One" program, they concluded that tail rotors are more noisy than many other components. Hughes solved that problem by doubling the number of tail rotor blades, but off-set them less than 90 degrees. This became the production configuration on AH-64 anti-tank helicopters.

In 1981, Hughes - now McDonnell-Douglas Helicopters re-started research on quieter tail rotors. They added blown boundary air along the entire length of the tail boom (Coanada Effect) to improve yaw stability. The first batch of MD NOTARS were basically stock MD500s from firewall forward. NOTAR are amongst the quietest of production helicopters.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
15,937
Reaction score
5,502

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,121
Reaction score
5,629
From Aviation Week 1965,

you feel that Model of Kaman UH-2 was different ?.


Attachments

  • c.png
    330.1 KB · Views: 107

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,465
Reaction score
911
Charles Kaman was an avid amateur guitar player from an early age. In 1964, he assembled a team of aerospace engineers who were also guitarists and wood-workers to develop the line of "Ovation" acoustic guitars and mandolins. Ovation guitars have distinctive, rounded, composite bodies.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,007
Reaction score
480
Charles Kaman was an avid amateur guitar player from an early age. In 1964, he assembled a team of aerospace engineers who were also guitarists and wood-workers to develop the line of "Ovation" acoustic guitars and mandolins. Ovation guitars have distinctive, rounded, composite bodies.

Wow ! I never knew that . . . way cool . . .

cheers,
Robin.


Richard N

Lost in the Sky
Senior Member
Joined
Jun 18, 2009
Messages
720
Reaction score
771

"Charles Kaman put a team of employees to work to invent a new guitar in 1964.[7][16] For the project, Kaman chose a small team of aerospace engineers and technicians, several of whom were woodworking hobbyists as well. One of these was Charles McDonough, who created the Ovation Adamas model.[history 1] Kaman founded Ovation Instruments, and in 1965 its engineers and luthiers (guitar makers) worked to improve acoustic guitars by changing their conventional materials. The R&D team spent months building and testing prototype instruments. Their first prototype had a conventional "dreadnought" body, with parallel front and back perpendicular to the sides. The innovation was the use of a thinner, synthetic back, because of its foreseen acoustic properties. Unfortunately, the seam joining the sides to the thin back was prone to breakage. To avoid the problem of a structurally unstable seam, the engineers proposed a synthetic back with a parabolic shape. By mid-1966, according to Ovation, they realized that the parabolic shape produced a desirable tone with greater volume than the conventional dreadnought.[17]

Once the engineers had settled on a parabolic shape, they turned their attention to developing a substance that could be molded into this bowl-like shape. Using their knowledge of high-tech aerospace composites, they developed Lyrachord, a patented material comprising interwoven layers of glass filament and bonding resin."


isayyo2

Lurker alert
Joined
Nov 24, 2011
Messages
389
Reaction score
532
I believed that evolved into the QH-43 drone on the USS Wright?
If those three stations were to be destroyed, or communications with them lost, the Wright could deploy an unmanned QH-43 Huskie helicopter, a unique version of the Kaman design that could lift a super very-low-frequency antenna over two miles into the air and thereby communicate with Navy submarines around the globe. In all, there was space on the deck for three helicopters to be embarked.


Bazinga

I really should change my personal text
Joined
Dec 14, 2012
Messages
165
Reaction score
183
...how about some Kaman prototypes and projects?

Here are a few, probably nothing new, mostly from the Kaman pages at www.aviastar.org. All have photos or sketches there as well.

--Kaman K-125 (1947) - Experimental prototype that proved the intermeshing twin-rotor design (one built)
--Kaman K-16B (1962) - Grumman JRF "Goose"-based VTOL amphibious convertiplane project (one built, not flown)
--Kaman K-17 (1958) - Experimental single-rotor design with cold-jet propulsion (one built)
--Kaman K-1125 "Huskie III" (1962) - Prototype enlarged, twin-turbine development of popular H-43 Huskie proposed for both civilian and military uses (one built)
--Kaman YUH-2 (1962) - Experimental compound helicopter conversion of Seasprite with added turbojet, reached 223 mph (one built)
--Kaman H-2 "Tomahawk" (1963) - Straightforward gunship conversion of successful U.S. Navy SH-2 "Seasprite" twin-turbine, single-rotor anti-submarine helicopter with four machine guns in unique dual chin turrets. Over 200 ordered, but canceled in favor of Bell UH-1s. (one built)
--Kaman K-700 (1969) - Proposed USAF rescue version of K-1125, project only.
--Kaman KSA-100 (1971)- Stowable Aircrew Vehicle Escape Rotorseat (SAVER), a jet-powered gyroplane ejection seat to allow a pilot to fly himself back to safety (one built)

For something completely different, attached is an intriguing tidbit from FLIGHT (20 January 1956) mentioning of a Kaman annular wing project funded by the USN ONR.

I would be very surprised if Kaman has never proposed an armed variant of the K-1200 "K-MAX" aerial crane. I can't believe that I am the only one to think that its narrow, single-seat fuselage and whopping 5,000 lb external payload capacity would make a fantastic "missile truck," perhaps working with other, lighter helicopters as target designators?

I am sure there are lots more Kaman protoypes and projects to share...let's see 'em!
1956 Les Ailes 20191129-018.jpg

Top
