US Navy Experimental Designations

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
83
Website
www.tommythomason.com
Shortly after the end of World War II and its formation, the U.S. Air Force began to use sequential number X designations for experimental aircraft. At some point, probably after the war as well, the Navy codified a designation system for purely experimental aircraft that utilized their manufacturer's letter designations. As stated in Model Designation of Naval Aircraft dated 17 May 1961 provided by Andreas Parsch: Airplanes designed and constructed for research purposes are designated by the designer's code number...followed by his design project number, for example: "D-652" would designate a naval research aircraft designed by Douglas and would be the 652nd. design project by Douglas.

Although it may not be significant, note that this definition refers to design numbers, not model numbers, which are different lists in some companies like Bell Aircraft.

These Model Designation lists were periodically issued by BuAer and successor organizations. Thanks to Ryan Crierie and Andreas, I was able to review the April 1945 and October 1947 lists. Neither include the definition above. The only experimental aircraft listed is the D-558 in the October 1947 issue.

The experimental Navy aircraft that I am familiar with are:

Vought V-173: As has been pointed out, this is Vought's internal designation: if it had been designated in accordance with the 1961 definition, it would have been U-173. Although begun with Vought money, it was subsequently assigned a BuNo in the early 1940s and was marked and referred to as the V-173 by the Navy. I agree that it probably predates the convention later adopted.

Douglas D-558: This was a Navy three-phase high speed research program contracted with Douglas in June 1945. It may or may not predate the convention. The first three airplanes were designated D-558-1 and the second three D-558-2, although it is likely that Douglas assigned a different model number to the -2 Skyrockets. The designation D-558-3 is completely bogus. The third phase of the original program was simply to be a mockup of an operational jet fighter and the Douglas proposal for what some refer to as the -3 never uses this designation. As Douglas well knew, they were competing for a rocket ship that would be designated X-15.

Bell L-39: Even though a research designation convention is not included in the 1947 Model Designation list (and neither is the L-39 or Bell as a fixed-wing airplane manufacturer), this is evidence that the convention might have been used as early as 1946 when BuAer contracted for two L-39s, a modification of the P-63 to have swept wings. L was the letter assigned by the Navy for Bell aircraft. According to Birch Matthews in his book Cobra!, 39 was Bell's design number for the project. (Bell design numbers were assigned by engineering while model numbers were assigned by management.) In any event, one of the Bell reports on the testing begins with the model number 33, which is the basic model number for the first P-63s. The Navy evaluated the L-39s for a few months in 1946 and then one was taken over by NACA and the other by Bell, so it's not surprising that they did not appear in the 1947 list.

Kaman K-225: The Navy bought three of the primitive Kaman intermeshing rotor (synchropter) model 225s for evaluation in 1950, assigned them BuNos, and gave them the designation K-225. Again, this is not conclusive evidence that the convention was being used at the time, per se, because it was the company's internal designation. One of the Navy's K-225s was subsequently modified with a turbine engine replacing the Lycoming 225-hp (the basis for the Kaman model number) piston engine.

Convair Y2-2: This is the cleanest example of the convention being used, whether it had been formally established at the time or not. Y was the Navy's letter for Convair and 2-2 was the company model designation. Convair received a contract for two as research airplanes in January 1951 but these were redesignated XF2Y-1 later that year.

Kaman K-16: The Navy contracted with Kaman for a tiltwing STOL ground test article (half of the wing, one engine, nacelle, and prop) as the K-16 in February 1956. In January 1958, this contract was amended to add the design and manufacture of the K-16B, which consisted of the K-16 wing and a Grumman JRF fuselage. It never flew but was tested in the NASA Ames 40X80 wind tunnel in late 1962. A K-16C proposal with a Kaman HU2K fuselage and fixed wing aircraft empennage did not result in a contract.

Goodyear GA-468: This inflatoplane was evaluated at NATC circa 1959/1960. I don't know if it ever got a BuNo or a Navy designation. The Army/Air Force designation was apparently AO-3.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13

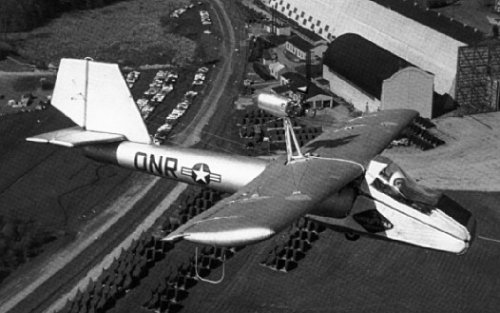

The Goodyear 468 Inflatoplane was a single seat version of the AO-2 design. Five were ordered by the US Army as YAO-3 with serials 57-6532/6536. The designation XAO-3 has also been referred to for these aircraft. The first flight was on 28 May 1957 and testing was also conducted by the US Navy as an escape, evasion, limited reconnaissance and downed pilot rescue vehicle for the Marine Corps. Tests included landings on water. No further development was undertaken as there was no viable mission for the aircraft and it was cancelled in November 1960 before completion of testing.


Attachments

  • AO-3 (Goodyear).jpg
    AO-3 (Goodyear).jpg
    53.5 KB · Views: 100

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466

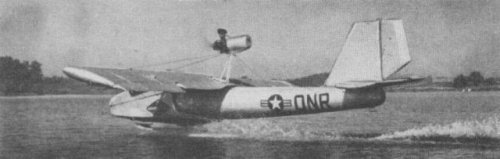

And another view of the same:


Attachments

  • ONR-CIA Rubber Airplane.jpg
    ONR-CIA Rubber Airplane.jpg
    18.8 KB · Views: 91

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Any idea if the Navy also used Kaman's inhouse K-16 designator officially for their tilt-wing Grumman prototype?


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13

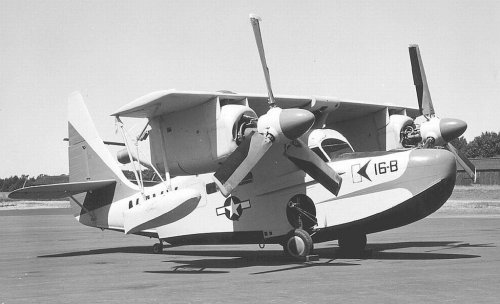

One JRF-5 (04353) was converted as the Kaman K-16B tilt wing VTOL aircraft, fitted with a tilting 34', 10.36 m and two General Electric T-58-GE-2A. Only tethered tests were conducted before the US Navy terminated the programme that had lasted from 1954 to 1962. Some references suggest that 2 Lycoming T-53-L-2 engines were fitted but this may relate to an unbuilt K-16 version.


Attachments

  • Kaman K-16.jpg
    Kaman K-16.jpg
    95.9 KB · Views: 95

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466

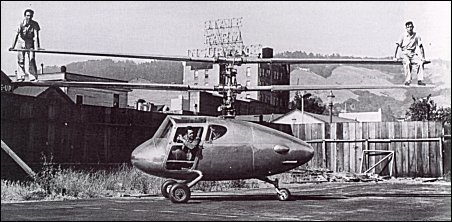

I have just come across yet another non-standard experimental Navy designation: UH-1X... ???

"Although no specific military requirement yet existed for such a machine, the [Hiller] X-2-235 was intended primarily for U.S. Navy use in the light utility, observation, and training roles. The Navy did not actually order the type, but it did procure the third uncompleted X-2-235 under the designation UH-1X, for evaluation in NACA wind tunnels at Langley Field, Virginia. Vibration problems curtailed these tests for fear of damaging the wind tunnel, but not before results vindicated the Hiller group's belief that super-rigid coaxial rotors were a valid approach to very highspeed helicopter flight.

The UH-1X, Hiller's first military contract, clearly ran counter to normal aircraft engineering, but then the team building it had experience only in designing ships, bridges, and similar beefy structures."

(source: J. P. Spencer "Whirlybirds: A History of the U. S. Helicopter Pioneers", 1998)


Now honestly, how they came up with that odd designation is beyond me... :-\


Attachments

  • hiller_x-2-235.jpg
    33.7 KB · Views: 102

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
83
Website
www.tommythomason.com
In doing some follow-up research on this subject for my blog (http://thanlont.blogspot.com/2010/07/navy-research-aircraft-designations.html), I found the answer to the source of the number 39 in the L-39 designation. According to Birch Matthews, in his book Cobra!, it was Bell's design number for the project. I've revised my opening post accordingly.


Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
83
Website
www.tommythomason.com
Stargazer2006 said:
I have just come across yet another non-standard experimental Navy designation: UH-1X... ???

"Although no specific military requirement yet existed for such a machine, the [Hiller] X-2-235 was intended primarily for U.S. Navy use in the light utility, observation, and training roles. The Navy did not actually order the type, but it did procure the third uncompleted X-2-235 under the designation UH-1X, for evaluation in NACA wind tunnels at Langley Field, Virginia. Vibration problems curtailed these tests for fear of damaging the wind tunnel, but not before results vindicated the Hiller group's belief that super-rigid coaxial rotors were a valid approach to very highspeed helicopter flight.

The UH-1X, Hiller's first military contract, clearly ran counter to normal aircraft engineering, but then the team building it had experience only in designing ships, bridges, and similar beefy structures."

(source: J. P. Spencer "Whirlybirds: A History of the U. S. Helicopter Pioneers", 1998)

Now honestly, how they came up with that odd designation is beyond me... :-\

UH-1X was a company model number when Hiller was known as United Helicopters. For example, the Army OH-23/Navy HTE was either the Model 360X or the UH-12. See http://en.wikipedia.org/wiki/Hiller_OH-23_Raven

Further, the third "uncompleted X-2-235" was reportedly only the rotor system. The Navy would probably not have given a designation, much less a BuNo, to a non-flying test article.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Tailspin Turtle, thanks for clarifying this point and therefore setting the record straight on an oft-repeated mistake!
