Junkers Ju 85/88/188/388 & 488 - Projects, Prototypes and Variants

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549

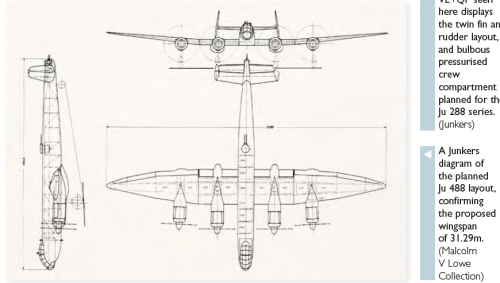

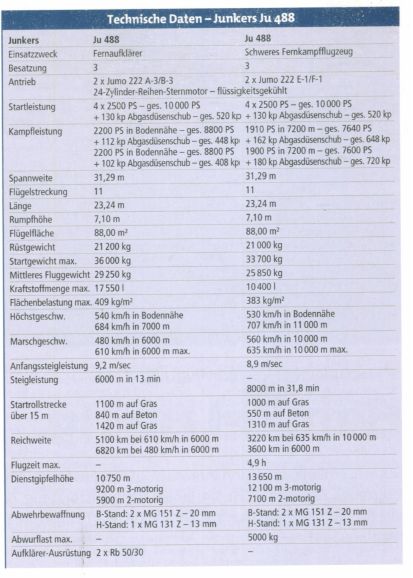

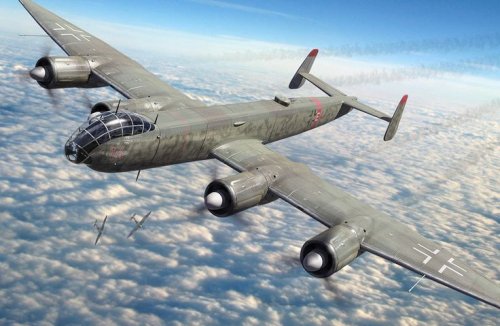

From Flugzeug Classic Special 10,

the Junkers Ju-488.


Attachments

  • 488.png
    125.2 KB · Views: 1,007

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,675
Reaction score
3,176
Re: Junkers Projects and Prototypes of WW II

Hi!

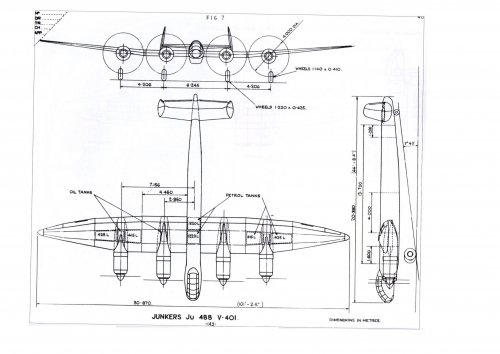

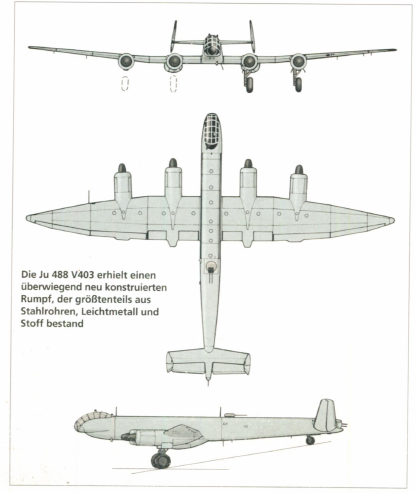

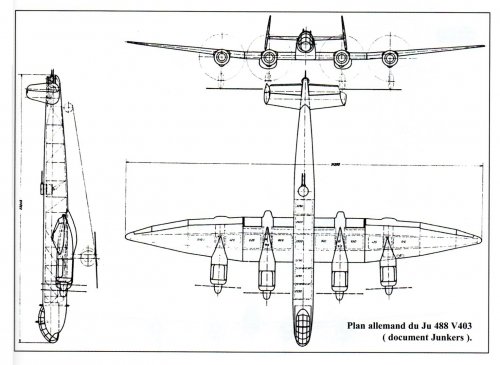

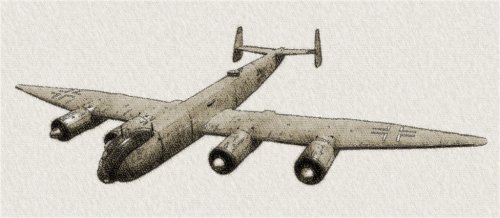

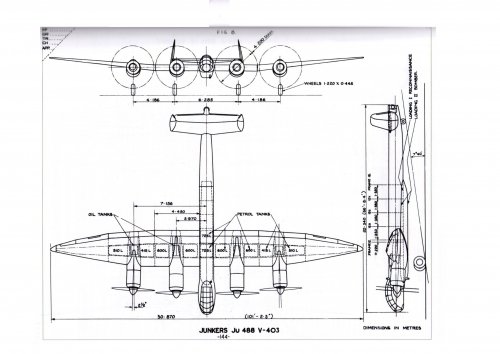

Junkers Ju 488 V-401, V-402 and V-403 drawings.
No.2 drawing is named V-403, but perhaps it's a mistake.
Or No.1 picture shows V-402 and No.2 picture shows V-401. I'm not sure. Please someone teach me.

luft46 seems to say that No.2 drawing shows V-401.
No defensive armament was to be fitted to either the V401 or V402. Fuselage tail end shape of No.1 drawing and No.2 drawing is different.

I imagine that V-403 outside undercarriages are drop undercarriage, because outside engine nacell size are to small to retract undercarriage. Please confirm No.1 drawing, especially engine nacelle.
Or outside undercarriage were twisted 90 degree and retracted? Wing trailing edge shape shows this mechanism? Any way inside engine nacelle is very large. Why? This size could retract double tire?

Perhaps Junkers used thin wing for high speed, so support for outer engine was needed on the ground.German engineers loved high speed very much ;D
V-401 MODEL.

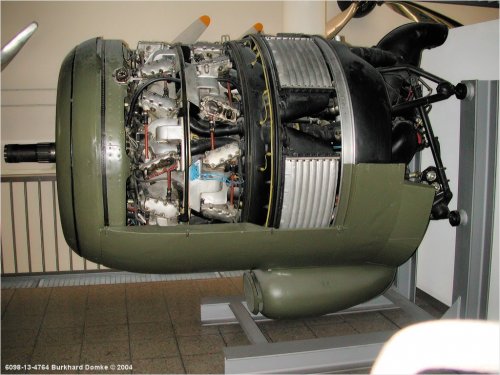

V-401 and V-402 had turbocharged BMW801TJ aircooling radial engine. You can see turbocharger and intercooler in 801TJ pictures.
We can see BMW801TJ's ram air intake for turbocharger in the bottom picture. But I can't find this intake in three side view drawing.???


Attachments

  • BMW801TJ_6098.jpg
    321.3 KB · Views: 225
  • bmw_tj.jpg
    12.7 KB · Views: 865
  • bmw801tj.jpg
    101.1 KB · Views: 155
  • 094-600x905.jpg
    93.8 KB · Views: 234
  • V-403.jpg
    64.2 KB · Views: 237
  • Junkers_Ju_488_V-403.jpg
    127.5 KB · Views: 236
  • V-401.jpg
    238.2 KB · Views: 238
  • Ju 488 V-403.jpg
    Ju 488 V-403.jpg
    297.3 KB · Views: 265
  • Ju 488 V-402.jpg
    Ju 488 V-402.jpg
    464.6 KB · Views: 267
  • Ju 488 V-401.jpg
    Ju 488 V-401.jpg
    439.4 KB · Views: 300
Last edited:

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
16
hesham said:
Hi,

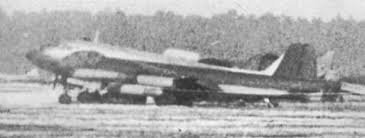

A really picture to Junkers EF-131 six engined jet bomber,and a drawing to
Ju-488.

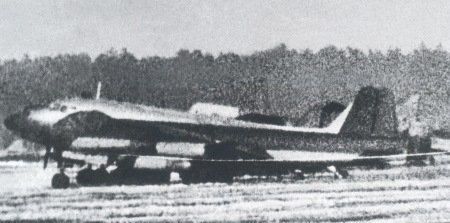

Yes, photo of the rough quality... But it seemd to be unique... Colour shema and markings should be like this:


Attachments

  • EF-131 color.jpg
    EF-131 color.jpg
    66.2 KB · Views: 327
  • EF131_01.jpg
    49.9 KB · Views: 291
  • ???????????? (2).jpg
    ???????????? (2).jpg
    6.3 KB · Views: 295

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,243
Reaction score
102
Website
zeef.com
http://www.modellversium.de/galerie/9-flugzeuge-ww2/11398-junkers-ju-85-b-zvezda.html

i have found this site where they speak about Junkers 85 B

Well we know that their was projected with db 600 with 950 HP.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549

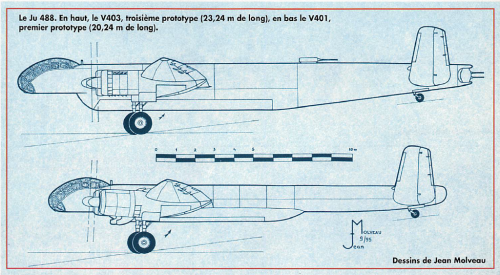

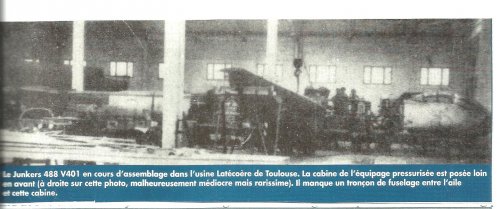

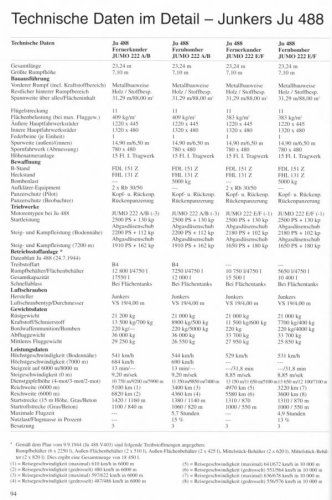

Le Fana 318,

the Ju-488.


Attachments

  • 1.png
    1.2 MB · Views: 418

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549
The Ju-488.


Attachments

  • c.png
    289.2 KB · Views: 370

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
someone has something on the ju 88 A4 with Wgr 21 from the book "junkersflugzeuge 1933/1945"?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549

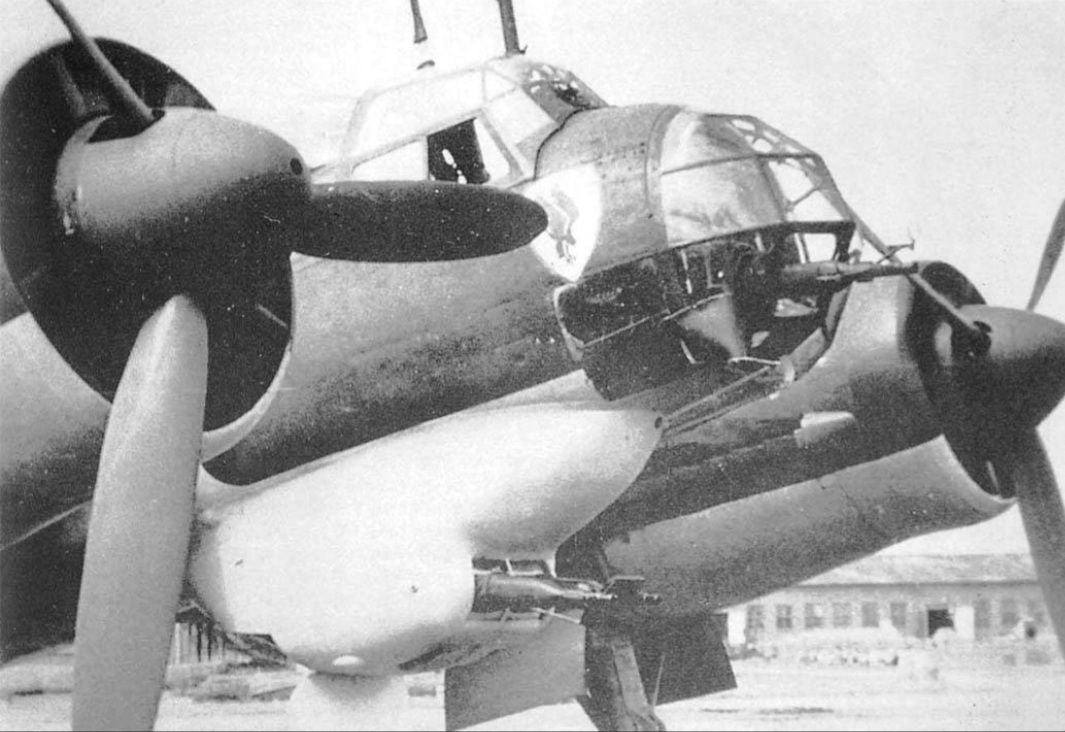

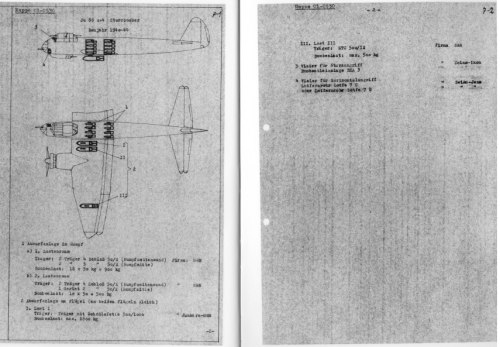

someone has something on the ju 88 A4 with Wgr 21 from the book "junkersflugzeuge 1933/1945"?

My dear Sgeorges,

you meant those.


Attachments

  • 1.png
    556.8 KB · Views: 228
  • 2.png
    527.4 KB · Views: 220

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181
I'm talking about the one page 72 and anything regarding the operationnal use of the ju 88 reaktive Bewaffnung page 71 (the Bemerkung say: Der Einbau der reaktiven Bewaffnung wurde nur von der Truppe durchgeführt),their is also a junkers 88 mit Rückwürtsbewaffnung page 65,operationnal use? interesting project regarding a ju 88 mit Sonderwaffenanlage (page 66) and ju 88 - sondereinbau page 67 (a different gondola)Great book by the way.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
609
Reaction score
181

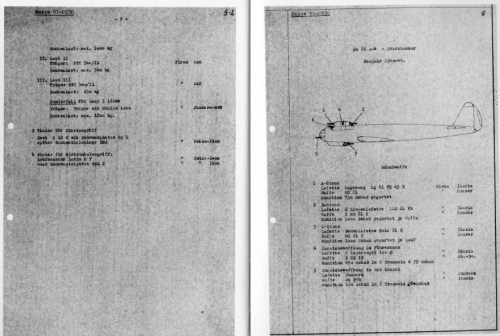

here is on of the project I was talking about (produced?)
escanear0003-jpg.73426


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,599
Reaction score
4,549
Hi,

can I ask if there was a drawings survivor to a Ju-88 or Ju-188,with additional Jet engine,mounted
at the center of the fuselage ?.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,453
Reaction score
922

Attachments

  • 20200728_Ju_88_flying_testbed_website.pdf
    158.1 KB · Views: 36
Last edited:

Airborne2001

ACCESS: Confidential
Joined
Jun 19, 2020
Messages
85
Reaction score
66

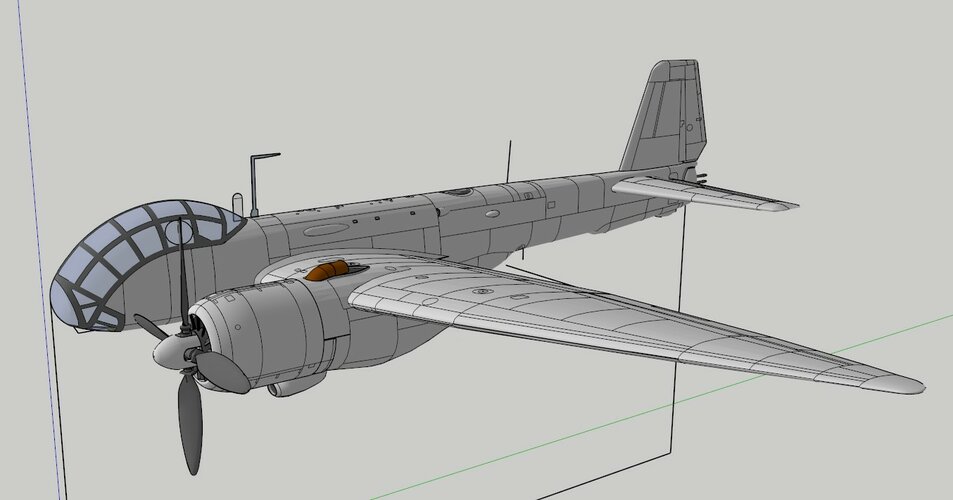

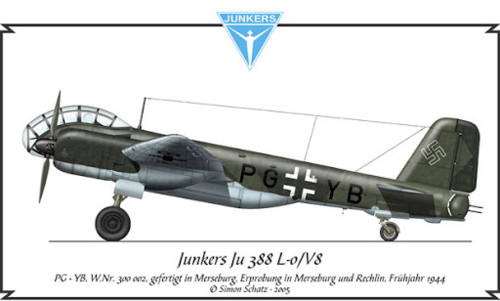

I simply love the Ju-388. It combines the sleek look of the Ju-188 with performance similar to the Ju-288.

Now this next thing is according to Wikipedia, so I am not sure how accurate it is. In regards to all variants, the subtype numbers indicated what engine would be used:
  1. -1 = BMW 801J
  2. -2 = Jumo 222A/B or Jumo 222E/F
  3. -3 = Jumo 213E (Supercharged)
Can anyone please confirm this?


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,144
Reaction score
1,783
Yes, those subtypes and engines are correct.
Worth noting the K-2 equipped as a nightfighter would have BMW 801G instead of TJ, which only the day Zerstorers would have.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,174
Reaction score
850
Website
beyondthesprues.com
I simply love the Ju-388. It combines the sleek look of the Ju-188 with performance similar to the Ju-288.
View attachment 638345

Now this next thing is according to Wikipedia, so I am not sure how accurate it is. In regards to all variants, the subtype numbers indicated what engine would be used:
  1. -1 = BMW 801J
  2. -2 = Jumo 222A/B or Jumo 222E/F
  3. -3 = Jumo 213E (Supercharged)
Can anyone please confirm this?

If you like the Ju388, you simply must get this book:



iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
409
Reaction score
243
I simply love the Ju-388. It combines the sleek look of the Ju-188 with performance similar to the Ju-288.
<snip>

If you like the Ju388, you simply must get this book:


Definitely. Maybe even if you don't like it, but are interested in the period. This is one of the more comprehensive, well-illustrated, and well-written accounts of any aircraft that I have read in the last few years.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,453
Reaction score
922

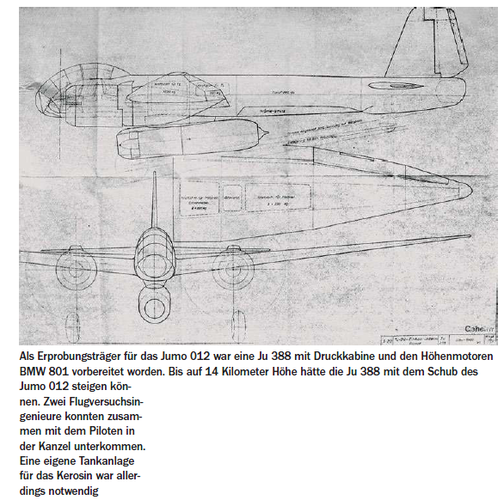

In the January 2021 issue of the German magazine "Flugzeug Classic" on page 26 a 3-view-drawing of a planned Ju 388 as a testbest for the jet engine Jumo 012 is publsihed. This jet engine would have powered the Junkers Ju/EF-132.
Picture caption said:
Als Erprobungsträger für das Jumo 012 war eine Ju 388 mit Druckkabine und den Höhenmotoren BMW 801 vorbereitet worden. Bis auf 14 Kilometer Höhe hätte die Ju 388 mit dem Schub des Jumo 012 steigen können. Zwei Flugversuchsingenieure konnten zusammen mit dem Piloten in der Kanzel unterkommen.
Eine eigene Tankanlage für das Kerosin war allerdings notwendig.
Source: Flugzeug Classic 01/21
Due to forum rules I won't attach that drawing at this time. :)


sean hunter

ACCESS: Confidential
Joined
Jan 14, 2021
Messages
115
Reaction score
22
i never under stood why the ju-300 series had pointed wings you lost a lot of efficiency with that


sean hunter

ACCESS: Confidential
Joined
Jan 14, 2021
Messages
115
Reaction score
22
now this is a regular wing this is what im talking about. now the more pointed the wing the worse this gets. this is wingtip turbulence

even though this is more efficient than that


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,320
Reaction score
725
Dear sean hunter,
May I disagree?
Large, square cut wing tips generate the largest vortices. The smaller the wing tips, the smaller the vortex.
The farther outboard, the smaller the vortex. That is why high aspect ratios help improve ceiling, climb and glide. Modern airliners have high aspect ratios because they cruise at 40,000 or 50,000 feet in the "Mach corner" between stall and supersonic flight.
The disadvantage of high aspect ratio wings - with their longer spans - is that they are structurally heavier than low aspect ratio wings.
One way to increase "aerodynamic span" without making "structural span" prohibitively heavy is the "pointy" wing tip extensions like those seen on high-altitude Junkers and Spitfires. Since their extended wing tips are so small, they add little structural load to spars, but push vortices farther outboard.

Nowadays, Whitcolm winglets add "aerodynamic span" with excessive span loads but bending wingtips upwards. Winglets flew first (early 1970s) on Burt Rutan's Vari-Eze homebuilt, but have been retrofitted to thousands of small, medium and large airplanes. Winglets are now standard on many airliners.

Designers knew this back during World War 2. High altitude versions of Spitfires had extended, pointy wing tips, while low-altitude Spitfires had cropped wing tips. Cropping wing tips improved roll rates, but made little difference in speeds at low altitudes. Junkers did the same type of wing tip extensions on high-altitude versions of Ju.86 and Ju.88.
Bottom line, pointy wing tips increase aspect ratio with only a tiny increase in structural loads added to wing spars.


sean hunter

ACCESS: Confidential
Joined
Jan 14, 2021
Messages
115
Reaction score
22
o_O oh wow okay that makes total sense. sorry i just thought. "well if you have a long range bomber you would want to have eficiency" and i saw those pointed wings and that was the first thing that came to mind. so sorry for being kinda stupid.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
Does anyone know where to find information on the Ju-188S? I've seen plenty of mentions (including mentions of variant with a BK-5 used for low altitude ground-attack work - something I have doubts about), however I haven't seen many visual references.


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
171
Reaction score
38
In my humble opinion there never was a Ju 188S as an actual aircraft I have primary material on Ju 88 series subtypes and there were 3 versions proposed in early 1943 and these appeared to be essentially what were later designated as Ju 388 Ks.
Best Regards,
Artie Bob
Best


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,695
Reaction score
1,094
Does anyone know where to find information on the Ju-188S? I've seen plenty of mentions (including mentions of variant with a BK-5 used for low altitude ground-attack work - something I have doubts about), however I haven't seen many visual references.

A dated reference, I know, by according to William Green, under the Hubertus programme, the RLM contracted fighter, bomber, and recce variants as the Ju 188J, Ju 188K, and Ju 188L respectively. These were, of course, redesignated Ju 388J, Ju 388K, and Ju 388L. However, the Ju 188S high-altitude intruder and Ju 188T fast reconnaissance variants did proceed.

As illustrated in a 3-view drawing, the Ju 188S looks basically like a Ju 188A fitted with the forward fuselage from a Ju 388.

These aircraft were to be powered by Jumo 213E-1s with GM-1 injection - 2,168 hp for take-off, 1,690 hp at 31,400 feet. According to Green, production began at ATG-Leizig in early Summer 1944. A handful of Ju 188S-1s were converted to Ju 188S-1/U standard with that belly-mounted 5.0 cm BK 5 gun for ground attack use. "Ten other semi-complete Ju 188S-1 airframes were transferred to Merseburg where they were converted to Ju 388L-0 reconnaissance aircraft."

Green doesn't anything more about production of the Ju 188T. But, under the Ju 388 entry, he notes that the Ju 388L V1 - also said to be converted from a Ju 188S - "was completed late in 1943" based on a Ju 188T-1 airframe. That seems early but the 10 'S-1s converted to Ju 388L-0 weren't accepted by the Luftwaffe until August 1944 ... which seems about right.

Take that for what it is worth.

Warplanes of the Second World War, Bombers and Recce Aircraft, Vol. 10, Macdonald, Longon, 1968, pp 130-132 and pg 168


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,144
Reaction score
1,783
Antony L. Kay's Junkers Aircraft & Engines, for Putnam has much the same tale.
Kay gives no production figures, but states; "Few of the Ju 188S-1s were completed before production was abandoned, but several of the completed machines were fitted with armour and a 50mm BK-5 cannon as the Ju 188S-1/U close-support aircraft."

Helmut Erfurth's Junkers Ju 188, the first of Midland Publishing's Black Cross series of books, has very little on the S-1 and indeed no images or blueprint drawings of that sub-type.
In a table of variants it states;
"Ju 188S - Role: fast bomber
Powerplants: 2x Jumo 213C-1 or Jumo 213E-1
Remarks: In configuration as A-2 but with redesigned full-view canopy as with later Ju 388K and increased engine performance.
Bomb supports: M1 (forward loading bay), M2 (rear loading bay)
Armament: 1x BK 5 in ventral trough as fixed forward-weapon. Special anti-tank project."

For completeness the Ju 188T in the same table is described as;
"Ju 188T - Role: High-altitude reconnaissance
Powerplants: 2x Jumo 213C-1 or Jumo 213E-1
Remarks: Project for an improved high-altitude and long-range recce aircraft. No series production."

Karl-Heinz Regnat's Junkers Ju 288/388/488, the second of Midland Publishing's Black Cross series of books, mentions the Ju 188S-1; "S-1 high-altitude bomber with pressurised cabin, unarmed; only prototypes built. A variant was the Ju 188S-1/V with BK-5 cannon.
T-1 reconnaissance variant based on the S-1."
Note that 188S-1/V must be an error (perhaps a typo) and should properly be S-1/U.

Regnat confirms that the Ju 388L V1 was built at the end of 1943 using parts from a Ju 188T airframe.
He goes on to say that ATG got a contract to convert 10 Ju 188S-1 airframes to 388L-0 pre-production standard. The first was handed over in August 1944.

So while Green, Kay and Regnat all say that the S-1 was a high-altitude fast bomber with a pressurised cabin, Erfurth seems to indicate the S-1 was simple an A-2 with improved Jumo 213s, no defensive armament to save weight and a refined canopy for better visibility (probably vital if you want to dodge Allied fighters and have no defensive armament).
In some respects this would make sense given the existence of the S-1/U used for low-level anti-tank work. But then it would seem that the T-1 would differ and be closer to the L-series, which would make less sense to if they were developed as a bomber/recon pairing.

Unpicking these late war Junkers developments is not easy work and I have never seen any images of the S-1, either as blueprints or photographs, but all these authors seem to broadly agree (assuming they are not all simply regurgitating previous histories).


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
171
Reaction score
38
I wonder why no one has referenced Classics Junkers Ju 88 Volume One. It is a more recent publication than others referenced and does have a lot of primary material reproduced. On page 214 is a copy of the JFM document which pretty well lays out the relationship of proposed Ju 188 subtypes. That being said, there is no indication in the 1944 C-Amt Monatsmeldung or Flugzeug Verteilung that any aircraft with a Ju 188 S designation were produced. There are some missing versuchs numbers, but that is about the only possiblity. Again, in my humble opinion there probably never was an actual Ju 188 S constructed.

Artie Bob


rinkol

I really should change my personal text
Joined
May 22, 2013
Messages
18
Reaction score
1
Antony L. Kay's Junkers Aircraft & Engines, for Putnam has much the same tale.
Kay gives no production figures, but states; "Few of the Ju 188S-1s were completed before production was abandoned, but several of the completed machines were fitted with armour and a 50mm BK-5 cannon as the Ju 188S-1/U close-support aircraft."

Helmut Erfurth's Junkers Ju 188, the first of Midland Publishing's Black Cross series of books, has very little on the S-1 and indeed no images or blueprint drawings of that sub-type.
In a table of variants it states;
"Ju 188S - Role: fast bomber
Powerplants: 2x Jumo 213C-1 or Jumo 213E-1
Remarks: In configuration as A-2 but with redesigned full-view canopy as with later Ju 388K and increased engine performance.
Bomb supports: M1 (forward loading bay), M2 (rear loading bay)
Armament: 1x BK 5 in ventral trough as fixed forward-weapon. Special anti-tank project."

For completeness the Ju 188T in the same table is described as;
"Ju 188T - Role: High-altitude reconnaissance
Powerplants: 2x Jumo 213C-1 or Jumo 213E-1
Remarks: Project for an improved high-altitude and long-range recce aircraft. No series production."

Karl-Heinz Regnat's Junkers Ju 288/388/488, the second of Midland Publishing's Black Cross series of books, mentions the Ju 188S-1; "S-1 high-altitude bomber with pressurised cabin, unarmed; only prototypes built. A variant was the Ju 188S-1/V with BK-5 cannon.
T-1 reconnaissance variant based on the S-1."
Note that 188S-1/V must be an error (perhaps a typo) and should properly be S-1/U.

Regnat confirms that the Ju 388L V1 was built at the end of 1943 using parts from a Ju 188T airframe.
He goes on to say that ATG got a contract to convert 10 Ju 188S-1 airframes to 388L-0 pre-production standard. The first was handed over in August 1944.

So while Green, Kay and Regnat all say that the S-1 was a high-altitude fast bomber with a pressurised cabin, Erfurth seems to indicate the S-1 was simple an A-2 with improved Jumo 213s, no defensive armament to save weight and a refined canopy for better visibility (probably vital if you want to dodge Allied fighters and have no defensive armament).
In some respects this would make sense given the existence of the S-1/U used for low-level anti-tank work. But then it would seem that the T-1 would differ and be closer to the L-series, which would make less sense to if they were developed as a bomber/recon pairing.

Unpicking these late war Junkers developments is not easy work and I have never seen any images of the S-1, either as blueprints or photographs, but all these authors seem to broadly agree (assuming they are not all simply regurgitating previous histories).
I think the Ju 388 superseded the Ju 188S and that the latter was never built. The Jumo 213E engines were not ready for service use until about the end of 1944 and were certainly never available in 1943 - except for a few prototypes, the Ju 388 used the BMW 801TJ for reasons of availability. Even the alternative Jumo 213C seems to have been more or less non-existent.

Also, the idea of fitting a 50 mm gun for close support in an aircraft optimized for high altitude flight (high altitude engines, no defensive armament and pressure cabin) seems bizarre - a conversion of the Ju 188A or E would be simpler and make more sense.

Last edited:

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,243
Reaction score
102
Website
zeef.com
there are also The Midland book about Junkers 288 -388 and 488 . I had impressed by planning production : about 8000 aircraft for Junkers 288 and about 1000 aircraft for 388 .


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
Thank you all for the replies! From what has been written it is plausible that there might have been a few airframes under construction which carried this designation briefly (and may have been intended to have modified canopies and reduced weight). There might have even been a proposal to convert these airfames to a handful of BK-5 equipped aircraft, but it seems like it most likely would've have remained just that - a paper proposal - with the airframes either unfinished, redesignated, or stripped to support production of the more definitive variants.

Thanks again!


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
409
Reaction score
243
<snip/>

Also, the idea of fitting a 50 mm gun for close support in an aircraft optimized for high altitude flight (high altitude engines, no defensive armament and pressure cabin) seems bizarre - a conversion of the Ju 188A or E would be simpler and make more sense.
True. But the entire Ju388 production effort did not make a lot of sense. As I recall from most sources that I've read (especially the Schiffer book, which I don't have immediately to hand), designations, roles, and requirements changed throughout the program, often at short notice. Multiple airframes sat parked in the open awaiting installation of critical components that couldn't be sourced and/or correction of engine and pressure cabin defects. Under these circumstances, I can easily imagine any number of cobbled together schemes for equipping idle airframes for service use--and thus getting them off the company's books and factory grounds.

The Ju388L-0 came about in much this way, when problems with the planned remote-controlled armament couldn't be resolved. So plans for taking aircraft with defective pressure cabins and unobtainable turbocharged engines, re-engining them with available medium-altitude engines, and arming them with 5-cm guns for ground attack do not seem beyond the realm of possibility.

Top
