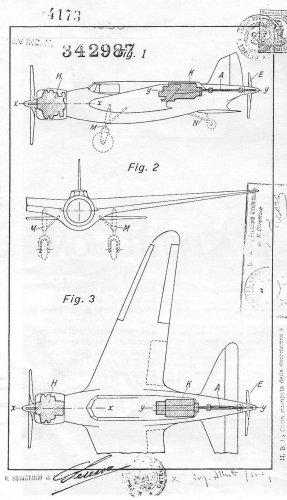

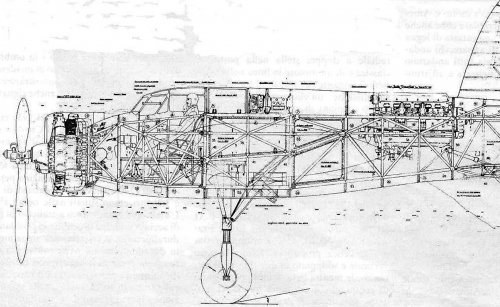

Project from 1935/36 fitted with Fiat A.80 and Isotta-Fraschini L121. Two crew and internal bombbay. 4x12.7mm armament. Speed and dimensions unknown. Perhaps anyone could help out?


Attachments

  • O-1131921765-3iGbHQms.jpg
    118.1 KB · Views: 436
  • O-1131921833-nAu4Ap@o.jpg
    171.9 KB · Views: 291
  • O-1131922054-ojk6Kwv2.jpg
    128.3 KB · Views: 312

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,283
Reaction score
1,206

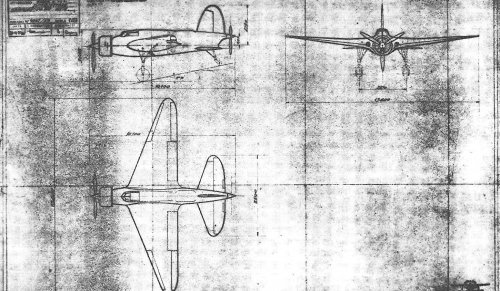

On the second drawing I read the dimensions as lenght 10.1m. Span of
the wing isn't recognisable, but for the tail plane it's 5.5m, I think. So a
quick measurement gives wing span as13.3m.
Unfortunately speed isn't measurable on a drawing ... ;)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
92
There's more info about this design on the
air warfare forum.
Thread of 23.11.2005 by ghibli.

www.airwarfareforum.com


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
Real data for Jo.10

Span. 12.75 m
Lenght 8.80 m
height 3.20 m
Void weight 2000 KG
Max TOW 3400 KG
Total power 1800 HP
Max speed at 4500 600 KM/H
Cruise speed at 2000 m 500 KM/H
All speed data with 2 engines running


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
662
Reaction score
138
Thanks Skybolt,

I'm currently cleaning up the picture a bit. A lot of work to do on the side view.


Attachments

  • Jona J 11.GIF
    Jona J 11.GIF
    9.8 KB · Views: 205

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,283
Reaction score
1,206
"I'm currently cleaning up the picture a bit."
Looks, you are working on the bitmap. Have you tried to
"redraw" it as a vector graphic ?


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
662
Reaction score
138
I've never worked with vector graphics programs save for various CAD programs. Is there anything you'd recommend?

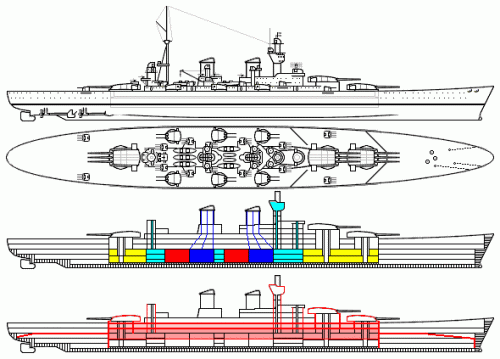

I usually work with paint, drawing ships more than aircraft. I'm just used to it and can use it reasonably well - like below;


Attachments

  • Littorio 33.GIF
    Littorio 33.GIF
    15.1 KB · Views: 185

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
662
Reaction score
138

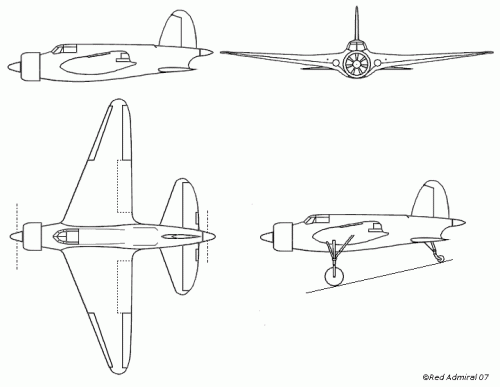

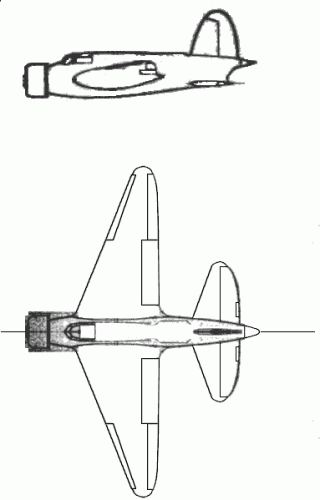

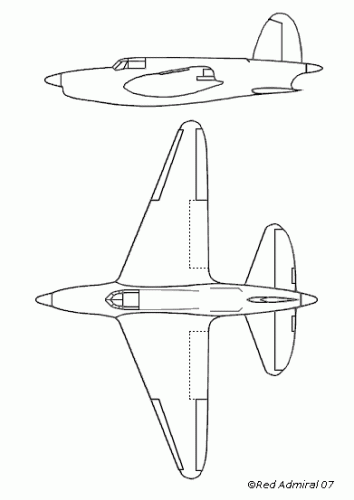

Finished, more or less.

Edit; updated picture.


Attachments

  • Jona J 10.GIF
    Jona J 10.GIF
    12.5 KB · Views: 178

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,534
Reaction score
313
I've never worked with vector graphics programs save for various CAD programs. Is there anything you'd recommend?

http://www.secretprojects.co.uk/forum/index.php/topic,658.0.html

Inkscape it's powerful and free ;)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599

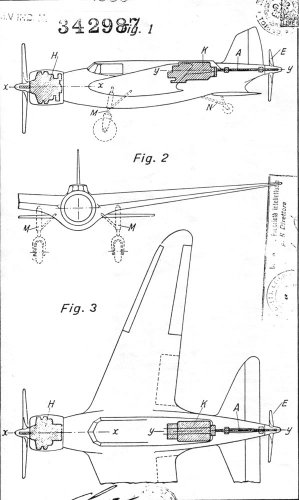

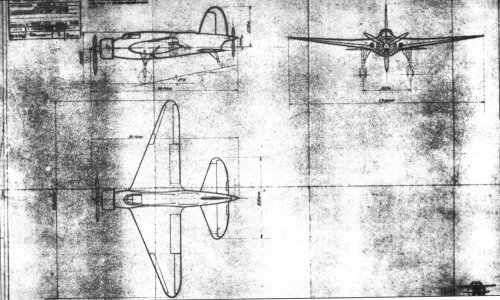

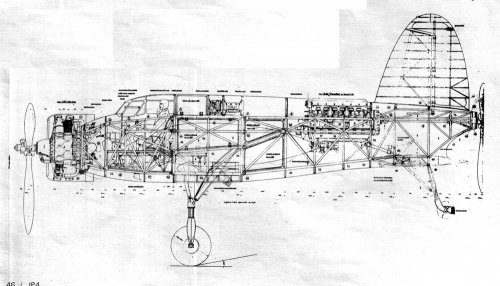

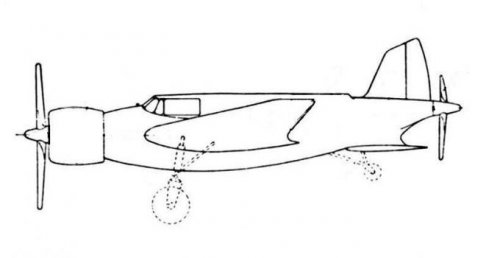

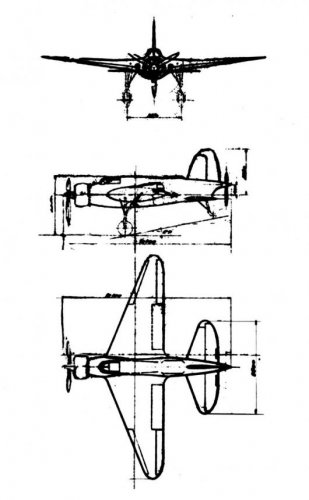

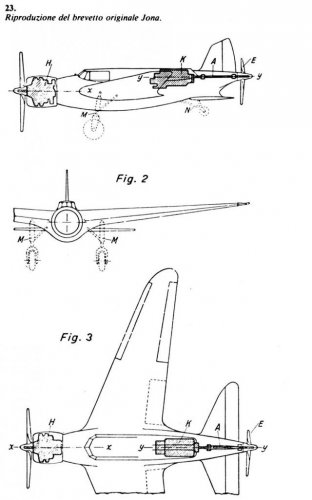

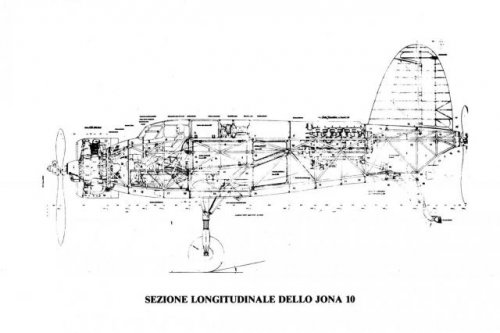

More Jona J.10 from http://alternathistory.org.ua/italyanskie-bumazhnye-proekty-proekt-dvukhmotornogo-istrebitelya-jona-10:


Attachments

  • jona-04_1-680x350.JPG
    15.9 KB · Views: 39
  • jona-03-530x860.JPG
    41.3 KB · Views: 79
  • jona-02-640x426.JPG
    31.5 KB · Views: 502
  • jona-01-640x1027.JPG
    53.9 KB · Views: 496

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
Hi,


in the Russian site; Alternathistory,they displayed the Jona J.10 and J.11,and I am
asking if that's the right drawing to J.11 ?.


Attachments

  • 10.jpg
    5.2 KB · Views: 834
  • JonaJ11.gif
    7.6 KB · Views: 59

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
662
Reaction score
138
hesham said:
Hi,


in the Russian site; Alternathistory,they displayed the Jona J.10 and J.11,and I am
asking if that's the right drawing to J.11 ?.

The first picture you attached was a re-drawing from the original blueprints that I did for clarity. The J.11 is fictional.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
It's so weird my dear Red Admiral,


in an old Polish site,they spoke about this design as a real one,and they
said it involved in a competition of 1939,but unfortunately they switched
all its pages,and many Info was gone.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
I could be wrong, but to me all that he meant was that the J.11 drawing was fictional, not the J.11 project itself. It is more of a re-creation based on what is known of the project. Am I right red admiral?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
You are right Stargazer,


the Polish site mentioned the J.11 as a light bomber,and absolutely it was a different
design.


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
245
Reaction score
33
Website
www.res-aeronautica.com
Dear,
According to the book "Gente dell'Aria - Giorgio Evangelisti", the Jona 11 project was a 3-engined fast bomber designed in March 1938.
The aircraft should be engined with 2 radial Fiat A.74 in the wings, and a pushing Isotta Fraschini Asso XI (In line engine).
In October, however, Jona designed the J.11/C, a 3-engine fighter based on the bomber design and motorized with 3 Isotta Fraschini AS.L. 121 RC 50.
The projected armament was of 2 machine gun of 12,7 mm, and 2 machine gun of 20 mm, plus 300 kg of bomb; while the performance was calculated in 600 km/h at 6.000 m altitude.

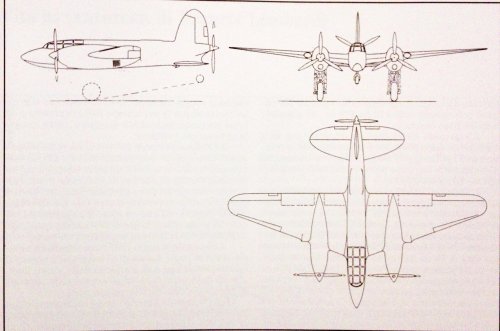

Here the 3-view of the Jona 11/C.
Regards.


Attachments

  • Jona 11-C.jpg
    Jona 11-C.jpg
    691.7 KB · Views: 149

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
hesham said:
the Polish site mentioned the J.11 as a light bomber,and absolutely it was a different
design.

Wow,amazing find my dear Lucamax.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
lucamax said:
Dear,
According to the book "Gente dell'Aria - Giorgio Evangelisti", the Jona 11 project was a 3-engined fast bomber designed in March 1938.
The aircraft should be engined with 2 radial Fiat A.74 in the wings, and a pushing Isotta Fraschini Asso XI (In line engine).
In October, however, Jona designed the J.11/C, a 3-engine fighter based on the bomber design and motorized with 3 Isotta Fraschini AS.L. 121 RC 50.
The projected armament was of 2 machine gun of 12,7 mm, and 2 machine gun of 20 mm, plus 300 kg of bomb; while the performance was calculated in 600 km/h at 6.000 m altitude.
Here the 3-view of the Jona 11/C.
Regards.

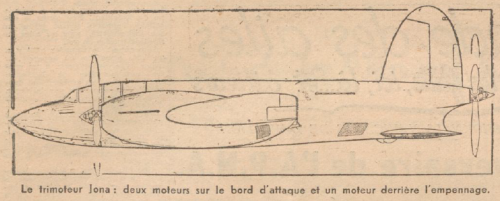

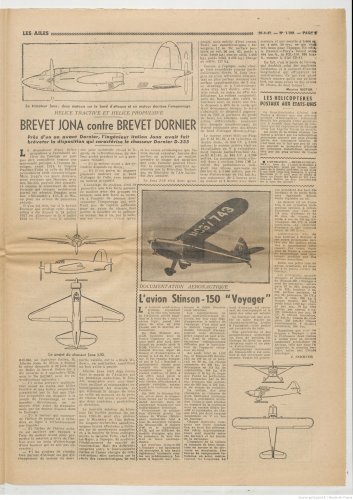

Also from Ailes 4/1947,the Jona J.11.


Attachments

  • 1.png
    434.4 KB · Views: 58
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k9794933q_9.jpeg
    1.5 MB · Views: 80

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
lucamax said:
Thank you for sharing Hesham!
Very nice document.
Best regards.
--
Lucamax

Thank you my dear Lucamax.
