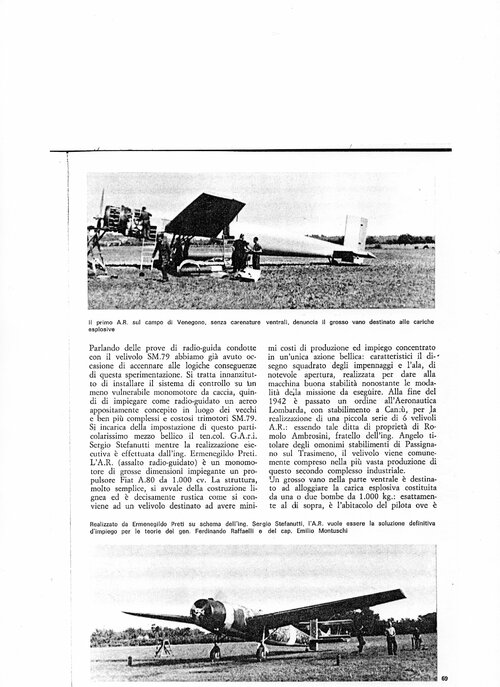

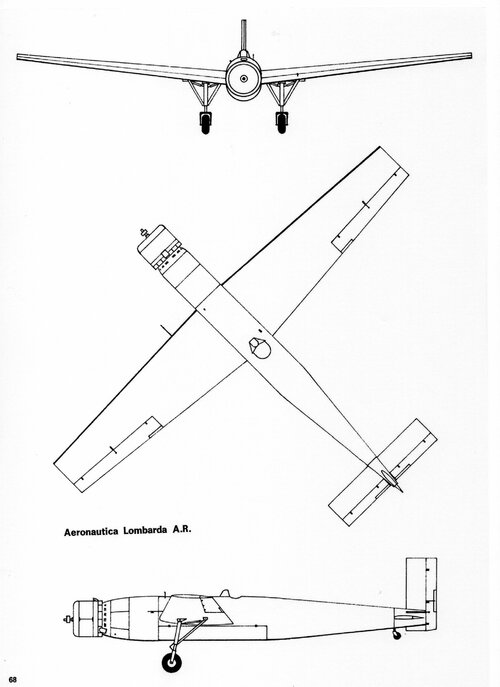

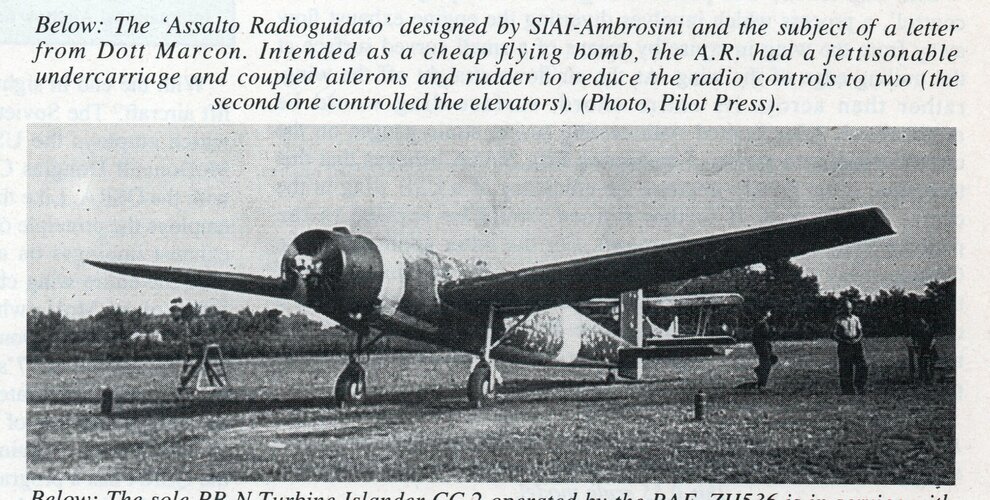

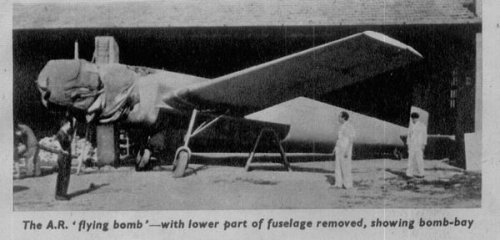

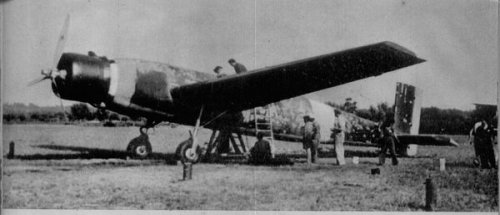

Another theme, that perhaps is snow from the last year for our experts, but maybe
it's nevertheless interesting: In RAF Flying Review 7/55 there's an article about the
S.A.I. Ambrosini A.R. (Assalto Radioguidato), a radio controlled flying bomb, powered
by a 1000hp Fiat A.80 egine. The aircraft had an simple cockpit, too, for a pilot, who
had to take-off, set course and then bale out. Armament was made up of two 1000 kg
bombs inside the fuselage. Although performance was modest with a top speed of
about 230 m.p.h. flying characteristics were said to be good. In the end, the five machines
built were destroyed, without ever used operationally.


Attachments

  • SAI_Ambrosini_AR_01.JPG
    27.1 KB · Views: 680
  • SAI_Ambrosini_AR_02.JPG
    32.2 KB · Views: 556

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
'twas one of several "secret weapons" projects tried between 1941 and 1943... There was even a Mistel. And a poor-man V-1 flying bomb made by Savoia Marchetti. On this last, a full article by myself on Aerofan N.100 (march 2007). On the other... wait a couple of days (scanner...)


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,434
Reaction score
303

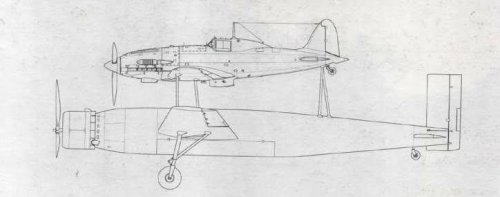

Wasn't the "mistel" version of this flying bomb a configuration with a Macchi MC-202 on top? I seem to remember seeing drawings of it several years ago.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
701
Reaction score
215

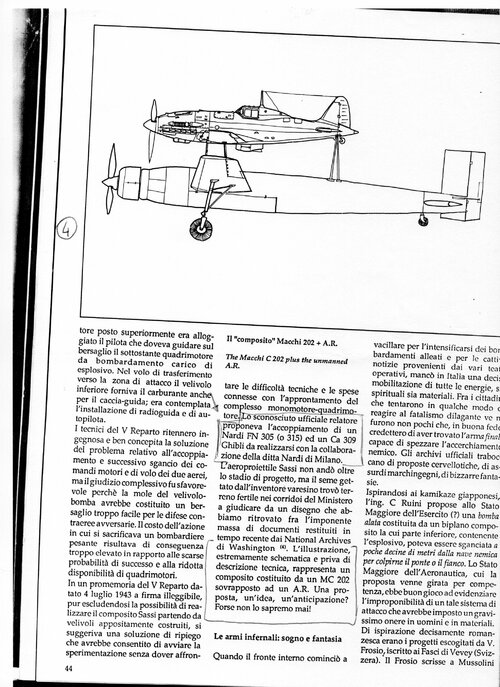

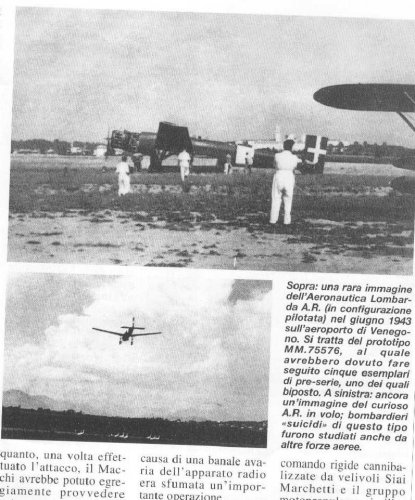

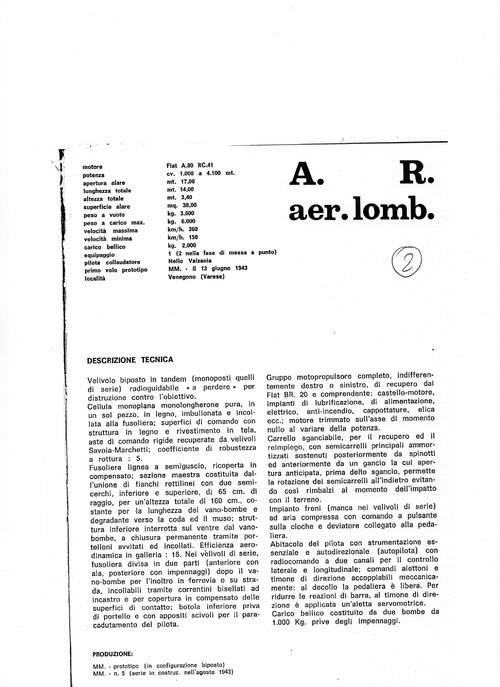

Some quick ones I had to hand.


Attachments

  • AR4.jpg
    114.1 KB · Views: 570
  • italianmistel.jpg
    145.7 KB · Views: 700

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
Wasn't the "mistel" version of this flying bomb a configuration with a Macchi MC-202 on top? I seem to remember seeing drawings of it several years ago.

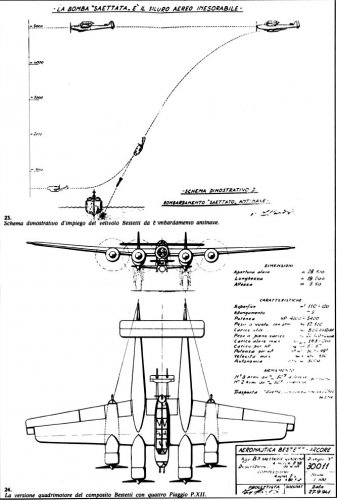

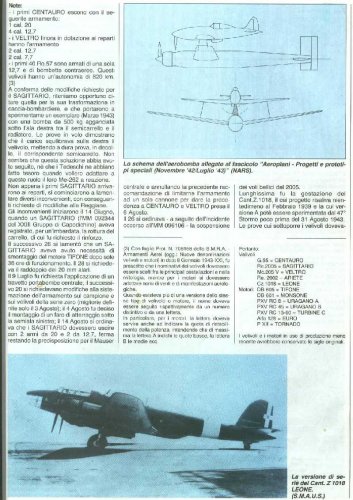

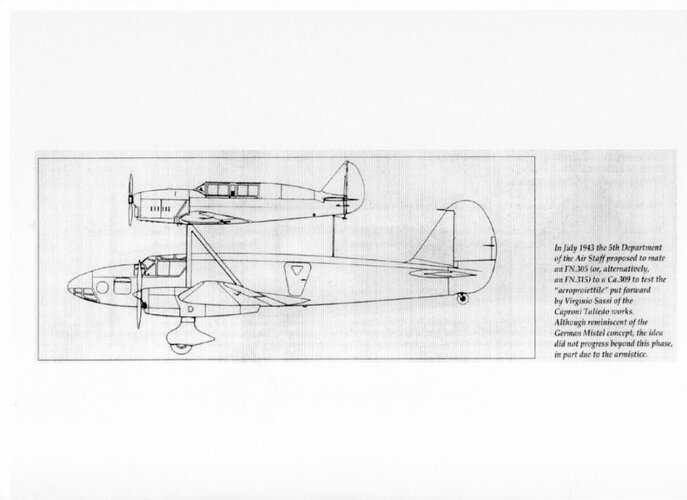

Actually, the Mistel configurations proposed were more than one. In July 1943 it was proposed the coupling of a Nardi FN 305 or 315 with a Ca 309 Ghibli. This was a traditional Mistel, with the Ca 309 acting as remote guided air bomb at separation from the guide plane. Other projects were more sophisticated, with a mother plane a and a child one (as in the well known Mercedes projects), both piloted. In this style was the Bestetti. Original document attached. Complete treatment in Aerofan 79/4...


Attachments

  • Bestetti.jpg
    102.2 KB · Views: 710

raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
6
Wow!....

What a magnificent project Skybolt.
I wonder myself why the bomb has to submerge before explode, it is more simple make a direct hit on the ship?

Grazie amico


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
I wonder myself why the bomb has to submerge before explode, it is more simple make a direct hit on the ship?

Well, it was more a torpedo than a bomb. And there were speculation (extensive trials were made in the hydrodinamic pool in Guidonia) that exploding submerged would have a more descructive effect on the ship (you know, rapid expansion of a bubble of gases in higher density fluid than air and so on).


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204

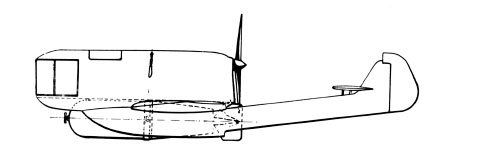

Some more info on the Bestetti. The project was proposed to Ing. Nardi, who designed the two plane as BN.3 for the carrier (Saettante in Italian) and BN.4 for the parasite (Saetta). Besides the 4-engine version, there was a two-engine BN.3. Finally, a side view of the Saetta. Uh, Saetta's pilot was in a prone position to sustain the high positive G acceleration when pulling out of the dive. Both Saettante and Saetta were to be built with regenerated wood, i.e. with fibers smashed and than reconstructed using synthetic glues.


Attachments

  • BN-4.jpg
    9.4 KB · Views: 244
  • Bestetti_bi.jpg
    38 KB · Views: 298

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Dear skybolt,

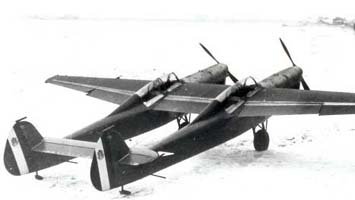

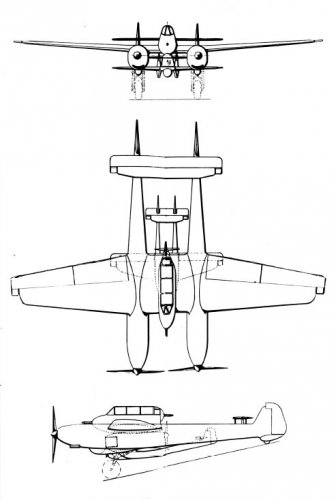

we know Bestetti Nardi BN.1, it was twin boom twin engined
reconnaissance monoplane,do you know Bestetti Nardi BN.2 ?.


Attachments

  • bn1-i.jpg
    35.9 KB · Views: 180

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204

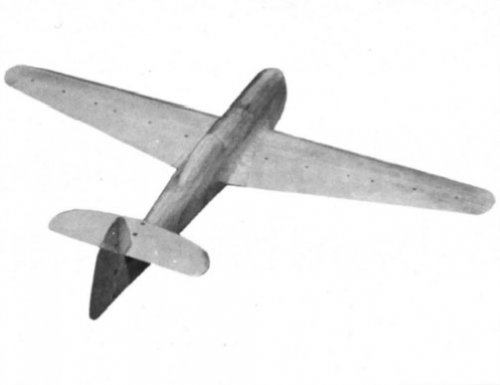

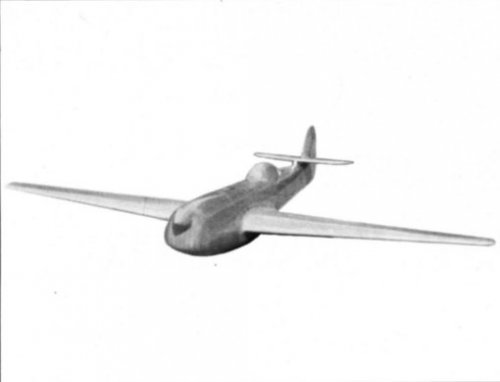

Sure. It was a projected parasite fighter (in Italian "caccia saettato") build in regenerated wood. The airframe and the wing was static tested but the program didn't go further. Design was derived from the BN.1, essentially using one half of it... :D .No info on the intended carrier plane. Images refer to the windtunnel model.


Attachments

  • BN-2_1.jpg
    9.1 KB · Views: 184
  • BN-2_2.jpg
    12.4 KB · Views: 144

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Thanks dear skybolt,

and there was also a few of Italian unknown aircraft,can I ask
you about them please ?,such as Caproni Ca.330,which proceed
Ca.331 and Caproni Ca.345 which proceed Ca.355.


raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
6
Thanks Skybolt for your explanation.

Do you know if these BN.2 Parasite fighter was propulsed by a jet engine?.....or will have a conventional engine?

Very interesting project, maybe someone had a little bit more info from his mothership

Raravia


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
No, it was a piston engine for sure. A line engine with a frontal radiator. Probably an Isotta Fraschini. As for the carrier engine, no hint. Some special version of the P.108 could have been capable, but Piaggio had already problems with the basic version (engines). Moreover, having a front propeller, there were problems in plane placement under another plane.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
and there was also a few of Italian unknown aircraft,can I ask
you about them please ?,such as Caproni Ca.330,which proceed
Ca.331 and Caproni Ca.345 which proceed Ca.355.

I have to make some research. AFAIR (remember, neo-acronysm...) they were dive-bombers and perhaps one was a zerstorer ("caccia combattimento" in then-used terminology, like the SM-91 with three engines and the Breda-88 just to explain).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
thanks you dear skybolt,

and for Caproni Ca.330, I only heard that it was a project led to
develope Ca.331,and for Ca.345 it was a twin boom aircraft but
I have no details.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
Just a few hours. I can anticipate that the Ca.330 were identical to the Ca.331 first version (was an observation aircraft) but had different engines: Piaggio P.something
Ca.345 was a twin boom boatplane with two floats.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
I fpund a lot of info. No drawing still, but I'll have a part of them by Tuesday. In the mean time, an isometric view of the Ca.345 is illustrated in the first book by the Great Tophe on Forked Ghosts. And I know where he found the 3-view...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Thank you dear skybolt,

and you know Nardi FN.306 was two seat trainer aircraft developed from FN.305,
what was Nardi FN.314 ?.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
ummm, I'll check, not very fond of trainers...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Thanks to you dear skybolt,

and I am sure Nardi FN.306 was developed from FN.305,
please search about both (FN.306 and FN.314).


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
30
Hi everybody
Someone can tell me more about the Savoia Marchetti "V-1 flying bomb" ? Please
Is it a copy of the original V-1 ?

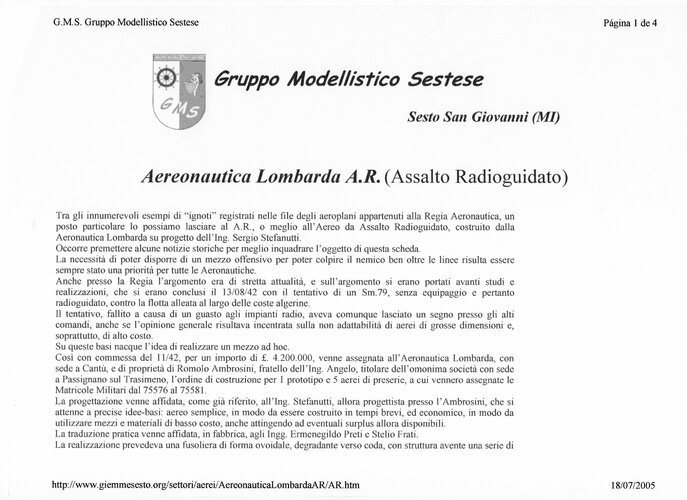

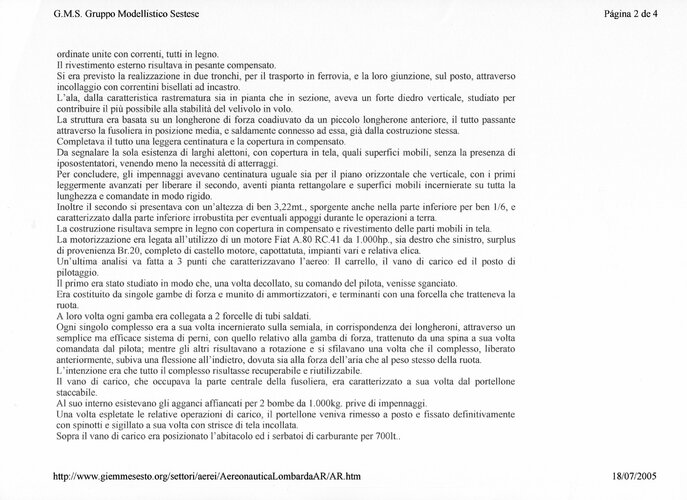

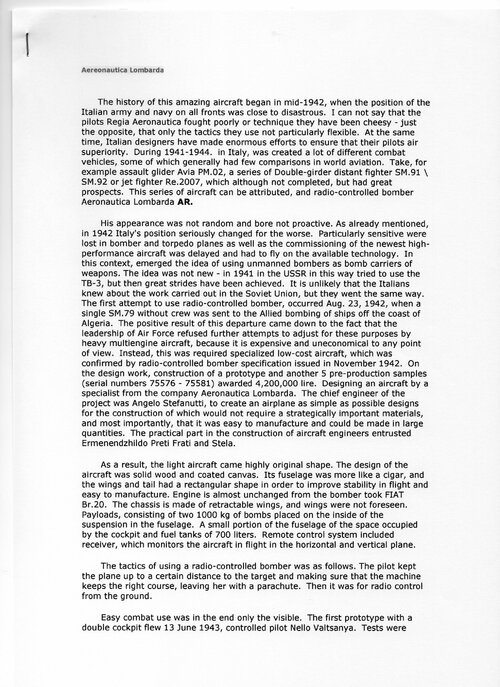

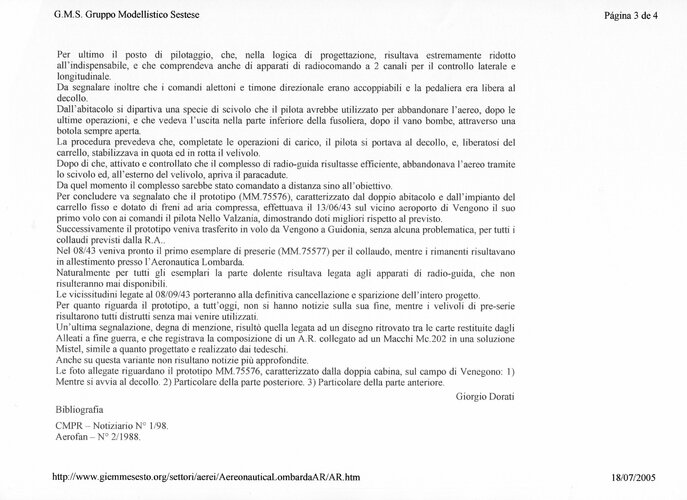

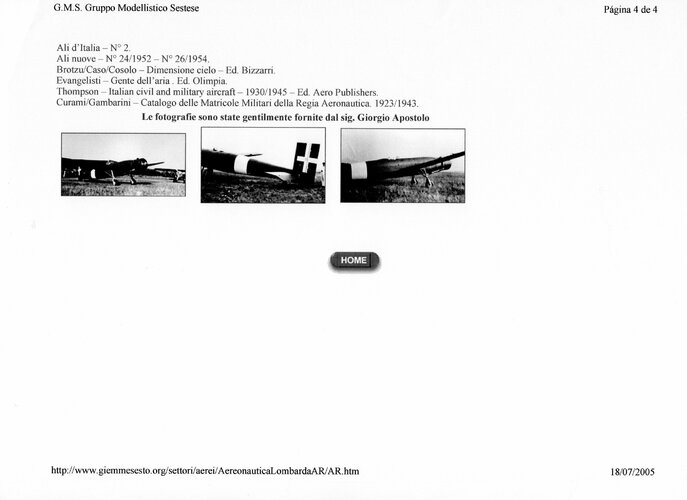

Here the Aereonautica Lombarda A.R.
http://www.giemmesesto.org/settori/aerei/AereonauticaLombardaAR/AR.htm
Here the Savoia-Marchetti SM.79 "DRONE"
http://en.wikipedia.org/wiki/Savoia-Marchetti_SM.79

Many greetings and Thanks in advance


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,074
Reaction score
4,178
Website
www.amazon.com
Plese see
http://gallery.rumodelism.com/gallery/img81/m1637.shtml

http://forum.axishistory.com/viewtopic.php?t=57157

http://www.airwar.ru/enc/bpla/ar.html

http://umm-usa.com/onlinestore/product_info.php?manufacturers_id=14&products_id=166&osCsid=f9ba2b3ab0e2a6f340d0d4fe34a20407

http://www.villacidro.net/zzz/storia/1939-43eng.htm


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
204
Someone can tell me more about the Savoia Marchetti "V-1 flying bomb" ? Please
Is it a copy of the original V-1 ? Huh?
No, it was like a reduced-size Miles Hoopla. The guidance (sort of) was like the V-1 one, with a mechanical counter of the rotations of the spinner linked to the carburetor. I'm writing an article for "Storia Militare" on this.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Hi,


a well know pilot,De Bernardi,he participated in the first remotely controlled flying
bomb in 1939,did they mean the Lombarda A.R.1 or a design from his creation ?.


http://en.wikipedia.org/wiki/Mario_de_Bernardi


athpilot

Fly me to the moon...
Joined
Nov 18, 2012
Messages
319
Reaction score
174

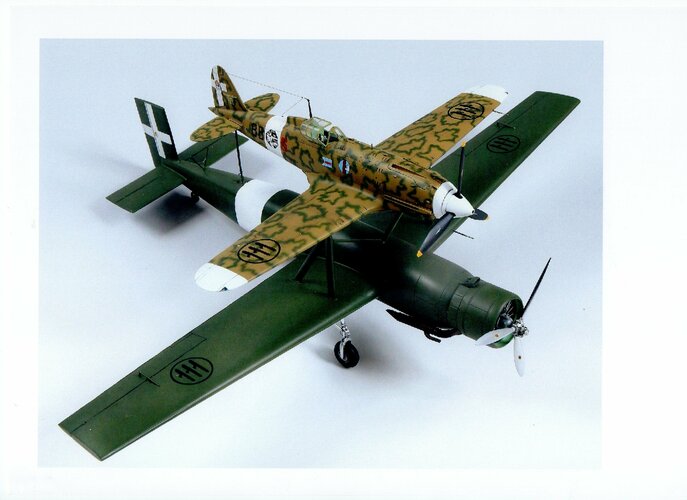

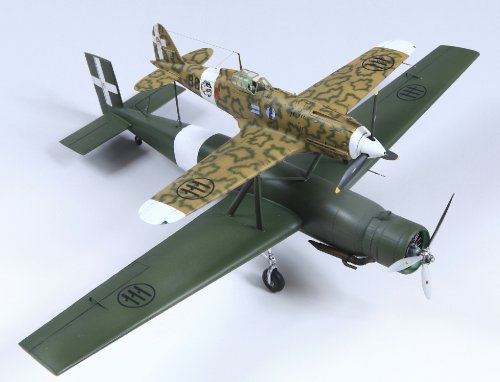

Hi! Someone did a good model job on it.


Attachments

  • むらせろんばるだ亜.JPG
    933.1 KB · Views: 398

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Hi,

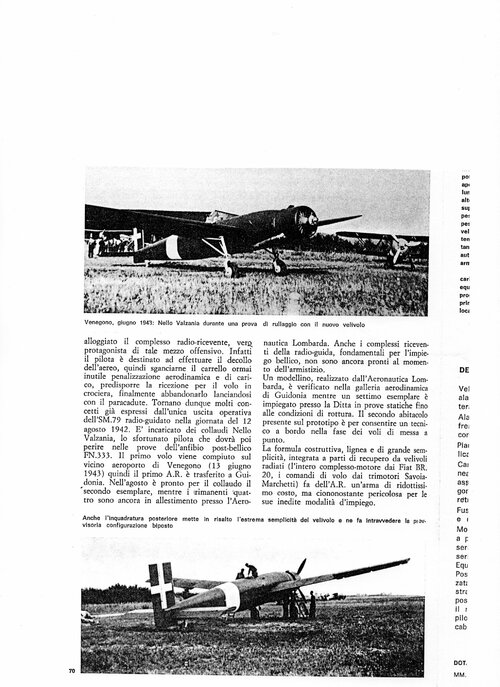

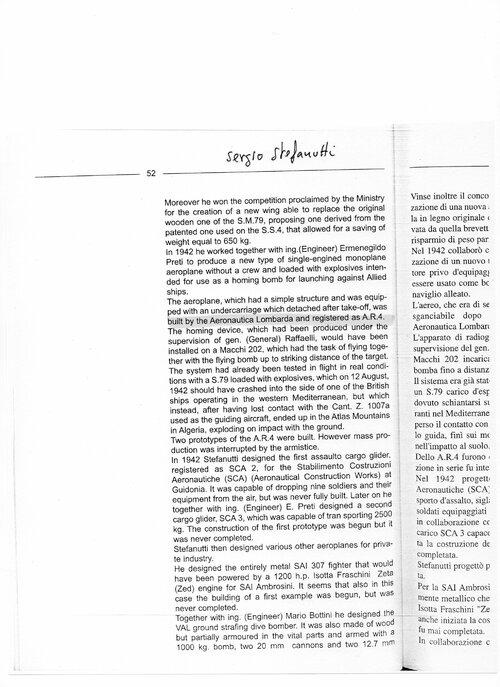

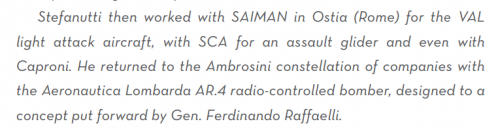

so weird,here is anther design for Lombarda AR.4 radio-controlled bomber,I know
only AR.1,so does anyone hear about this designation before ?.


http://www.aleniaaermacchi100.it/wp-content/uploads/2014/05/A-century-of-flying_part2.pdf


Attachments

  • AR.4.png
    45 KB · Views: 251

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,989
Hi,

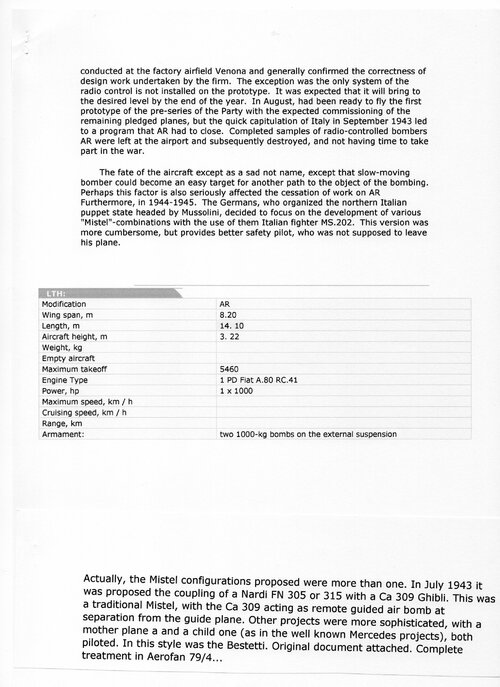

I think that's a completely fake, right ?.

Edit: Merged with this topic


Attachments

  • 2dtxaiq.jpg
