Someone, some time ago asked about the Ca-345. I found something and here it is.
It was one of the projects tendered in June 1939 to the competition for an patrol and observation seaplane for large ships (heavy cruisers and up). Other competitors were the Piaggio P-117 and the IMAM Ro-65.
Relevant data: span15,90 m; lenght 12,30 m; height 4,00 m. Wing surface 34,5 mq, two Piaggio P.VII C.16 (7 cylinders radials), 2 x 470 HPs at 1600 m, max speed 330 km/h at 1000 m, 345 km/h at 2200 m, cruise speed 214 km/h at 1000 m, range 3000 km at 214 km/h at 1000 m. The 345bis version had two Isotta Fraschini “Gamma” R.C.35 (12 cylinders inverted V air-cooled), 2 x 520 HPs at 4000 m, max speed 360 km/h at 1000 m, 415 km/h at 4100 m, cruse speed 216 km/h at 1000 m, range 2375 km at 216 km/h at 1000 m. External dimension the same as the base version. Illustrations is the radial version.
Neither, not the competitors were ever built, competition cancelled.


Attachments

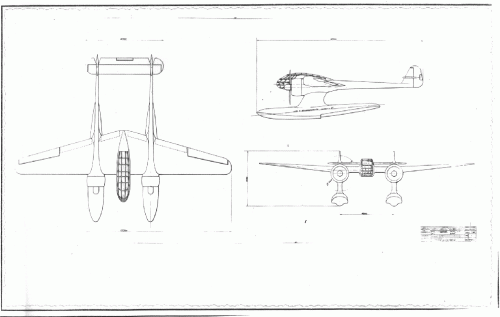

  • CA-345_small.gif
    75.1 KB · Views: 401

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
Good find dear skybolt,

do you know any more about the competitors ?.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
I have something on the P-117, will post. On the Imam, I know were to look, but not earlier than the end of February.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
358
Hi Skybolt,

since January I wait for your piaggio p.117 post. Please don´t forget.

Thanks Maveric ;)
