Dear All

In recent discussion re. the Italian bomber projects, Hesham mentioned two requirements for fighter aircraft -

1) single seat fighter:Macchi MC-300,Fiat G-58, Piaggio P-125,Reggiane Re-2005.

2) twin engined fighter reconnaissance:Fiat CR-25,Romeo Ro-53 ,Caproni Ca-150;Ca-160;Ca-401 and Breda Ba-94

Now thanks to other members we know about the G.58 and the Re-2005, but does anyone have information and drawings/plans of these other un-built projects?

Thanks

Andrew


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
127

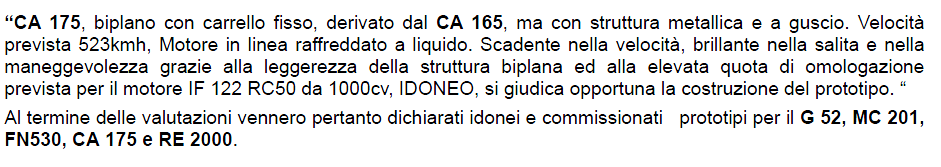

Actually, the first competition...never was. There were successive spot requests from Regia Aeronautica to individual companies and some unsolicited proposal from individual companies regarding twin boom fighters, both original and derivative. Time span is from mid-1941 to first half of 1943. As for the MC-300, it never existed. The proposed (on exploratory request fro RA) coupled-fuselage derivative of MC-205 didn't even receive a numeral. An MC-301 did exist, but was earlier, and part of the Caccia Combattimento competition of 1938-39. The Piaggio P-125 is another entry in the Caccia Combattimento and the Bombardiere Normale competitions (two designs very similar); it was designed by Capt. Santangelo of the Genio Aeronautico (DSSE). The bomber version was outsourced to Piaggio for prototype production but the company did her best to NOT do it (succeeding...). So, the P.125 wasn't even a fighter strictu sensu. In the end, the only twin boom fighters built issuing from the above mentioned spot requests were SM-91 and SM-92, the latter NOT a derivative of the former. I'll illustrate the complex histories of those (and more) in my forthcoming book for Giorgio Apostolo Editore. Consider this as an official announcemnet. Publication date: March 2009.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
Surely Reggiane 2005 and Fiat Cr.25 was built ! ;D
http://en.wikipedia.org/wiki/Reggiane_2005
http://en.wikipedia.org/wiki/Fiat_CR.25
http://www.aerei-italiani.net/SchedeT/aereore2005.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
My dear Skybolt,

for the Macchi MC-300 and the competition,please see;
http://translate.google.com/translate?u=http%3A%2F%2Fwww.samoloty.ow.pl%2Fstr395.htm&hl=ar&ie=UTF-8&sl=pl&tl=en


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
127
The built Re.2005 was the regular one. The Re.2005 hinted is the twin-fuselage Re-2005 (for want of a name)....
Cr-25, sure, but I didn't talked about that competition.
And, sorry Hesham but that competition is pure fantasy. For one, the original SM-91 was CANCELLED in July 1941, and resurrected in late 1942 as a zerstorer version of the SM-88. The Corsaro is much later, late 1942-early 1943 and competed not with the cited projects but with another Caproni, and perhaps with a MArchetti project (SM-94, not the SM-94 of 1937, wich was a civilian airliner).
See here for the SM-91 story http://www.secretprojects.co.uk/forum/index.php/topic,2737.msg22100.html#msg22100
And here for the Corsaro's (plus the Ca-184) one:
http://www.secretprojects.co.uk/forum/index.php/topic,2411.msg20201.html#msg20201
This forum has really a lot of info already published. Please use the search facility, is one of the proud point of the Mighty Overscan ;)
BTW, I know very well the source of the Polish guy.. and I prefer not cite it here for love of my fatherland... it is a person who disseminated a lot of personal speculations like documented truth.
Uh, forgot: it is probable that the night-fighter line of the late 1943 Regia Aeronautica would have comprised the Sm-91 and the often unmentioned BZ-303, another evolution of the Can Z-1018. The BZ-303 would have been called Leone III. Finally, the twin-fuselage early 1942 competition is a mere speculation, born from the fact that the SM-92, the G-58 and the Re-2005bifusoliera seem to share the same requirement. No one (me included) has ever discovered an actual piece of paper describing, or even hinting at an official requirement.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,676
Reaction score
305
Skybolt said:
(...) and the often unmentioned BZ-303, another evolution of the Can Z-1018. The BZ-303 would have been called Leone III.

I've read somewhere, but I don't rember where or when, that the Cant Z-1018 Nightfighter (the nomclature BZ-303 is something new to me) was to be equipped with an Italian radar (Grifo??), please Skybolt can you confirm this particular, or it was only a flight of fantasy??

It is true that RA was equipped with a small number of Dornier and Messerchmitt nightfighters but any of them had radar?

Thanks in advance.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
127
AFAIK no "caccia scientifica" plane under the Regia ever used an airborne radiolocalizer n combat. I know that someone wrote a lot on this, with numerous flights of fancy. I'll check this night, though. I can confirm that the BZ-303 was to have a radiolocalizer onboard. The idea was probably to use two types of aircraft, one with radar and one w/o, vectored by terrestrial radars (the SM-91).
The CANT Z-1018 was to be a medium fast bomber produced by CANT, Breda and someone else (Anello Leone). When Zappata transferred to Breda, all evolution of the 1018 per se stopped. The BZ-301 was an high-altitude derivative, and the BZ-303 a night fighter.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
This is fascinating information Sky...
Any articles (or a book) about in the planning phase ;D


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
127
Yes Paul, I'll insert some "scenario" info in the SM-91,92,93 book planned for March 2009 release.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
127
Confirmed, no combat missions with radar onboard for Italian night fighters. In late spring 1943 Italy obtained a dozen of FuG 202 Lichtenstein BC. Two were destined to 1018s. The installation of the antennas was completed on July 8 1943. In parallel, there were developments at DSSE in Guidonia on national radars. First was the Argo, an experimental long distance localizer. From this derived the "Arghetto" (AKA "Vespa"), that was to be a naval search airborne radar (tested on an SM-79 and a 1018). The final development was "Lepre", a reduced-size "Vespa", targeted to night fighters. Had the war continued post-september 1943, this would have been standard equipment for night fighters.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,

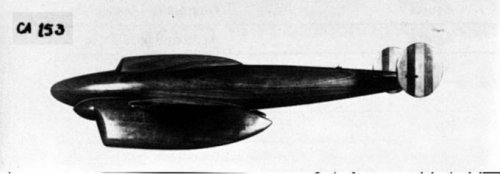

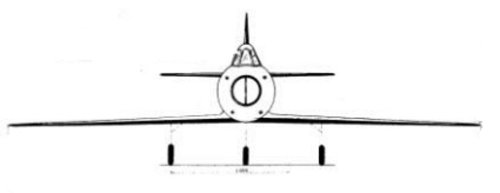

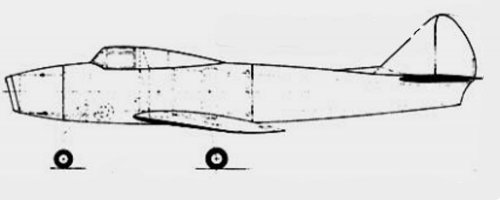

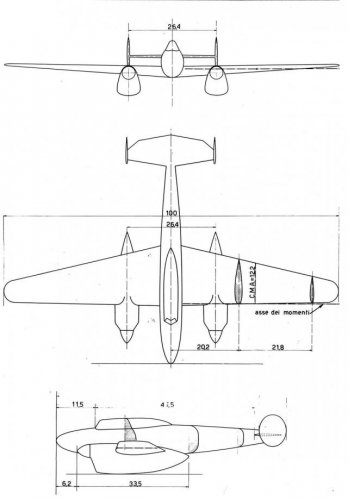

here is the Caproni Ca.153 and Ca.365 fighter projects.


Attachments

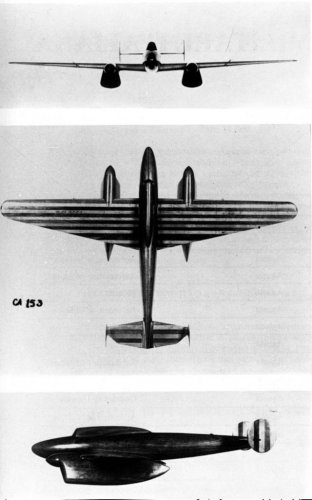

  • Ca.153.JPG
    17 KB · Views: 1,408
  • Ca.153   2.JPG
    Ca.153 2.JPG
    66.8 KB · Views: 1,403
  • Ca.153   3.JPG
    Ca.153 3.JPG
    66.8 KB · Views: 1,367
  • Ca.153   4.JPG
    Ca.153 4.JPG
    44.3 KB · Views: 1,344

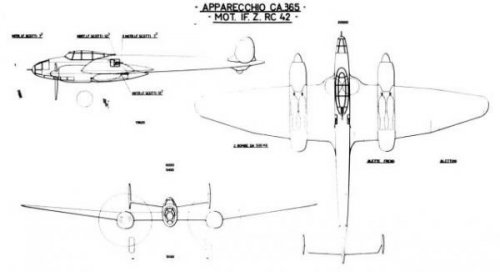

  • Ca.365.JPG
    16.4 KB · Views: 1,318

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,

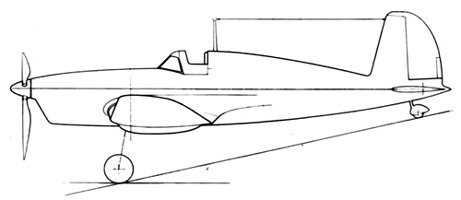

the Macchi MC.206 fighter project.


Attachments

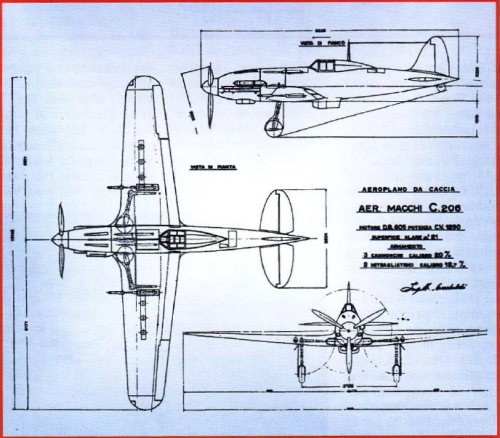

  • MC.206.JPG
    63.2 KB · Views: 256

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,


does anyone hear about Breda Ba.206 and Ambrosini SAI-402 fighter projects ?,
the Breda Ba.206 was developed from Ba.204 and the SAI-402 was lightweight
fighter as I know.


patvig

ACCESS: Confidential
Joined
Jan 28, 2012
Messages
114
Reaction score
2
Website
www.vignaud.org

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,


the Breda Ba.206 was a fighter/trainer and capable to be ground
attack aircraft project,developed with Ba.204 to the late of 1930s
competition.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,


does anyone hear about Breda Ba.207 Project ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
From Aerofan 1/1980,

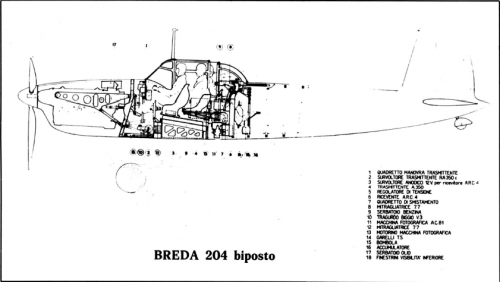

here is the Breda Ba.204,which was a multi mission aircraft,fighter,fighter-trainer and
turret fighter


Attachments

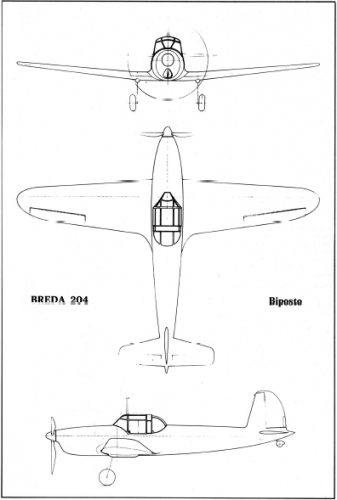

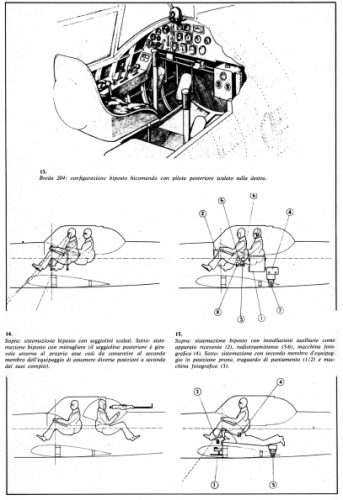

  • Ba.204 II.png
    Ba.204 II.png
    121.6 KB · Views: 724
  • Ba.204 with turret.png
    Ba.204 with turret.png
    114.1 KB · Views: 733
  • Ba.204 two seat.png
    Ba.204 two seat.png
    57.3 KB · Views: 733

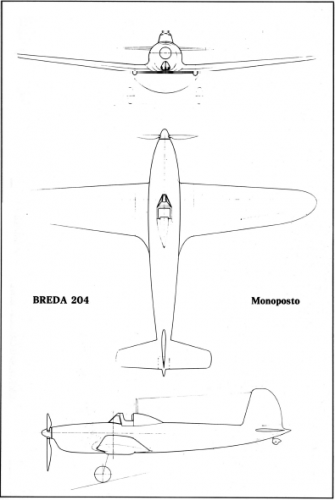

  • Ba.204.png
    54.5 KB · Views: 741
  • ba204_s1.jpg
    33.9 KB · Views: 743

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,

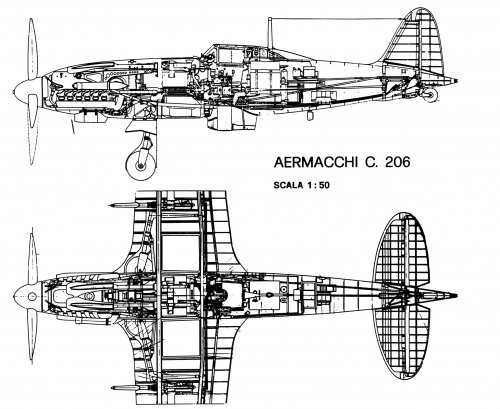

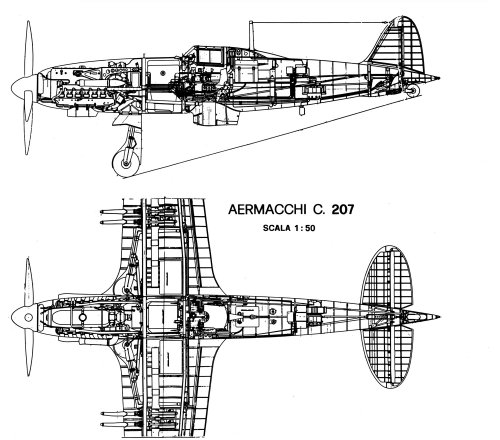

here is some drawings to Macchi fighters aircraft and projects,the weird thing is C.208,
I never heard about it before,but for C.209,I don't know if they meant this or not;


http://www.secretprojects.co.uk/forum/index.php/topic,7992.msg70317.html#msg70317


Aerei+Nella+Storia


Attachments

  • C.208 data.png
    C.208 data.png
    410.9 KB · Views: 145
  • MC.207.png
    634.8 KB · Views: 157
  • MC.207  II.png
    MC.207 II.png
    433.2 KB · Views: 147

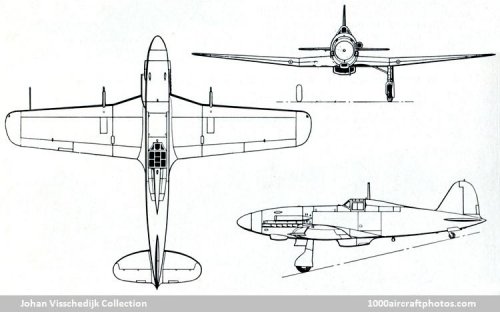

  • MC.206.png
    797.4 KB · Views: 159

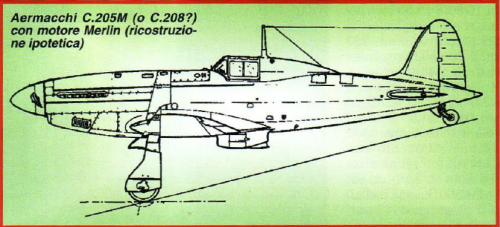

  • MC.205M or MC.208.png
    MC.205M or MC.208.png
    715.3 KB · Views: 171

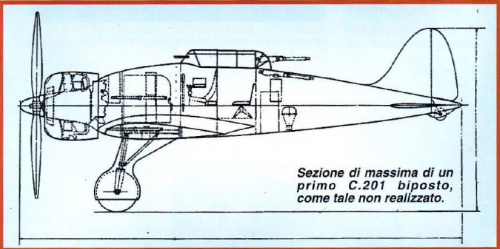

  • MC.201.png
    487.7 KB · Views: 158

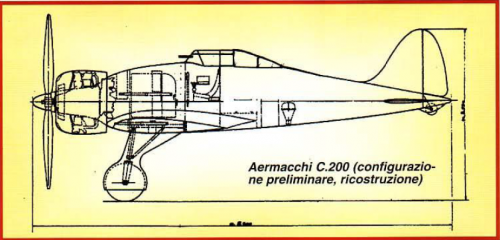

  • MC.200.png
    416.1 KB · Views: 134

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480

Attachments

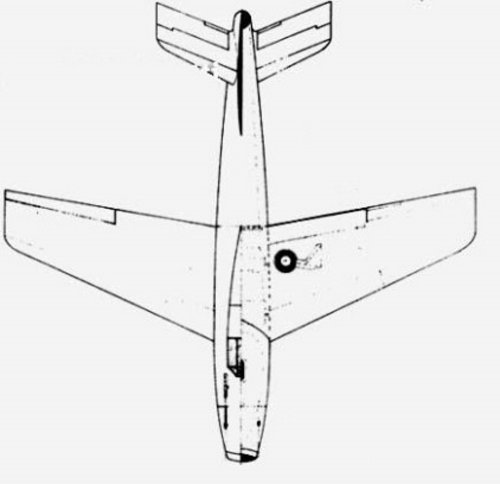

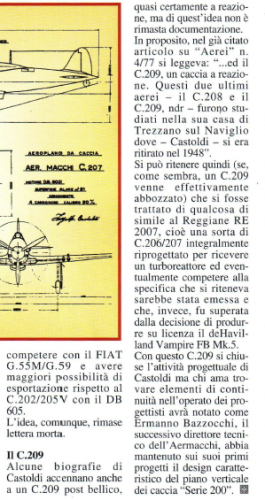

  • C.209.png
    320.4 KB · Views: 100

Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
24
My Dear Hesham,
i'm not familiar to the way of linking this post to another in the same board, but if you search C.208 you can find a sequel of post about it.

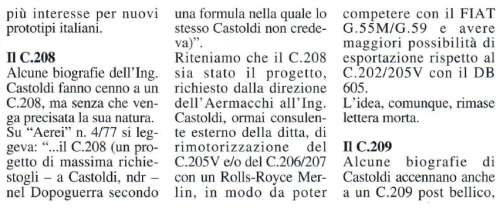

The C.208 is sometime referred as the Agusta AC.208 as was designed from Mario Castoldi, already retired from Aeronautica Macchi, for Agusta. The project was a primary trainer for one of the first postwar requirements of Aeronautica Militare, roughly in the same class of the Swiss Pilatus P.2. Later on, for an iteration of the same theme, the aircraft was redesigned by Eng. Filippo Zappata as the Agusta AZ.4.
As far as I know nor the C.208 neither the AZ.4 were built
Nico


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Thank you my dear Nico,


and I know Agusta-Castoldi AC.208,but here the C.208 was a project for a fighter,intended during the WW2,
also the C.209 was a jet aircraft or not (in the article) ?.


Nico

ACCESS: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
24
Hi Hesham,
now I understand. In fact, in late seventies there were rumours about a post-war C.208 and C.209 designer by Castoldi as adviser for Macchi. If I'm right was late journalist Italo de'Marchi that published those information that I reported on later occasions.
In fact no proof of those project surfaced: the C.208 was described as a C.202/205 with Merlin engine, for competition with FIAT G.59. In reality an engine mount for a Packard Merlin on the fuselage of a 202/205 was developed by Macchi but when the engineering department was already directed by Ermanno Bazzocchi.
About a C.209 intended as a Macchi proposal for a first generation jet fighter, probably is a mere invention. Castoldi lacks any experience on jet propulsion and, moreover, the design office was already directed by Bazzocchi.
Nico


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Thank you my dear Nico for your explanations,


and for C.209,all thing about it here;


http://www.secretprojects.co.uk/forum/index.php/topic,7992.msg70317.html#msg70317


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,558
Hi!
Larger images and Macchi development.

http://alternathistory.com/antonio-faltsoni-poslednie-istrebiteli-makki

"Macchi c. 207 powered by DB. 603 HP 1510 power at an altitude of 5700 m and 2500 RPM.
Equipped with Wing 21 m ². Armament-4 wing-mounted 20 mm cannon.
Dimension
Weight ; The total weight of the load kg : 4340, Empty aircraft weight kg : 3292
Lifting capacity kg : 1048, The composition of the payload Parachute pilot kg : 85, 4 guns CAL. 20 mm kg : 169,
250 rounds per barrel (total 1000) kg : 218, Radio system kg : 56, Collimator, oxygen inhaler kg : 13, Gasoline (total) kg : 470, Oil kg : 37, Total kg : 1048, Fuel tanks capacity : Front fûzelâžnyj l : 405 2 wing tank only l : 160, Tail fûzelâžnyj l : 80
, Total l : 645,
Expected characteristics.
Maximum speed at altitude-700 km/h.
Characteristics of the engine DB. 603
Length mm : 2610, Width mm : 1167, Height mm : 830, Motor shaft rotational speed RPM : 2500
Rotational speed of screw RPM : 1295
Power emergency at an altitude of 2750 m 5700 rpm and inlet pressure 1.40 kg/cm ² makes 1620 HP
Nominal power at an altitude of 5700 m, 2500 rpm and inlet pressure 1.30 kg/cm ² is 1510 HP
Power take-off, 2700 rpm and inlet pressure 1.30 kg/cm ² is 1750 HP

C. 205V C. 205V C. 205N C. 205N C. 206 C. 207 C. 202
1 ' serie 3 ' serie M.m. 499 M.m. 500
Wingspan m 10.58 10.58 11.25 11.25 12.142 12.142 10.58
Length m 8.85 8.85 9.549 9.549 9.335 9.735 8.85
Height in the parking lot m 3.036 3,075 3.25 3.25 3.095 3.25 3,075
Average wing chord m 1.59 1.59 1.69 1.69 1.795 1.795 1.59
Wing area m ² 16.8 16.8 19 19 21 21 16.8
Screw diameter m 3.050 3.050 3.050 3.050 3.050 3.150 3.050
Empty aircraft weight kg 2.568 2,518 2,699 2.759 2.578 3.292 2,284
The total weight of the kg 3.268 3.408 3.621 3.794 3.650 4.340 2.937
Wing loading kg/m ² 194.5 202.8 190.6 199.7 173.8 206.6 174.8
Engine power (the standards.) HP 1250 1250 1250 1250 1250 1510 1000
Specific load on the power kg/HP 2.61 2.73 2.89 3.03 2.92 2.87 2.94
Power per unit area PS/m ² 74.4 74.4 65.79 65.79 59.52 71.9 59.52"


Attachments

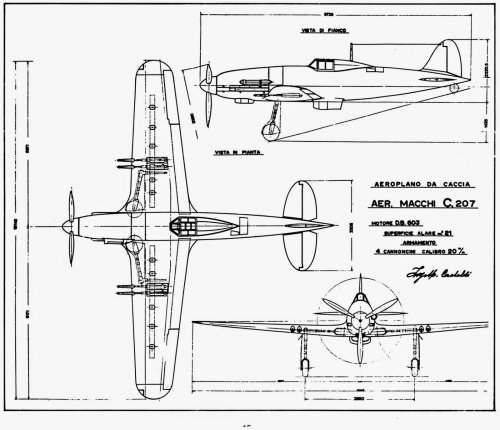

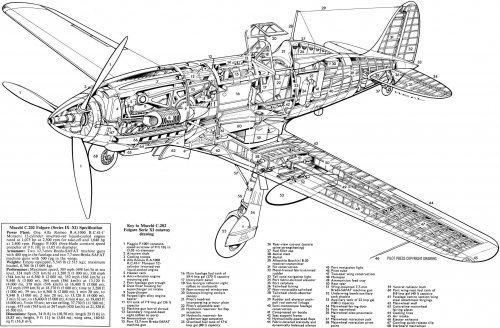

  • 202.jpg
    666.8 KB · Views: 91

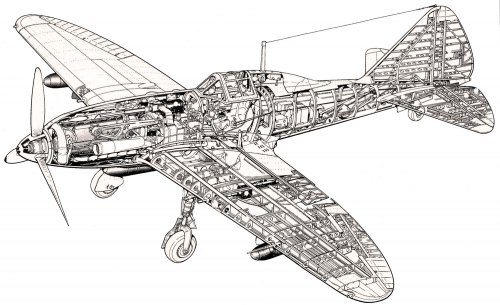

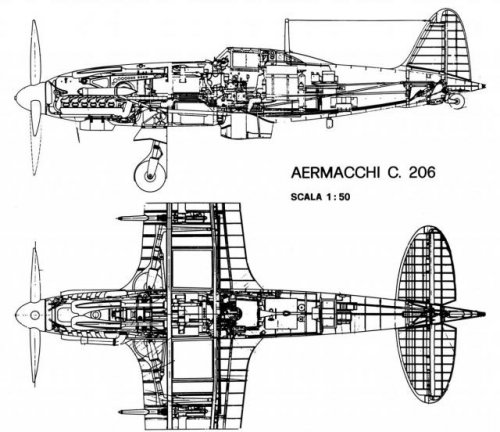

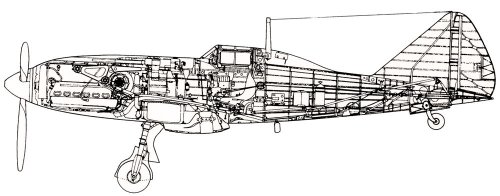

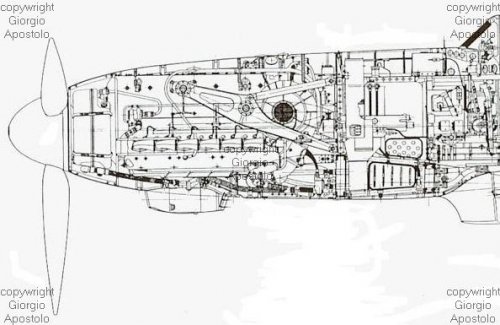

  • Spaccato_c206.jpg
    1.2 MB · Views: 89

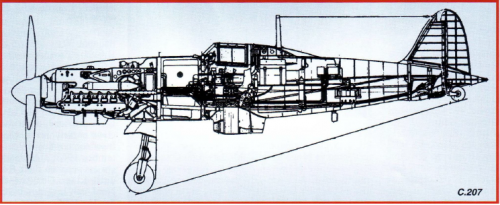

  • Spaccato_c207.jpg
    823.7 KB · Views: 94

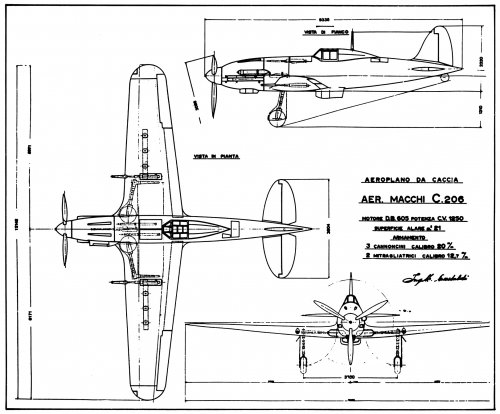

  • C206_castoldi.jpg
    727 KB · Views: 88
  • MC207.jpg
    255.3 KB · Views: 140

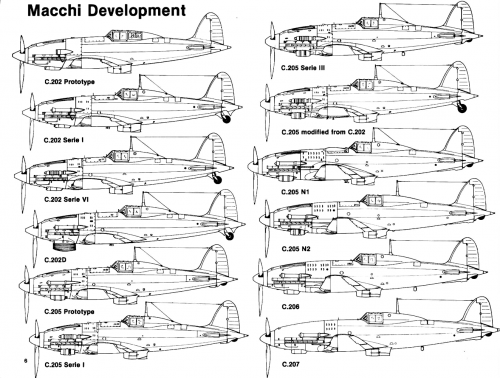

  • Macchi_Development.png
    680.6 KB · Views: 154

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,558
Hi!
https://www.youtube.com/watch?v=emLEjggvVLk


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,558
Hi!
Fiat G.56.

http://forum.warthunder.com/index.php?/topic/222740-fiat-g56-as-a-tier-iv-german-premium/

"•General characteristics ◦Crew: 1
◦Length: 31 ft 4 3/8 in (9.56 m)
◦Wingspan: 38 ft 10 17/32 in (11.85 m)
◦Height: 10 ft 3 15/64 in (3.13 m)
◦Wing area: 227.12 ft² (21.1 m²)
◦Empty weight: 6,393 lb (2,900 kg)
◦Normal takeoff weight: 8,497 lb (3,854 kg)
◦Powerplant: 1 × Daimler-Benz DB 603A (1,750 hp)

•Performance ◦Takeoff power rating (1943): 1489 hp @ 1.21 ata (2500 rpm and 3900 kg TO weight)
◦Maximum speed: ◾At sea level: 341.8 mph (550 km/h)
◾At 1000 m: 360.4 mph (580 km/h)
◾At 4000 m: 397.7 mph (640 km/h)
◾At 7000 m: 425.6 mph (685 km/h)

◦Range: 795 mi (1,280 km)
◦Service ceiling: 43,963 ft (13,400 m)
◦Time to altitude: ◾1000 m: 48 seconds
◾2000 m: 1 minute 38 seconds
◾4000 m: 3 minutes 33 seconds
◾5700 m: 5 minutes
◾6000 m: 5 minute 27 seconds
◾7000 m: 7 min 30 seconds


•Armament ◦Guns: ◾1 × 20 mm MG 151/20 cannon mounted through engine (250 rounds)
◾2 × 20 mm MG 151/20 cannon mounted in wings (200 rpg)"

http://allaircraftsimulations.com/forum/viewtopic.php?t=17892
Fiat G.56
A G.55 with a more powerful DB 603 engine. Proved to be far superior to the Bf 109K and Fw 190D, but was not allowed for service by the Germans. Their own stupidity that helped us win...


Attachments

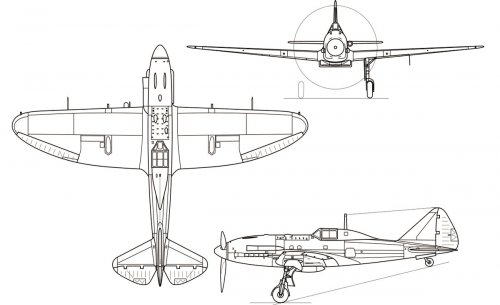

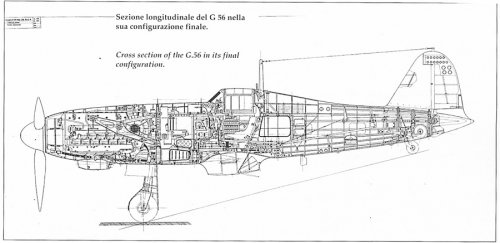

  • Fiat_G_56_3-view.jpg
    46 KB · Views: 91
  • G-56.jpg
    167 KB · Views: 99
  • 06G56spaccatomuso.jpg
    44.1 KB · Views: 89

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,558

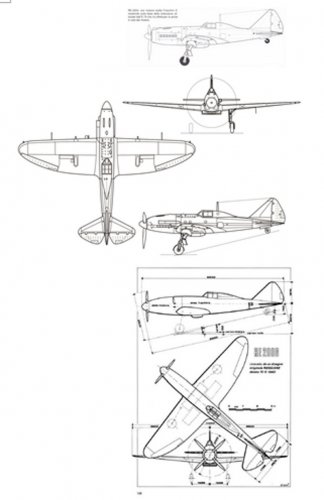

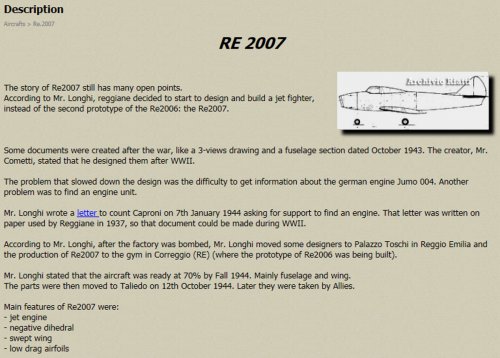

Hi! Reggiane fighters. This drawing shows four guns at the nose, but technical data shows two guns. ???
http://www.reggiane.info/lang1/index.html


Attachments

  • Re.2007 description.jpg
    Re.2007 description.jpg
    271.6 KB · Views: 61

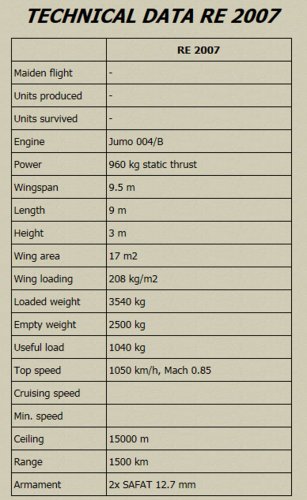

  • Re.2007 technical data.jpg
    Re.2007 technical data.jpg
    208.1 KB · Views: 53
  • Re.2007 front view drawing.jpg
    Re.2007 front view drawing.jpg
    18.7 KB · Views: 48
  • Re.2007 plan view drawing.jpg
    Re.2007 plan view drawing.jpg
    57.4 KB · Views: 48
  • Re,2007 side view.jpg
    Re,2007 side view.jpg
    33.1 KB · Views: 50

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,558

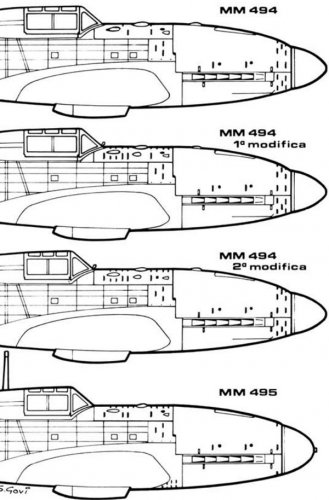

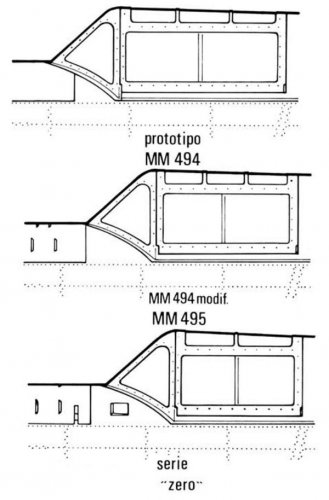

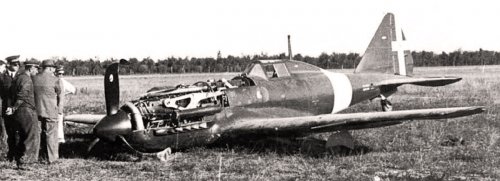

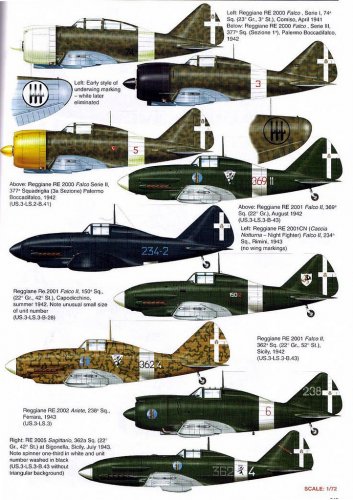

Hi! Reggiane Re.2005 prototype and production model.

http://pro-samolet.ru/aircraft-ww2-italy/fighters/1005-fighter-reggiane-re2005-sagittario?device=desktop

Length ; Re.2004 : 8.35m, Re.2005 : 8.73m, Re.2006 : 8.54m
Re.2004 engine : Isotta-Fraschini Zeta R.C.24/60 X-24 liquid-cooled engine, 1,250 hp
Re.2005 engine : Fiat R.A.1050 RC.58"Tifone" inverted V12 liquid-cooled engine(DB605), 1,350hp
Re.2006 engine : Daimler-Benz DB 603A inverted V12 liquid-cooled engine, 1,750 hp


Attachments

  • Re.2004 Re.2005 Re.2006 almost same scale.jpg
    Re.2004 Re.2005 Re.2006 almost same scale.jpg
    81.7 KB · Views: 121
  • fighter_reggiane_re2005_sagittario-08big.jpg
    94.5 KB · Views: 133
  • 5792913243_ac6902bc12_b.jpg
    309.4 KB · Views: 151
  • fighter_reggiane_re2005_sagittario-05big.jpg
    272.5 KB · Views: 614
  • fighter_reggiane_re2005_sagittario-04big.jpg
    75.4 KB · Views: 640
  • fighter_reggiane_re2005_sagittario-06big.jpg
    80.7 KB · Views: 650
  • fighter_reggiane_re2005_sagittario-17big.jpg
    84.2 KB · Views: 661
  • fighter_reggiane_re2005_sagittario-18big.jpg
    63.6 KB · Views: 680

iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
343
Reaction score
142

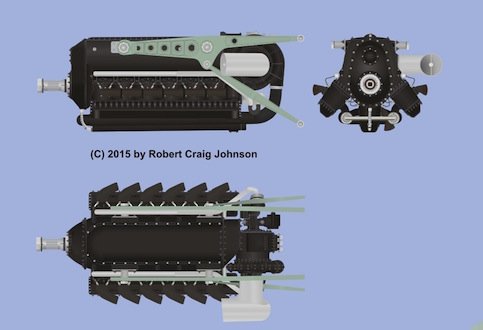

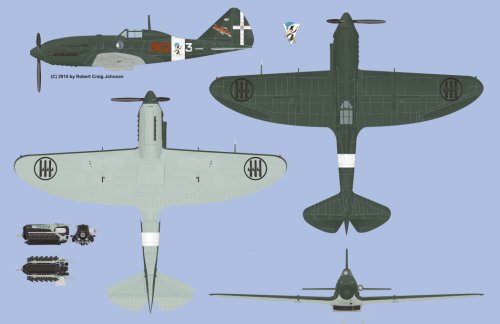

I've attached a somewhat speculative drawing of an Re.2005 powered by Reggiane's own Re.103 engine, a 40-liter, inverted W-18 engine rated at 1750 hp and a less speculative drawing of the engine itself.

See also https://oldmachinepress.com/2015/08/31/reggiane-re-101-to-re-105-aircraft-engines/ and https://it.wikipedia.org/wiki/Reggiane_RE_103.


Attachments

  • Re103.jpg
    40.2 KB · Views: 153
  • Re2005_Re103.jpg
    262.1 KB · Views: 153

iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
343
Reaction score
142
blackkite said:
Hi!
Fiat G.56.

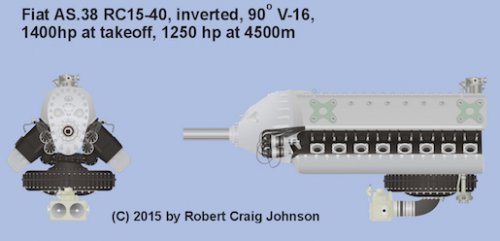

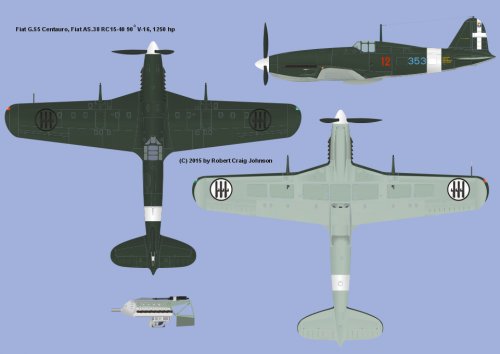

Here is my drawing of the G.55 in its initially planned form, powered by Fiat's 1250hp AS.38 RC.15-40 inverted, 90-degree V-16 engine.


Attachments

  • Fiat_G.55-AS.38.jpg
    218.6 KB · Views: 167
  • Fiat_AS.38RC15-40.jpg
    100.7 KB · Views: 164

Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
7
I don't want to make a new topic to solve my long time problem with the designation of FIAT CR.25, it concerns Italian fighter projects in the end.
Question is why the FIAT CR.25 designed in 1937 has lower number than FIAT CR.30 which designing begun in 1930 ;
both machines were designed by Celestino Rosatelli, though.
Is it possible that originally designation of the aircraft should be FIAT BR.25 as it was intention to create a high-speed light bomber
and reconnaissance machine at the start, with the bomb-aimer place in the nose and full bombardment outfit ?


lucamax

ACCESS: Secret
Joined
Mar 2, 2010
Messages
243
Reaction score
30
Website
www.res-aeronautica.com
Dear friends,

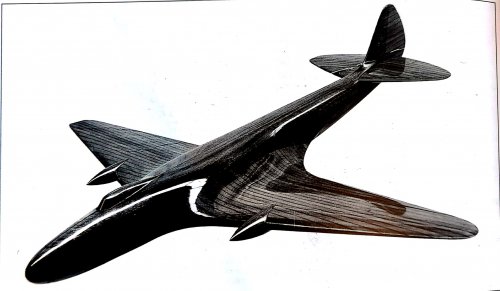

here I share a pic about a wooden model of Caproni Ca.401 with single rudder.
Hope you'll enjoy!
Source: Gente dell'Aria, Vol. 3, Giorgio Evangelisti, Olimpia Editore.
Best regards.
--
Luca


Attachments

  • ca401mono.jpg
    143.9 KB · Views: 87

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Nice find my dear Lucamax,just seen,

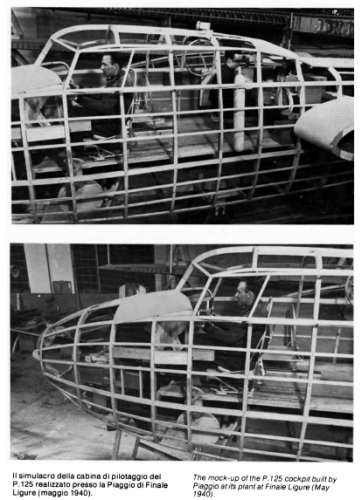

here is a mock-up to Piaggio P.125 cockpit.


Attachments

  • 1.png
    231.6 KB · Views: 52

Similar threads

Top
