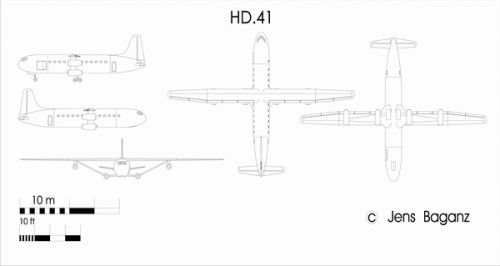

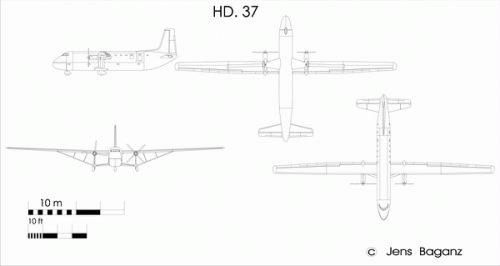

The HD.37 was a flying car ferry, based on the HD.31/32 series.

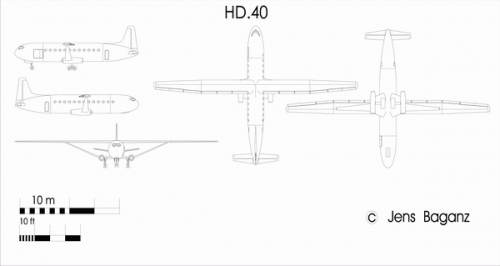

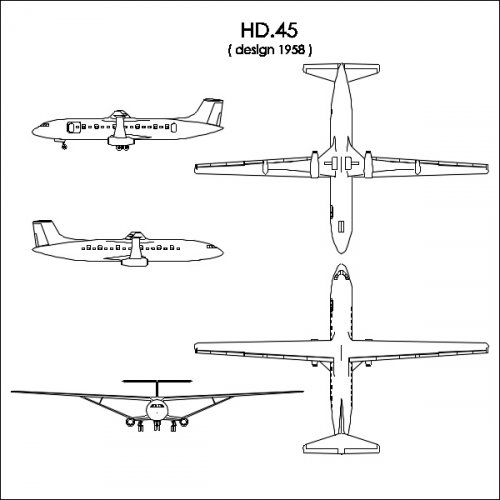

The HD.40 and 41 were forerunners to the HD.45, the Caravelle contender
The HD.45 was a contender in the competition, which saw the
SNCASE Caravelle as winner.

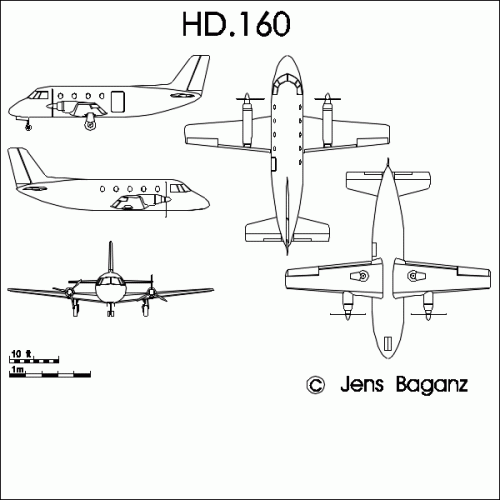

The HD.160 was an business turboprop/ light transport project of 1964/65,
totally untypical for Hurel-Dubois, as it had no high aspect ratio wing.


Attachments

  • HD-37.GIF
    22.6 KB · Views: 854
  • HD-40.GIF
    23.2 KB · Views: 772
  • HD-41.GIF
    23.2 KB · Views: 725
  • HD-160.GIF
    22.5 KB · Views: 701
  • HD-45.JPG
    53.2 KB · Views: 392

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

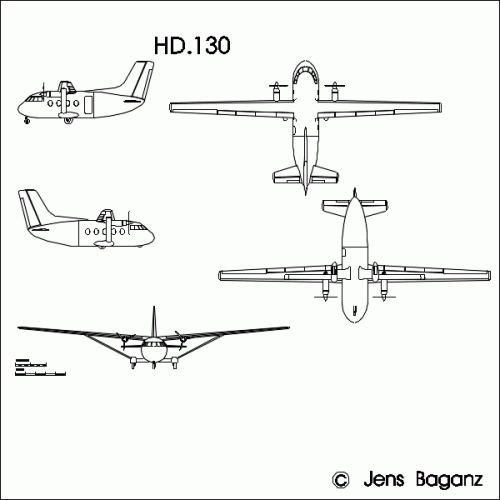

The HD-130 was a project for a light transport, designed around 1964, a high wing
aircraft carrying up to 17 passengers, quite similar to the Shorts Skyvan, but
with the typical Hurel-Dubois wing.


Attachments

  • HD-130.GIF
    14.7 KB · Views: 337

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
887
Reaction score
50
Archibald said:
Let's go back to the heavy transports...

Does the Hurel-Dubois HD34 series count as a "heavy transport?" Only 8 were produced, so while it wasn't an unbuilt project, it certainly might be described as "barely built." :D


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
Well, the HD-37, a HD-34 derivative intended as flying car ferry, perhaps could
have been used as a military transport. And the HD-321 even was used in a military
role during the Suez conflict, painted with yellow and black "Suez stripes" (something
for the modelers ?). A heavy transport ? That's a good question ! The HD-37 would
have had a payload of up to 8.500 kg, still in the "medium" class, I think. But is there
an exact definition ?


Attachments

  • HD321-01.jpg
    40.3 KB · Views: 197

amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
238
Reaction score
6
Issue 63 of Air Enthusiast has an article on some of the projects. I wonder if Replic, Air Fan or Le Fana de le Avions had covered Hurel Dubois and his high aspect ratio aircraft. One of his designs the HD.34, formerly with the French Geographical Survey flies regularly at air shows in France. You can see it here at http://membres.lycos.fr/hurelduboishd34/

Personally, I wouldn't mind taking a ride on this whimsical but romantic prop aircraft.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503

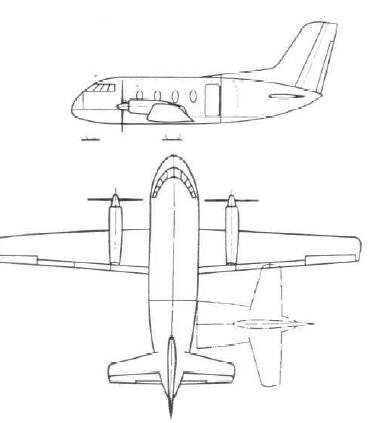

Hurel-Dubois HD.332 assault transport project

Also from my dear Jemiba,

HD.35,HD.353 and HD.355 was twin engined ASM aircraft.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

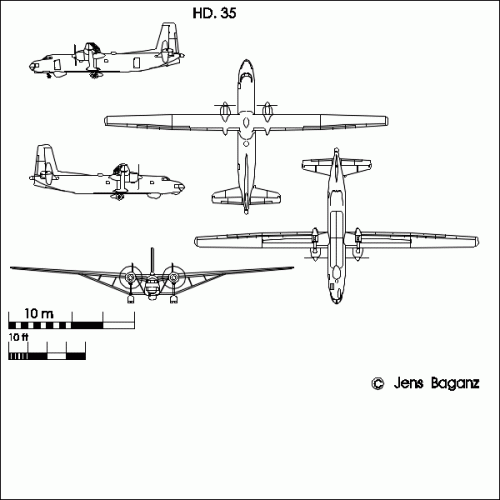

The HD 35 was an adation of the HD 321, powered by Wright 982 engines.
To improve take-off and attack speed, additional Marboré jet engines were
proposed, changing the designation to HD 353. For the envisaged Wright
engines, France would have had to pay in $, scarce during that time, so
"pure french" version was planned, with licence built Hercules engines and
two Marboré, too, changing designation again to HD 355. The basic HD.35
is shown in volume 2 of Cunys "Les Avion De Combar Francais". In the RAF
Flying Review .8.55 I've found a photo of a model of the HD 35, displayed
at the Paris Air Show, which has a different tail and obviously no radome.


Attachments

  • HD-35.JPG
    49.1 KB · Views: 279
  • HD-35.GIF
    20.9 KB · Views: 282

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

The Hurel-Dubois HD-70 was anther transport project but I have not
any details about it and the HD-109 was low wing twin engined light
transport project,powered by two 530 hp Astazou II engines.


Attachments

  • HD-109.JPG
    14.7 KB · Views: 206

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

A small info about Hurel-Dubois HD.70,it was twin engined transport
aircraft project intended to compete Nord N.2600,it was accommodated
28-36 passengers and powered by two Dart engines,its estimated
speed was 310 mph.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

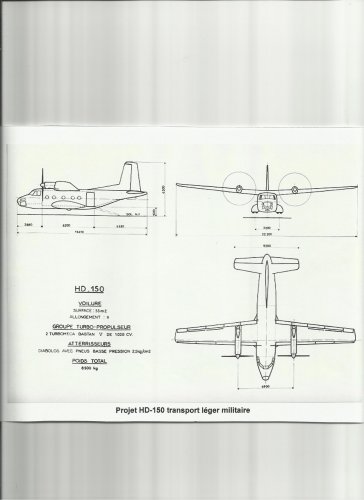

The Hurel-Duboid HD-150 was small version of HD-130 as a military
transport.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

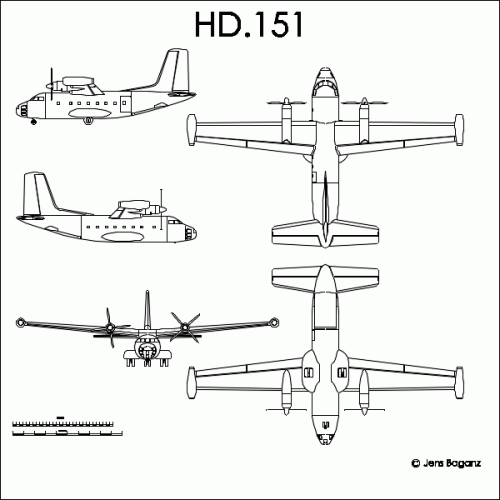

I only know the HD.151, IF the usual designation system was used
(that's not for ceratin, of course !), then it would have been a direct
derivative of the HD.150 and , in fact larger than the HD.130. The
HD.151 was designed as a tactical transport with two 930 hp Bastan
engines and boundary layer control, renouncing with the typical Hurel
Dubois wing with high aspect ratio, which still could be found in the
desig of hte HD.130, a lihgt civil transport.


Attachments

  • HD-151.GIF
    25.9 KB · Views: 228

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

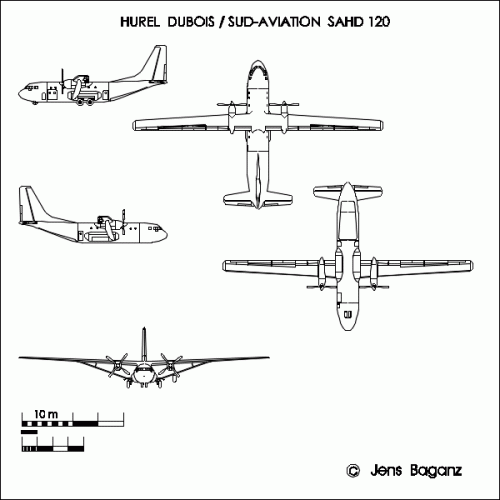

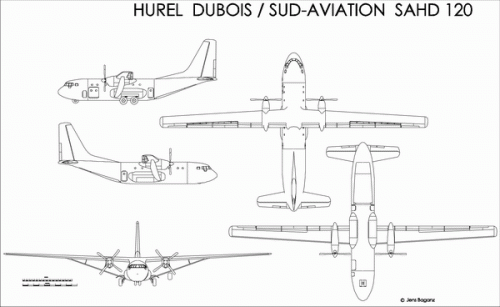

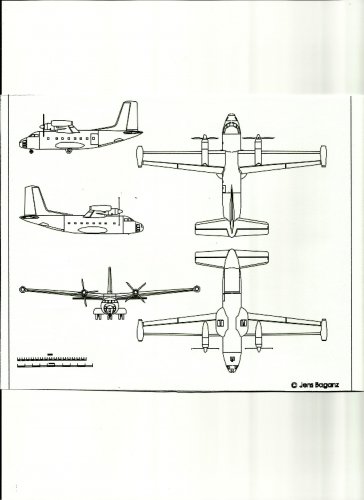

Teamed with Sud Aviation Hurel-Dubois perhaps came quite near a
real production contract with the SAHD-120, as a contender for a
tactical transport, that eventually saw the Transall as the winner.

The SAHD 120 looks like a Transall with a typical HD-wing.


Attachments

  • SAHD-120.GIF
    40.3 KB · Views: 237
  • SAHD120.GIF
    19.1 KB · Views: 114

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
162
The flight international archive has several good articles on one of the HD that made it into production, including a very nice cutaway.
I will find the link when i get off work and post it.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Dear Boys and Girls, here is another French "Secret Project" for you; the Hurel-Dubois HD-37 which was a turboprop-powered car ferry variation on Maurice Hurel's standard theme. Note the Rolls Royce Dart engines and the upper deck passenger cabin abaft the wing......

Actually, it's not "secret", but it is a "project"......

The cutting is taken from the 25th July 1959 issue of Les Ailes......

Terry (Caravellarella)


Attachments

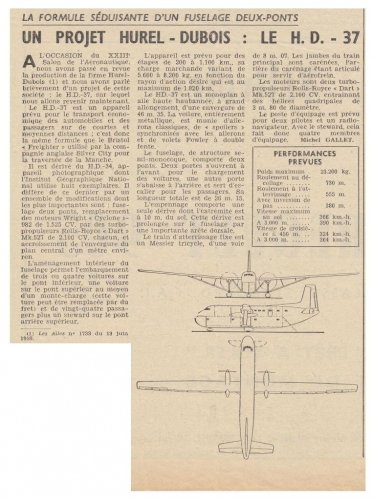

  • Hurel-Dubois HD-37 - Les Ailes No. 1,739 - 25th July 1959.......jpg
    Hurel-Dubois HD-37 - Les Ailes No. 1,739 - 25th July 1959.......jpg
    157.4 KB · Views: 292

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Dear Boys and Girls, here is a short article in French about the Société Anonyme de Construction des Avions Hurel-Dubois HD-151 STOL light military transport "project". The Hurel-Dubois HD.151 was one of the designs submitted for a 1960 Armée de l'Air competition for an army co-operation light transport; it featured wing-tip mounted Turboméca Autan III compressors to provide compressed air to blown flaps and ailerons. Note the fuselage-mounted ground-attack cannon in the illustration.....

The article comes from the 27th October 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Société Anonyme de Construction des Avions Hurel-Dubois HD.jpg
    Société Anonyme de Construction des Avions Hurel-Dubois HD.jpg
    110 KB · Views: 292

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
Hi Caravellarella
The Hurel Dubois hd 151 by our friend JEMIBA


Attachments

  • Scan.jpg
    255.4 KB · Views: 261

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
and also the hd 150 from I don't remenber !


Attachments

  • Scan.jpg
    236.5 KB · Views: 211

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202

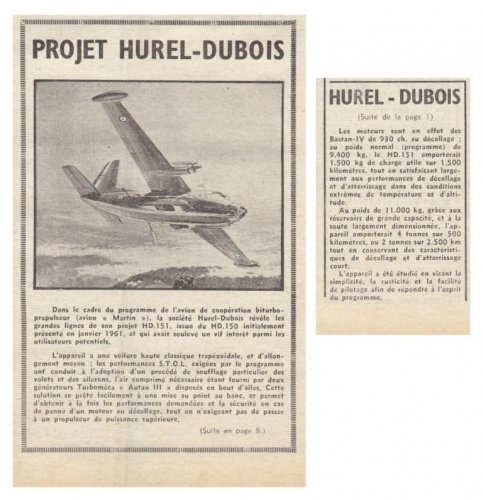

Dear Boys and Girls, here is a two-page article in French announcing the Société Anonyme de Construction des Avions Hurel-Dubois HD-130 light turboprop utility transport "project".

Jemiba has better drawings than I do......

The article comes from the 21st April 1961 issue of Les Ailes......

Terry (Caravellarella)


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
100
And , here something more
Bye Caravellarella


Attachments

  • Scan.jpg
    390.1 KB · Views: 164

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,795
Reaction score
1,935
Does anyone know what aircraft, built or otherwise, was the French Navy order for a 100 H.D.35 ASW planes cancelled in favour of? Or was it just another victim of limited funds?


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Grey Havoc said:
Does anyone know what aircraft, built or otherwise, was the French Navy order for a 100 H.D.35 ASW planes cancelled in favour of? Or was it just another victim of limited funds?

Bréguet Br.1150 Atlantic?


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Grey Havoc said:
Should have guessed. [Slaps forehead]

I don't know for sure Grey Havoc, the Bréguet Br.1150 Atlantic is a later multinational collaborative project from 1961......

Terry (Caravellarella)


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,795
Reaction score
1,935
Caravellarella said:
Grey Havoc said:
Should have guessed. [Slaps forehead]

I don't know for sure Grey Havoc, the Bréguet Br.1150 Atlantic is a later multinational collaborative project from 1961......

Terry (Caravellarella)

And H.D.35 was from 1957/58 or thereabouts? Or was it earlier?


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Grey Havoc said:
Caravellarella said:
Grey Havoc said:
Should have guessed. [Slaps forehead]

I don't know for sure Grey Havoc, the Bréguet Br.1150 Atlantic is a later multinational collaborative project from 1961......

Terry (Caravellarella)

And H.D.35 was from 1957/58 or thereabouts? Or was it earlier?

Page 2 of this topic implies 1955 for the HD-35, but I don't believe a real order for 100 aircraft ever actually existed......


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Dear Boys and Girls, here is a small piece in French about the Société Anonyme de Construction des Avions Hurel-Dubois HD-109 "project". It combined the fuselage of the Hurel-Dubois HD-130 "project" with a more conventional cantilever low wing of similar area but with a reduced span (to offer better performance) and was a competitor to the SIPA S.272 Présence "project"......

There is a drawing of the Hurel-Dubois HD-109 "project" here;
http://www.secretprojects.co.uk/forum/index.php/topic,1381.msg17445.html#msg17445

The Hurel-Dubois HD-130 "project" is here;
http://www.secretprojects.co.uk/forum/index.php/topic,1381.msg11478.html#msg11478

The SIPA S.272 Présence "project" is here;
http://www.secretprojects.co.uk/forum/index.php/topic,12412.msg121737.html#msg121737

The piece comes from the 19th May 1961 issue of Les Ailes......

Terry (Caravellarella)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

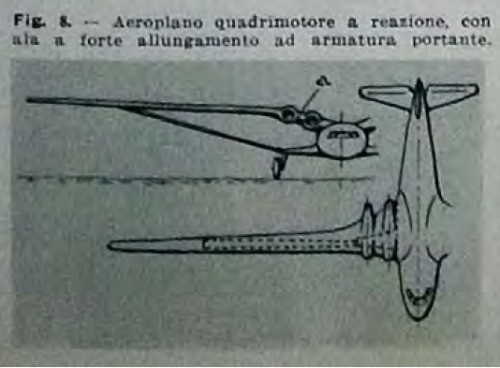

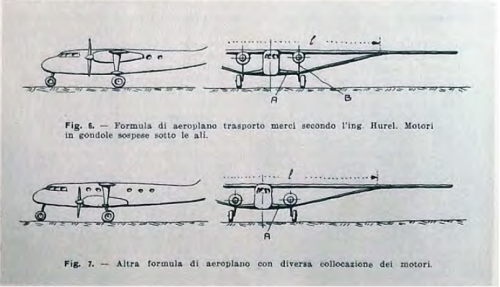

here is a two concepts for Hurel Dubois airplanes,the last one is new for me.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Alata/Alata%201950%2005.pdf


Attachments

  • 6.png
    556.4 KB · Views: 400
  • 7.png
    355.2 KB · Views: 367

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953
Again, I don't buy that this is actually a Hurel-Dubois design ! Perhaps it's just a design following the aerodynamic
layout featured by many Hurel-Dubois types and the article is about wings with a high span/chord ration,
not just about Hurel-Dunbois, which of course is one of the best known users of this layout. But for example,
the Miles HDM 106 wasn't a pure HD design, too.
(The caption says something like "transport aircraft of Hurel-Dubois formula", if I trust the online translation)
Please, if such points aren't clear, because of sources in a language not fully understood by the poster, I would
always recommend asking for help with a translations by a member knowledgable in that language, and I remind
to this thread http://www.secretprojects.co.uk/forum/index.php/topic,23344.0.html

It's just too easy to create "new types" via a wrong translation, something we should try hard to avoid !


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
My dear Jemiba,

the whole article is about Hurel studied,so it was cleared its his designs,if there was
something mystery in any anther article,of course I asked about it.


Attachments

  • 1.png
    102.3 KB · Views: 301

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

the HD-36 was a maritime patrol variant Project of HD-31.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
From Ailes 11/1952.


Attachments

  • 1.png
    988.8 KB · Views: 164
  • 2.png
    591.3 KB · Views: 113

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,387
Reaction score
99
Website
cluttonfred.info
The more things change....



http://www.boeing.com/features/2019/01/spreading-our-wings-01-19.page


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688
Right topic? The Sud Aviation SA-84M, a four-engined proposal for a tactical transport, that eventually later on saw the Transall C-160 as the winner.
Not mentioned in French Secret Projects 2.
Réponse : le Sud Aviation SA-84M, projet concurrent du Transall. Plusieurs configurations furent proposées - Deux ou quatre turbines - désignations allant de SA-80 à SA-85.
Twitter:

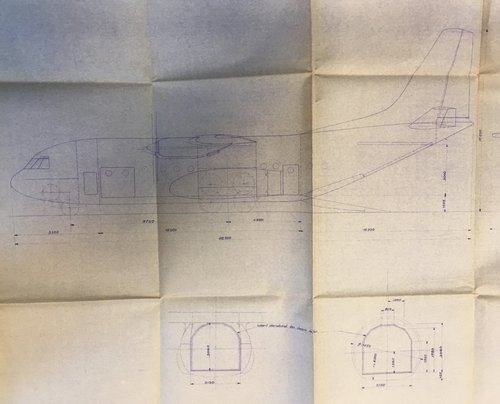

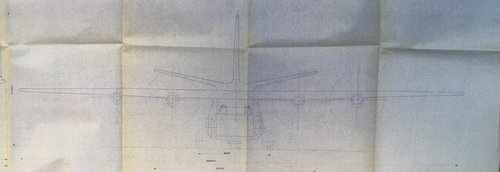

Edit: Attached pictures


Attachments

  • 20190708_Sud Aviation SA-84M_FANA_3.jpg
    20190708_Sud Aviation SA-84M_FANA_3.jpg
    67.6 KB · Views: 70
  • 20190708_Sud Aviation SA-84M_FANA_2.jpg
    20190708_Sud Aviation SA-84M_FANA_2.jpg
    61.2 KB · Views: 68
  • 20190708_Sud Aviation SA-84M_FANA_1.jpg
    20190708_Sud Aviation SA-84M_FANA_1.jpg
    149.8 KB · Views: 100
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
From Icare 1961,

a good artist drawing to HD.130 Project.


Attachments

  • B.png
    266.4 KB · Views: 87

Similar threads

Top
