Hughes D-2, D-5 and XF-11

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
I guess the search engine really is my friend. So say we all.

http://www.ww2aircraft.net/forum/aviation/howard-hughes-d-2-a-9232.html

Moonbat


Attachments

  • lastscansm6.jpg
    84.4 KB · Views: 1,499
  • d22nr1.jpg
    159.2 KB · Views: 1,324

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
943
Re: Hughes D-2

Very interesting find and quite different from the D-2 drawings, which were shown
on the (now defunct) Chandelle site.
The style of the 3-view looks very similar to those, which are known from the german
magazine FlugRevue


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,679
Reaction score
308
Re: Hughes D-2

Nice findings Moonbat!!!

The photos are new, at least for me, but the 3 views are essentially the same published in a past number of the Italian "Aerei nella Storia" magazine.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
Re: Hughes D-2

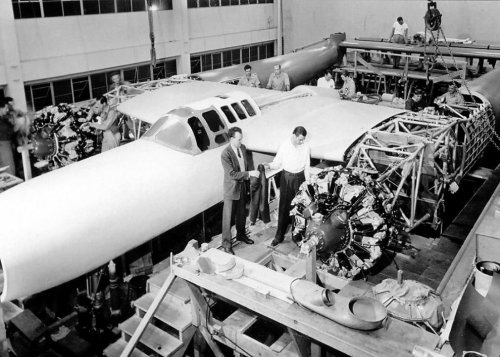

I figured it was high time to shed some light this very rare bird. I'm actually surprised I even found pictures at all. I did a Google search a few years back and got zero results.

I did find a couple of sites stating Hughes cast such a veil of secrecy on the project that no photos were said to exist. Even this book stated as much:
http://www.amazon.com/U-S-Experimental-Prototype-Aircraft-Projects/dp/1580071090/ref=sr_1_1?ie=UTF8&s=books&qid=1231176158&sr=8-1

But then again....it looks like some photos were out there after all. So here we are. ;)

Moonbat


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
71
Re: Hughes D-2

The style of the 3-view is indeed very 'FlugRevue' but this drawing and the
photo's should come from 'Air Historian' 1973 , an Australian magazine.
Maybe someone knows more about...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
943
Re: Hughes D-2

"The style of the 3-view is indeed very 'FlugRevue' "

Maybe it's a kind of a "standard style", as most such 3-views in "FlugRevue"
are signed "HR", implying that the last name of the artist begins with R, but
the 3-view of the XF-11 is signed by "Hueber", surely the last name.


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
167
Reaction score
28
Re: Hughes D-2

Apparently, there is a fair amount of D-2 documentation in the Sara Clarke files at College Park. Unfortunately, that collection is ciurrently closed, possibly for indexing.

Best Regards,

Artie Bob


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
71
Re: Hughes D-2

Initials H.R on the FlugRevue drawings are for Hans Redemann
as far as I know...

About the D-2 , there should also be a DX-2 and D-5 .
All with a different wingplanform.
(mentioned in several articles)

Anyone with a bit more info about ?
(exept for the book mentioned afore)


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
14
Re: Hughes D-2



ISTR a couple of year ago Air Classics did an article on the D-2 & XF-11 & had a 3 view similar to this one.



Jemiba said:
"The style of the 3-view is indeed very 'FlugRevue' "

Maybe it's a kind of a "standard style", as most such 3-views in "FlugRevue"
are signed "HR", implying that the last name of the artist begins with R, but
the 3-view of the XF-11 is signed by "Hueber", surely the last name.


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
749
Reaction score
153
Re: Hughes D-2

About 15yrs ago someone come out with a booklet on the D2.It had about 15 photo's in it


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
71
Re: Hughes D-2

Highly interesting!

Do you have more info about this publication ?

Thanks in advance..


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
150
Reaction score
9
Re: Hughes D-2

Hey, y'all--

I have a copy of "Air Historian." Found it in a secondhand bookstore in Bundaberg, Queensland, in 1976. A one-off, apparently. The D-2 article is not very coherent, but full of interesting tidbits. Although the author is not identified, this passage is found in the article:
"Now, for the first time, Australian aviation artist-draughtsman researcher, Harry Robinson has created a set of drawings of this rare machine from the past."

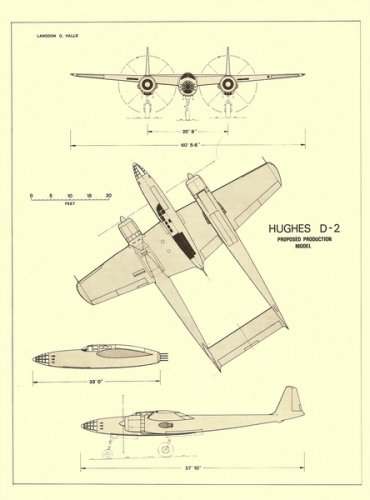

Note that the previously posted 3-view is credited to Langdon G. Halls. The article does feature this other front view, not captioned or attributed, which the reader is left to wonder about. Interestingly, it seems to show inline engines installed. Tornados?

--Ian


Attachments

  • D-2 front Robinson.jpg
    D-2 front Robinson.jpg
    81.9 KB · Views: 1,168

Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
749
Reaction score
153
Re: Hughes D-2

No I do not remember.I still kick my self that I did not buy it for was under 10$.The D2 looked like a B25 with a P38 tail. ???


Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
6
Re: Hughes D-2

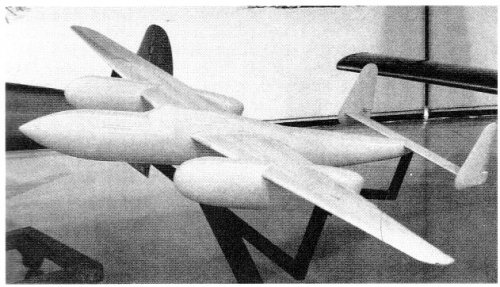

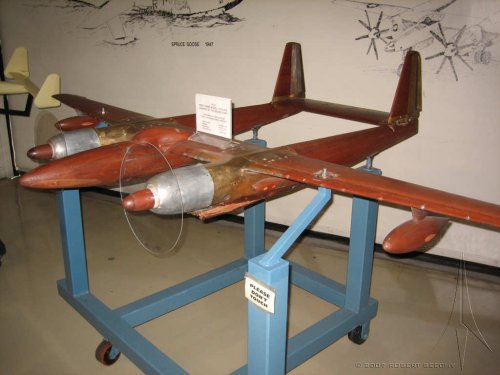

Thomas Wildenberg is co-author of a biography of Howard Hughes, and he's done an excellent multi-part article that should be considered as a good source for info on the D-2. See "A Visionary Ahead of His Time: Howard Hughes and the U.S. Air Force," especially Part II, "The Hughes D-2 and XF-11," in Air Power History magazine, Vol. 55 No. 1 (Spring 2008); it's published by the AF Historical Foundation, and well worth seeking out. The article includes an especially interesting photo of a wind tunnel model of an early version of the D-2 now held by the Florida Air Museum:


Attachments

  • D-2 windtunnel model.jpg.jpg
    D-2 windtunnel model.jpg.jpg
    74.7 KB · Views: 896

Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
150
Reaction score
9
Re: Hughes D-2

Wow. I have got to get down to Lakeland. They've apparently got a Howard Hughes room open now, with some models, although the pictures on their website don't show that D-2 model.

http://www.sun-n-fun.org/content/interior.asp?section=museum&body=displays/hughescollection


roadrunner2

ACCESS: Restricted
Joined
Jul 26, 2007
Messages
39
Reaction score
4
Re: Hughes D-2

Apteryx said:
Hey, y'all--

I have a copy of "Air Historian." Found it in a secondhand bookstore in Bundaberg, Queensland, in 1976. A one-off, apparently. The D-2 article is not very coherent, but full of interesting tidbits. Although the author is not identified, this passage is found in the article:
"Now, for the first time, Australian aviation artist-draughtsman researcher, Harry Robinson has created a set of drawings of this rare machine from the past."
Note that the previously posted 3-view is credited to Langdon G. Halls. The article does feature this other front view, not captioned or attributed, which the reader is left to wonder about. Interestingly, it seems to show inline engines installed. Tornados?

--Ian


is it possible to see the other views.....


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
150
Reaction score
9
Re: Hughes D-2

is it possible to see the other views.....

The Air Historian article contains the three-view by Langdon Halls, which XP-67_Moonbat supplied at the start of this thread, and the front view I supplied. That's all the D-2 illustrations apart from an isometric perspective rendering from Hughes and another Hughes illustration, a fanciful "in-action" scene. I'll post them tonight.

The article is confusing, and the attributions are mostly missing.
--Ian


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
150
Reaction score
9
Re: Hughes D-2

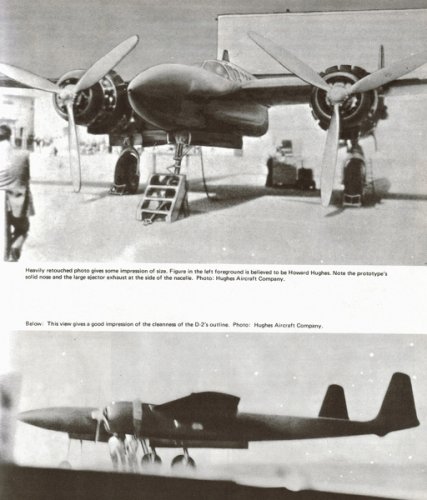

OK, here's the remaining pics from Air Historian.
Note the D-2s have bagged a Heinkel 111 on a night sortie!


Attachments

  • D-2 in action.jpg
    D-2 in action.jpg
    227.8 KB · Views: 799
  • D-2 perspective.jpg
    D-2 perspective.jpg
    110.3 KB · Views: 731

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,475
Reaction score
203
Re: Hughes D-2

OK, here's the remaining pics from Air Historian.
Note the D-2s have bagged a Heinkel 111 on a night sortie!

Thanks a lot! really interesting art never seen before.

A bit off-topic but it's very interesting from that "in action" art to see US fighters are represented intercepting German aircraft. I've already seen the Bf 110 at Vultee's contemporary ad. I think the reason for that is US manufacturers main target for their combat aircraft in late 30's was Europen countries (UK, France, Netherlands...) facing a possible war with the III Reich.


Robert

ACCESS: Confidential
Senior Member
Joined
Feb 9, 2007
Messages
63
Reaction score
2
Website
hud607.fire.prohosting.com
Re: Hughes D-2

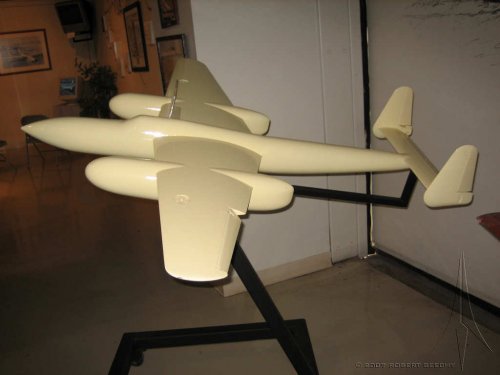

The Florida Air Museum in Lakeland (@ Sun 'n Fun) has quite a bit of Howard Hughes memoribilia, including models of the H-1, H-4, XF-11 and D-2 (more pics from when I visited). They also have a Convair F2Y and Lockheed FV, among other aircraft...


Attachments

  • xf-11_01.jpg
    83.4 KB · Views: 611
  • d-2_05.jpg
    58.9 KB · Views: 613

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
71
Re: Hughes D-2

Clioman,

Is it possible to tell us what the caption is with
the photo of the early D-2 twin finned concept ?
Thanks in advance.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
547
Reaction score
26
Re: Hughes D-2

Lark, use the D-2 (more pics from when I visited) link


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
71
Re: Hughes D-2

I did before I asked the question David...

In fact, I hoped to find more about the timeframe/date of the twinfinned
design.The article in Air Power History gives no indication as far as I saw.
All the sources I searched did not even made a mention of it..


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
150
Reaction score
9
Re: Hughes D-2

lark said:
I did before I asked the question David...

In fact, I hoped to find more about the timeframe/date of the twinfinned
design.The article in Air Power History gives no indication as far as I saw.
All the sources I searched did not even made a mention of it..

FWIW, here's the photo of the placard, from Robert's photo site...not many specifics.


Attachments

  • d-2 placard.jpg
    d-2 placard.jpg
    63.4 KB · Views: 521

Robert

ACCESS: Confidential
Senior Member
Joined
Feb 9, 2007
Messages
63
Reaction score
2
Website
hud607.fire.prohosting.com
Re: Hughes D-2

Clioman said:
Thomas Wildenberg is co-author of a biography of Howard Hughes, and he's done an excellent multi-part article that should be considered as a good source for info on the D-2. See "A Visionary Ahead of His Time: Howard Hughes and the U.S. Air Force," especially Part II, "The Hughes D-2 and XF-11," in Air Power History magazine, Vol. 55 No. 1 (Spring 2008); it's published by the AF Historical Foundation, and well worth seeking out. The article includes an especially interesting photo of a wind tunnel model of an early version of the D-2 now held by the Florida Air Museum:

I think lark was referring to this post, not mine (emphasis is mine).


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
71
Re: Hughes D-2

Thanks Apterix !
This is what I was looking for...


RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
846
Reaction score
81
Website
www.alternatewars.com
Hughes XF-11 and Variants

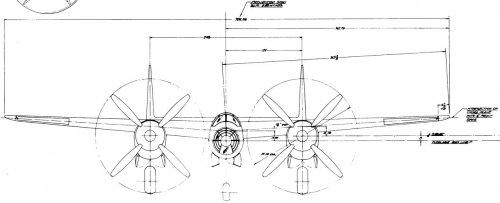

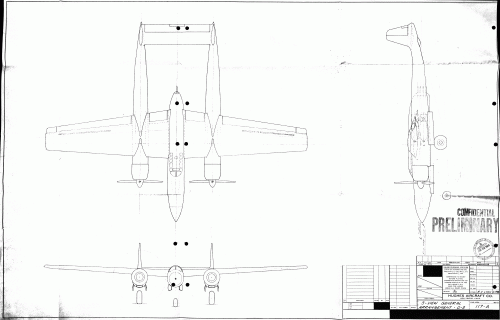

I found a three view blueprint of the D-5 (the fighter version that came before the XF-11) at Archives II; it was so huge, I had to pay to use their oversized scanner; and here is the image with some cleanup to shrink file sizes.

The original is about 13,700 x 8,700 and with true color TIFF, clocks in at 200 MB :eek:


Attachments

  • Hughes D-5.gif
    Hughes D-5.gif
    626 KB · Views: 1,362

RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
846
Reaction score
81
Website
www.alternatewars.com
Re: Hughes XF-11 and Variants

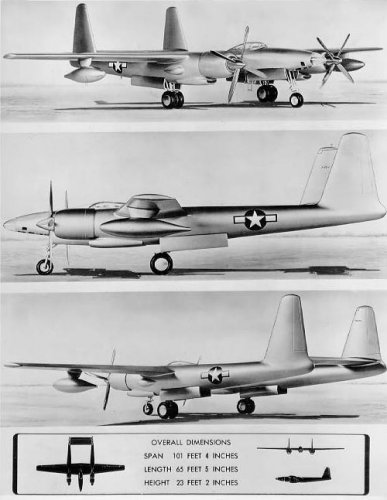

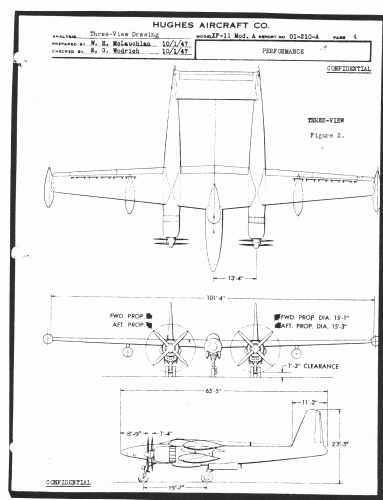

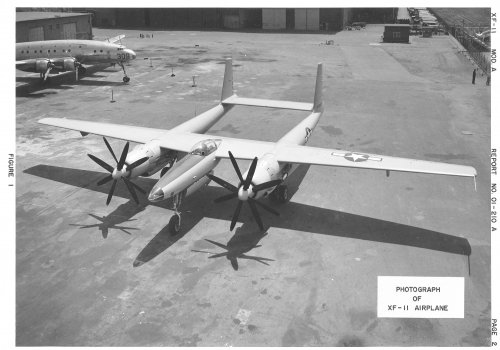

Here is a random photo of the XF-11 sitting on a tarmac somewhere. Notice the connie in the background; plus a three view of the XF-11 Mod A.


Attachments

  • XF-11.jpg
    335 KB · Views: 874
  • XF-11 Mod A.gif
    XF-11 Mod A.gif
    398.1 KB · Views: 1,027

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
Re: Hughes XF-11 and Variants

I wonder if a high res color image is out there somewhere?...


RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
846
Reaction score
81
Website
www.alternatewars.com
Re: Hughes XF-11 and Variants

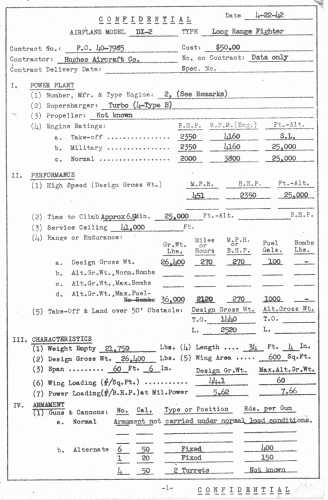

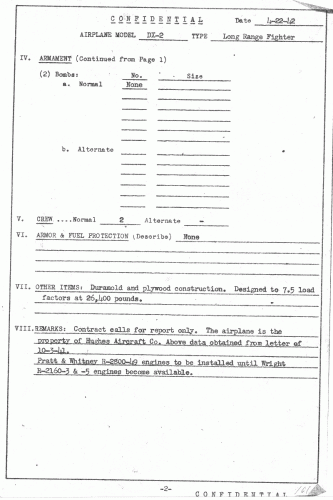

Here is the USAAF report or whatever you call it on the DX-2 fighter version. No three view drawing though of it :-[


Attachments

  • DX-2_A.gif
    120 KB · Views: 772
  • DX-2_B.gif
    107.1 KB · Views: 705

RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
846
Reaction score
81
Website
www.alternatewars.com
Re: Hughes XF-11 and Variants

BTW, the Archives II in it's XF-11 files, has the accident report for the infamous crash of the XF-11 that's portrayed in The Aviator. I didn't scan any of it in (it's hundreds of pages at the minimum and very dry language).

Basic summation -- it places all the blame on the pilot (read, Howard Hughes); for exceeding the flight test parameters -- the flight was supposed to be a basic checklist to test some elements of the plane (IIRC landing gear retraction etc); but Hughes ignored that and turned it into a joyride.

Then, when the oil pressure on the contra-rotating prop failed; Hughes did all the wrong actions to correct the offset torque/thrust, and crashed.

Additionally, it said that if the second XF-11 crashed, Hughes Aircraft would pay for it.

(paraphrasing from my memory)

Also, apologies in advance to those who were expecting a calvalcade of rare photos of the XF-11. I was unable to locate any, and the only photo I could find was buried in a technical report on modifications of the XF-11 -- I wonder if the old urban legend of Howard Hughes deliberately destroying any information on the XF-11 is true.


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
566
Reaction score
202
Re: Hughes XF-11 and Variants

RyanCrierie said:
Here is a random photo of the XF-11 sitting on a tarmac somewhere. Notice the connie in the background...

It's highly likely that this photo was taken at the Hughes Culver City facility, where the two XF-11s were built. This is the first aircraft (the second did not have contra-rotating props), and since it crashed on its' first flight, there is no where else that it could have been photographed.

OTH, the second aircraft did eventually make it to Wright Field and was photographed there.


Excellent work!


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
150
Reaction score
9
Re: Hughes XF-11 and Variants

Hi--

That D-5 general arrangement drawing is quite the find! There's no apparent dimensional info, though--except the stated scale of 1/50. Could you share with us the measurement of the wingspan on your original scan?

Given that the drawing depicts the D-2 with a new wing, I'd guess the length would be just shy of fourteen inches, or 352 millimeters (one-fiftieth of 57' 10"). The span is much increased--looks closer to the XF-11 than the D-2.

Regards--Ian


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
Re: Hughes XF-11 and Variants

Do we know exactly what difference there is between D-2/DX-2 and D-5? Until now I've always assumed the D-2 was the initial design submitted by Hughes and the D-5 the actual prototypes...


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
150
Reaction score
9
Re: Hughes XF-11 and Variants

Stargazer2006 said:
Do we know exactly what difference there is between D-2/DX-2 and D-5? Until now I've always assumed the D-2 was the initial design submitted by Hughes and the D-5 the actual prototypes...

A short, provisional history:

The D-2 has also been referred to as the Hughes Design no. 2, the Design no. 1 being his famous racer.

The D-2 is the plane that was built and was flown by Hughes several times before he concluded the wing needed a complete redesign. This newly uncovered drawing seems to confirm that the D-5 was, essentially, the D-2 with this redesigned, longer wing. It may have been Hughes' intention to rebuild his single D-2 prototype with the new wing, but the Air Force's insistence on an all-metal plane, and the ultimate destruction of the D-2 in a hangar fire, resulted in the further development of the design into the XF-11. There was probably never any real D-5, or even substantial construction on one.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688
Re: Hughes XF-11 and Variants

Here the pictures at the SDASM Archives.
Link: http://www.flickr.com/search/?ss=2&w=49487266%40N07&q=XF-11&m=text


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
503
Website
deeptowild.blogspot.com
Re: Hughes XF-11 and Variants

Howard Hughes Crash Lands XF-11 into Houses in Beverly Hills, CA on July 7, 1946

Howard Hughes was involved in a near-fatal aircraft accident on July 7, 1946, while piloting the experimental U.S. Army Air Force reconnaissance aircraft, the XF-11, over Los Angeles. An oil leak caused one of the counter-rotating propellers to reverse pitch, causing the aircraft to yaw sharply. Hughes tried to save the craft by landing it on the Los Angeles Country Club golf course, but seconds before he could reach his attempted destination, the XF-11 started to drop dramatically and crashed in the Beverly Hills neighborhood surrounding the country club.


http://www.youtube.com/watch?v=cuP8vFkU2y8


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
503
Website
deeptowild.blogspot.com

Attachments

  • xf11_12.jpg
    39.9 KB · Views: 407
  • xf-11_aircraft_1.jpg
    43.5 KB · Views: 473

Similar threads

Top
