Grumman Pre-ATF & ATF Studies

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
46
It's interesting to me that out of the six ATF finalists only Grumman went it alone while the five teamed up. -SP


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
583
Reaction score
248
As if they had a choice? What added value could they bring to a potential teaming?


donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
986
Reaction score
40

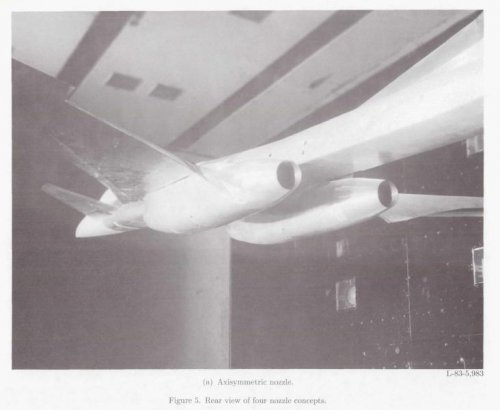

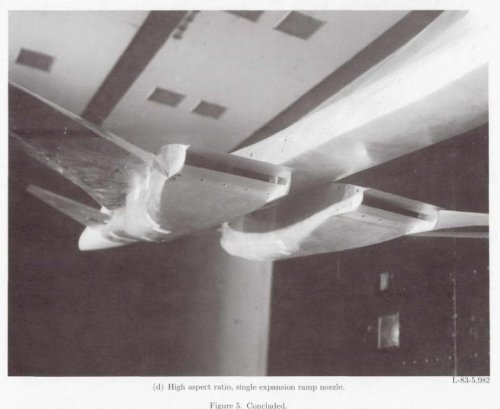

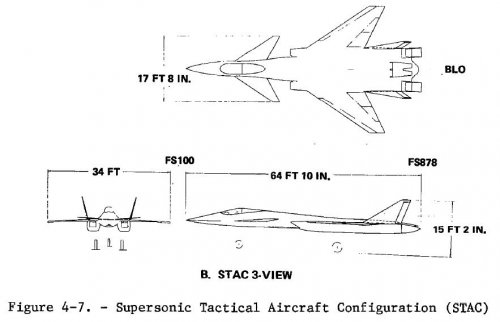

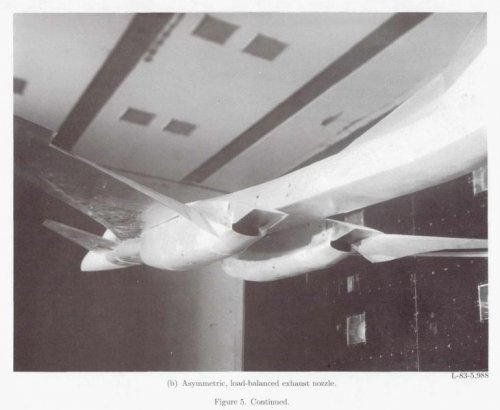

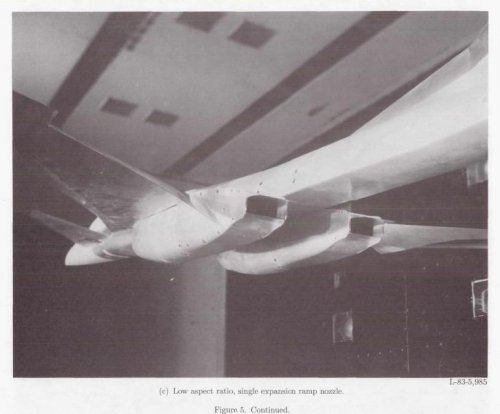

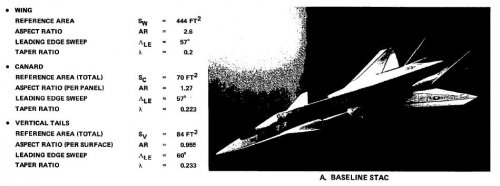

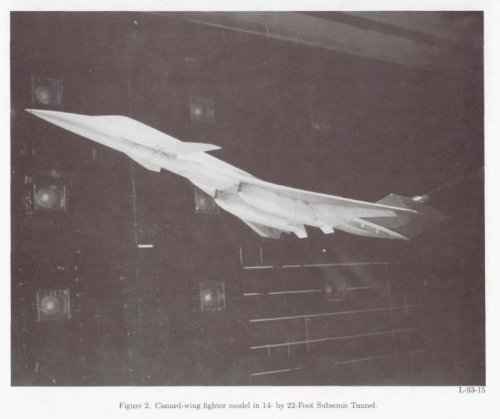

According to NASA pictures linked by Hesham, were the flatted nozzles added for stealth reason? If so, were these the final proposal after the stealth requirement from the Air Force has been emphasized?


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
166
A Grumman concept model for a twin-tail ATF (probably, possibly, or maybe).


Attachments

  • Grumman ATF Twin-Fin.jpg
    Grumman ATF Twin-Fin.jpg
    94.6 KB · Views: 508

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,863
Reaction score
329
Is that your model or just a pic you found? I've been looking for detail on that design forever. All I've ever seen is the top views of the related designs in those early 80's comparison charts for ATF weight class that this in, along with designs from other manufacturers. I know that chart is on these forums somewhere as well.

Thanks for sharing. :)


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
583
Reaction score
248

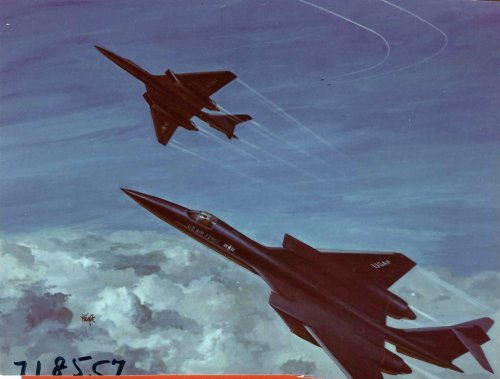

Another image (that got away from me on eBay).


Attachments

  • G-719J Fuel Efficient Fighter  - pair.JPG
    G-719J Fuel Efficient Fighter - pair.JPG
    25.7 KB · Views: 562

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
166
Sundog said:
Is that your model or just a pic you found?

I WISH this was my model, but it's just a photo that is currently for sale on eBay, here. Unless aim9xray has already snapped it up... BTW, thank you aim9xray for identifying this Grumman concept as the G-719J.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com
I don't recall if we previously identified or documented this concept. Grumman? I apologize if this has already been identified and documented.

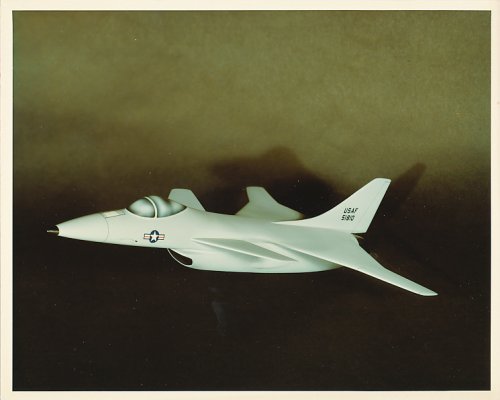

USAF advanced fighter with canards photo found on eBay.

Source:
http://www.ebay.com/itm/USAF-Advanced-Fighter-with-Canards-Concept-Photo/281197268350?_trksid=p2045573.m2042&_trkparms=aid%3D111000%26algo%3DREC.CURRENT%26ao%3D1%26asc%3D27%26meid%3D2658111646153818475%26pid%3D100033%26prg%3D1011%26rk%3D3%26rkt%3D4%26sd%3D121198098178%26


Attachments

  • 87904.jpg
    96.5 KB · Views: 200

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com
Related to this General Dynamics low cost fighter circa 1981?

index.php


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
583
Reaction score
248
No, it's believed to be a Grumman something-or-other pre-ATF concept.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,863
Reaction score
329
It's a Grumman design. It's in the American Secret Projects Book.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,671
Reaction score
4,286
index.php



Looks like this 1976 Grumman ADCA concept. Photo of the above model in American Secret Projects is courtesy Allyson Vought, who is a member of the forum.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,671
Reaction score
4,286

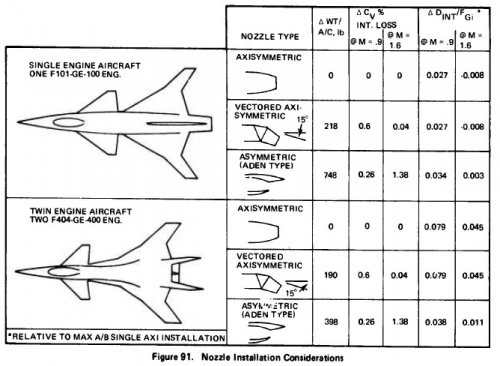

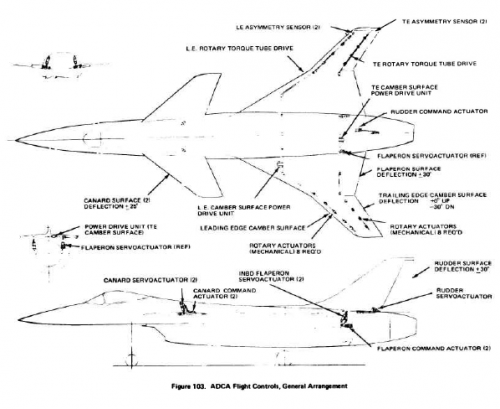

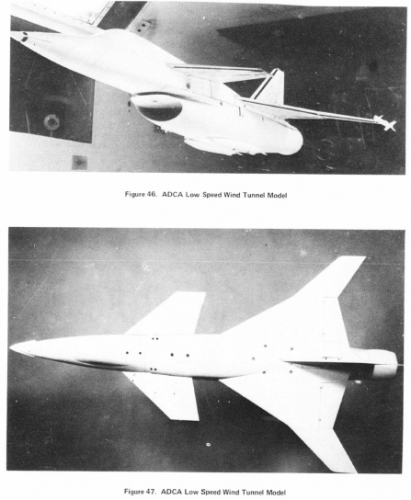

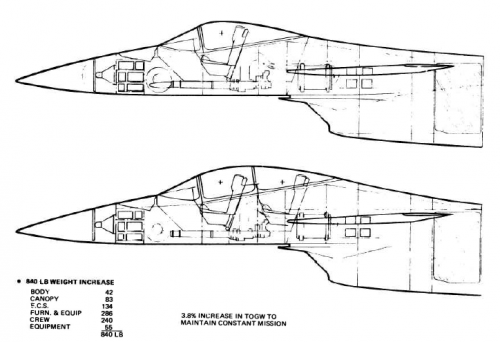

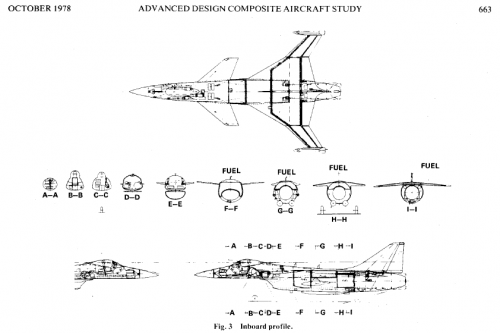

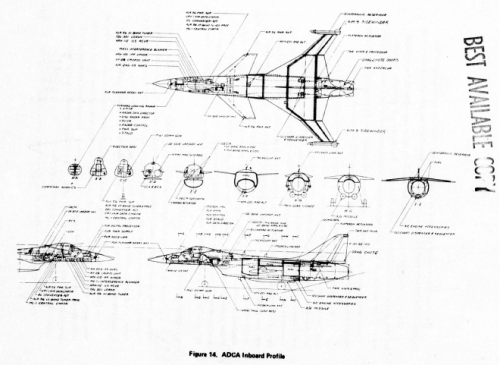

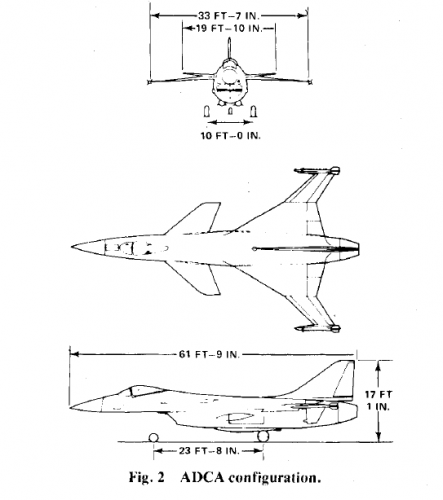

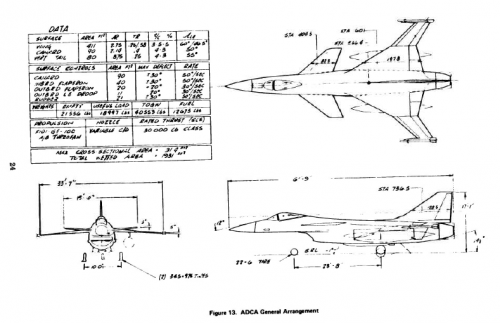

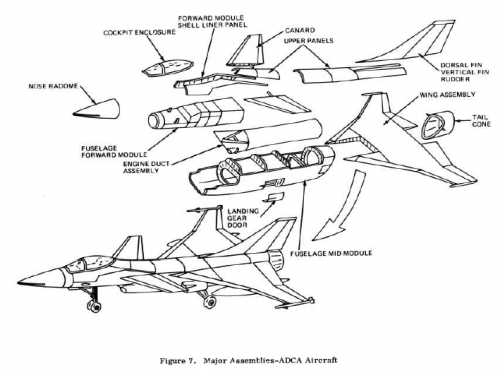

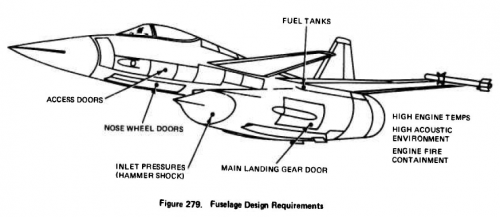

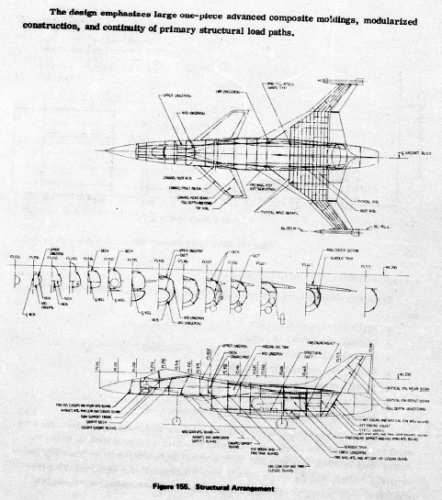

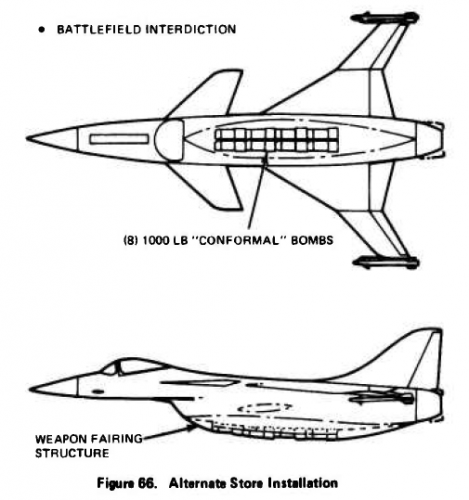

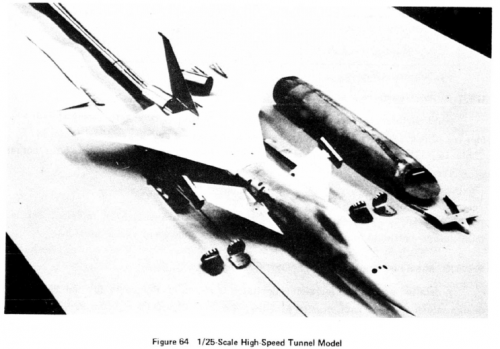

A rather complete review of prospects for use of composite materials abroad was published in the pages of our journal in 1984,1 but recently a series of new information has appeared about foreign firms' development American firm of Grumman studied possibilities of creating a future fighter with unlimited use of composite materials under the ADCA (Advanced Design Composite Aircraft) project. The objective of the work was to study the likely cost reduction of a supersonic fighter and concomitant weight reduction with maximum possible use of composite materials in its construction. Requirements placed on the ADCA aircraft were to ensure supersonic cruising speed, high acceleration characteristics and rate of climb, lengthy combat maneuvering at altitude at Mach 0.9, and good airfield performance. Graphite-epoxy, boron-epoxy and graphite-boron-epoxy materials, which were sufficiently worked out and already used previously in individual components of Some aircraft constructions, were considered as possible composite materials for use.

The project of an aircraft with a take-off weight of 17.33 tons was chosen from several versions of a future supersonic fighter satisfying the requirements laid down; it was the cheapest and lightest (Fig. 1). Its acceleration time from Mach 0.8 to Mach 1.6 at an altitude of 10,000 m was 79 seconds. The take-off run with missiles on external mounts with an overall weight of 5.54 tons did not exceed 975 m. The landing run also was the same distance. The most difficult to fulfill was the requirement to ensure lengthy combat maneuvering of the designed fighter with a g-load of 3.8 at an altitude of 9,000 m and a speed corresponding to Mach 0.9. Considering that the design temperature of the aircraft skin in the most important flight regimes did not exceed 127[] Centigrade, the decision was made to use graphite-epoxy as the primary structural material, from which the following basic structural components were designed: multispar continuous wing, foreplane (all moving stabilizer), vertical tailplane (with honeycomb filler), semimonocoque fuselage with wing attachment to it on three load-bearing spars.

The foreign press notes that compared with a fighter of similar purpose and with similar technical flight characteristics but made of traditional metal alloys, wide use of composite materials substantially reduced the weight of basic structural components of the ADCA aircraft, including 28 percent in the wing, 22 percent in the JPRS-UFM-88-008 5 August 1988 32 Fig. 1. Drawings of general views of fighter being created under the ADC A program (dimensions in meters) fuselage, 23 percent in the foreplane and fin, and 20 percent in the power plant air intakes. Studies showed that a certain decrease in weight of the aircraft construction also can be achieved using the latest metal alloys, but in this case the proportion of weight reduction does not exceed 9 percent. In addition, American specialists assert that they managed not only to design a stronger and lighter wing meeting given specifications, but also to give it new aeroelastic properties. In particular, in flight under the effect of aerodynamic forces the wing is capable of acquiring a specific twist at a certain angle close to optimum for the given flight regime without the help of controls. In this way the wing's lift/drag ratio is kept close to optimum in different flight regimes. Wings of metal construction do not have that capability. In wings made of composite materials, however, the effect of programmed aeroelasticity is achieved with consideration of a forecasting of the pairing of "flexural-torsional" strain by appropriately selecting the placement of composite material lamina of varying number and orientation along the wingspan. Foreign specialists point out three possible methods for placing composite material lamina: rotation of longitudinal lamina, unbalance of transverse lamina and rotation of the entire placement scheme. It is believed that all of them provide the requisite nature of change in wing strain in flight, but the last two methods are not recommended for use since they simultaneously lead to a reduction in the wing's torsional rigidity and consequently to a decrease in the speed where flutter appears. Calculations showed that placement of torsion box skin lamina with a 15 degree forward rotation of the lamina in the ADCA aircraft wing provides best values of wing twist and helps the aircraft achieve high maneuver characteristics. This thesis was confirmed by appropriate wind tunnel tests. A similar effect also can be achieved in a nontwisted wing, but with the help of deflection of special control surfaces, which requires an increase in aircraft weight due to the need for installing an additional system and controls. The method of controlling structural rigidity by rotating the longitudinal composite material lamina in the process of placing them in the skin (in this case by 15 degrees backward with respect to the longitudinal axis) was used in creating the fin of the ADCA aircraft. Transverse composite material lamina (90 degrees) and crossed lamina (plus or minus 45 degrees) retained their position. As a result there was a 35 percent increase in the design flutter speed and 23 percent increase in fin strength for the most critical design case. Meanwhile in the process of designing the ADCA aircraft Grumman experts proved that the simple substitution of composite materials for metal alloys in the construction may lead in the final account only to a slight decrease (around 13 percent) in its take-off weight, which is economically unjustified with consideration of the high cost of composite materials. But if the design of such an aircraft is created [sozdavatsya] in advance with consideration of features of composite materials and they are used purposefully, then its cost in the supersonic fighter version drops by 25 percent (in 1980 prices), the cost during its service life drops by 21 percent, and the take-off weight drops by 26 percent compared with a similar aircraft made of metal.

http://www.dtic.mil/dtic/tr/fulltext/u2/a347373.pdf


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

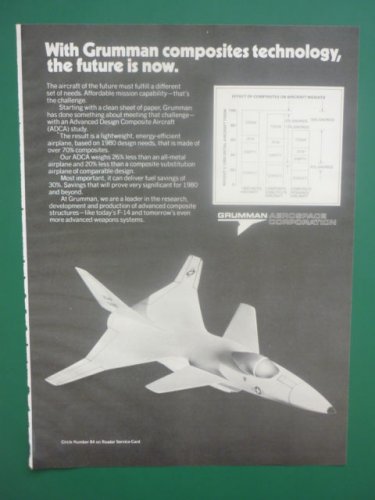

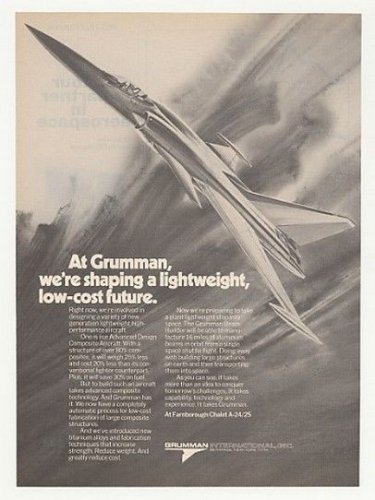

Grumman ADCA (Advanced Design Composite Aircraft) advertisement circa 1978.

Source:
http://www.ebay.co.uk/itm/1978-Grumman-Advanced-Design-Composite-Aircraft-Ad-/121212615019?pt=LH_DefaultDomain_0&hash=item1c38d5b96b


Attachments

  • $_3.JPG
    40.6 KB · Views: 2,194

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,671
Reaction score
4,286
This concept now identified as LOCI.

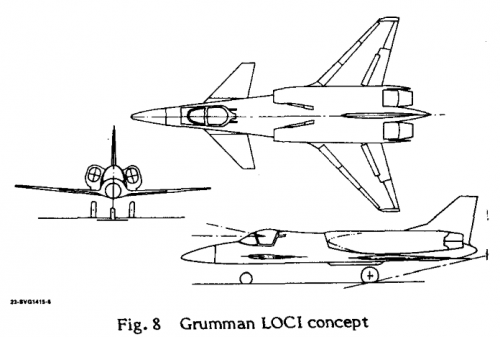

The Grumman LOCI, shown in Figure 8, is a low cost, forward-based, quick reaction, short-range interceptor powered by two augmented turbofans. The LOCI would be procured in sufficient quantities to gain parity with Warsaw Pact Air Forces in Central and Northern Europe. The LOCI mission involves a low-level subsonic dash and a supersonic intercept on-the-deck. The engine incorporates a thrust-reverser that provides short distance landing capabilities.

Source: AIAA Paper 1981-1503 Progress Toward a Long-Range Propulsion Plan, C.F. Baerst, R.C. Gunness,and S.W. Mitnik, Garrett Turbine Engine Co


Attachments

  • grumman_01.jpg
    150.8 KB · Views: 1,634
  • LOCI.png
    36.2 KB · Views: 1,599

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

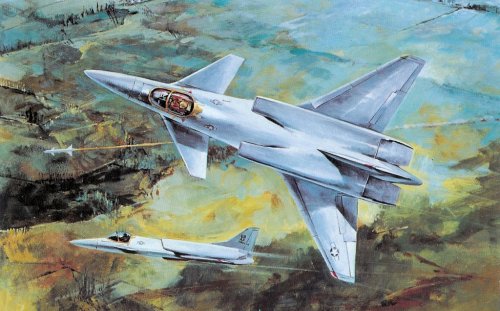

Again from my dear Scott's site;


http://up-ship.com/blog/?p=22945


Possibly an ATF, more likely a pre-ATF concept. Looks high performance but with little effort at stealth.If the code scribbled on it means what I think it might, it may be dated 1971. In which case this would be a bit late for the F-15 program (McD was picked in 1969), and certainly doesn’t fit the F-16 profile.


Attachments

  • G-1.jpg
    123.2 KB · Views: 1,395

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
166

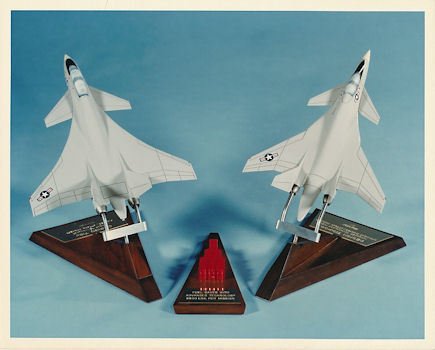

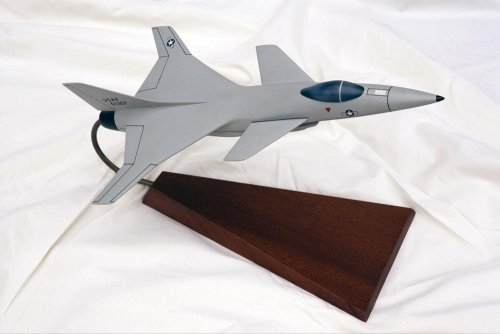

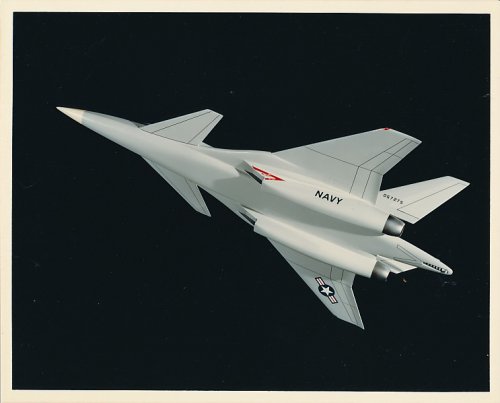

1976 factory concept model of the Grumman ADCA (Advanced Design Composite Aircraft).


Attachments

  • Grumman ADCA Model 1976.jpg
    Grumman ADCA Model 1976.jpg
    44.7 KB · Views: 983

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541

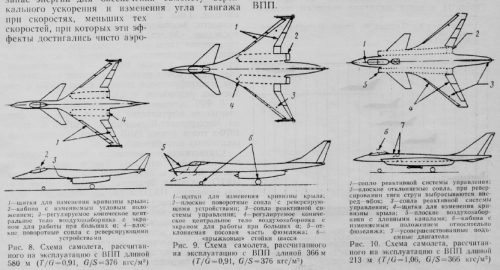

Grumman pre-ATF designs from TsAGI's Tekhnicheskaya Informatsiya (No.13, 1984):


Attachments

  • Grumman pre-ATF.gif
    Grumman pre-ATF.gif
    354.9 KB · Views: 1,484

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,679
Reaction score
1,727
Anybody know what the actual Grumman entry looked like? I've seen a lot of hypotheticals but never the real deal.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,863
Reaction score
329
In Skyblazer's image, when they say ATF, they mean the original mid 70's requirement, not what the ATF program became in the late 80's that became the F-22. Although, I would like to see what Grumman's submission for the 80's version of the ATF was as well. I thought it was the twin tailed canard super-cruiser design, but I've never seen any confirmation of their submission.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
From TsAGI's Tekhnicheskaya Informatsiya 2/1984;


I think those ATF drawings are for Grumman.


Attachments

  • Untitled.png
    298.6 KB · Views: 1,311

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,


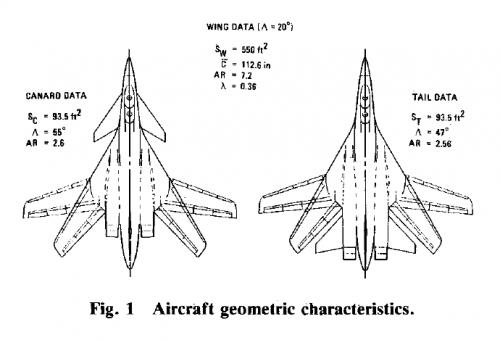

here is a Grumman ATF two swing-wing concepts.


http://arc.aiaa.org/doi/abs/10.2514/3.45328?journalCode=ja


Attachments

  • 1.png
    27.3 KB · Views: 1,100

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
690
Reaction score
429

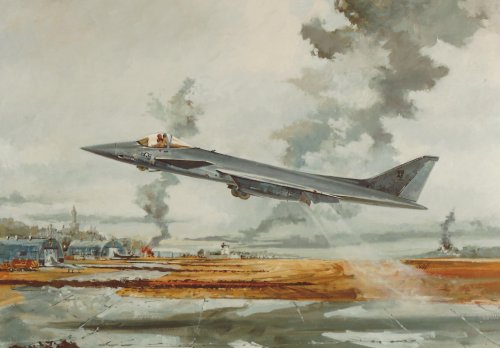

Larger image of the photo posted by Triton on pg 5 of this thread.


Attachments

  • VSTOL.jpg
    451.2 KB · Views: 567

ford_tempo

ACCESS: Confidential
Joined
Jan 31, 2011
Messages
76
Reaction score
2
Hi,

I have found the following paper that seems related to this topic:

" Future Tactical Fighter Requirements: A Propulsion Technology Update "

By Lind and Ervolina

abstract

This paper examines the potential roles that are emerging from current studies of future U.S. Air Force tactical fighters and analyzes their impact on the propulsion system requirements. It provides an updated review of the leading propulsion technology concepts that are the candidates in meeting such critical design challenges as supersonic cruise, stealth, STOL, as well as high maneuvering capability with a cost-efficient weapon system.

Here is the link:

http://proceedings.asmedigitalcollection.asme.org/proceeding.aspx?articleid=2280247

I also attach a 3 pages extract with some artwork and the timeline of Grumman studies

Does anybody have information of the stealth version with a dorsal intakes (beside the artwork)?

best

F_T


Attachments

  • Extract pages from V01AT01A046-79-GT-46.pdf
    452.6 KB · Views: 68

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Nice find ford,

and about stealth version,I will search.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Great find my dear Sundog.


Attachments

  • 8.png
    101.4 KB · Views: 145
  • 7.png
    104.2 KB · Views: 142
  • 6.png
    105.3 KB · Views: 146
  • 5.png
    262.1 KB · Views: 135
  • 4.png
    199.9 KB · Views: 157
  • 3.png
    127.1 KB · Views: 185
  • 2.png
    248.8 KB · Views: 183
  • 1.png
    126.8 KB · Views: 159

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
And;


Attachments

  • 9.png
    255.9 KB · Views: 151
  • 10.png
    121.2 KB · Views: 191
  • 11.png
    135.3 KB · Views: 196
