Gotha P 60 flying wing projects

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,978
Reaction score
333
Hi all,

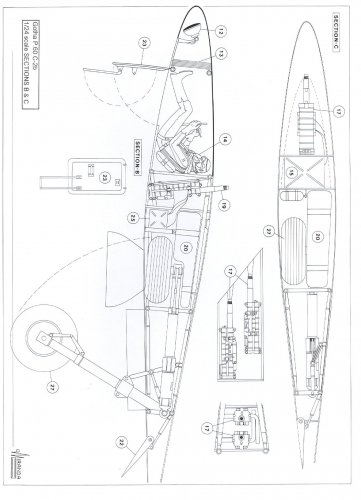

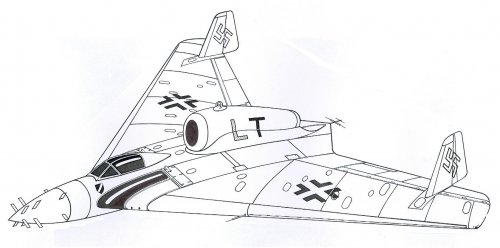

I have found this fantastic drawing of the Gotha P.60C ( Source: FliegerRevue 1979 ).

Servus Maveric ;D


Attachments

  • Gotha P60C.jpg
    Gotha P60C.jpg
    70.8 KB · Views: 1,006

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,432
Reaction score
2,365
Website
www.amazon.com

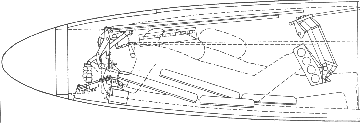

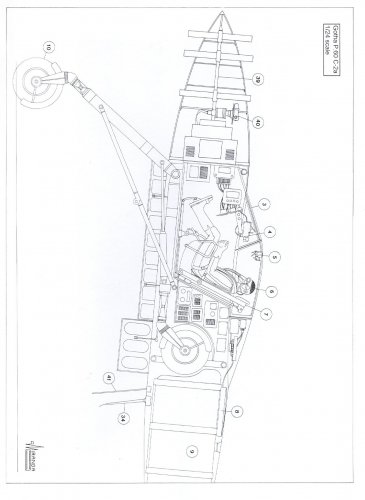

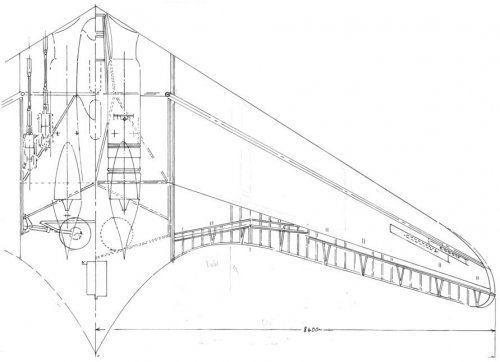

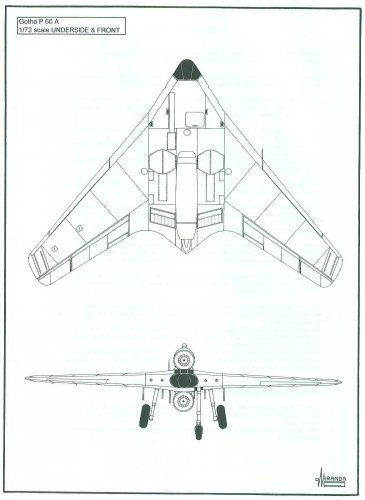

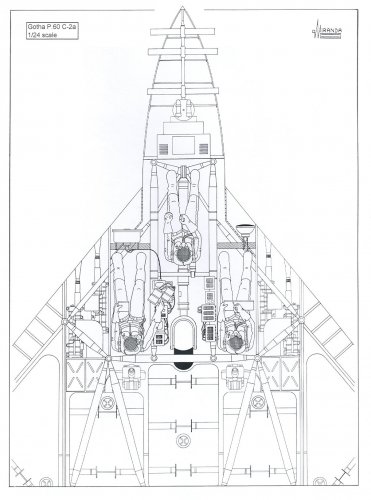

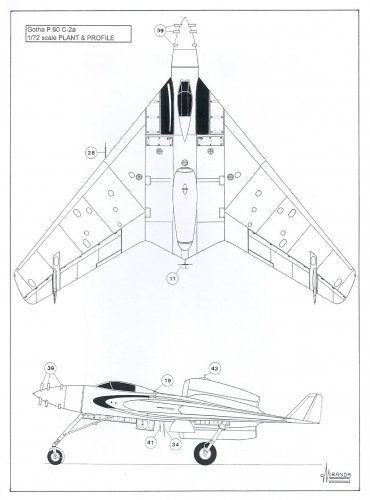

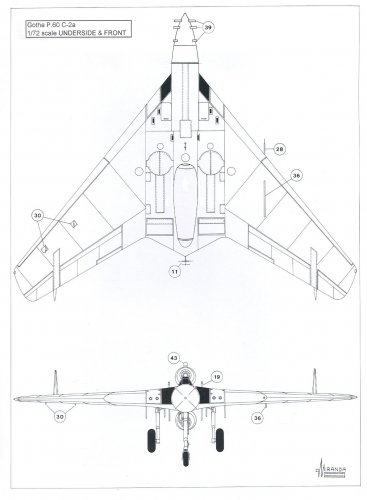

Here some drawings from Reichdreams N.20


Attachments

  • P.606.jpg
    187.2 KB · Views: 240
  • P.605.jpg
    214 KB · Views: 238
  • P.604.jpg
    155 KB · Views: 811
  • P.603.jpg
    137.5 KB · Views: 837
  • P.602.jpg
    155.7 KB · Views: 893
  • P.601.jpg
    124.2 KB · Views: 889

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Good to have you back with us Justo!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
467

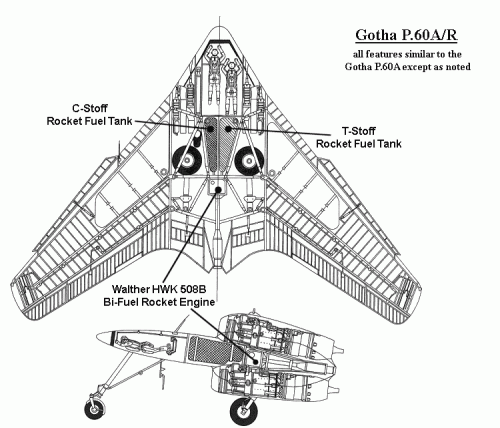

Here is from the French Science et Vie N°374 (November 1948):


Attachments

  • P.60A (S&V 374, Nov 1948).gif
    P.60A (S&V 374, Nov 1948).gif
    417.6 KB · Views: 467

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,432
Reaction score
2,365
Website
www.amazon.com

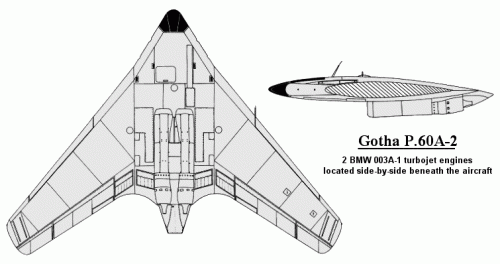

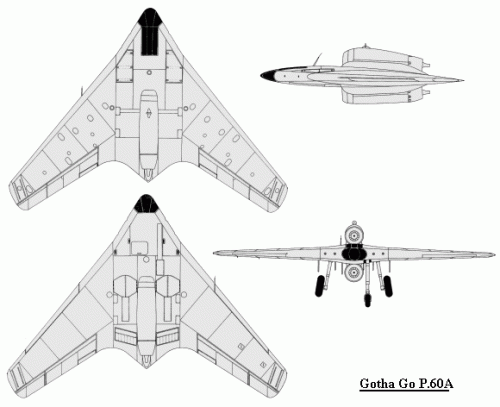

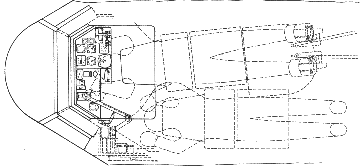

from http://www.luft46.com/gotha/gop60a.html


Attachments

  • gop60a-7a.gif
    21.3 KB · Views: 119
  • gop60a-6a.gif
    6.5 KB · Views: 345
  • gop60a-5a.gif
    7.9 KB · Views: 364
  • 3bgp60a2.gif
    24.3 KB · Views: 394
  • 3bgp60a1.gif
    22 KB · Views: 395

Basil

ACCESS: Secret
Joined
Aug 10, 2009
Messages
267
Reaction score
52
Justo, these drawings of Luft46 are not accurate (scale is not correct / dimensions of the crew are too small, etc.); in the lower part of the Luft46 page you will find the original (?) Gotha-drawings. I think it´s important to rely on facts as far as original drawings and descriptions still exist.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,432
Reaction score
2,365
Website
www.amazon.com

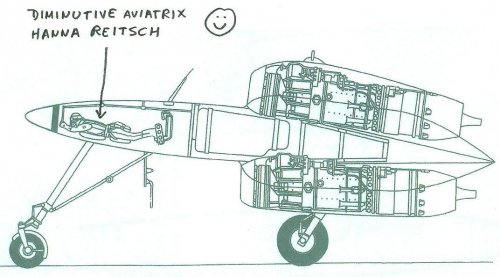

(scale is not correct / dimensions of the crew are too small, etc.);

Pilot scale? ::)


Attachments

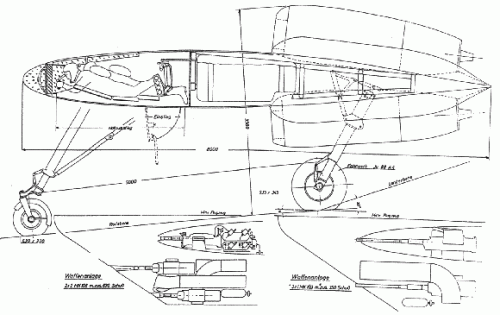

  • ñ 405.jpg
    ñ 405.jpg
    163.7 KB · Views: 116
  • ñ 404.jpg
    ñ 404.jpg
    258.5 KB · Views: 106
  • ñ 403.jpg
    ñ 403.jpg
    153.2 KB · Views: 112
  • ñ 402.jpg
    ñ 402.jpg
    139.4 KB · Views: 127
  • nn.jpg
    90.8 KB · Views: 179
  • n.jpg
    325.8 KB · Views: 158
G

gery

Guest
I study the gotha p60 concept...... :( :-[ and i don't find a good wing profile (autostable or reflex needed for all wing flying), a bad body design..... no wash out of wings tips.....and drag rudder not efficient....who designed this incredible project.. ???

G

gery

Guest

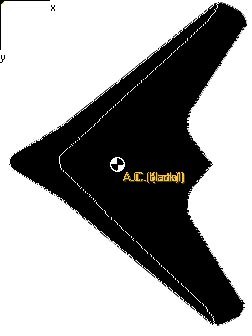

just made the AC analyse :eek: .....i think the engines are too much in back.... :-\


Attachments

  • Gotha go p 60 AC.jpg
    Gotha go p 60 AC.jpg
    16.1 KB · Views: 252
G

gery

Guest
here the horten Ho 229 AC analyse.......i consider the weigh of two engines and her place.....


Attachments

  • horten Ho 229 AC.jpg
    horten Ho 229 AC.jpg
    14.3 KB · Views: 232
G

gery

Guest
position of differents parts around the cg of Ho 229.....engines..fuel tanks...weapons....elevons and flaperons...drag rudder in correct position....


Attachments

  • typenblatt2.jpg
    54.5 KB · Views: 396
  • typenblatt.jpg
    39.6 KB · Views: 387

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
88
gery said:
position of differents parts around the cg of Ho 229.....engines..fuel tanks...weapons....elevons and flaperons...drag rudder in correct position....

Where did you get the second picture? I've never seen a drawing with four Mk 103!


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
749
Reaction score
154
There is info on the Gotha P.60 in David Myhra book on the Plane.


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
168
Reaction score
32

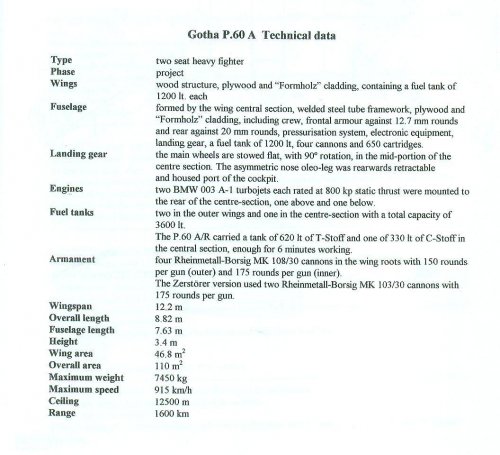

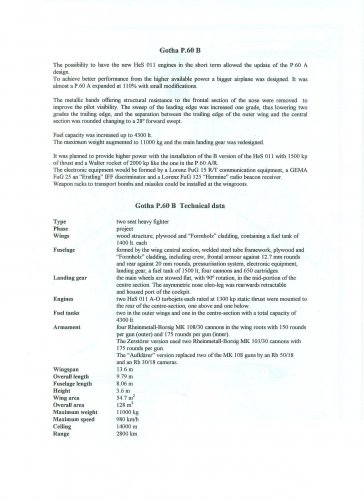

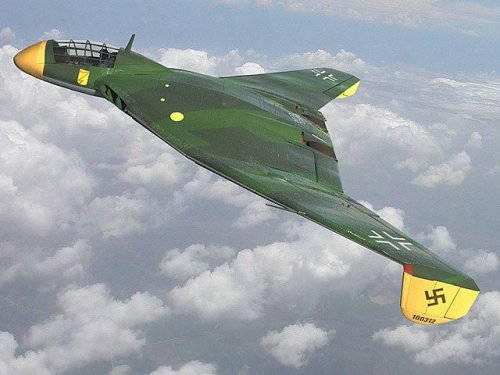

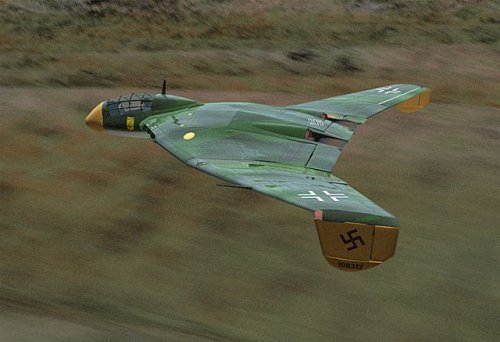

There is a Gotha origin document in the captured German material held by the air force which does a direct comparison of the 8-229 and the P.60 which details why the P.60 should have been an improvement over the Horton design. It was translated by the Foreign technology division. So, IMHO it is pretty clear that the P.60 was a real project.

Best Regards

Artie Bob


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
With regards to a lot of German projects from that era, it should be considered, that in most cases
they actually weren't ready made plans, that only needed the metal to be cut to get the whole thing
flying ! It's the difference between a "concept", where just a basic idea is formalised and a "project",
where more or less all important planning and calculations are done. So, to look for airfoiuld data and
even washout in the drawings that have survived of the P.60 probably is quite useless. Haven't cared
for its history still yet, maybe even some windtunnel research was done, but as you know, especially
at the beginning of such research, there still are a lot of parameters, that may change during development.

G

gery

Guest
Ok jemiba,

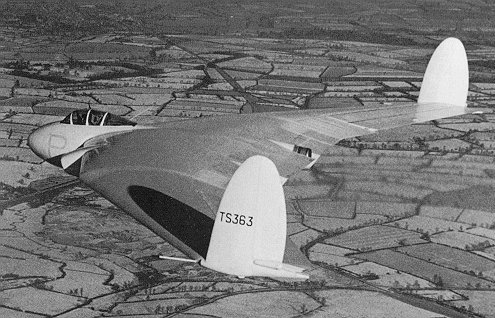

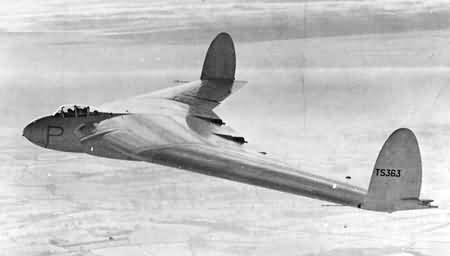

But the design of an "all wing plane" depending of the choice of airfoil in priority.....as you can see for the Ho 229....the body shape was designed with the HO airfoil ....it was the way for german's project and for allied project like northrop flying wings...or for this Armstrong Whitworth AW 52...that look like th FW 1000x1000x1000 (excelent work made by tim Cameron) ....

The Go P60 airfoil look "naca symetric".....not efficient in this case....it don't make lift effect....
Other point, at this time an "all wing" needed a dihedral for stability ad washout of the wings tips.....


Attachments

  • 2955.jpg
    8.5 KB · Views: 300
  • AW-52_4.jpg
    57.5 KB · Views: 199
  • tcfw3-1.jpg
    53.2 KB · Views: 204
  • tcfw3-2.jpg
    47.1 KB · Views: 97

topspeed3

ACCESS: Secret
Joined
Jan 31, 2011
Messages
246
Reaction score
32
Website
max3fan.blogspot.com
G

gery

Guest
please tell me what airfoil do you use.....for your MAC...???this incredible airfoil.???


topspeed3

ACCESS: Secret
Joined
Jan 31, 2011
Messages
246
Reaction score
32
Website
max3fan.blogspot.com
gery said:
please tell me what airfoil do you use.....for your MAC...???this incredible airfoil. ???
MAC40% means that the CG is measured 40% from the average leading edge..this usually the rearmost place where CG can be..generally 25% from the front.
P.60 seems to stay whitin..I'd say 28-35% considering the whole mission duration ( fuel load CG is a tad forward of the CG ...and ammos ). Gun mounting is heavy duty is this one. But you are correct it is not noseheavy..rather on the other side. Is this why Ho-229 had huge nose wheel ?

G

gery

Guest
sorry topspeed....lift effect of a plane depending of airfoil design.....your theory is not right for an all wing...

Please send me you study or shema....where do you place the cg.. ???


topspeed3

ACCESS: Secret
Joined
Jan 31, 2011
Messages
246
Reaction score
32
Website
max3fan.blogspot.com

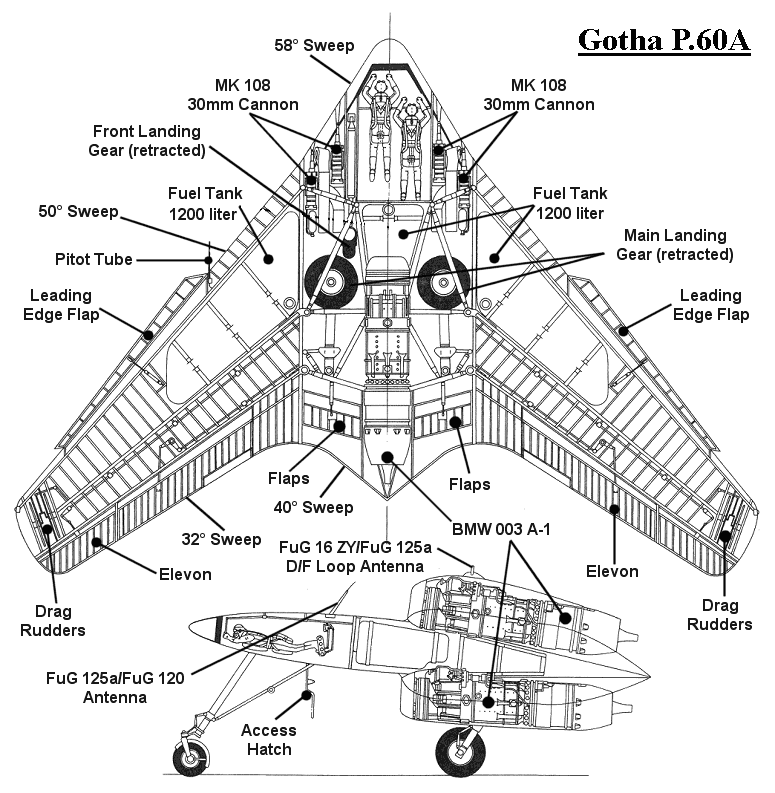

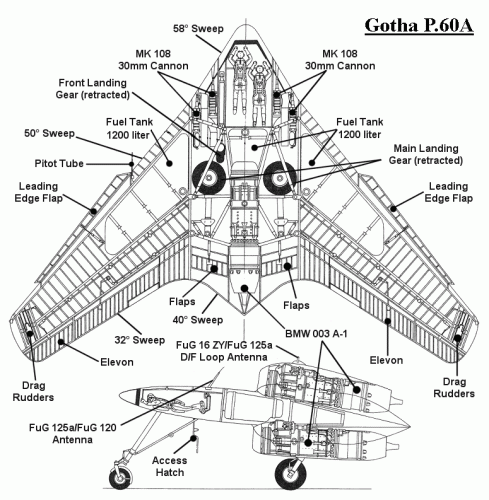

here is the P.60 lay out;


Also this P.60 like Ho-229 features a pretty heavy nose gear. Looking at the side view you can locate the CG by looking at the main gear position. CG has to be at very front end of the engines.
What is a leading edge flap..anyone know ? How do those drag rudders operate ?


topspeed3

ACCESS: Secret
Joined
Jan 31, 2011
Messages
246
Reaction score
32
Website
max3fan.blogspot.com
gery said:

I know what bugs you..but you ought to realise that this has more sweep than Horten brothers planes...it will balance the plane regardles the CG being slightly aft...and this craft needs rear location at landing due to high speed configuration..to be able to use higher AOA at landing to get max lift and slow it down.
But still I think the plane wasn't tuned in yet..and pleniminary skethes were just design studies..all these later fine tuned drawings conform it..plane would sit on its back it it was made after the sketches. I think you are right about that.

G

gery

Guest
never......

i Just want to see some realist technical informations about it.....

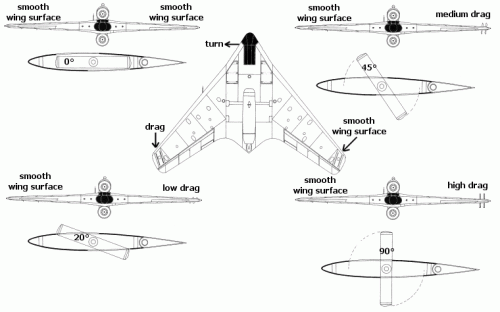

In your cutaway....i can see many errors...."leading edge flap" was no used at this time..other point....flaps under body was never used in flying wings at this time...
drag rudder are not in good position.....i dont see a good reflex airfoil..and the engines
are too much in back....the engines are not at good scale....
