Lavochkin´s first

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Hi all,

this is Lavochkin´s first fighter project IL. Designated from Istrebitel Lavochkina. A joint project with S.N.Lyushin and also called LL from both designers. A mock-up should be inspected at Jan 1936. Anybody had a good 3view or pics with technical data?

Servus Maveric

(Source: FliegerRevue 1986)


Attachments

  • Lawotschkin-Ljuschin LL.jpg
    Lawotschkin-Ljuschin LL.jpg
    128.5 KB · Views: 552

Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
21
I don't know the specifics on this concept, but the wing mounted weapons are most certainly APK recoilless cannons that seemed to be pretty vogue in some Russian designs in the early and mid 1930s.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888
Pelzig said:
...the wing mounted weapons are most certainly APK recoilless cannons...

Also explaining the position of the horizontal tail.

Is the dashed outline of a canopy meant to show a further development? My impression was that the LL mockup had a flush canopy with periscope for forward view.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103
Apophenia said:
Is the dashed outline of a canopy meant to show a further development? My impression was that the LL mockup had a flush canopy with periscope for forward view.
Absolutely. The Periscope was, this confirmed fact.
But that appropriately for racing plane, for fighter nonsense.

(Guns DRP-76 by L.V.KURCHEVSKIY)


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,587
Reaction score
888
borovik said:
...for fighter nonsense.

Thanks for the canopy confirmation Borovik.

On armament, some sources use DRP and APK interchangably. I presume that the LL would have also had a more conventional machinegun armament as per the Grigorovich I-Z?


Speedy

ACCESS: Confidential
Joined
Nov 10, 2007
Messages
56
Reaction score
1
Hi

borovik said:
(Guns DRP-76 by L.V.KURCHEVSKIY)

I think it's an error.

Apophenia said:
On armament, some sources use DRP and APK interchangably.

But it isn't entirely correct.
DRP means Dynamo-Reaktivnaya Pushka - "Dynamic-Reactive Gun" aka recoilless rifle. It's general name for this kind of weapon, designed by Kurchevskiy. DRP-76 was 76 mm single-shot, hand-loaded infantry gun, designed for installation on light vehicles in reconnaissance units.
APK means Aviacionnaya Pushka Kurchevskogo - Kurchevski's Aircraft Gun, recoilles rifle especially designed for aviation. Kurchevskiy build many APKs, caliber from 37 up to 152 mm. Almost all of them were externally powered guns, reloaded from 5-10-rounds-magazine by compressed air mechanism. Most popular model i think was 76 mm APK-4, feeded from 6+1 round tubular magazine over the barrel and shoot 30-40 rpm.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103
This is not a mistake, at least not much.
According to D.Romanov "Air weapon combat"
http://www.airforce.ru/history/romanov/chapter3/page3.htm
and many other sources equally used as factory title: "76-mm aircraft cannon dinamoreaktivnaya DRP-76" and serial "APK-4.

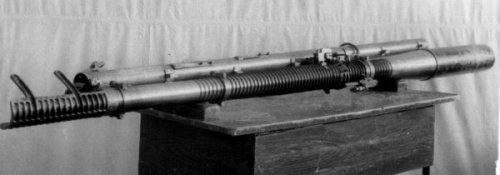

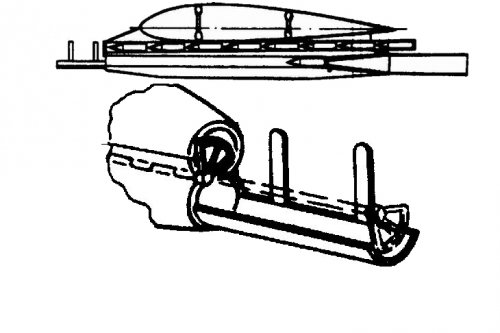

More correctly, as the Speedy because these guns (except the APK-1) had an automatic battery charger (picture 2)


Attachments

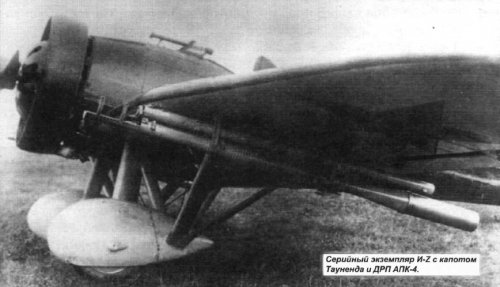

  • I-Z (DRP APK-4).jpg
    I-Z (DRP APK-4).jpg
    61.2 KB · Views: 437
  • Clip_2.jpg
    87.6 KB · Views: 419
  • APK-4 (DRP-76).jpg
    APK-4 (DRP-76).jpg
    23.1 KB · Views: 399

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103
Unfortunately with a high probability it can be argued that there was no exact information, specifications and images are not preserved.
There are descriptions of several books, quote from "The Osprey encyclopedia of Russian Aircraft" by B. Gunston which almost entirely repeats V. Shavrov’s "The history of aircraft structures in the USSR"
IL Designated from Istrebitel Lavochkina, (Lavochkin’s fighter); joint project with S.N.Lyushin (deputy) and also called LL from both designers. Appearance similar to IP series but with pilot low in fuselage seeing through periscope. Seat and hinged windscreen raised for landing or for better view in emergency. Mock-up inspected 12 Jan 36 by Gen. Ya. I. Alksnis.
Eventually abandoned.

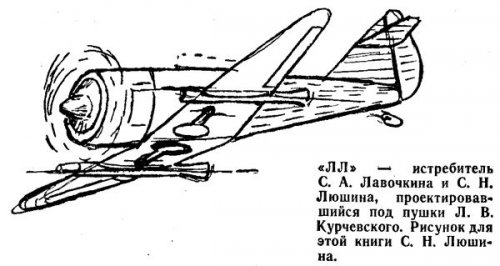

............ In addition there is an original figure S. Lyushin’s for books M. Arlazorov’s.

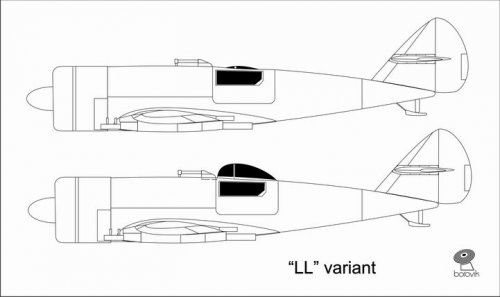

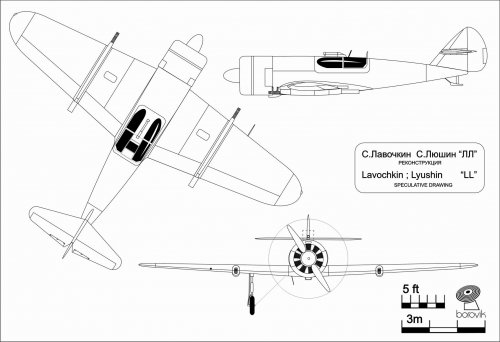

I can propose their own vision, speculative drawing:
The first is the possible appearance of the description of M. Arlazorov's
second reconstruction, as described A. Ponomarev's.

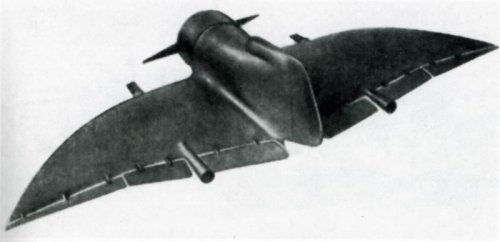

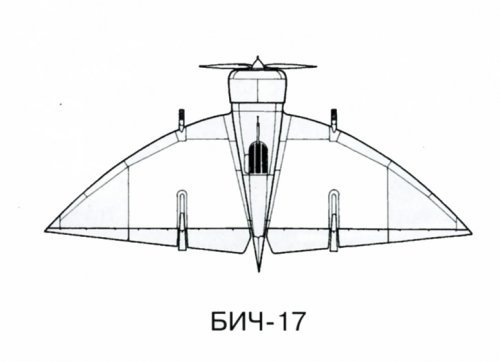

Fighter B. Cheranovski's "BICh- 17" with guns Kurchevski's "APK-4"

Sources:
Arlazorov M.S. "Front is through KB"
Ponomarev A.D. "The Soviet aircraft designers"
Sobolev D.A. "-Century history of flying wing"
Shirokorad A.B. "Without otkatnye aerogun 30-ies."


Attachments

  • BICh-17 (top).jpg
    BICh-17 (top).jpg
    95.6 KB · Views: 94
  • BICh-17.jpg
    27.3 KB · Views: 137
  • LL Lavochkin ' Lyushin,.jpg
    LL Lavochkin ' Lyushin,.jpg
    158.1 KB · Views: 246
  • LL (var).jpg
    LL (var).jpg
    25.7 KB · Views: 187

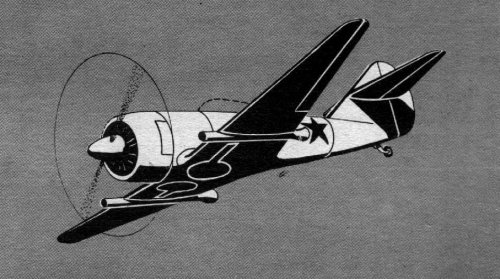

  • Lavotchkin LL (IL).jpg
    Lavotchkin LL (IL).jpg
    38.6 KB · Views: 408

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Hi,

I heard that also for Kurchyevski, there is anther BICh-type
fighter with DRP guns (not related to BICh-17).


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,968
Reaction score
83
Does anyone have a good references for the APK-11 or the high caliber (100/102/152mm) versions? I'm curious about their performance (high explosive charge, muzzle velocity)...

There was also a ship mounted one, correct?


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103
APK-11
In 1932 Kurchevsky drafted 37-mm automatic cannon APK-11 (sometimes called the APK-37). On the device, it is similar to APK-4.
Arsenal cannon had two cavities (cassette), which housed 12 shots.
Another shot was in the In 1932 Kurchevsky drafted 37-mm automatic cannon APK-11 (sometimes called the APK-37). On the device, it is similar to APK-4.
Arsenal cannon had two cavities (cassette), which housed 12 shots.
Another shot was in the barrel. (Total ammunition - 25 shots on the cannon).
The length of the cannon with a nozzle and the tray is 1978 mm, without them - 1250 mm. Weight gun with empty magazine 39.1 kg.
Shots unitary, sleeve shell made of flammable nitro tissue, wooden pallets, and then plastic. Projectile fragmentation with its percussion fuse. Shell weight - 475-500 g, the weight of explosives 31 g, the Charge - 140-145 g. powder MSK. Initial speed tests - muzzle velocity - 438-475 m/s
http://epizodsspace.no-ip.org/bibl/tm/1993/7/pushki.html
http://www.e-reading.link/chapter.php/144922/54/Shirokorad_-_Taiiny_russkoii_artillerii._Posledniii_dovod_careii_i_komissarov_(ill).html


Attachments

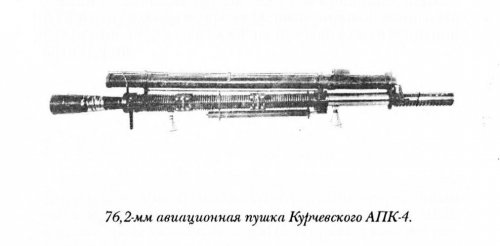

  • APK-4.jpg
    35.6 KB · Views: 42

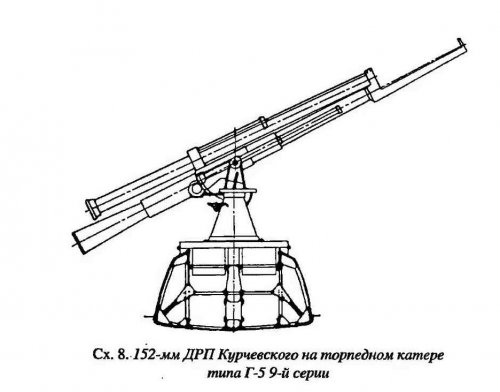

  • 152mm DRP.jpg
    152mm DRP.jpg
    62.9 KB · Views: 34

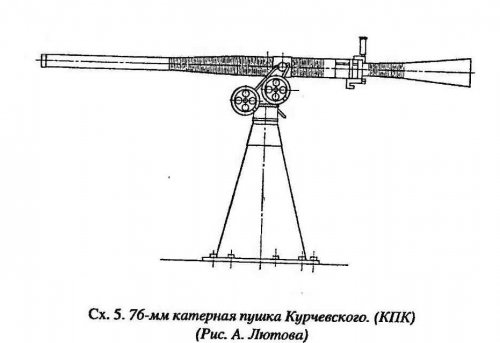

  • 76 mm KPK.jpg
    76 mm KPK.jpg
    45.1 KB · Views: 31
  • 305-mm_Kurchevskii.pdf
    1.7 MB · Views: 19

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,968
Reaction score
83
Thank you Borovik! It is a great help.


I'm once more in your debt.
