Tolstych aircraft

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Hi all,

I´m searching for pics and drawings of Tolstych aircraft. I know the IT.6 and IT.9 are sports aircraft and the IT.4 was a training sailplane, but nothing more...
Please help!

Servus Maveric

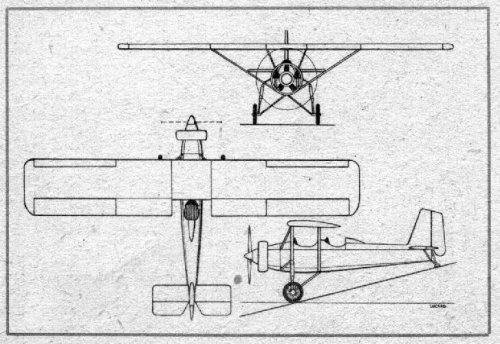

I have only a poor pic and a drawing from FliegerRevue.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
IT-2 (1925) Aviette-biplane of the small sizes (L- 3.2m; S- 6.5m; area of the wing - 10.5м2, weight empty 85 kg) with motorcycle engine “ИЭЛ’ 12 h.p.
Because of bad functioning the engine, plane not to fly up.

IT-4 (1927) Glider (L- 6.0m; S- 11.4m; area of the wing -18.25m2)
Single serial aircraft by Tolstych

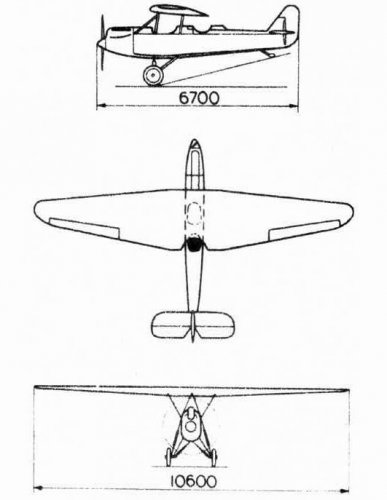

IT-6 (1929) (L- 6.7m; S- 10.6m; area of the wing -16.0m2; weight loaded 650 kg) Engine “Cirrus”- 60hp

IT-9 (1934) - a plane to agricultural aviation with possibility of the using as training, postal, sanitary.
(L- 7.7m; S- 12.9m; area of the wing -28.0m2; weight loaded 1000 kg) Engine M-11- 100hp

Probably nothing fresh for you. :-\


Attachments

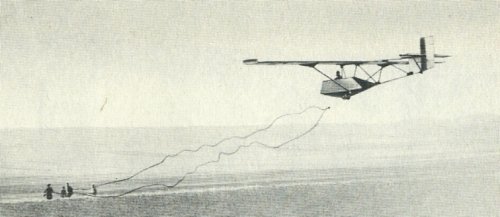

  • IT-4.jpg
    176 KB · Views: 334

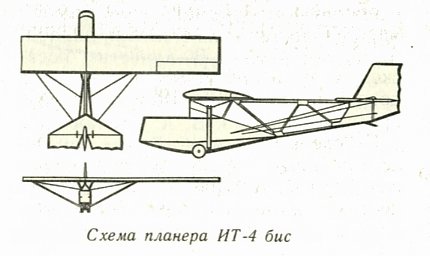

  • IT-4 bis.jpg
    IT-4 bis.jpg
    67.5 KB · Views: 320

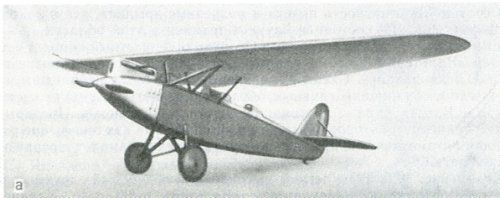

  • IT-6.jpg
    104.7 KB · Views: 303
  • IT-6.jpg
    25.2 KB · Views: 297
  • IT-9.jpg
    108.3 KB · Views: 283

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Thanks borovik,

do you have any idea about the IT.1, IT.3,IT.5, IT.7 and 8. Was number 9 the last?

Servus Maveric


Attachments

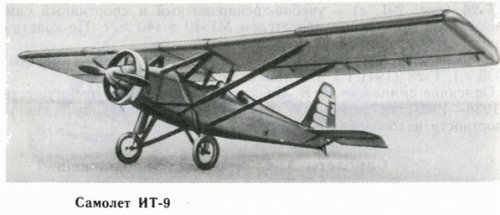

  • Tolstych IT 9.jpg
    Tolstych IT 9.jpg
    89.6 KB · Views: 75

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104

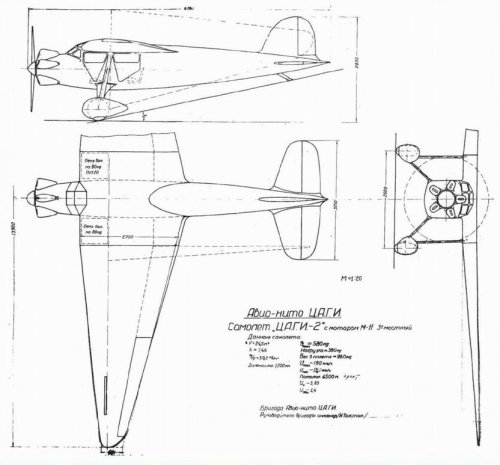

One suggested the contest Engineering Society "Aviavnito" project single-engined passenger airplane Aviavnito TsAGI-2 (the second with that name) - Brigade I.P. Tolstych
from "Wings" № 4


Attachments

  • Aviavnito TsAGI-2 (Tolstyh).jpg
    Aviavnito TsAGI-2 (Tolstyh).jpg
    63 KB · Views: 82

GRach

I really should change my personal text
Joined
Jul 3, 2014
Messages
7
Reaction score
5

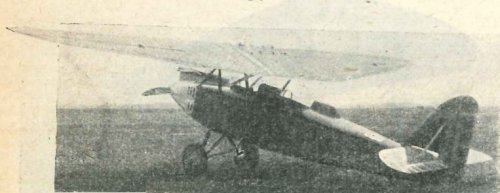

I.Tolstych IT-6
http://xn--80aafy5bs.xn--p1ai/aviamuseum/aviatsiya/sssr/legkie-samolety/dovoennyj-period/legkij-samolet-it-6-komakademiya/


Attachments

  • Legkij-samolet-IT-6-Komakademiya..jpg
    68.3 KB · Views: 18

igor-mich

ACCESS: Secret
Joined
May 10, 2010
Messages
211
Reaction score
49

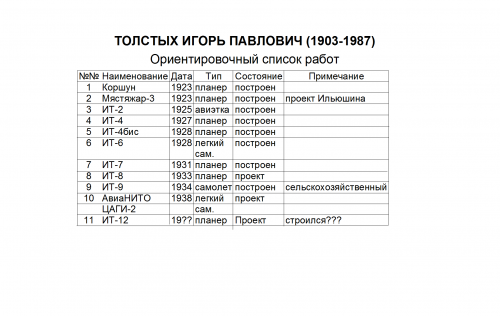

list of Tolstoy's works


Attachments

  • список Толстых.png
    список Толстых.png
    71.1 KB · Views: 31
