GOR.339, OR.343, TSR.2 design proposals ...

TsrJoe

CLEARANCE: Secret
Senior Member
Joined
Jan 2, 2006
Messages
352
Reaction score
44
DELETED POST (please remove from the thread)


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,277
Reaction score
39
The Avro Canada Arrow derivative was discussed by Randall Whitcomb in "Avro Aircraft and the Cold War". Here's the illustration he did of it, the payload is a scaled-down Blue Steel.


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,721
Reaction score
1,462
While the GOR 339 submissions have been well illustrated by Tony Buttler, there are more details to be revealed.

A "TSR-2" from Bristol

When the British Air Staff drew up its General Operational Requirement (GOR) 339 for a Canberra replacement in 1957, eight airframe companies were invited to study the requirement and comment upon its feasibility. The chain of events then put in progress led eventually to the production, testing — and cancellation — of the TSR-2, one of the best-known aeroplanes of the 'sixties. Little has ever been published, however, about the other design submissions to GOR 339. One of the most interesting of these was the Bristol Type 204, a general arrangement drawing of which is published below for the first time anywhere.
Although Bristol was to become, in 1961, part of BAC and therefore indirectly associated with the TSR-2, the company was still independent at the time the Type 204 submission was made early in 1958. To achieve the required gust alleviation properties for low-level sorties at high subsonic speed, whilst retaining the stipulated take-off and landing performance, the Bristol design featured a version of the delta wing known as "gothic" (for its resemblance to a Gothic arch in plan view) plus a foreplane. The latter, also of gothic planform, was pylon-
mounted under the nose and was in two portions, with 10° upwards movement on the front portion and 40° downward movement on the rear section. Like the noseplanes now adopted for the Dassault Milan, the foreplane on the Type 204 helped to reduce the take-off and landing performance, which would otherwise have been excessive because of the use of a delta wing.
Type 204 had a crew of two in tandem, both pilot and navigator being provided with an excellent field of view. The navigation compartment, complete with seat, equipment and instruments, was separately suspended from the structure to provide additional damping of gusts during low-level flight.
Two 22,520 lb st (9 215 kgp) Bristol Olympus B Ol 22 turbojets with simplified reheat were mounted side-by-side in the rear fuselage, taking air through a "letter-box" intake above the wing. The primary weapon was to be a tactical megaton bomb (TMB) and weapon stowage was in an internal bay, with provision for bombs or rockets to be swung down clear of the fuselage before release. Wing pylons were provided for about 2,000 lb (900 kg) of rockets, rocket pods, or 200-gal (909l) drop tanks. Pro-

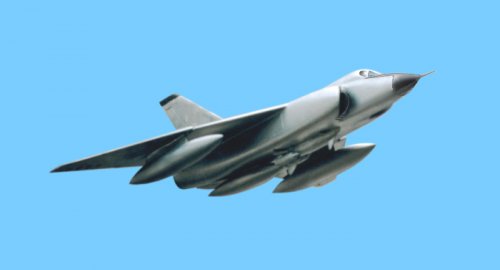

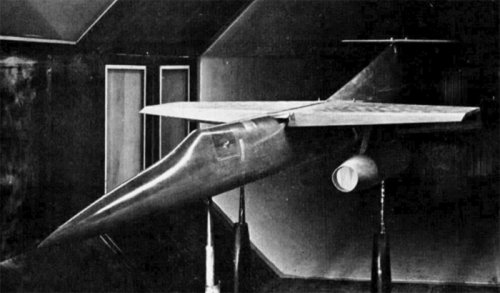

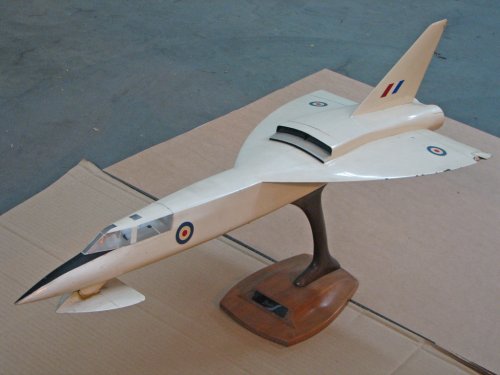

(Below) A model, and (above) general arrangement drawing of the Bristol Type 204.
vision was made for a flight refuelling probe and equipment included forwards and sideways looking radar and an APU.
The Type 204 had a max take-off weight of 78,000 lb (35 380 kg) and max landing weight of 50,000 lb (22 680 kg), with total internal fuel weight of 31,270 lb (14 184 kg). On this tankage, the radius of action was 875 nm (1 620 km), increasing to 1,000 nm (1 850 km) with drop tanks. Max speeds, as required by the specification, were Mach 0-95 at low level and Mach 20 at 35,000 ft (10 670 m). For a 1,000 nm (1 850 km) radius of action, the Type 204 required a 2,000 ft (610 m) take-off strip. Principal dimensions included: span, 32 ft 0 in (9,75 m); length, 79 ft 6 in (24,23 m); height, 20 ft 9 in (6,32 m); gross wing area, 820 sq ft (76,18 m2); aspect ratio, 1-25; foreplane span, 8 ft 5 in (2,57 m); foreplane area, 50 sq ft (4,65 m2).
Source:
Air Enthusiast August 1971


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,721
Reaction score
1,462
September/October 1995 Air Enthusiast has an article on the competing designs for the British TSR.2 (GOR 339) program in the early 1960s.
I'm assuming you've read this article of course, Joe, but just in case.

I'm also assuming you've tried the Boulton Paul archives?

http://www.boultonpaul.com


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,795
Reaction score
382
Aparently it was a derivative of the "late" arrows such as the mk3, with the fieri air intakes...

Proposed overseas types to fulfill GOR.339 specification, 1957 ;

Avro Canada ‘GOR.339’ Arrow Development ?
Bell D.188 VTO.
Convair B.58 Hustler
Douglas B.66 Destroyer
Republic F.105 Thunderchief
Martin B.68 delta (GOR.154)
North American A3J Vigilantie & Retaliator
The Douglas B-66 Destroyer ???

when one knows that the buccaneer was rejected because it didn't offer enhancement in performances compared to the Canberra... ::)


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,277
Reaction score
39
Would "Martin B.68 delta (GOR.154)" happen to be the three-engined design in Lloyd Jones' U. S. Bombers? If so, RAF markings would be far more fun to do it in that USAF ones.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,929
Reaction score
1,719
Hi,

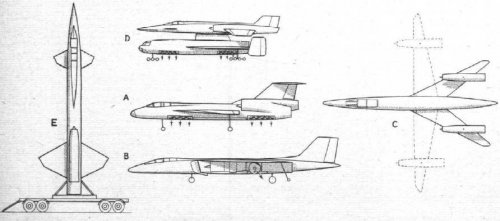

Early artists impressions of OR.339 type designs.


http://www.flightglobal.com/FlightPDFArchive/1959/1959%20-%200142.pdf


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,077
Reaction score
413
"P.202 1957

A Mach 1.8 executive aircraftfor 8 reaward facing passengersplus 3 crew,
3 tail mounted Bristol Orpheus BOR 12engines.AUW 50,000 lb. Lenght71 ft,
span 36 ft. Based on SR.177"

That's what's given by Tagg/Wheeler " From Sea to Air"


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,721
Reaction score
1,462
Early English Electric GOR 339 design studies

Source:

PROJECT DESIGN OF COMBAT AIRCRAFT, B. O. Heath
AGARD-CP-62


Attachments

starviking

CLEARANCE: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
972
Reaction score
40
overscan said:
Early English Electric GOR 339 design studies

Source:

PROJECT DESIGN OF COMBAT AIRCRAFT, B. O. Heath
AGARD-CP-62
That second pic looks a lot like the EE Bomber to the 'Avro 730' requirement. Strange they were considering the same design for GOR 339


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,721
Reaction score
1,462
Yep, the P.10.

In 1956 in the initial studies of a series finally leading to the TSR.2, efforts were made to relieve the weight and installation penalties of fuselage mounted engines: by then reheat was accepted as reliable, giving worthwhile economies overall but imposing detail constraints because of the associated higher jet velocities and temperatures. In an endeavour to revert to an earlier form of conventional solution, under wing nacelles were investigated [1st pic] with a tailplane raised above the jet efflux: however, even with an exaggerated ‘T’ tail (which needed bracing in the wind tunnel) undesirable pitch-up still occurred and the layout was dropped.

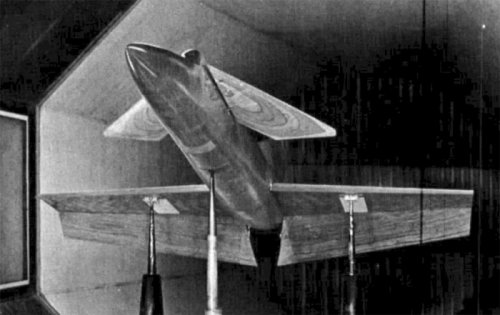

The most unconventional arrangement was then evaluated: this was a tail-first configuration with ‘conventional’ (i.e. wide-coupled) canard to wing spacing, on which a divergent chase between control requirements for nose lifting and stability followed. [2nd pic]. The need for the canard to stall after the wing inhibited the total low speed lift to be secured offsetting to some extent the direct benefit of the upwards trimming force from the canard. Although S.T.O.L. was needed, increases in wing area were not desirable because of gust response at low altitude and high speed and this approach was discarded.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
591
Reaction score
36
Website
theavgeeks.com
TsrJoe said:
Saunders Roe P.202 in passenger configuration ...
Do the dorsolateral intakes also feed the third ventral engine? I can't quite out if there's a third intake somewhere that I'm not seeing.

W

Wingknut

Guest
Sorry if this is already known to you all, but Martin Letts' "x-planes" site has some fine CGI-renderings of the Fairey canard proposal for GOR.339. See: http://www.xplanes3d.com/Projects%20Pages/GOR339/GOR339_Thumbs.html


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,721
Reaction score
1,462
Gloster were supposed to study a VTO version of GOR 339, as per Hawker Group meeting notes.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,842
Reaction score
351

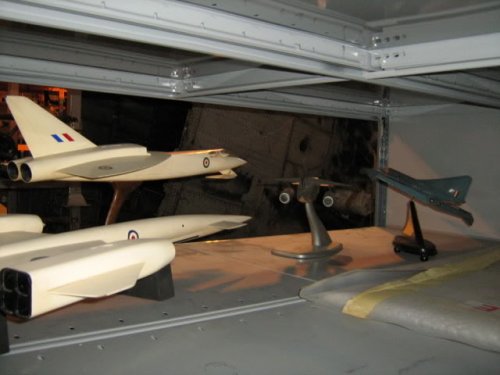

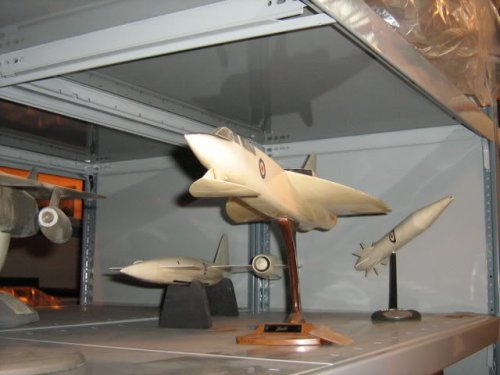

Oh, my...this is incredible stuff coming today!


starviking

CLEARANCE: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
972
Reaction score
40
flateric said:
Oh, my...this is incredible stuff coming today!

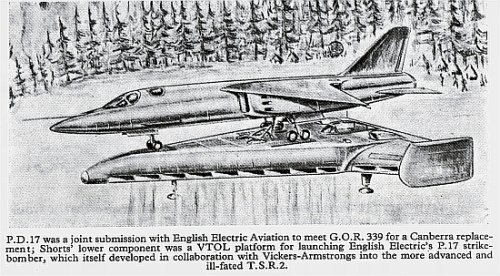

Super stuff Joe! And my, doesn't the Shorts initial design look so much like the finished product!


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,721
Reaction score
1,462
Apologies for atrocious reproduction...

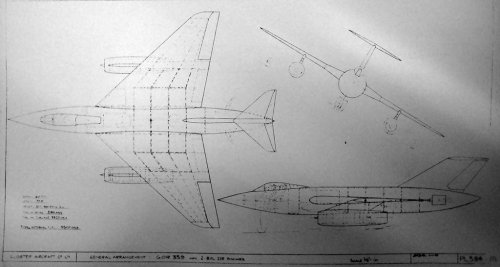

Second Gloster GOR 339 design.


Attachments

Trident

CLEARANCE: Top Secret
Senior Member
Joined
May 8, 2006
Messages
867
Reaction score
58

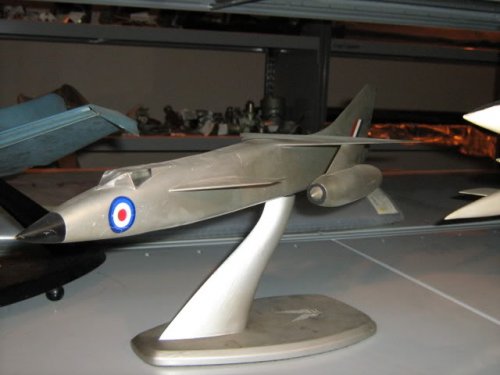

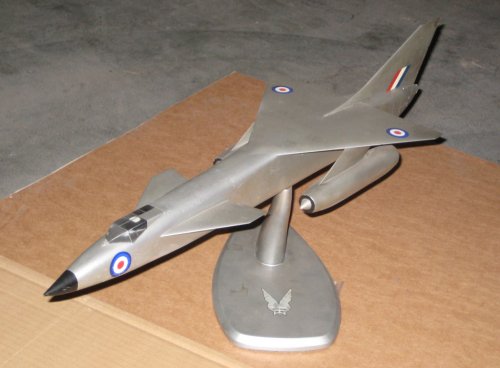

Gotta love how the P.1129 looks so clean, simple and eminently sensible! Has the classic Hawker lines as well, quite unmistakable.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,721
Reaction score
1,462
Merged some duplicate topics


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
573
Reaction score
26

alertken

CLEARANCE: Top Secret
Joined
Jan 20, 2007
Messages
535
Reaction score
36
Joe: I've no doubt there's more to come on TSR.2. Dim brainrecess has me in MoA F-111K London Project Office 1966 with Airfix-sized models on cabinets and strung about. Said to be pre-BAC TSR.2. One was a piggy-back.
Experimental teams are not above passing time with what-ifs, though. Cathay Pacific's Engineering Director had a Boeing model in 1988-or-so best described as a 767/757 piggy-back. He told me never a real intention to proceed, but was a spoiler to buy time (for what became 777) and deter Cathay from buying an Airbus product.


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
544
Reaction score
92
TsrJoe said:
iv recently found the 'Gnat tactical bomber' brochure put together by W. Petter as a counter to the all singing all dancing GOR.339, ill scan and post up the ga. drawing for completeness
I cannot wait for its drawing and specifications.

BTW, it's interesting why Tony Butler in his book on jet bomber secret projects doesn't say even a word about the Folland design.

Best regards,
Piotr


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,077
Reaction score
413
Many thanks for the Gnat bomber, although it sends me back to the "drawing board" .. ;)
(http://www.secretprojects.co.uk/forum/index.php/topic,449.0/highlight,folland+bomber.html)
Span is larger, but the wheelbase is shorter, than I expected from the perspective drawing
in "Sabre Slayer And Red Arrow". The wheelbase indeed seems very short to me, with the ain gear
just at half the fuselage length. Are there exact length and/or span data on the drawing ?


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
544
Reaction score
92
TsrJoe said:
some specifications for the 'Gnat Tactical Bomber' taken from the brochure are ..
Could you please tell us what engines the Gnat Tactical Bomber was to have (a version of the Orpheus)? Does the brochure say anything about its armament?

As for the GOR.339 projects, as far as I understand, most of designs submitted to the requirement were supersonic (not at low level, obviously). The Folland's bomber was subsonic, wasn't it? Do you have any details of its projected performance?

Best regards,
Piotr


danielgrimes

CLEARANCE: Confidential
Joined
Oct 8, 2007
Messages
57
Reaction score
0
Petrus said:
most of designs submitted to the requirement were supersonic (not at low level, obviously).
2 Olympus 320s pushing out 61,000lbs with reheat would have every design supersonic - even a brick!! (F-111A could only muster 33,000lbs)


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,559
Reaction score
50
Don't know what F-111 you are referring to there but the TF-30 that powered all of them could provide up to 25,000 lbs with reheat, 17,000 lbs dry. Not quite in the Olympus league but a lot more than only "33,000 lbs" (which I assume is the combined thrust of two TF-30s dry).


danielgrimes

CLEARANCE: Confidential
Joined
Oct 8, 2007
Messages
57
Reaction score
0
Abraham Gubler said:
Don't know what F-111 you are referring to there but the TF-30 that powered all of them could provide up to 25,000 lbs with reheat, 17,000 lbs dry. Not quite in the Olympus league but a lot more than only "33,000 lbs" (which I assume is the combined thrust of two TF-30s dry).
Don't know what happened to adding two numbers together - 53,650lbs! for the F-111A & E ;D


Thorvic

CLEARANCE: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
605
Reaction score
30
Petrus said:
TsrJoe said:
some specifications for the 'Gnat Tactical Bomber' taken from the brochure are ..
As for the GOR.339 projects, as far as I understand, most of designs submitted to the requirement were supersonic (not at low level, obviously).
AFAIK the requirement was MAch 2.2 dash at altitude and Mach 1+ at sea level.

G


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
544
Reaction score
92
AFAIK the requirement was MAch 2.2 dash at altitude and Mach 1+ at sea level.

G
This is precisely what I meant.

Back to the Folland project, I think not only was it (most probably) subsonic at all altitudes, but also - being quite a small and light aircraft - lacked all sophisticated avionics (side-looking radars, navigational aids and so forth) that had appeared in designs submitted to the GOR.339 and then equipped the TSR.2. I wouldn't be surprised if Folland regarded the project rather as an offer to foreign air forces (Indian? South African? maybe some Latin American?) than as a serious submission to the RAF requirement. Which, as for me, makes the project even more fascinating.

All the best,
P.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,707
Reaction score
82
TsrJoe said:

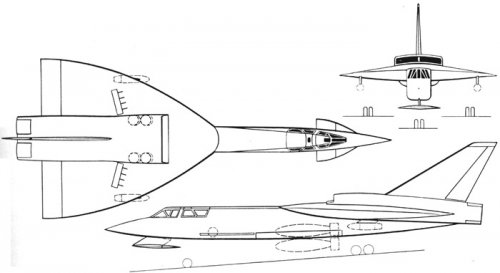

Vickers (Wallis) GOR.339 submission (Swallow derivative)
Interesting drawing TsrJoe

Do you have the full 3-view drawing (head-on view) ????

Regards
Pioneer


Hammer Birchgrove

CLEARANCE: Top Secret
Joined
May 13, 2009
Messages
586
Reaction score
2
Archibald said:
Aparently it was a derivative of the "late" arrows such as the mk3, with the fieri air intakes...

Proposed overseas types to fulfill GOR.339 specification, 1957 ;

Avro Canada ‘GOR.339’ Arrow Development ?
Bell D.188 VTO.
Convair B.58 Hustler
Douglas B.66 Destroyer
Republic F.105 Thunderchief
Martin B.68 delta (GOR.154)
North American A3J Vigilantie & Retaliator
The Douglas B-66 Destroyer ???

when one knows that the buccaneer was rejected because it didn't offer enhancement in performances compared to the Canberra... ::)
Imagine how controversial it would be if RAF had bought the B-58. Now that was an expensive aircraft.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,721
Reaction score
1,462

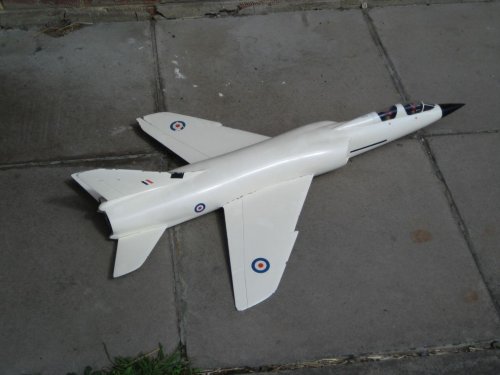

571 1 shows clear ancestry from the Type 559. Nice piccies!


norseman

CLEARANCE: Restricted
Joined
Jul 22, 2009
Messages
13
Reaction score
1
Anyone know what kind of thrust figures were being banded around at the time for the RR RB.142R engines which were pitched for a lot of these designs?
Also as a side note, anyone know how much of a study was done in the early 80's to resurrect the TSR.2? I know there was a general look at the viability but how much technical assesment was done, especially in the engine department as Olympus technology had moved on quite a bit by then (over 40,000lb dry which was in the pipeline for Concorde before ongoing development funds were cut, though geared for hi altitude efficiency) or was a move to turbofan looked at (originally an option anyway). ? Any info would be interesting as it is quite hard to find out any specifics other than a project was initiated into looking about bringing the TSR.2 back.
