Hello all

I know there has been much about the British Aircraft Corporation (BAC) TSR.2 ::)

For many years I have known of the British Aircraft Corporation (BAC) amazing and futuristic looking TSR.2 strike aircraft and the controversy that went with its cancellation.
I agree and recognise that the RAF and the British Aviation Industry would suffer for it!!! :'(
But for some unknown reason with my very keen interest in aircraft (especially prototypes, GOR, RfP, WS…………..projects) I have never looked deep into this very advanced aircraft.
So over the past years or so, I have made a conservative effort too do so.

I have read some ‘What If’ and what could have been stuff on other web sites.
But I am only after facts!

With this research, I have become interested in the following -

I am looking for drawings / pictures / information (if there are any?) of the BAC TSR.2 bomb bay and weapons configurations proposals/specifications.
For example I have read that it's was too be able to carry-
1 x ‘Red Beard’ (strategic) nuclear bomb
Or
2 x ‘WE.177’ (tactical) nuclear bombs
Or
6 x 450 kg (1000lb) GP bombs
Or
1 x 2,600 L (570 Imperial gallons) fuel tank

Added to this is the writings about a single 4,500 L (1,000 Imperial gallon) tank carried centrally below the fuselage?
‘Wow’ 4,500 L is a big drop tank! :eek: (the Su-24 'Fencer' used 3000 liters drop tanks!)
Is there any drawing of this giant tank fitted to the TSR.2?


P.S.
I will be following this request up with a more in depth request too you all in the near future about the TSR.2

Regards and many thanks in advance
Pioneer


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,089
Reaction score
676
Website
beyondthesprues.com
May I suggest you contact TsrJoe - he is after all responsible for this:



Regards,

Greg


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,110
Reaction score
213
I think the most latest edition of 'Project Cancelled' by Derek Wood has a lot of TSR-2 bomb-bay load configurations.


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,780
Reaction score
143
GTX said:
May I suggest you contact TsrJoe - he is after all responsible for this:



Regards,

Greg

Personally, I'd love to know from where that book is available. It looks great. All I've seen online (Amazons US, UK and Canada, Books A Million, etc.) and elsewhere is "Coming, Coming Soon, Almost Here, Available Feb. 1, 2008", and then, unavailable, out of print". Anyone know what happened? I would love to add that book to my collection on the TSR.2, certainly one of the most attractive jets to take to the sky.


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
628
Reaction score
83
I think Midland decided to expand the volume from a softback book to their new larger and more comprehensive hardback versions which has required a bit of a rewrite. No date now set for issue however.

As to the TSR2 bombbay config, Joe may have some drawings up on his MSN website. Certainly i have see photos of the bomb tests in the mock up with triple 1000lbs in a pyramid fashion, US nuclear shapes etc. Drawings of conformal wing tanks, various pylons for either missiles and bombs of different configuration. However only seen the large conformal belly tank on the Derek Woods drawing in Project Cancelled with the two Blue Water's, the TSR2 brochure only ever showed an additional internal tank to be carried inside the bomb bay when loads were to be carried on the wing pylons.

Geoff


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,105
Reaction score
1,082
I suppose buying this
http://www.ianallanpublishing.com/product.php?productid=50895


Attachments

  • a58474.jpg
    20.3 KB · Views: 565

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,241
From Joe's MSN site


Attachments

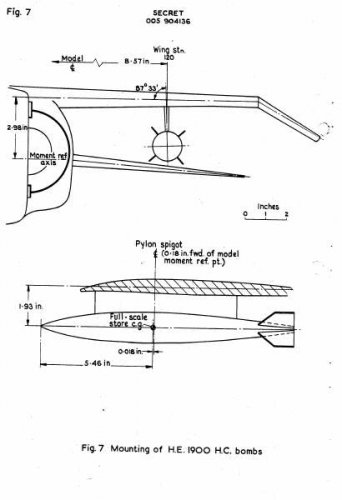

  • 1900 lb. bomb & oversize store carrier.bmp.jpg
    1900 lb. bomb & oversize store carrier.bmp.jpg
    25.1 KB · Views: 127

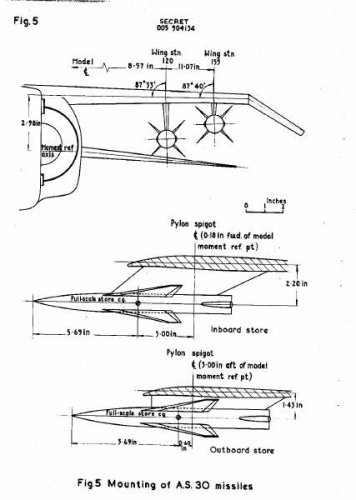

  • AS.30 missiles & pylons.bmp.jpg
    AS.30 missiles & pylons.bmp.jpg
    32.8 KB · Views: 129

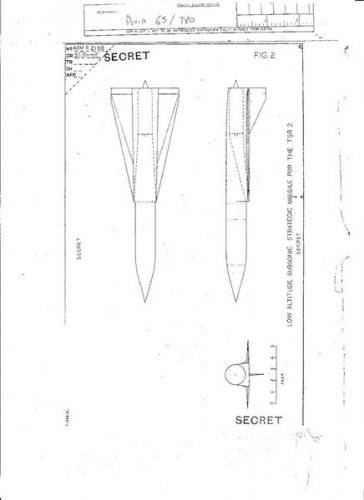

  • TSR-2 Missiles 001 72 scale.jpg
    TSR-2 Missiles 001 72 scale.jpg
    21.3 KB · Views: 112

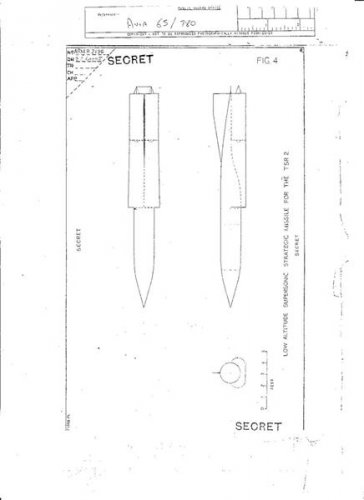

  • TSR-2 Missiles 72scale.jpg
    TSR-2 Missiles 72scale.jpg
    20.1 KB · Views: 91

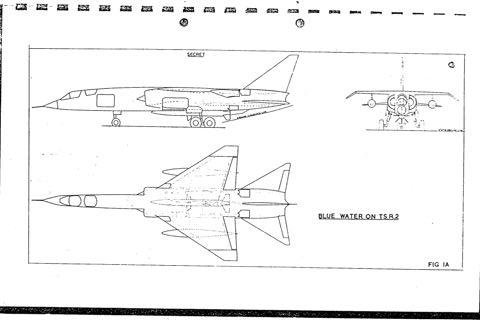

  • TSR.2 Blue Water.jpg
    TSR.2 Blue Water.jpg
    19.3 KB · Views: 147

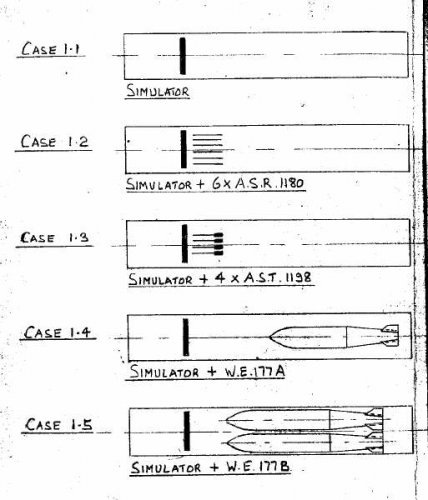

  • WE.177 'sunshine's'.bmp.jpg
    WE.177 'sunshine's'.bmp.jpg
    43.9 KB · Views: 82

Renoair

ACCESS: Restricted
Joined
Oct 18, 2008
Messages
1
Reaction score
0
Hi Guys.

I queried the publication of Joe Cherrie's book on the TSR 2 with Ian Allen / Midland Counties Publications the other day and received the following reply:

"The book Aerofax TSR2 was due for publication this year, and it kept being delay and delayed and now we have a date as December 2010.
I do not know if this will come before that date but this is all the info we have"

Hope this is of some use to you all.

Chris.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,589
Reaction score
2,789
Website
www.amazon.com

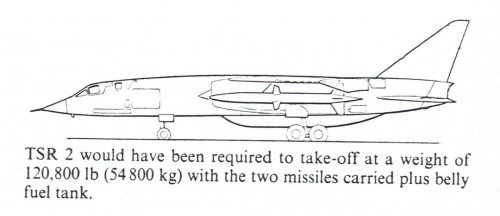

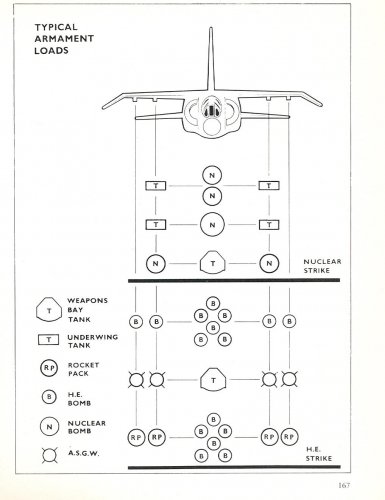

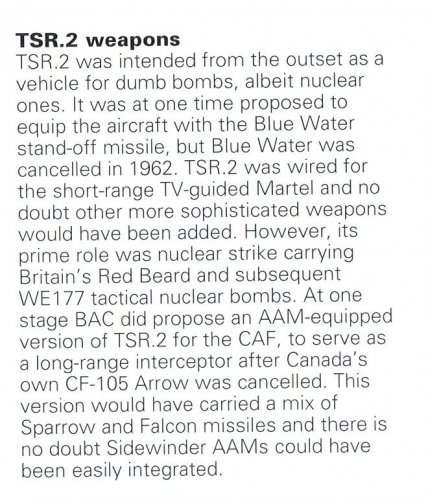

From Air Enthusiast / Fourteen
Le Fanatique de l'Aviation
"Project Cancelled" by Derek Wood , Bobbs Merrill Company 1975
and unknown source


Attachments

  • Escanear0005.jpg
    371.3 KB · Views: 94
  • Escanear0004.jpg
    107.7 KB · Views: 63
  • Escanear0002.jpg
    49.4 KB · Views: 95
  • Escanear0001.jpg
    98.1 KB · Views: 101

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,589
Reaction score
2,789
Website
www.amazon.com

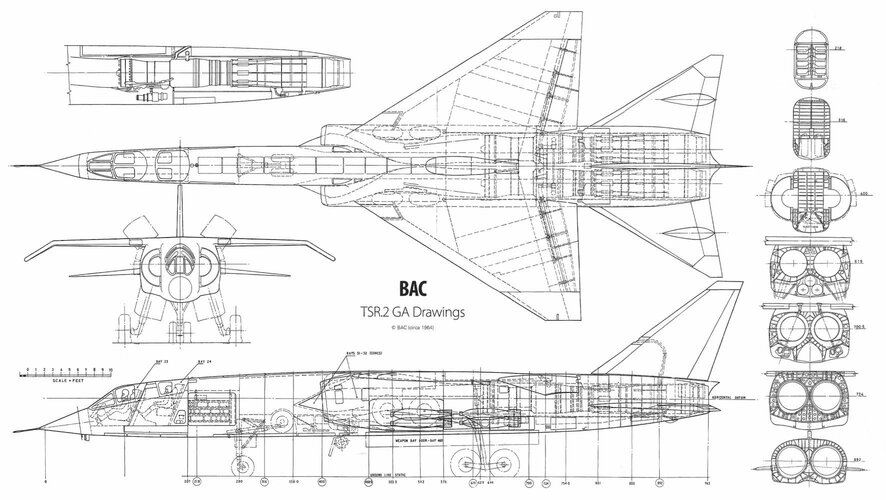

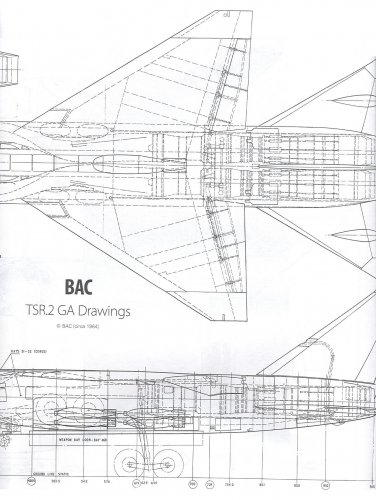

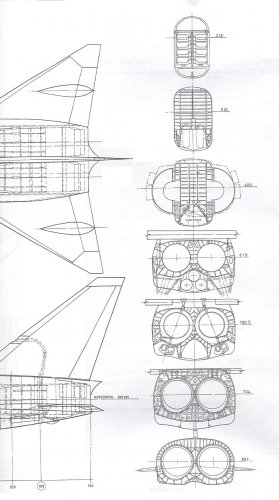

BAC drawings circa 1964


Attachments

  • Escanear0006.jpg
    240.3 KB · Views: 143
  • Escanear0007.jpg
    294.3 KB · Views: 128
  • Escanear0008.jpg
    199.2 KB · Views: 119

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,913
Reaction score
281
Thanks Justo for your efforts
I always find it a thrill when I put the system on and see that someone has posted something new to an older topic.

Great find

Regards
Pioneer
