German Bremer Vulcan Helicopter Carrier for Thailand

Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
670
Reaction score
125
From Conway's All the World Fighting Ships 1946-1991:


My question is, does anybody know anything about this German Vulcan Shipyard proposal of a "Large Air Capable Ship" offered for the Thai Navy but cancelled as proved unsatisfactory design?


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,235
Reaction score
139
I think it's the HC-800P design, which is mentioned here:

https://forum.keypublishing.com/showthread.php?59936-The-8000t-quot-harrier-carrier-quot-concept&p=972265#post972265


Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
670
Reaction score
125
Thanks!
I assume these German proposals were made around the same time: 1990-91?


red_october

CLEARANCE: Restricted
Joined
Aug 17, 2019
Messages
3
Reaction score
9
just happen to see this post

the 'unsatisfactory' part was not about the design, but rather the German bureaucracy

the ship was offered to the Thai navy and was declared the winner, but the Vulkan could not get German government's export permission and the program was delayed for half a year when it was cancelled

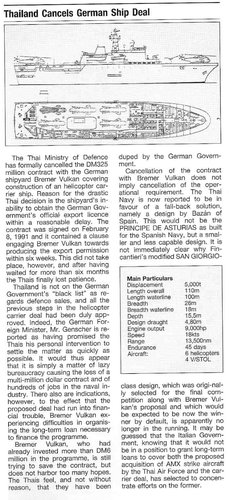

Bremer Vulkan TH 5000t.jpg

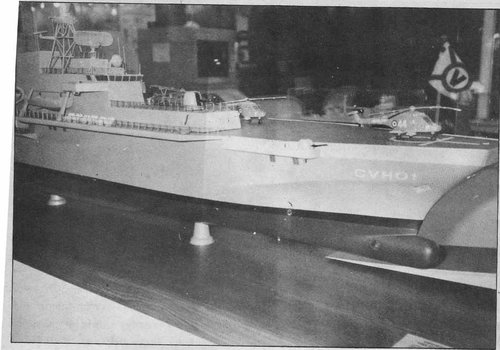

note that the news says 5000t, but the design was actually 7800t - the name was apparently "CVH01"

taken from Thai magazine "Combat Zone", I don't have article but this is as far as I can remember from the article (and the picture of the model)

7800t
OTO-made 76mm/62 or FMC-made 127mm (Mk45?)
4x Breda 30mm twin gun
Sea Sparrow (seems to be Mk29 GMLS)
12x Harrier or Sea King
sensors system include WM-series radar (supposedly for 30mm guns) and (seems to be) SPS-49, plus bow sonar
main gun and Sparrow are controlled by what seems to be STIR 1.8

they also studied the possibility of adding ski-jump before the deal was scrapped

Last edited:

Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
670
Reaction score
125
If I understand the drawing correctly the armaments are:
1x1 76mm or 127mm Gun as you specified,
2x2 30mm OTO-Breda Sea Cobra CIWS, or maybe the slightly older OTO-Breda Compact?
2x8 RIM-7 Sea Sparrow launchers
