Bremer Vulkan SUNLOG and Multi Purpose Carrier

[Voltzz]

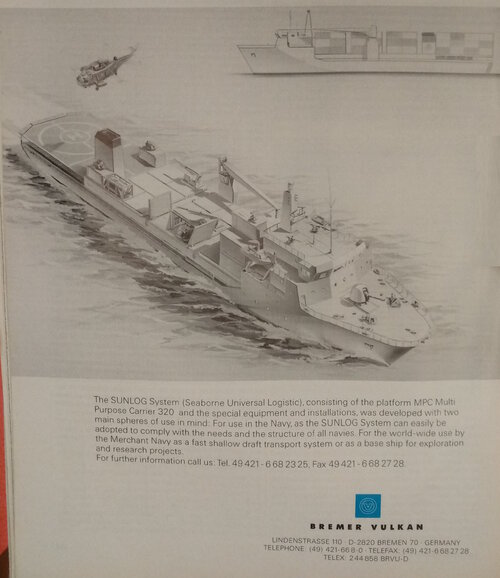

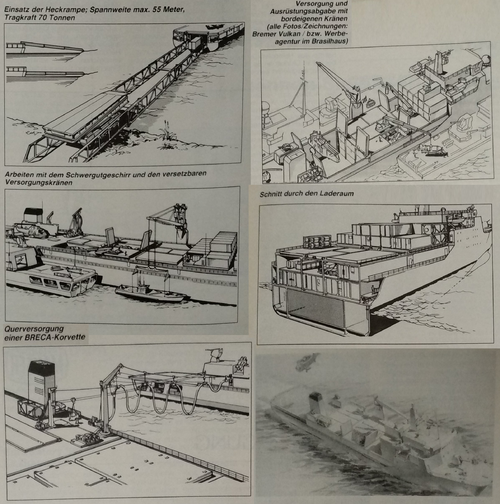

In the late 80s Bremer Vulkan developed the SUNLOG-System (Seaborne Universal Logistics), a containerized naval logistics system.

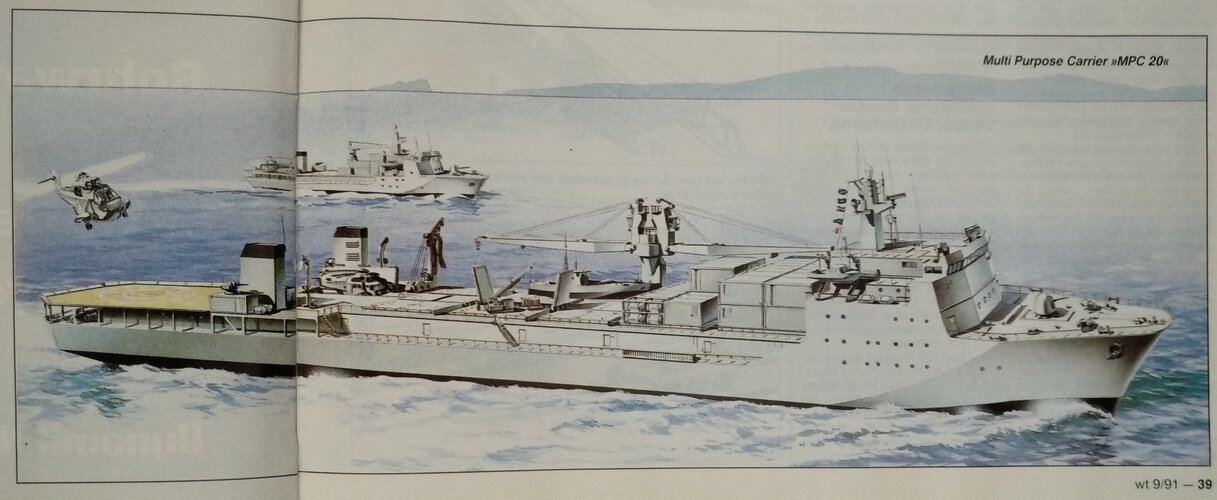

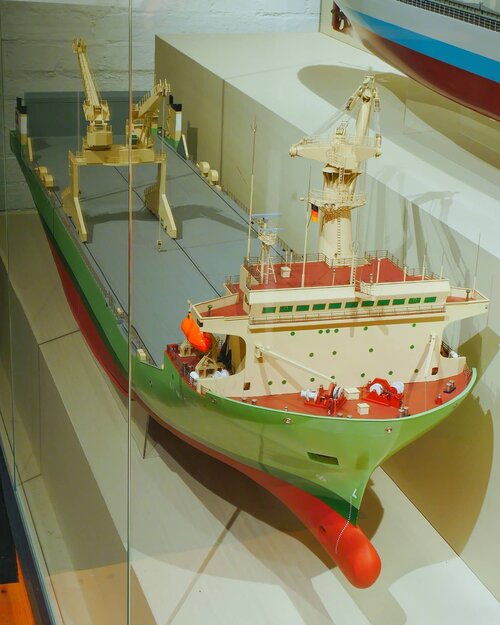

Bremer Vulkan designed two resupply vessels using SUNLOG: MPC 20 and MPC 320 (Multi Purpose Carrier). Both were based on a civilian ro-ro heavy lift ship built by Vulkan called the MV St Magnus. This ship was seen as somewhat "combat proven" because it had survived an accidental Exocet hit while in Iraq in 1985. Interestignly the same ship was later used by the US Military Sealift Command until 2011.
Neither the SUNLOG concept nor the two ship design had any success. The German Navy was interested, but short on cash and multiple attempts to offer it internationally failed.
Source

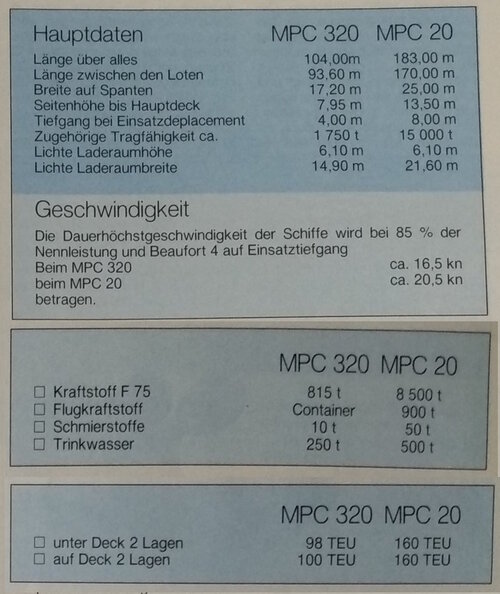

Data	MPC 320	MPC 20
Length overall	104.00 m	183.00 m
Length between the perpendiculars	93.60 m	170.00 m
Width on frames	17.20 m	25.00 m
Side height to main deck	7.95 m	13.50 m
Depth in operational displacement	4.00 m	8.00m
Load capacity approx	1 750 t	15 000 t
Clear loading space height	6.10 m	6.10 m
Clear loading space width	14.80 m	21.60 m
Cruising speed (85% power & 4 Bft)	16.5 kn	20.5 kn
Fuel F 75	815 t	8 500 t
Aviation fuel	Container (?)	900 t
Lubricants	10 t	50 t
Drinking water	250 t	500 t
Containers below deck (2 layers)	98 TEU	160 TEU
Containers on deck (2 layers)	100 TEU	160 TEU

Table is translated so might contain some errors
