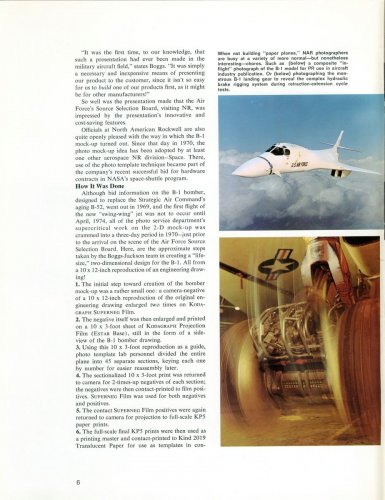

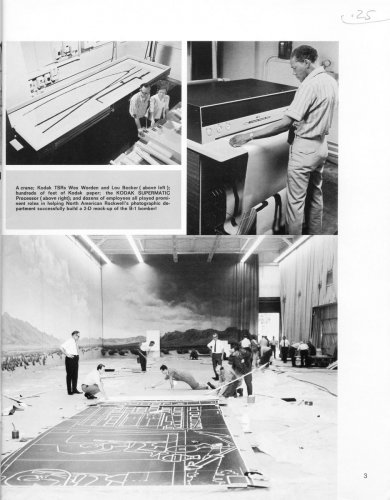

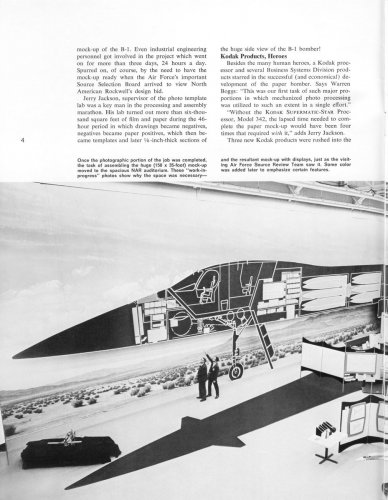

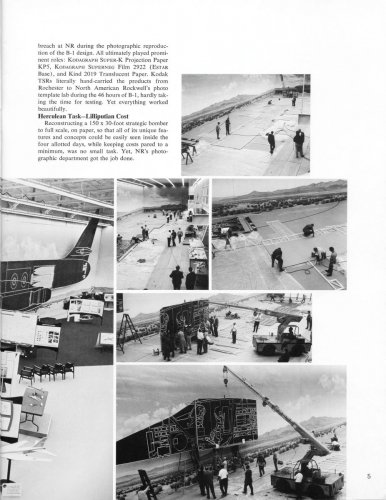

Quite a little known fact that in order to save money and meantime to demonstrate its proposal to Air Force Source Selection Board members, NAR has built full-scale B-1A '2D Mockup' (with a significant use of Kodak equipment).

Mock-up was completed just in 3 days.

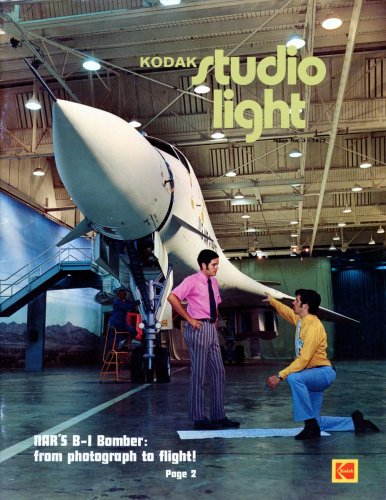

Source: Kodak Studio Light magazine, 3-1972


Attachments

  • KSL-B-1-01 [1600x1200].jpg
    KSL-B-1-01 [1600x1200].jpg
    226.3 KB · Views: 345
  • KSL-B-1-02 [1600x1200].jpg
    KSL-B-1-02 [1600x1200].jpg
    202.1 KB · Views: 338
  • KSL-B-1-03 [1600x1200].jpg
    KSL-B-1-03 [1600x1200].jpg
    161.3 KB · Views: 310
  • KSL-B-1-04 [1600x1200].jpg
    KSL-B-1-04 [1600x1200].jpg
    178.2 KB · Views: 344

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,047
Reaction score
875

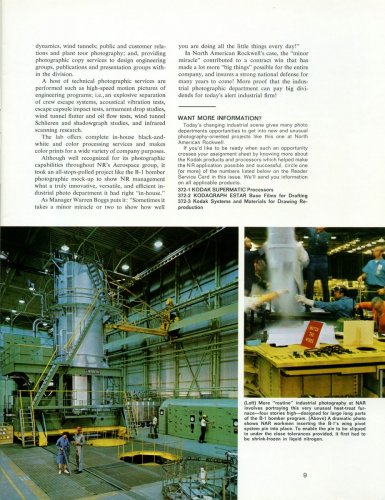

Continued. Note difference details between mock-op and actual B-1A, and dramatic liquid nitrogen shrink-frozen pivot unit pin installation photo (and pin's size)


Attachments

  • KSL-B-1-09 [1600x1200].jpg
    KSL-B-1-09 [1600x1200].jpg
    242.6 KB · Views: 84
  • KSL-B-1-08 [1600x1200].jpg
    KSL-B-1-08 [1600x1200].jpg
    200.4 KB · Views: 91
  • KSL-B-1-07 [1600x1200].jpg
    KSL-B-1-07 [1600x1200].jpg
    160.9 KB · Views: 107
  • KSL-B-1-06 [1600x1200].jpg
    KSL-B-1-06 [1600x1200].jpg
    189.7 KB · Views: 130
  • KSL-B-1-05 [1600x1200].jpg
    KSL-B-1-05 [1600x1200].jpg
    183.9 KB · Views: 285

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

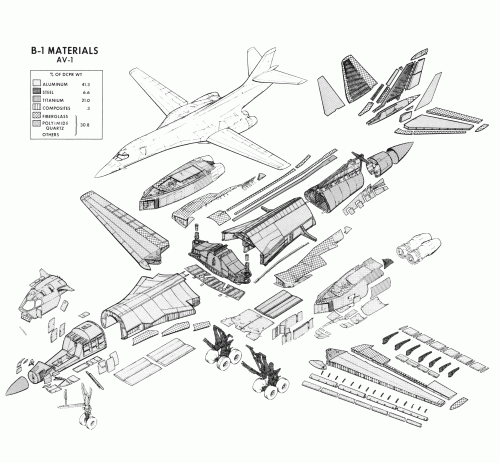

For lack of a better place to post it... here is a breakdown view of the Rockwell B-1A's materials, published in a 1977 issue of Aviation & Marine after cancellation of the program:


Attachments

  • B-1 materials (Aviation & Marine, 1977).gif
    B-1 materials (Aviation & Marine, 1977).gif
    1.2 MB · Views: 96
