Hi,

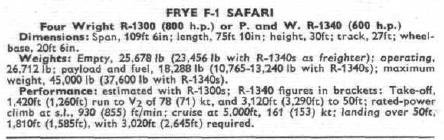

The Frye F-1 was a project of four engined high wing transport
aircraft intended to replace the Douglas DC-3.


Source; Flightglobal


Attachments

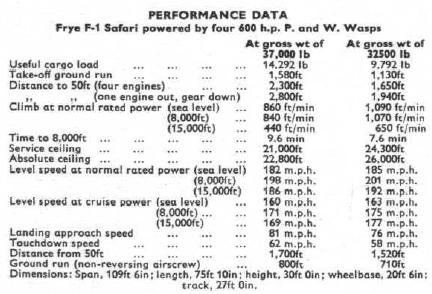

  • FRYE DATA.JPG
    FRYE DATA.JPG
    29.9 KB · Views: 419

SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
12
I have found what is available about the Frye F.1 Safari (not much), but does anybody have anything more on the Frye F.2?

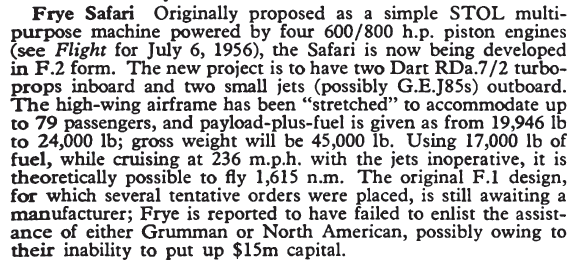

AN unusual configuration has been chosen for Frye's second
Safari project F.2. Described as a further DC-3 replacement,
the F.2 features two Dart RDa.7 Stage 2 turboprops inboard, and
two jets—possibly General Electric J85s—outboard. The jets
would supply additional power for take-off and climb. The fuselage
has been stretched ten feet to accommodate up to 79 passengers
in an "airbus" interior, 73 in a coach layout, or 65 in a de luxe
version. As a result, the gross weight has increased from 45,000 1b
to 50,000 lb and the zero fuel weight has been raised to 97,000 lb.
Payloads plus fuel weights are given as 19,981 for the de luxe
version, 19,946 for the coach aircraft, 20,676 for the airbus
and a maximum all-freight weight of 24,880 lb. Using the turboprops
only, die maximum cruise speed at 10,000ft would be 205 kt, and
the range with 17,000 lb of fuel, 1,615 n.m. This pre-supposes
the use of optional additional fuel capacity.

From Flight Global 12 July 1957.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com

Attachments

  • FryF1concept.JPG
    40.9 KB · Views: 331

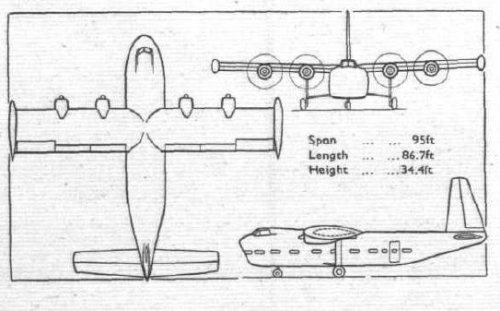

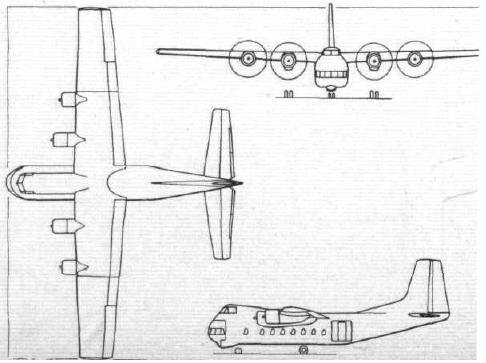

  • FryF1drawing.JPG
    31.7 KB · Views: 325

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,343
Reaction score
1,501

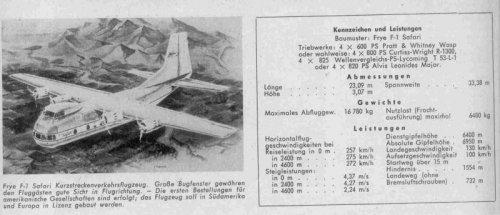

The Frye F-1 as shown in Flugwelt 1956, without tip tanks and a
slightly different nose shape (and with retractable landing gear ?):


Attachments

  • Frye-F-1.jpg
    56.9 KB · Views: 790

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com
Jemiba said:
The Frye F-1 as shown in Flugwelt 1956, without tip tanks and a
slightly different nose shape (and with retractable landing gear ?):

index.php


Flight describes this artist's impression as the final configuration of the Frye F1 Safari.

Source: "Introducing the Safari" Flight April 13, 1956 p. 434.
http://www.flightglobal.com/pdfarchive/view/1956/1956%20-%200434.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,361
Reaction score
6,011
If we use the search,

there is no more double post;

http://www.secretprojects.co.uk/forum/index.php/topic,2105.0.html


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
638
Reaction score
389

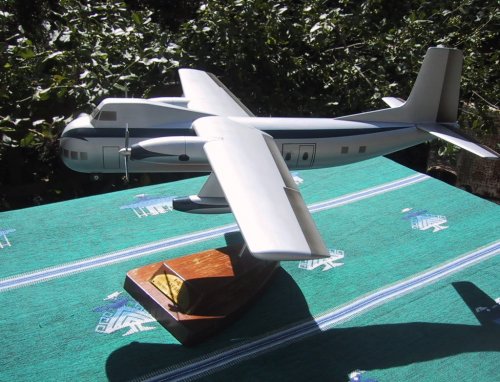

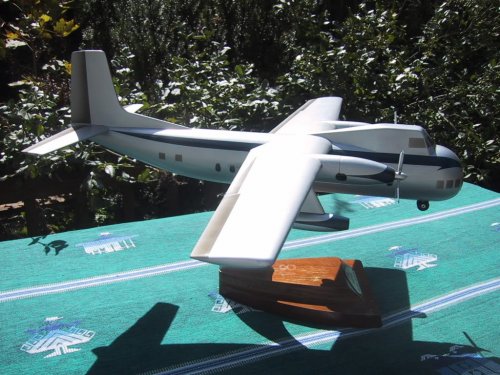

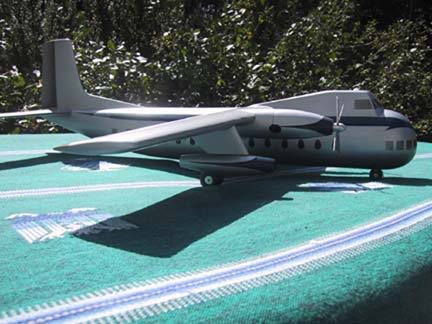

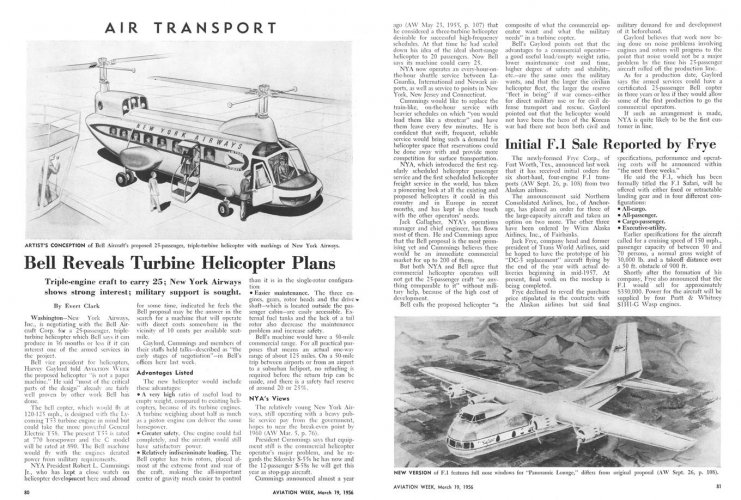

Somewhere over the Internet I found these pictures showing models of the F-2. A man in one of them is Jack Frye, the aircaft's designer.

Best regards,
Piotr


Attachments

  • Safari_F-2_004.jpg
    28.3 KB · Views: 80
  • Safari_F-2_003.jpg
    193 KB · Views: 73
  • Safari_F-2_002.jpg
    196.9 KB · Views: 74
  • Safari_F-2_001.jpg
    51.3 KB · Views: 61

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
638
Reaction score
389
Just another detail about the Safari. Am I right thinking that the Safari's cabin was to be unpressurised?
If so, it would have been quite a substantial difference between it and the Handley Page Herald, which was being mentioned in one of the "Flight" articles as a competition for the Safari.

Regards,
Piotr


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
638
Reaction score
389
And now what I've just found: http://www.sedonalegendhelenfrye.com/1957.html

A complete (I suppose) F-1 Safari brochure. The scans have been watermarked but still remain quite readable.

You simply must take a look at it!

Piotr


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info
Neat, but why the windows on front of the clamshell doors? I can imagine kids with their noses glues to the glass, but still, it seems odd.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
638
Reaction score
389
Mole said:
Neat, but why the windows on front of the clamshell doors? I can imagine kids with their noses glues to the glass, but still, it seems odd.

I think adults would also look through the windows. The view should have been thrilling.

P.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
638
Reaction score
389
Stargazer2006 said:
Cool find! See also: http://www.secretprojects.co.uk/forum/index.php?topic=4086.0

To the moderators: don't you think both the thread should be merged?

Piotr


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,697
Reaction score
827
Hi All!

A recent donation to the Museum included earlier in this thread. Very happy to have received it!

Enjoy the Day! Mark


Attachments

  • zFrye Aircraft F-1 Safari Artwork.jpg
    zFrye Aircraft F-1 Safari Artwork.jpg
    255.1 KB · Views: 84
  • zFrye Aircraft F-1 Safari Alternate Power Plants & Fixed Gear.jpg
    zFrye Aircraft F-1 Safari Alternate Power Plants & Fixed Gear.jpg
    132.7 KB · Views: 75

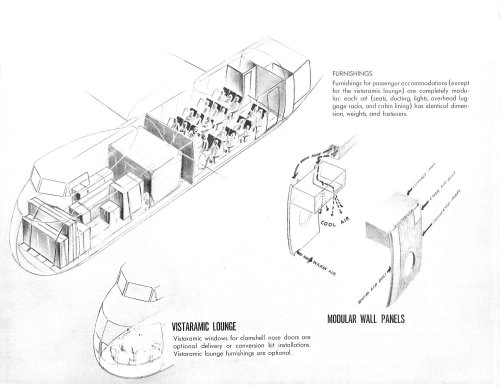

  • zFrye Aircraft F-1 Safari Vistaramic Lounge.jpg
    zFrye Aircraft F-1 Safari Vistaramic Lounge.jpg
    131.1 KB · Views: 65
  • zFrye Aircraft F-1 Safari Passenger-Cargo Details.jpg
    zFrye Aircraft F-1 Safari Passenger-Cargo Details.jpg
    160.1 KB · Views: 82

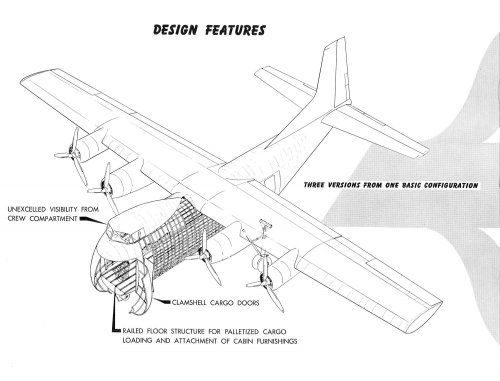

  • zFrye Aircraft F-1 Safari Design Features - 2.jpg
    zFrye Aircraft F-1 Safari Design Features - 2.jpg
    223.9 KB · Views: 89
  • zFrye Aircraft F-1 Safari Design Features - 1.jpg
    zFrye Aircraft F-1 Safari Design Features - 1.jpg
    169.7 KB · Views: 306

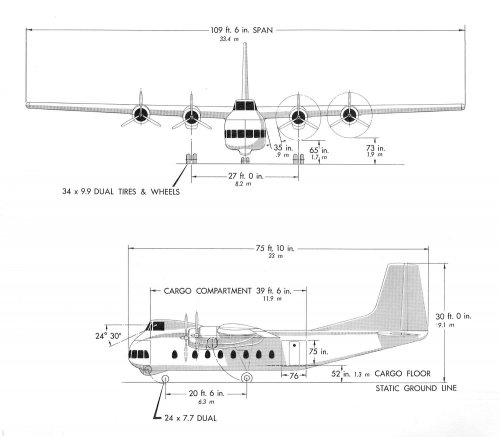

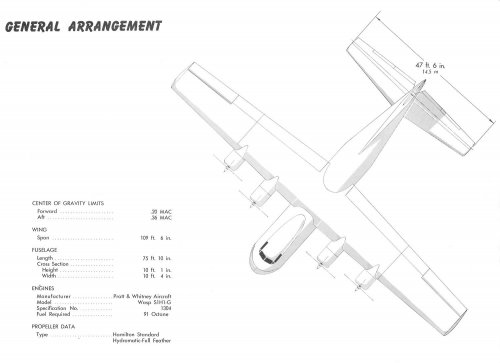

  • zFrye Aircraft F-1 Safari General Arrangement - 2.jpg
    zFrye Aircraft F-1 Safari General Arrangement - 2.jpg
    96.6 KB · Views: 321
  • zFrye Aircraft F-1 Safari General Arrangement -1.jpg
    zFrye Aircraft F-1 Safari General Arrangement -1.jpg
    127.7 KB · Views: 337

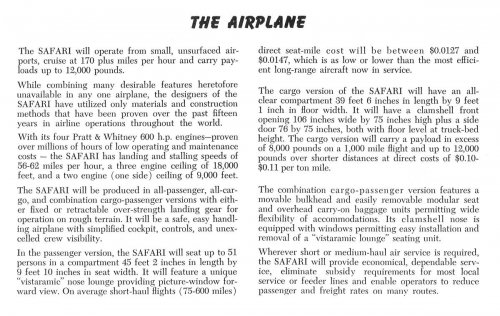

  • zFrye Aircraft F-1 Safari Description.jpg
    zFrye Aircraft F-1 Safari Description.jpg
    198.8 KB · Views: 343
  • zFrye Aircraft F-1 Safari Brochure Cover.jpg
    zFrye Aircraft F-1 Safari Brochure Cover.jpg
    223.7 KB · Views: 356

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,697
Reaction score
827
My pleasure - about three months ago, I read a book by Gene Turner (designed the T-40 homebuilt) who at one time worked for Jack Frye and mentions the F-1 Safari in the book. So when the brochure showed up, I knew instantly what I was looking at.

Here's a few more images from the brochure.

Enjoy the Day! Mark


Attachments

  • zFrye Aircraft F-1 Safari Back Cover Artwork.jpg
    zFrye Aircraft F-1 Safari Back Cover Artwork.jpg
    152.2 KB · Views: 72
  • zFrye Aircraft F-1 Safari Money Maker Artwork.jpg
    zFrye Aircraft F-1 Safari Money Maker Artwork.jpg
    223.2 KB · Views: 77

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
638
Reaction score
389

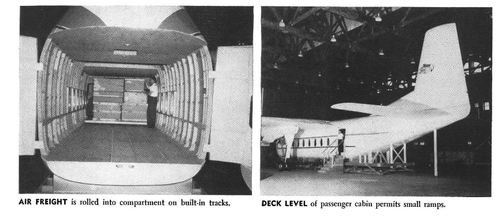

What you have here is a cut-out from the "Flying Magazine" of September 1956 with photos of the mock-up of the Frye Safari.
Piotr


Attachments

  • Safari Mock Up.png
    Safari Mock Up.png
    1.4 MB · Views: 84

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info
The windows in the front cargo doors are a hoot. I'd go up there to look out, but I suspect many other people would not.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804

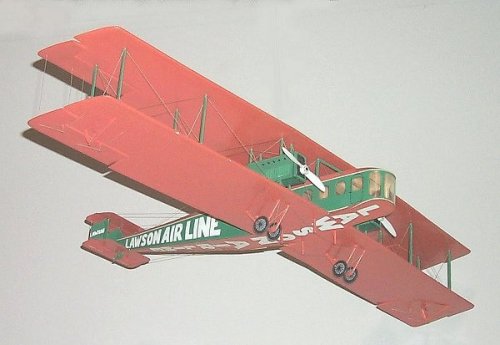

Lawson Airliner, anyone?! ;D
