Hi,

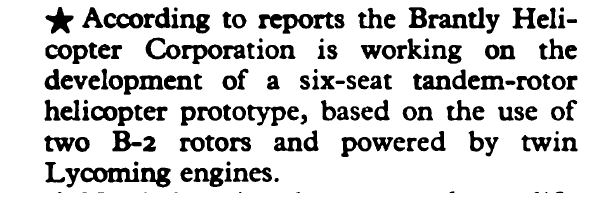

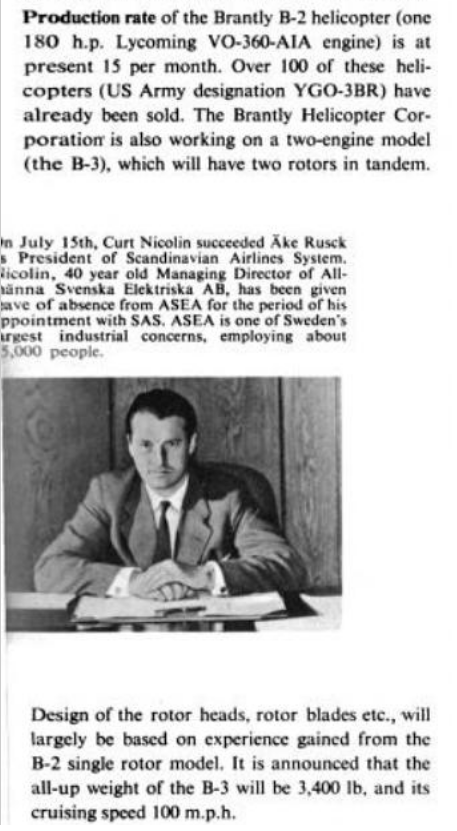

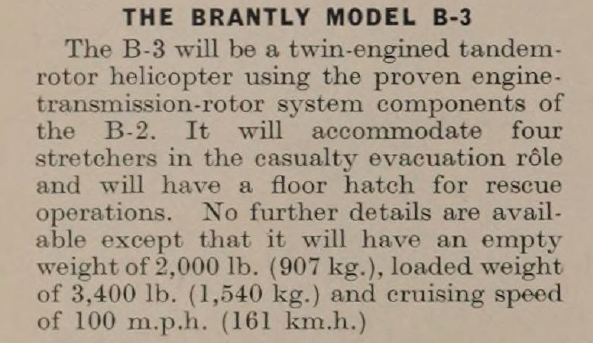

The Brantly B-3 was a project for tandem twin rotor helicopter
could accommodated 6-seat and B-4 was very large version of
B-3 but powered by four engines (two forward and two aft) and
could accommodated 50-seat.


Source; Flightglobal


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,990
Reaction score
144

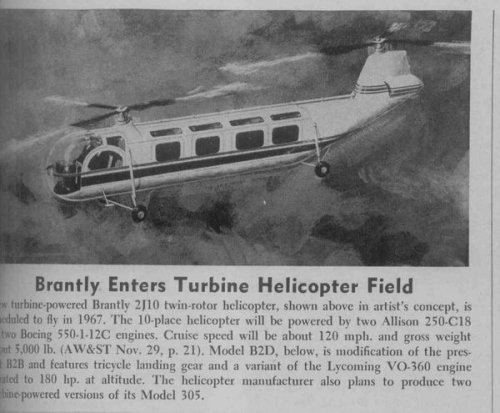

I only found one picture of tandem rotor Brantly type, the B2J10,
obviously a development of the single rotor B-2
(from Aviation Week1965 18-27)


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
74
For more about Brantly helicopters:
  • Brantly YHO-3 here.
  • ARDC TP-900 here.
  • A former Brantly B-2 pilot here.

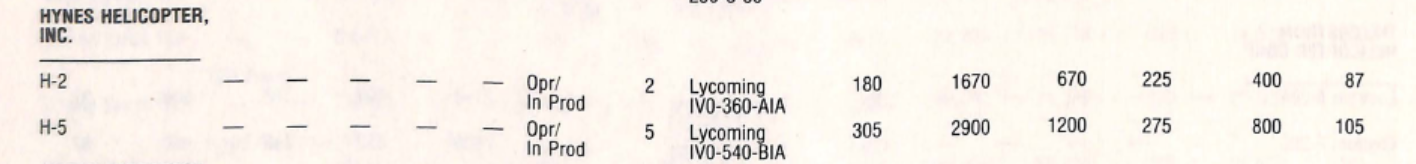

  • Hynes H-5T pilotless helicopter derived from B-2 here.


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,523
Reaction score
123
Good Day All -

From the January, 1968 issue of American Aviation Magazine is this artist concept for the Brantly 305.

Enjoy the Day! Mark


Attachments

RAP

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
615
Reaction score
168

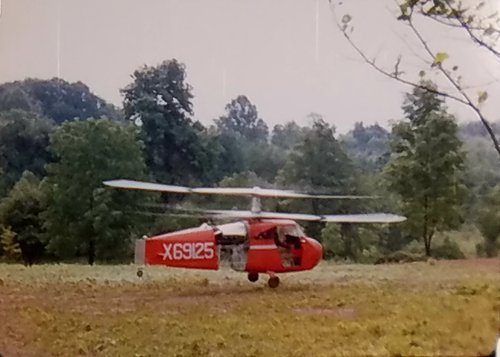

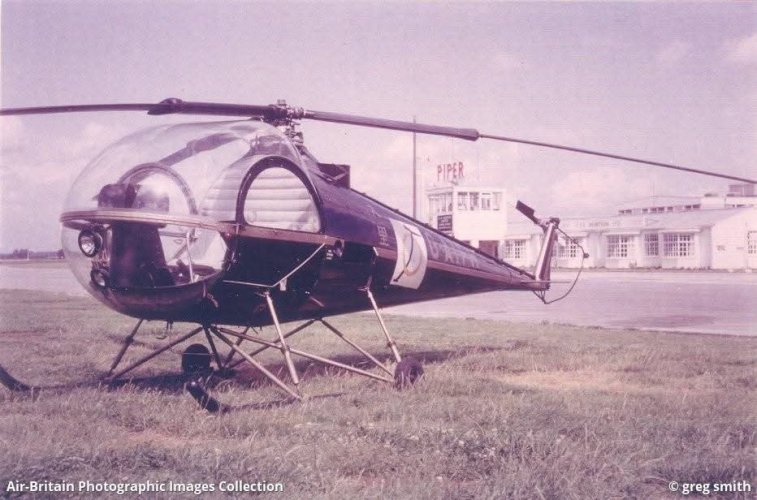

Brantly prototype.


Attachments

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,523
Reaction score
123
Good Day All -

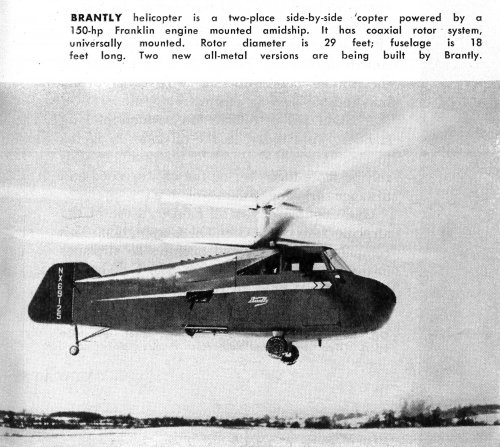

A very early Brantly B-1- has not yet evolved into the flying ice cream cone shape....

From April 1950 Skyways magazine.

Enjoy the Day! Mark


Attachments
