AMR Helicopters and Projects

[hesham]

Hi,


I spoke before about the AMR (Aero-Marine Research) XD-110,as it was RPV;
http://www.secretprojects.co.uk/forum/index.php/topic,1303.msg10858.html#msg10858

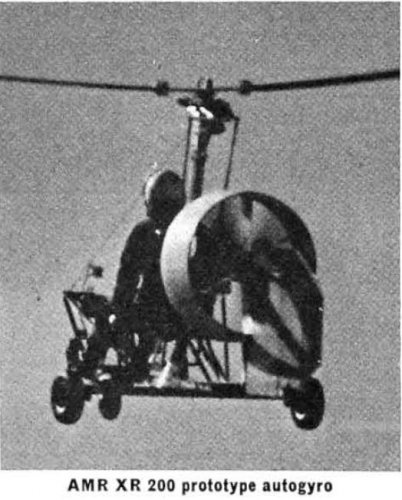

But the company developed some manned helicopter and one STOL aircraft,the XR-200
was two-seat autogyro,had a two-blade rigid main rotor and a 75 hp light engine

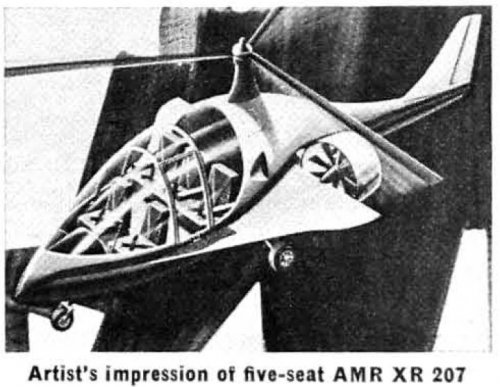

driving a rear-mounted Benson External Rotorduct,it was actually built,also the XR-207
Rotorplane was five-seat compound helicopter project,powered by two Continental
engines.

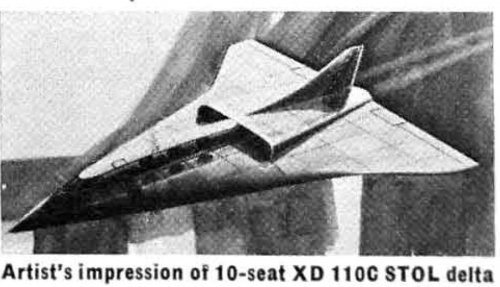

The XD-110C was a double-delta business jet STOL aircraft project,it accommodated
2 crew and 8 passenger.

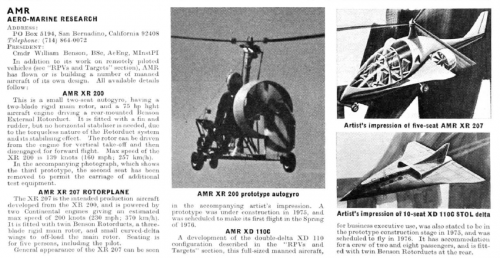

Source, Jane's All the World's Aircraft 1975-1976



[hesham]

Hi,

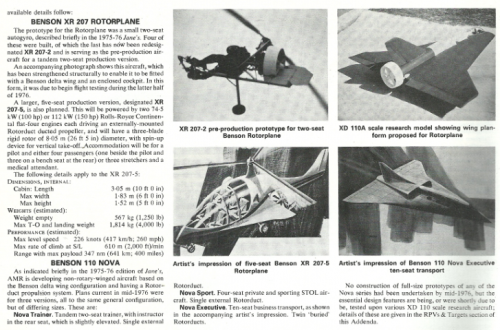

I discovered that,the XR-207 had two variants.

Jane's All the World's Aircraft 1976-1977



[quellish]

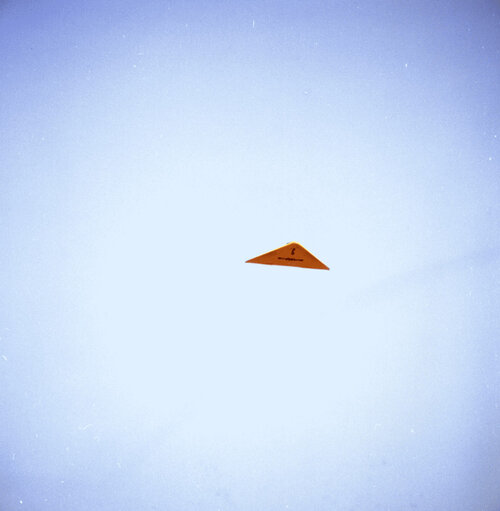

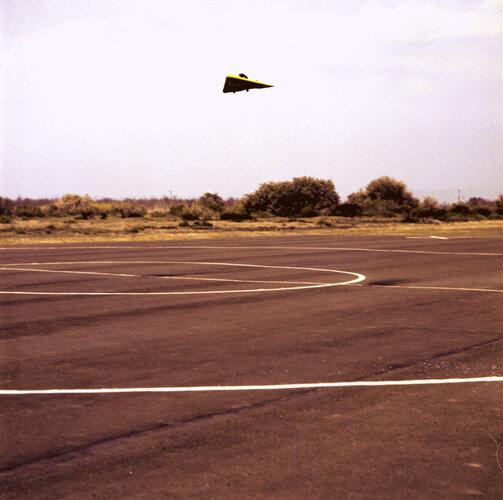

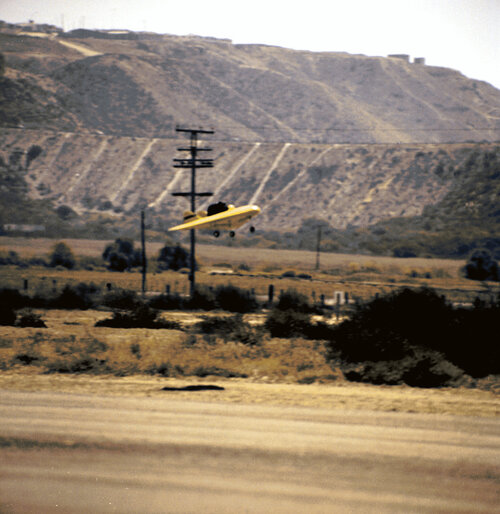

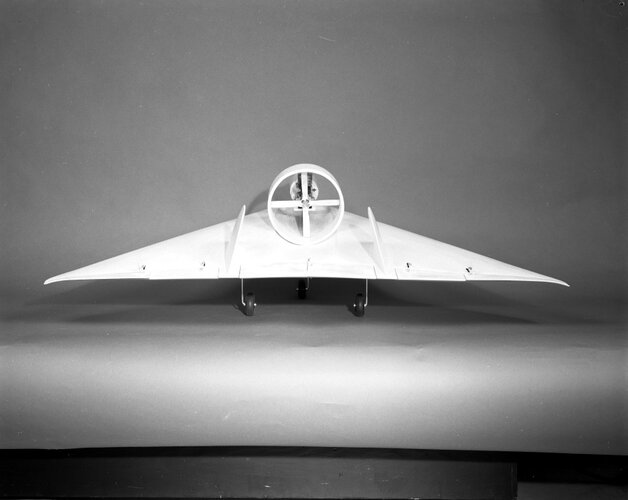

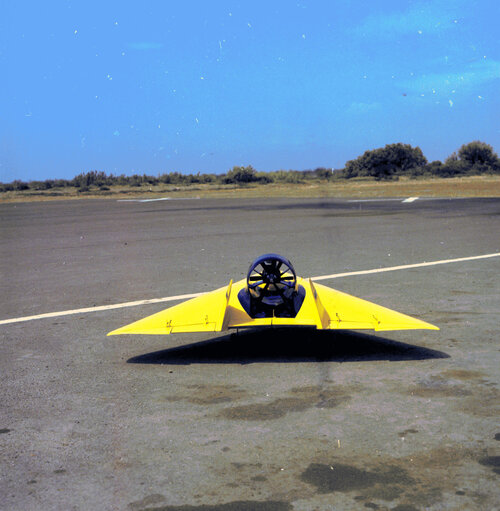

Benson / AMR also worked with Ryan to build a demonstrator for the Ryan mini-RPV:

AMR (Aero-Marine Research) RPV-004 / RPV-007

I believe there were several variations on it but am not certain.

There are some good photos of it flying in the SDASM collection

https://flic.kr/p/UfM6or

View: https://www.flickr.com/photos/sdasmarchives/34297781041/in/album-72157680435446852/

https://flic.kr/p/UcZoF1

View: https://www.flickr.com/photos/sdasmarchives/34266231046/in/album-72157680435446852/

https://flic.kr/p/U55WEK

View: https://www.flickr.com/photos/sdasmarchives/34176782271/in/album-72157680435446852/

https://flic.kr/p/T36QaF

View: https://www.flickr.com/photos/sdasmarchives/33497965753/in/album-72157680435446852/

https://flic.kr/p/T39DQ6

View: https://www.flickr.com/photos/sdasmarchives/33498516313/in/album-72157680435446852/

https://flic.kr/p/U595XR

View: https://www.flickr.com/photos/sdasmarchives/34177395511/in/album-72157680435446852/

https://flic.kr/p/U2RZF3

View: https://www.flickr.com/photos/sdasmarchives/34151622932/in/album-72157680435446852/

https://flic.kr/p/UgHMQV

View: https://www.flickr.com/photos/sdasmarchives/34308453185/in/album-72157680435446852/

https://flic.kr/p/U59mHD

View: https://www.flickr.com/photos/sdasmarchives/34177448511/in/album-72157680435446852/

https://flic.kr/p/UdcgF5

View: https://www.flickr.com/photos/sdasmarchives/34268548846/in/album-72157680435446852/



[quellish]

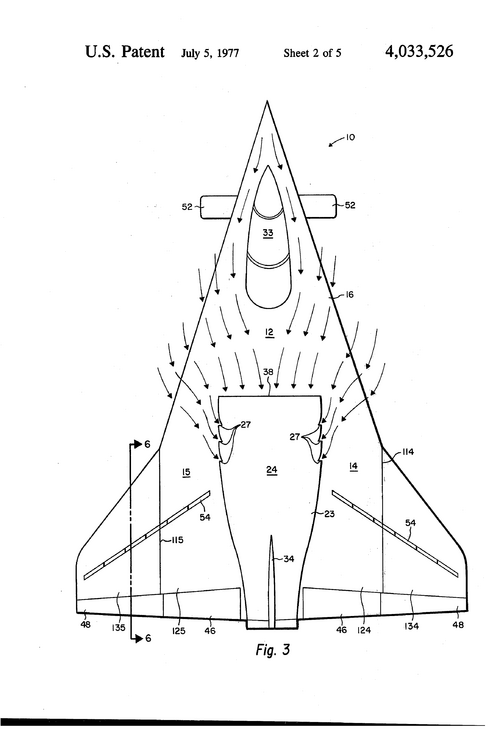

Benson also had a patent on an XD-110 vehicle:

"Aerodynamic flow body"

US4033526A - Aerodynamic flow body - Google Patents

Disclosed is an increased lift aircraft or similar device having an airfoil shaped forward structure. A mass flow engine, such as a jet engine, is positioned to the rear of this structure. In operation, the intake air flow for the engine flows around the forward structure, generating lift.

patents.google.com
