Hi,

The Aero Marine Research company designed in 1969 the XD-110,
a modern two seat STOL advanced trainer aircraft,it had a double
delta wing configuration (like SAAB-35),and powered by one engine
mounted at rear of the fuselage,the company built two scales and
the third became the first mini-RPV to be demonstrated in flight,I
have a picture to the scale only,and any additions are welcome.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,670
Reaction score
3,463
By the way,

the AMR was a USA company and it was also built a series of RPV,but I
think no one heard about that aircraft !.


Andreas Parsch

ACCESS: Secret
Joined
Mar 2, 2006
Messages
245
Reaction score
9
hesham said:
the AMR was a USA company and it was also built a series of RPV,but I
think no one heard about that aircraft !.

... unless one is really interested in UAV history ;D!

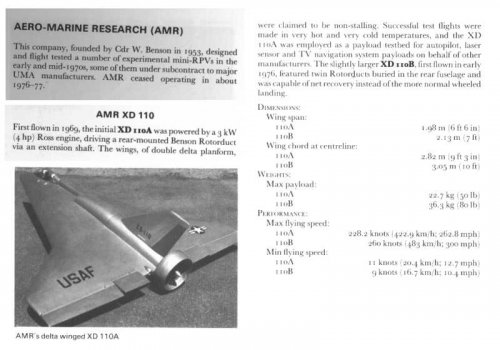

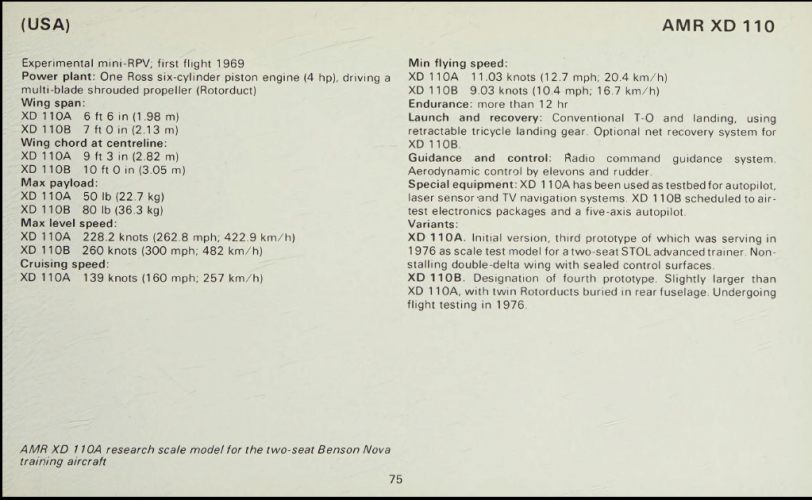

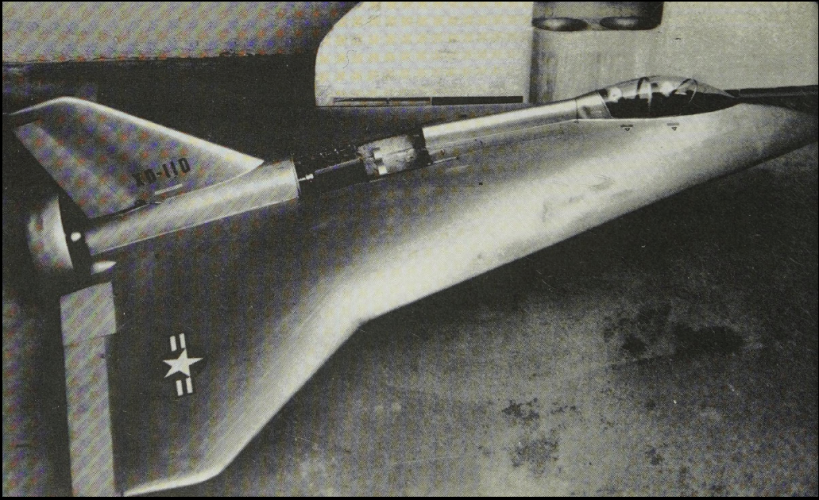

Anyway, attached is a patchworl of scans from the section on the AMR XD-110 from

Kenneth Munson: "World Unmanned Aircraft". Jane's Publishing Company, 1988 .

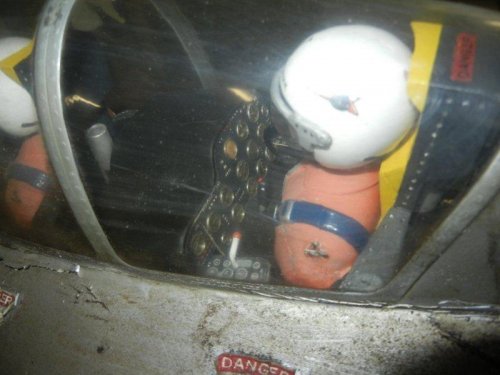

A (planned) full-scale manned variant is not mentioned, but the UAV was obviously meant to represent a scaled-down manned plane (miniature cockpit!). And the military markings are probably bogus - AFAIK, the XD-110 was never evaluated by the USAF.


Attachments

  • xd-110.jpg
    39.8 KB · Views: 954

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,819
Reaction score
266
Based on the pic of the scale model the full size variant probably would have looked awesome. Hopefully, someone will find some good three view drawings of the full sized variant.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,670
Reaction score
3,463
Thank you,

and for the really project,it was appeared in Jane's all the world's aircraft 1975-1976.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Funny that I searched in Janes Unmanned Aerial Vehicles and Targets electronic database from 2002 and found absolutely nothing.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,670
Reaction score
3,463
Dear Matej,

for the XD-110 RPV you found it in Jane's all the world's aircraft
1977-1978 and for the XD-110 trainer aircraft in Jane's all the
world's aircraft 1975-1976,and was not in Jane's unmanned
Aerial Vechicles and Targets.


Hs132

I really should change my personal text
Joined
Feb 14, 2014
Messages
9
Reaction score
0

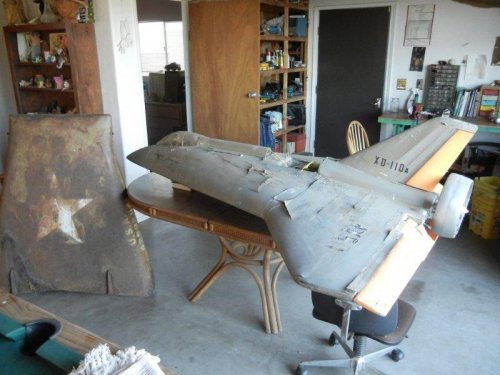

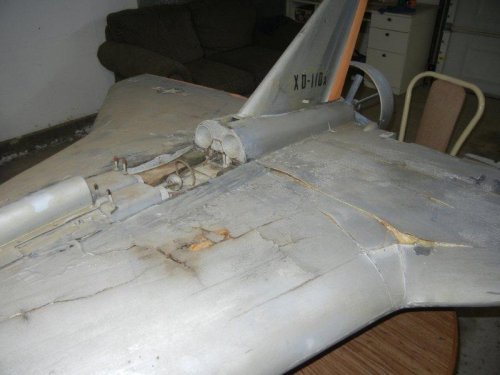

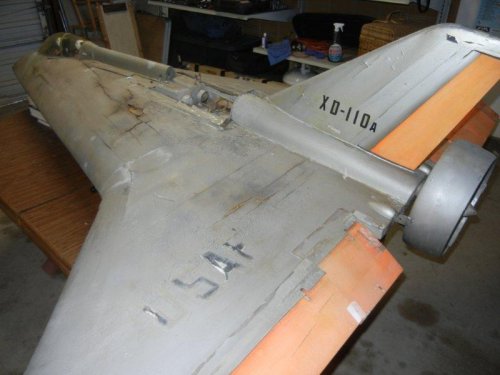

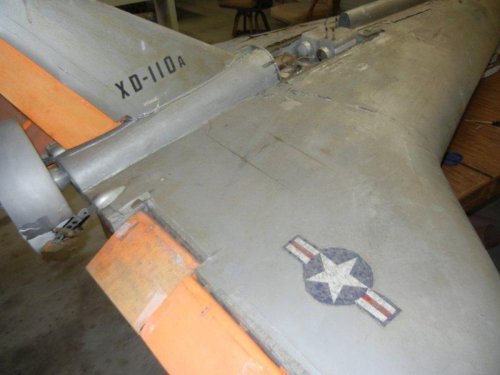

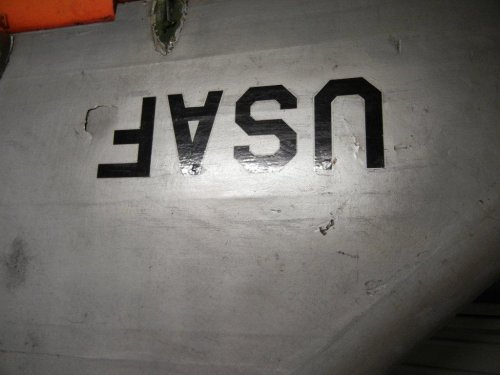

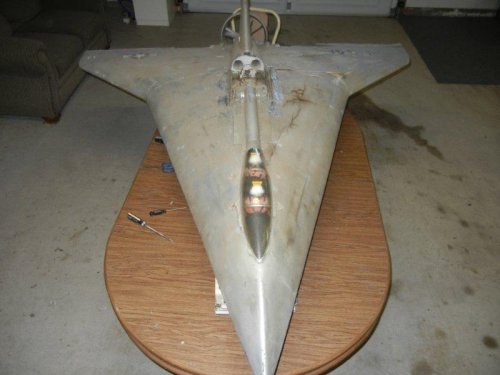

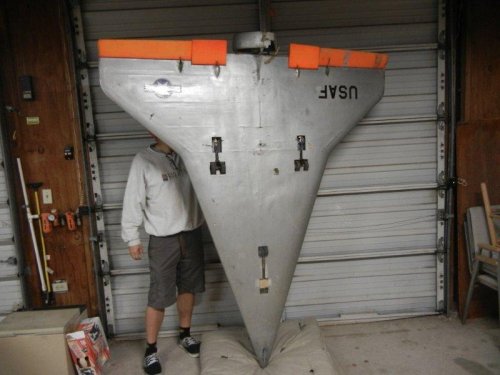

Pics tell all. I obtained this thru a want ad for WW2 items a few days ago. I knew I had to have it when I saw it hanging in a storage tent. Hard to believe its about 45 years old and wound up in my garage The motor was sold several years ago. Does anyone have any further info on William Benson? Best, Bill Bourque


Attachments

  • benson9.jpg
    37.6 KB · Views: 51
  • benson 8.jpg
    benson 8.jpg
    43.5 KB · Views: 67
  • benson6.jpg
    36.9 KB · Views: 67
  • benson5.jpg
    35.9 KB · Views: 79
  • benson4.jpg
    64 KB · Views: 364
  • benson3.jpg
    74.3 KB · Views: 368
  • benson2.jpg
    52 KB · Views: 387
  • benson1.jpg
    71.9 KB · Views: 402

Hs132

I really should change my personal text
Joined
Feb 14, 2014
Messages
9
Reaction score
0
pics


Attachments

  • benson12.jpg
    64.7 KB · Views: 25
  • benson11.jpg
    58.9 KB · Views: 23
  • benson2.jpg
    52 KB · Views: 17

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Amazing indeed! Is there much work to be done on restoration? Does it seem doable at all?


Just a point of detail: you posted pic #2 twice, but no pic #7... ;)


Hs132

I really should change my personal text
Joined
Feb 14, 2014
Messages
9
Reaction score
0

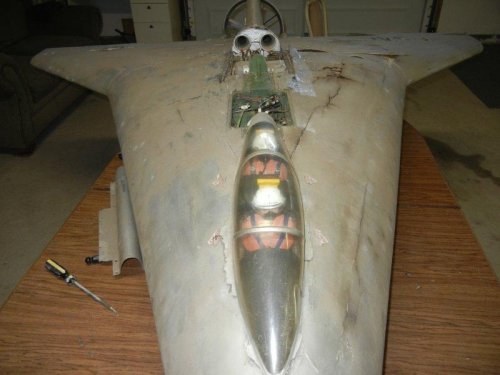

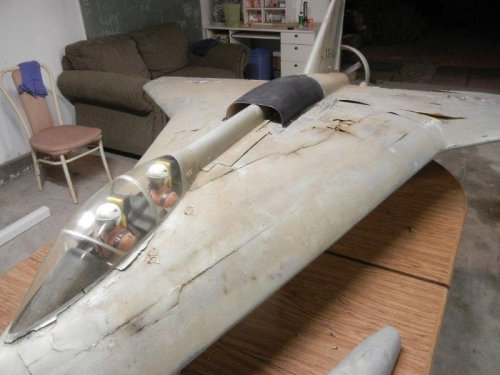

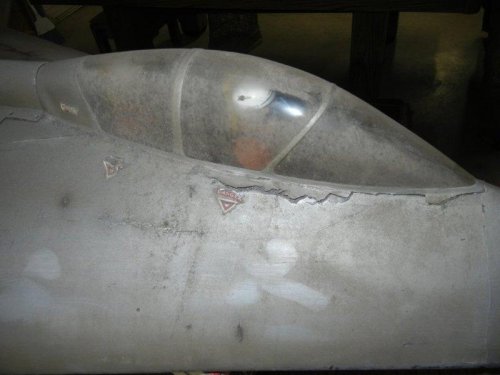

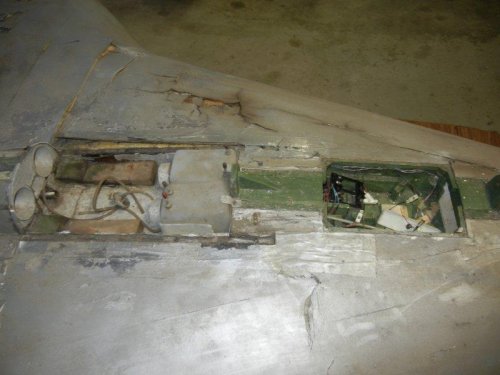

Hello, one side of the wing surface is badly peeled and I dont think its repairable. I dont think this will ever fly again. One of the 3 landing gears need work and one wing cable is broken. I will post more pics tomarrow as Im off to work. I will revisit the seller this week as the engine compartment cowling is still in storage. There is a whole photo notebook of pics there. For some reason he doesnt want to part with the notebook but I will give that another try. Best, Bill


Hs132

I really should change my personal text
Joined
Feb 14, 2014
Messages
9
Reaction score
0
Pics.


Attachments

  • bb8.jpg
    60.8 KB · Views: 42
  • bb7.jpg
    56.4 KB · Views: 34
  • bb6.jpg
    62 KB · Views: 35
  • bb5.jpg
    49.5 KB · Views: 31
  • bb4.jpg
    58.6 KB · Views: 36
  • bb3.jpg
    53.6 KB · Views: 41
  • bb2.jpg
    55.7 KB · Views: 34
  • bb1.jpg
    55 KB · Views: 29

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,819
Reaction score
266
Do you think he would allow you to make copies of the images from the notebook? That's just an idea if he doesn't want to part with it.

Thanks for sharing all of this with us. It's amazing that you found that model!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Sundog said:
Do you think he would allow you to make copies of the images from the notebook? That's just an idea if he doesn't want to part with it.


And if he is afraid of damaging the spine in a scanner, you can suggest to place it open on a table outside and take digital photos from atop with your camera, or your phone if you don't have one at hand.


Hs132

I really should change my personal text
Joined
Feb 14, 2014
Messages
9
Reaction score
0

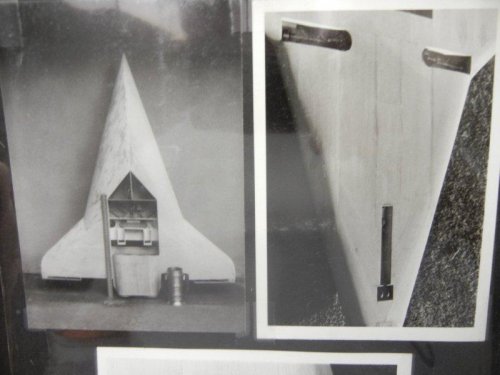

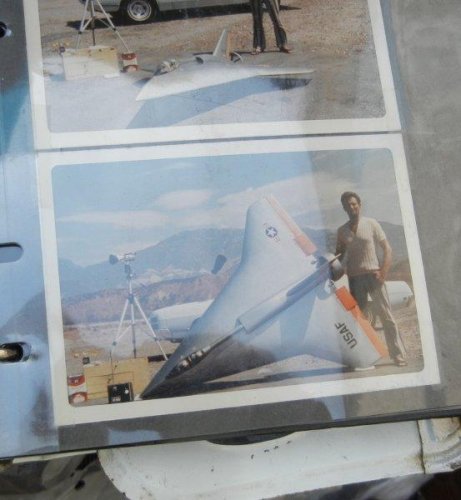

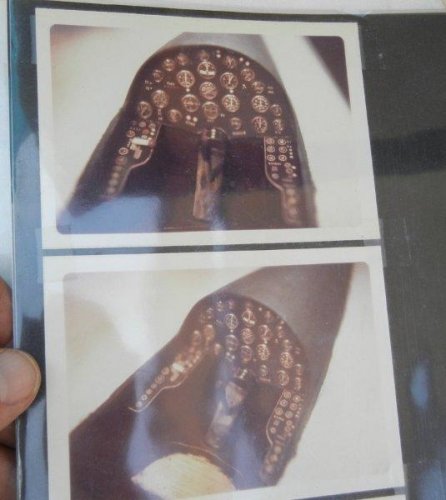

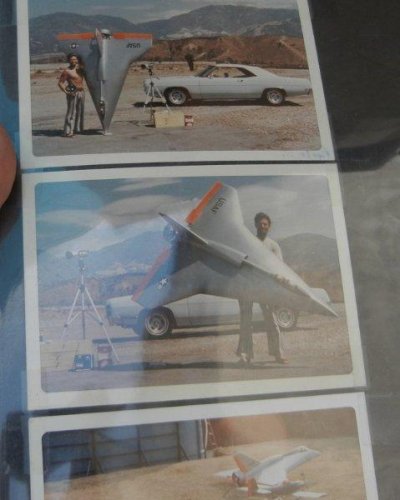

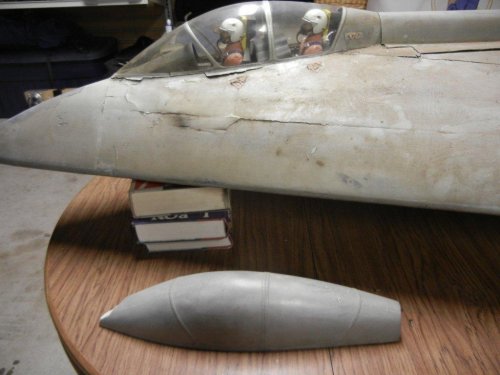

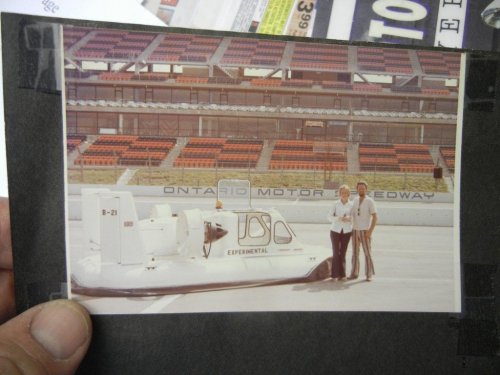

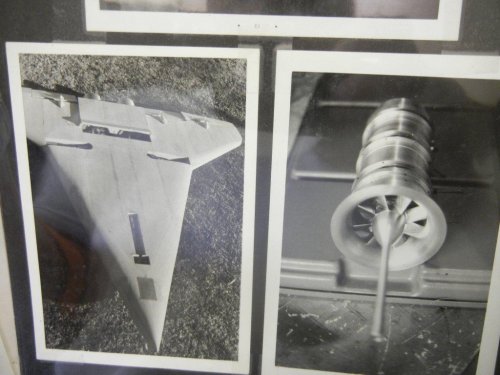

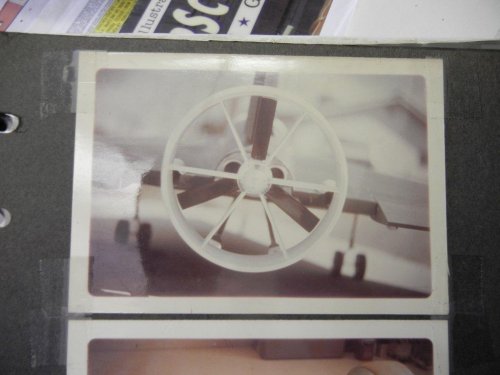

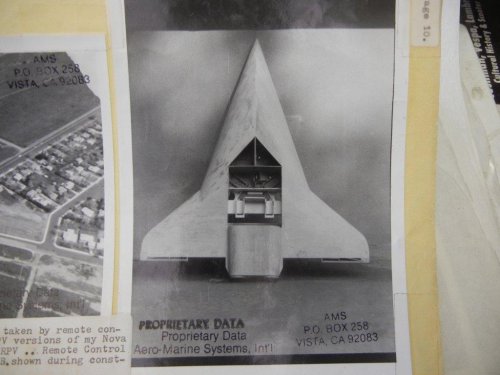

Hello, I revisited with the XD-110 source today. We were able to find the engine cowling cover Im pleased to say. He also had the heavy cast dye for the canopy. I was able to take pics of all of the 60 or so pics in the album. In no particular order, one shows the 6 cyl. Ross motor that pushed it to 250+mph. the compartment size for the engine is 6"x6". There is another pic showing a smaller one in place.

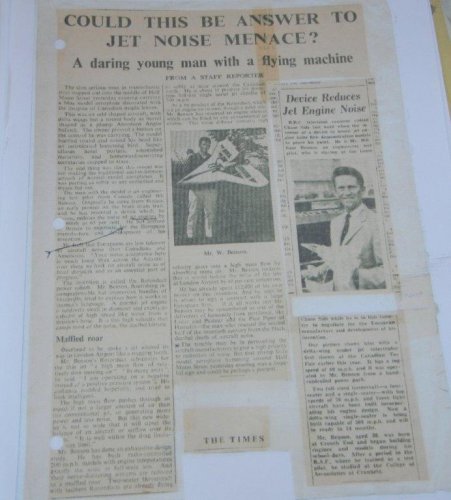

The story gets more detailed, the seller told me he had bought all of Benson's models, paperwork, engines, XD-110b, scale models. He obtained it from someone that buys out storage lockers about 9 years ago. My seller heard that Benson, a British citizen returned to Great Britain later in life and possibly passed away. My seller told me he had the XD110b and he had sold all except for this final piece and the notebook. All those items are probably within a 100 mile radius from here. He sold the Ross engine to a collector in town for about $4000 7-8 years ago. Best, Bill


Attachments

  • e8.jpg
    72.5 KB · Views: 41
  • e7.jpg
    57.5 KB · Views: 37
  • e6.jpg
    99.1 KB · Views: 30
  • e5.jpg
    80.1 KB · Views: 275
  • e4.jpg
    64.5 KB · Views: 288
  • e3.jpg
    50.1 KB · Views: 295
  • e2.jpg
    57.2 KB · Views: 299
  • e1.jpg
    63.1 KB · Views: 303

Hs132

I really should change my personal text
Joined
Feb 14, 2014
Messages
9
Reaction score
0
pics


Attachments

  • e16.jpg
    88.2 KB · Views: 24
  • e15.jpg
    108.5 KB · Views: 29
  • e14.jpg
    113.8 KB · Views: 34
  • e13.jpg
    106.1 KB · Views: 27
  • e12.jpg
    91.4 KB · Views: 22
  • e10.jpg
    103.4 KB · Views: 18
  • e9.jpg
    76.5 KB · Views: 17

Hs132

I really should change my personal text
Joined
Feb 14, 2014
Messages
9
Reaction score
0
pics 1


Attachments

  • be8.jpg
    103.4 KB · Views: 28
  • be7.jpg
    76.5 KB · Views: 26
  • be6.jpg
    63.3 KB · Views: 26
  • be5.jpg
    112.6 KB · Views: 26
  • be4.jpg
    110.1 KB · Views: 26
  • be3.jpg
    59.3 KB · Views: 22
  • be2.jpg
    105.4 KB · Views: 16
  • be1.jpg
    88.9 KB · Views: 12

malcolm

ACCESS: Restricted
Joined
Sep 2, 2009
Messages
27
Reaction score
2

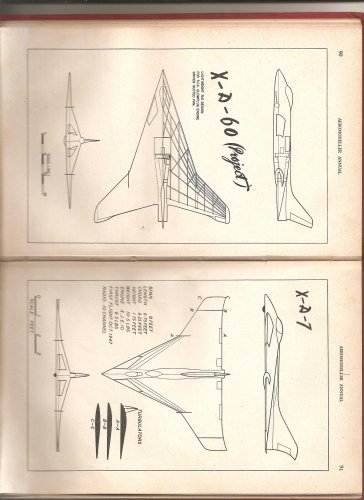

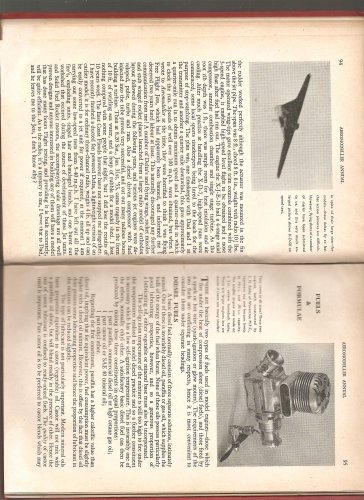

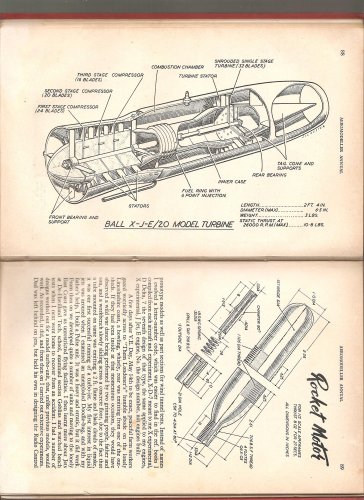

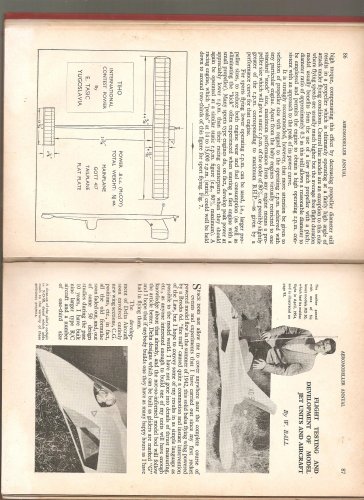

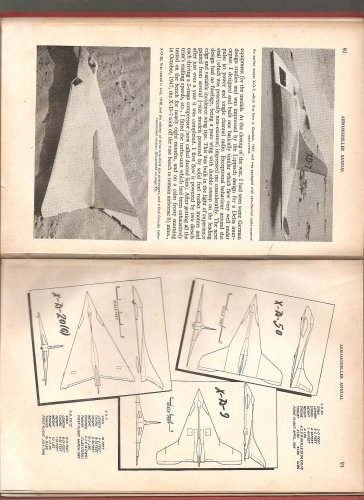

Seeing the amazing images reminded me of an article in the Aeromodeler Annual of 1954. After much searching I found this old tome and the enclosed article. To my amazement the designs were very similar to the xd110 above, and even carried the same model prefix (xd--). Any connection I wonder. I attach the article for your reference. (mods - please delete or relocate if felt appropriate)

Malcolm


Attachments

  • am3 001.jpg
    am3 001.jpg
    1.1 MB · Views: 58

malcolm

ACCESS: Restricted
Joined
Sep 2, 2009
Messages
27
Reaction score
2
and


Attachments

  • am5a 001.jpg
    am5a 001.jpg
    983.3 KB · Views: 33
  • am4a 001.jpg
    am4a 001.jpg
    840.6 KB · Views: 48
  • am2a 001.jpg
    am2a 001.jpg
    818.2 KB · Views: 47
  • am1a 001.jpg
    am1a 001.jpg
    887.1 KB · Views: 33

Hs132

I really should change my personal text
Joined
Feb 14, 2014
Messages
9
Reaction score
0

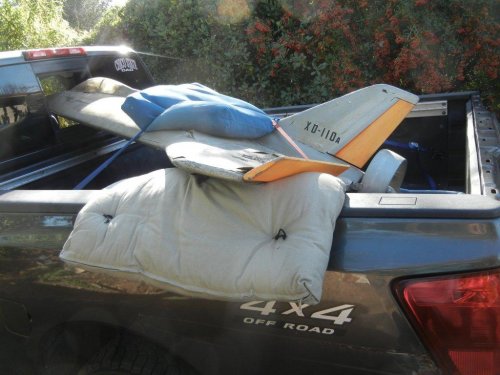

Hello Malcolm, excellent info. Best, Bill


Attachments

  • pickup.jpg
    117.9 KB · Views: 33

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,384
Reaction score
532
Thanks for all the wonderful photos. What I love best about this place, no aircraft too esoteric.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

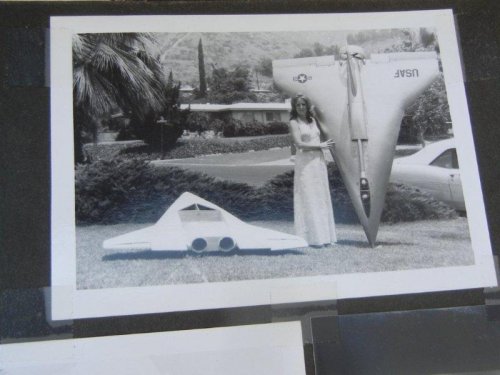

So XD-110b was a jet powered model? Left side one?


Attachments

  • e15.jpg
    108.5 KB · Views: 20
  • e14.jpg
    113.8 KB · Views: 18
  • e3.jpg
    50.1 KB · Views: 22
  • benson4.jpg
    64 KB · Views: 21

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

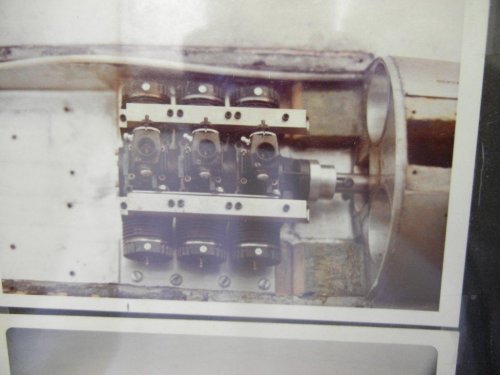

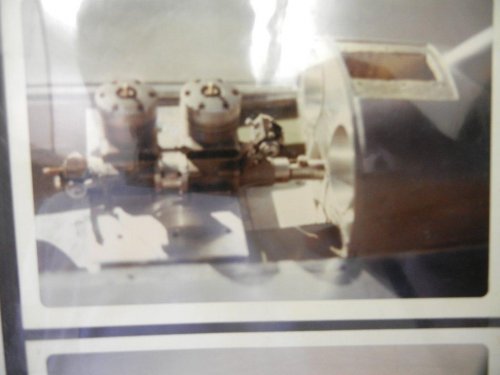

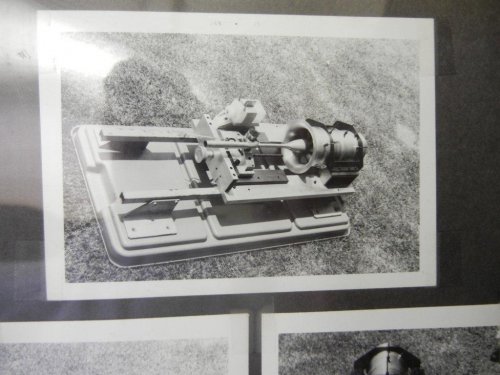

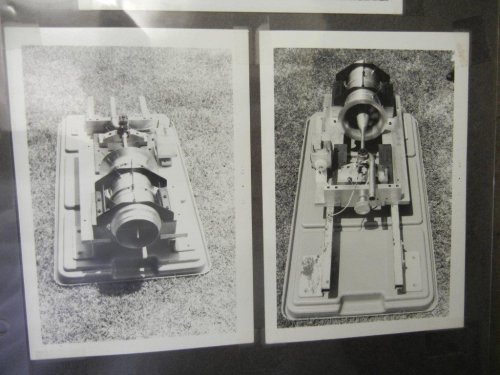

There were two type piston engines?
Jet engine with starter?


Attachments

  • e7.jpg
    57.5 KB · Views: 16
  • e8.jpg
    72.5 KB · Views: 16
  • be6.jpg
    63.3 KB · Views: 17

mgat2420

ACCESS: Restricted
Joined
Feb 9, 2014
Messages
5
Reaction score
0

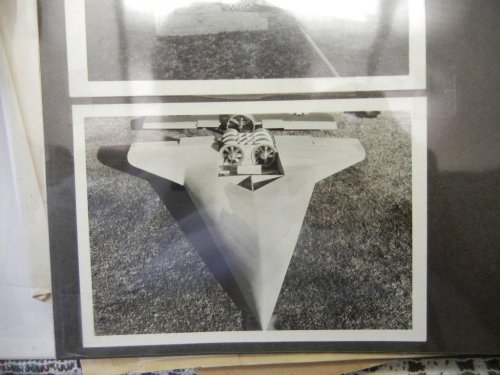

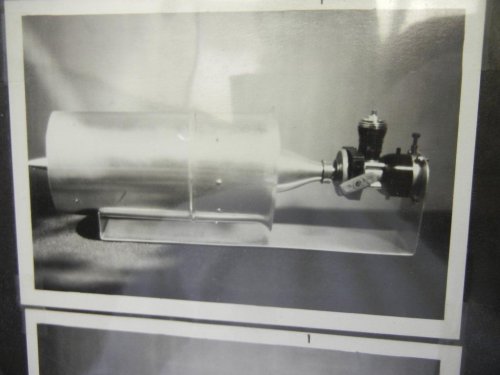

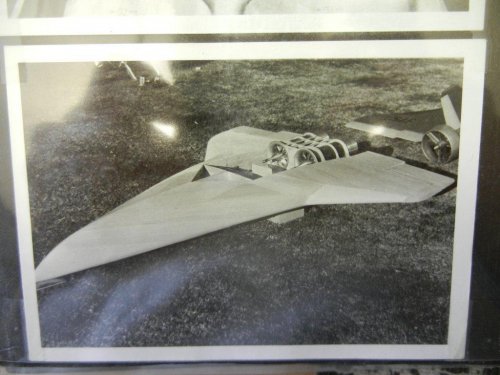

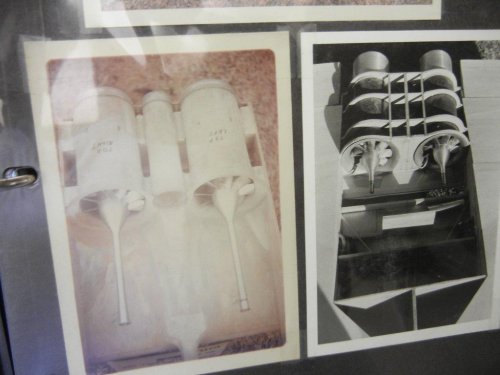

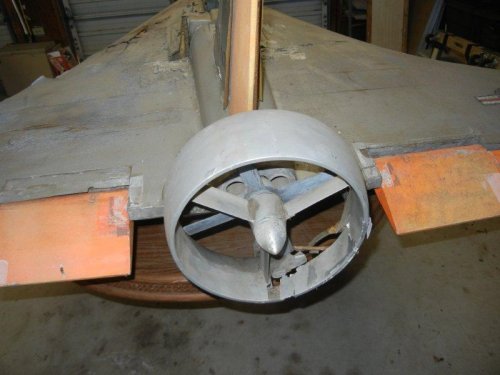

Looks like there were two versions: one with a pusher propeller and another with twin ducted fan engines.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539

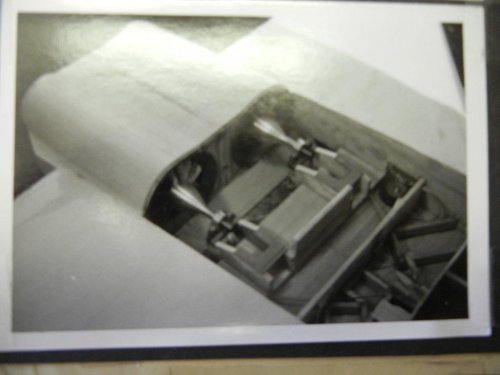

Oh you mean piston engine drive ducted fan? It isn't a gas turbine engine?


mgat2420

ACCESS: Restricted
Joined
Feb 9, 2014
Messages
5
Reaction score
0
blackkite said:
Oh you mean piston engine drive ducted fan? It isn't a gas turbine engine?

Correct. I was able to find a little more info about that model here: http://www.twitt.org/baxter.html.

From the website:

The third prototype was a scale test model in 1976 as a two seat STOL advanced trainer, non-stalling, double wing delta with sealed control surfaces. Radio controlled command guidance. Conventional take-off and landing using retract tricycle landing gear. A later version with twin rotoducts buried in the aft fuselage was scheduled after 1976. It appears that the rotoduct is a very efficient means of propulsion. I take it is a number of multiblade props, one behind the other like axial flow turbine flood pumps.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,373
Reaction score
2,539
Wow thanks. You are right. But if so, I feel piston engine was little small compared with XD-110 tail popeller model, don't you think so?


Attachments

  • be6.jpg
    63.3 KB · Views: 115
  • e8.jpg
    72.5 KB · Views: 100
