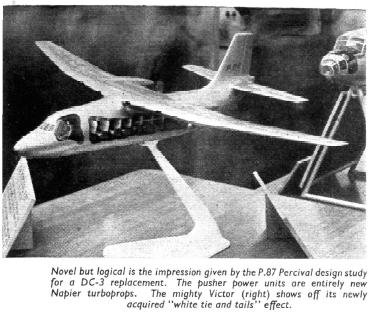

Hi,

the Percival P.87 was intended to replace the Douglas DC-3 and
powered by two pusher engines.
http://www.flightglobal.com/PDFArchive/View/1953/1953%20-%201203.html
http://www.flightglobal.com/PDFArchive/View/1953/1953%20-%201206.html


Attachments

  • P.87.JPG
    27.8 KB · Views: 523

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379

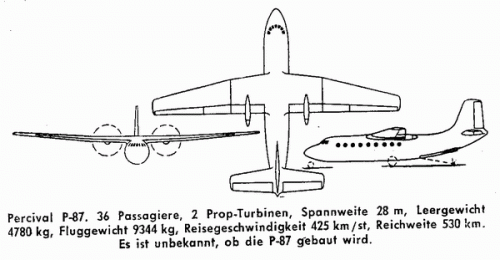

3-view from "Der Flieger" 1953:


Attachments

  • P-87.GIF
    37.5 KB · Views: 501

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,366
Artist impressions of the Hunting Percival P.87 from Flight. The engine choice and arrangement was quite odd: (from Flight 16 April 1954, p87)

P.87 ... designed around a pair of Napier low-pressure gas-producer engines, probably Oryx. They would be mounted in the wing with leading-edge intakes, a duct leading the hot gas to power turines mounted at the rear. These turbines would extract nearly all the energy from the gas-flow, so that the resulting efflux would contain little heat or kinetic energy. As a result, the efflux could be ejected close to the propeller blade-roots without the later coming to harm; at the same time, the installation should prove unusually quiet."

In different issues of Flight, the P.87 is described as a C. F. Toms-designed 36-seater with its lowest cost curve "at the 300-mile mark". [18 September 1953]

Elsewhere, specs are given as weighing in at 26,000 lb, TO 900 yd, 36 pax on short routes, 36 pax on longer runs. Hunter Percival estimated "that a tractor installation would add 600ft to the take-off length". [11 September 1953] Earlier, gross weight was given at "25,000 lb and a typical cruising speed of 265 m.p.h." [03 September 1953]


Attachments

  • hunting-percival-p87.jpg
    38.5 KB · Views: 417
  • hunting-percival-p87-art-18sep53.jpg
    49.8 KB · Views: 407

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,793
Reaction score
1,366

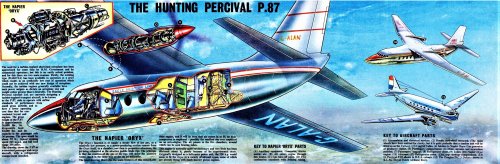

Forgot to mention reported colour artwork. Did anyone bid on the three 1955 issues of Three Eagle Comics on EBay recently? It'd be nice if that engine arrangement was visible in a cutaway ;D

Three Eagle Comics Vol 6 Nos 17 (29 Apr'55) with a centre colour section featuring "Hunting Percival P.87 - with the Napier 'Oryx' jet engine".


Johnbr

ACCESS: Top Secret
Joined
May 6, 2007
Messages
758
Reaction score
202
:)


Attachments

  • Percival p-87.jpg
    Percival p-87.jpg
    1.3 MB · Views: 265
  • Percival P74.jpg
    Percival P74.jpg
    327.4 KB · Views: 106
