Hi,

in 1930,the French airforce issued a competition for a Colonial
aircraft,13 aircraft and projects were submitted to it,from them;
Nieuport NiD-590,NiD-690,Bloch-120,SPCA-81 and Dewoitine.
Does anyone know the other projects,or know anything about
Dewoitine aircraft ?.


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,085
Reaction score
452
In Nieuport 1909-1950 (Docavia Editions Larivière) maybe your source ?
It is wrote too that there were two SPCA : one with one engine and one with 3 engines.

In Les avions Dewoitine (Docavia éditions Larivière)
It is wrote that the challenger for Dewoitine was the D.43, later D.430, with three 300 hp Lorraine 9 Na "Argol" D radial engines. It was a derivative of the D.31 for civil transport.
The D.430-01 prototype flew for the first time on the 02/10/32.
Max speed : 262,2 km/h
Max weight : 5375 kg
Its cost was too high and the Bloch 120 won the contest.

The D.430-01 was foreseen to become the D.432-01 with three diesel engines Clerget 9 T (300 hp). The work was made in Toulouse in 1937, but nobodys knows what was the following story of this plane when it had gone from Toulouse.

There was a derivative D.431 project for civil air transport with the same engines or 3 Gnome Rhone Titan Major 7 Kd with the same power or 3 Hispano Suiza 9 Qr with 420 hp.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
Thank you very much my dear Deltafan.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
I got some tenders;

Nieuport NiD-590,NiD-690,Dewoitine D-430,Bloch-120,Bernard-160,
Bernard-161,Loire-11,Potez-40,SPCA-81,Romano R-16 and Lorraine-
Hanriot LH-70,also may be SPCA-90.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
213
Re: Weymann 66 colonial trimotor twin-boom biplane prototype......

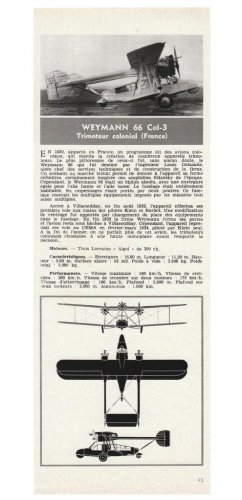

Dear Hesham, one of the entrants in the 1930 Colonial Aircraft Competition was the Weymann 66. Here is an article in French about the Weymann 66 which began flight-testing in August 1933. As you can see it was built, flown and flight-tested; so it isn't an unbuilt "project" (Moderators; should I have put this in "Aerospace" instead?)......

The article comes from the 15th June 1969 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Weymann 66 colonial trimotor biplane prototype - Aviation Magazine International - No.jpg
    Weymann 66 colonial trimotor biplane prototype - Aviation Magazine International - No.jpg
    85.4 KB · Views: 634

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
hesham said:
I got some tenders;

Nieuport NiD-590,NiD-690,Dewoitine D-430,Bloch-120,Bernard-160,
Bernard-161,Loire-11,Potez-40,SPCA-81,Romano R-16 and Lorraine-
Hanriot LH-70,also may be SPCA-90.


From my dear Tophe,


Loire-20 was a project for Colonial duty powered by two 400 hp Hizpano-Suiza engines,
I think it was also submitted to this contender.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106
HI all

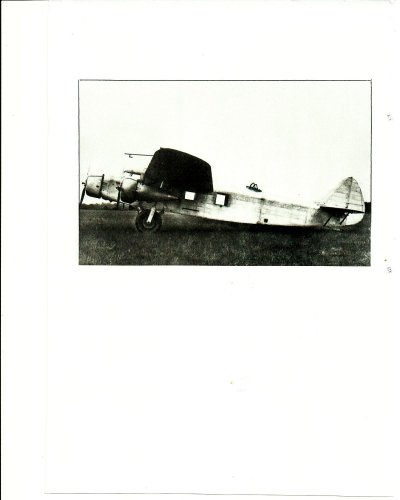

From "aviafrance.com"


Attachments

  • dew1.jpg
    380.8 KB · Views: 379
  • dew2.jpg
    186.7 KB · Views: 340

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
106

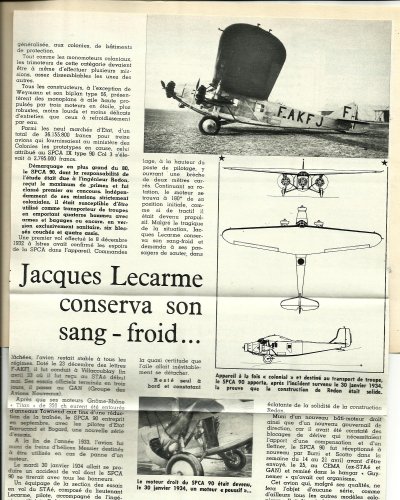

From an old "aviation magazine


Attachments

  • Scan.jpg
    633 KB · Views: 326

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057
hesham said:
I got some tenders;

Nieuport NiD-590,NiD-690,Dewoitine D-430,Bloch-120,Bernard-160,
Bernard-161,Loire-11,Potez-40,SPCA-81,Romano R-16 and Lorraine-
Hanriot LH-70.


From my dear Toura,


anther two tenders were involved,the Farman F.196 aircraft and Weymann Wel.40 Project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,291
Reaction score
4,057

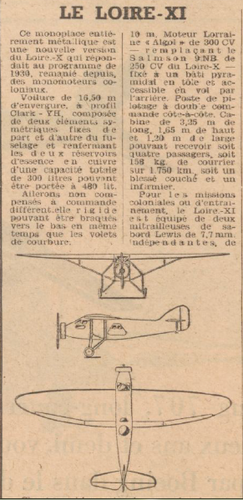

Files 11/5/1957,

the Loire 11.


Attachments

  • 1   11-5-1957.png
    1 11-5-1957.png
    337.1 KB · Views: 37
